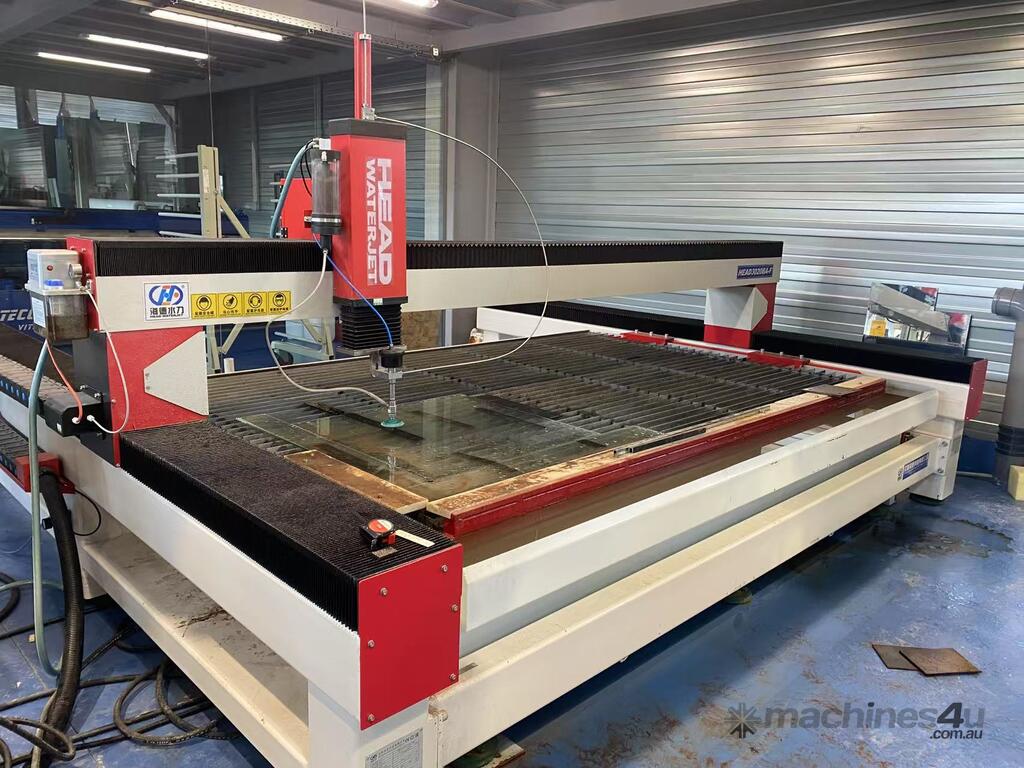

HEAD 3020 5 Axis Waterjet Cutter (3m x 2m) Cost-Effective Industrial

HEAD Waterjet’s metal cutting machine utilizes advanced waterjet technology, enabling precise bevel cuts of 45~60 degrees and seamless edges, making metal components more refined and durable. Waterjet cutting also minimizes material waste and enhances productivity. For applications requiring high precision and strength, such as metal fabrication or industrial parts, waterjet-cut metal offers superior results.

Equipment composition

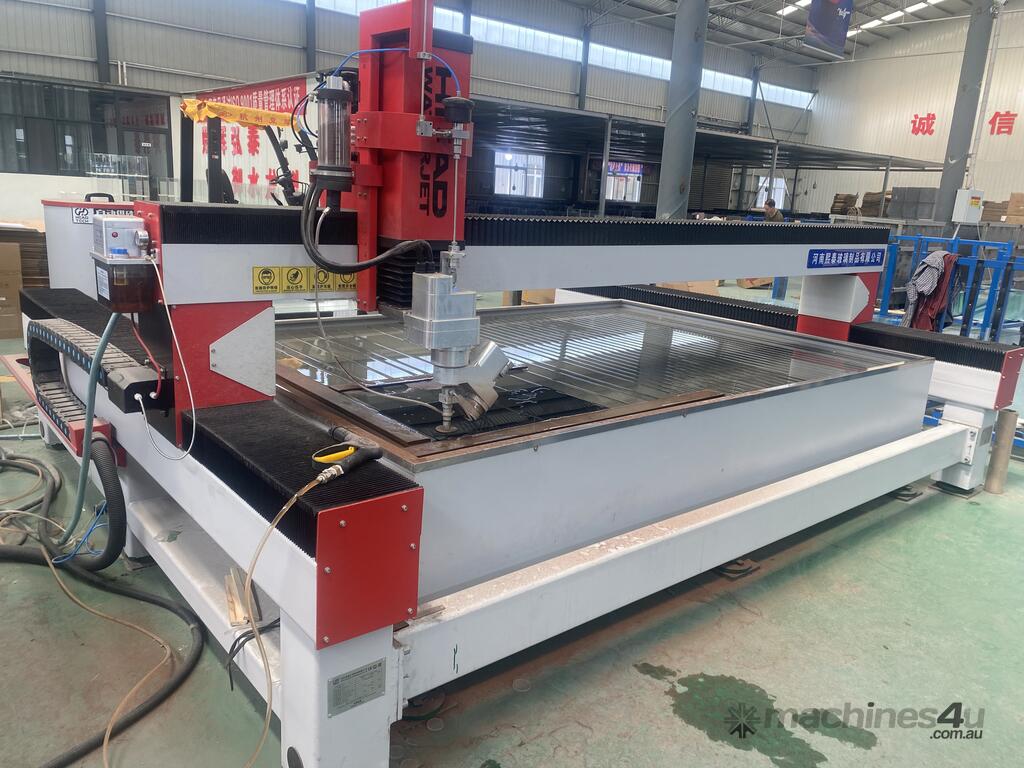

HEAD3020SA CNC cutting platform, CNC system, High-pressure pump?Cutting head system (optional 5AB/5AC five-axis cutting head)

Stable base
Pyramid-style weight distribution ensures stable overall structure
Strong framework
The X-axis features a composite structural design with partitioned internal supports, significantly enhancing resistance to bending and stress concentration, with a wall thickness of 8mm
Precise transmission
Ball screw guide rails, 3D dual rails, cutting accuracy of ±0.1mm
Sturdy and durable
Separate water tank design, with a load-bearing capacity of up to 500KG/m²
Comprehensive protection
Multiple protection designs extend service life and ensure stable operation
Technical Parameters

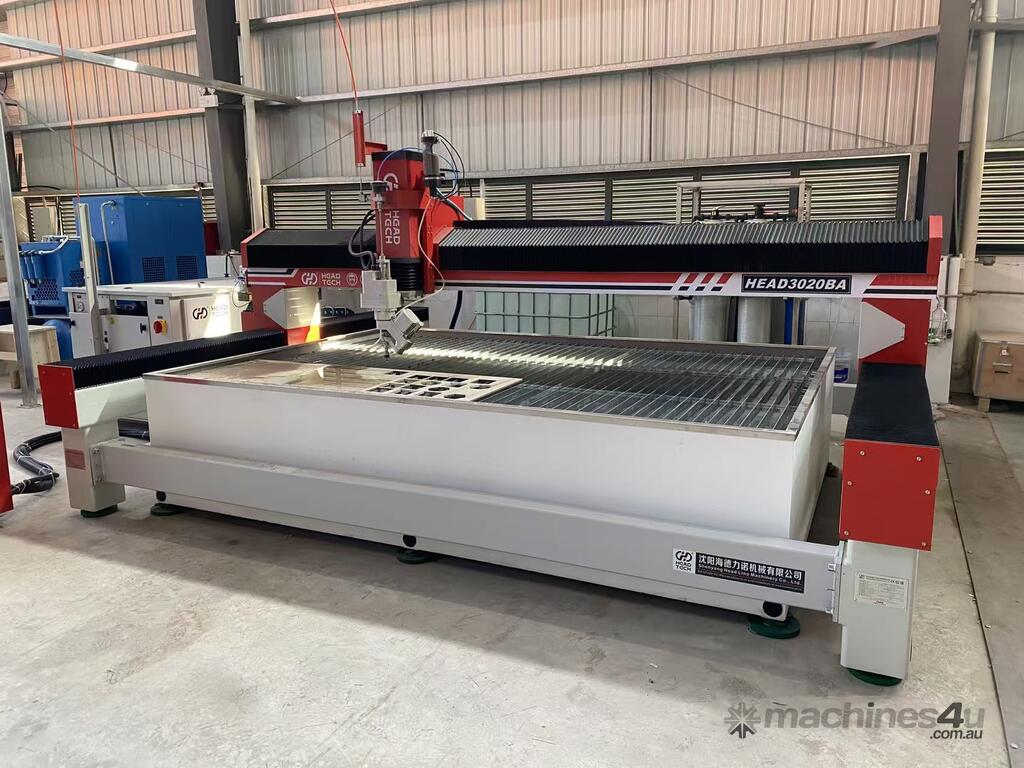

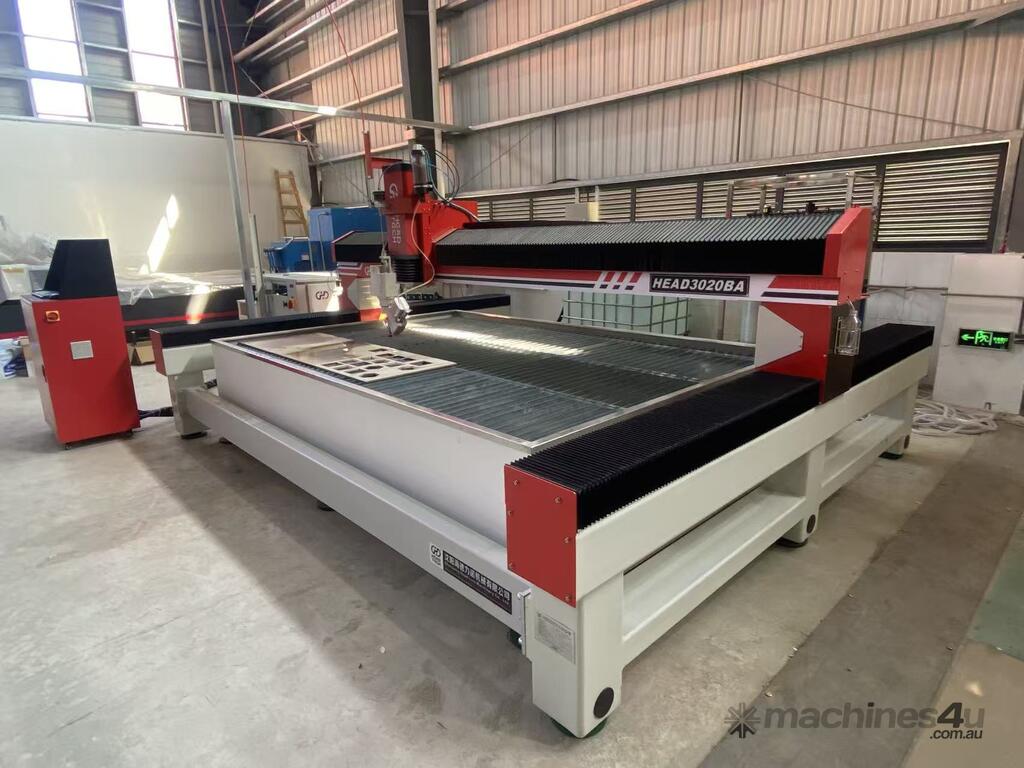

Model HEAD3020SA
Working area 3000*2000mm
Z-Axis Travel: 150 mm
Cutting Accuracy: ±0.1 mm
Repeat Positioning Accuracy: ±0.05 mm
Power Supply: 220/380/400/415/480 V, 50/60 Hz, 3-Phase
Repeat positioning accuracy ±0.03mm
Platform load-bearing capacity 500kg/
