HEAD Glass Fibre Reinforced Plastic Water Cutting

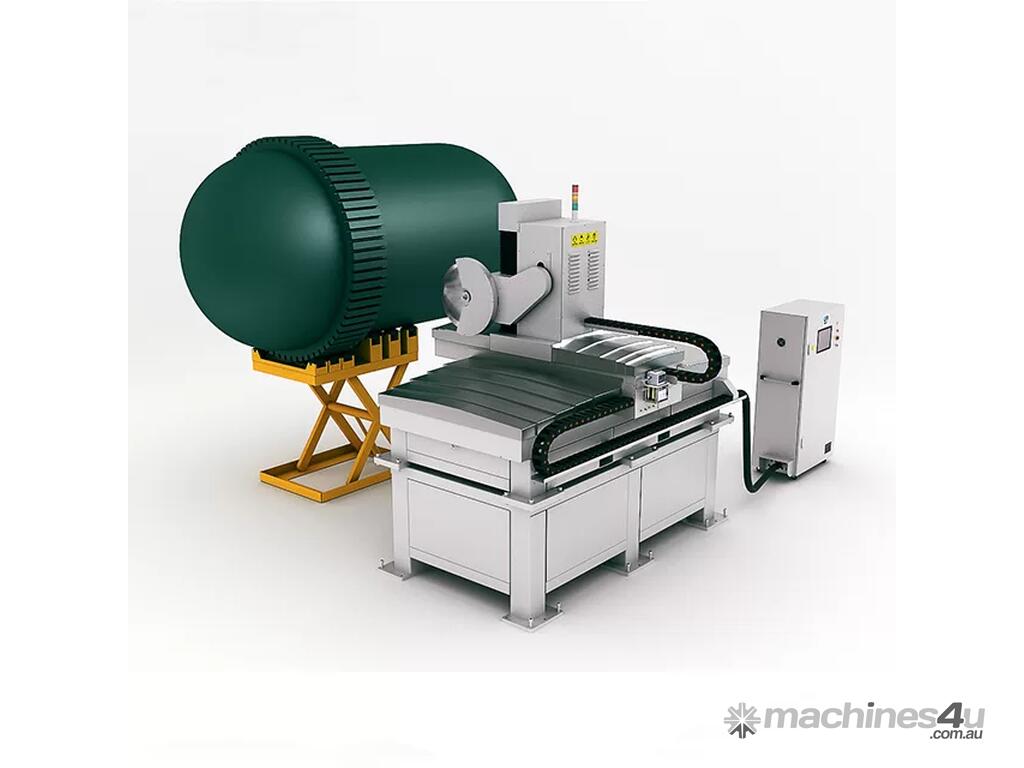

HEAD Glass Fibre Reinforced Plastic Water Cutting Machine

Waterjets cut fiberglass panels without delaying the cutting process because there is no need to change tools. With blades, since fiberglass is very hard, the blades become dull and replacement takes time and reduces productivity. There are virtually no limitations to water jet technology, including cutting fiberglass panels, paper, plastics, insulation, rubber, corrugated cardboard, and harder materials such as metal and stone.

Spindle parameters
Main part X-Axis Y-Axis Z-Axis
Motor
2 kW (2.68hp) 2 kW (2.68hp) 2 kW (2.68hp)
Travel
900mm (2.95? ) 1500mm (4.92? ) 100mm (0.33? )
Dimensions
3m*2.2m*3m (9.84’*7.22’*9.84? )
Total weight 5500 kg

Milling cutter part
Milling spindle motor 3 kW (4.02hp)
Milling cutter diameter 33mm (0,108? )
Length 60mm (0.197? )
Feed amount 1-5mm (0.04”-0.2” )

Saw blade part
Saw blade diameter 400-500mm (1.31-1.64? )
Saw blade thickness 5-8mm (0.2”-0.31”)
Motor 3kw-5.5kw
Speed 420mm/min
