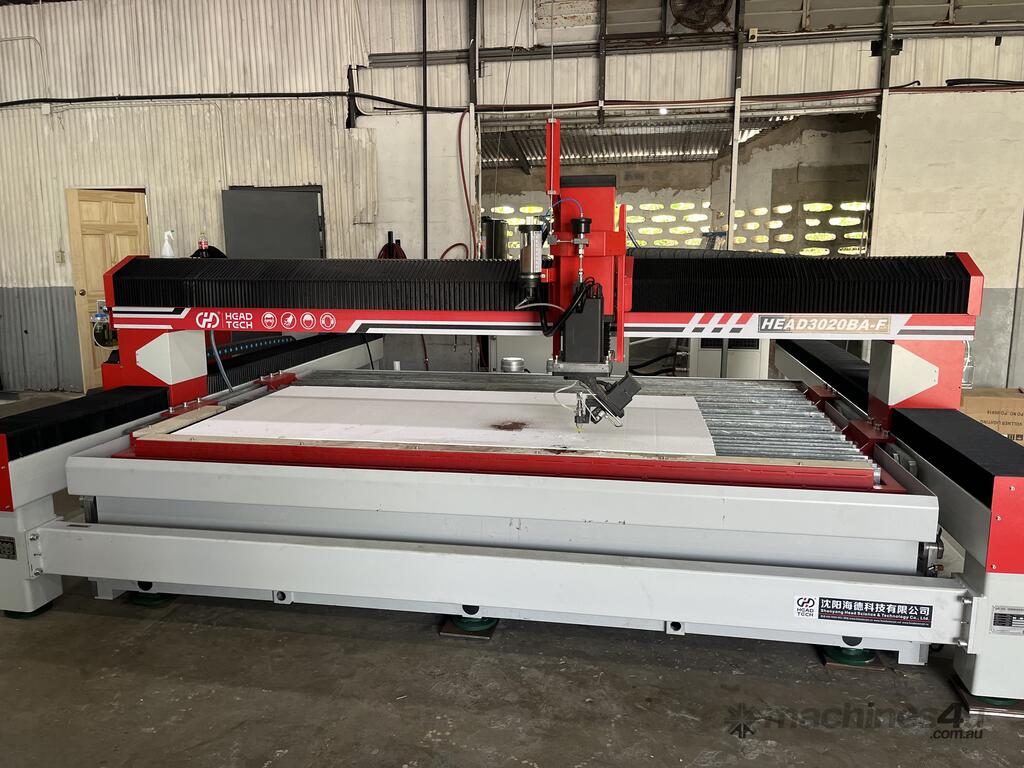

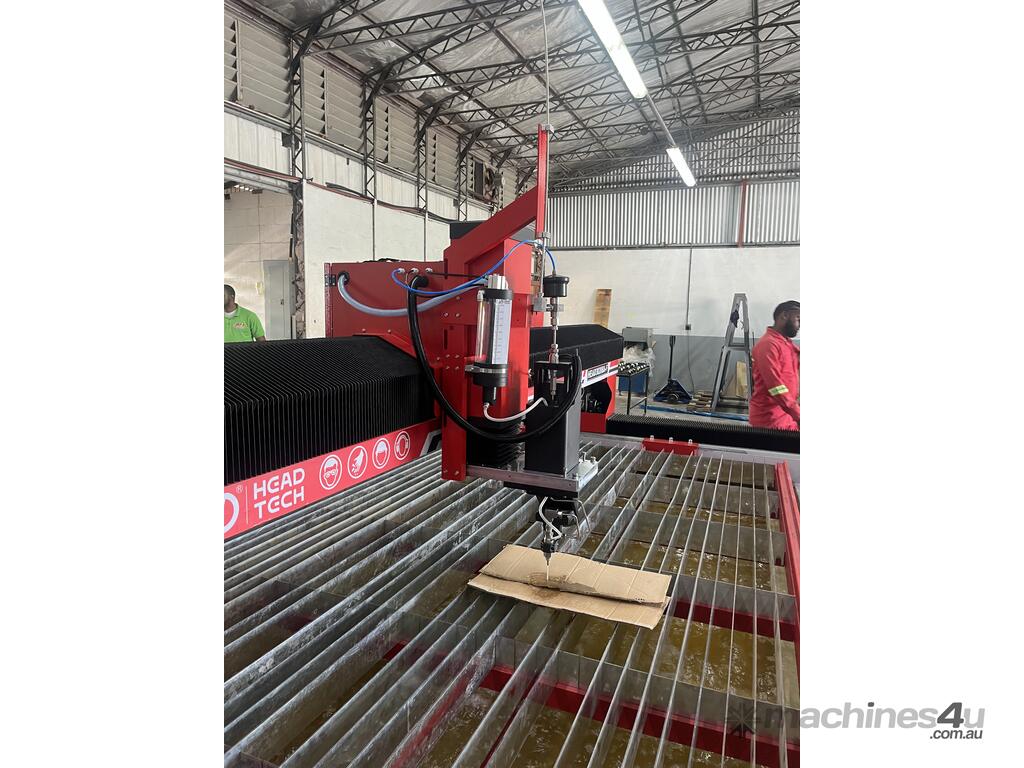

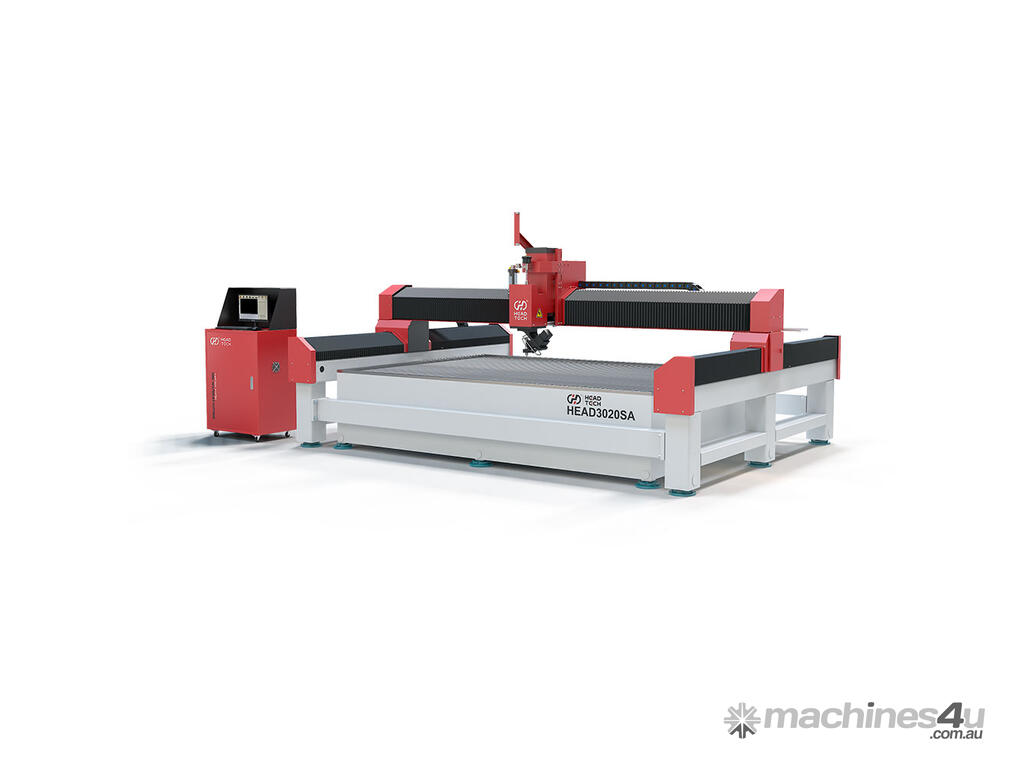

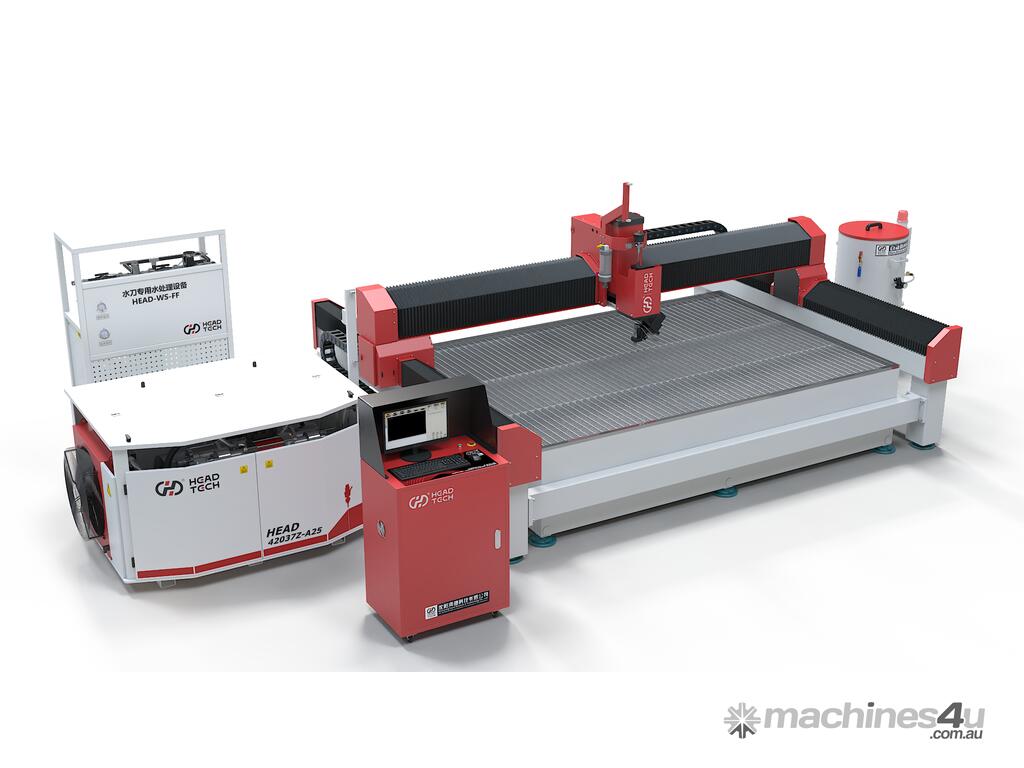

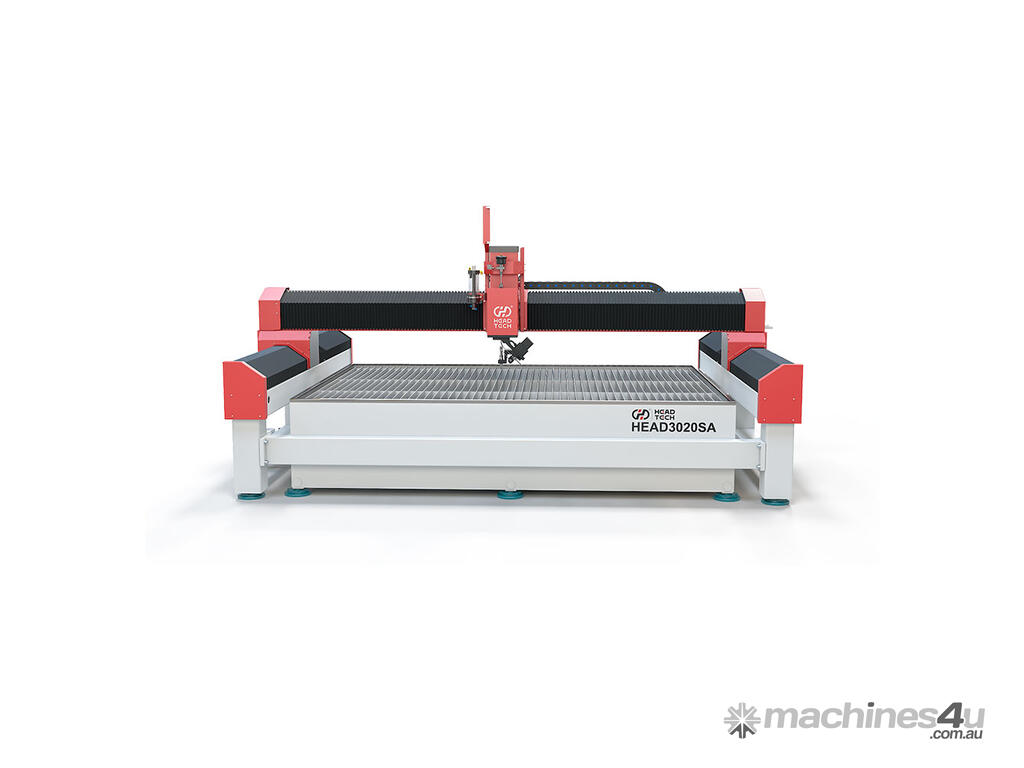

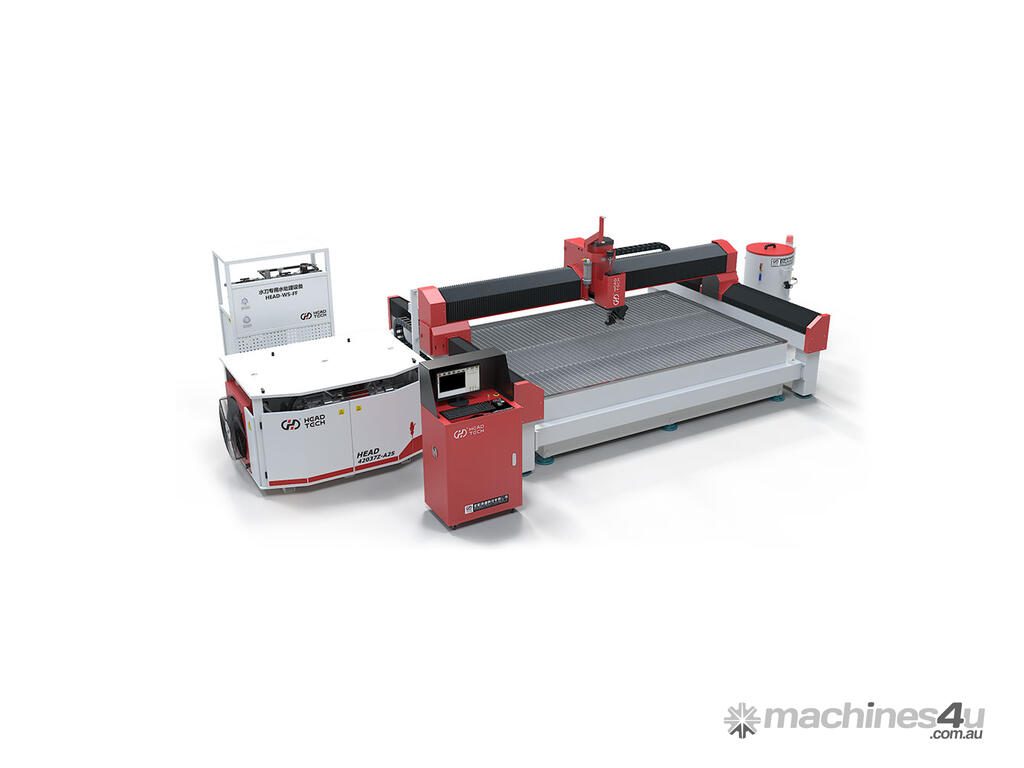

HEAD Waterjet Cutting Machine
HEAD Waterjet machines are designed for stability, precision, and durability, delivering reliable performance across industries such as metal, stone, glass, and composites.
Product Highlights
Rock-Solid Structure: Pyramid weight distribution and 5mm steel frame ensure stability and rigidity.
Precision Transmission: Dual-track XYZ system with premium ball screws and linear guides guarantees accuracy.
Heavy-Duty Platform: Independent water tank with reinforced grilles supports up to 1500 kg/?.
Safety & Efficiency: Fully enclosed dust-proof protection, ergonomic console, and optional safety systems.
High Cost-Effectiveness: Powerful performance with reduced maintenance and superior ROI.
Technical Specifications
Working Area: 3000 × 2000 mm
Z-Axis Travel: 150 mm
Cutting Accuracy: ±0.1 mm
Repeat Positioning Accuracy: ±0.05 mm
Drive Type: High-precision Servo
Power Supply: 220/380/400/415/480 V, 50/60 Hz, 3-Phase
Platform Load Capacity: 500 kg/? (optional: 1500 kg/? for heavy-duty use)
Max. Pressure: 420 MPa (optional: 500 MPa / 600 MPa)
Cutting Thickness Capacity: Up to 200 mm (depending on material)
Auto Abrasive Supply System: 200 kg (optional: 400 kg / 1000 kg)
Why Choose HEAD Waterjet?
High stability, even at high speeds
Superior cutting accuracy and smooth edges
Heavy-duty load-bearing options for industrial use
Flexible high-pressure configurations for different materials
Automated systems to reduce downtime and improve efficiency
