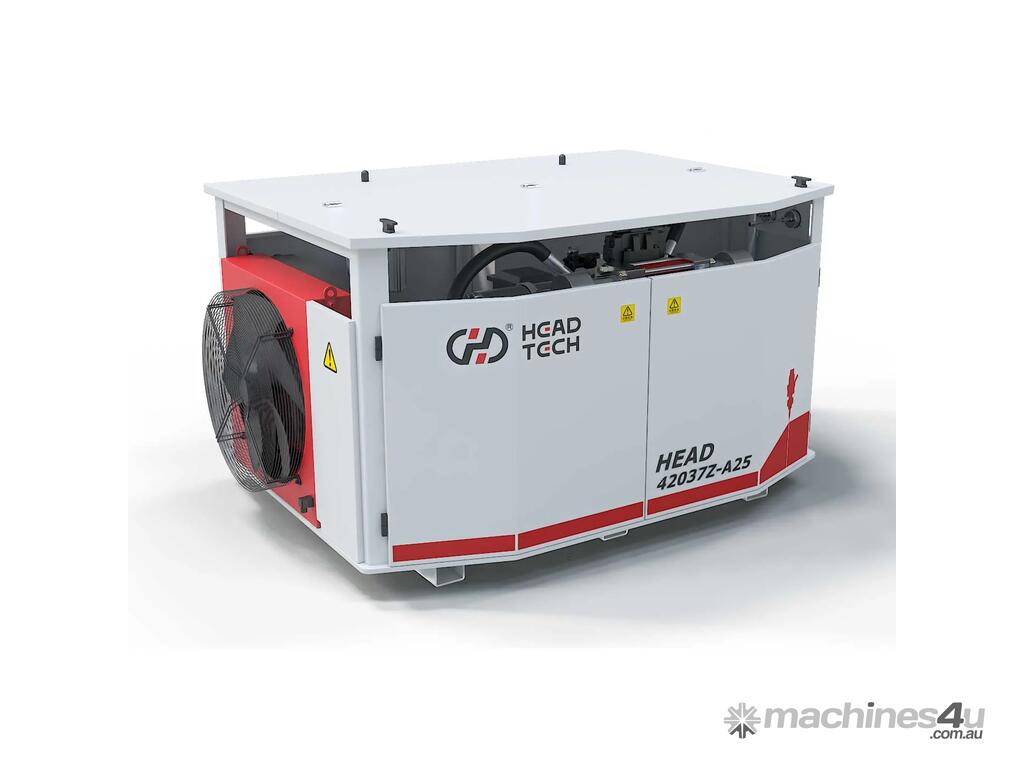

HEAD Waterjet Intensifier Pump

HEAD Qingfeng Waterjet Intensifier Pump upgraded version, independent circulation air cooling system and high-pressure pump integrated design, oil pump flow increased by 27% to 119L/min, rated pressure 420MPa. Suitable for most customers. The best choice for cost performance.

Equipment Advantages
Liquid-to-liquid boosting technology: stable and efficient pressure increase, imported parts guarantee long-term stability, worry-free operation!
Military-grade material: made of 316L seamless steel pipe, anti-yield, anti-stretching, corrosion-resistant, durability increased by 50%!
Extremely long maintenance-free: innovative “TDM” accumulator, life span exceeds 5000 hours, save worry, labor and money!
Large-capacity buffer: 1.2-liter accumulator, reduce pressure loss, increase efficiency by 20%!
Beide brand motor: cast iron body, 10% energy saving, low noise and low vibration, rock-solid performance!
80 pump super large flow: 119L/min super power, reduce pipeline resistance, efficiency soared by 30%!
ISO international standard oil pipe: resistant to pressure and fluctuation, leading system stability in the industry!
Intelligent high and low pressure switching: adapt to different materials, finer cutting, 50% reduction in roughness! (Exclusive for A25+ version)
Double insurance for pressure relief: high and low pressure water pressure relief valve, no dead angle for safety protection! (A25+ version optional)
7 kinds of intelligent protection:fault alarm, oil temperature monitoring, low pressure shutdown, motor protection, liquid level warning, filter element blockage warning, phase sequence protection, all-round protection of equipment!
Automatic shutdown mechanism: abnormal situation response in seconds, equipment damage risk is zero!


User Value
Stable and efficient: Continuous operation without pressure fluctuations, smoother production rhythm.
Zero maintenance cost: Long equipment life, maintenance costs drop, and return on investment doubles!
Safety first: eliminate accidental losses, production safety factor is full!
Quick diagnosis: accurate problem location, maintenance efficiency increased by 70%!
Water quality guarantee: eliminate secondary pollution, equipment life and cutting quality are both improved!
Low maintenance cost: filter element is efficient and durable, and the replacement frequency is reduced by 60%!

Technical Parameters
Rated pressure 420Mpa?60000psi)
Working pressure 50-380MPa 7200-55000psi?
Main motor power 37KW(50hp)
Air cooler power 0.78KW
Dimensions 1900*1350*1100
Weight 1.3T
Maximum displacement 3.7L/min
Pressure ratio 1:20
Maximum oil pump flow 119L/min
High-pressure water pipe specifications ?3/8?
