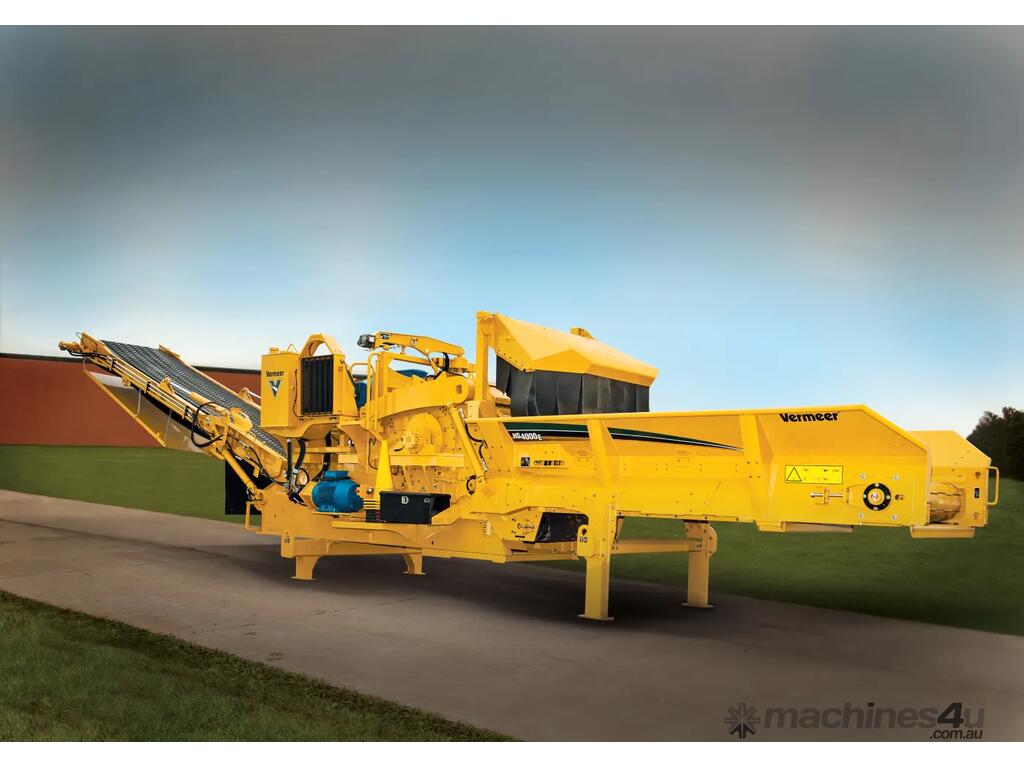

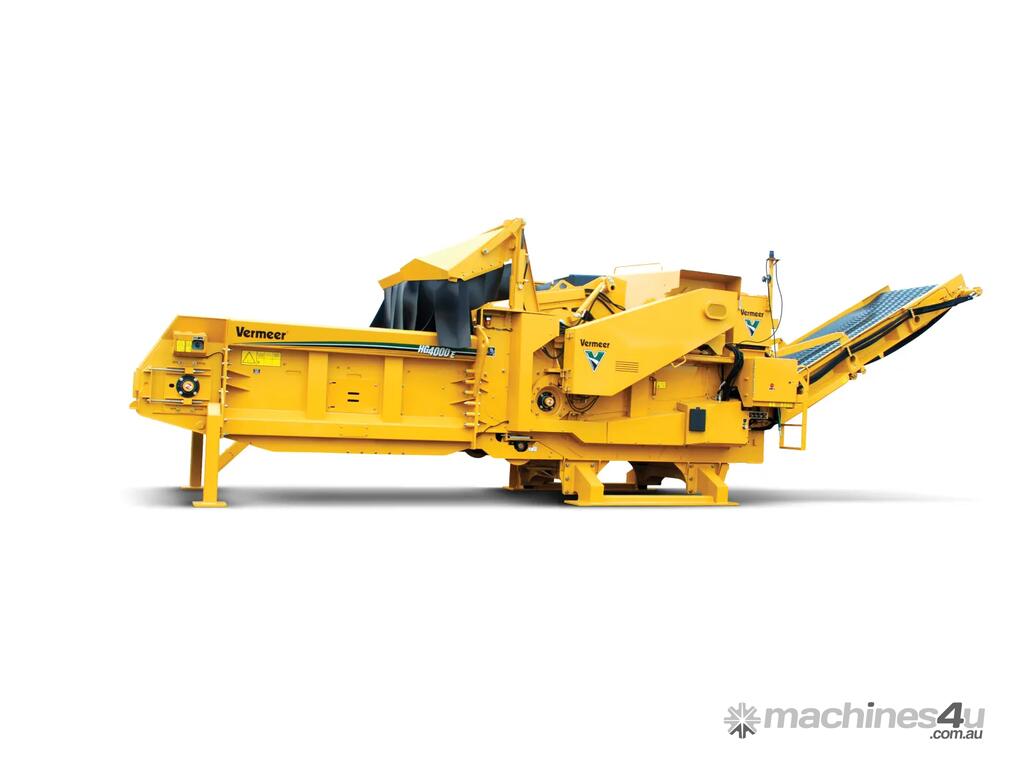

HG4000E Horizontal Grinder

Efficient. Reliable. Versatile.
The HG4000E is a high-performance electric horizontal grinder designed for municipalities, utilities, and commercial green waste operations. Engineered to process wood debris and green waste efficiently, it delivers consistent throughput with reduced emissions and minimal downtime. Whether installed indoors or outdoors, as a standalone unit or integrated into a larger waste reduction system, the HG4000E adapts to a wide range of grinding applications and electrical grid configurations.

Available to Western Australia & Northern Territory
Contact Us Today for a Quote

Key Features:
Adjustable Feed Roller Downforce
Variable downforce allows operators to optimize performance for incoming material, reducing wear and extending component life. Remote control adjustment adds convenience.

Bolt-In Replaceable Wear Parts
Wear plates on the anvil, mill box, and lid can be replaced without welding, maximizing machine longevity and simplifying maintenance.

Box Beam-Style Anvil
Bolt-fastened design with replaceable wear surfaces for economical replacement and improved serviceability from ground level.

Chip Drum Option
Knife adjustability from 1/8” to 1” lets operators produce a range of chip sizes with a single drum configuration.

Dual Screens
Reversible and interchangeable screens maximize processing efficiency and wear life while providing flexibility in end-product size.

Independent Mill Lid Access
Mill lid opens without interfering with the feed roller, streamlining maintenance and reducing service steps.

High-Torque Infeed Chain Drive Motor
Low-speed hydraulic drive motor improves pull-in force and reduces maintenance compared to planetary or hydraulic configurations.

Minimized Infeed Chain Gap
Dome-top chain with cleats reduces gap between chain and anvil, improving product uniformity.

Series II Duplex Drum with Two-Bolt Grinder Tips
Features 9 hammers and 18 reversible grinder tips for reduced maintenance and extended drum life. Patented design enhances inertia and balance.

Motor Control Panel Options
Soft-Start Panel: Limits start-up current, allows brief periods of extra power, and connects to line power.

VFD Panel: Limits amperage spikes, provides full torque down to zero rpm, and allows fine-tuned speed control.

Thrown Object Deflector (TOD)
Hydraulically adjustable cover reduces flying debris and improves operator safety in confined work zones.

WEG Electric Motor
WEG W22 fan-cooled 500 HP (373 kW) inverter-rated motor: low maintenance, enclosed for protection, globally supported for parts and service.

Specifications
Weight: 17,644.7 kg
Power: 50 hp (37 kW)
Width: 8.4? (2.6 m)
Fuel Type: Electric

Get Performance and On-Site Power with the HG4000E.
Designed for urban green waste processing, this electric grinder delivers reliability, efficiency, and flexibility for a variety of applications, ensuring your operation runs smoothly while reducing emissions and maintenance costs.
