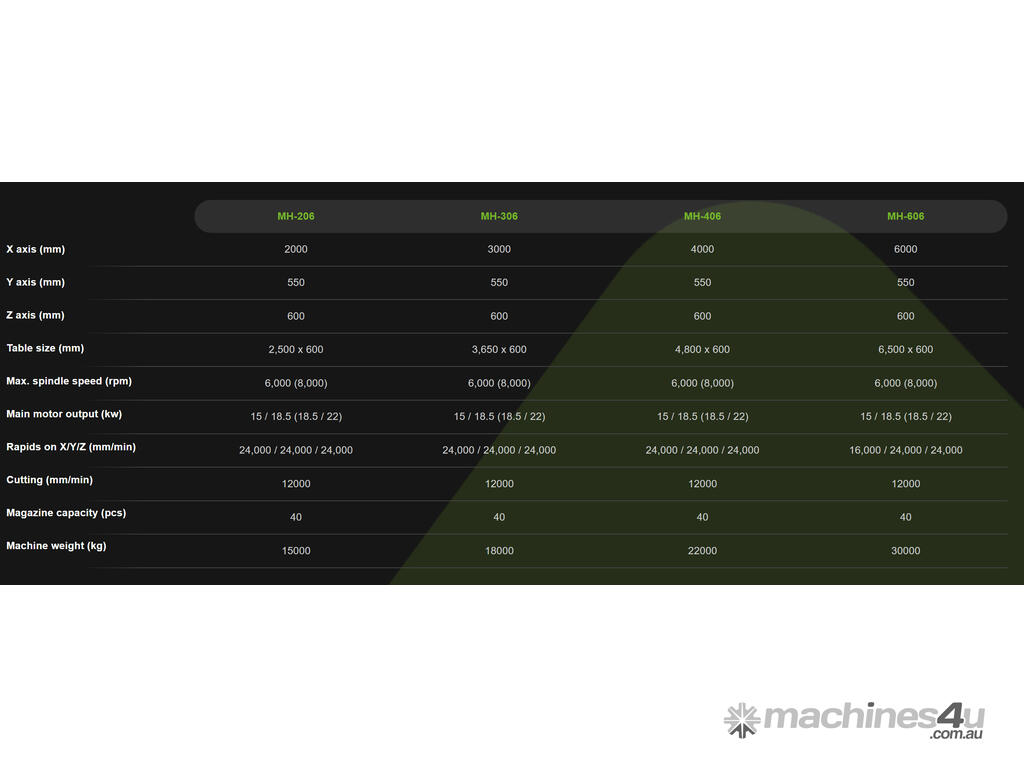

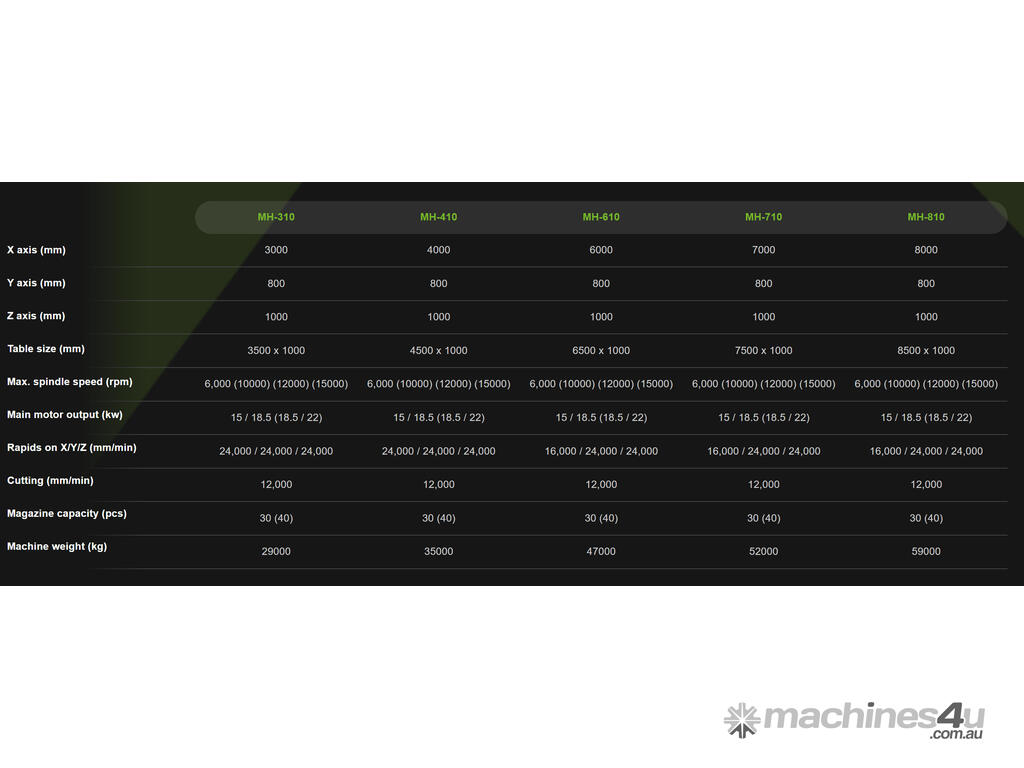

HMC Moving Column Fixed Bed X Axis = 2000 to 8000 mm

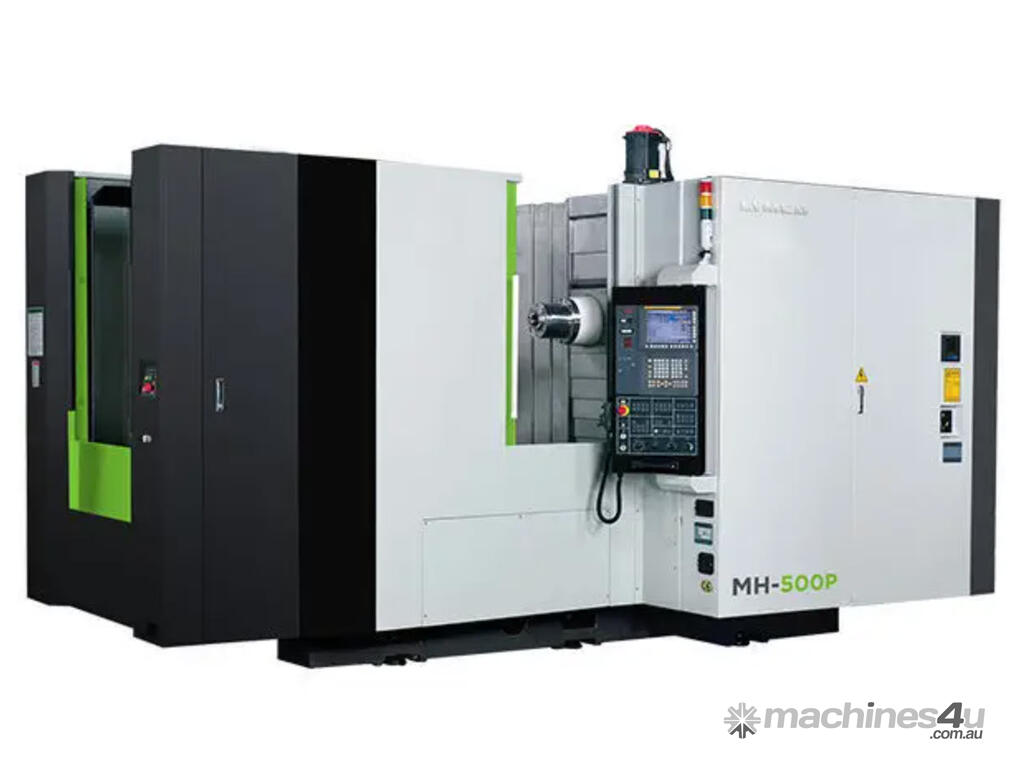

The MH series traveling column machining centers are designed for the application of multi-function horizontal milling & machining solutions. This machining center series could be equipped with Fanuc, Heidenhain, Siemens, or Mitsubishi controls. The major benefit of this fixed table, column traveling machine structure is to have consistent production of long parts and workpieces. The fixed working table allows effortless utilization of various fixtures for easy tool setting. The increase in productivity will enable shops to quickly turn over parts. The horizontal spindle orientation was known for superior chip management and evacuation.
To solve the challenge of high product mix and low volume, LYMCO traveling column machine enables the processing of multiple workpieces at a time. The standard zone splitter as well as standard CNC preset multiple work zone allow loading and unloading simultaneously while the machine cuts at a different work zone.

Different customers had diverse needs. For example, the detachable fixed working table will allow a floor type configuration, a dual rotary table as a dual station milling center, or even an extended length as a screw manufacturing machine.

Customer aiming at high productivity could utilize the stationary nature of the work table to implement advanced automation solutions from automated inventory control, guided resupply robots, to autoload and unload, cutting, and inspection.

Optimized for long parts to be cut in horizontal tooling position
The MH moving column machining center has the 3 axis all traveling on and along the column design. It is optimal for long and narrow parts within 800mm cutting width. And the part's length could go up to 8 meters long. When table did not act as one of the traveling axes, the part will receive maximum stability by fixing to the table.

Ideal for automation & pendulum machining
The horizontal spindle orientation opens up possibilities for different kinds of production parts. With easy chip management and friendly part clamping features of the horizontal machining setup, MH moving column machine offers a wide range of application flexibility.
The versatile table detachable design allows various fixturing and auto clamping technologies to be applied to the milling solution. Due to the stationary nature of the fixed working table, automation for parts replacement and storage management were simplified. Standard physical zone splitter and CNC preset multiple work zone setting provides a non-stop part swap to maximize machining hour.

Efficient tool change
The tool magazine and cam box unit are sitting on machine saddle. Thus when tool change took place, the spindle unit was not required to return to the tooling station on either end for a tool change. This design effectively minimized chip-to-chip time to under 15 seconds
