GOODTEK (Formerly Holytek) are the manufacturer of these very heavy duty , double sided surface planers.
Suitable for a raft of heavy duty high end production such as Glu Lam, Beam, Furniture and Stair manufacturing Industries.
The GOODTEK MACHINERY Co Ltd is the only company that manufactures Heavy-duty Double-Side Wood Planers. We have 35 years of experience in the design, special techniques and practical operations required. Since our incorporation in 1996, we have engaged in the research, development, processing, product assembly and after-service of a range of Double-Side Wood Planers. Established in 1996, a new plant was built in the Fengzhou Technology Park which greatly expanded our scale of production in 2012. Versions start at 635mm working width.

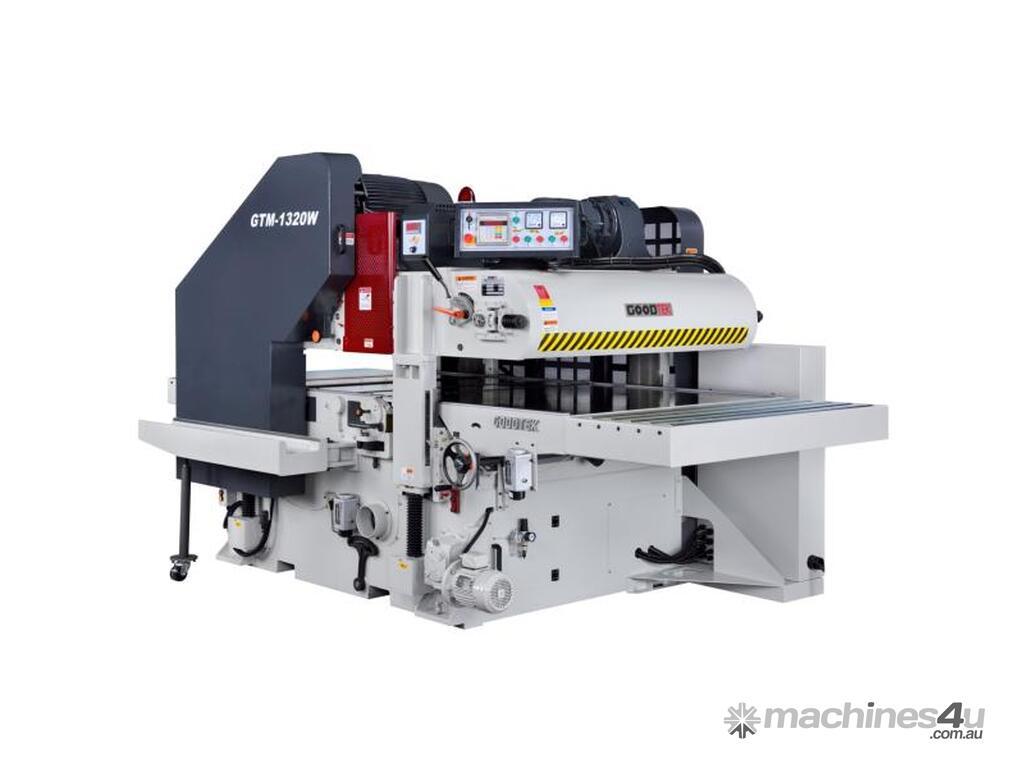

GTM-1320W DOUBLE SURFACE PLANER (52”) Helical cutter-head
- Helical cutter-head (TCT KNIFE SIZE: 30*12*1.5MM)-top and bottom – 198 Knives per head
- Maximum width of plane:1320mm(52’)
- Maximum thickness of cut: 300mm
- Minimum thickness of cut:10mm
- Minimum length of cut: 310mm unless butt fed
- Main motor power: 37.5kw, 30kw, 5.625kw, 0.75kw
- Cutter-head speed:4000RPM
- Dust hood outlet diameter : 150mm x 4
- Variable feed speed: 8-24m/min-inverter
- Net Weight/Gross Weight : 6000/6200 kgs-pallet
- Machine Dimensions(L*W*H):2800*2100*2150mm.
STANDARD INCLUDED ALSO
- Chrome hardened table is standard equipment.
- Concentrated oil supply system, Auto oil injector system.
- Digital readout for height display
- Convenient and accurate front table adjustment.
- Double in/outfeed rollers and two rollers provided at the infeed and outfeed.
- Infeed and outfeed extension roller.
- Swiveling control panel.
- Helical cutter-head rest.(Bottom cutter head support base)
- Powerful transmission system.
- Pneumatically operated disk brake.
