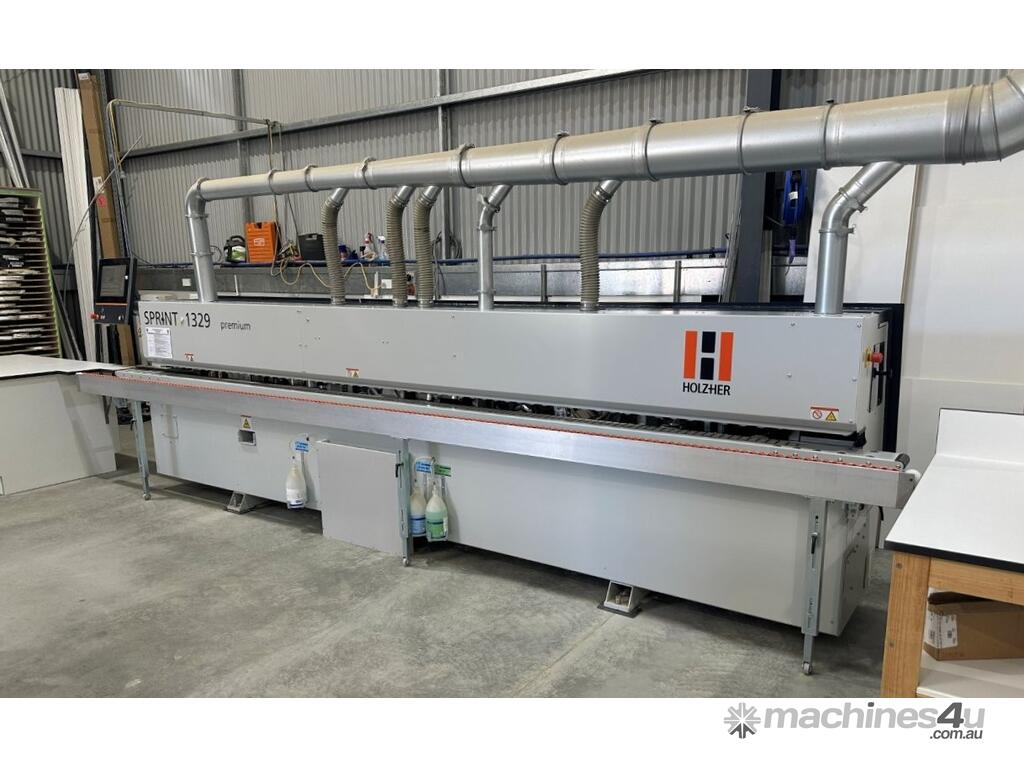

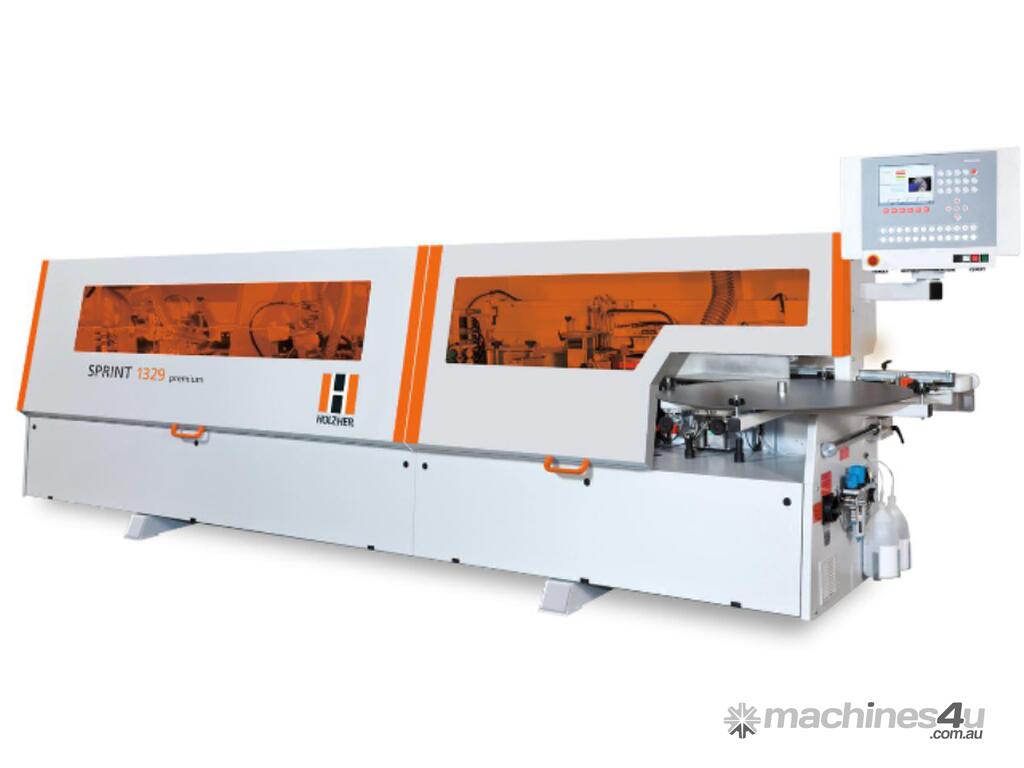

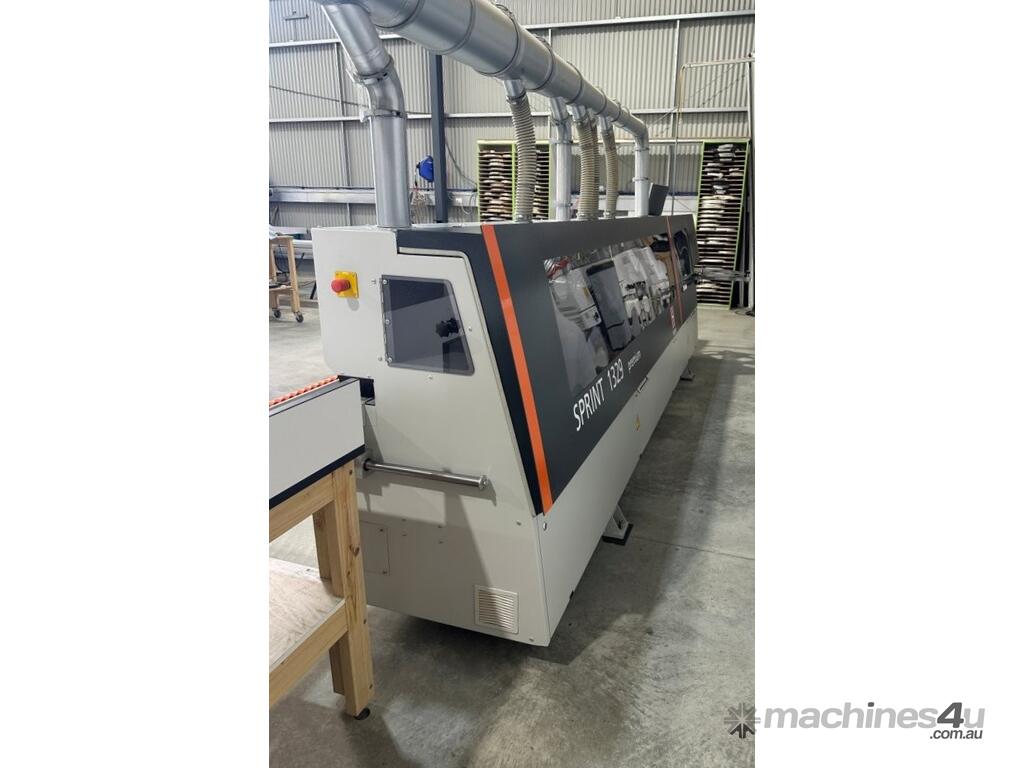

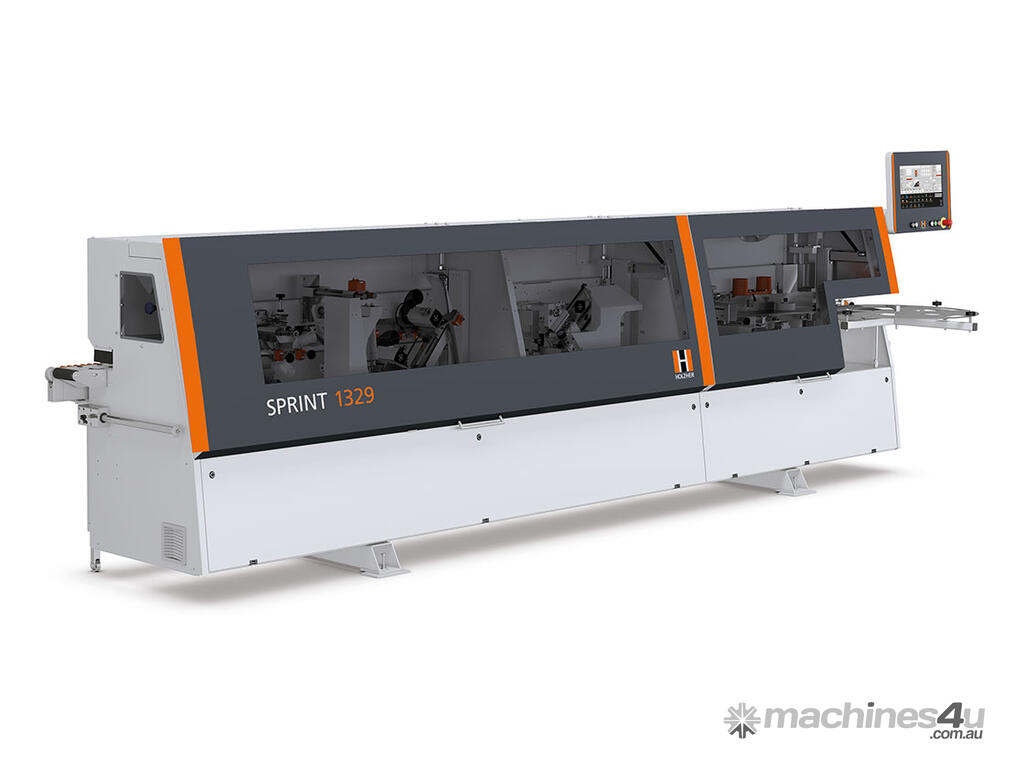

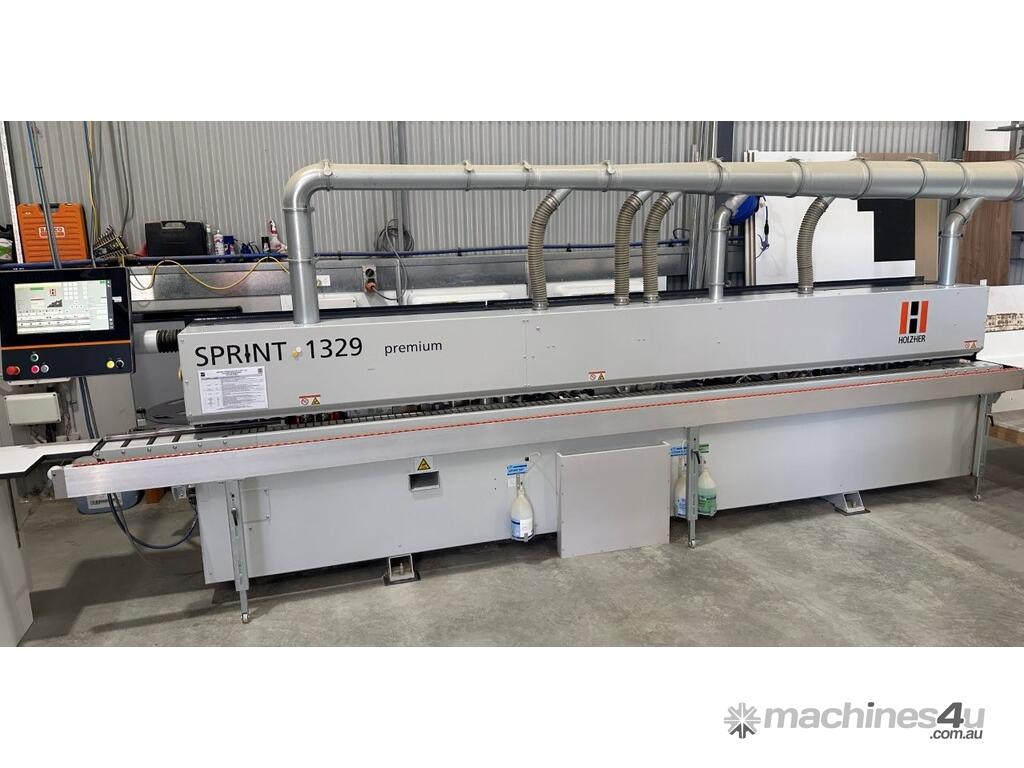

HOLZHER 1329 Premium edge bander

Used 2020 HOLZHER 1329 in immaculate condition. Top of the range machine priced appropriately for quick sale.

? Overall length of machine 5676mm with pull out work piece support on rollers.
? Variable feed speed 10 - 18 m/min
? Suits coils 0.4 – 3 mm and strips 0.4 – 8 mm (15mm possible with tool change at 1827 unit)
? Work piece width minimum 60 mm and length minimum 160 mm
? Work piece thickness 6 – 60 mm
? Motorised pressure beam adjustment for bridge.
? LED lamps for the infeed area/post processing area with tempered, break-proof glass.

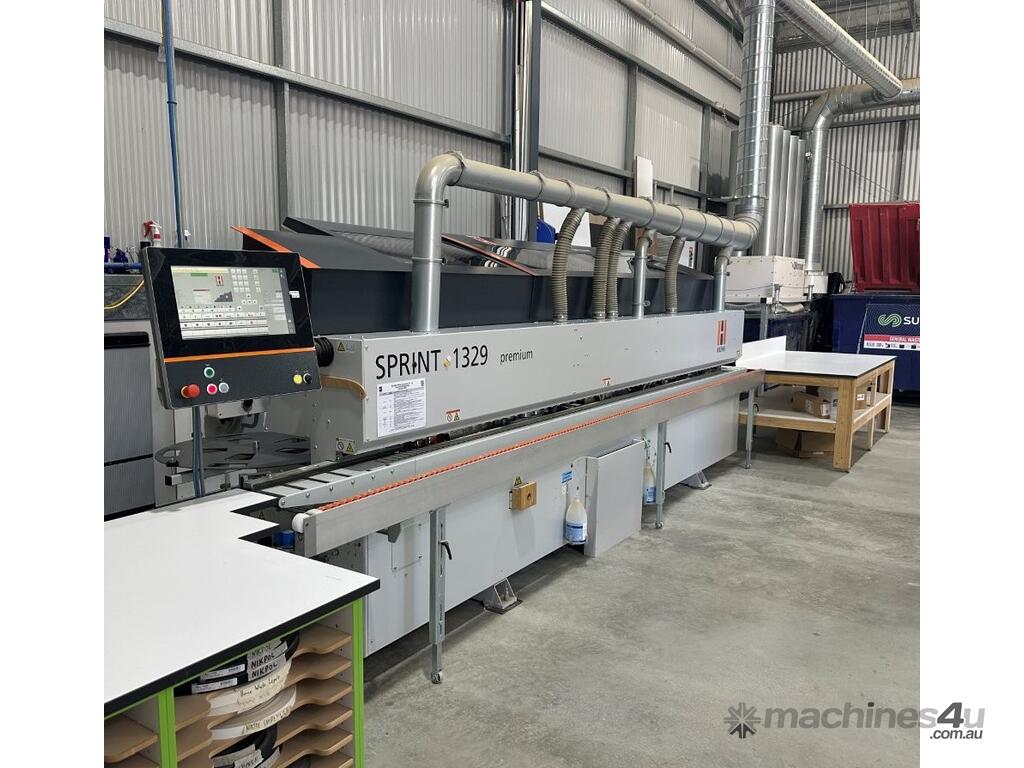

? PPC 219 Controller with 18.5" colour touchscreen.
? Pre-milling unit 1802 with 2 cutter units for joining the panel edge. Includes diamond cutters.
? Edge feeder 1903 SYNCHRO for automatic transport of coils and single strips with feed belt.

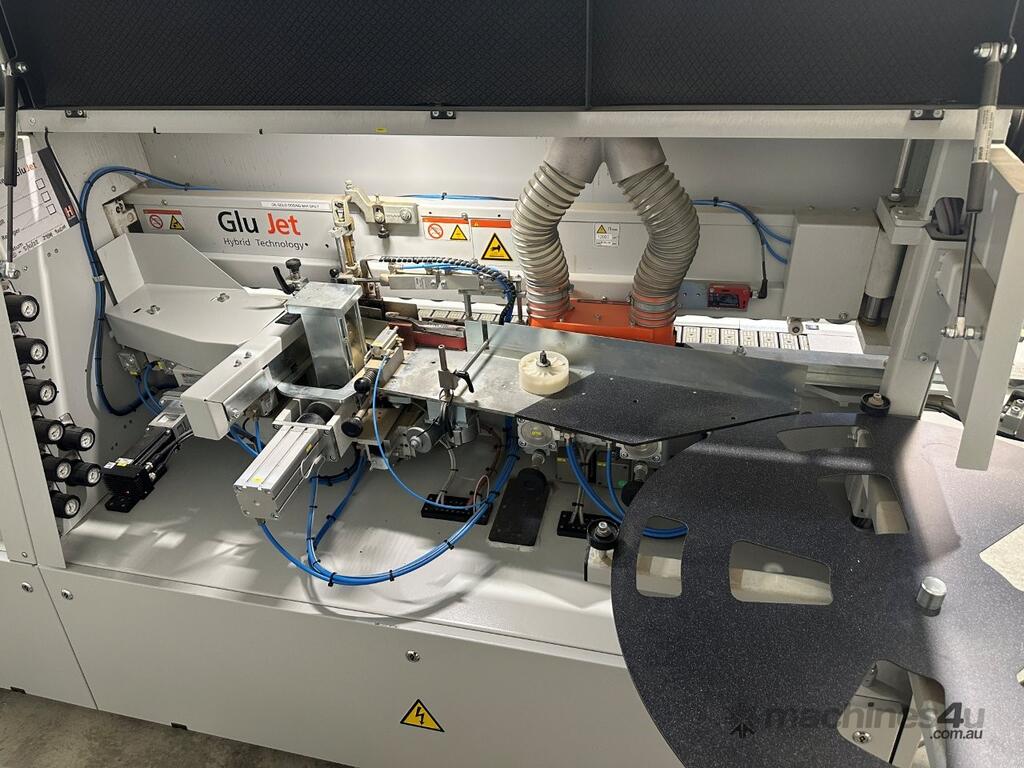

? Glue application system Glu Jet GJ301 (2.3kW, 50Hz) suitable for processing EVA and PUR adhesives. Tracing
nozzle enables automatic adjustment of gluing height. Heat up time only 3 minutes with patented nozzle
technology.
? Pressure unit 1913 MOT, with first roller driven and two support pressure rollers.
? End trimming unit 1918, pneumatic (60mm) for chamfer type end trimming. Tiltable to 10°.

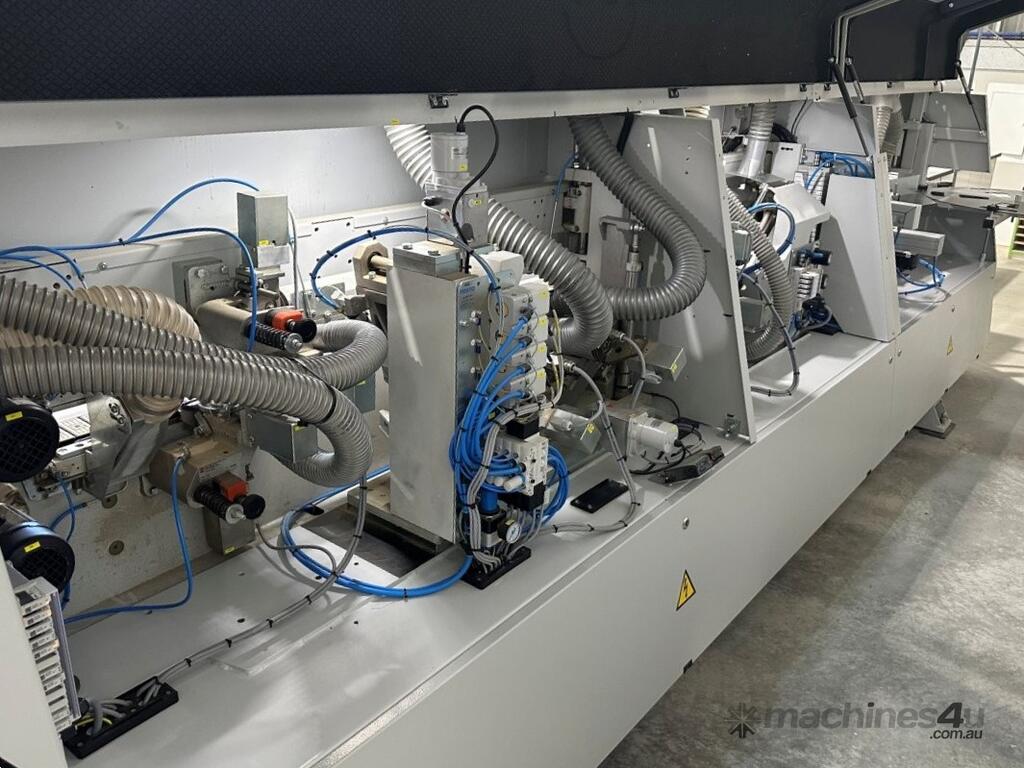

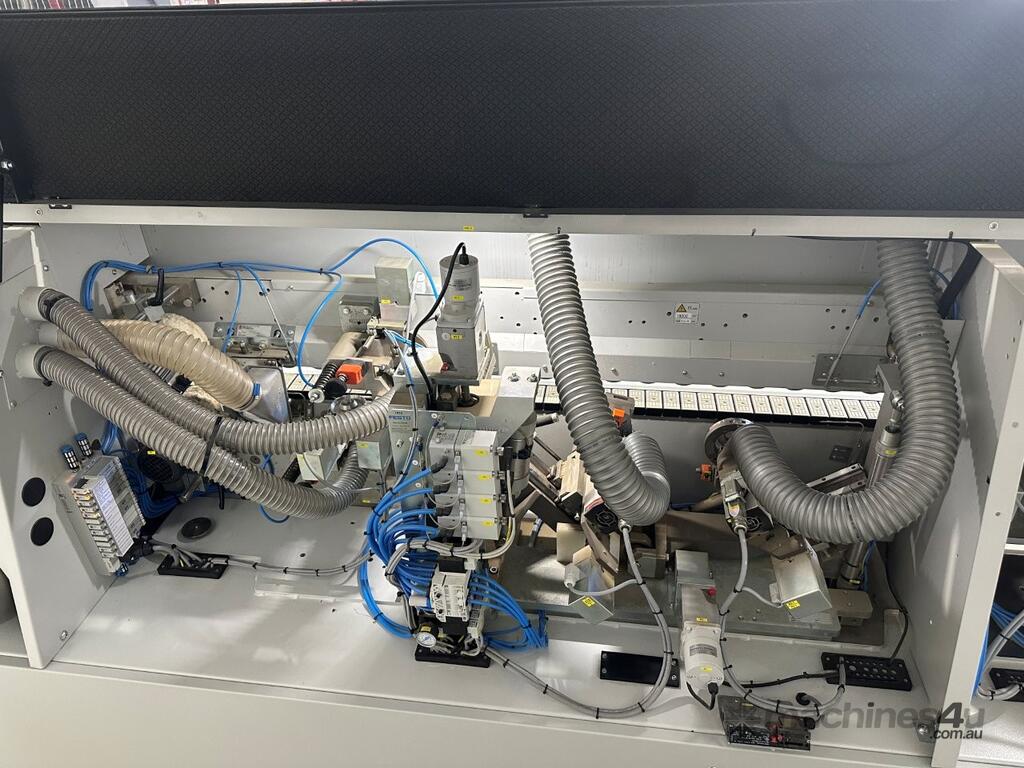

? Multifunctional trimming unit, 1827 MOT4, for cutting of the top and bottom longitudinal edge. Motorised
positioning of the cutter motors, includes pneumatic adjustment and blow nozzles.
? Form trimming unit 1833 MOT4 for top, bottom and corner rounding with PLC controlled adjustment.
? Finishing scraper unit 1929 MOT4 with high gloss package. Includes 2 scraper carriers, chip removers and blow
nozzles.
? Surface scraper unit 1964, for scraping off the glue residue, including 2 blow nozzles, turn over knives and dust
extraction hoods.
? Buffing unit 1940 for edge cleaning and polishing, with 2 textile buffing wheels.
? Nesting tracer shoes for trimming unit and radius scraper, for hinge holes down.
? Safety hood for the infeed area.
? Antistatic coolant sprayer unit
? Parting agent sprayer unit
- Ducting manifold included
Please note: Packing for transport, freight and commissioning are not included in the price.
