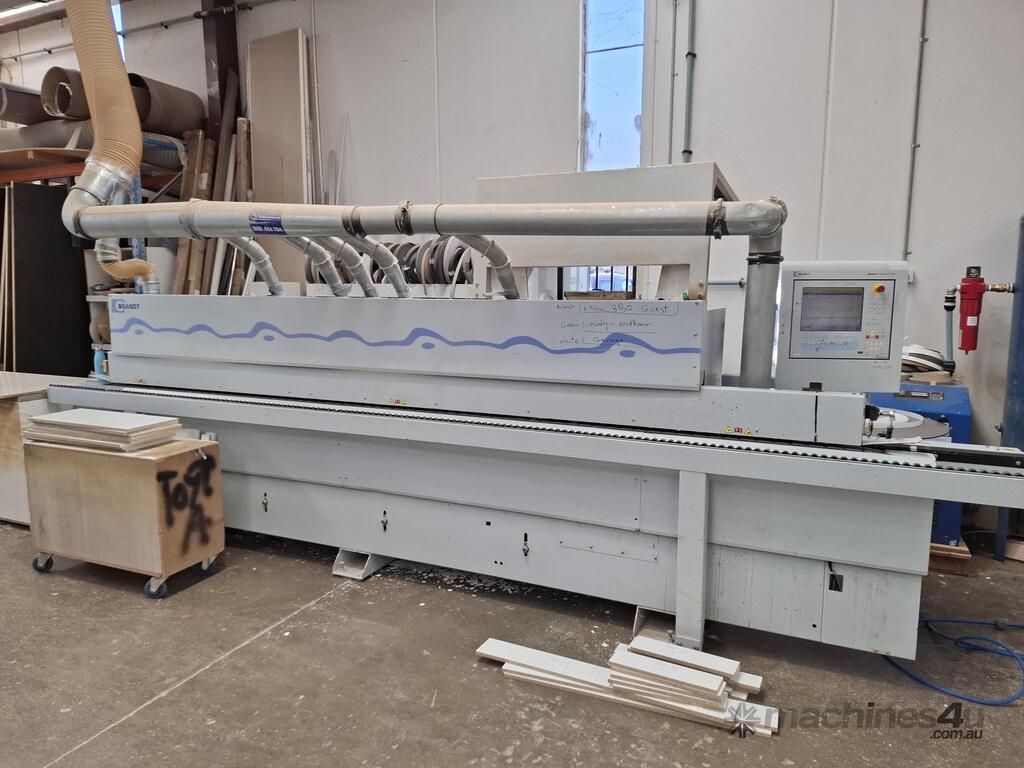

HOMAG 2012 Brandt Edgebander Optimat KDF 440C

DESCRIPTION:
A used 2012 Brandt Edgebander Optimat KDF 440C in very good condition, regularly serviced by Homag.
Machine comes with an extra spare glue pot valued at $5000.
Price: $19,800 ex GST negotiable.

KEY TECHNICAL SPECIFICATIONS:
Machine Type: Single-sided edgebander
Control System: POWERTOUCH with a 22" touchscreen display
Workpiece Thickness: 8 - 60 mm
Edge Thickness: 0.4 - 8 mm
Edge Material: Coils and strips (up to 3mm for coils)
Feed Rate: Variable, 8 - 14 m/min

PROCESSING UNITS:
Pre-Milling: Two motors, 2.25 kW each, for chip-free edges
Gluing: Hot-melt EVA glue with pre-melter and a quick-change glue tank
Pressure Section: One driven roller and three idle rollers
End Trimming: Two motors, 0.18 kW each, with servo-positioning
Fine Trimming/Rounding: Two motors, 0.55 kW each, with automatic tilt positioning
Corner Rounding: One motor, 0.35 kW, for leading and trailing edges
Scraping: Multi-profile (PVC) and glue scraping units
Buffing: Two motors, 0.10 kW each

If you are interested in purchasing this machine or have any enquiries please contact Jiri George Cycon on .
