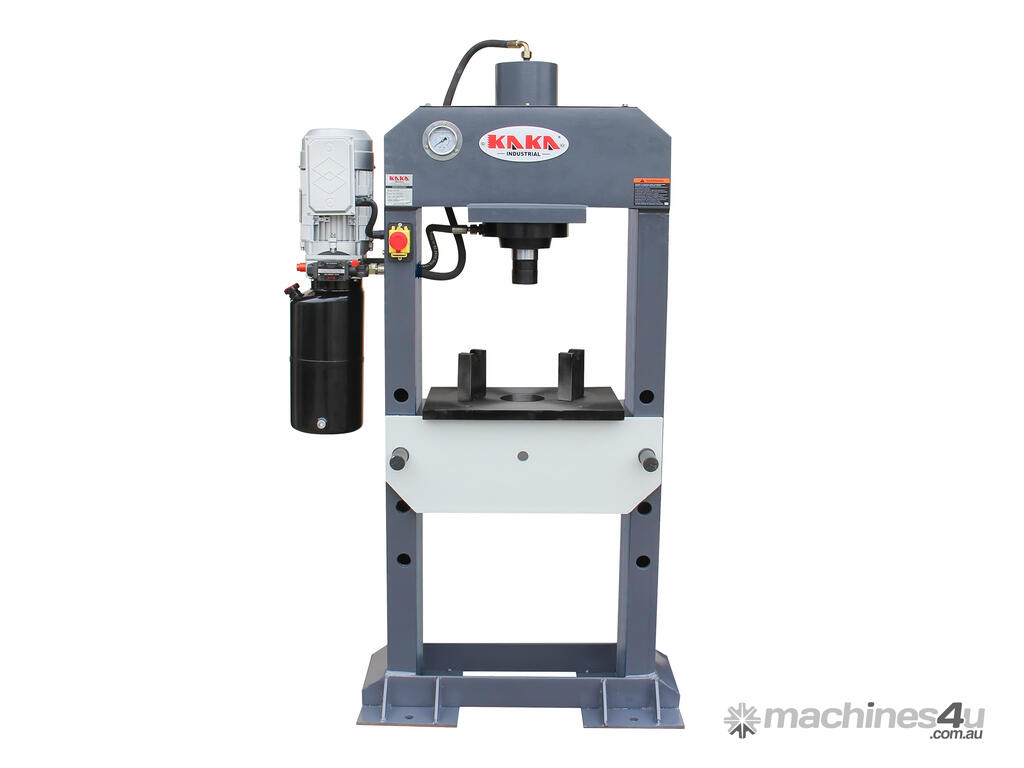

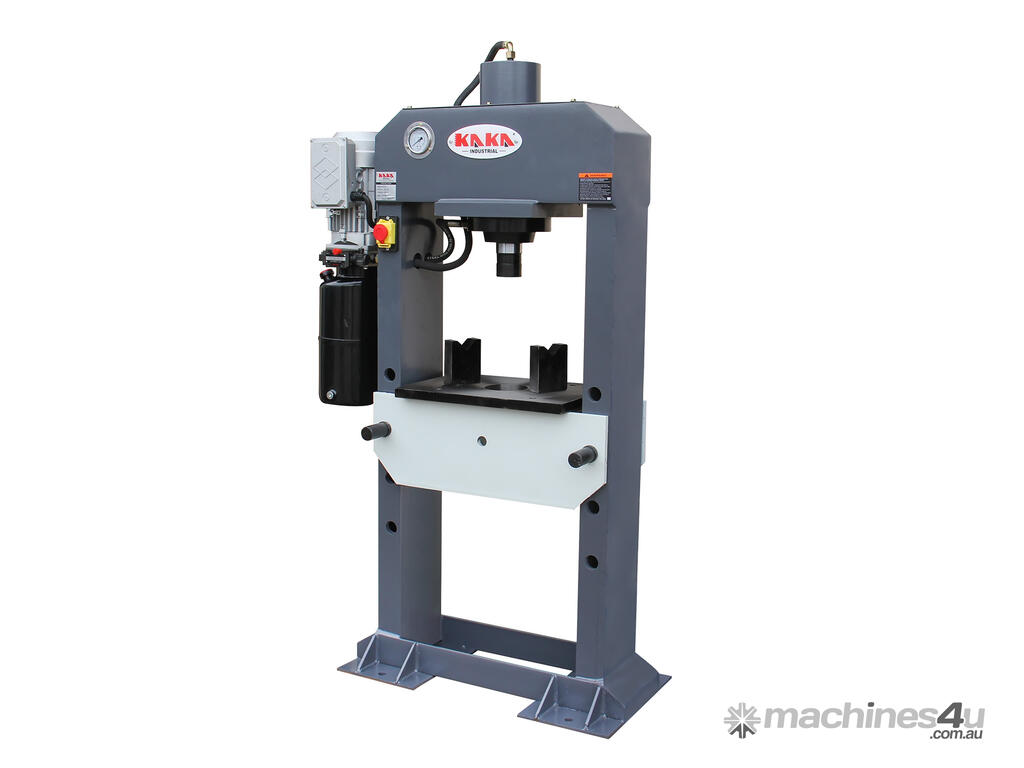

HP-25 Industrial Motorised Hydraulic Press
Welded steel frame, 25 tonne pressure
Features

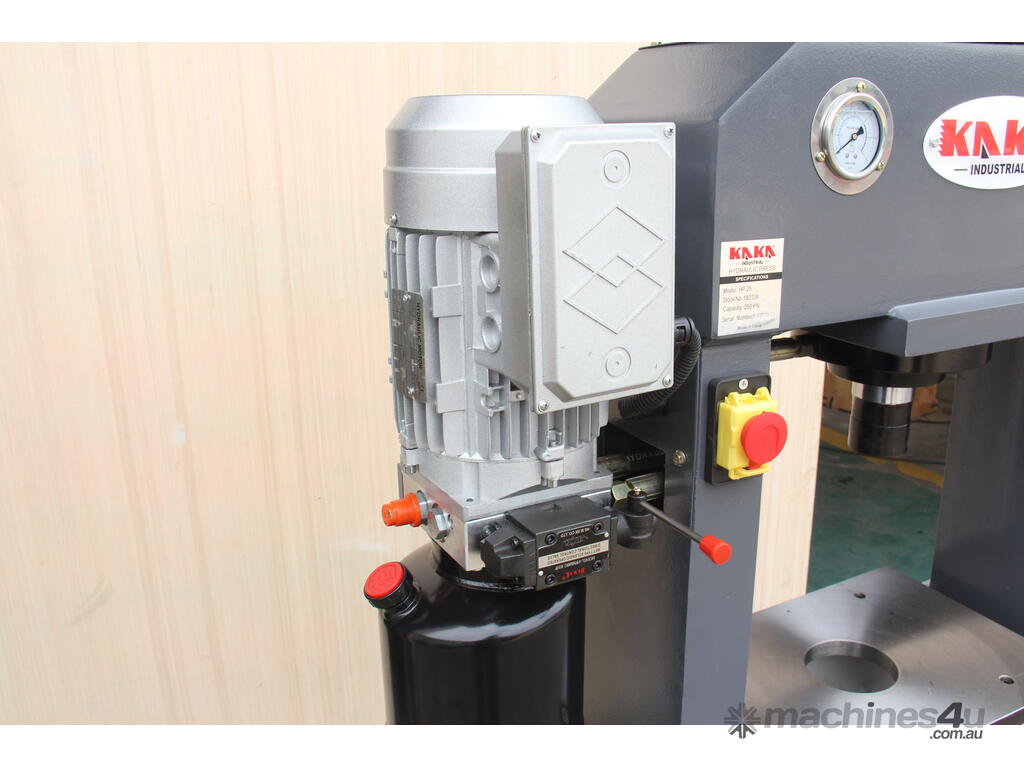

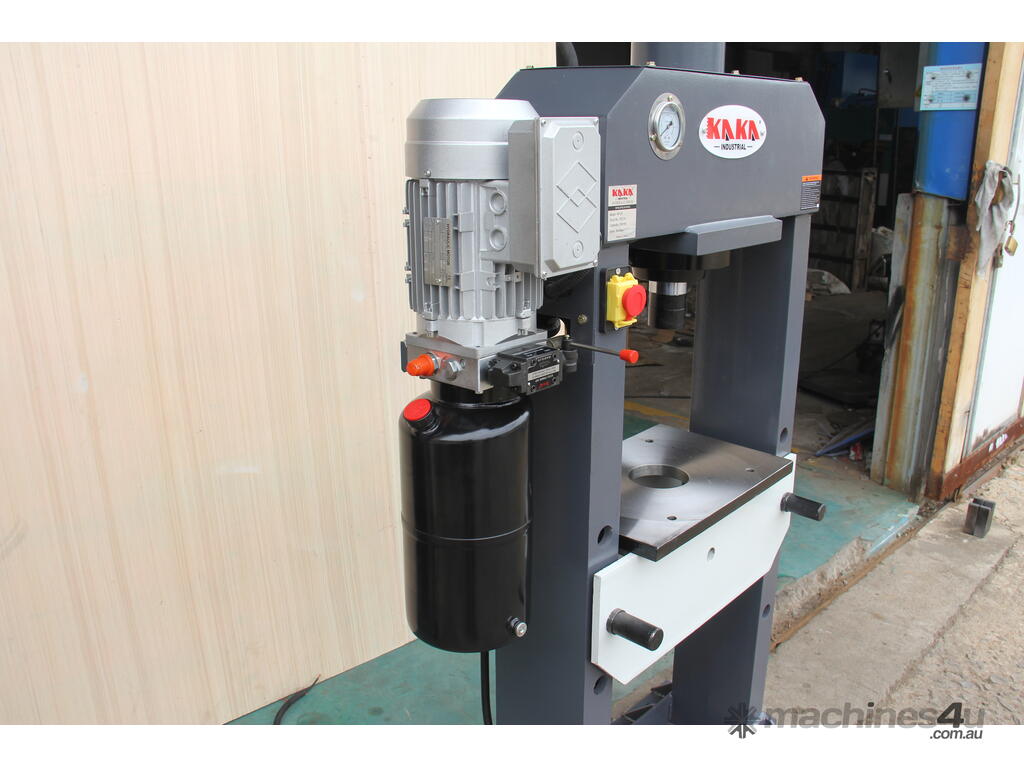

Runs on 240V power, single-phase hydraulic press machine

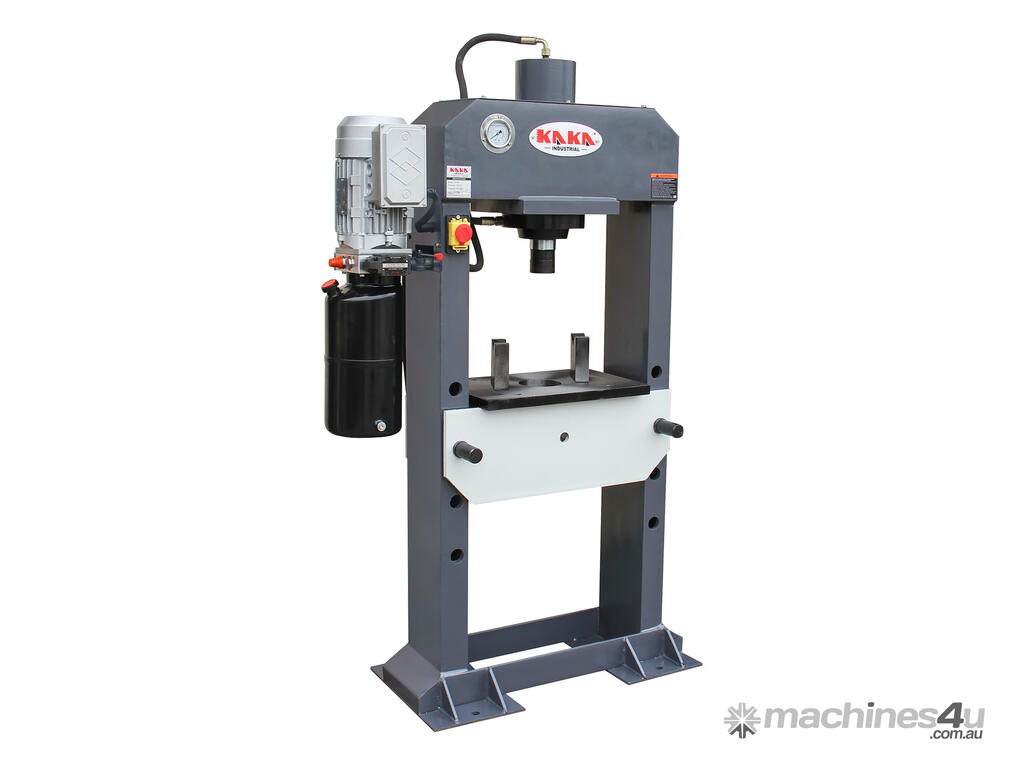

Fully welded frame, robotic structure, H-frame workshop press

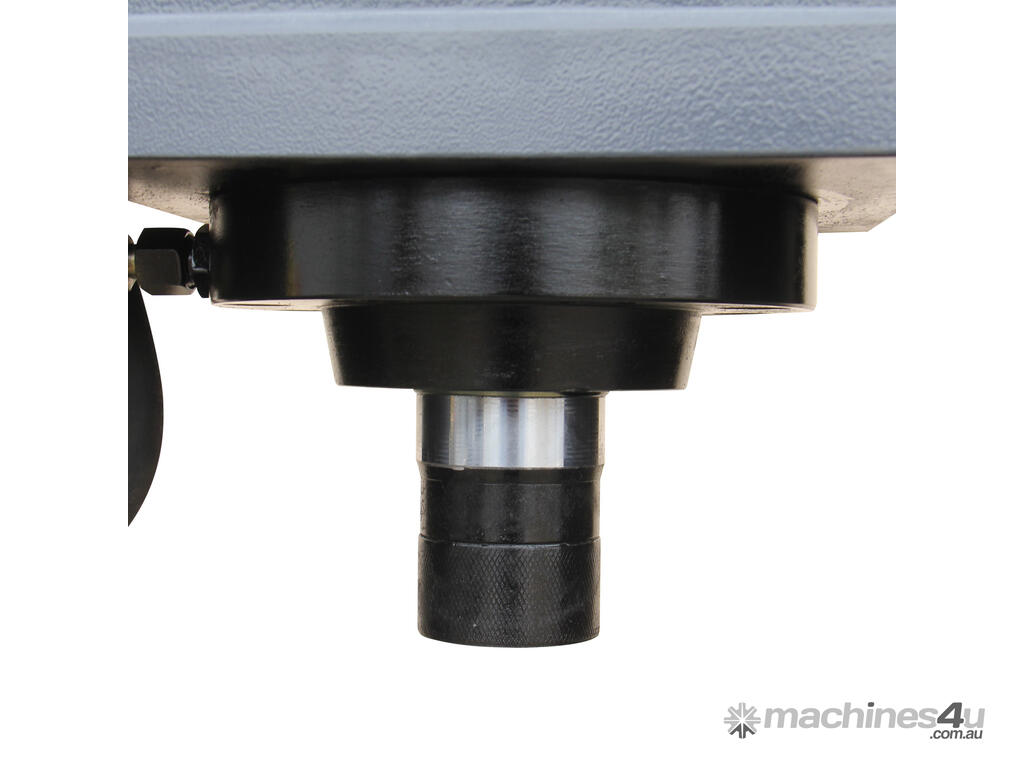

A fixed central strong hydraulic cylinder ensures precise pressing during the operation
Double speed control

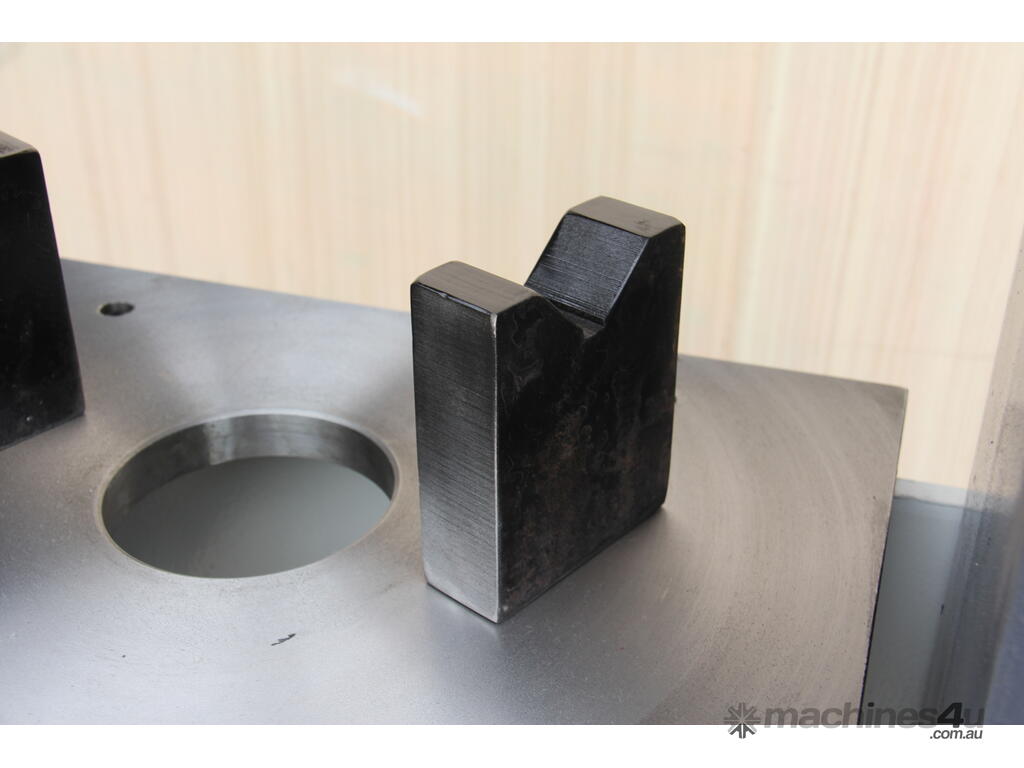

V-blocks supplied as standard

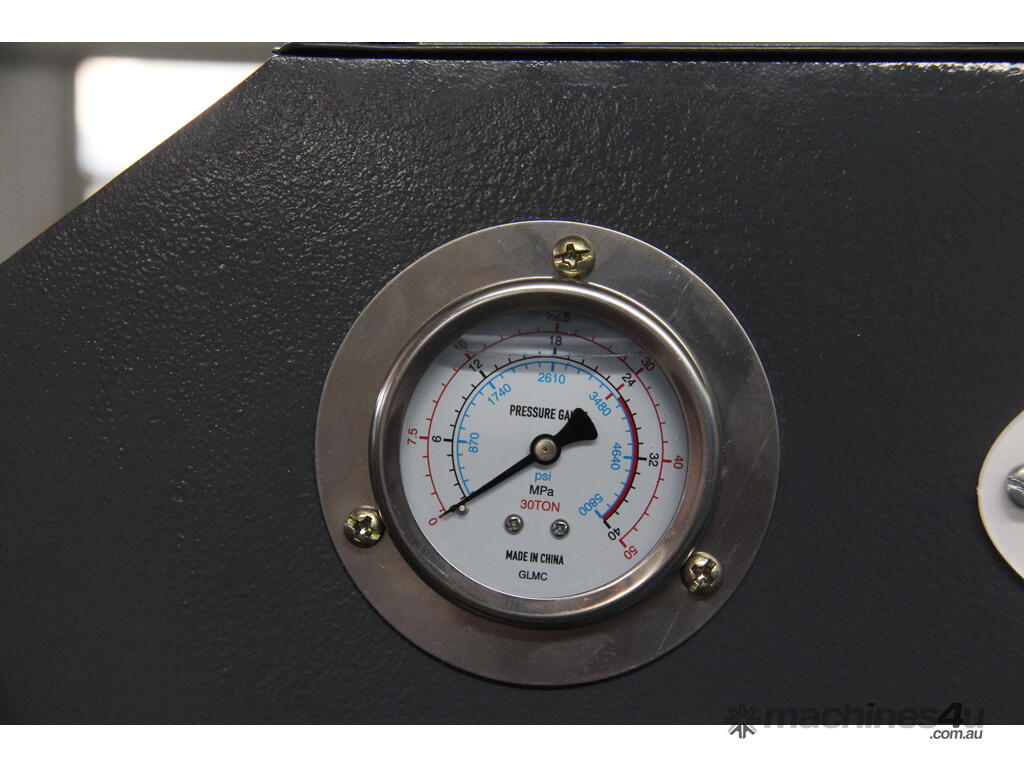

Built-in pressure gauge provides exact pressure reading, ideal for professional mechanics or industrial workshops
A variety of uses, including removing and installing bushes, ball joints, bearings, pulleys, etc.
Specifications

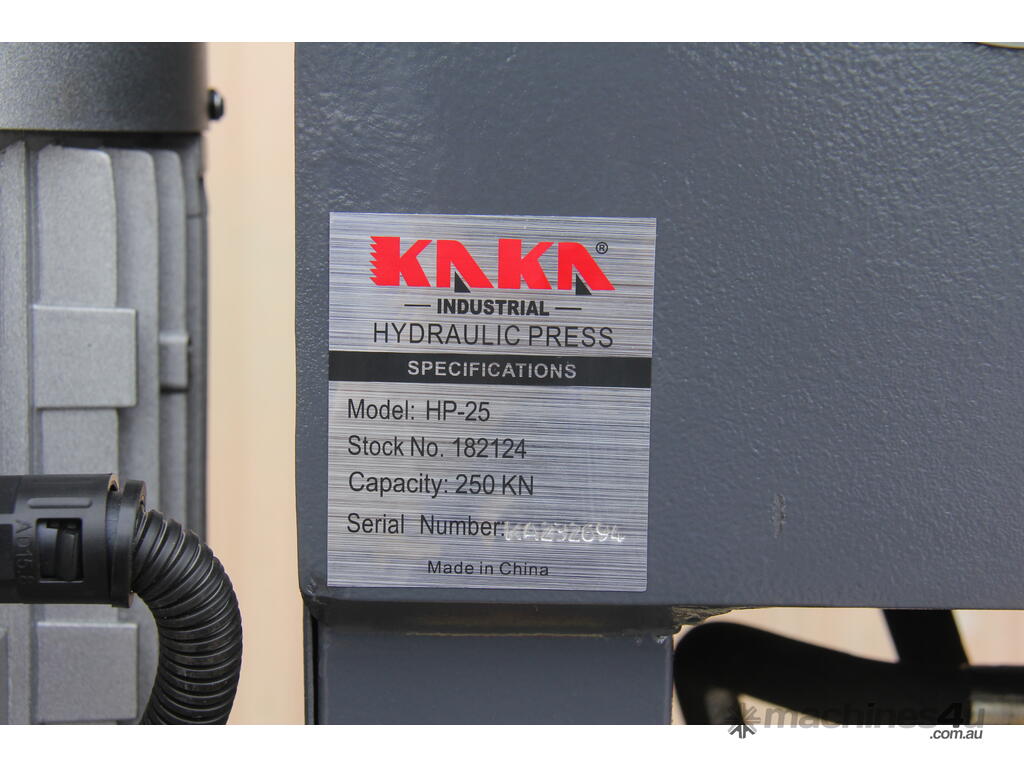

SKU 182124
Model HP-25
Pressing capacity 25 Tonne

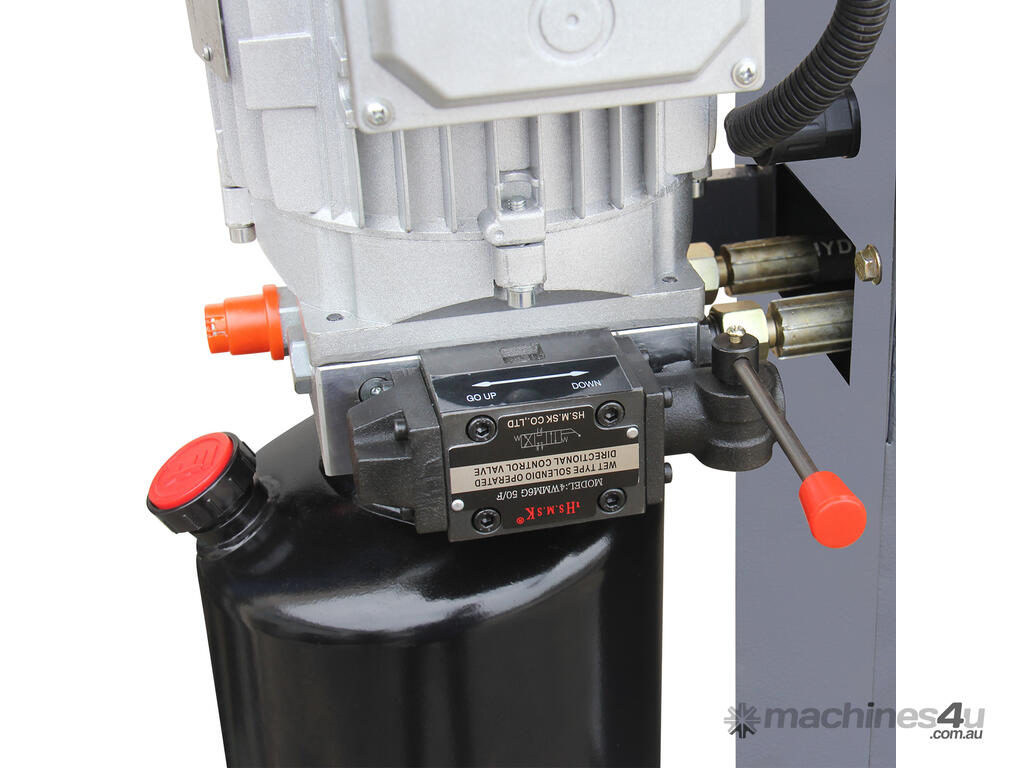

Hydraulic ram operation Motorised System
Sliding ram (left-right) No.
Ram stroke 250 mm
Ram. dia. 65 mm
Working speed 8.7mm/sec
Return speed 10mm/sec

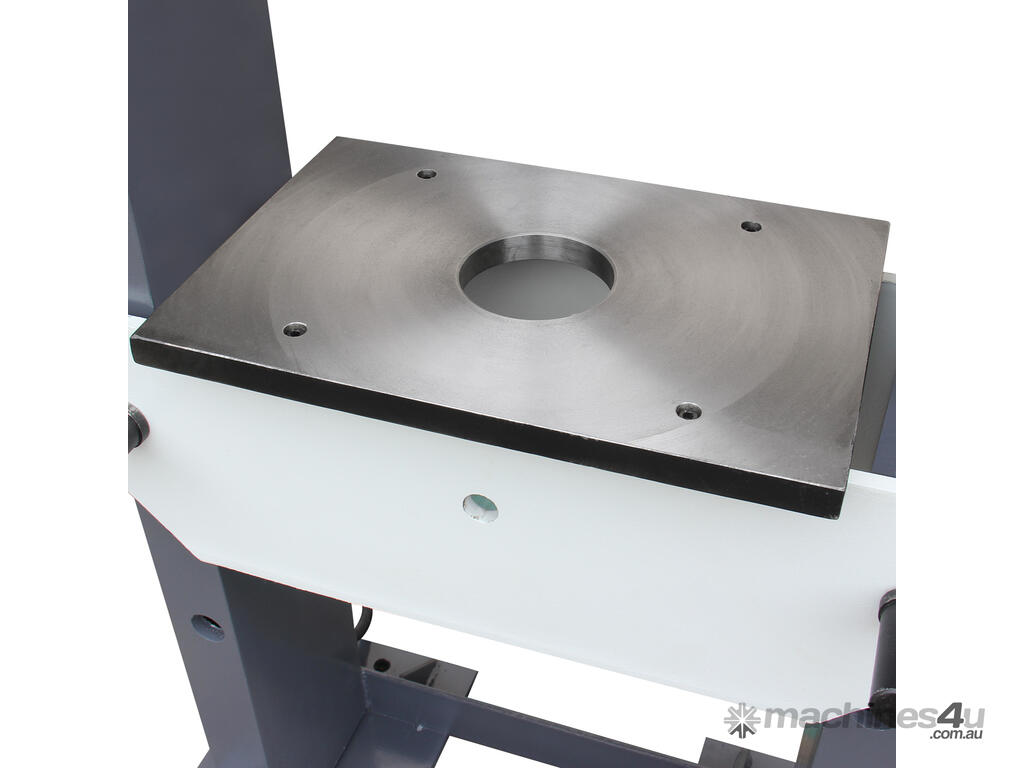

Table size 300x260 mm
Table support pins dia. 30 mm
Number of table adjustment holes 4
Holes' distance 135 mm
Packing size 176x115x66 cm
N.W./G.W. 260/330 kg
