METALMASTER HP-30P Workshop Hydraulic & Pneumatic Press - 30 Tonne High Strength Steel Frame Construction Includes Adjustable Sliding Cylinder Ram, Pressure Gauge & Bending Blocks
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P145

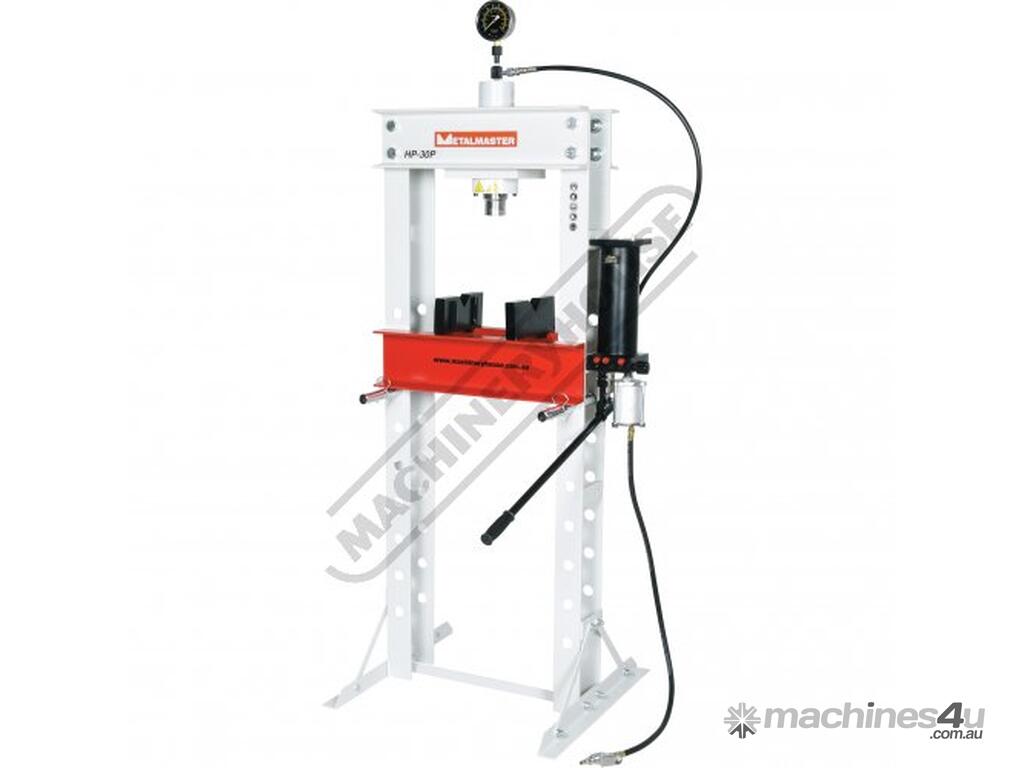

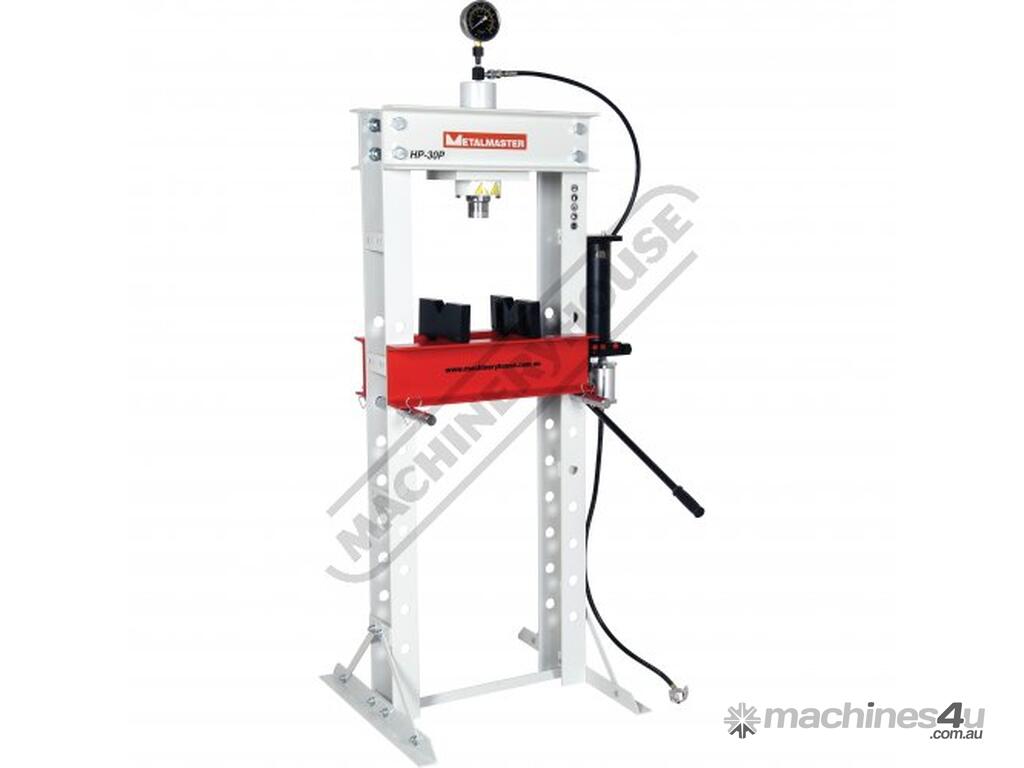

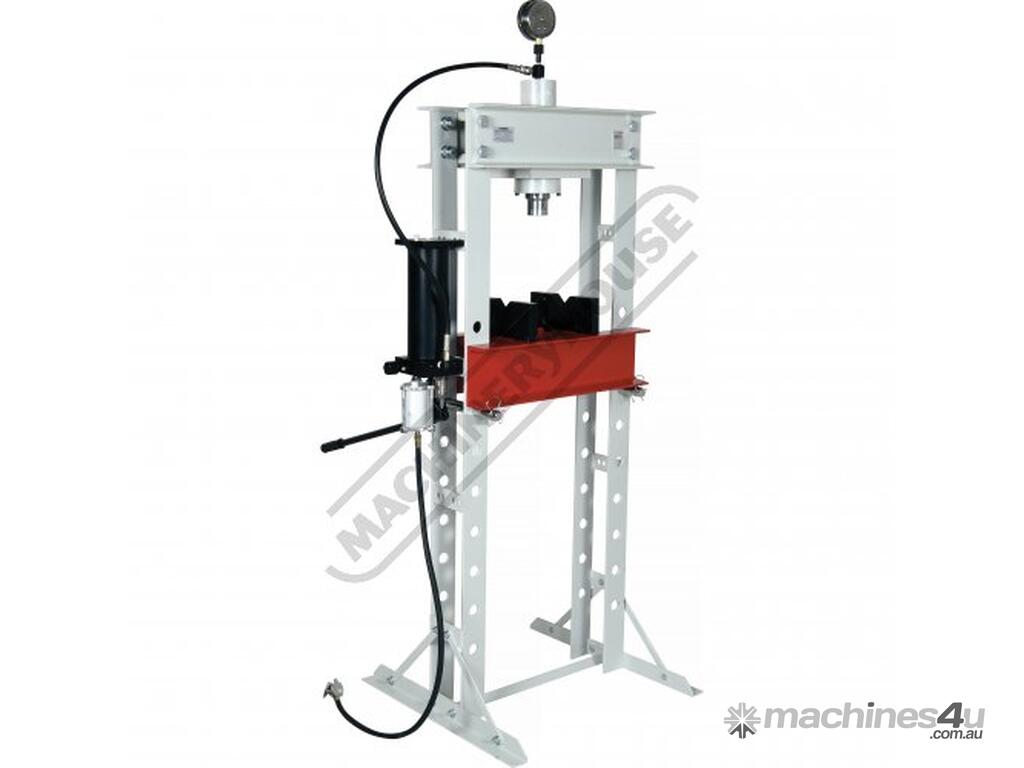

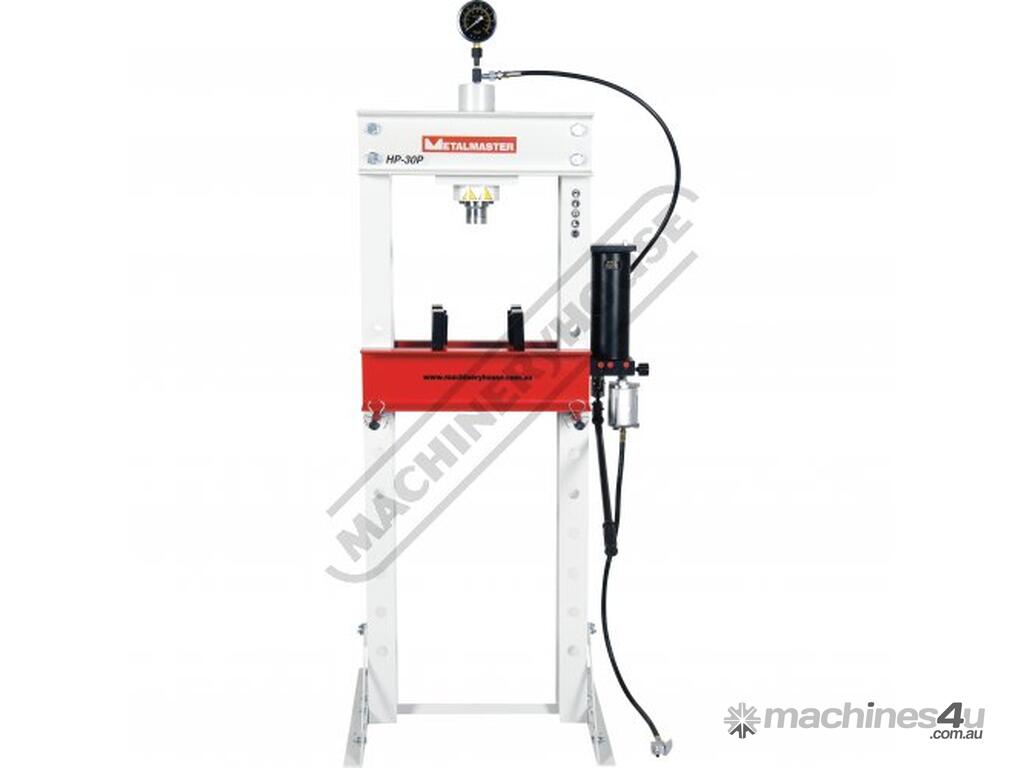

The Metalmaster HP-30P 30 tonne workshop press has a variety of uses, ideal for removing and installing bushes, ball joints, bearings, gears, pulleys etc. The HP-30P is pneumatically or hand operated for easy of use and also has the added feature of a sliding head which can be moved to the side allowing for those offset pressing jobs.

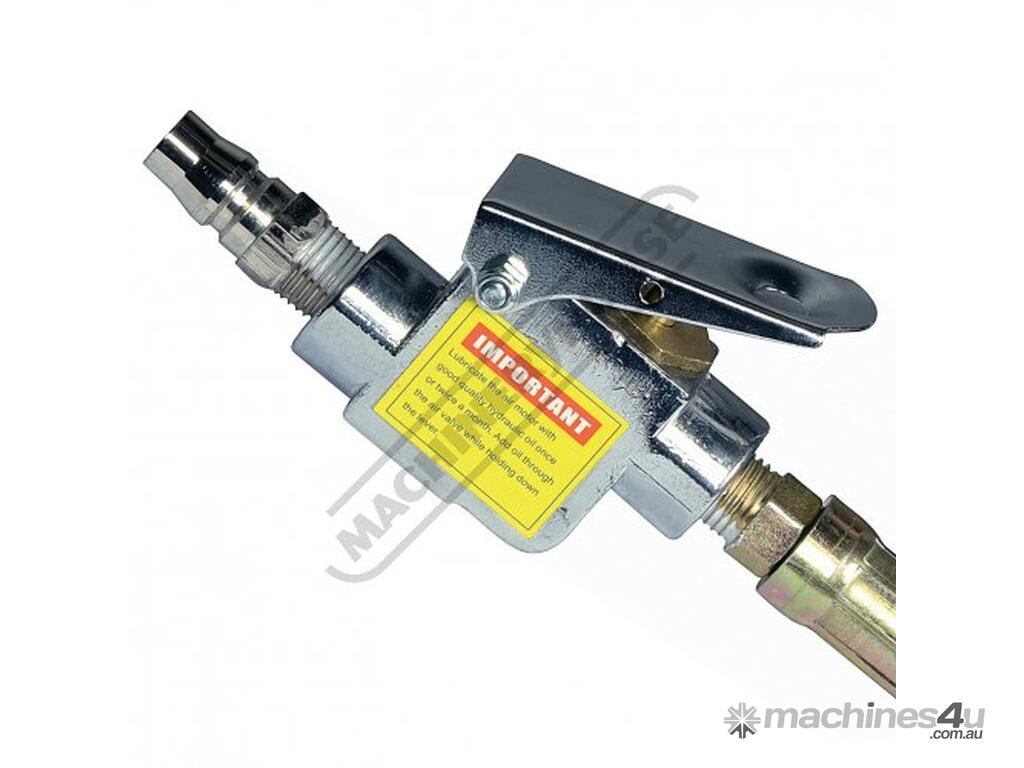

This 30 tonne press is manufactured from heavy duty steel with a high strength frame for the highest quality and accuracy and the table & head beam are made from C channel for superior strength & rigidity. The press is supplied with a pressure gauge, two heavy duty pressing plates, and can be fitted with an optional pneumatic foot pedal, making it ideal for mechanics or the serious home workshop.

Features:
Ideal for removing and installing - Bushing Ball-joints Bearings Gears Pulleys etc

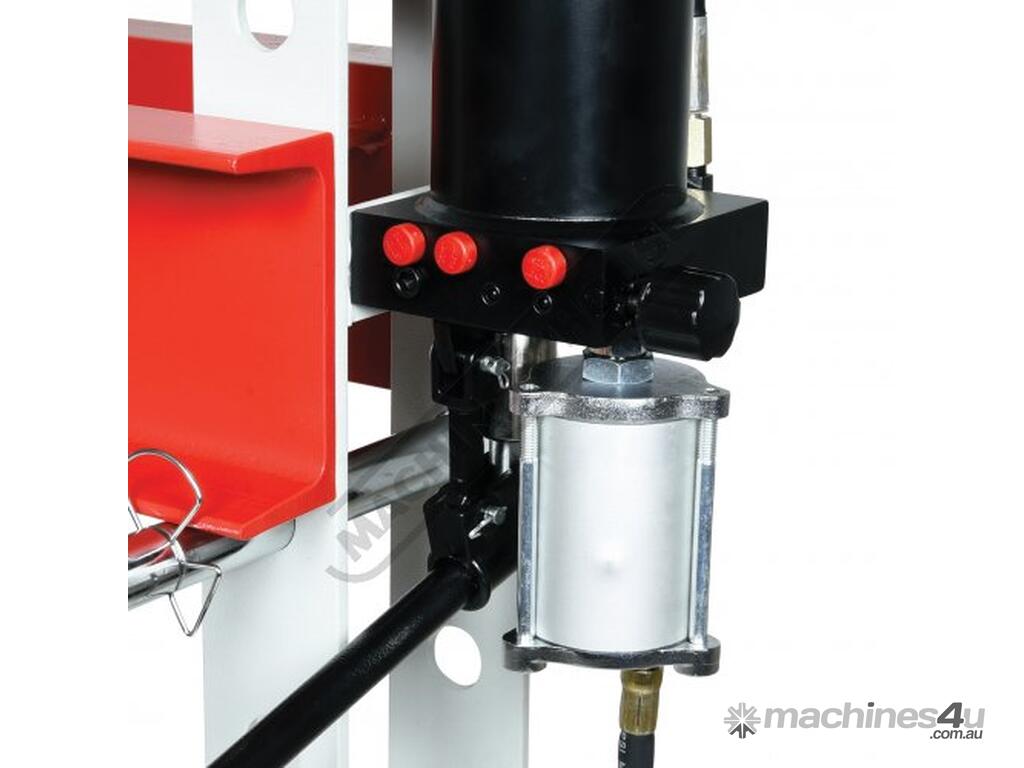

Pneumatic or hand operation

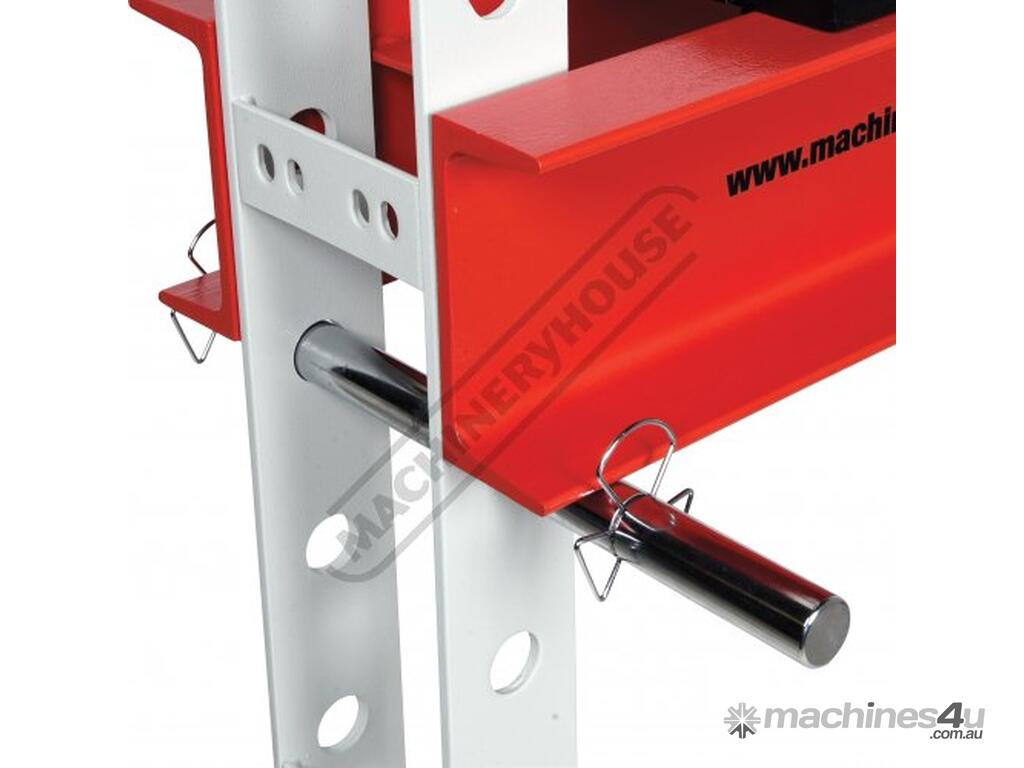

Heavy duty construction with head and table made from C channel steel with High strength steel frame
Hydraulics assembled in a temperature controlled clean room for maximum quality
Hydraulics individually factory tested prior to shipping.

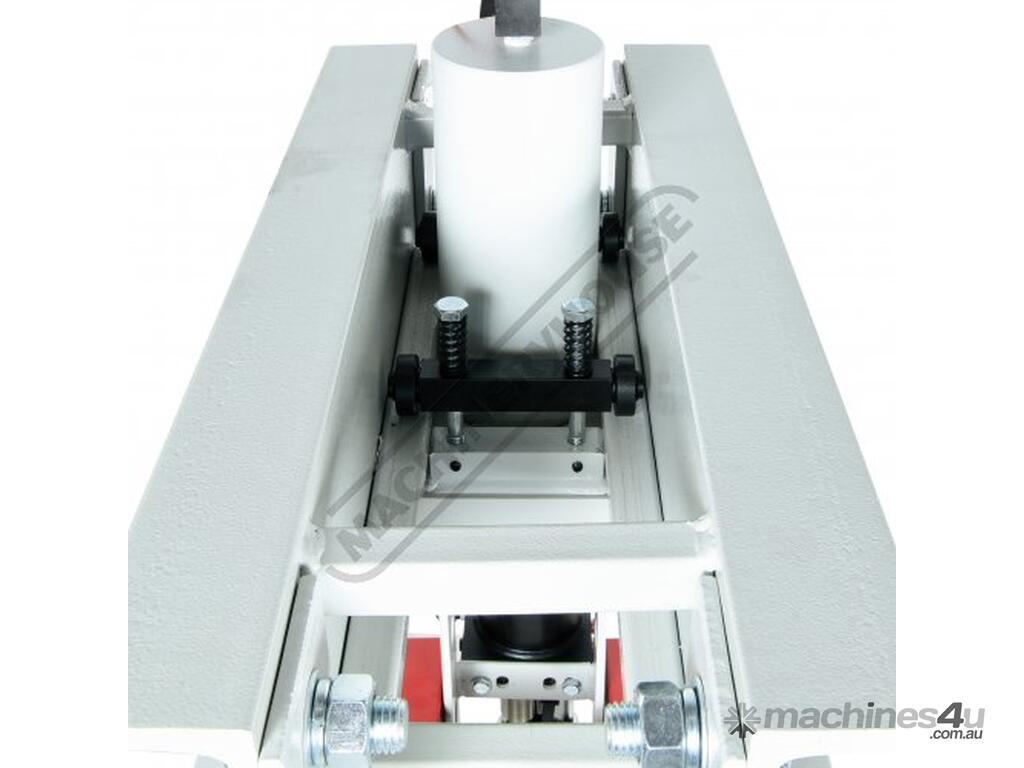

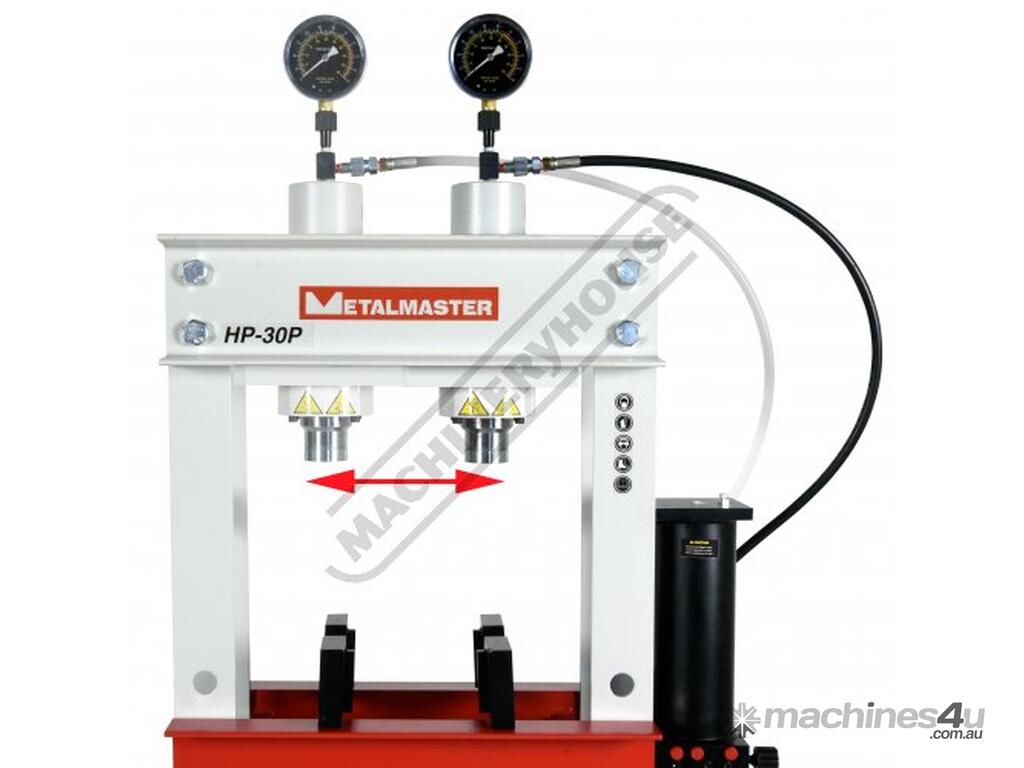

Adjustable sliding head up to 190mm travel between the vertical post

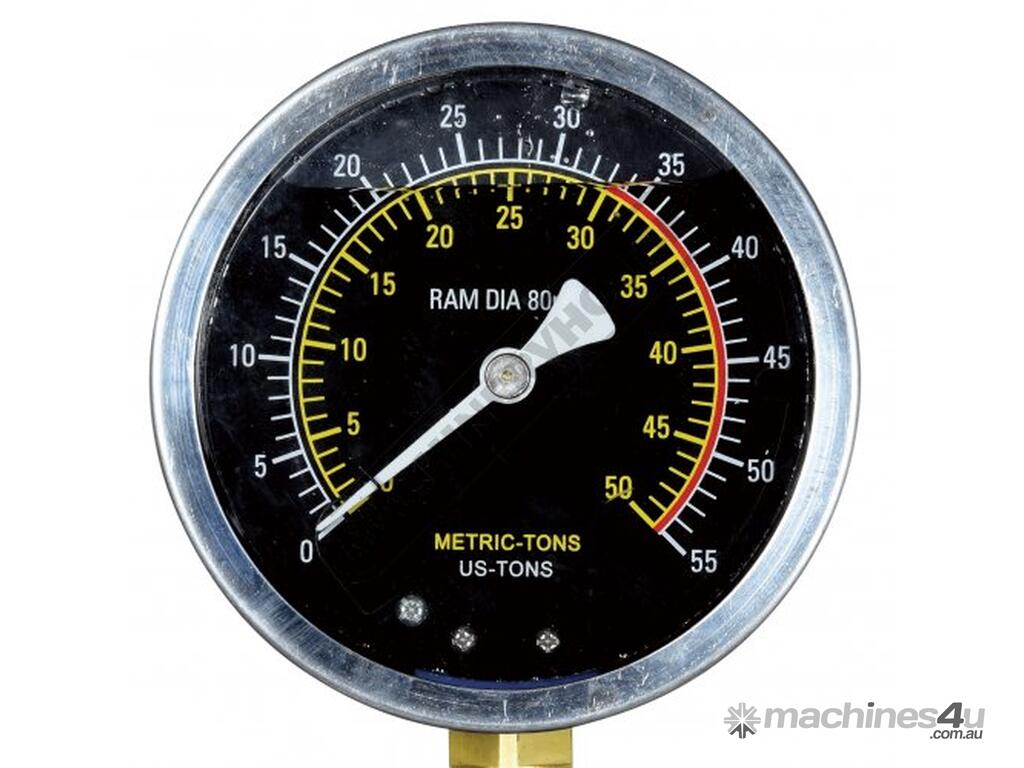

Metric / imperial pressure gauge included

Includes:

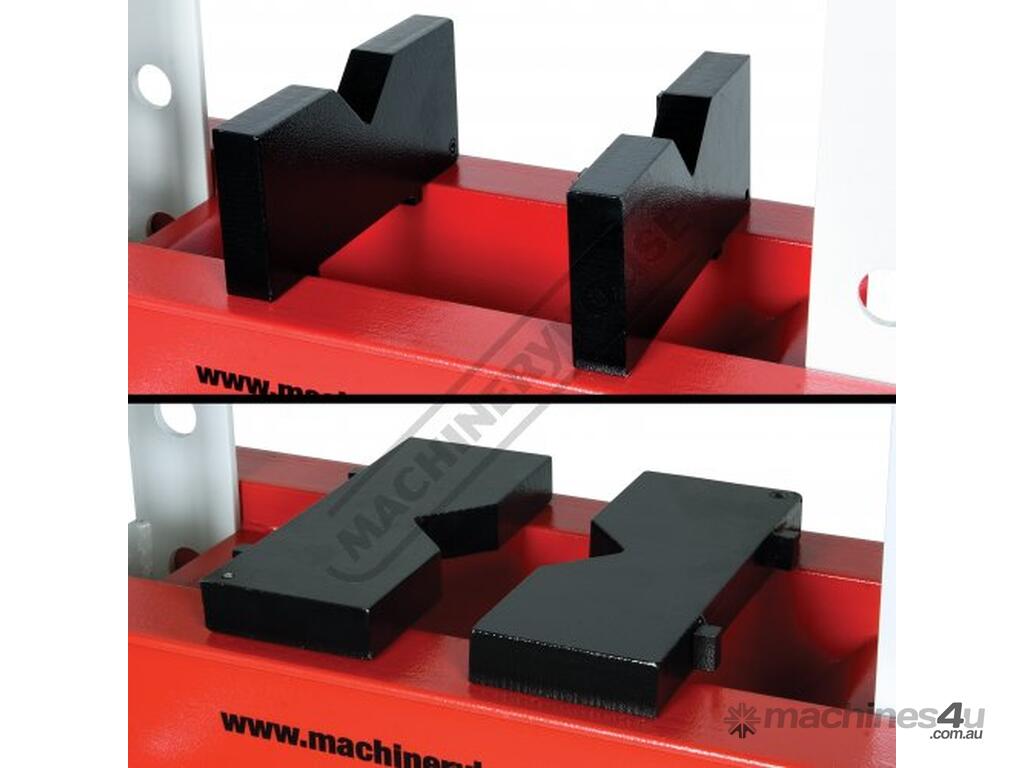

- Complete with vee bending plates



Specifications:
ORDER CODE: P145
MODEL: HP-30P
Pressing Capacity (Tonne): 30
Hydraulic Ram Operation (Type): Manual Hand Lever /
Hydraulic Ram Operation (Type): Pneumatic System
Sliding Ram (left-right) (Yes / No): Yes

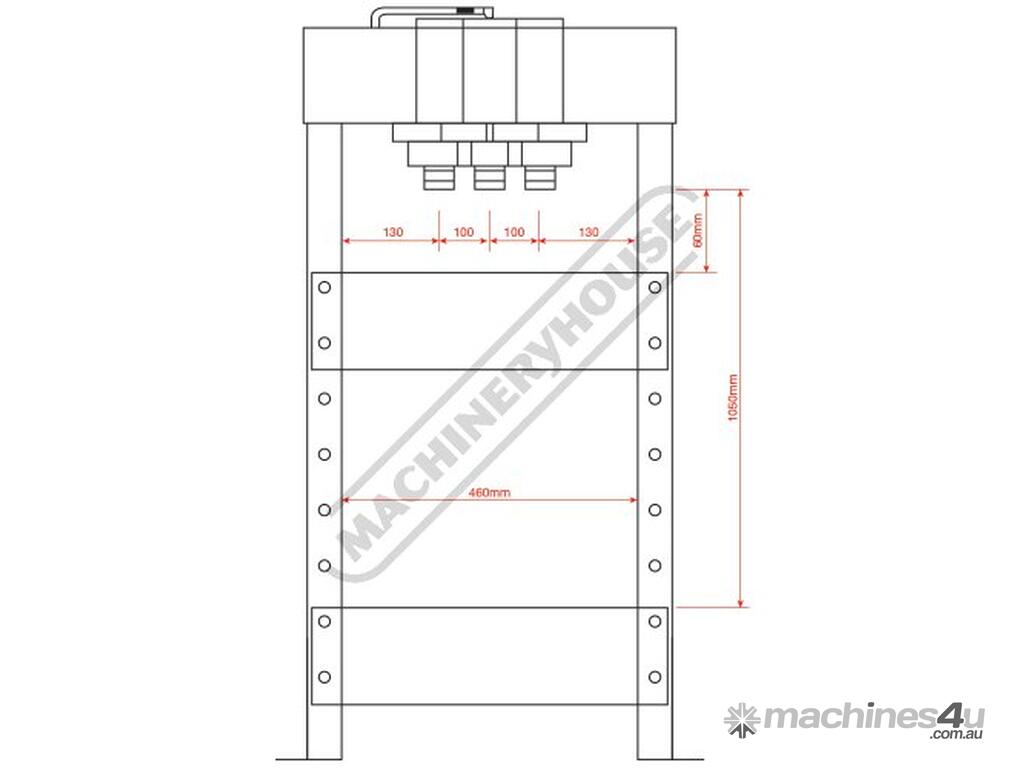

Width Between Front Posts (mm): 460
Width Between Side Posts (mm): 135
Table Top Opening - (Front to Back) (mm): 155
Ram To Table (Max.) (mm): 1095
Cylinder Stroke (mm): 165

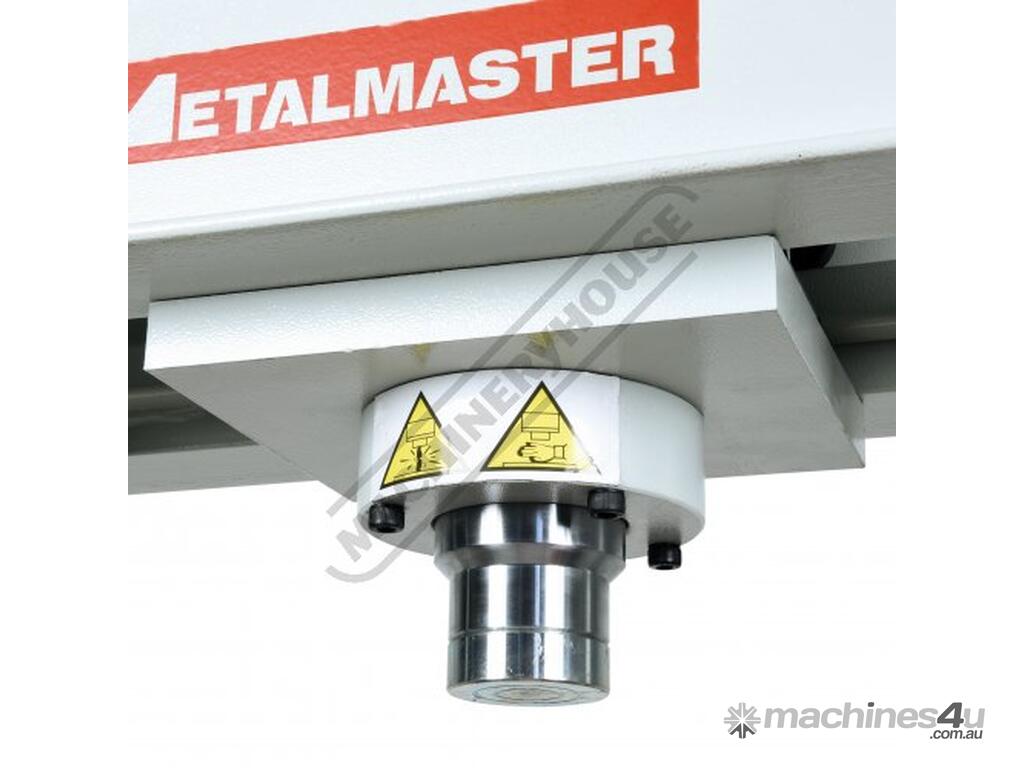

Ram Diameter (mm): Ø70
Piston Diameter (mm): Ø80
Minimum Air Flow Rate required (L/Min): ~
Motor Power (kW / hp): ~
Voltage (V): ~
Floor Space (W x D x H) (mm): 1000 x 800 x 1950
Nett Weight (kg): 180
