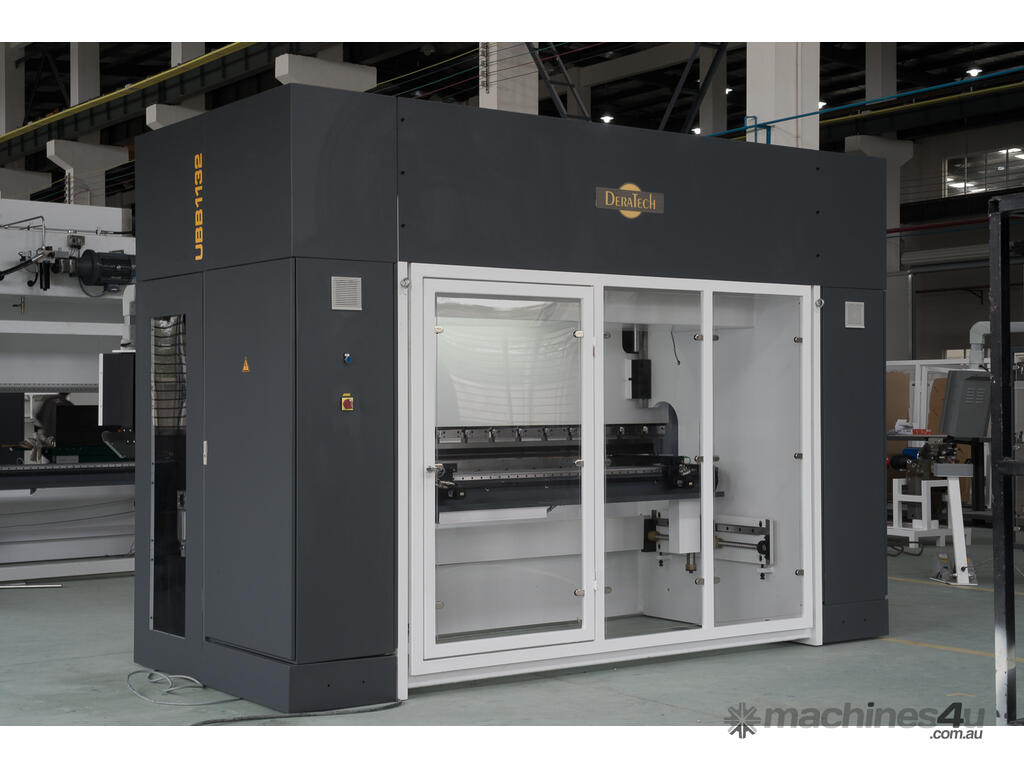

HYBRID CNC PRESS BRAKE

The extremley fast press-brake with hybrid drive system

Ultima Hybrid is GREEN brother of the Ultima, with all same features and options but with GREEN TECHNOLOGY implemented in the machine and saving up to 60% of energy.

The Ultima hybrid is a new generation of press brake, powered by AC servo motors and variable speed pumps.
It is a fast, precise, energy saving and environmentally friendly state of the art press brake.

The Hybrid can save up to 60% energy in contrast to a standard Ultima in same execution, this without losing any speed or production capacity. There will be only a little energy consumption when the machine is idle, only from the time the operator pushes the foot pedal till the upper beam is back in the up position the motors will be powered on and will use energy.
So there is no flow of oil to the tank when the machine is idle, resulting in not heating the oil.

The flow rate of the hydraulic pump operates proportionally to the drive speed
of the electric motor. The CNC controller transfers the pressure/volume flow target values to the control during the running operation, system pressure is measured by a pressure transducer and is also sent to the servo controller.

Based on the control deviation, the built-in PIO controller calculates the required motor speed and adapts it accordingly to the existing system requirements of flow rate and pressure.

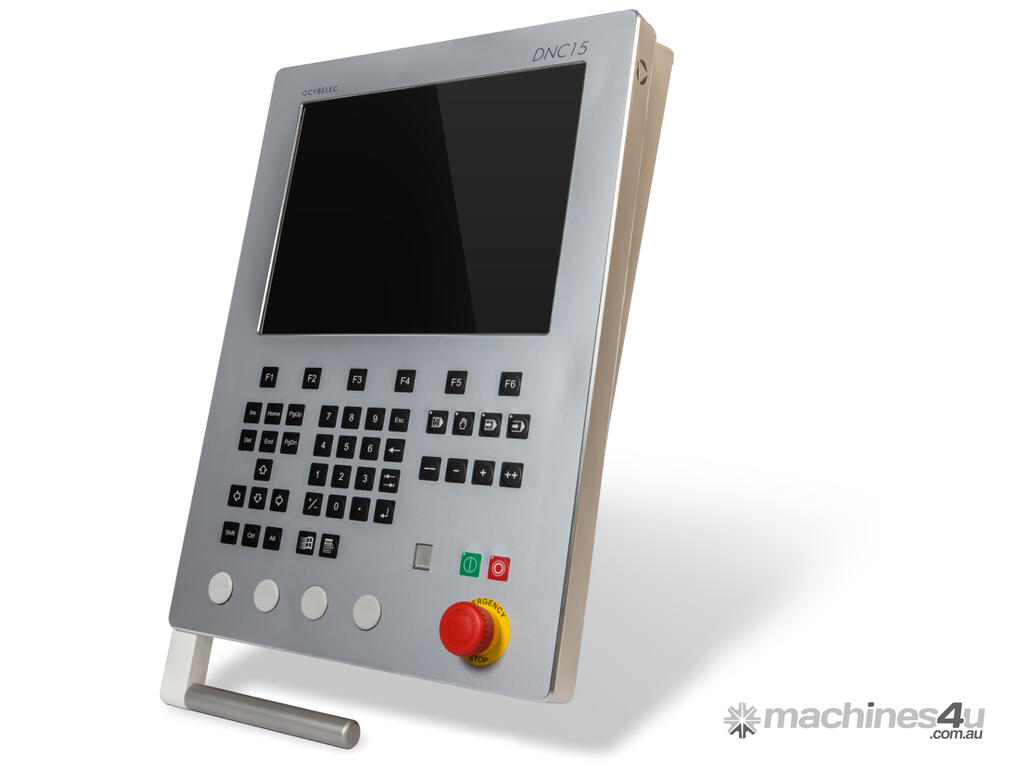

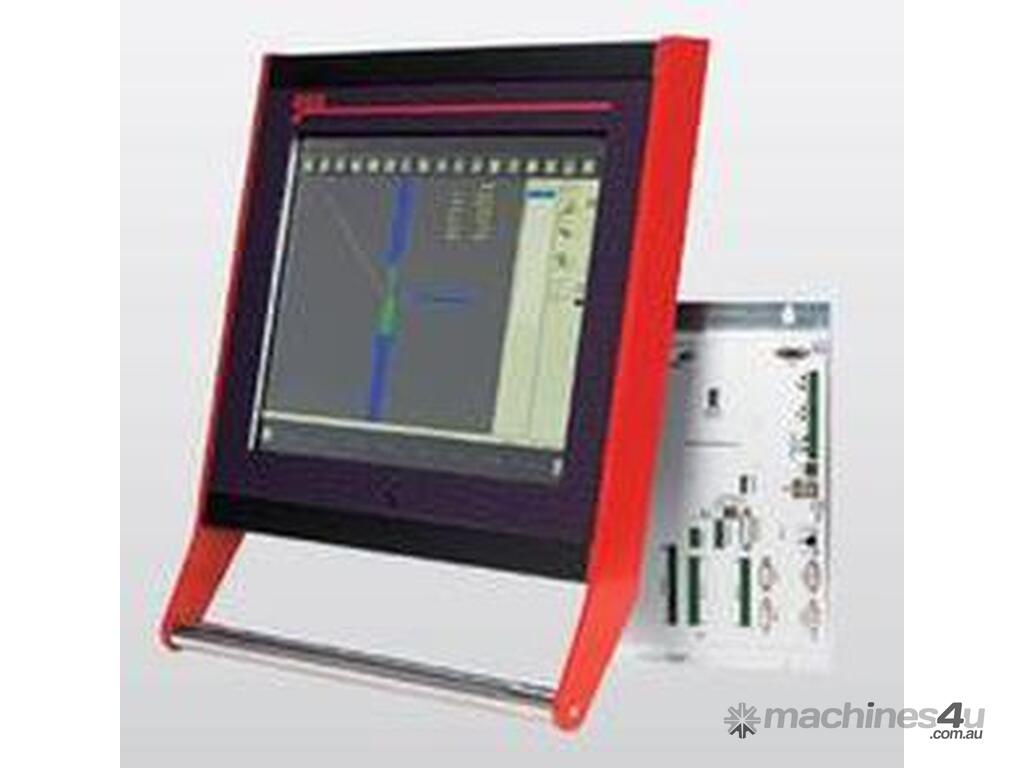

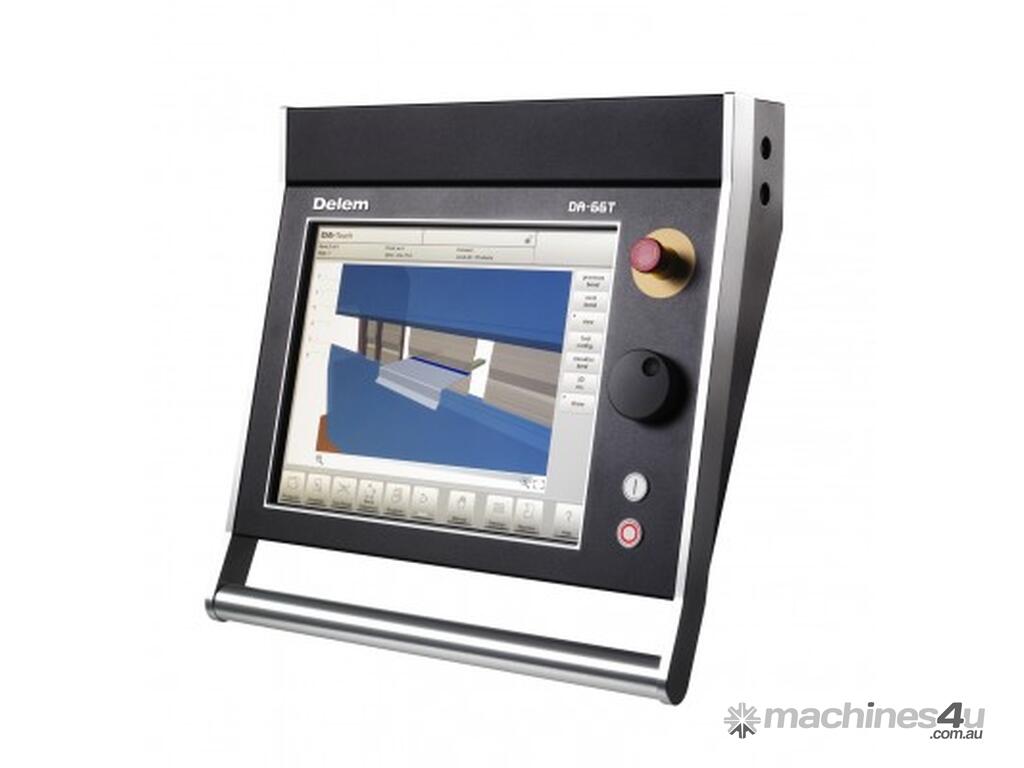

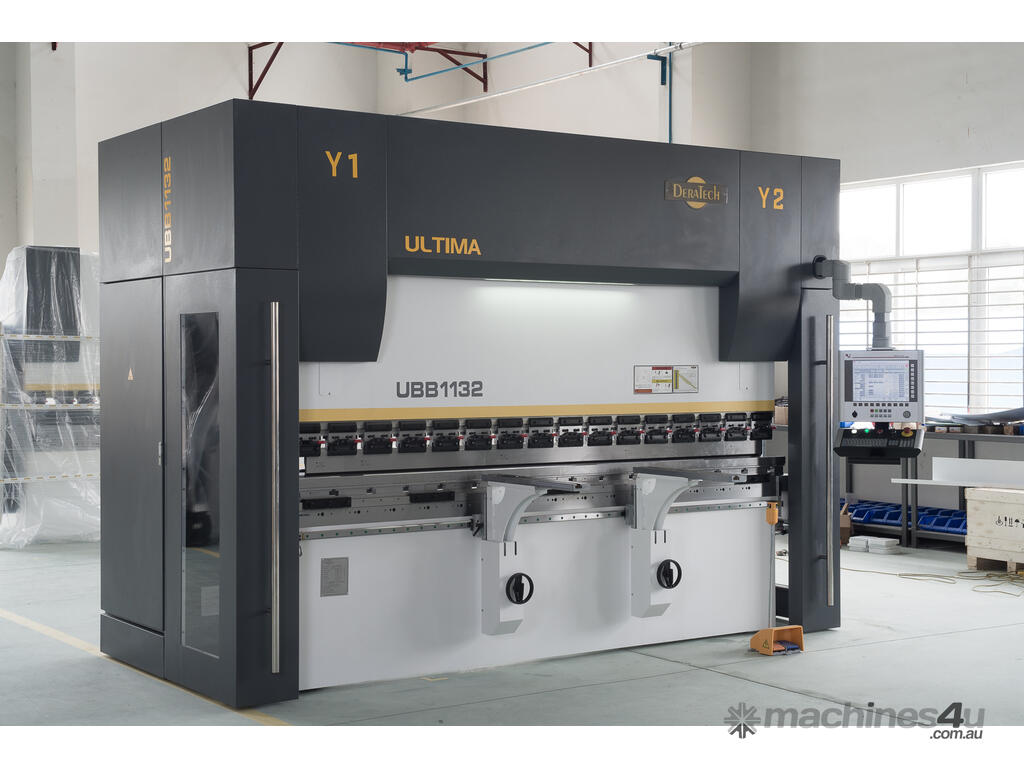

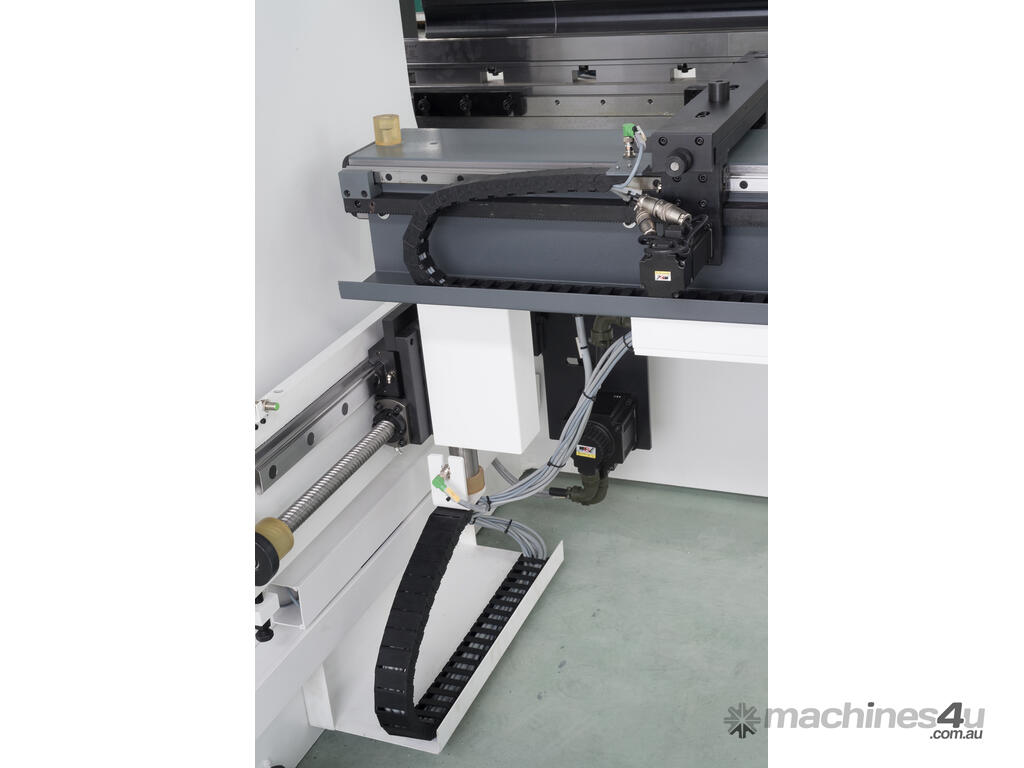

Deratech Ultima Hybrid in std. execution: Yl-Y2,X,R,V with Touch Screen controller.
As option the Hybrid can be equipped with 21-22, X3, Xl-X2/Rl-R2/21-22, Cnc bending aid, automatic sheet thickness measuring, angle measuring.....

Invest in the future now. Due to increasing energy costs, variable speed pump machines
solutions are on the rise... with energy savings between 30% and 60%... Reliability of powerful hydraulics, vimeo/as well as energy efficiency and dynamics of compact electronics play hand in hand with the variable speed pumps.


Price is based on 110/2500 $100k
