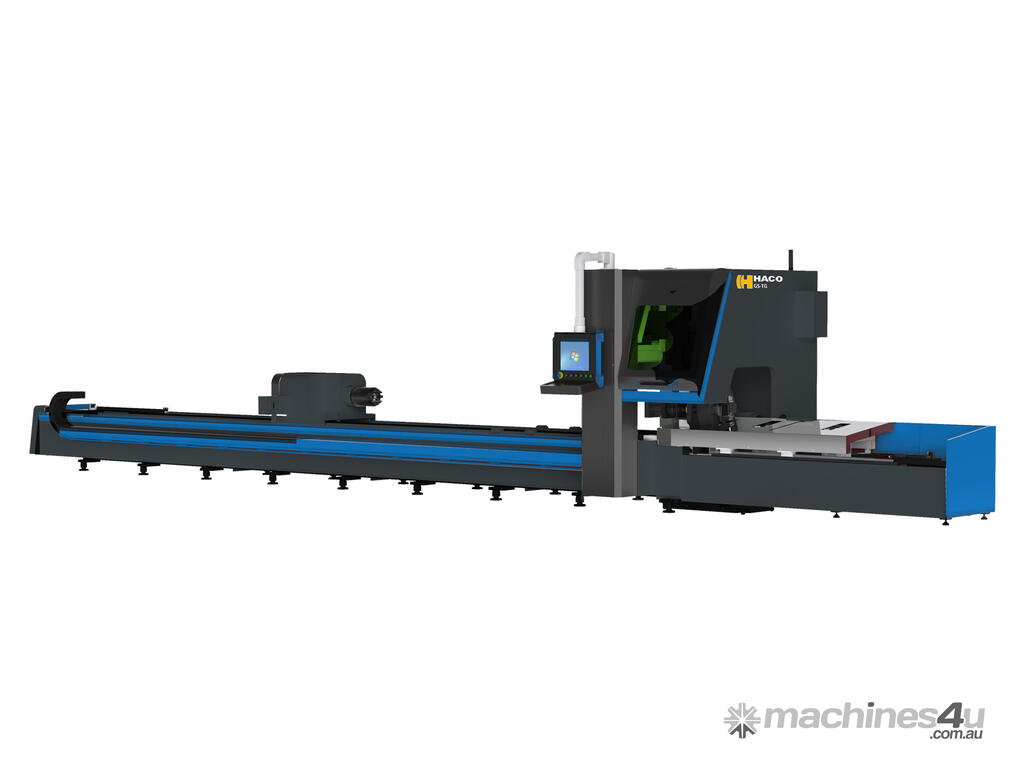

Haco Fiber Tube Laser
Model: HTL-GS6022TG

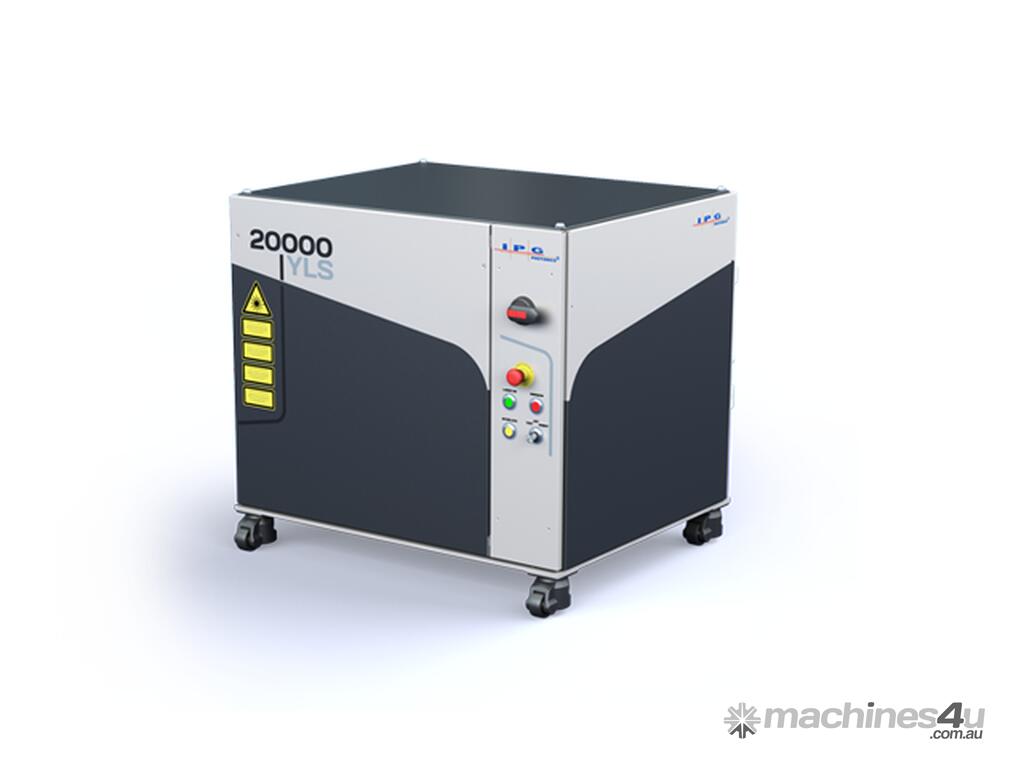

Laser Type: Fiber Laser IPG
Laser Power 2000W
Manual loading machine (Option Bundle Load)
Tube Cutting Length Range Max 6000 mm
Maximum chuck load capacity 120 kg
Maximum length of laying-off 3000mm
X-axis travel 500 mm
Y-axis travel 7000 mm
Z-axis travel 400 mm
A-axis travel Infinite rotating
W-axis travel Infinite rotating

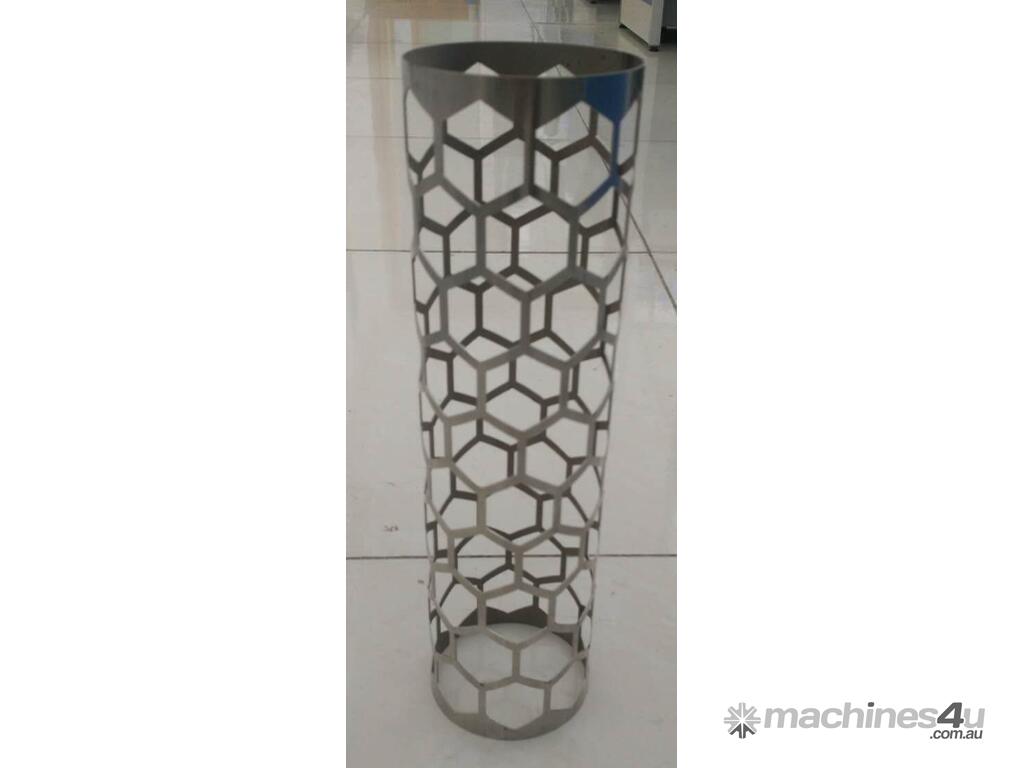

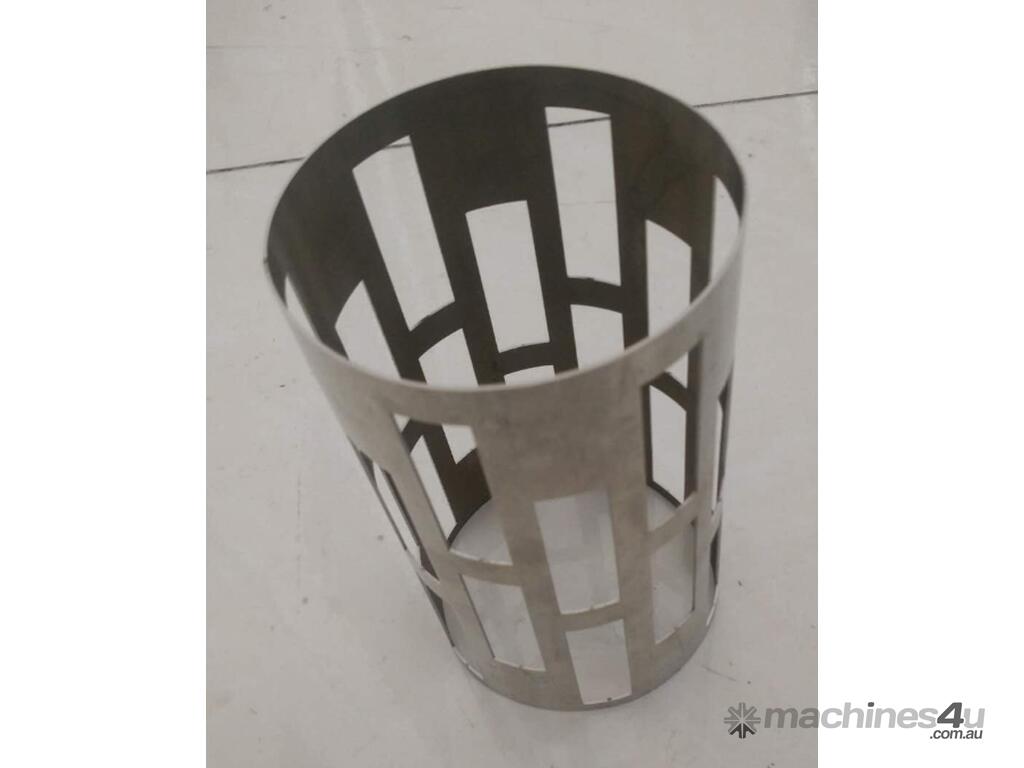

Round Tube Cutting Diameter Range 20mm~220mm (other sizes available)

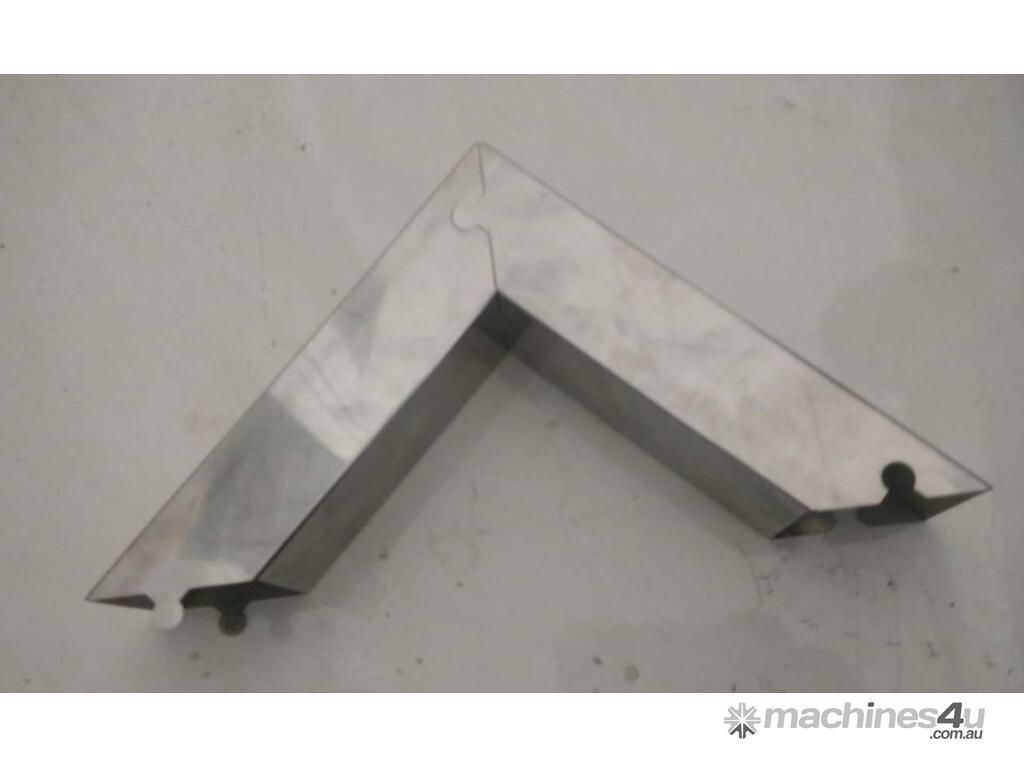

Square Tube Cutting Range 20mm x 20mm ~160mm x 160mm

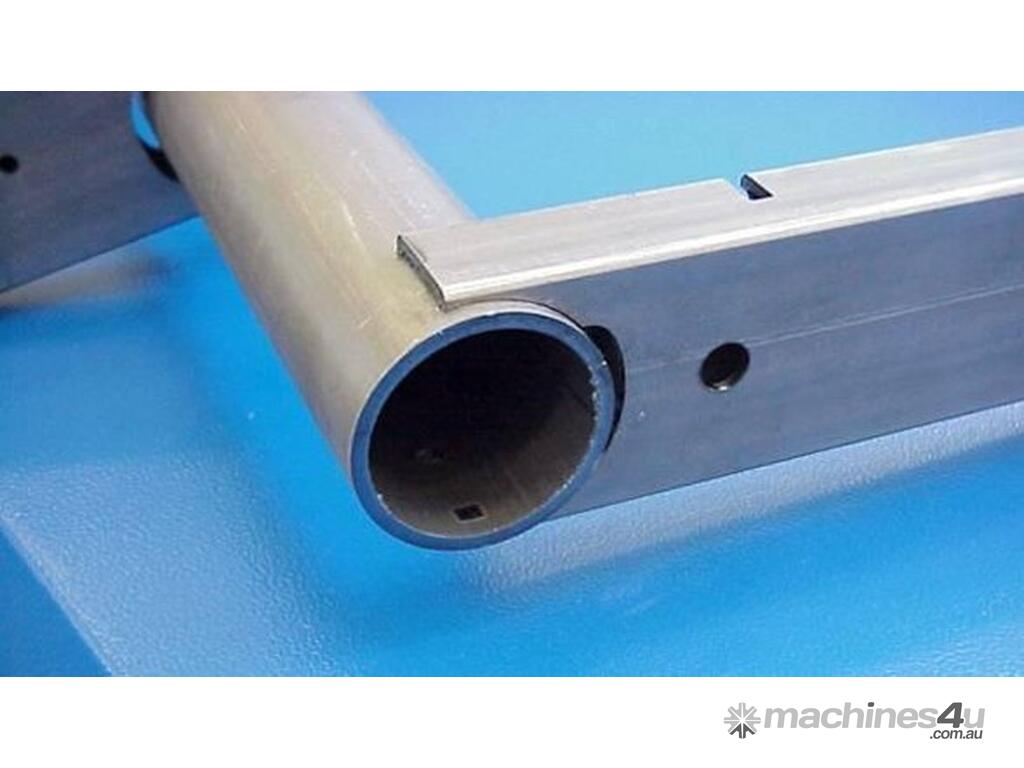

Other available tube: Rectangular tube, round tube, OB tube, D-tube, triangle tube, elliptical tube, equal-diameter shaped tube and other standard tube type
Working Voltage 380 V/50Hz
Power Consumption 24.33 KW
Automatic clamp tube Yes
Follow-up support Yes
Machine Dimension 10380*2000*2500mm
Gross weight 6 tons
Options available

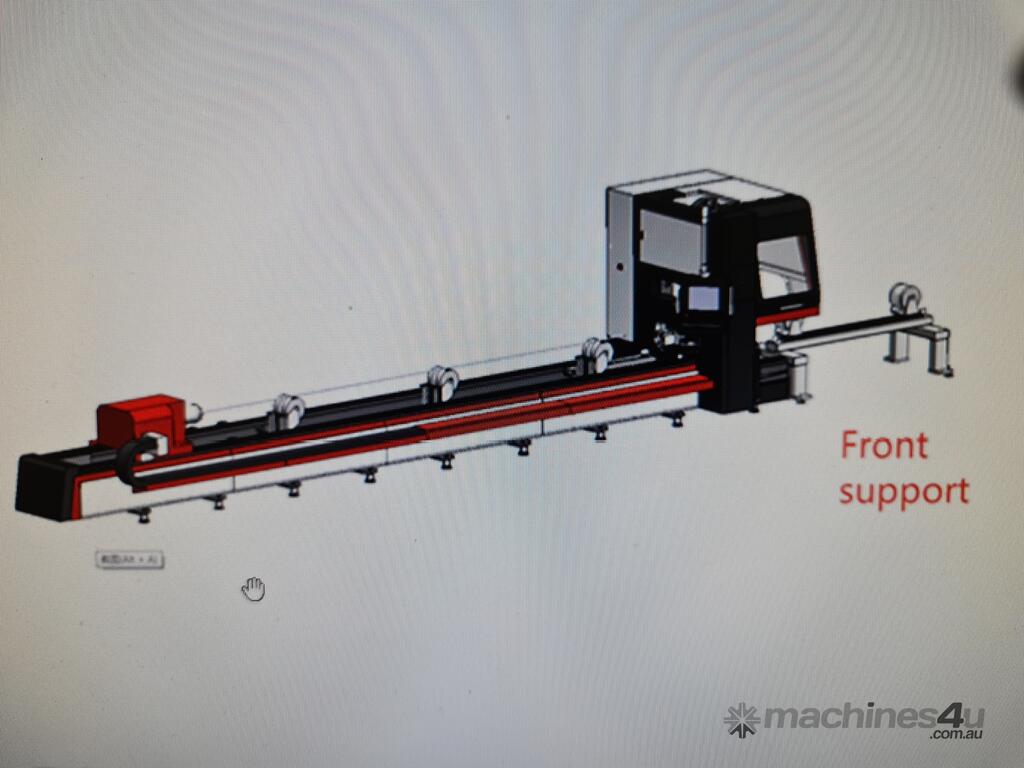

Front Support $TBA + gst
auto loading device $TBA + gst
