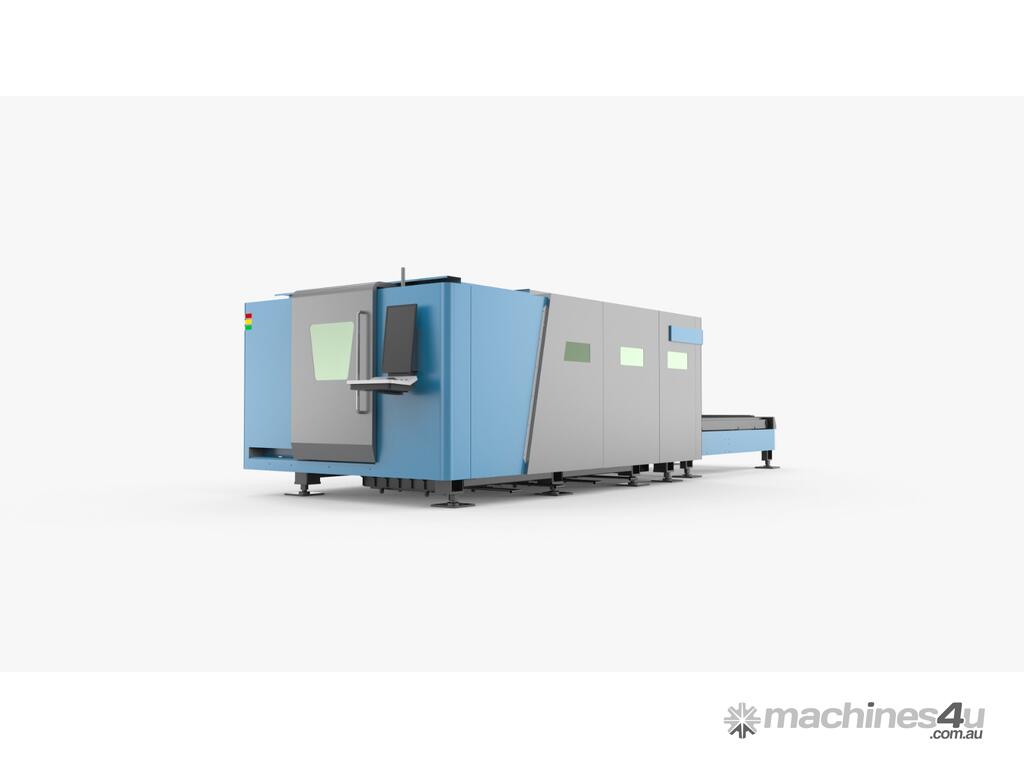

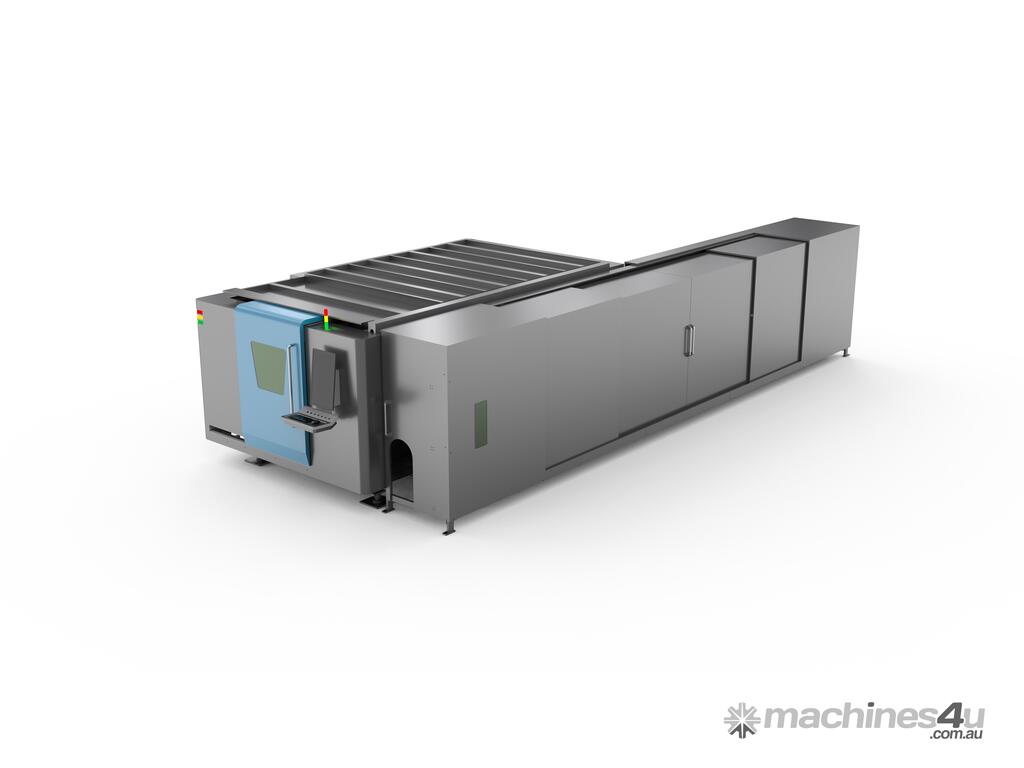

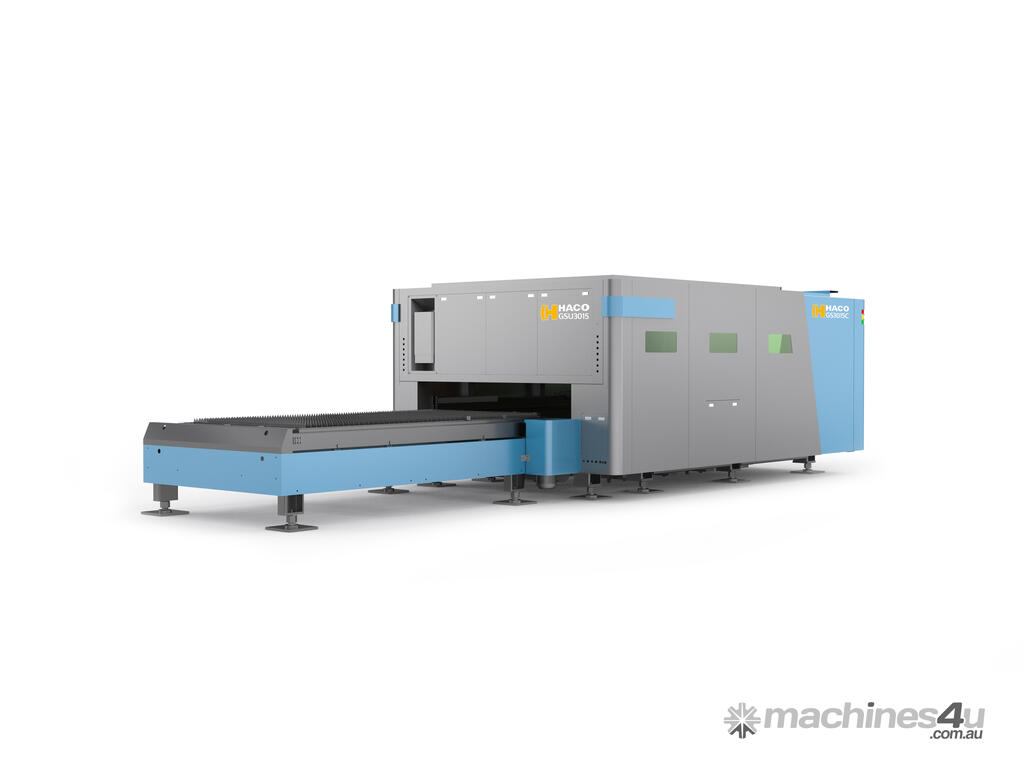

Haco Fibre Laser GSU4020

Haco - Fibre Laser Machine 3000w
Model HFL-GSU4020

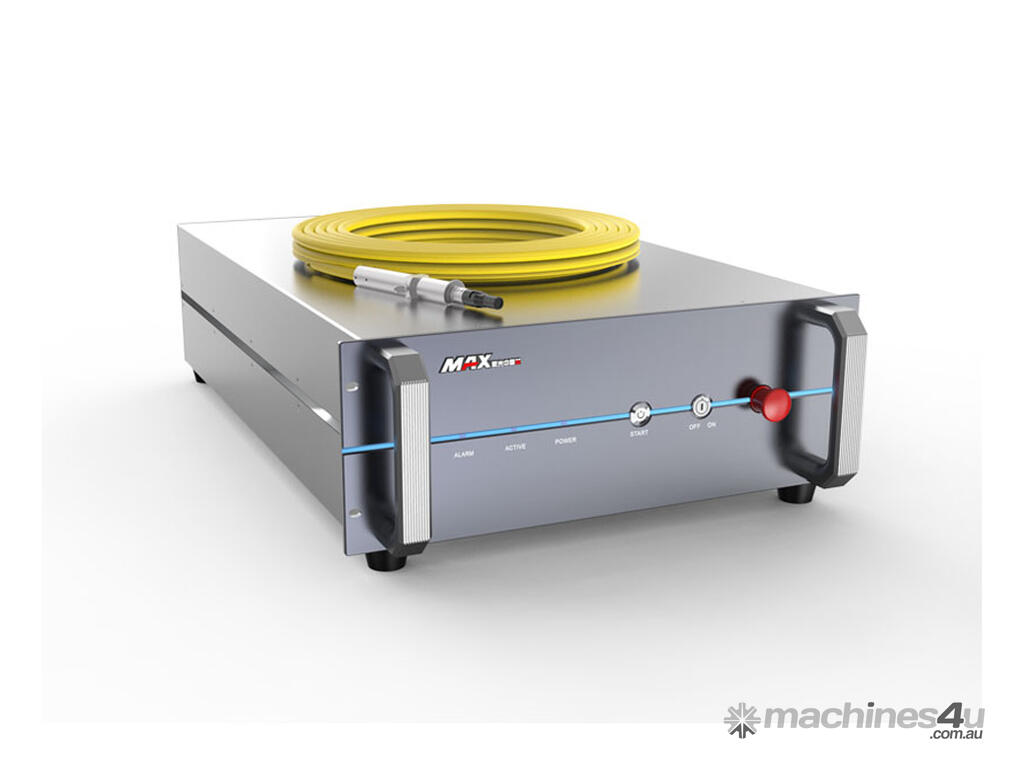

Laser Type Fiber Laser Max
Laser Power 3000 W
Stroke of X-Axis 4050mm
Stroke of Y-Axis 2020mm
Stroke of Z-Axis 290mm

Machine Dimension 10900*3550*2500 mm
Gross weight 10000 kg

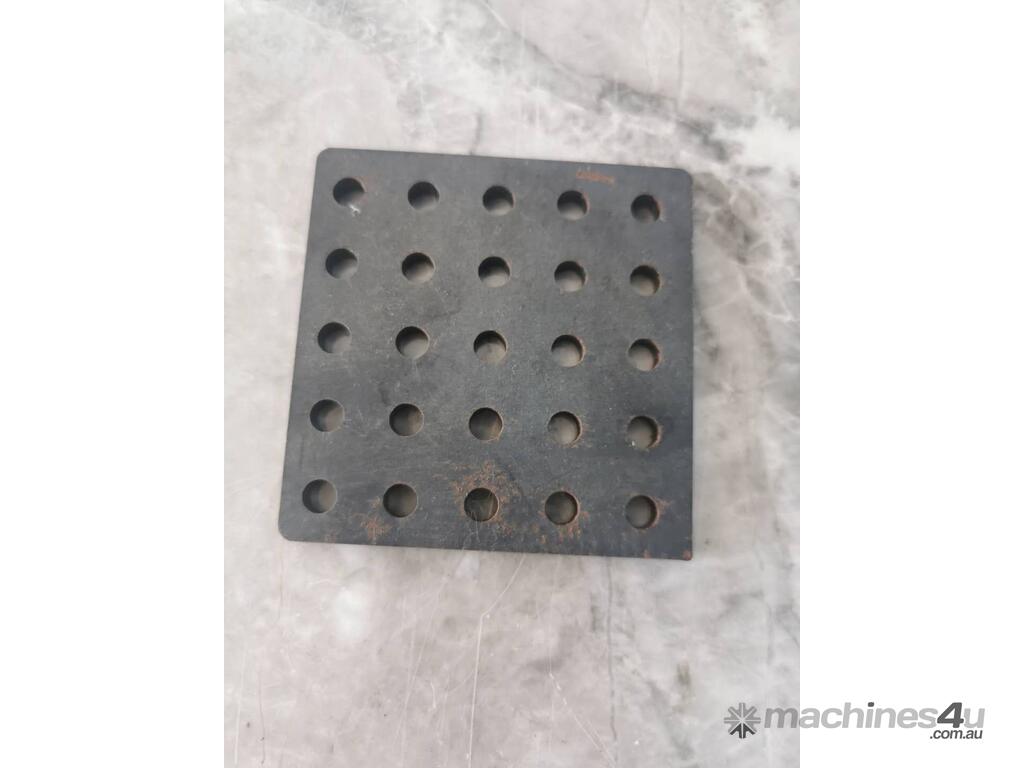

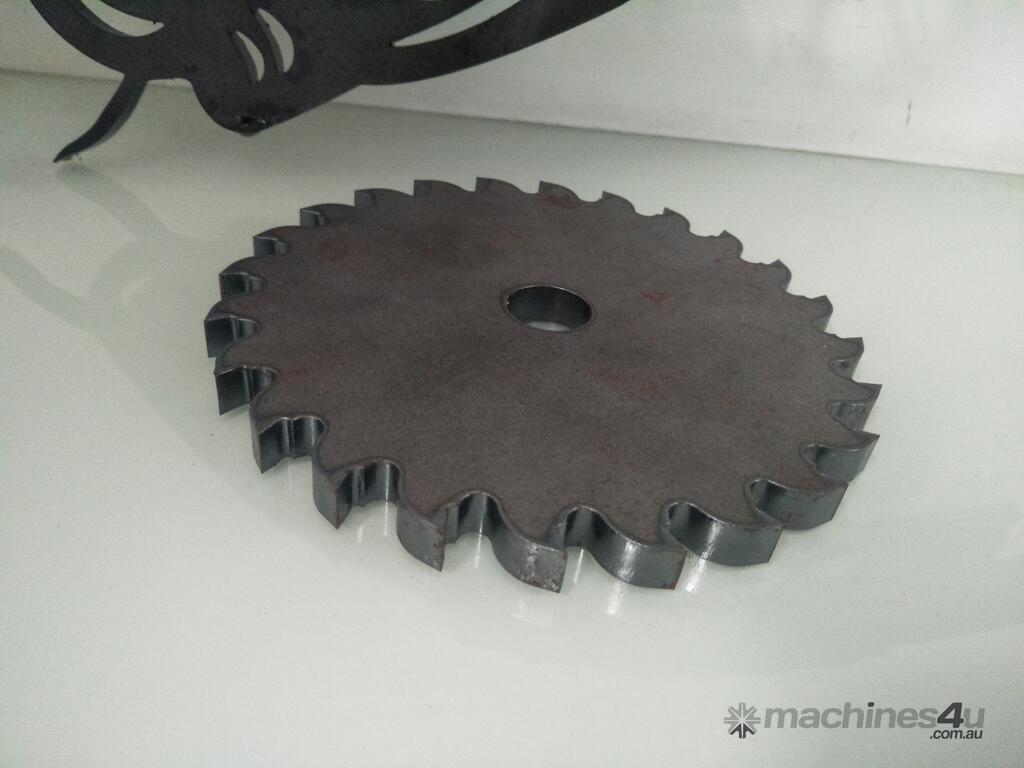

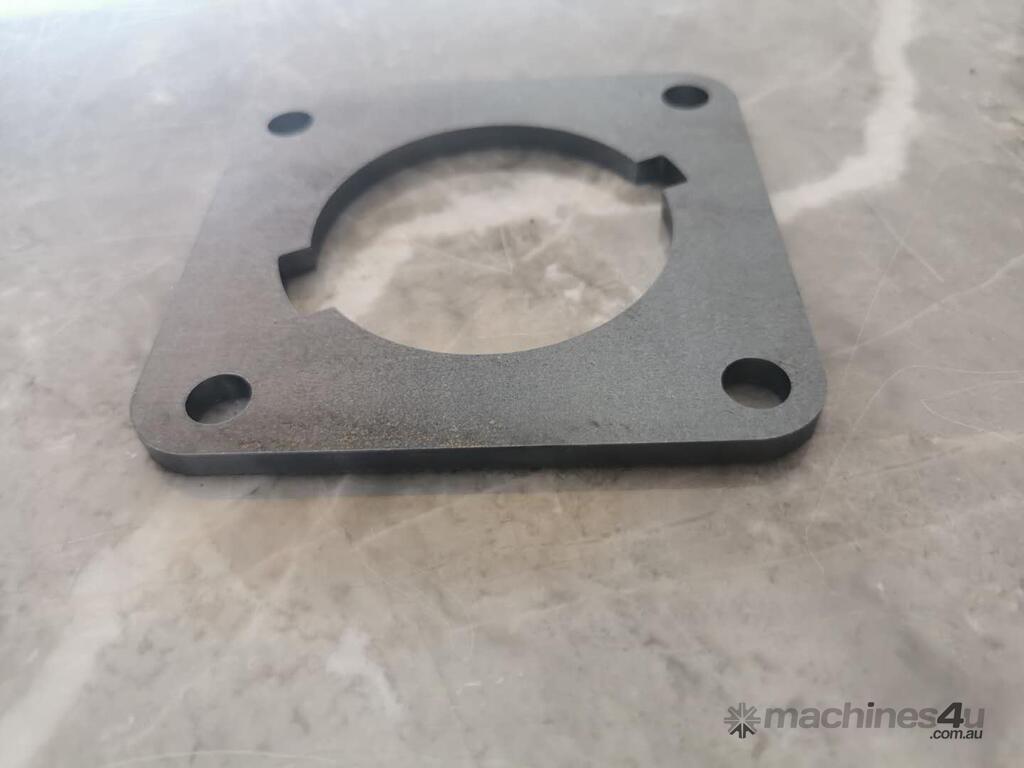

Cutting Parameters
Material Max cutting thickness 3000W
Mild steel 20 mm 16 mm Pierce
Stainless Steel 8 mm
Aluminum Alloy 6 mm
Brass 6 mm

Accessories included
Control Software Cypcut Most popular control system
Nesting software Integrated with Cypcut
IPC High stability industry PC
Exhaust Blower Standard Configuration (not fume-dust this is optional at more-price)
Voltage Regulator Standard Configuration
Inner Camera Standard Configuration
Automatic lubrication system Standard Configuration
Collect Trolley Standard Configuration
Remote Control Standard Configuration

Standard Features:

- Touch screen controller
- Air filtration system

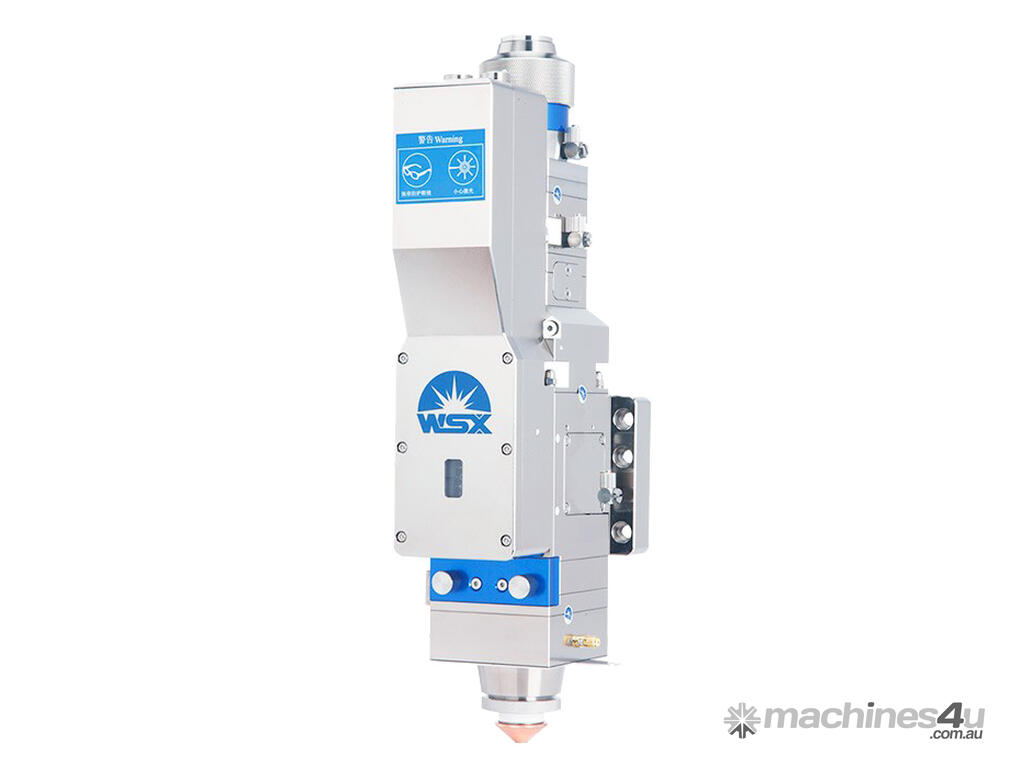

- Auto focus cutting head
- Pneumatic safety door at rear of the machine
- Fully enclosed design
- Laser grade safety glass
- Controller has the ability to network to office PC or server for file transfer
- Internal LED lighting
- External 3 colour status lamp

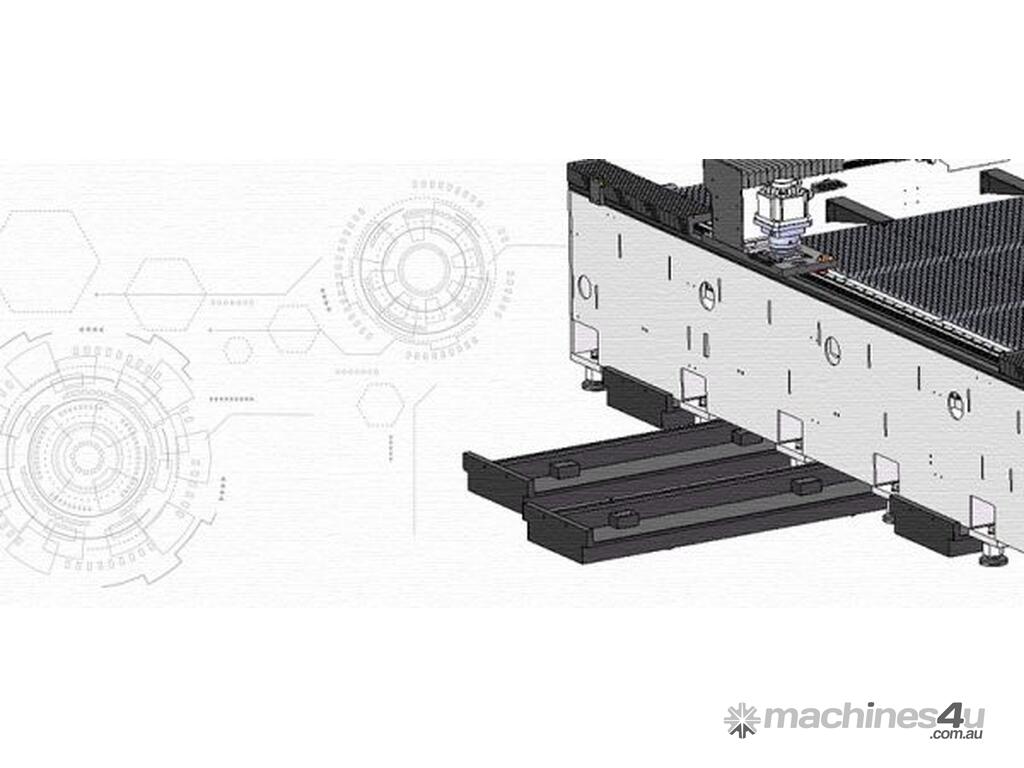

- Solid heavy duty frame for greater vibration absorption
- Quick changing of exchange tables
- Oxygen Air & Nitrogen auto gas selection via a servo valve

Options (only available on new orders)
Precitec Laser Head
Hypcut control upgrade

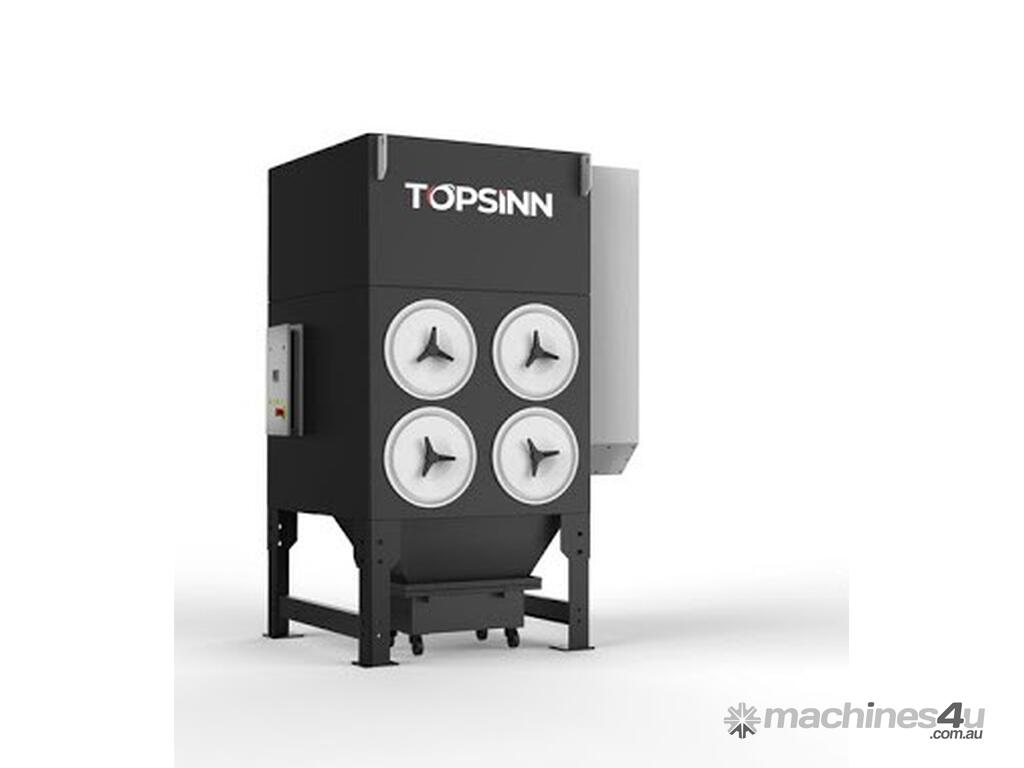

Dust-Fume Collector

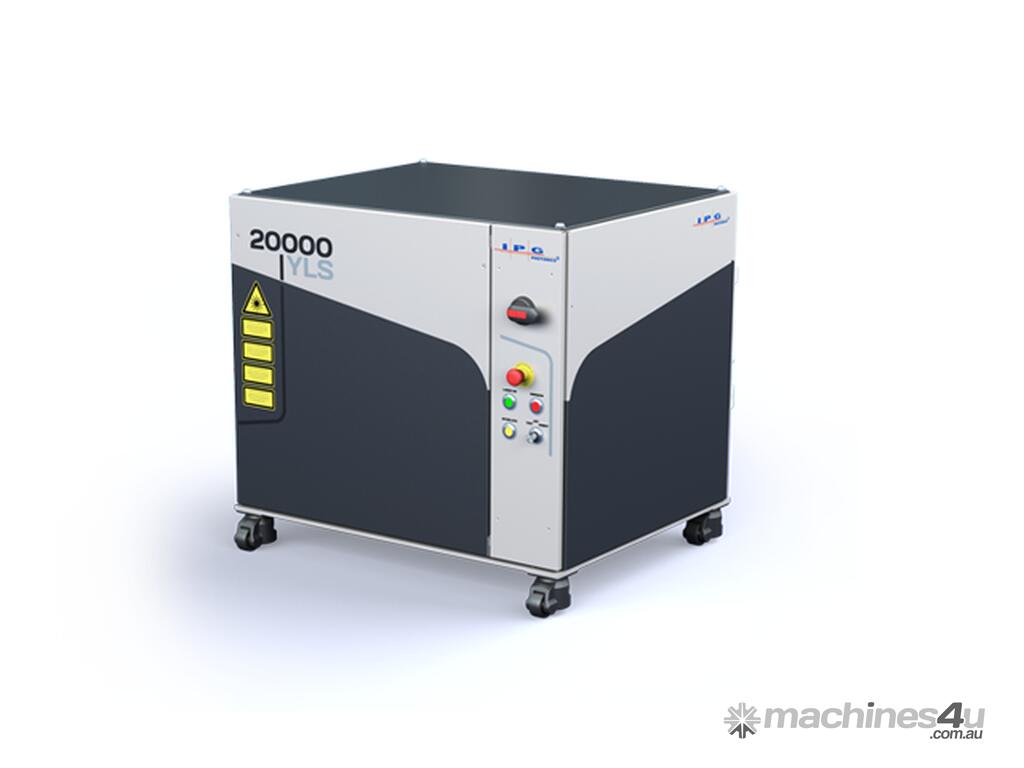

IPG or Raycus Laser unit Moreprice
