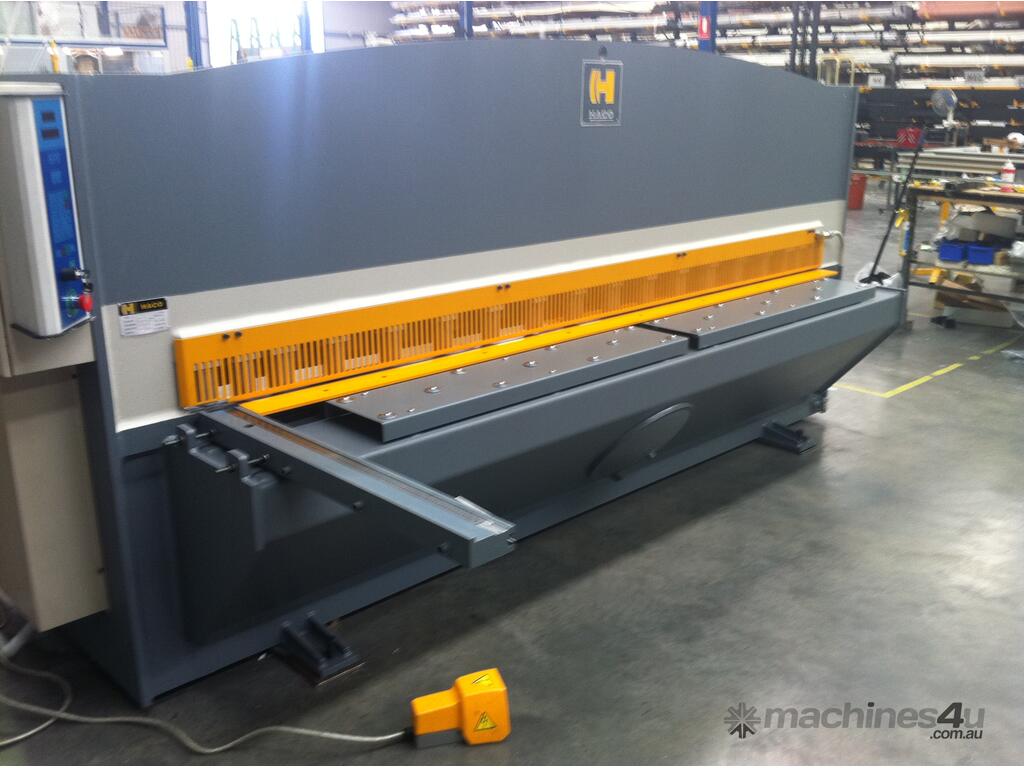

Haco TS3006 NC Guillotine

Used Haco TS3006 Verible Rake Hydraulic Guillotine 3m x 6mm with 1000mm backgauge
SP9 NC control + rake angle from control, blade gap manual
good condition

All our TS shears are equipped with power rake angle adjustment from the SP 9 control panel and quick blade gap adjustment. .

These machines are delivered with an extensive range of standard features. The TS series shears remain the pacesetters in the price/quality ratio market of today. With thousands of units running day after day all over the world, we are convinced of the durability and craftsmanship of these machines

Standard Features:
Hydraulic motor-pump group arranged at the back of the machine, easily accessible and protected by a sheet.
2 under driven cylinders. Electro-hydraulic adjustment of the rake angle by push buttons in the control panel.
All operator controls are conveniently located at the left-hand side of the machine within the immediate reach of the operator.
The standard SP9 control offers the following functions: automatic positioning of the backgauge to the preselected position with digital read-out, stroke control and selection for backgauge retraction.
Quick blade gap setting - on 6mm-models by one easily accessible lever at the front of the machine.
Tilting sheet hold-downs, pressure of which is independent from the shearing pressure, in order to clamp properly each sheet thickness. These hold-downs are arranged more closely on the left and the right hand side to conveniently cut small sheets.
Hydraulic and electric overload protection.
4 edged cutting blades.
Motorised backgauge on ballscrews.
Shearing table with a number of square iron blocks, for easy the sheet feed-in and increasing drastically operator's safety.
Squaring arm of 1000mm, with scale, T-slot and disappearing stop, attached to the left side of the machine.
Movable foot-pedal control.
CE-certified

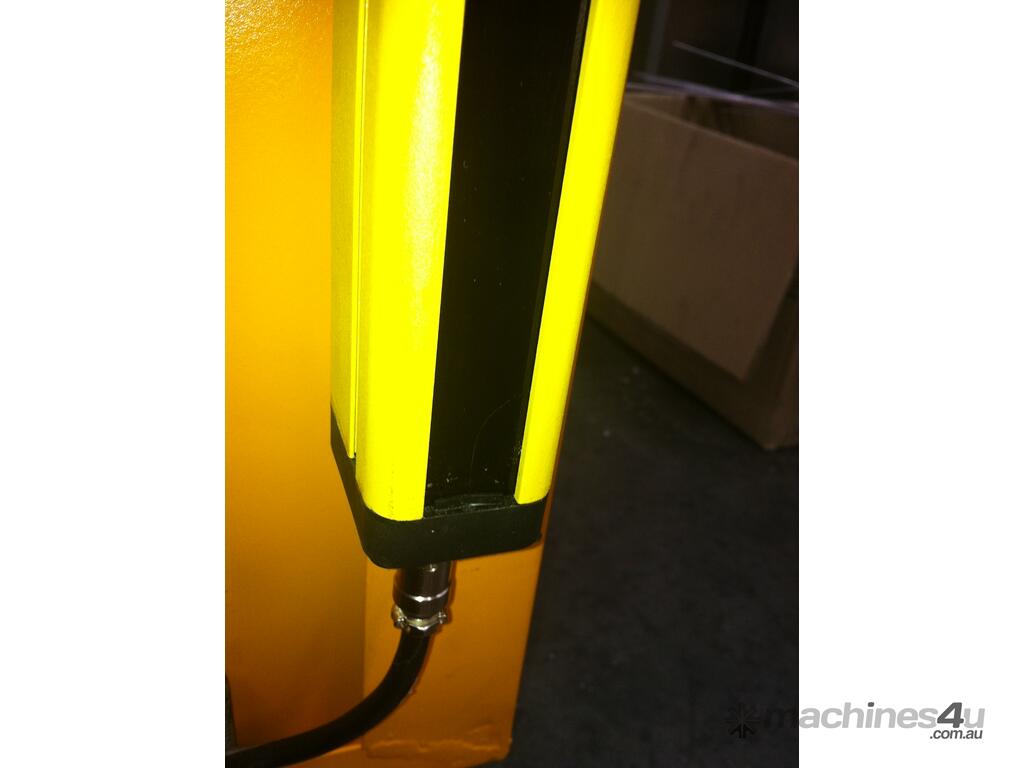

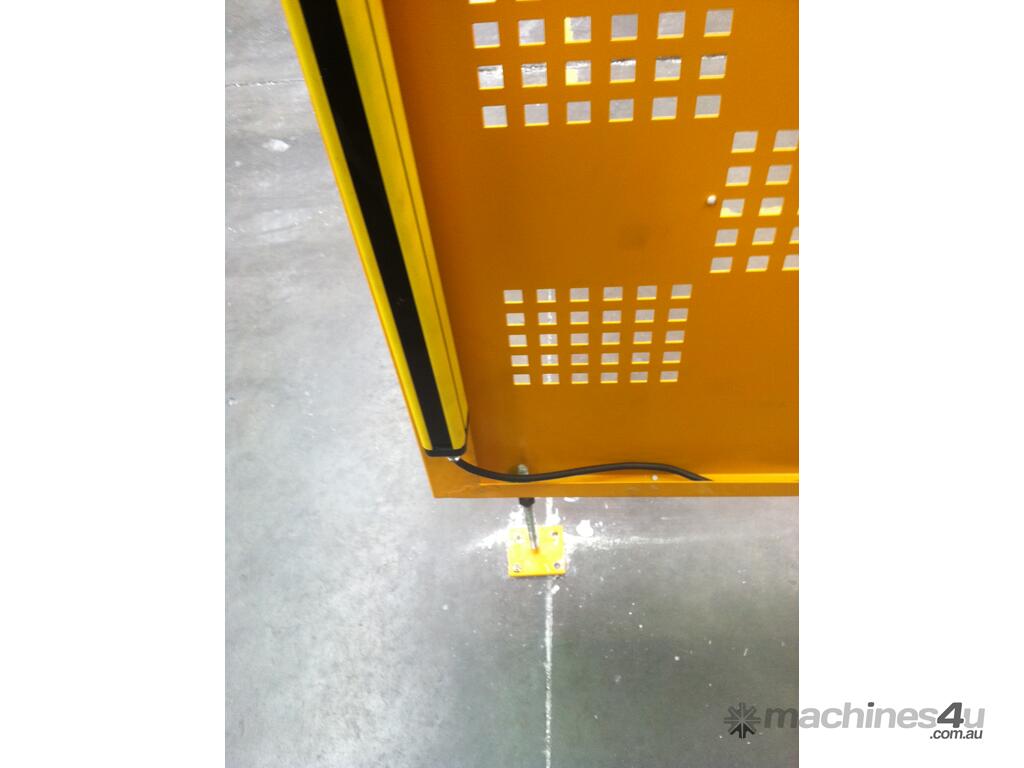

Light guarding at the rear of the machine, combined with side fencing

The TS3006 are executed with our SP9 control, showing following features:

Automatic positioning of the backgauge to the preselected position with digital readout, stroke control and selection for backgauge retraction..
Automatic programmable retraction of the backgauge.
Possibility of jog mode on backgauge.
Preselection of cutting angle
Preselection of cutting length
