GHD-22 Geared Head Manual Feed Drilling Machine
CALL FOR OUR BEST PRICE
Order Code: D178

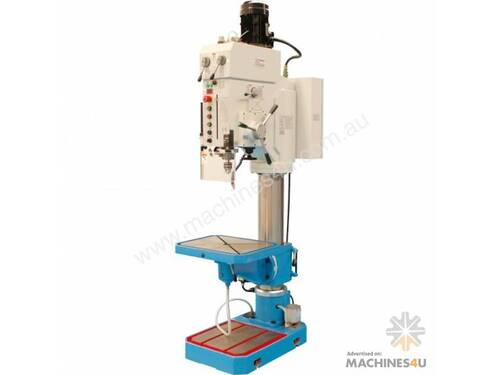

GHD-50 - Geared Head Drill (415V)
50mm Drilling Capacity with Automatic Feed & Tapping
4MT
Features
Ideal for industrial workshop use
Geared head drilling machine with 4 morse taper spindle
Automatic feed range (0.1, 0.2, 0.3, 0.40mm/rev)
Thread tapping with auto reverse
Spindle incorporates automatic spindle brake
12 drilling speeds from 52-1400rpm
Digital readout spindle speed mounted on front panel
Digital readout depth gauge mounted on front panel
Chuck guard with micro-switch
Drill ejector incorporated in machine
Coolant pump system with flexible hose
Work light mounted in convenient location
50mm drill capacity with 250mm of spindle travel
Oil sight glass for geared head and feed gearbox
Modern electrics to European CE standards

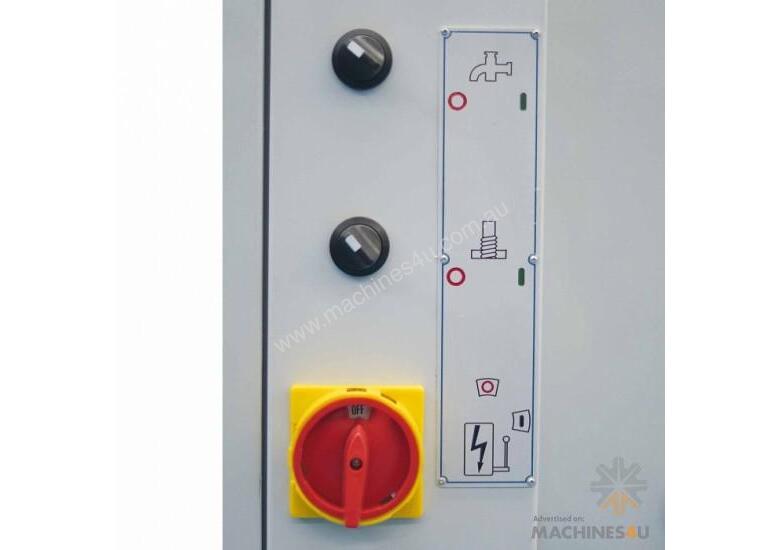

Forward and reverse spindle switch with high and low speeds
Emergency stop switch and overload protection
Substantial heavy walled column ensuring greater rigidity
Adjustable accurate depth setting with auto feed cut out for increased productivity
T slotted work table and base
Square work table tilts to ±45º and rotates 360º
Motorised rise & fall work table
52rpm low speed for heavy drilling
Includes
Coolant pump system
Auto feed
Tapping function

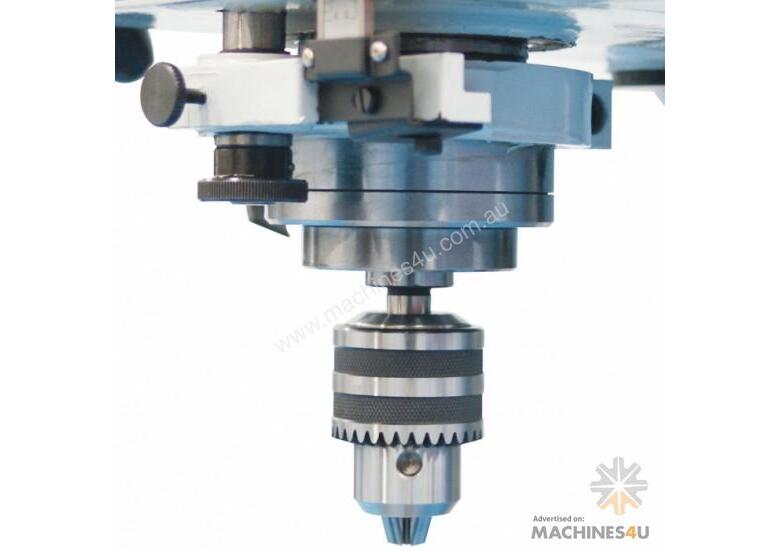

Safety chuck guard
Work light
Digital spindle speed
Digital depth gauge
Motorised work table positioning
1-13mm drill chuck
4-3, 4-2, 3-1 morse taper sleeves
ORDER CODE: D178
Model: GHD-50
Drilling Capacity: 50mm
Threading Capacity: M30
Spindle Taper: 4MT
Spindle Travel: 250mm
Throat Depth: 360mm
Quill Diameter: 80mm
Column Diameter: 180mm
Spindle To Table: 485mm
Spindle To Base: 1095mm
Table Type: Rectangle
Table Size: 460 x 580mm
T-Slot Size: 14mm
Automatic Quill Feed: 0.1, 0.2, 0.3, 0.40mm/rev
Work Light: Y
Coolant System: Y
Spindle Speed Steps: 12
Spindle Speed Range: 52-1400rpm
Motor Power: 3kW / 4hp
Voltage: 415V
Full Height: 2400mm
Weight (Nett): 710kg
All prices and specifications are subject to change and are GST exclusive
