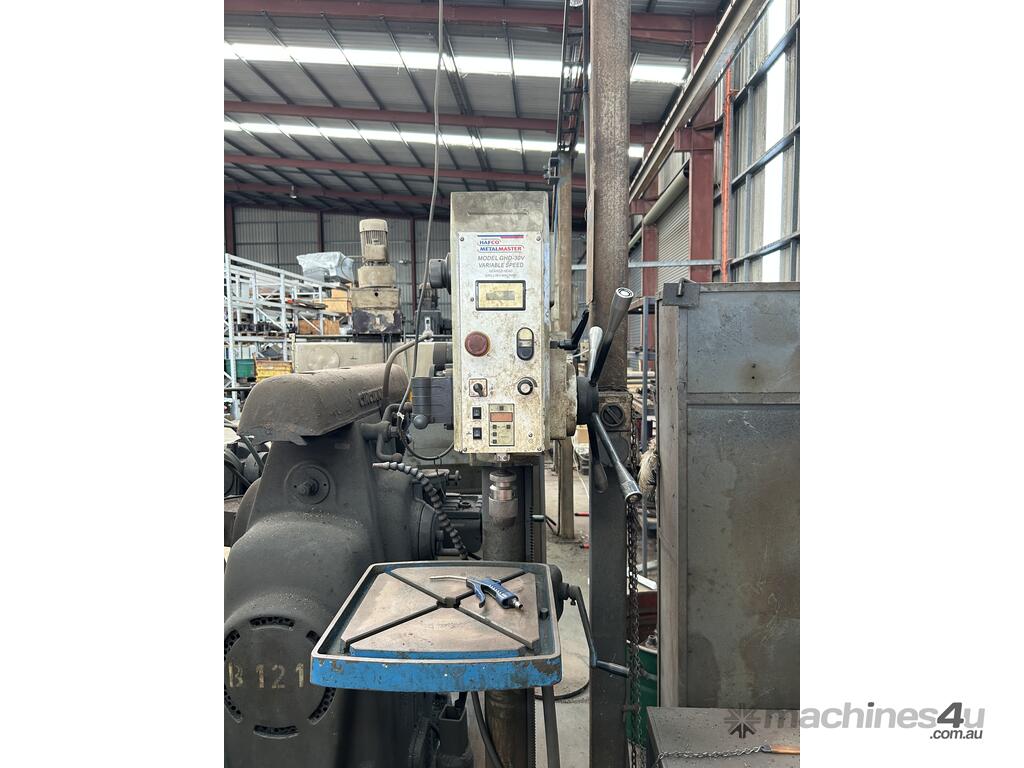

Hafco Pedestal Drill

DMF-43 - Workshop 3MT Geared & Tilting Head Mill - Drill
Ø31.5mm Drilling Capacity
(X) 365mm (Y) 240mm (Z) 780mm
ORDER CODE: D182
MODEL: DMF-43
Drilling Capacity (mm): Ø31.5
Thread Tapping Capacity (Metric): M16
Spindle Taper (MT): 3
Spindle Travel (mm): 120
Throat Depth (mm): 280
Quill Diameter (mm): 80
Column Diameter (mm): 115
Spindle To Table (mm): 625
Spindle To Base (mm): 1200
Table (Type): Rectangle, X & Y-Axis
Table Size (mm): 600 x 190
T-Slot Size (mm): 12
Automatic Quill Feed (mm/rev): ~
Work Light (Includes): ~
Coolant System (Includes): ~
Spindle Speed Steps (No.): 12
Spindle Speed Range (rpm): 75 ~ 3200
Motor Power (kW / hp): 1.1 / 1.5
Voltage / Amperage (V / amp): 415
Full Height (mm): 1990
Nett Weight (kg): 350
Features
• Ideal for home or light industrial workshop use
• Geared head drill & mill machine with 3 morse taper spindle
• 12 drilling speeds from 75-3200rpm
• 1.1kW 415V motor
• Tapping function
• Micro down feed adjustment
• Tilting head ±90º
• Milling table travels 365 x 240mm
• Swivel safety drilling chuck guard
• Emergency stop switch and overload protection
• Adjustable accurate depth setting for increased productivity
• Rack and pinion wind-up table
• Rack and pinion wind-up drill head
• Thick walled column ensuring greater rigidity
• Concertina slide way cover on y axis
• Adjustable gibs on table
• 12mm T slotted work table and base
• Includes drawbar for milling
Includes
• Milling cutter
• 16mm keyed drill chuck and arbor
• Chuck key to suit
• Drill drift tool to remove drill chuck or taper shank drills
• Safety cutter guard
Available from Eagle Farm Brisbane, buyer to arrange removal and transport
