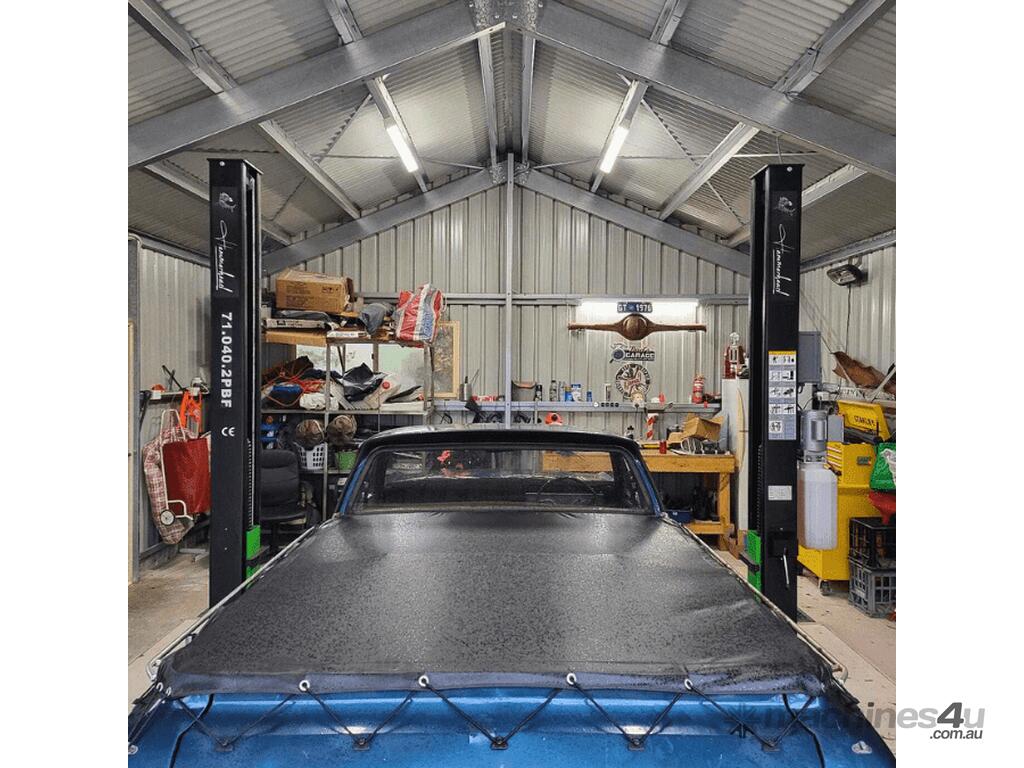

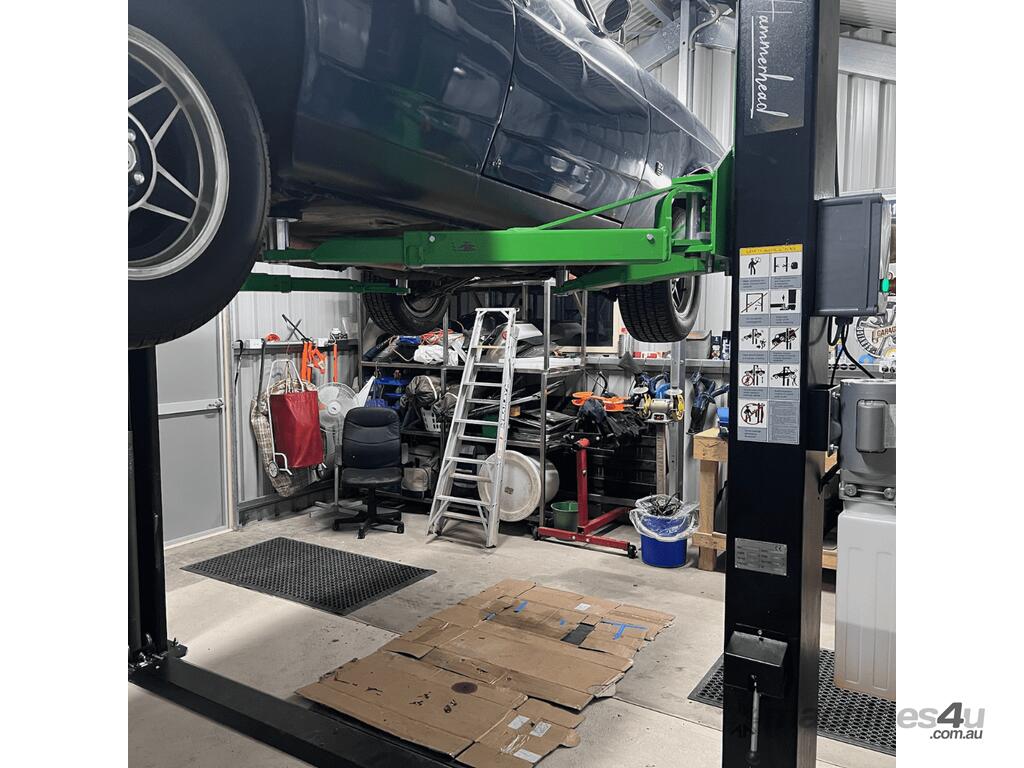

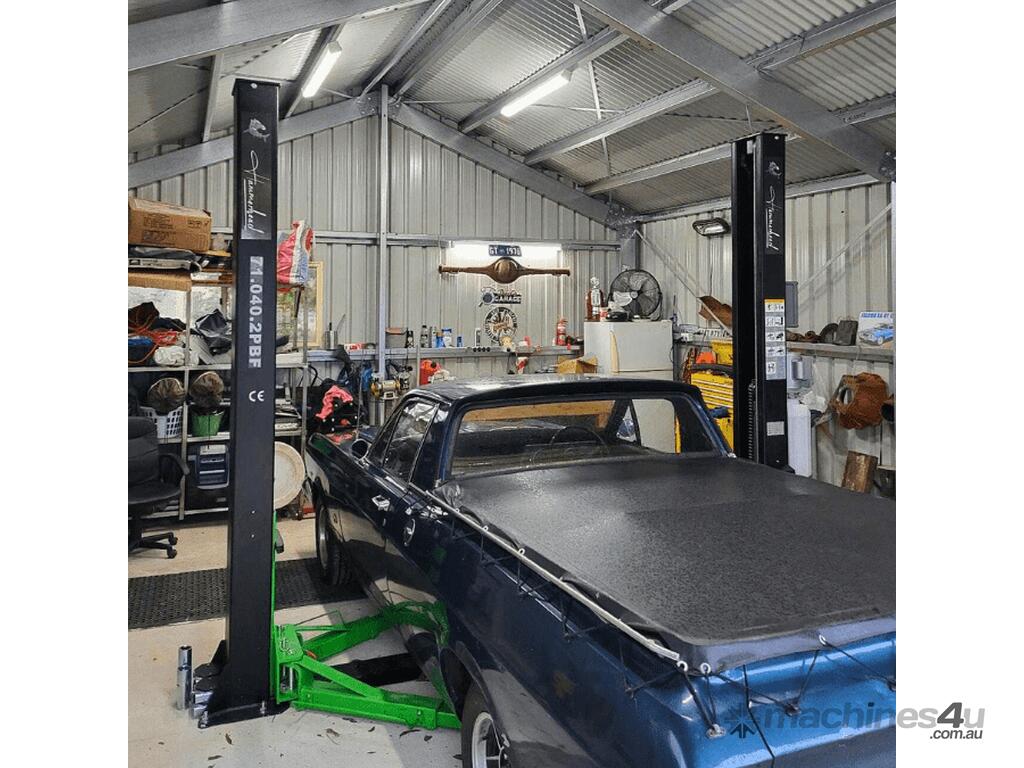

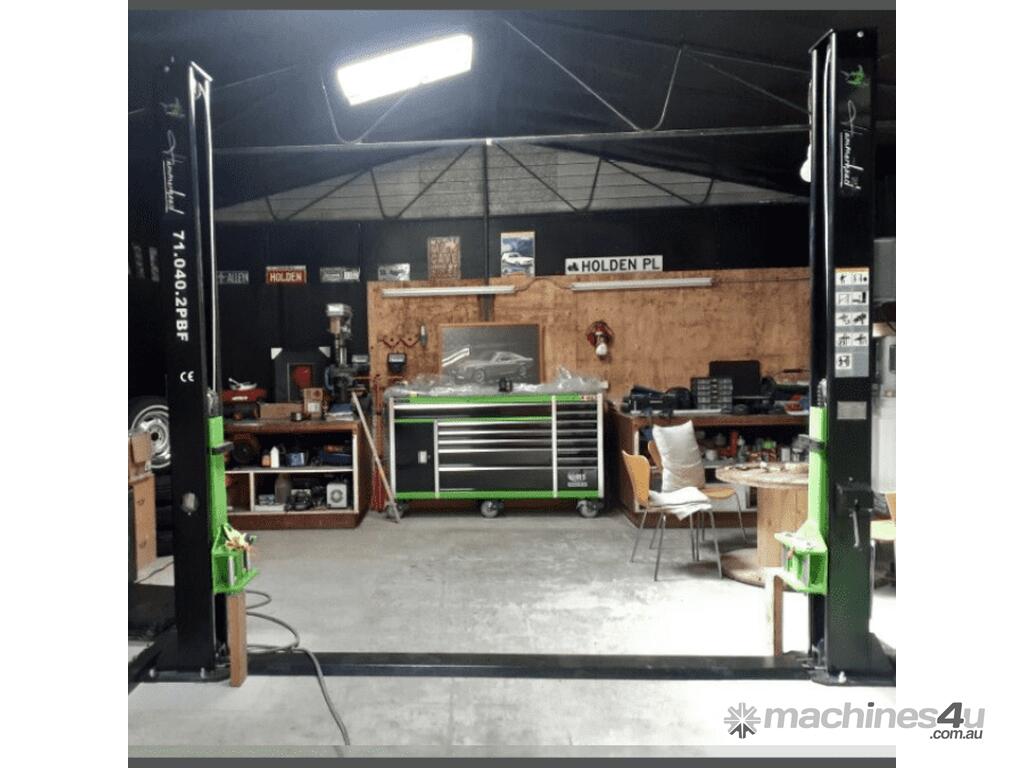

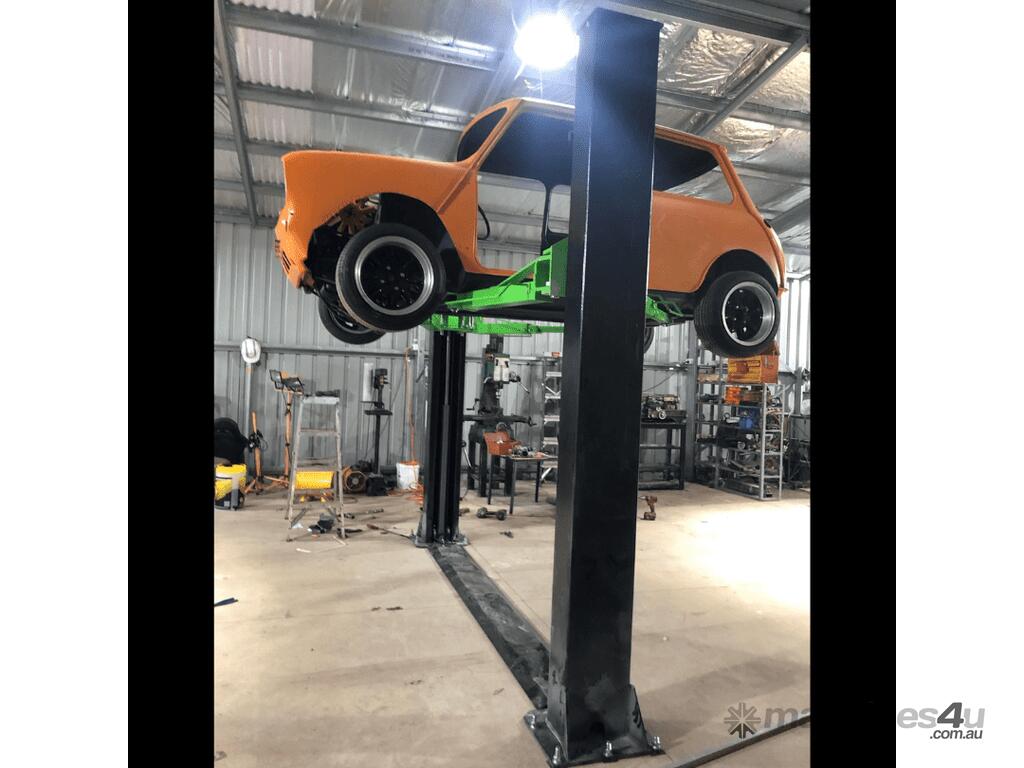

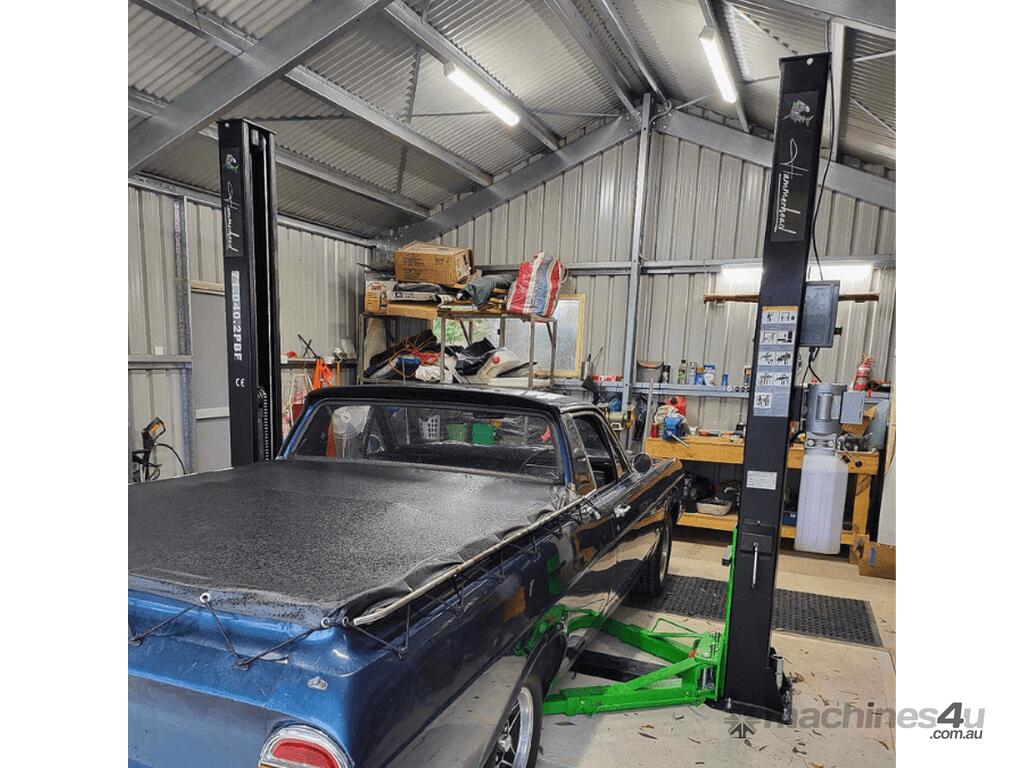

The Hammerhead 4.0 Ton 2 Post Baseframe Hoist offers robust lifting capability with a 4,000 kg (4.0 ton / 8,800 lbs) capacity, making it ideal for sedans, SUVs, 4WDs, and light commercial vehicles. This baseframe model features a low profile 50mm base plate. Suitable for low ceiling heights with only a 2820mm max height!
Its symmetrical post configuration ensures balanced lifting and easy positioning of vehicles, while the dual hydraulic cylinders and durable chain-driven system ensure smooth and reliable performance every time. Whether you’re a professional mechanic or a serious car enthusiast, the Hammerhead 2 Post Baseframe Hoist delivers the strength, safety, and performance you can trust.
Base Plate Hoist Features
4000kg / 4 tonne safe load limit
Lifting height of 1.93m
Dual hydraulic cylinders with chain driven carriages
Adjustable screw pads and 4 additional raising adapters are included
Strong single piece column design
Durable powder coated finish
Rubber door protectors
Symmetric two and three stage arms
Low profile 50mm high base plate
Safety Features
Manual safety locking system with safety latches in each column
Dual point release system
Heavy duty 5mm thick columns ,6mm carriages
9.3mm steel wire rope equalising cables
Sub-frame design provides additional safety
What’s included?
2 post hoist with all bolts, cables, lines and fixings
240V single phase hydraulic power unit
Concrete anchor bolts
What’s Not Included?
Power Plug
Installation of unit
Hydraulic Oil
Area Requirements
150mm deep concrete
Minimum Ceiling Height - 3 Metres
Warranty & Certifications
Australian Worksafe Registered Design
3 Year Australian Warranty - Includes Structure, Hydraulic & Electrics
CE Certified
