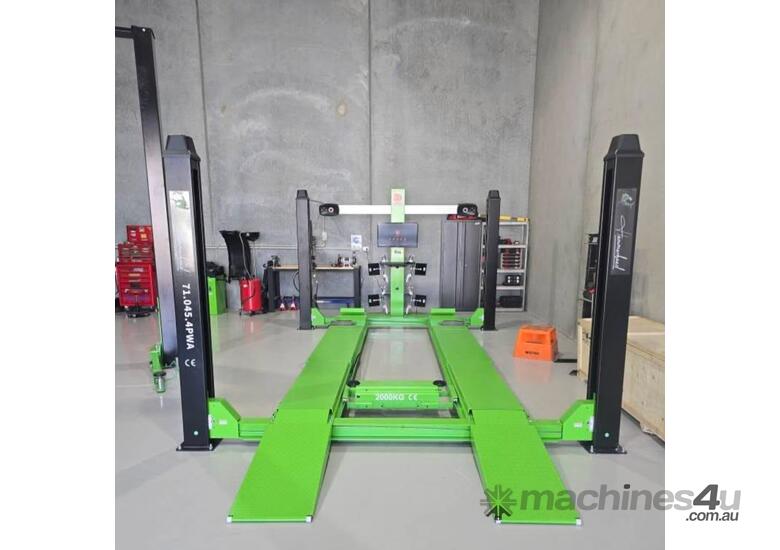

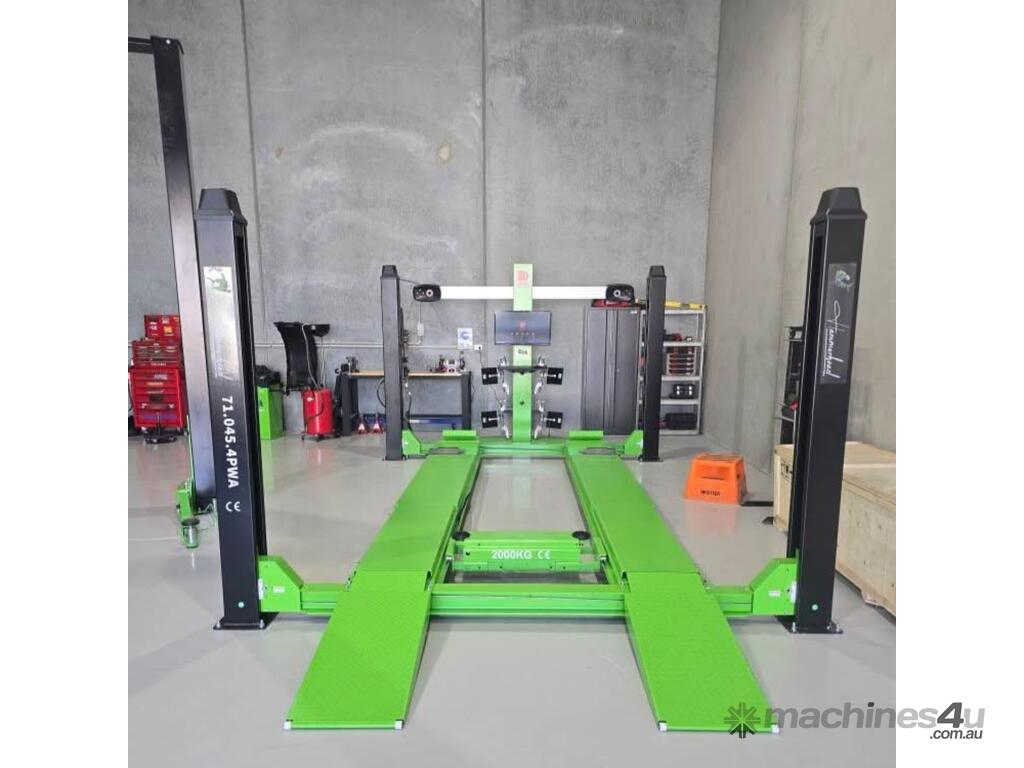

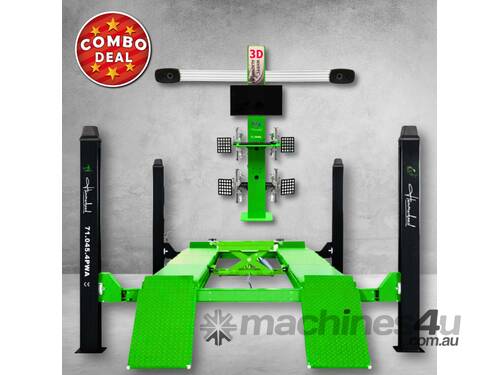

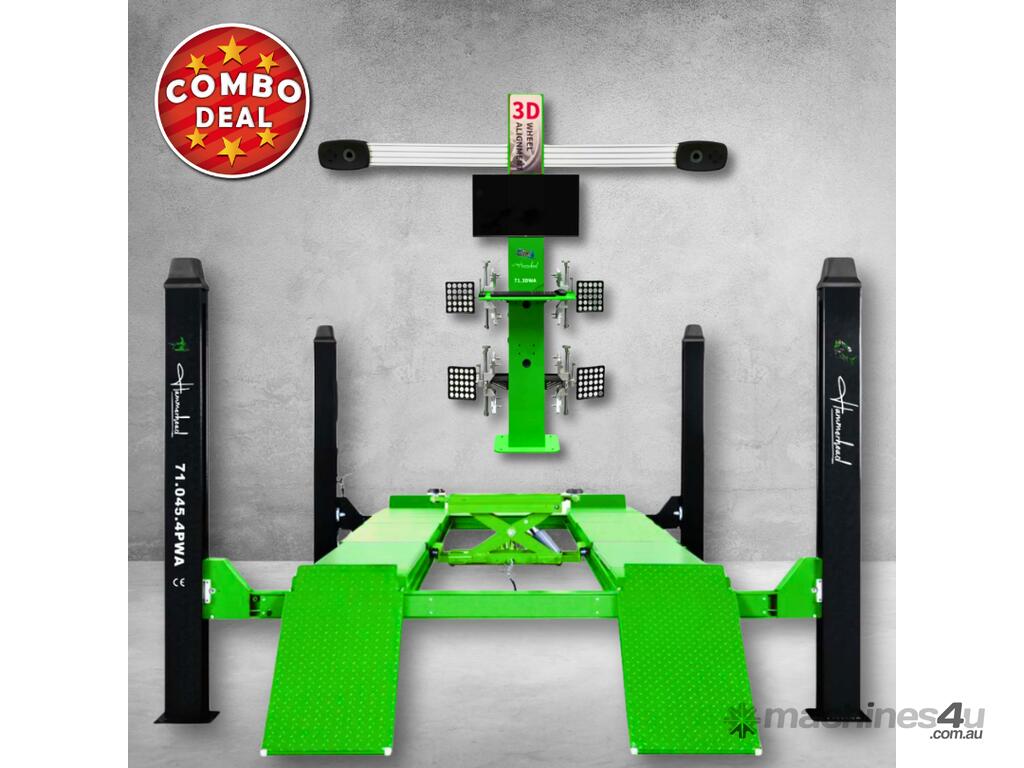

Hammerhead Wheel Alignment Set Up (Combo Deal)

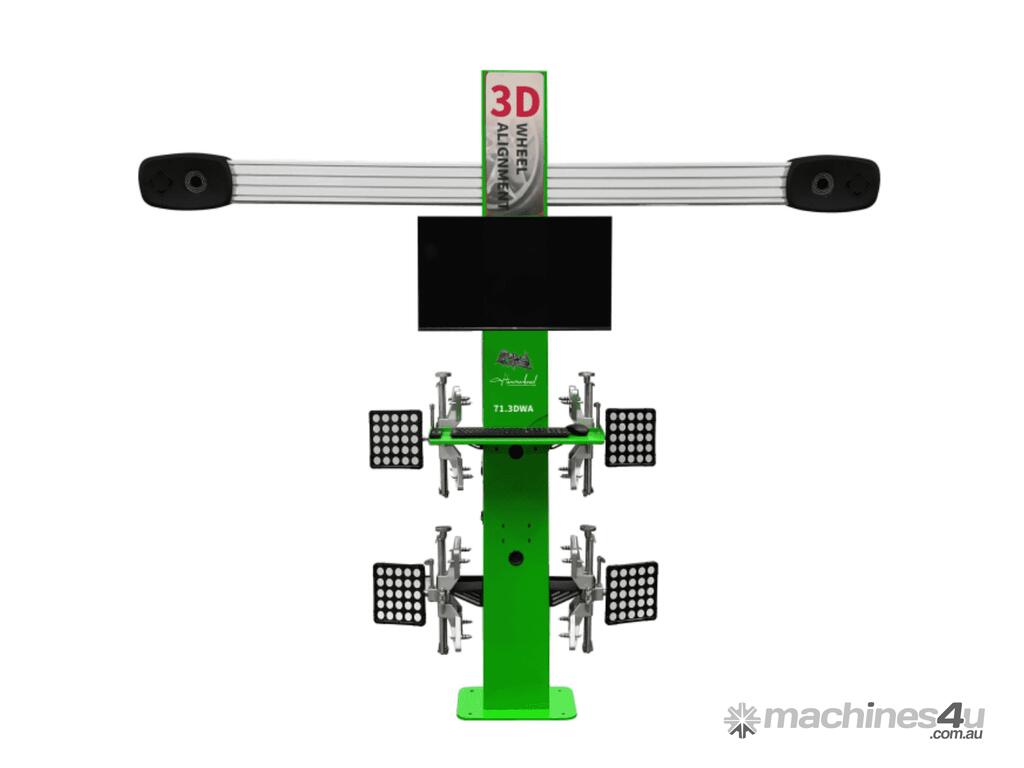

Jimy Tools Hammerhead Wheel Alignment Machine is used to detect the wheel alignment parameters of your car and compare them with the standard parameters designed by the original vehicle manufacturers.

Features:

Fast & Accurate Readings with advanced 3D image acquisition technology

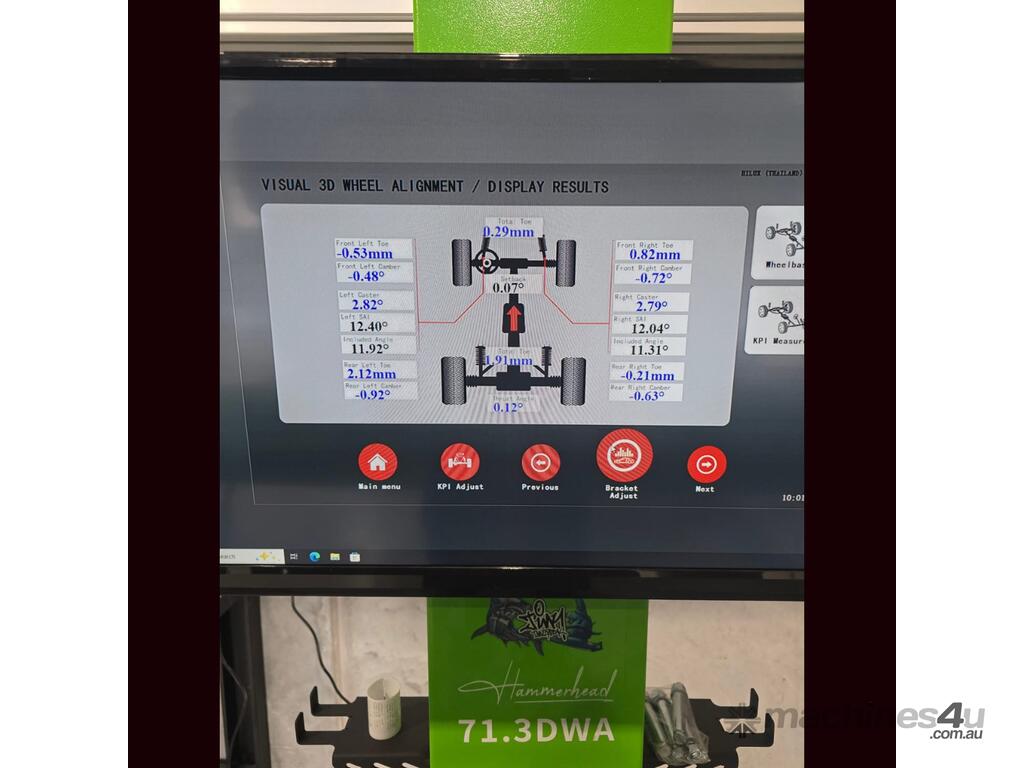

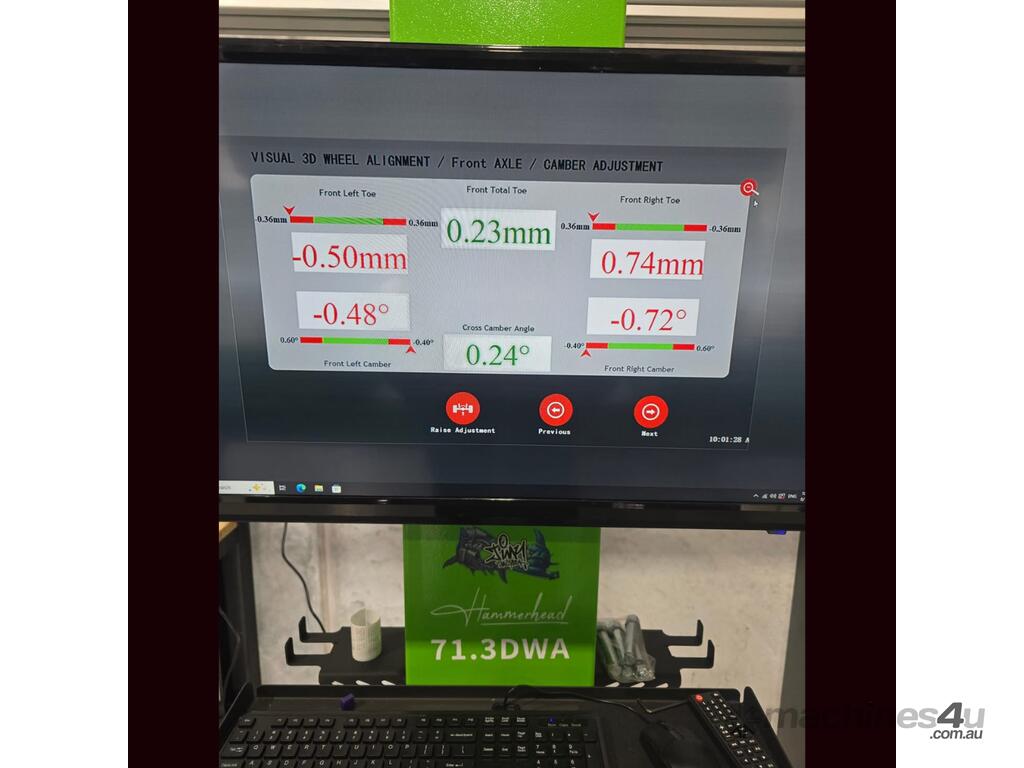

Easy to operate software interface with step-by-step instructions
Programmed with up to 40,000 types of vehicle wheel alignment data with the option to download input or download new data as needed
Equipped with printer to print out measurement results
Historical functionality to store user information which can be printed out at a later date
Specifications:

Front Plate to Camera Distance

1750-2550mm

Optimal Front Plate to Camera Distance

1900mm

Longest Wheelbase of a Vehicle

3750mm

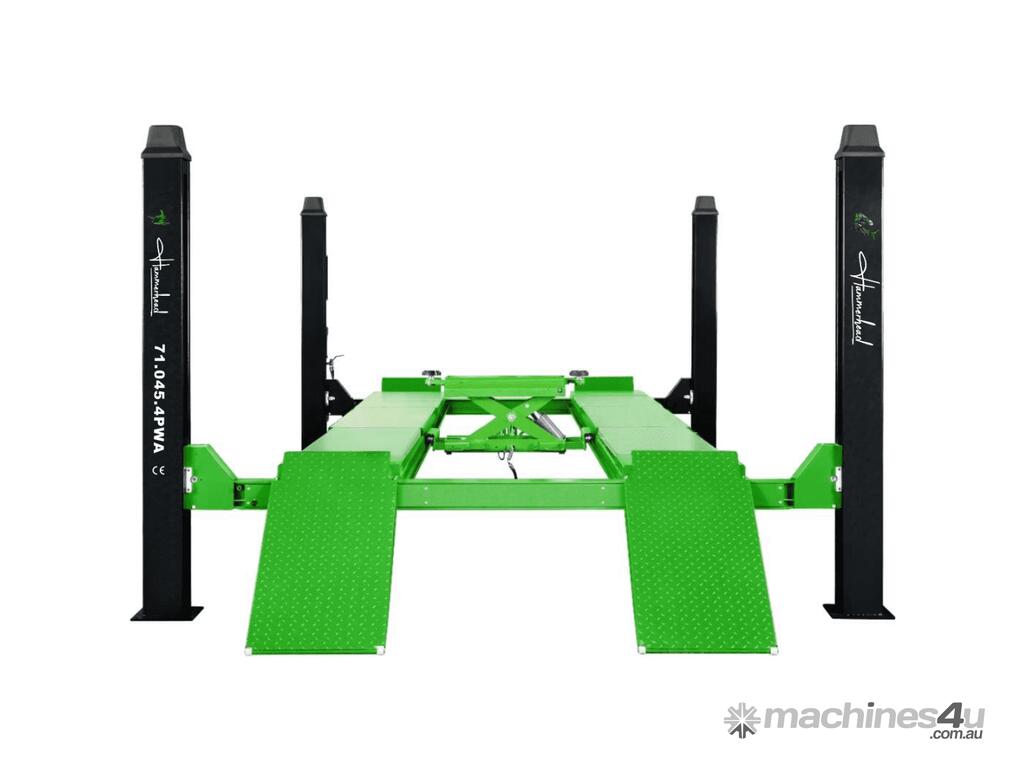

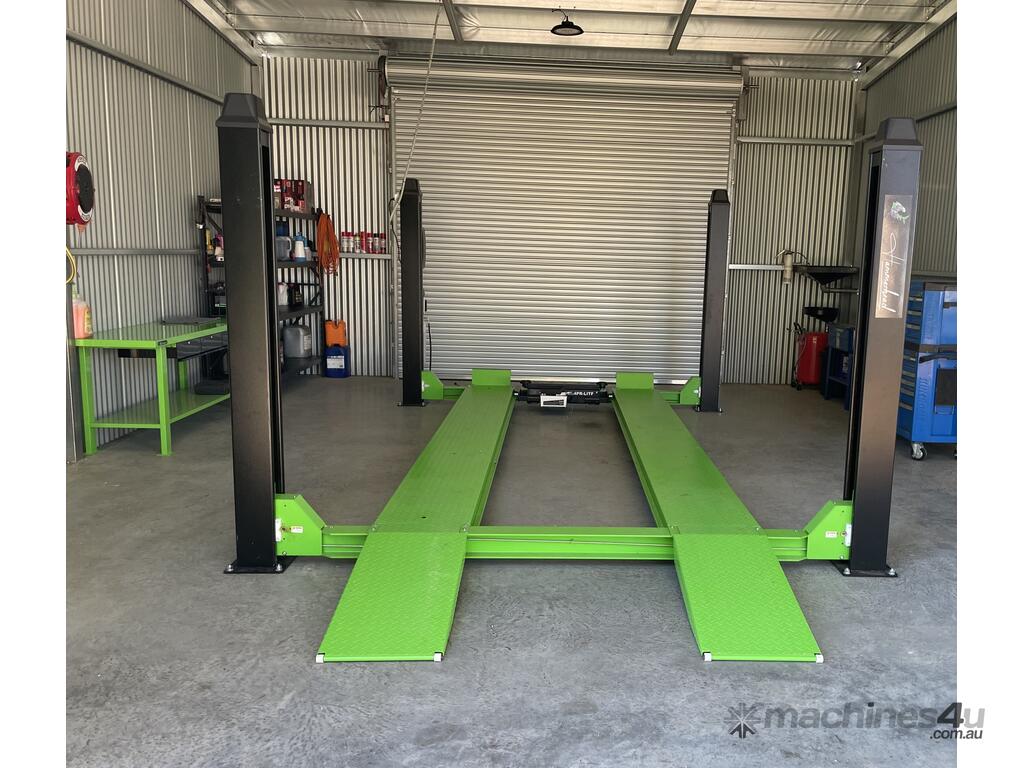

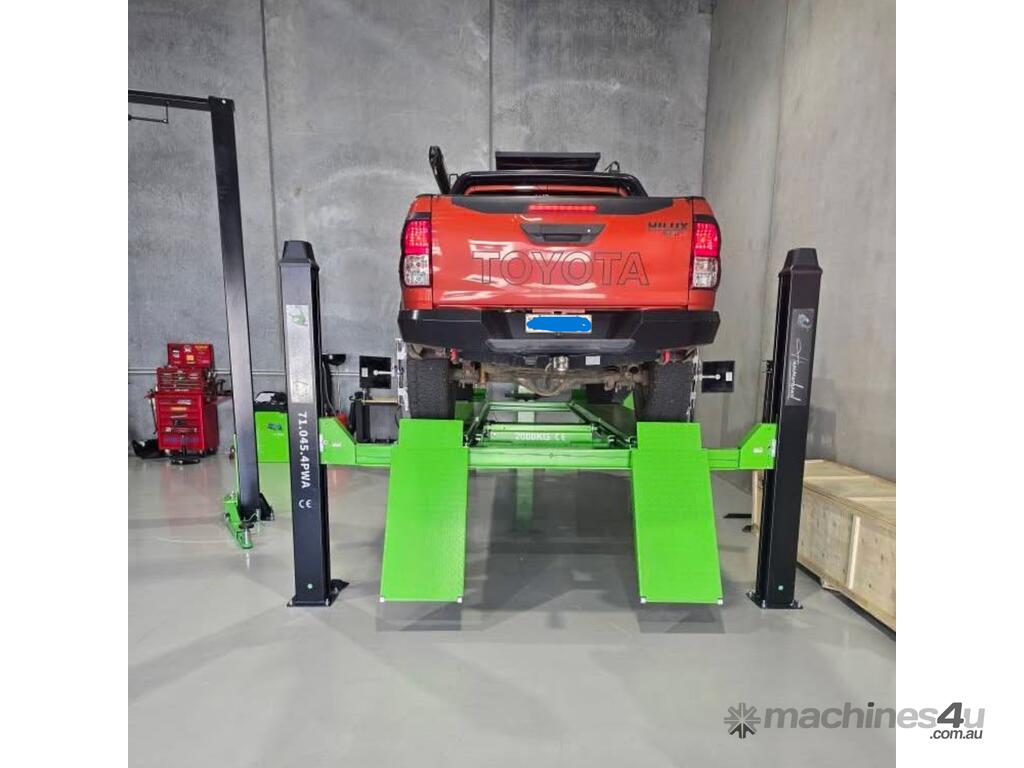

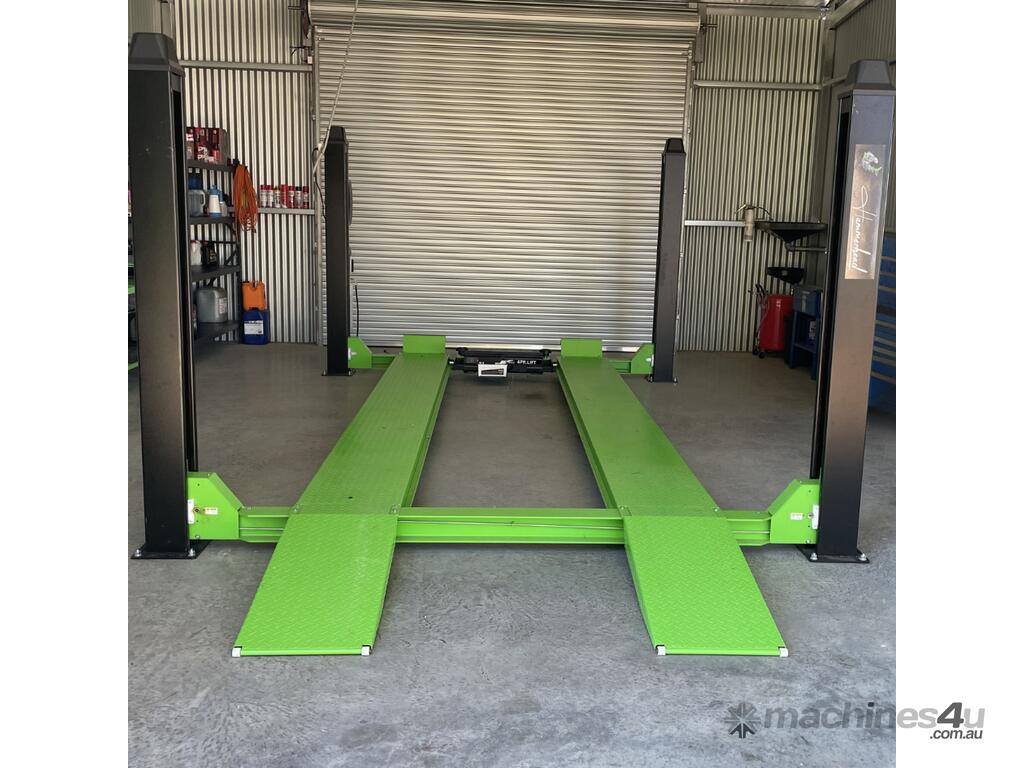

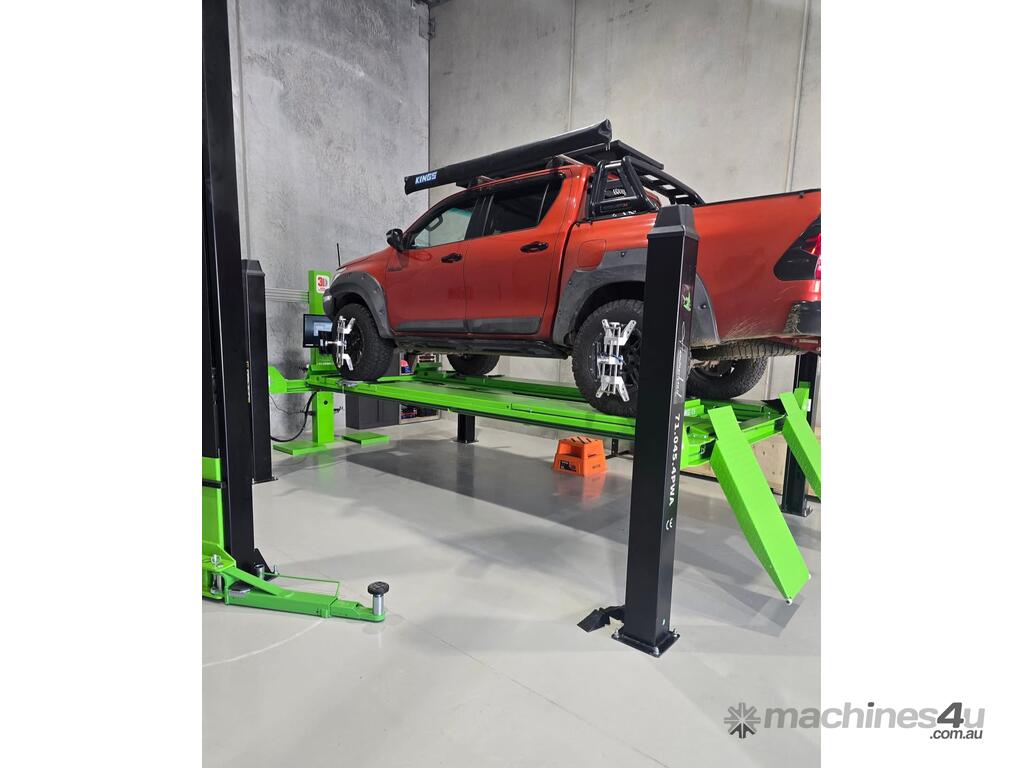

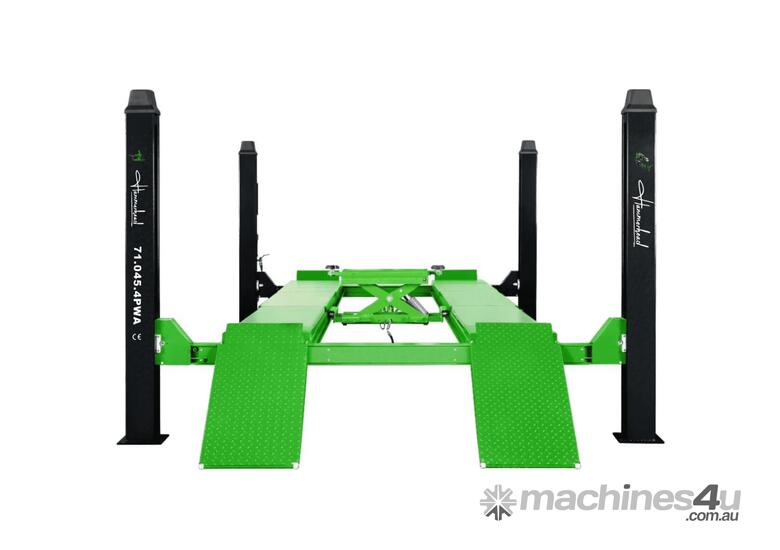

4.5 TON 4 POST WHEEL ALIGNMENT HOIST

Hammerhead Hoists is Australia’s Fastest Growing Hoist Range! Engineered for professional workshops, alignment specialists, and high-end service centers, the Hammerhead 4.5 Ton 4 Post Wheel Alignment Hoist is the ultimate solution for precision vehicle servicing and diagnostics.

Designed for accurate and efficient wheel alignments, this heavy-duty hoist boasts a 4,500 kg (4.5 ton / 9,900 lbs) lifting capacity, making it suitable for a wide range of vehicles, including sedans, SUVs, 4WDs, and light commercial trucks. Whether you’re performing suspension work, alignment checks, or underbody inspections, this hoist is built to deliver.

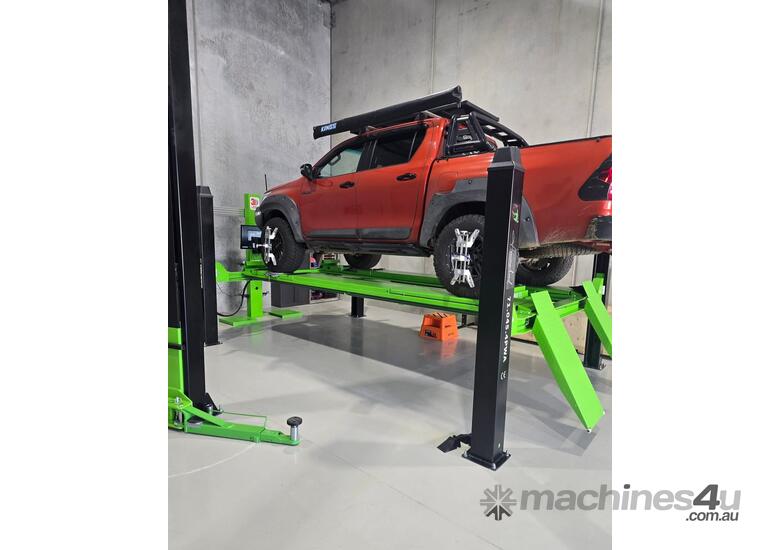

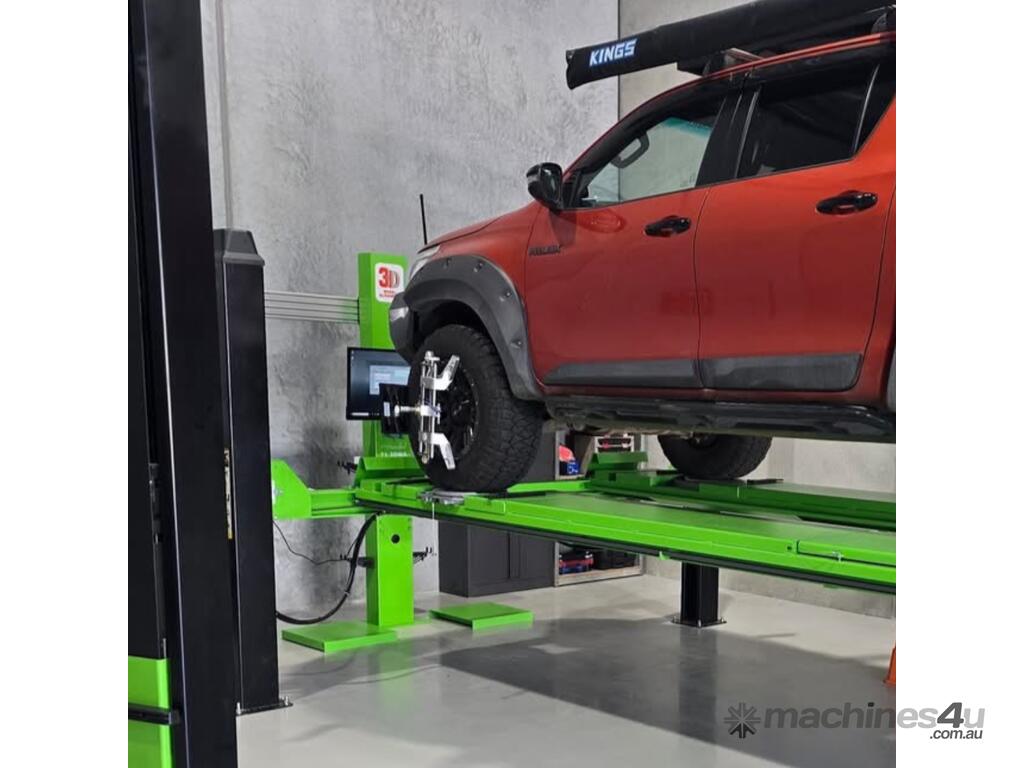

The integrated electric secondary lift allows for easy lifting of all four wheels off the runways, enabling wheel-free work without repositioning the vehicle. Equipped with precision turntables and sliding rear slip plates, it ensures smooth and accurate alignment adjustments with minimal effort.

With a durable four-post structure and spacious drive-on design, the Hammerhead 4.5T Wheel Alignment Hoist offers unmatched stability, accessibility, and efficiency-making it a must-have for any workshop focused on alignment and advanced vehicle maintenance.

FEATURES
4500KG / 4.5 Tonne Load Limit
Powder Coated Finish
Adjustable lifting height with maximum height of 1.75m
One side release for safety locks, easy for descent operation
External Locking
Safety Features

Additional secondary safety lock when weight comes off the cables
Runways must first be raised a fraction before the safety locks will operate to allow the car hoist to be lowered
Heavy duty 6mm thick cross beams and 4mm thick runways
9mm steel wire rope equalising cables
Anti-surge valve
What’s Included?

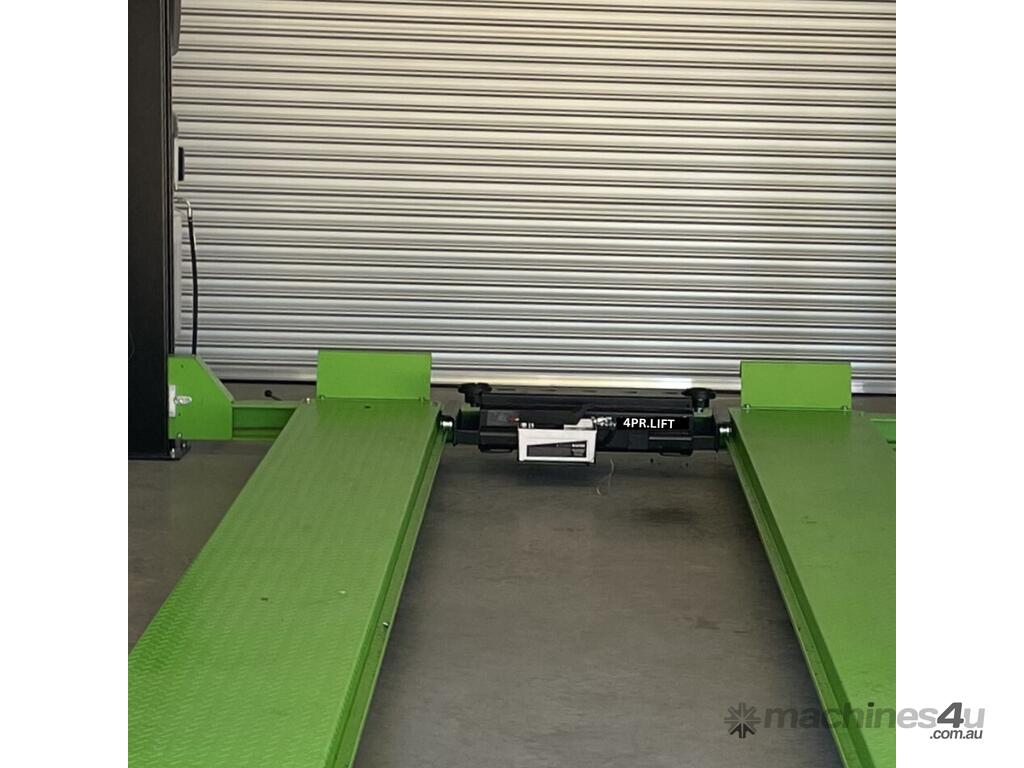

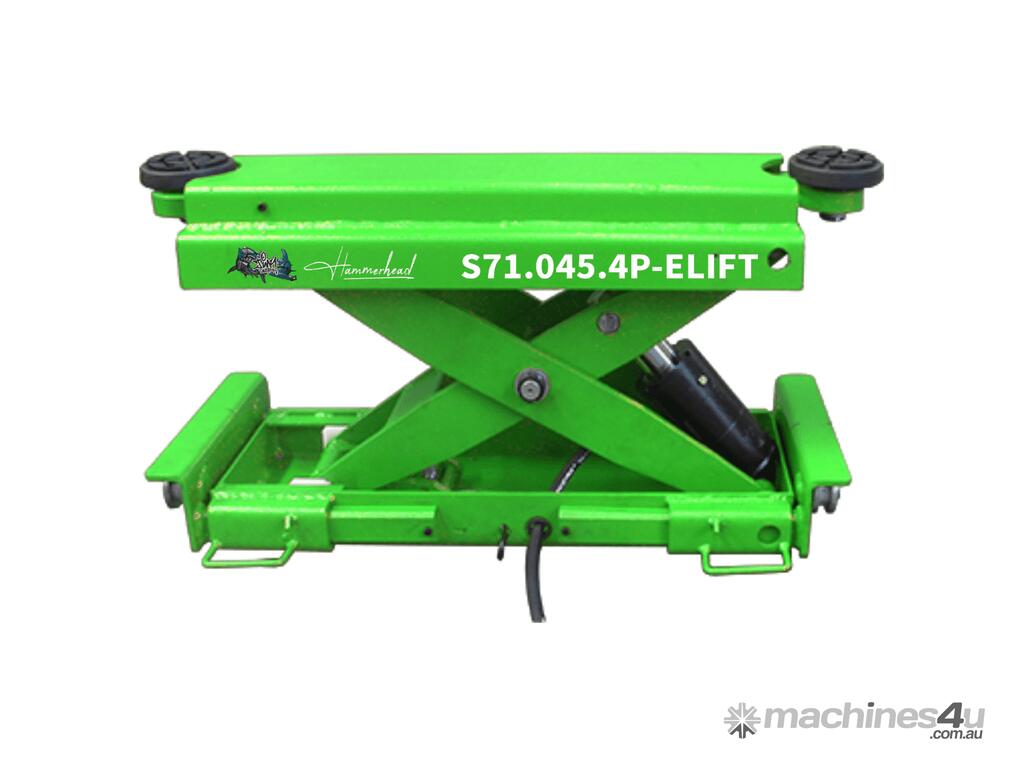

Electric Secondary Lifting Jack (Optional Additional Pneumatic Secondary Lift)
Turntables
4 post hoist with all bolts, cables, lines and fixings
240V single phase hydraulic power unit
What’s Not Included?

Hydraulic Oil
Power Plug
Installation of unit
Shed Requirements

150mm deep concrete
Minimum Ceiling Height - 4 Metres
Warranty & Certifications

Australian Worksafe Registered Design
3 Year Australian Warranty - Includes Structure, Hydraulic & Electrics
CE Certified
