Hammerhead Workshop Setup (Combo Deal)

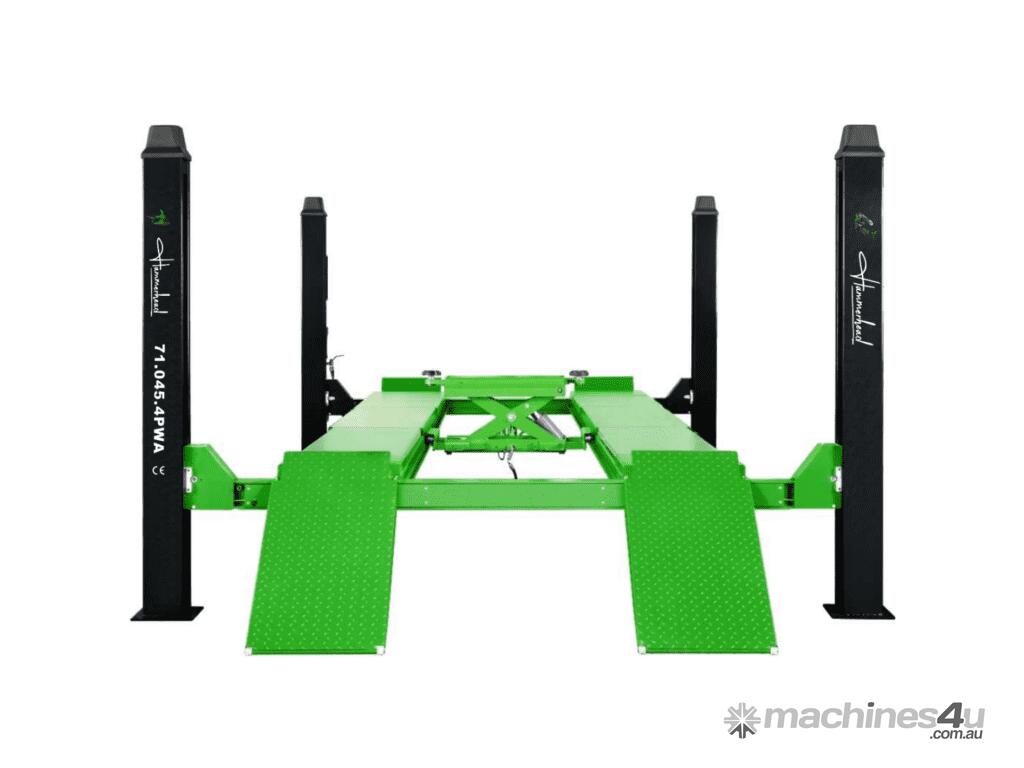

HAMMERHEAD 4.5T FOUR POST WHEEL ALIGNMENT HOIST
Hammerhead Hoists is Australia’s Fastest Growing Hoist Range! Engineered for professional workshops, alignment specialists, and high-end service centers, the Hammerhead 4.5 Ton 4 Post Wheel Alignment Hoist is the ultimate solution for precision vehicle servicing and diagnostics.

Designed for accurate and efficient wheel alignments, this heavy-duty hoist boasts a 4,500 kg (4.5 ton / 9,900 lbs) lifting capacity, making it suitable for a wide range of vehicles, including sedans, SUVs, 4WDs, and light commercial trucks. Whether you’re performing suspension work, alignment checks, or underbody inspections, this hoist is built to deliver.

The integrated electric secondary lift allows for easy lifting of all four wheels off the runways, enabling wheel-free work without repositioning the vehicle. Equipped with precision turntables and sliding rear slip plates, it ensures smooth and accurate alignment adjustments with minimal effort.

With a durable four-post structure and spacious drive-on design, the Hammerhead 4.5T Wheel Alignment Hoist offers unmatched stability, accessibility, and efficiency—making it a must-have for any workshop focused on alignment and advanced vehicle maintenance.

FEATURES
4500KG / 4.5 Tonne Load Limit
Powder Coated Finish
Adjustable lifting height with maximum height of 1.75m
One side release for safety locks, easy for descent operation
External Locking
Safety Features

Additional secondary safety lock when weight comes off the cables
Runways must first be raised a fraction before the safety locks will operate to allow the car hoist to be lowered
Heavy duty 6mm thick cross beams and 4mm thick runways
9mm steel wire rope equalising cables
Anti-surge valve
What’s Included?

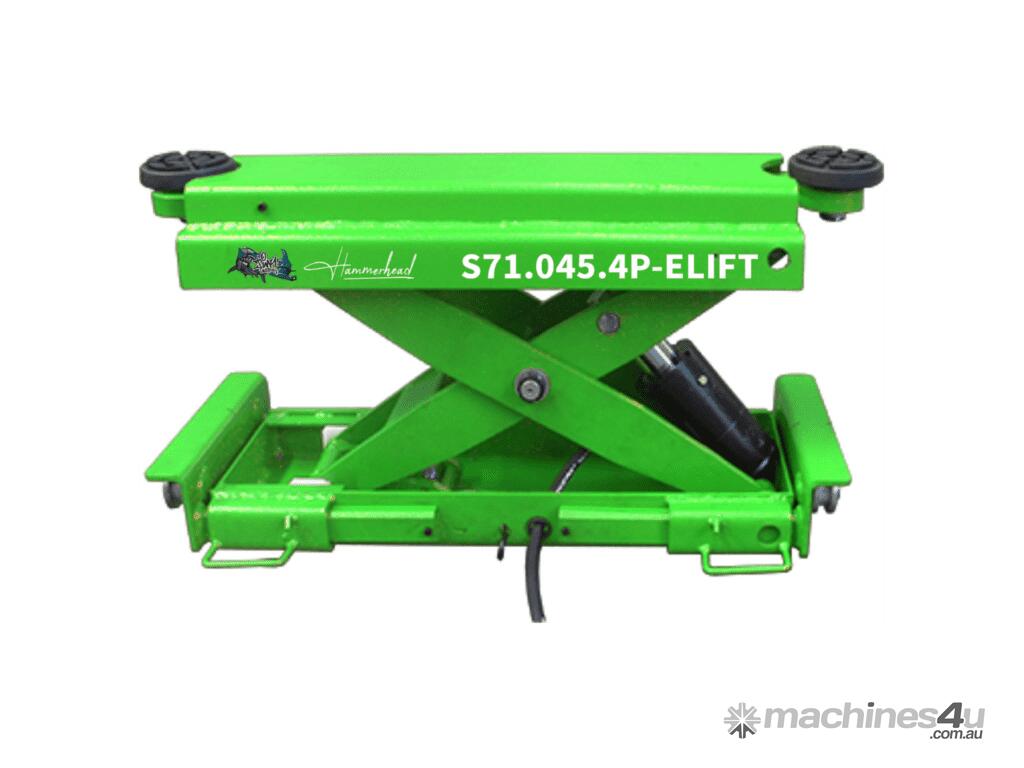

Electric Secondary Lifting Jack (Optional Additional Pneumatic Secondary Lift)
Turntables
4 post hoist with all bolts, cables, lines and fixings
240V single phase hydraulic power unit
What’s Not Included?

Hydraulic Oil
Power Plug
Installation of unit
Shed Requirements

150mm deep concrete
Minimum Ceiling Height – 4 Metres
Warranty & Certifications

Australian Worksafe Registered Design
3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
CE Certified

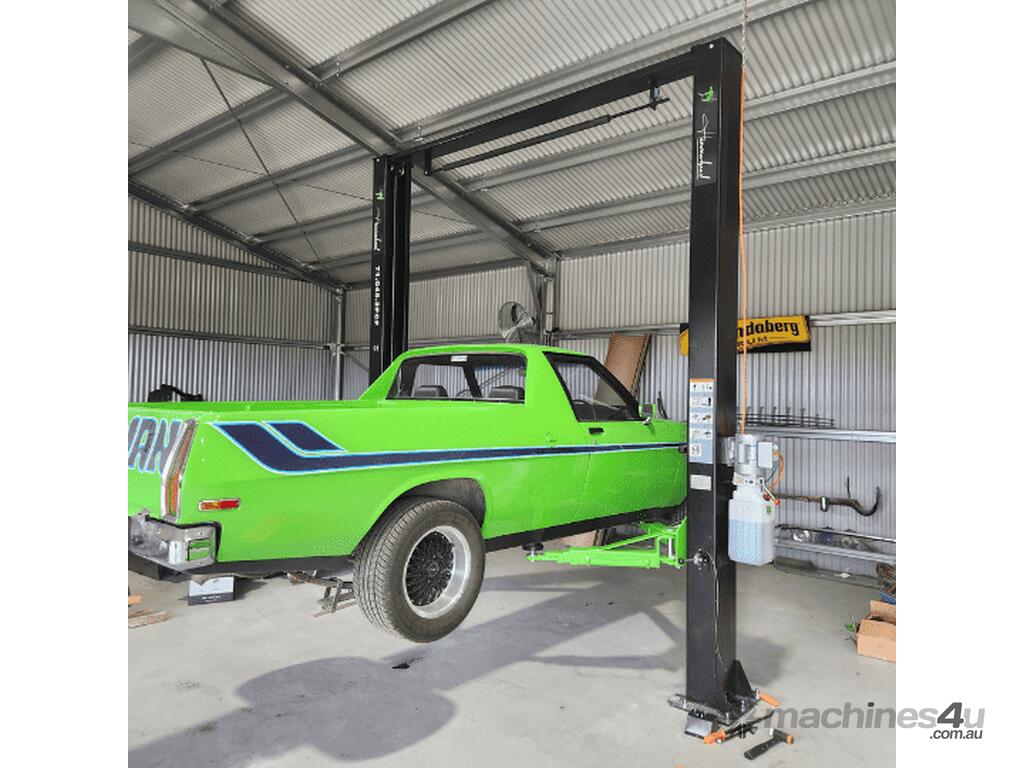

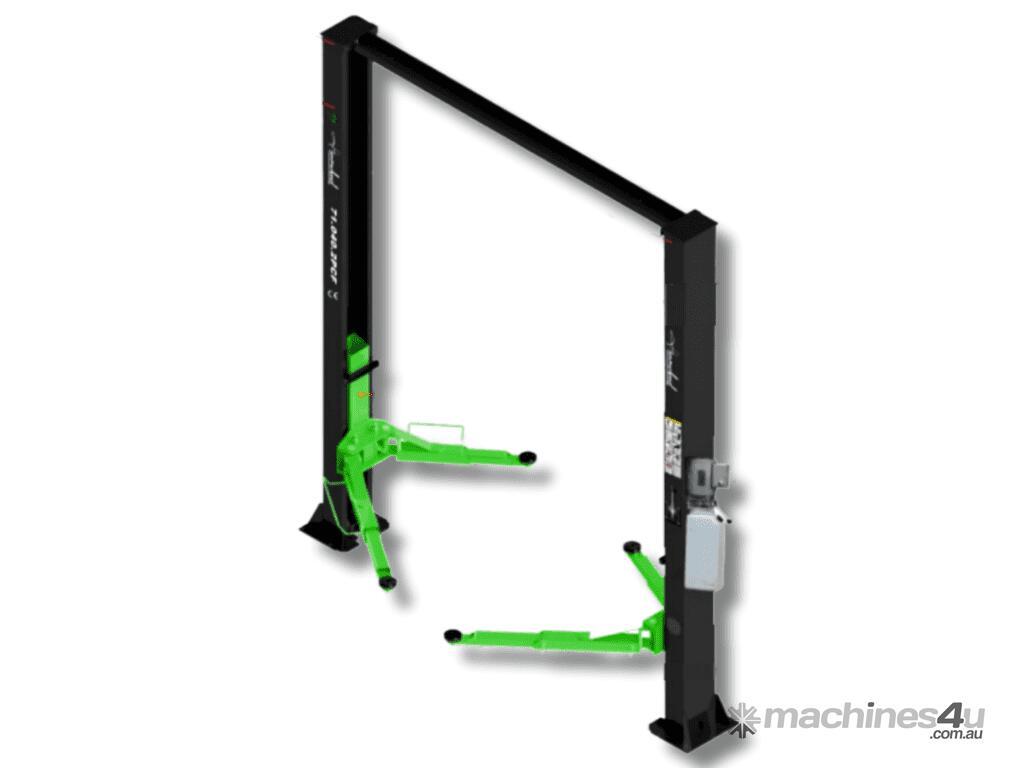

HAMMERHEAD 4T TWO POST CLEAR FLOOR HOIST
The Hammerhead 4.0 Ton 2 Post Clear Floor Hoist is a powerful and reliable vehicle lifting solution designed for professional automotive workshops as well as serious home garages. With a lifting capacity of 4,000 kg (4.0 tons / 8,800 lbs), it’s suitable for a wide variety of vehicles, including sedans, SUVs, 4WDs, and light commercial trucks.
This hoist features a clear floor design, meaning there is no obstructive base plate between the posts, allowing for easy access beneath the vehicle and convenient manoeuvring of equipment like tool trolleys and transmission jacks.

Clear Floor Hoist Features

4000kg / 4.0 tonne safe load limit
Lifting height of 1.93m
Dual hydraulic cylinders lift the carriages by direct hydraulic force
Adjustable screw pads and 4 additional raising adapters are included
Strong single piece column design
Durable powder coated finish
Rubber door protectors
Symmetric two and three stage arms
No floor plate restrictions
Safety Features

Manual safety locking system with safety latches in each column
Manual single point release system
Heavy duty 5mm thick columns 6mm carriages
9.3mm steel wire rope equalising cables
What’s Included?

2 post hoist with all bolts, cables, lines and fixings
240V single phase hydraulic power unit
Concrete anchor bolts
What’s Not Included?

Power Plug
Installation of unit
Hydraulic Oil
Area Requirements

150mm deep concrete
Minimum Ceiling Height – 3.8 Metres
Warranty & Certifications

Australian Worksafe Registered Design
3 Year Australian Warranty – Includes Structure, Hydraulic & Electrics
CE Certified

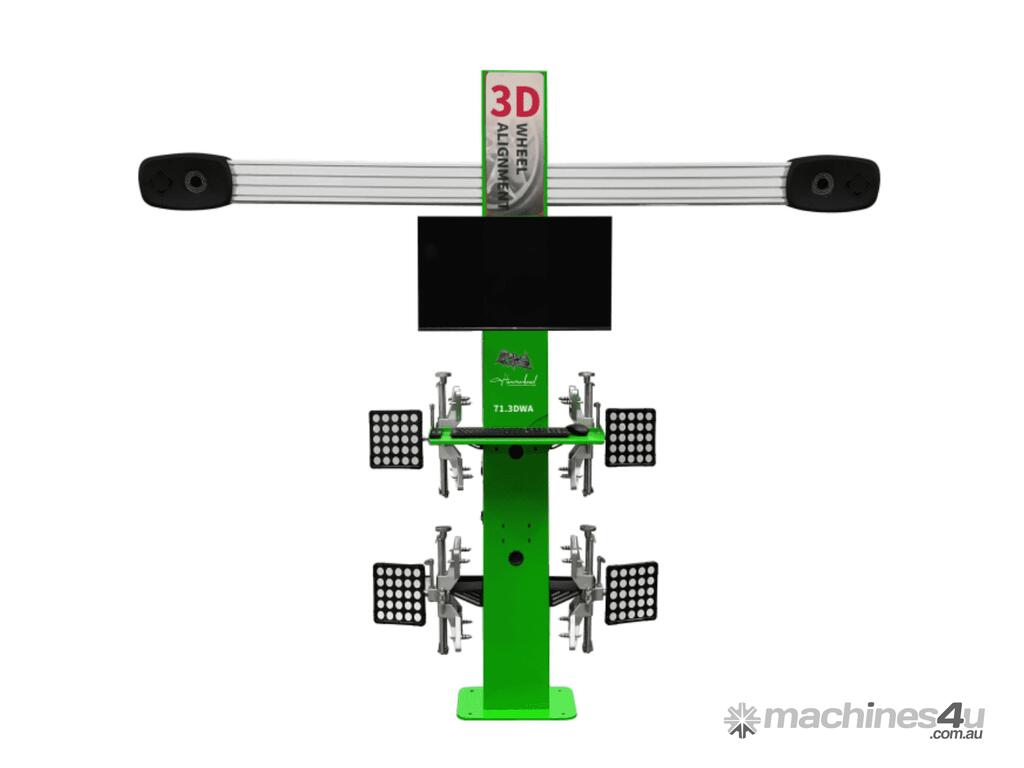

HAMMERHEAD WHEEL ALIGNMENT MACHINE
Jimy Tools Hammerhead Wheel Alignment Machine is used to detect the wheel alignment parameters of your car and compare them with the standard parameters designed by the original vehicle manufacturers.

Features:
Fast & Accurate Readings with advanced 3D image acquisition technology
Easy to operate software interface with step-by-step instructions
Programmed with up to 40,000 types of vehicle wheel alignment data with the option to download input or download new data as needed
Equipped with printer to print out measurement results
Historical functionality to store user information which can be printed out at a later date

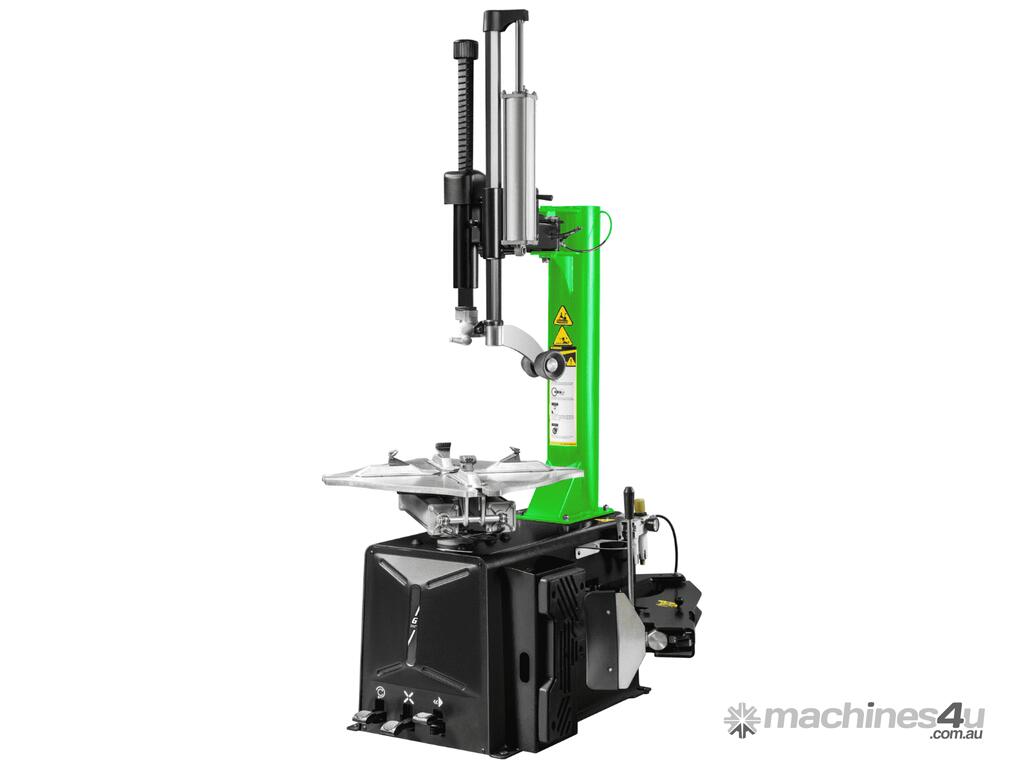

HAMMERHEAD PROFESSIONAL CAR TYRE CHANGER
The semi-automatic tyre changer is especially designed for demounting & mounting tyres from wheel rims.
The Hammerhead Professional Car Tyre Changer includes a pneumatic tyre lifting device and 360° rotary tyre pressing arm.
Car Tyre Changer fitting up to a 26” wheel with semi-automatic helper arm.

DIGITAL WHEEL BALANCER
An imbalanced wheel will make the wheel jump and steering wheel wobble while driving. It can baffle the driver to drive, aggrandize the cleft of the combined area of the steering system, damage the vibration damper and steering parts and increase the probability of traffic accidents. A balanced wheel will avoid all of these problems.
This equipment adopts the new LSI (Large Scale Intregrated circuit) to constitute the hardware system that acquires processes and calculates information at the high speed.

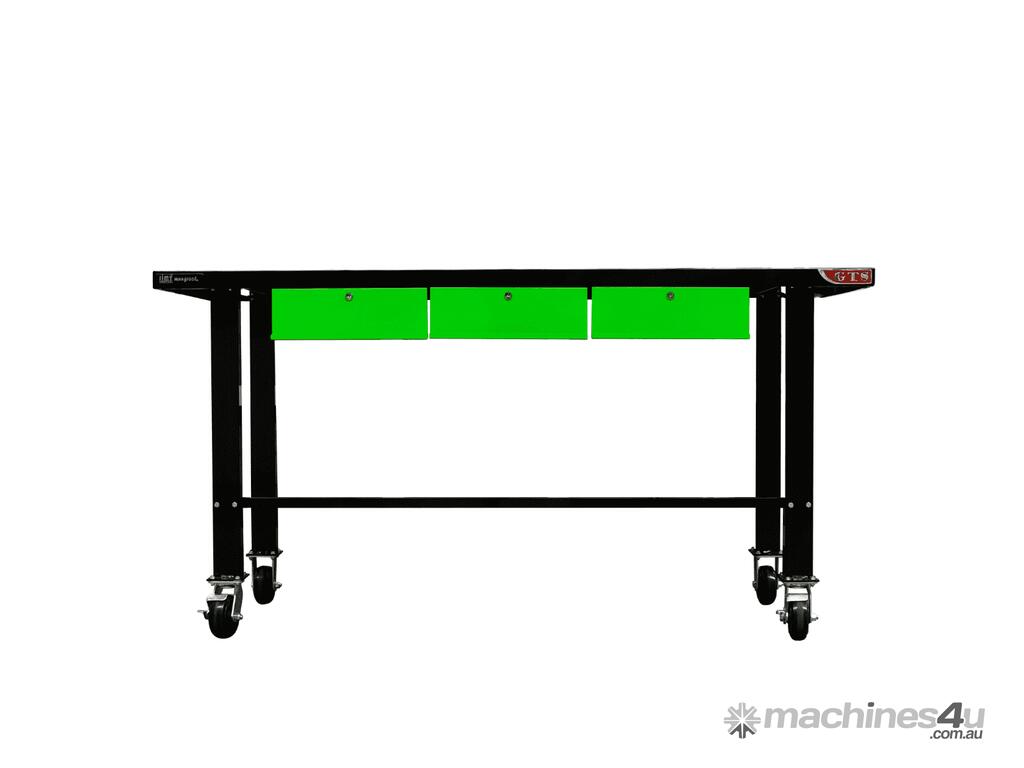

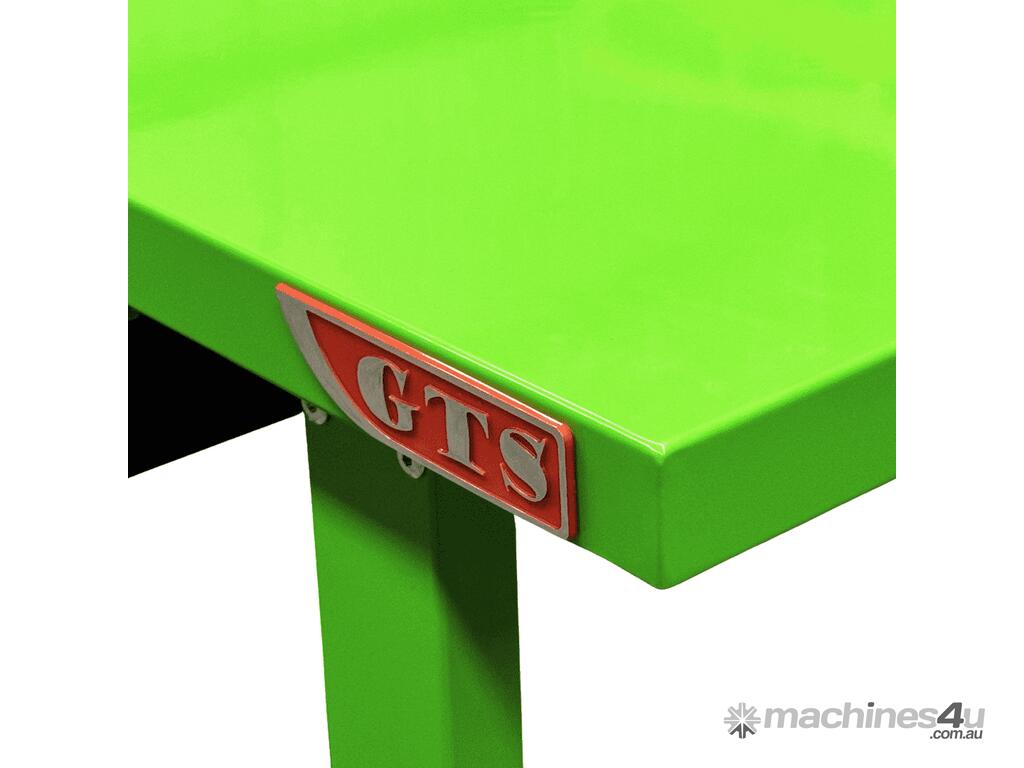

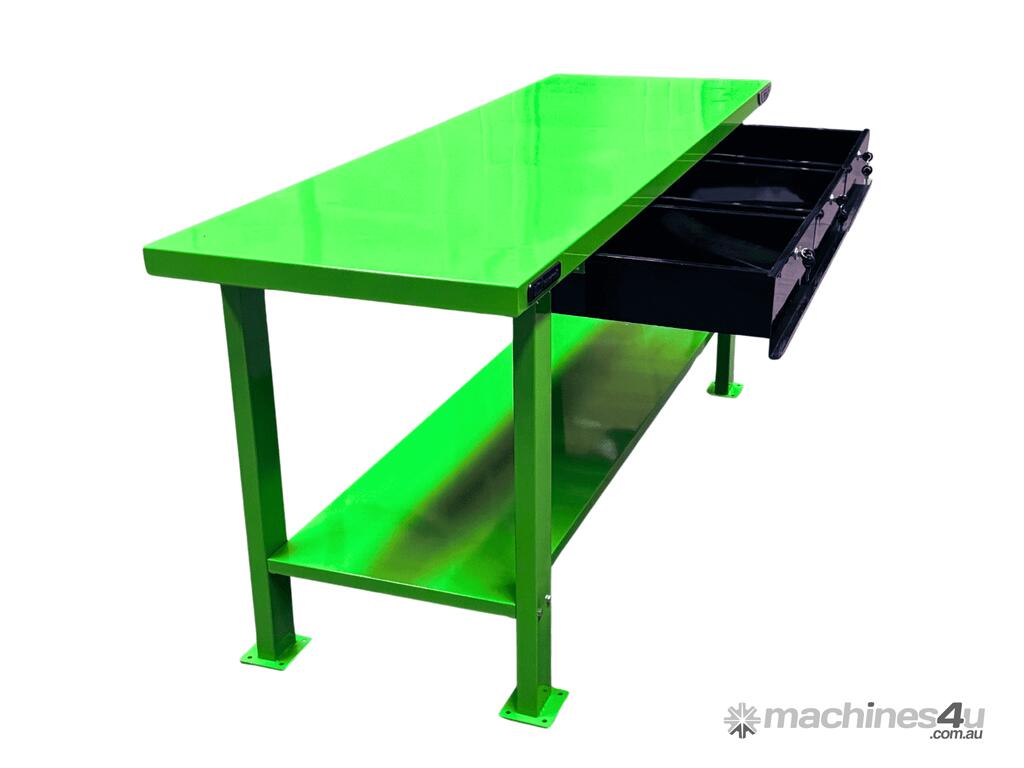

3 DRAWER 79” HEAVY DUTY WORKBENCH (MUTANT)
Jimy Tools NEW Workshop Benches are the perfect new addition to your workspace! These workbenches have plenty of storage space in our fully lockable drawers and a good workspace on the worktop. The tough high gloss enamel paint finish is designed to provide years of protection against normal wear and tear. This large workbench can be bolted into the floor to be extra secure.

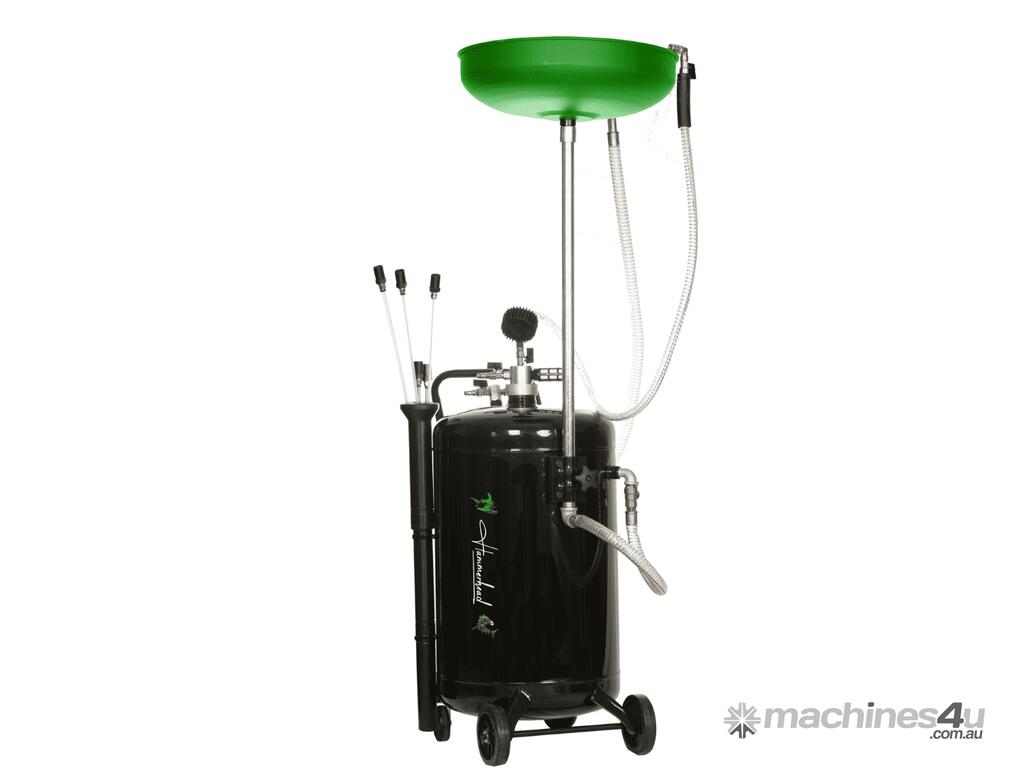

HAMMERHEAD PNEUMATIC OIL WASTE EXTRACTION TANK W/ 70 LTR RESEVOIR
The Hammerhead Oil Waste Extraction Tank features a 70L Steel Tank Resevoir. With an adjustable height, it is suitable for use in a variety of applications such as collecting, transferring and extracting engine oils, transmission fluids, power steering fluids etc (not corrosive or flammable fluids). Included is 2 fixed and 2 swivel castor wheels for smooth, convenient movement and storage.
The extraction oil drainer makes it easy to collect used oil from even the most hard to reach drain plugs.
Connect the unit to compressed air and use the supplied hoses to suck the oil out, leaving your workspace clean and dry. When the tank is full, simply fill it with compressed air to quickly and easily push out the waste oil.

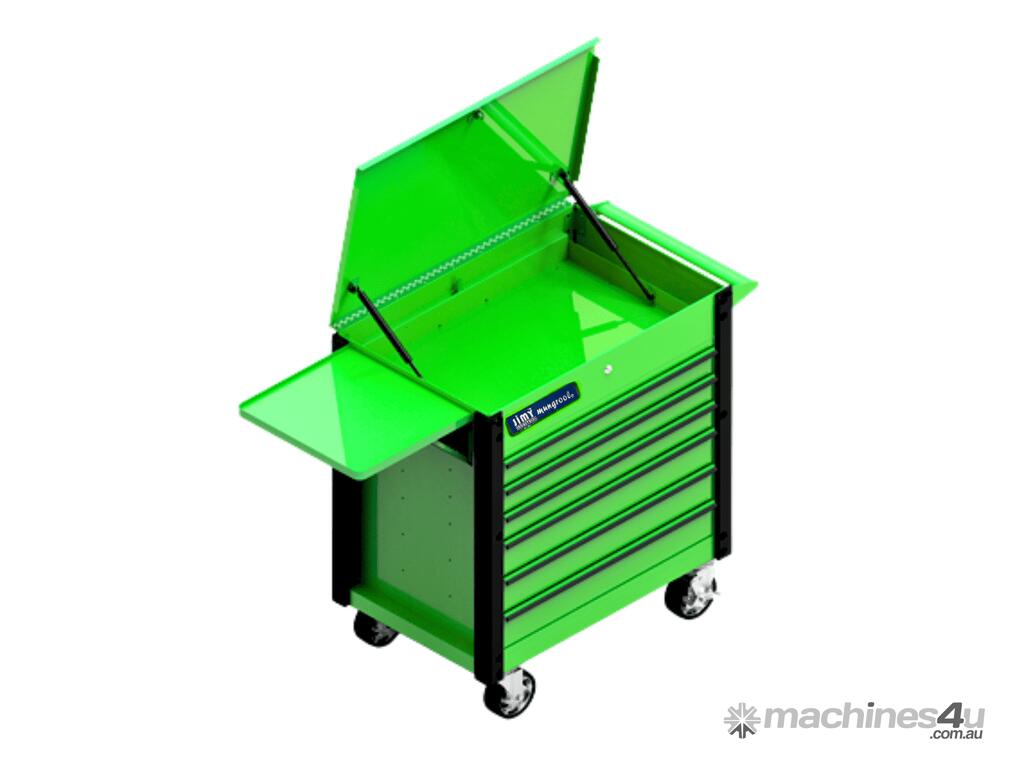

6 DRAWER 33” DIAGNOSTIC TOOL CART (GREEN)
Full drawer extension capabilities
Internal locking system for extra security
Heavy duty ball bearing drawer slides
Convenient foldable side table
Robust wall construction
Double powder coating resists scratching
2x Lockable Heavy Duty Swivel Castors + 2 Fixed

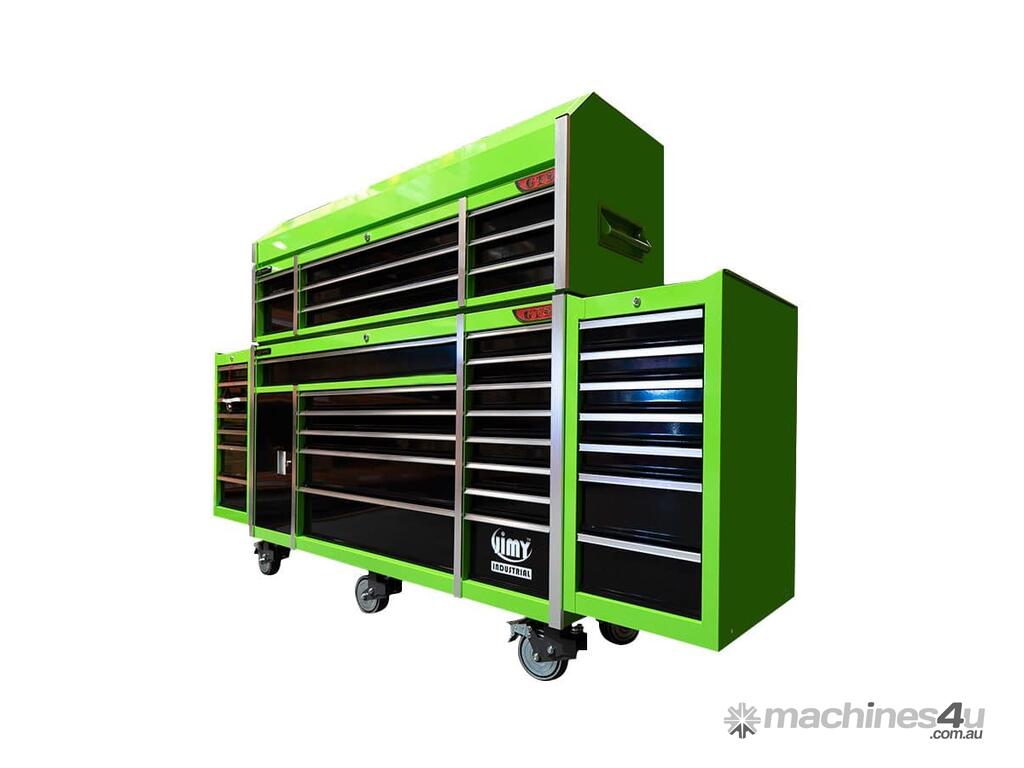

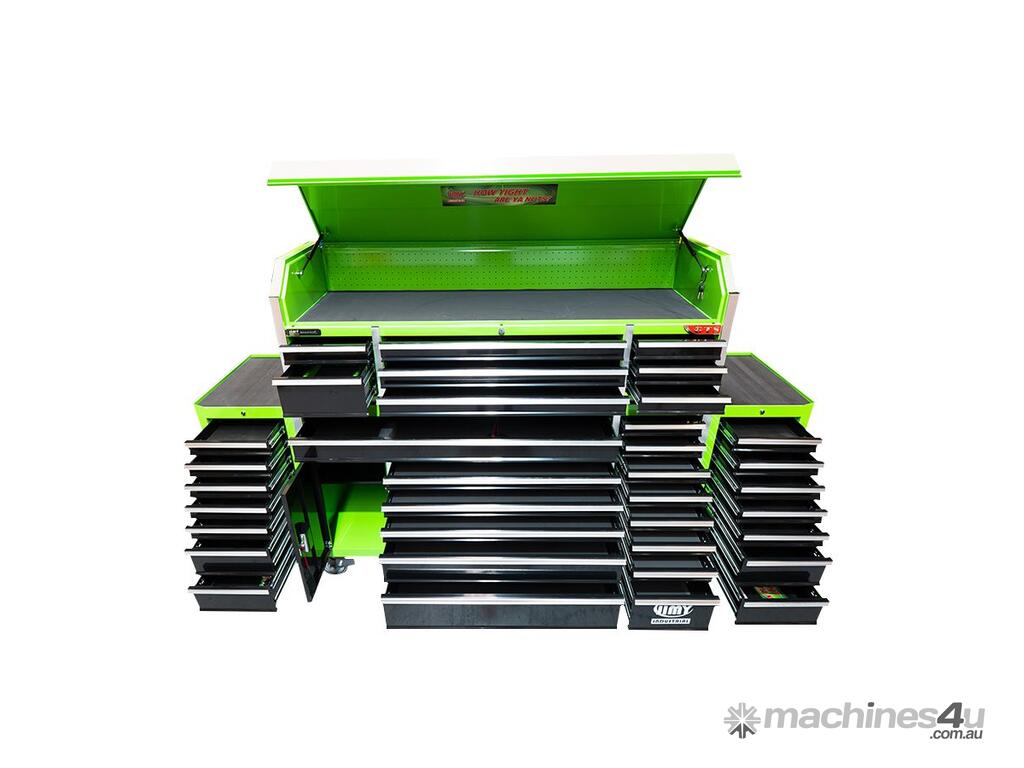

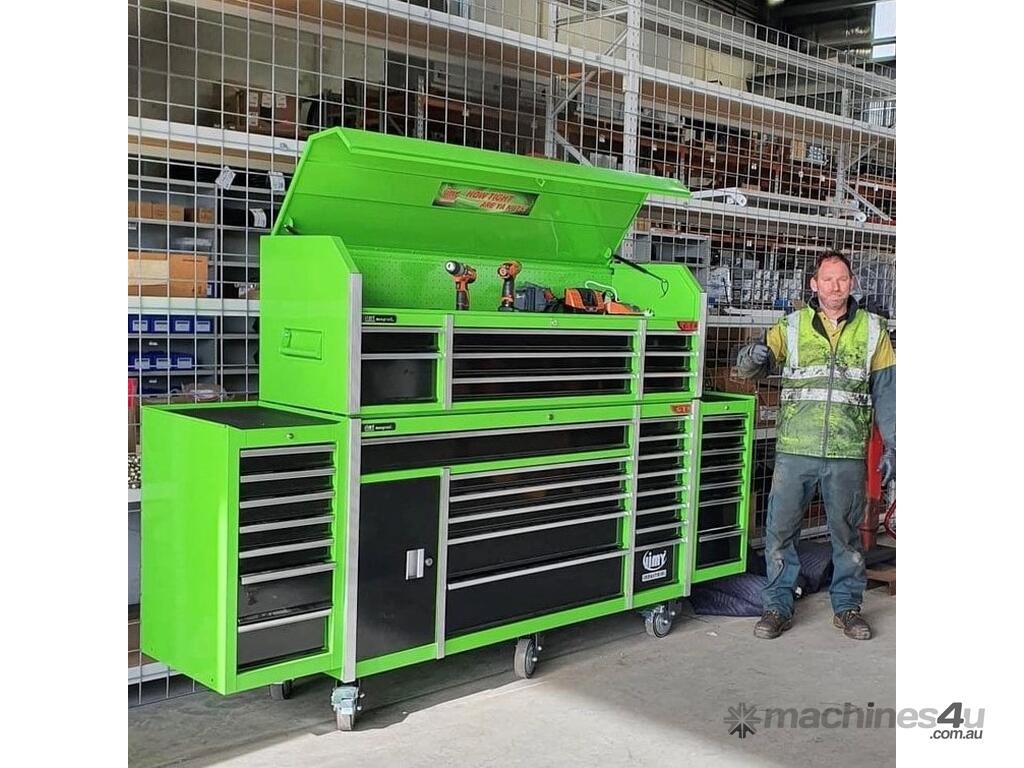

ADVANCED 36 DRAWER 72” ‘GTS’ MAMMOTH TOOL KIT (MUTANT)
If you are in the professional trade and needing the ‘Beast’ of all mechanical tool kits, why not consider this 36 Drawer 72” ‘GTS’ Mammoth Mechanic Tool Kit from Jimy Tools. This tool kit is enormous with a full complement of sockets in ¼”, 3/8”, ½” & ¾” drives with all the extension bars ratchets and breaker bars to suit and what about that 900mm long ½” drive extension bar as well as all the spanners, pliers and hand tools you could wish for check out the list of contents below. With the foam drawer inserts you can easily see if you have left a tool on the job.

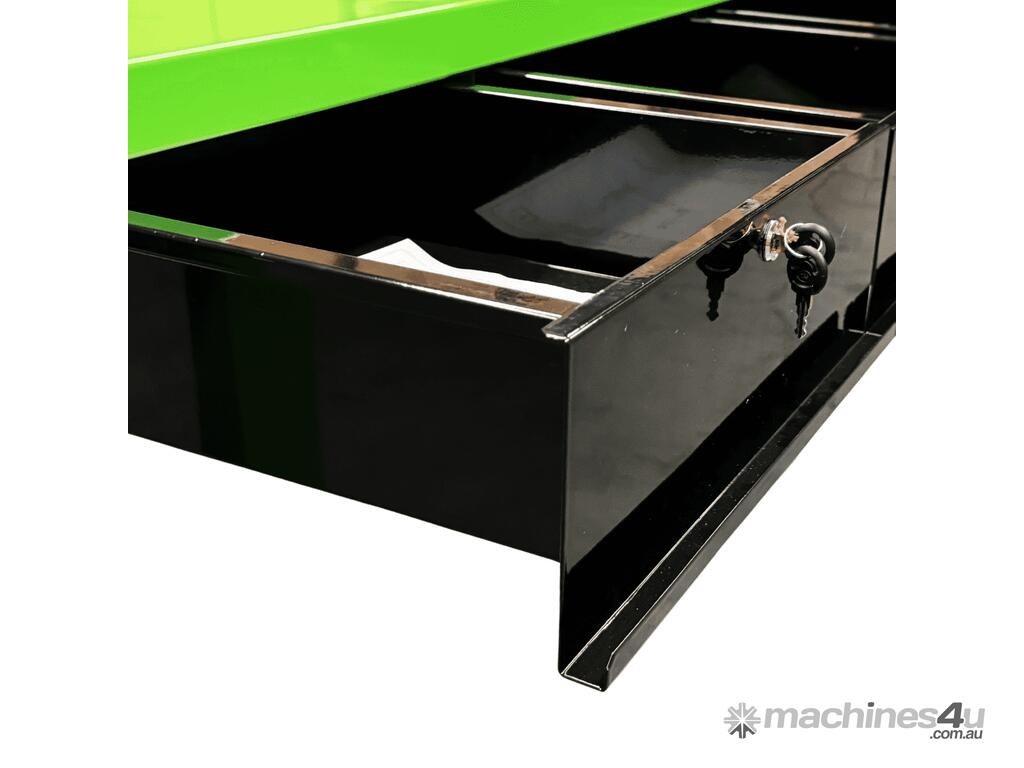

Jimy tool boxes are built to last! Tough industrial powder coating, 1.2mm gauge steel thickness, fully lockable bearing slide rails on the drawers with twin slide rails on the deeper drawers.
Jimy Tools sockets, spanners & wrenches are manufactured to meet & exceed International Quality Standards, so you can be sure yourJimy Tools are tough enough to stand up to the harshest working environments. Trade grade quality and absolute value for moneyis what Jimy Tools stand for!

PRODUCT SPECIFICATIONS:
Tool Box Dimensions:
14 Drawer Roller Cabinet – 1820mm(L) x 570mm(W) x 1080mm(H) inc Castor Wheels
8 Drawer Top Chest – 1820mm(L) x 570mm(W) x 590mm(H)
2 x 7 Drawer Side Cabinets – 440mm(L) x 570mm(W) x 850mm(H)
Tough Industrial Powder Coating
1.2mm Gauge Steel Thickness
Fully Lockable
Ball Bearing Slide Drawers with Twin Slides on the Deeper Drawers
