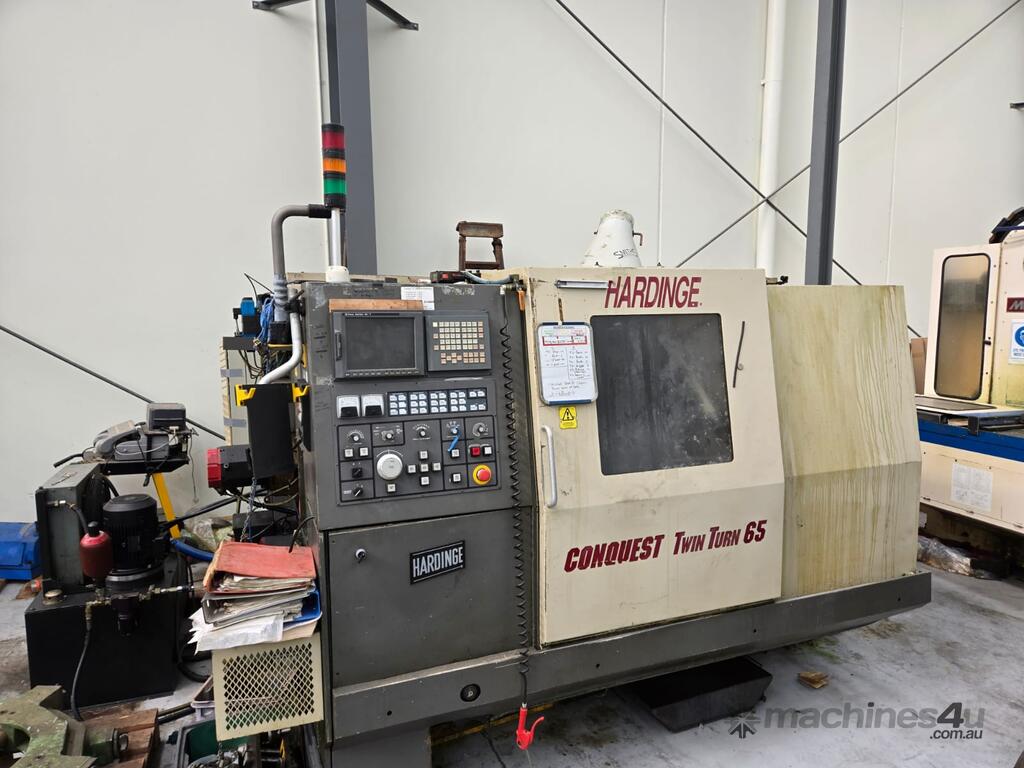

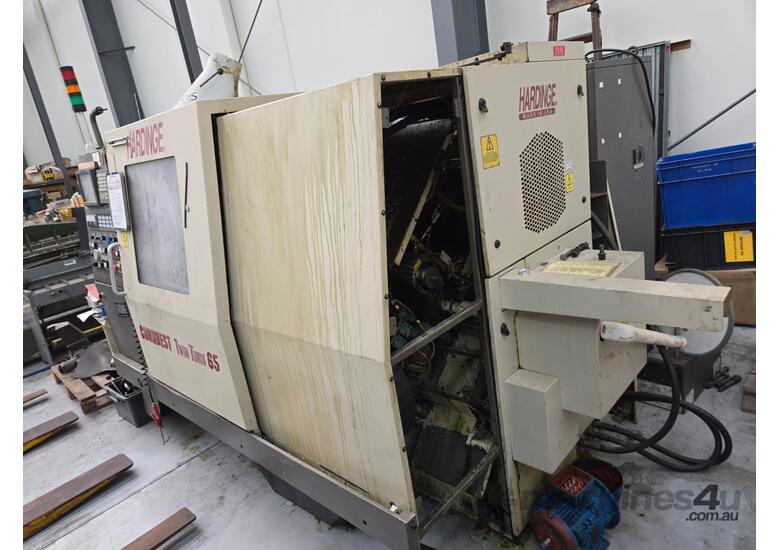

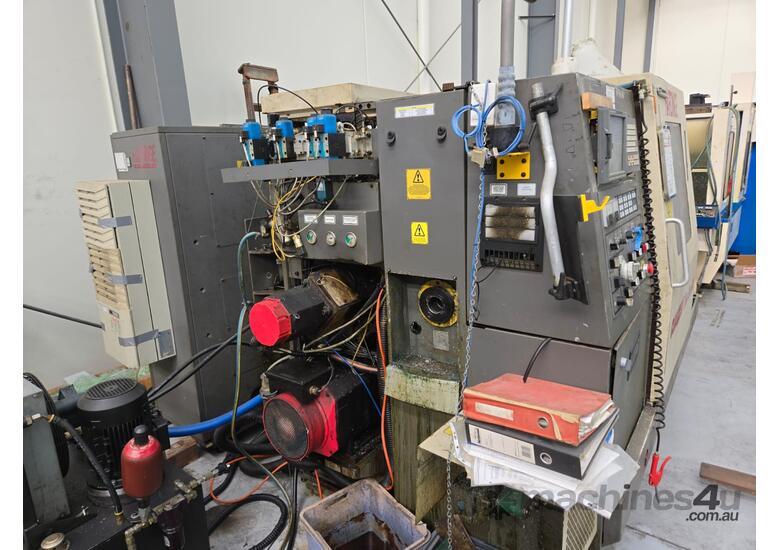

Hardinge Conquest TwinTurn 65 CNC Lathe

size 8" Chuck
Swing 494.03 mm
Bar Capacity 82.55 mm
Power 18.6 kW
Max RPM 8,000 RPM
Live Tooling Yes
Sub Spindle Yes

Equipped With

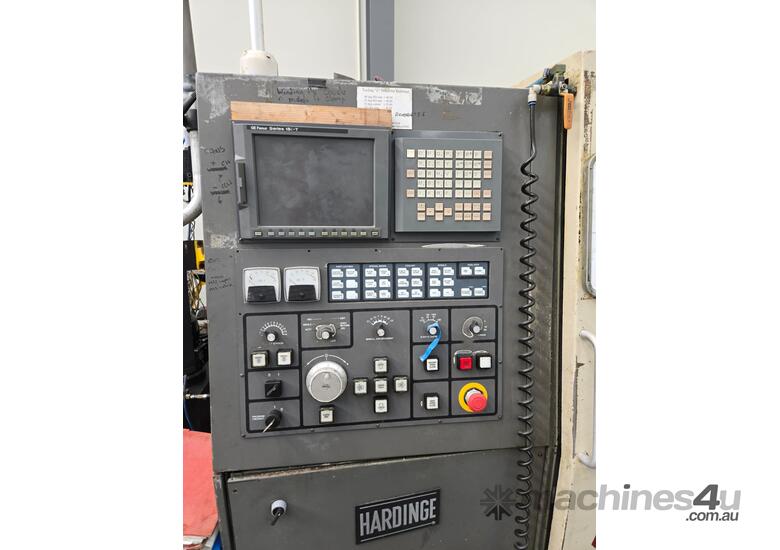

Twin-Turn Twin Spindle, Twin Turret, Fanuc 18i CNC Control

Spindle Configuration (2X): Ansi a2-6"
Spindle Through Hole: 3.25"
Horsepower – Main (30 Minimum): 25 Hp
Torque Rating: 179 Ft-Lb
Base Speed: 575 Rpm
Horsepower – Secondary (30 Minimum): 15 Hp
Torque Rating: 158 Ft-Lb
Base Speed: 500 Rpm
Speed Range (1 Rpm Steps): 40 to 4000 Rpm
Draw Tube Type: Hydraulic
Draw Bar Force (Maximum): 1,440 to 10,500 Lbs
B65 Collet (Through Capacity): 2.56"
S22 Master Collet (Through Capacity): 2.25"
Turning Length With Collet (Maximum): 17.72"
Hang Weight With Device and Part: 300 Lbs
Axis Specifications
Swing Diameter over Way
Covers (Maximum): 19.45"
Preloaded Ball Screw Diameter
X & Z-Axis: 1.42"
Y-Axis:
Secondary Spindle: 1.42"
Travel (Maximum)
X-Axis: 5.51"
Y-Axis: ± 1.377"
Z-Axis: 17.71"
Secondary Spindle: 20.47"
Traverse Rate (Maximum)
X-Axis: 590 Ipm
Y-Axis: 236 Ipm
Z-Axis and Secondary Spindle: 1,181 Ipm
Thrust (Maximum - 1 Minute Intermittent
Ratings Shown)
X-Axis: 2,286 Lbs
Y-Axis: 1,175 Lbs
Z-Axis and Secondary Spindle: 2,250 Lbs
Twin Vertical Turrets
Number of Stations: 10
Tool Configuration: Vdi 30Mm
Square Shank Tool Size (Maximum): 3/4"
Round Shank Tool Size (Maximum): 1-1/4"
Live Tooling Capability: All Stations
Tool Shank Diameter W/Er25 Collets: .04 - .625"
Horsepower Rating
(15 Minute Intermittent Ratings Shown): 5 Hp
Torque Rating (15 Minute Intermittent
Ratings Shown): 17.5 Ft-Lb
Speed Range (1 Rpm Steps): 80 to 8000 Rpm
Base Speed: 1,500 Rpm
Indexing Time (Station-To-Station): .6 Second
C-Axis
Speed (Maximum): 80 Rpm
Torque 100% Duty Cycle
