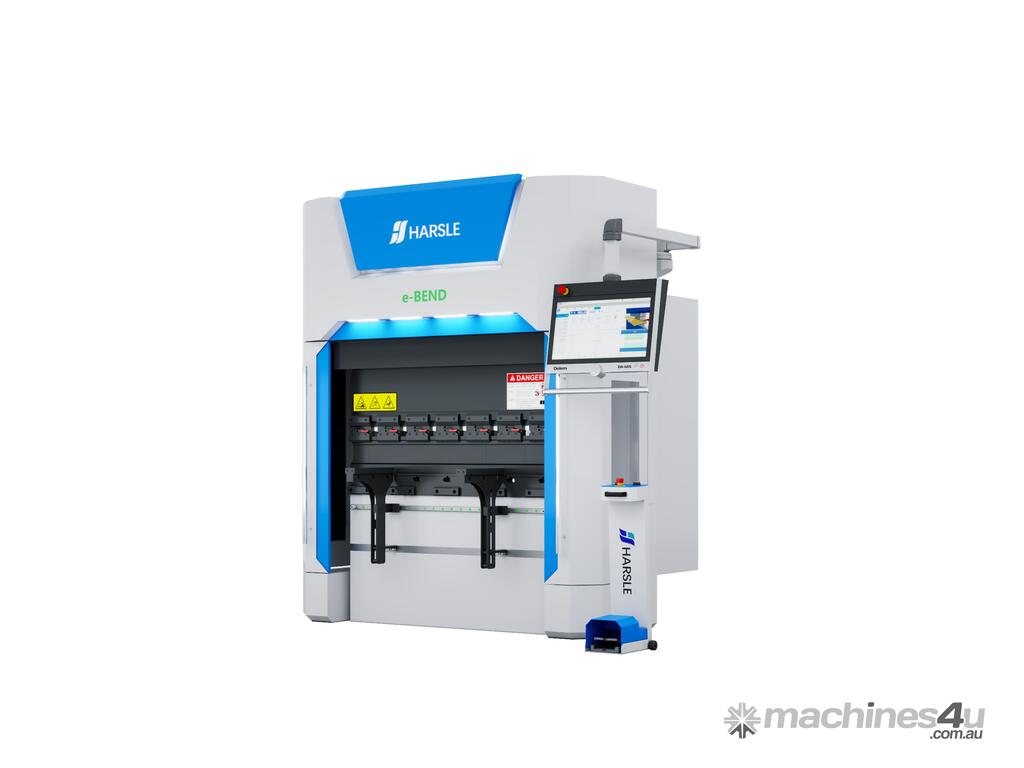

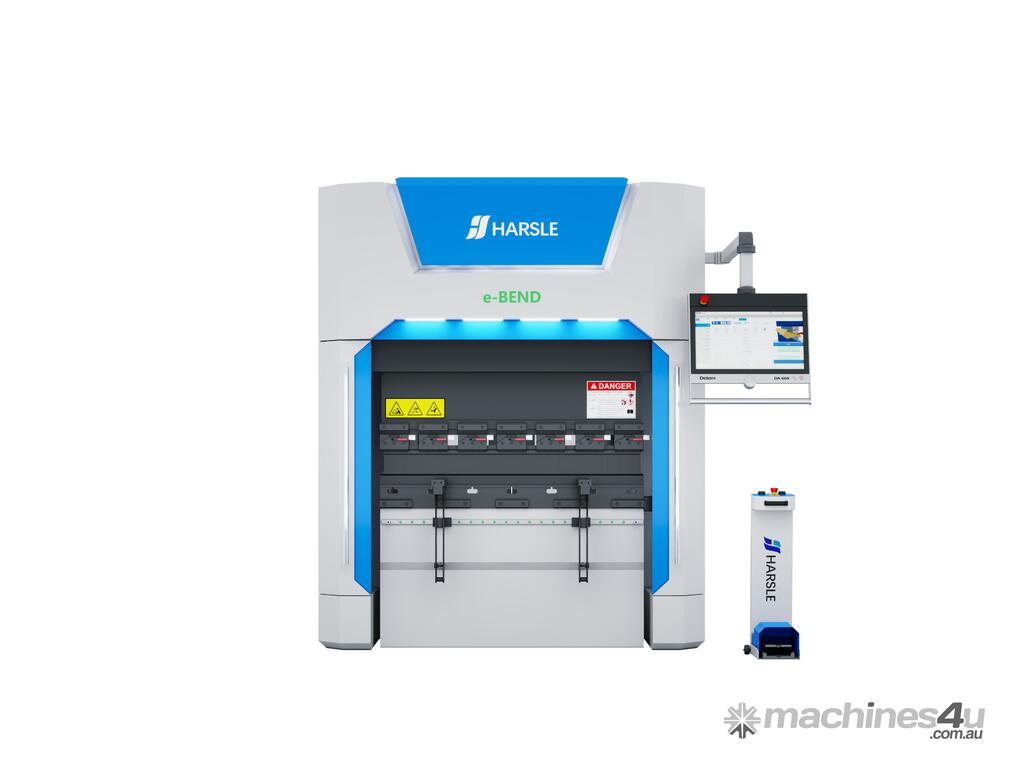

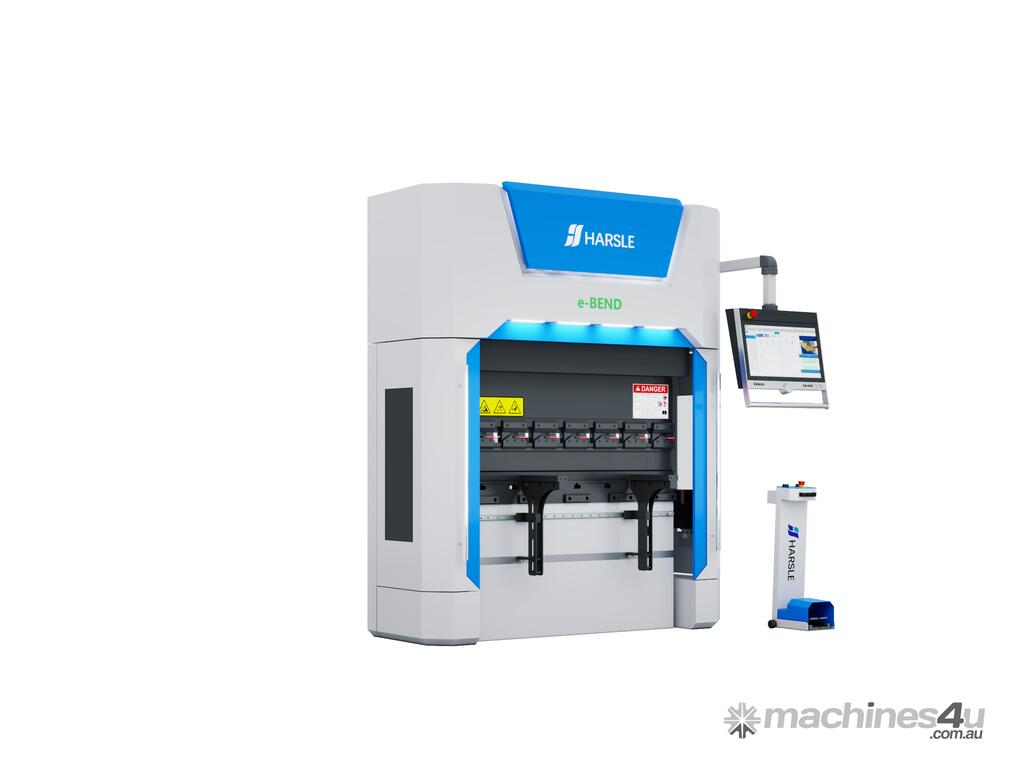

HARSLE E-Bend Pro 3512 – All-Electric CNC Press Brake
High-Precision Bending | Energy Efficient | Automation Ready
The Problem in Your Business
Traditional hydraulic press brakes are noisy, power-hungry, maintenance-heavy, and increasingly inconsistent for tight-tolerance work. With rising energy costs, labour shortages, and growing demand for repeatability, many workshops are being held back by old bending technology.
The Solution: E-Bend Pro 3512
The HARSLE E-Bend Pro 3512 is a fully electric CNC press brake designed for manufacturers who need precision, speed, and long-term efficiency. By eliminating hydraulics and using direct-drive servo motors, the E-Bend Pro delivers quieter operation, lower running costs, and extremely consistent bending results — making it ideal for both manual operation and robotic bending cells.
Why Go All-Electric?
Up to 50% lower energy consumption compared to hydraulic press brakes
No hydraulic oil, pumps, or valves
Quiet, clean operation
Faster response and higher positioning accuracy
Reduced maintenance and downtime
CNC Control – Delem DA-58Tx
The Delem DA-58Tx touchscreen CNC control provides intuitive programming with powerful bending intelligence.
Key DA-58Tx Features:
2D graphical touchscreen programming
Automatic bend sequence calculation
Real-time bend simulation and collision detection
Fast setup with reduced operator input
Ideal for complex, multi-bend components
Accuracy, Speed & Control
Direct-drive servo motors for backlash-free motion
High repeatability suitable for tight-tolerance work
Smooth, stable ram movement
Excellent angle consistency across long production runs

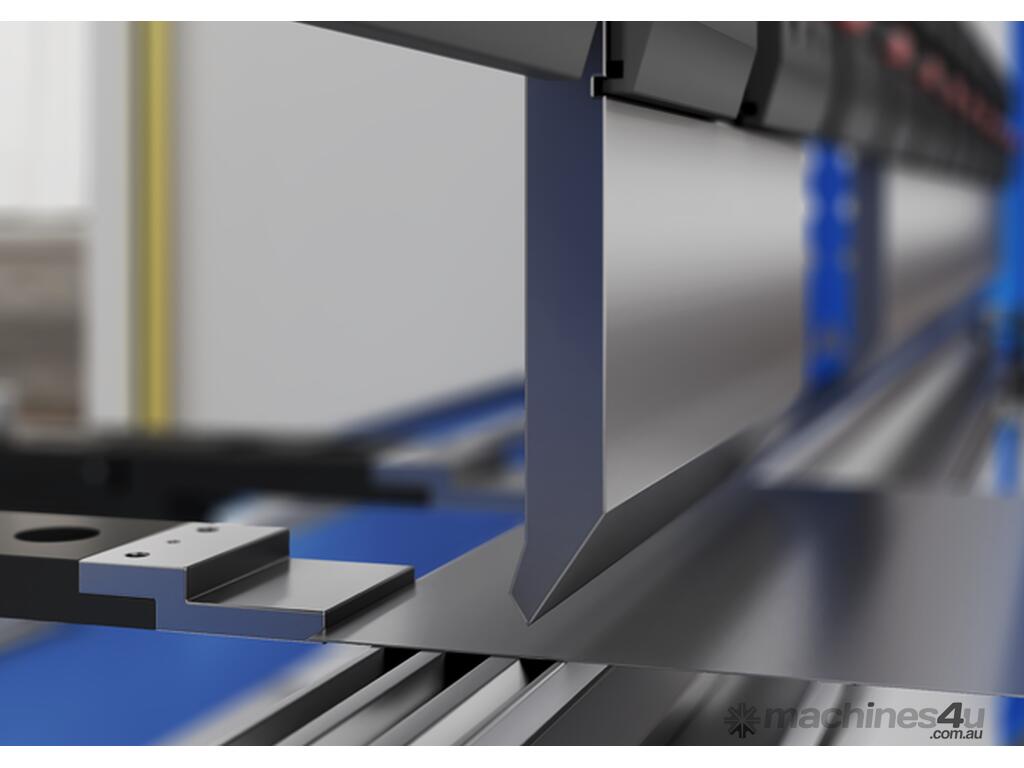

Backgauge & Tooling
CNC multi-axis backgauge options available
Fast, repeatable material positioning

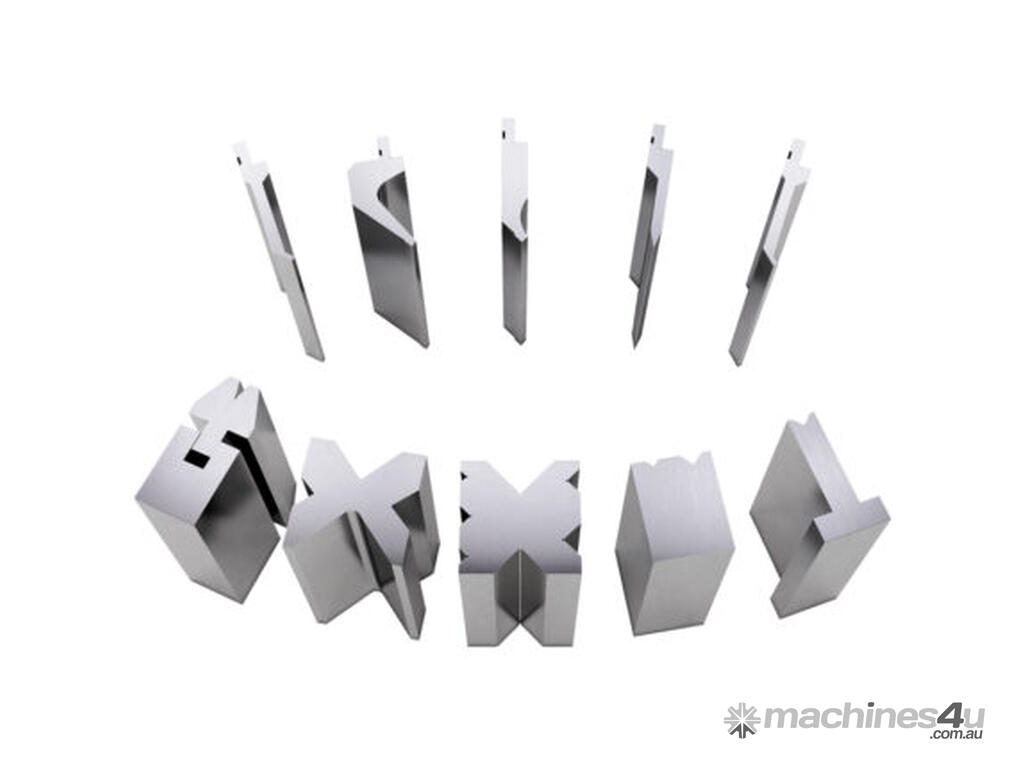

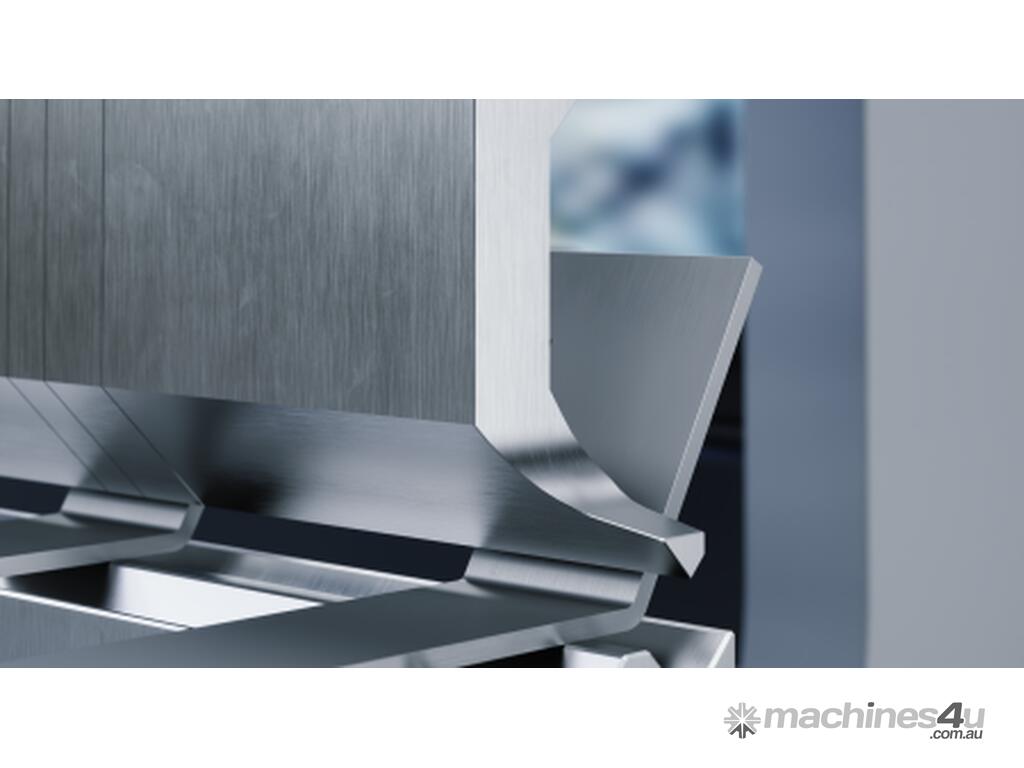

Compatible with a wide range of punch & die tooling
Designed for consistent results across varying part geometries
Automation & Robotic Bending Ready
The E-Bend Pro 3512 is engineered to integrate seamlessly into robotic bending cells.
Automation-Ready Features:
Stable, repeatable bending accuracy for robotic handling
Robot interface compatibility
Ideal for automated loading, bending, and unloading
Scalable from standalone machine to full automation
Perfect for manufacturers looking to transition into lights-out or semi-automated production.
Enhanced Safety Options
Laser protection systems
Automatic laser guarding
Angle measurement systems
Line indicators for precise part positioning
HARSLE E-Bend Pro 3512 – Key Specifications
(Metric)
Bending Force: 350 kN (35 ton)
Bending Length: 1,250 mm
Column Distance: 1,130 mm
Throat Depth: 300 mm
Ram Stroke: 140 mm
Daylight: 420 mm
Servo Motors: 5.5 kW × 2
Down Speed: Up to 260 mm/s
X-Axis Stroke: 500 mm
Machine Weight: Approx. 2,000 kg
Why Buy from Industrial Laser Solutions (ILS)
Industrial Laser Solutions (ILS) supplies advanced fabrication and automation equipment to Australian manufacturers who prioritise uptime, precision, and long-term performance.
What you get with ILS:
Expert advice based on real manufacturing experience
Honest machine selection — no overselling
Local support, service, and parts
A long-term partner, not just a machine supplier
