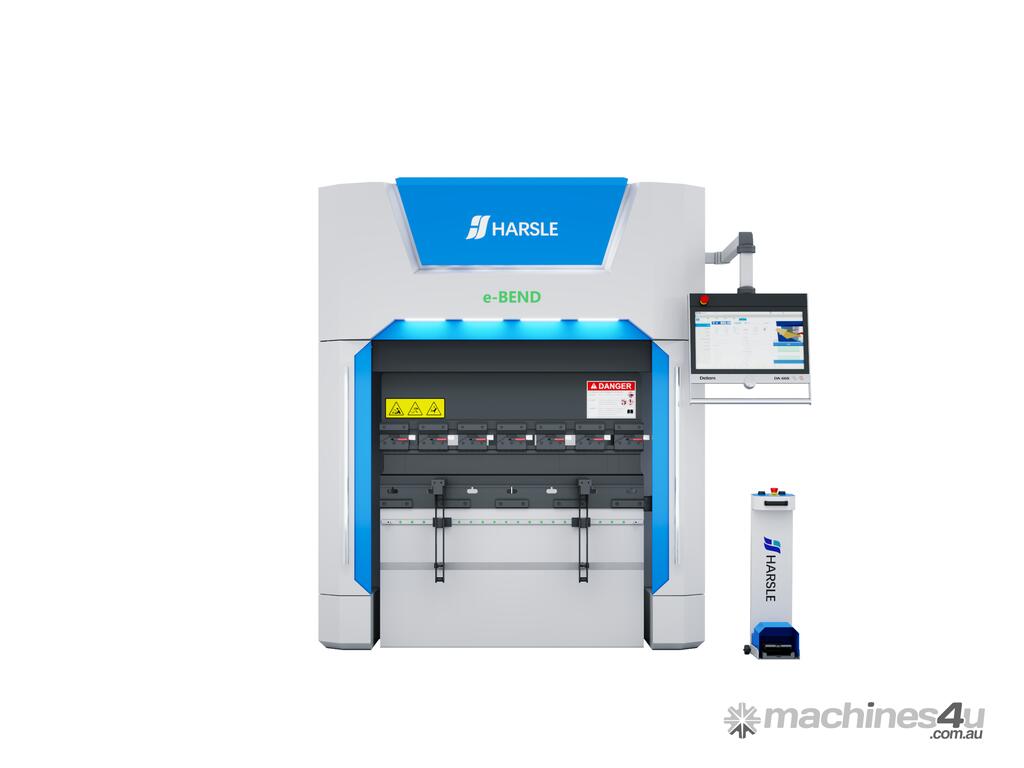

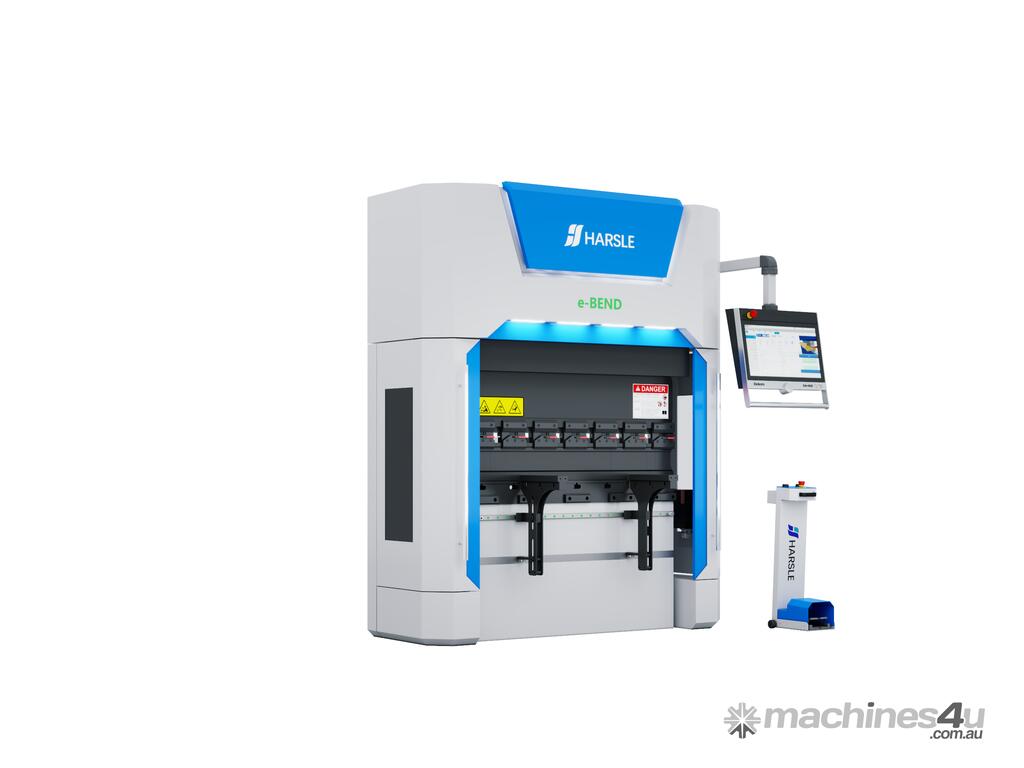

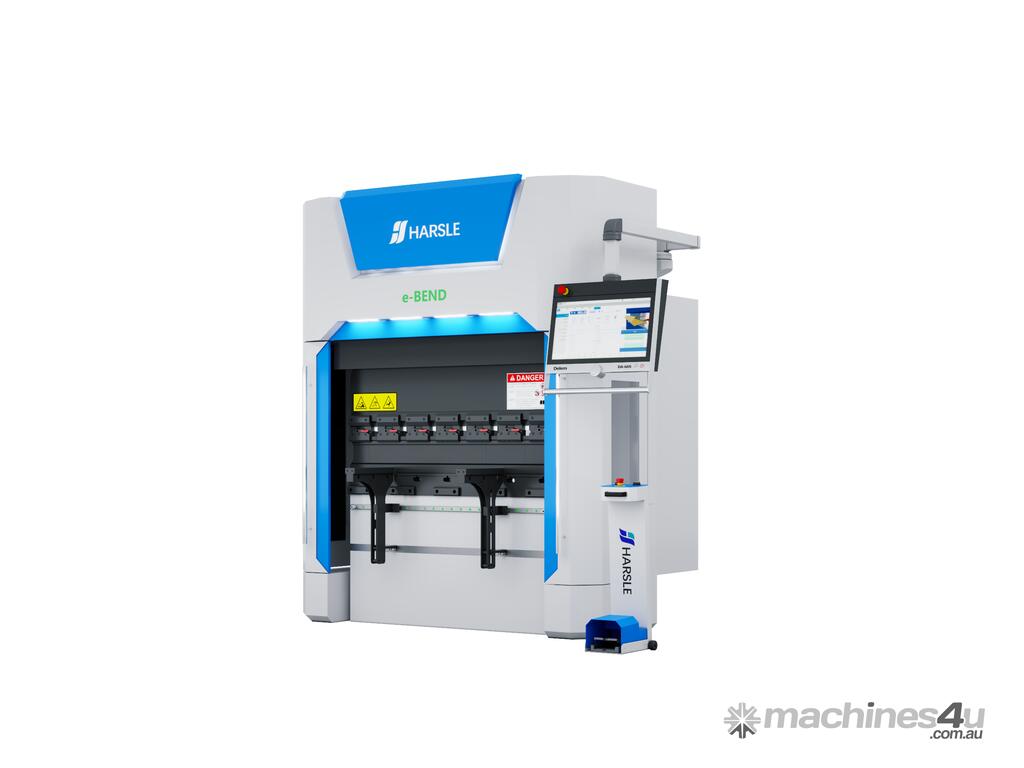

HARSLE E-Bend Pro 7035 – All-Electric CNC Press Brake
High-Accuracy Bending | Low Energy Use | Automation & Robot Ready
The Problem in Your Business
As part sizes increase and tolerances tighten, traditional hydraulic press brakes struggle with consistency, energy consumption, and maintenance costs. Add labour shortages and rising power prices, and bending quickly becomes a production bottleneck.
The Solution: E-Bend Pro 7035
The HARSLE E-Bend Pro 7035 is a high-capacity, all-electric CNC press brake designed for manufacturers who demand precision, speed, and repeatability on larger parts. By eliminating hydraulics and using direct-drive servo motors, the E-Bend Pro delivers quiet operation, reduced running costs, and exceptional bending consistency — ideal for high-mix or automated production environments.
Why All-Electric Matters
Up to 50% lower energy consumption vs hydraulic press brakes
No hydraulic oil, pumps, or valves
Quiet, clean operation
Faster response and higher positioning accuracy
Reduced maintenance and downtime
CNC Control – Delem DA-58Tx
The Delem DA-58Tx touchscreen CNC control provides powerful yet intuitive bending control for complex parts and repeat production.
Key DA-58Tx Features:
2D graphical touchscreen programming
Automatic bend sequence calculation
Real-time bend simulation and collision checking
Faster setup times with reduced operator dependency
Excellent for multi-bend and complex components
Precision, Speed & Stability
Direct-drive servo motors for backlash-free motion
Smooth, stable ram movement even on longer bends
High repeatability for tight-tolerance production
Consistent angles across long runs
Backgauge & Tooling Flexibility
CNC multi-axis backgauge configurations available

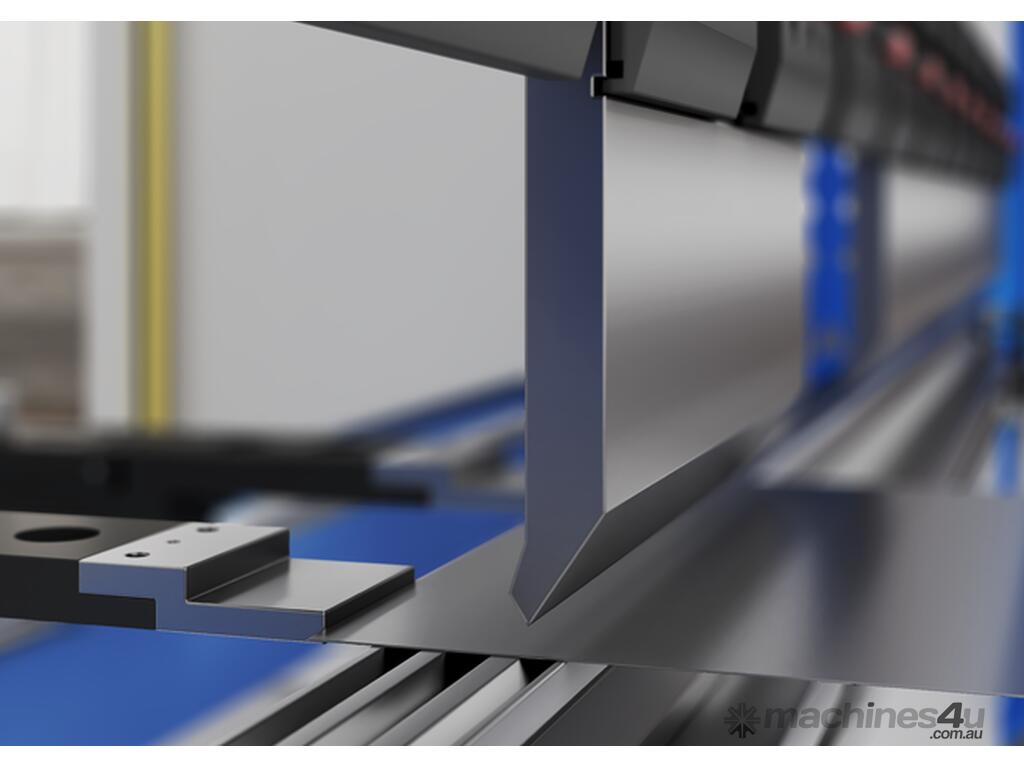

Fast and repeatable material positioning

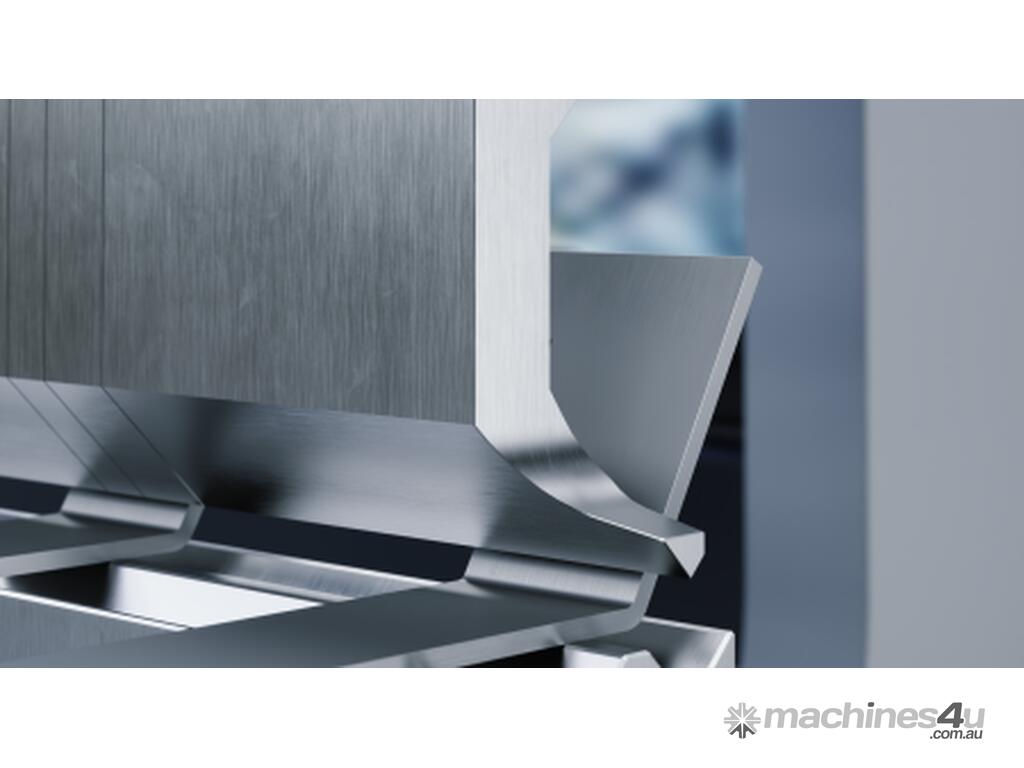

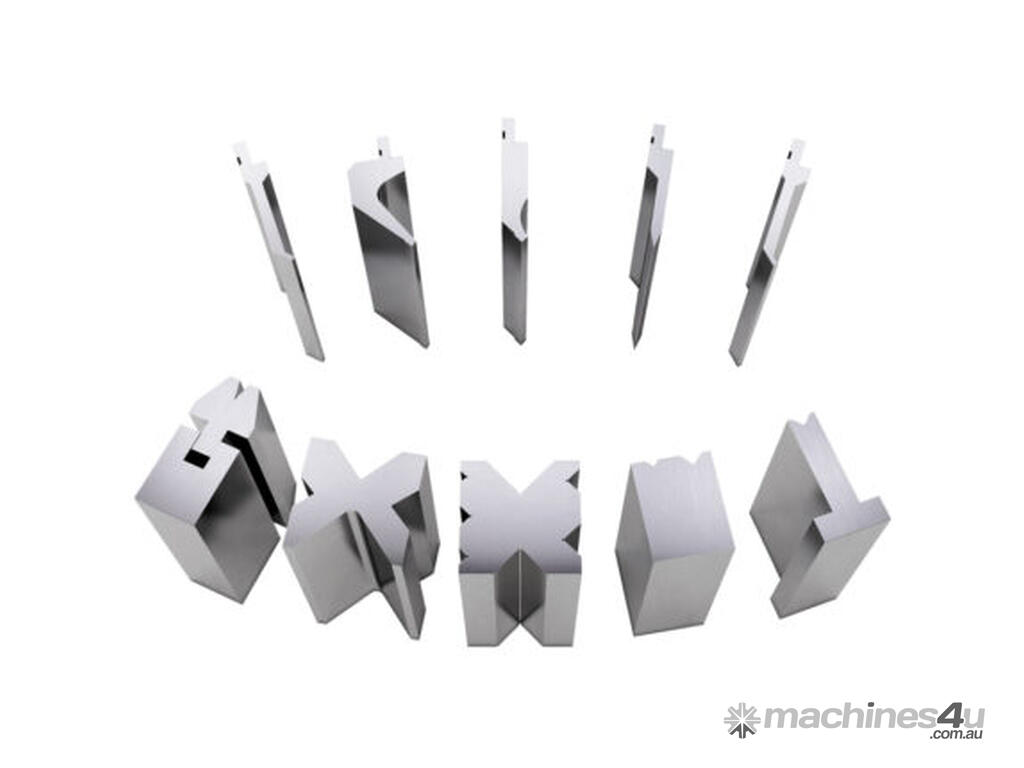

Compatible with a wide range of standard punch & die tooling
Designed for accuracy on both simple and complex parts
Automation & Robotic Bending Ready
The E-Bend Pro 7035 is engineered for robotic bending cells, making it an excellent platform for automation now or in the future.
Automation-Ready Design:
Highly repeatable bending accuracy for robotic handling
Robot interface compatibility
Ideal for automated loading, bending, and unloading
Scalable from manual operation to full robotic cells
Perfect for manufacturers targeting lights-out or semi-automated bending.
Advanced Safety & Measurement Options
Laser protection systems
Automatic laser guarding
Angle measurement systems for real-time correction
Line indicators for precise workpiece positioning
HARSLE E-Bend Pro 7035 – Key Specifications
(Metric)
Bending Force: 700 kN (70 ton)
Bending Length: 2,500 mm
Column Distance: 2,100 mm
Throat Depth: 400 mm
Ram Stroke: 200 mm
Daylight: 500 mm
Servo Motors: 15 kW × 2
Down Speed: Up to 160 mm/s
X-Axis Stroke: 500 mm
Machine Weight: Approx. 4,000 kg
Why Buy from Industrial Laser Solutions (ILS)
Industrial Laser Solutions (ILS) supplies advanced fabrication and automation equipment to Australian manufacturers who value uptime, precision, and long-term performance.
ILS delivers:
Application-driven machine selection
Deep experience in automation and fabrication
Local support, service, and spare parts
A long-term partnership — not just a machine sale
