Harsle Guillotine 3200 x 8mm

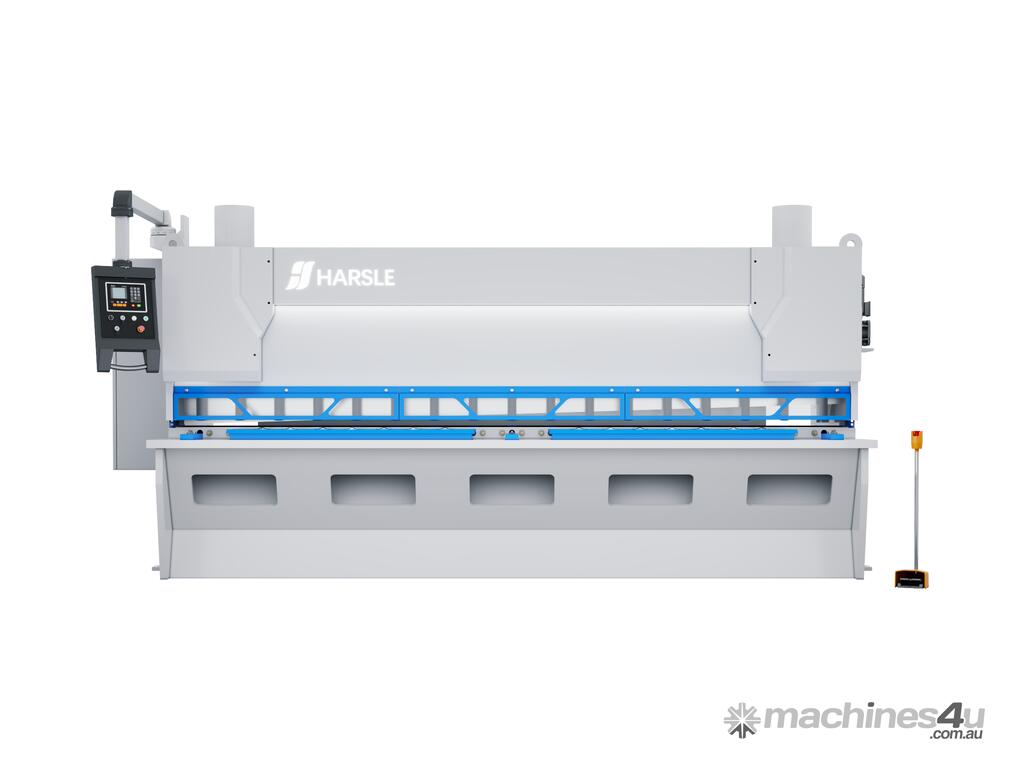

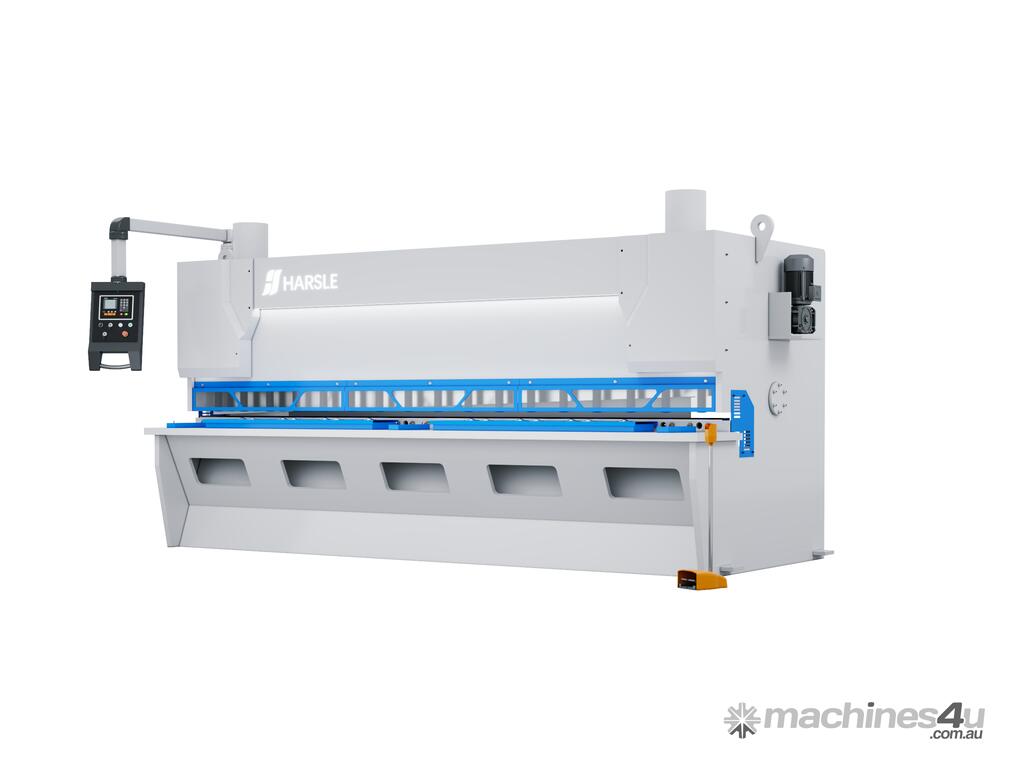

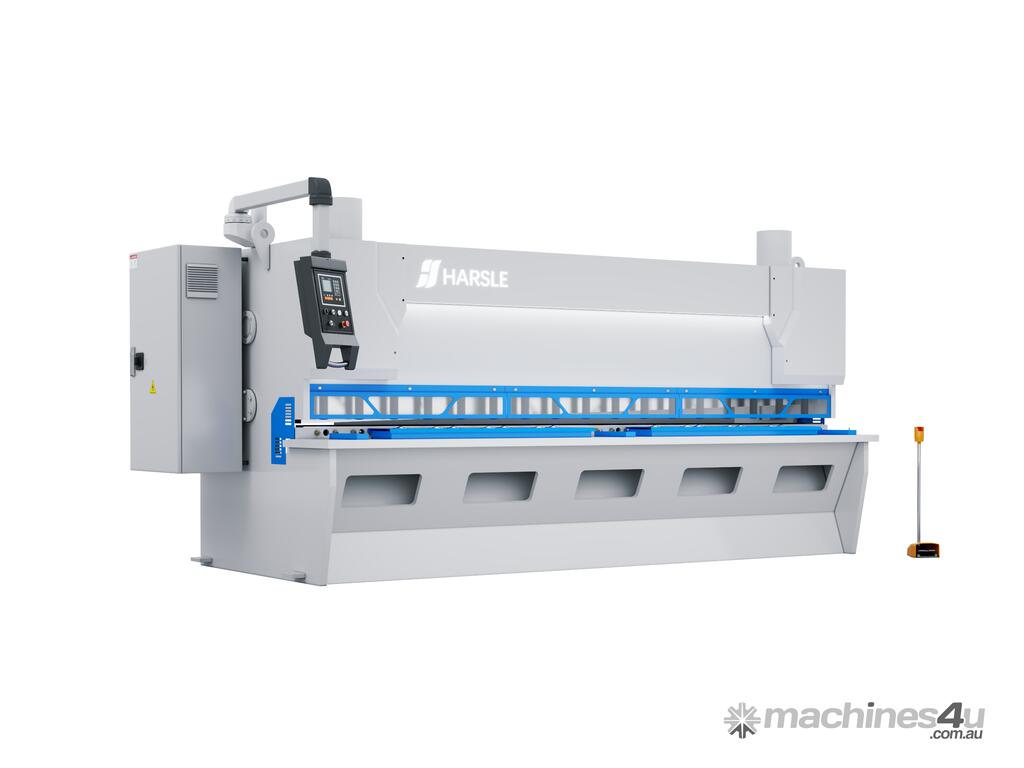

HARSLE PrimeShear 0832

A heavy-duty, precision-built 3200mm hydraulic guillotine designed for high-volume fabrication environments where reliability and cut accuracy matter.


HARSLE PrimeShear 0832 Shearing…

Key Specifications

Max Cutting Thickness: 8mm (Mild Steel)

Max Cutting Length: 3200mm

Cutting Angle: 0.5° – 2° Adjustable

Cutting Speed: 10–15 cuts/min

Backgauge Travel: 600mm

Throat Depth: 120mm

Main Motor: 11kW Siemens

Oil Tank Capacity: 300L

Machine Weight: 7000kg

Dimensions (L×W×H): 3950 × 1700 × 2250mm


Built for Accuracy & Longevity
Stress-Relieved Frame Construction

The machine frame undergoes high-temperature tempering to eliminate weld stress and ensure long-term stability and precision.

Motorised Blade Gap Adjustment

Automatically adjust blade clearance based on material thickness for:

Cleaner cuts

Reduced burr

Longer blade life

Adjustable Cutting Angle

Optimise cutting performance for different materials and thicknesses from the controller.

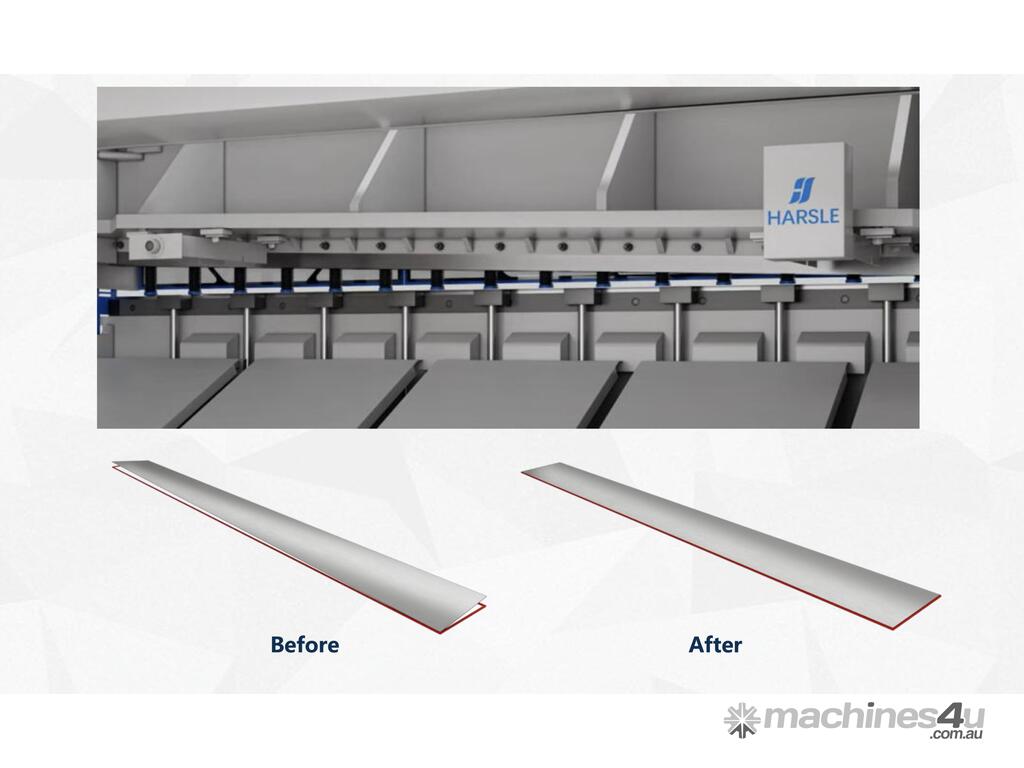

Anti-Twist System (Optional)

Prevents sheet distortion during cutting — critical for maintaining flatness and dimensional accuracy.

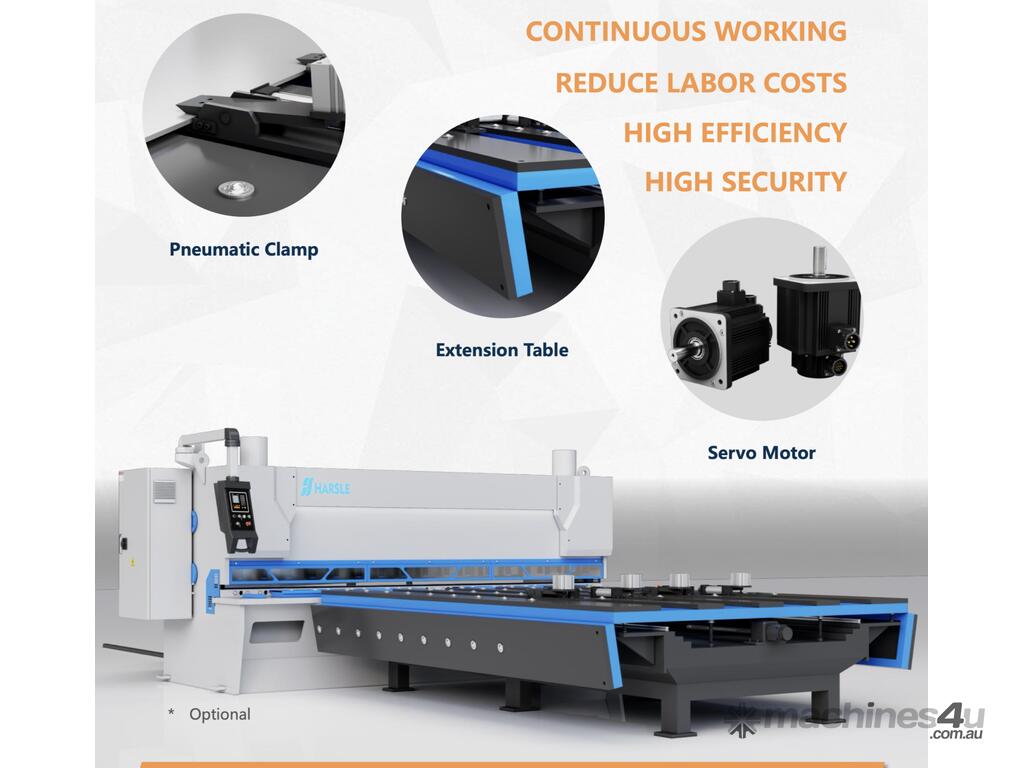

Advanced Automation Options

For higher productivity environments:

Servo pump system (energy efficient, lower noise)

Pneumatic rear sheet support

Front feeding table with servo drive

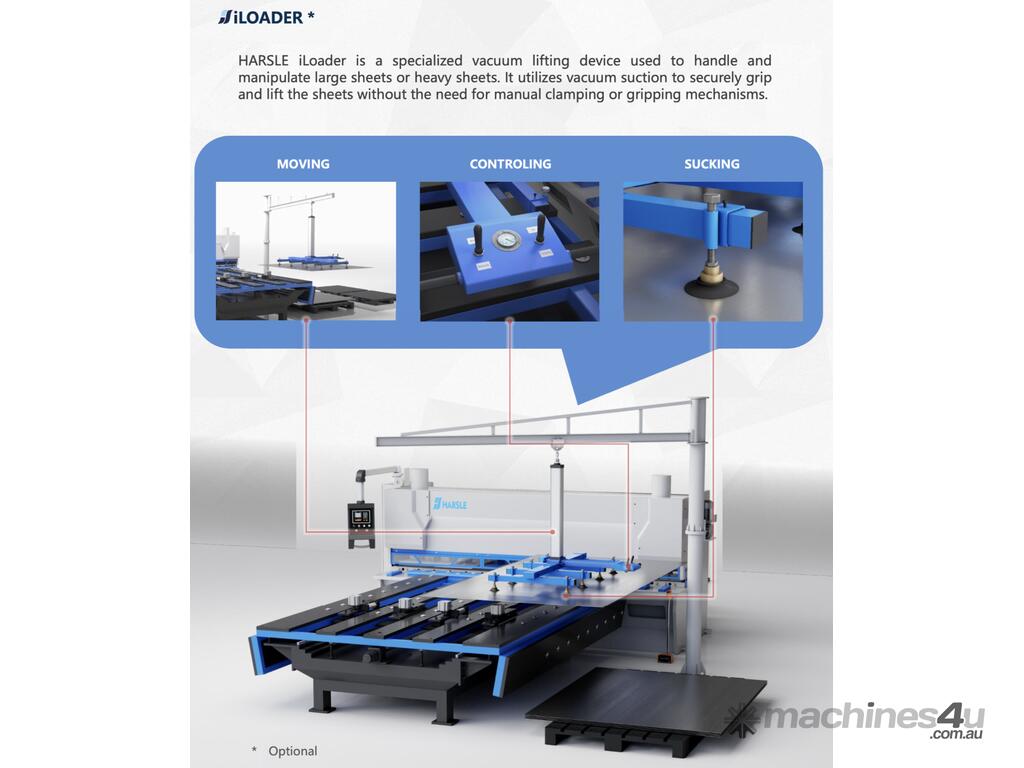

iLoader vacuum sheet lifting system

Automatic stacking system

Safety PLC (Omron)

Light curtain protection

Oil cooler system

Perfect for workshops looking to reduce labour costs and increase throughput.

Safety Features

Safety door switch on electrical cabinet

KACON foot switch

Optional front guard switch

Optional light curtain

Optional Safety PLC

Designed to meet modern workshop safety expectations.

Premium Componentry

Main Motor: Siemens

Hydraulics: Rexroth

Electrical: Schneider

Ball Screw: HIWIN

Blade Material: Cr12MoV

Seal Rings: NOK

High-quality components = long service life and reliability.

Supplied & Supported by Industrial Laser Solutions

Australian based support
Professional installation & commissioning
Operator training
Preventative maintenance programs
Rapid response service
Local spare parts support

We don’t just sell machines — we support uptime.
