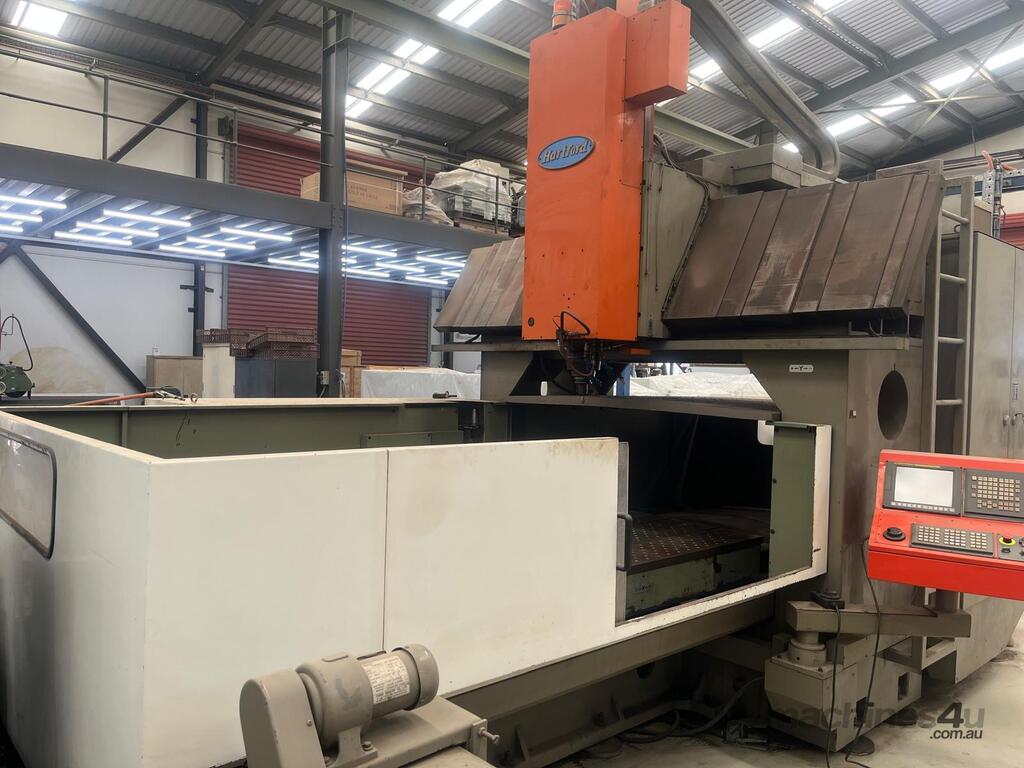

Hartford Double Column HB-120W CNC Machining Centre

Heavy duty gantry machining centre in good running condition.
Machine is currently under power and machining well.
Axes are smooth and accurate. Spindle runs strong.
Tool changer requires attention and is presently operated in manual tool change mode.
some tooling available with the purchase.

Hartford HB-120W Gantry CNC Machining Centre

Model: Hartford HB-120W Double-Column Gantry
Control: FANUC 0i-MC
ESTIMATED Travels:
X: 2,200 mm
Y: 1,350 mm
Z: 700 mm

Table size: 2,140 mm × 1,520 mm
Table load capacity: 5,000 kg
Spindle:
Taper: BT50
Speed: 50 – 4,000 RPM (high-torque geared)
Motor: 15/18.5 kW

Rapid traverse: 12 m/min
Power: 220 V / 3-phase / 50 Hz, 50 kVA
Machine weight: 21,000 kg
Other: Hydraulic 50 kg/cm², Air 6.5 kg/cm² (92 PSI)

send us your best offer
inspections welcome
buyer to organize all logistics. Location – Brisbane
