Heavy Duty Industrial Loading Ramp - 10m Long

Make us an offer! We take all reasonable offers into consideration and are highly negotiable.

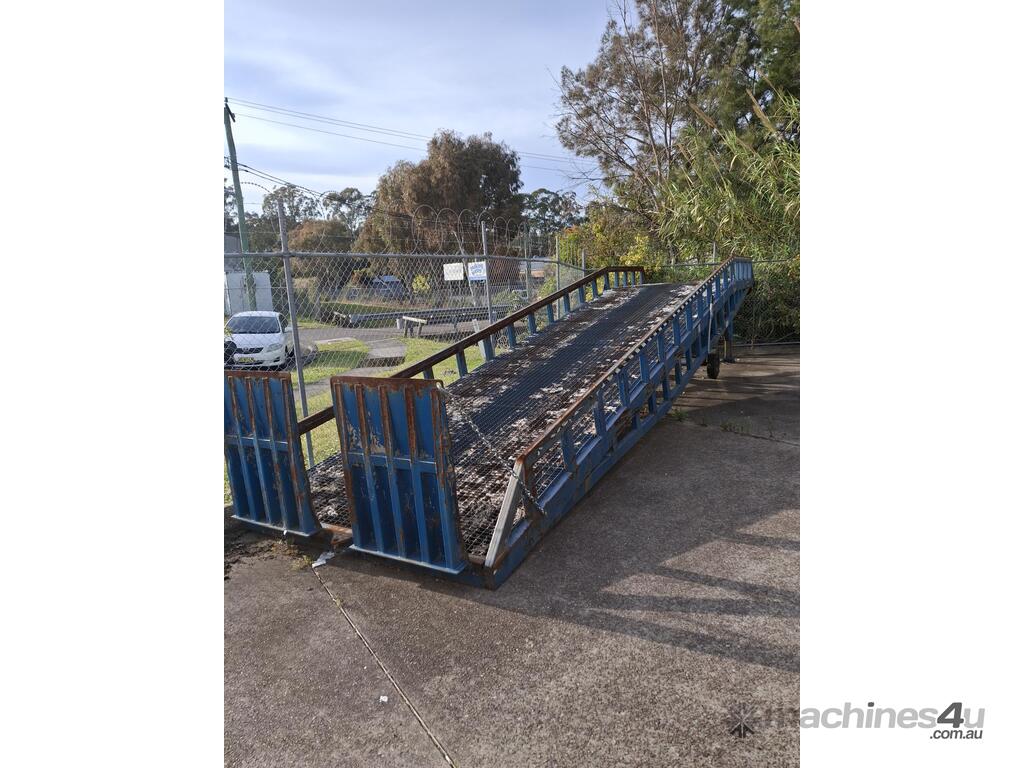

Heavy duty steel mobile loading ramp ideal for bridging the gap between ground level and trailer decks for efficient forklift loading and unloading etc.

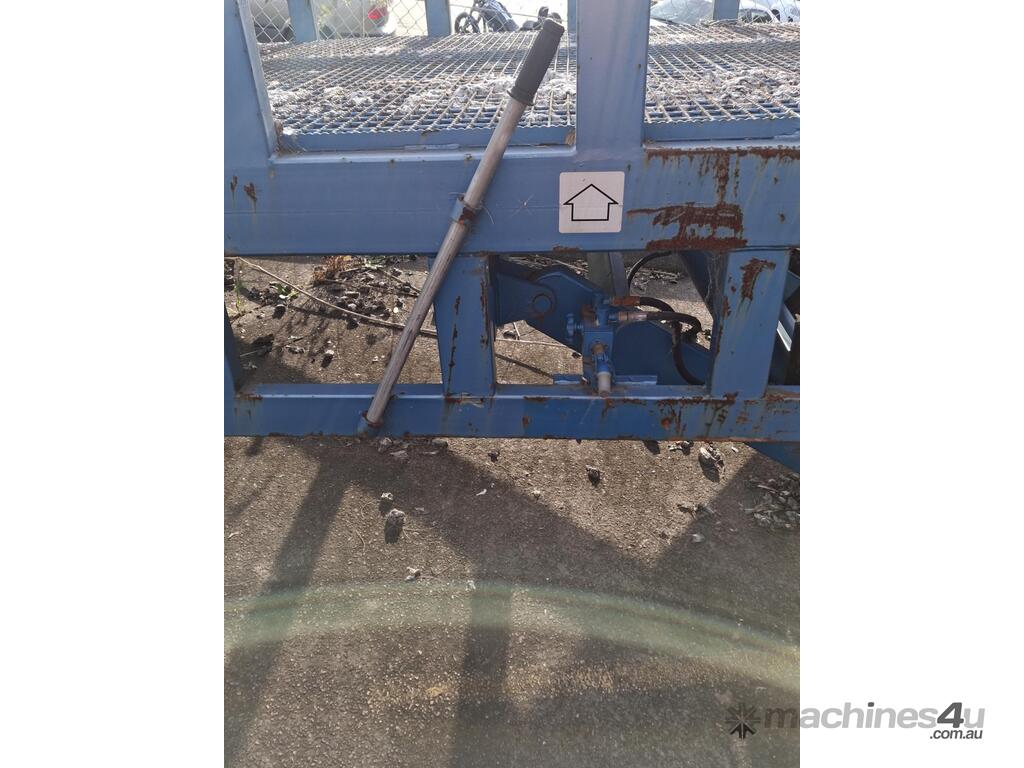

This unit is built for high volume freight operations. Constructed from a steel frame with mesh decking for excellent grip and drainage. Features integrated side safety rails, adjustable height hydraulic lift with manual pump, and chain tie-downs for added stability.
The ramp’s wide deck and high load rating make it suitable for most industrial loading bays, container yards, and logistics environments.

Typical Applications:
- Forklift container loading/unloading
- Ground to truck or dock access
- Warehouse, yard, and logistics operations

Features:

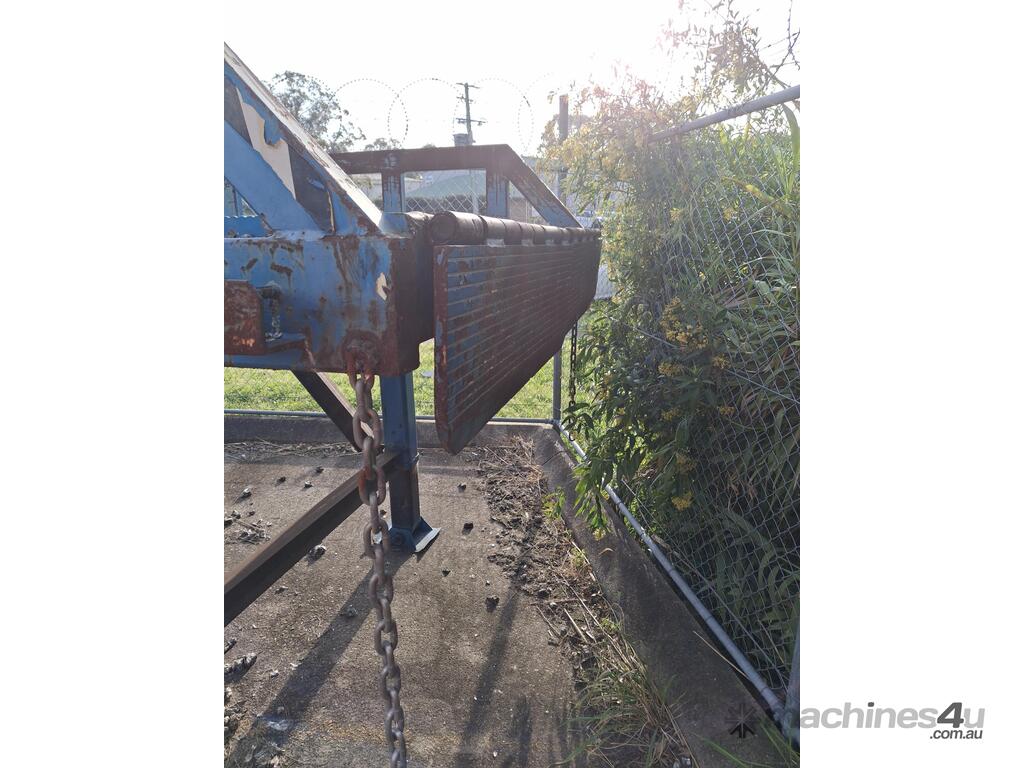

- Safety side rails and chains
- Traction mesh flooring for forklifts
- Steel entry lip with reinforced hinge

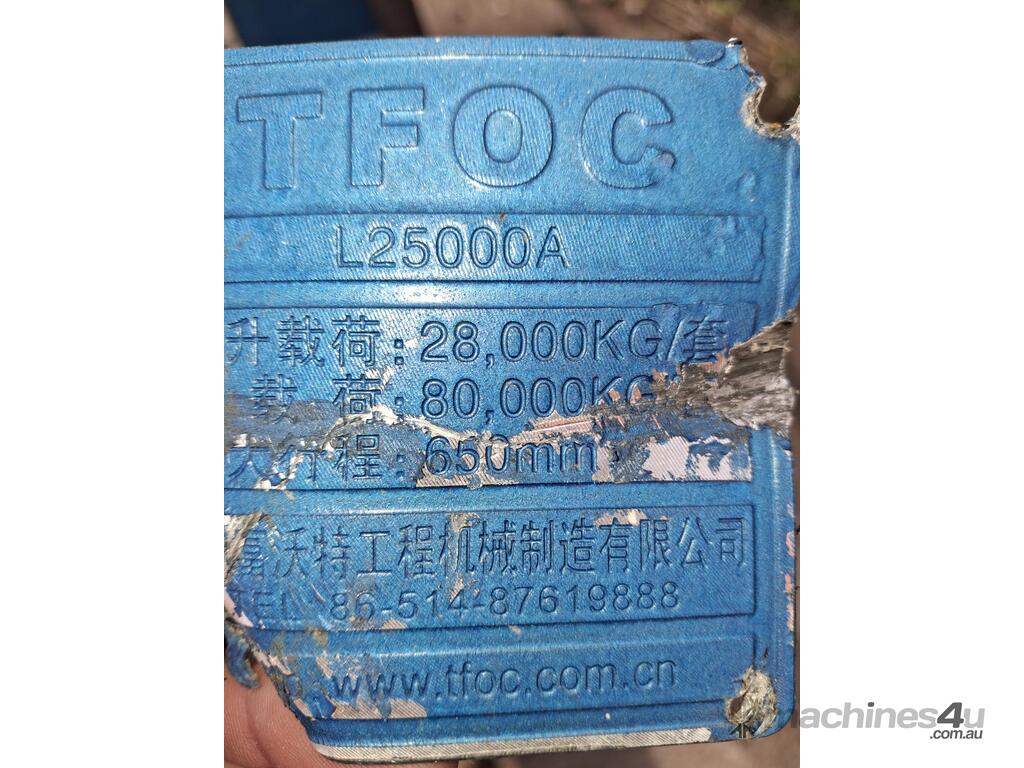

Rated Capacity: 28,000 kg
Overall Load Rating: 80,000 kg
Lift Stroke: 650 mm

Platform Height (mm): 1500
Ramp Length (mm): 10000

Overall Dimensions - As in photos (mm): 11300 L x 2000 W x 1500 H
