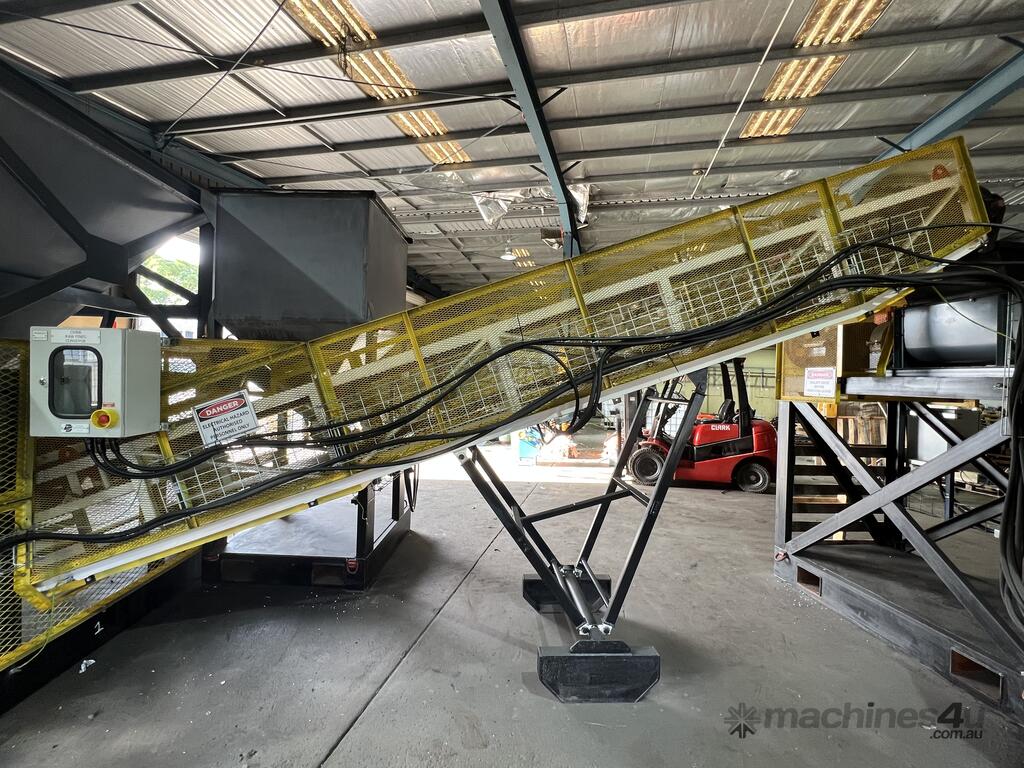

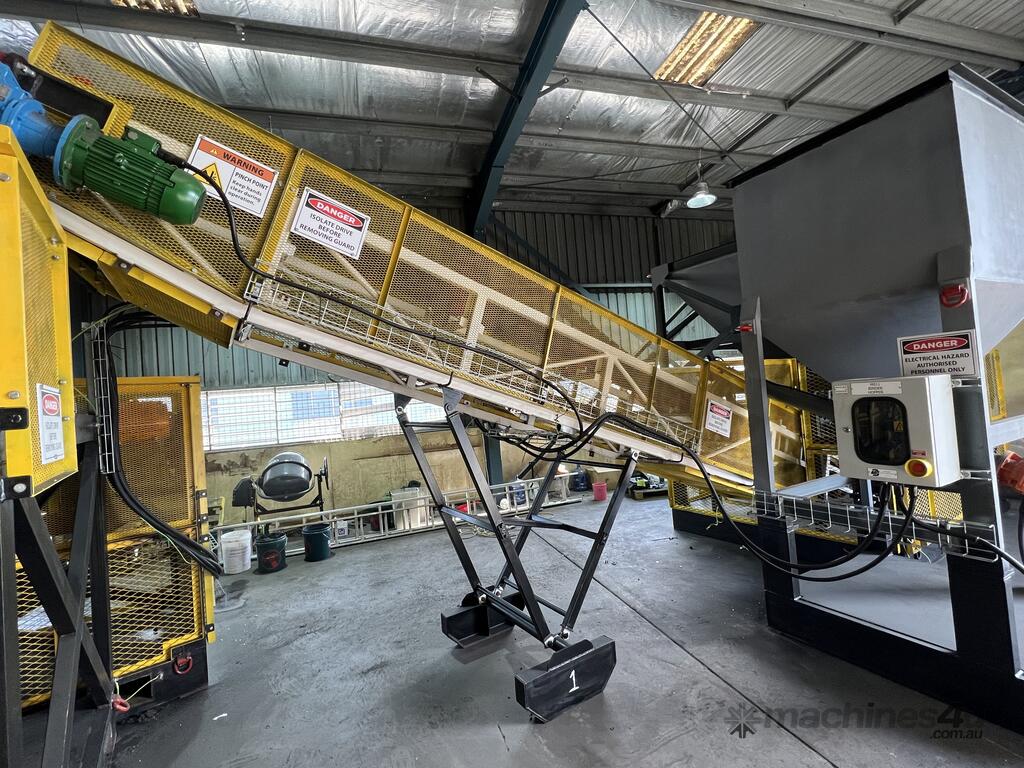

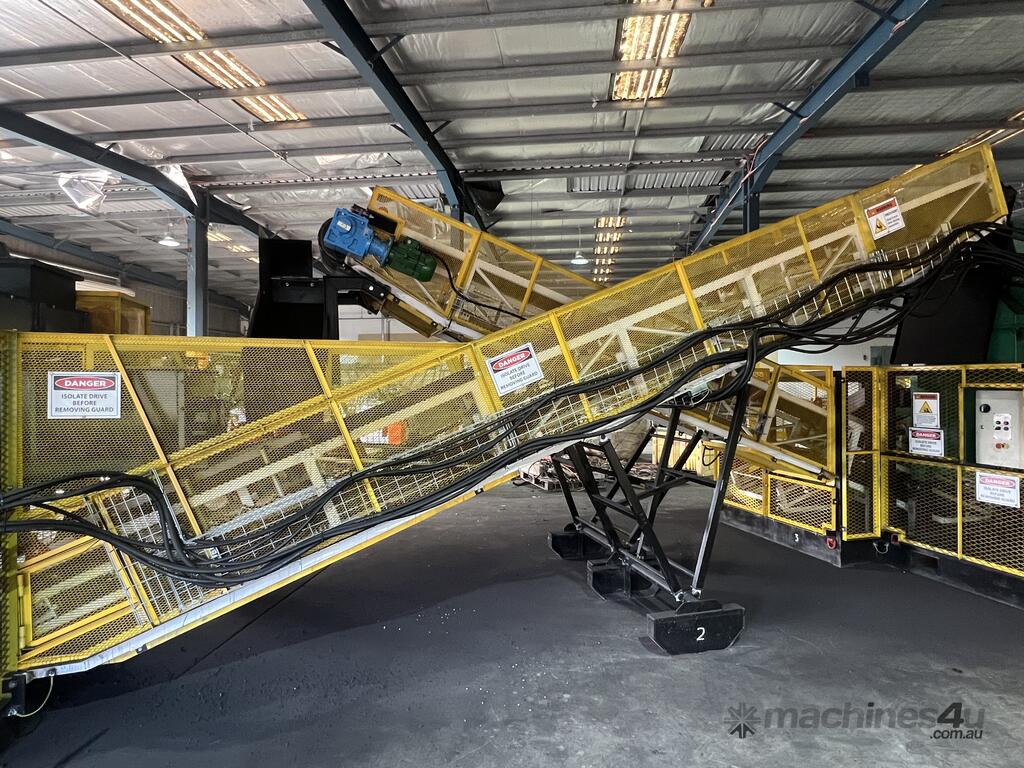

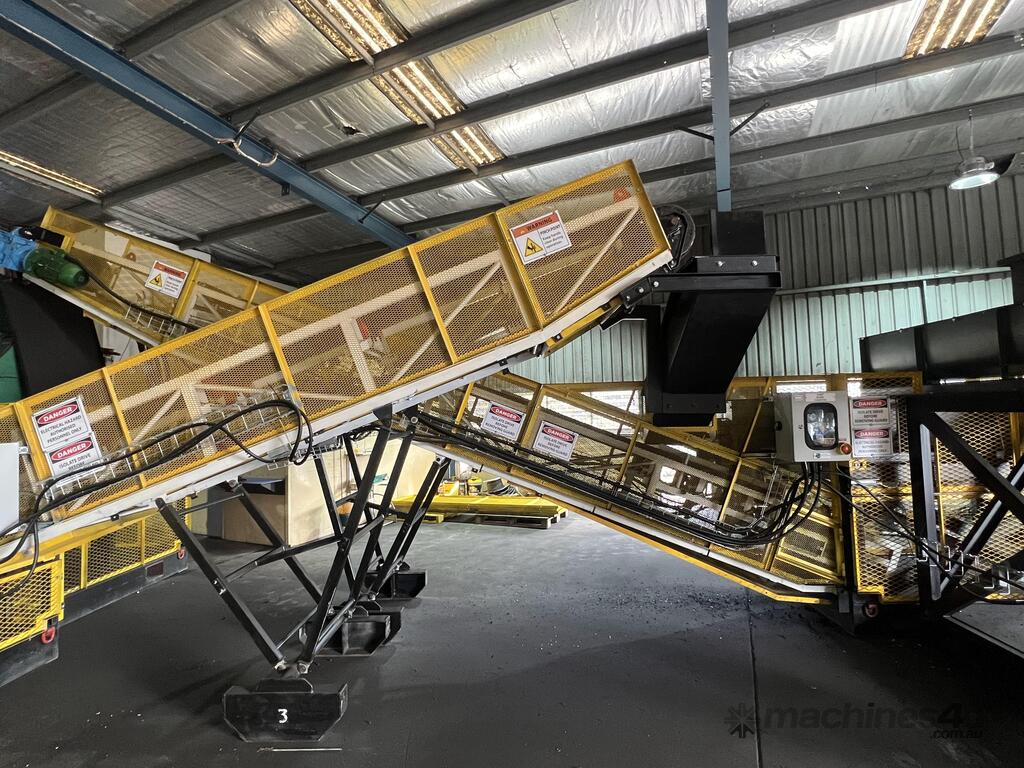

Heavy Duty Mobile Belt Conveyor With Guard 6.5 meter - 7 meter

Overview
Heavy-duty mobile belt conveyor designed for efficient bulk material handling and loading. Ideal for warehouses, agriculture, mining, recycling and processing operations.

This portable incline conveyor features a durable steel frame, adjustable height and angle, and an electric drum drive system.

Ready for immediate use.

Key Features
• Portable mobile conveyor design
• Adjustable incline and height
• Electric drum drive system
• Heavy-duty welded steel construction
• Frequency-controlled variable speed
• Spiral tensioning device for belt adjustment
• Compact and easy to transport

Specifications
• Conveyor Length: 6.5 m – 7.0 m
• Belt Width: 500 mm
• Operating Speed: 0 – 1.6 m/s
• Capacity: 6 – 10 TPH (approx.)
• Inclination Angle: 12° – 20°

Roller & Pulley
• Roller Diameter: Ø76 mm
• Reversing Drum: Ø320 mm
• Motorized Pulley: Ø320 mm
• Upper trough idlers designed for bulk material handling

Motor
• Motor Type: Electric Motorized Pulley
• Power: 3 kW
• Voltage: 415 V
• Phase: 3 Phase
• Speed Control: Frequency Control

Condition
• Near New – Lightly used unit in excellent condition. Fully operational, well maintained and ready for immediate deployment.

Applications
• Mining & quarry operations
• Grain & agricultural handling
• Warehouse loading/unloading
• Recycling plants
• Bulk material conveying
• Construction sites
