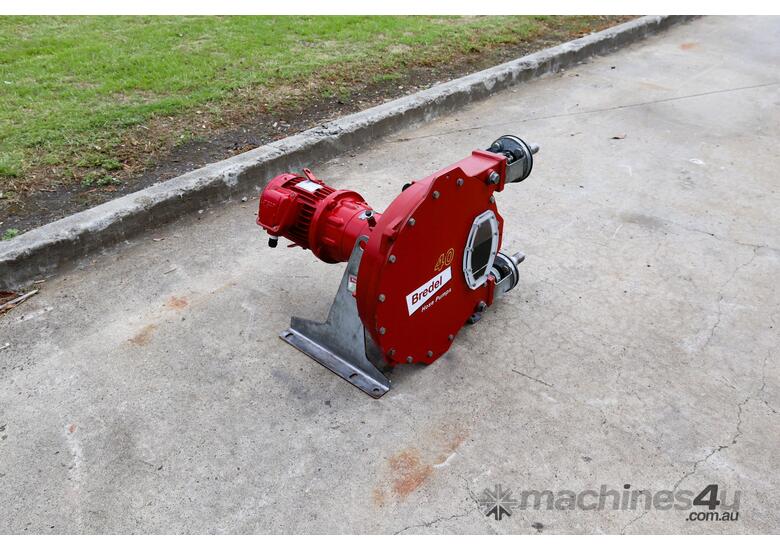

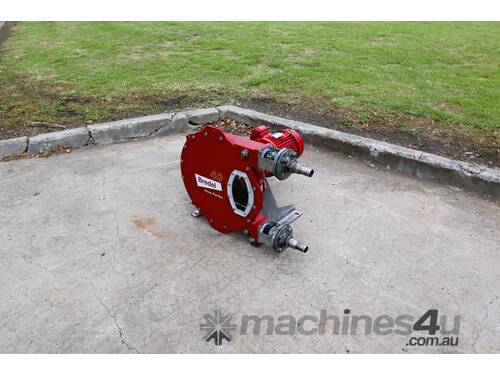

Heavy Duty Peristaltic Hose Pump - Bredel 40

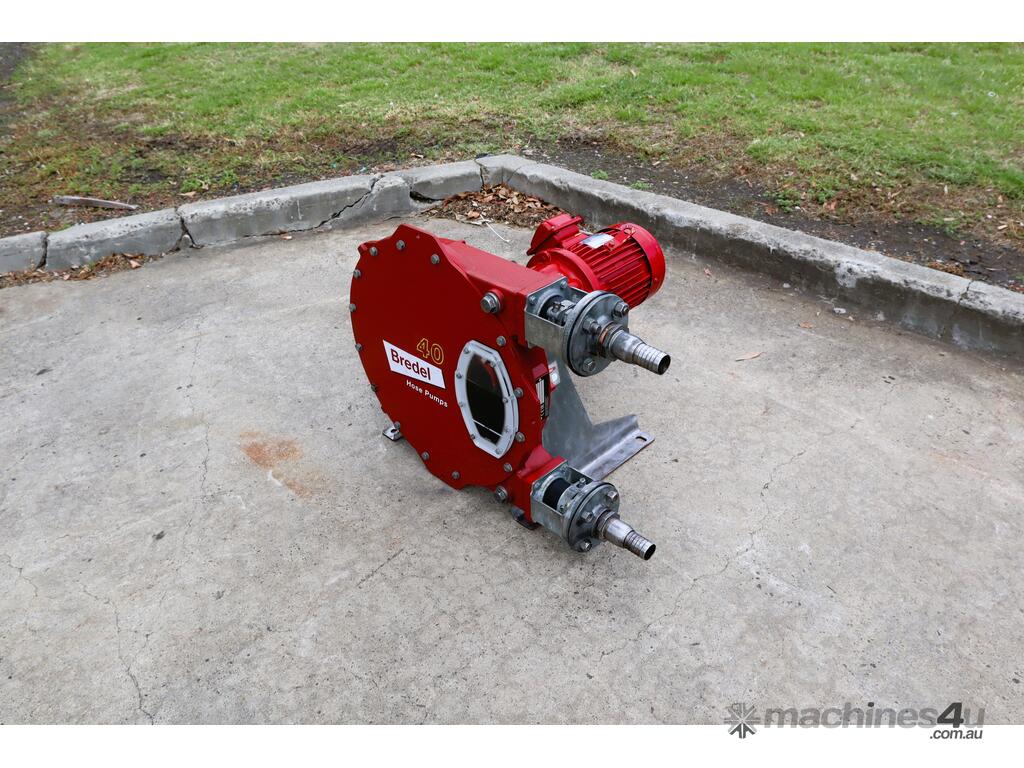

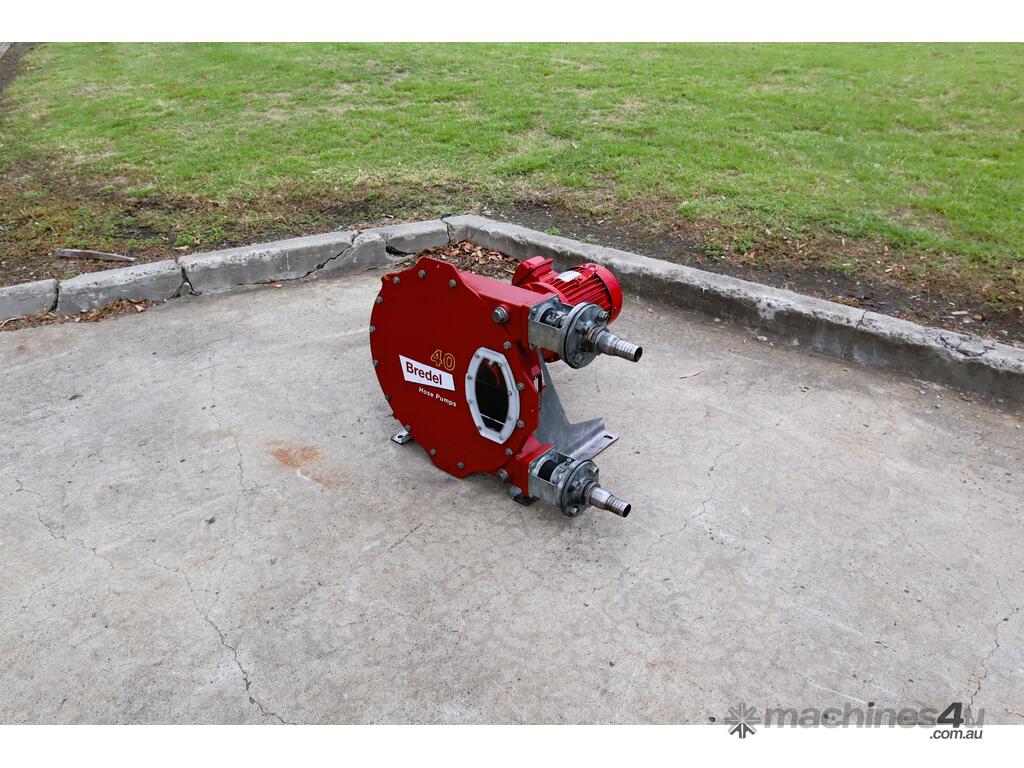

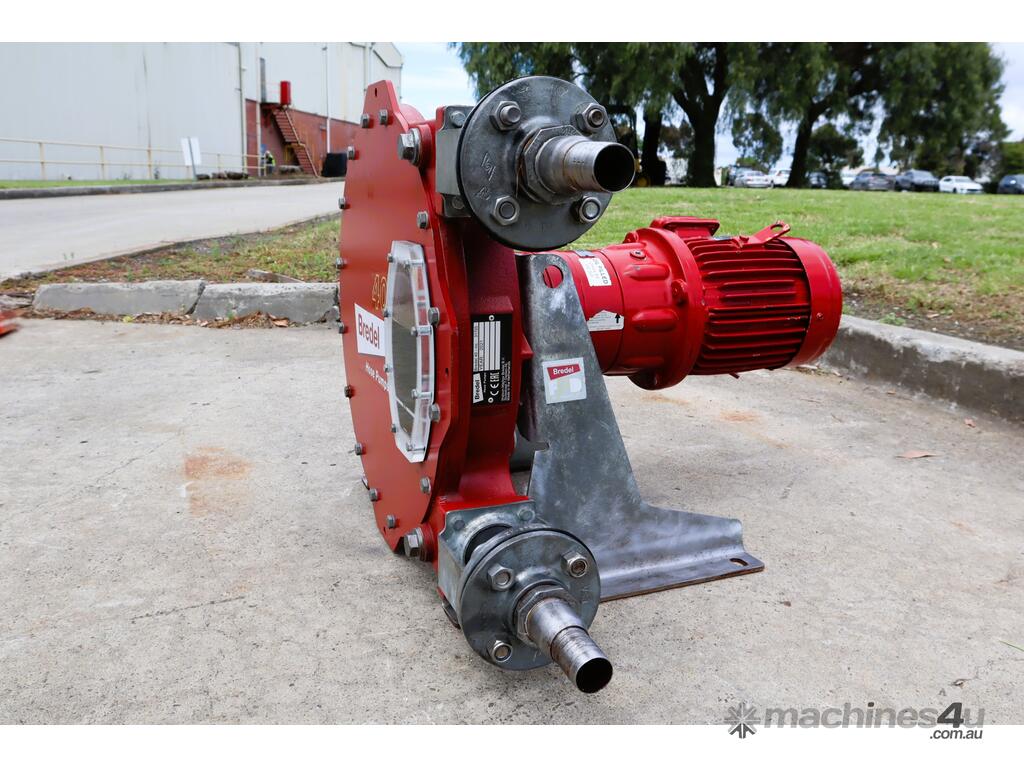

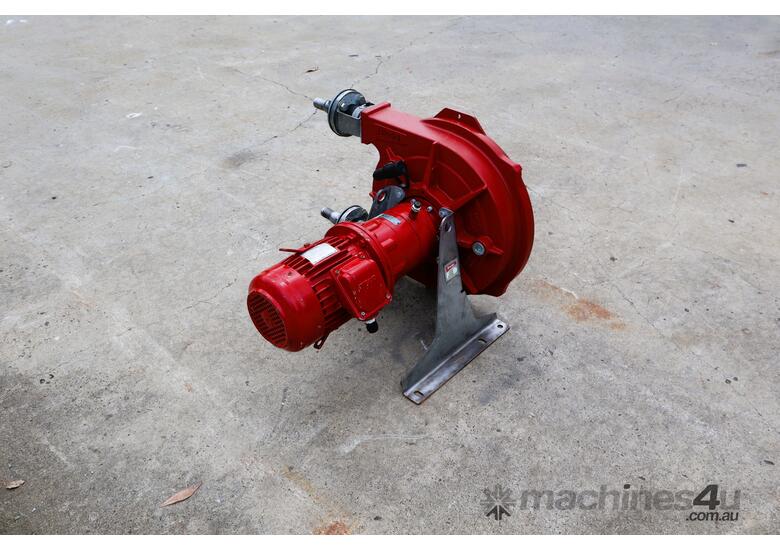

Bredel 40 peristaltic hose pump, built in the Netherlands in 2021. Designed to pump viscous and abrasive slurries, pastes and sludge, with up to 80% solids in suspension. This model offers gentle, contamination-free pumping with a simple, low-maintenance design and easy hose replacement. Suitable for continuous or intermittent duty across a wide range of industrial environments.

Features:
These can pump viscous and abrasive slurries, pastes and sludge, with up to 80% solids in suspension.

Suction lift capability of up to 9.14m (30ft)
Dry running and self-priming
Abrasion resistant hoses can double pump uptime and save energy
No seals, ball-checks, diaphragms, glands, immersed rotors, stators or pistons to leak, clog, corrode or replace
Handles abrasive slurries, corrosive acids, gaseous liquids
No slippage, allowing true positive displacement for accurate and repeatable metering
No ancillary equipment, check valves, sealing water flush systems or run-dry protection required
Fully reversible to blow out suction and drain lines safely
DuCoNite® pump with electroplated finish for aggressive chemical environments


Make: Bredel
Model: 40 Hose Pump
Year: 2021
Made in the Netherlands

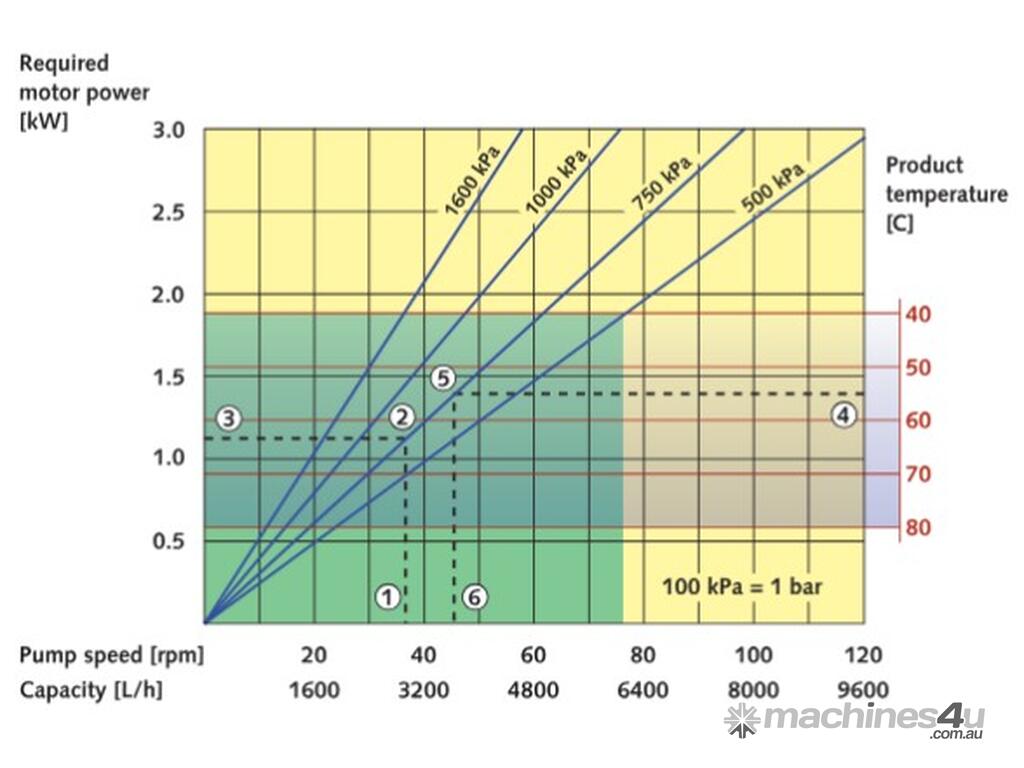

Max flow: 9,600 litre/hour
Capacity: 1.33 litre/rev
Max discharge pressure: 16 bar
Max temperature: 80C
Inner diameter pump element: 40mm
Lubricant required: 5 litres
Starting torque: 320 Nm

Outlet Size: 35mm diameter approx.

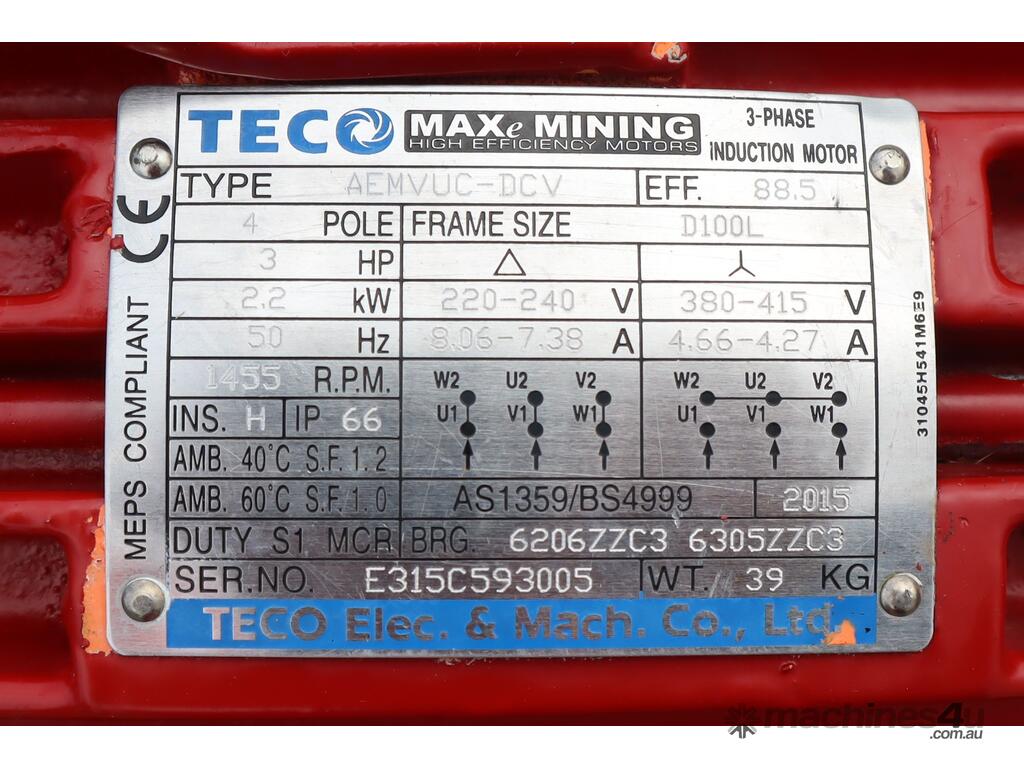

Rated Voltage: 415V 3 Phase
Motor Power: 2.2kW
Motor Speed: 1455 RPM

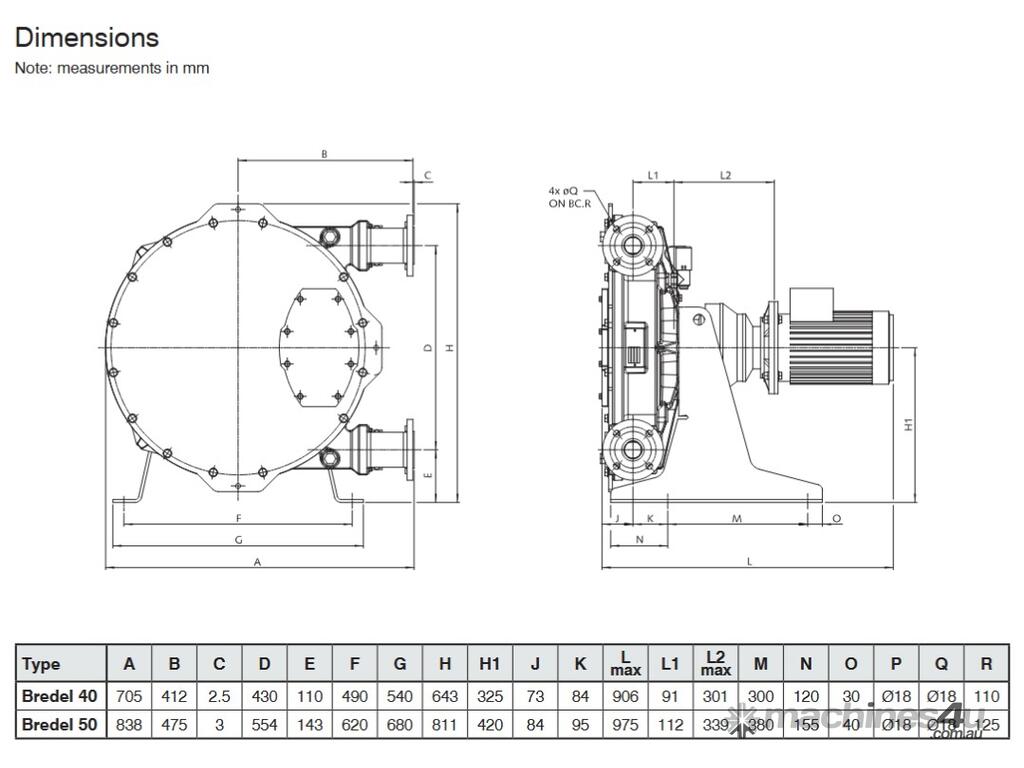

Overall Dimensions (mm): 780 L x 850 W x 640 H
