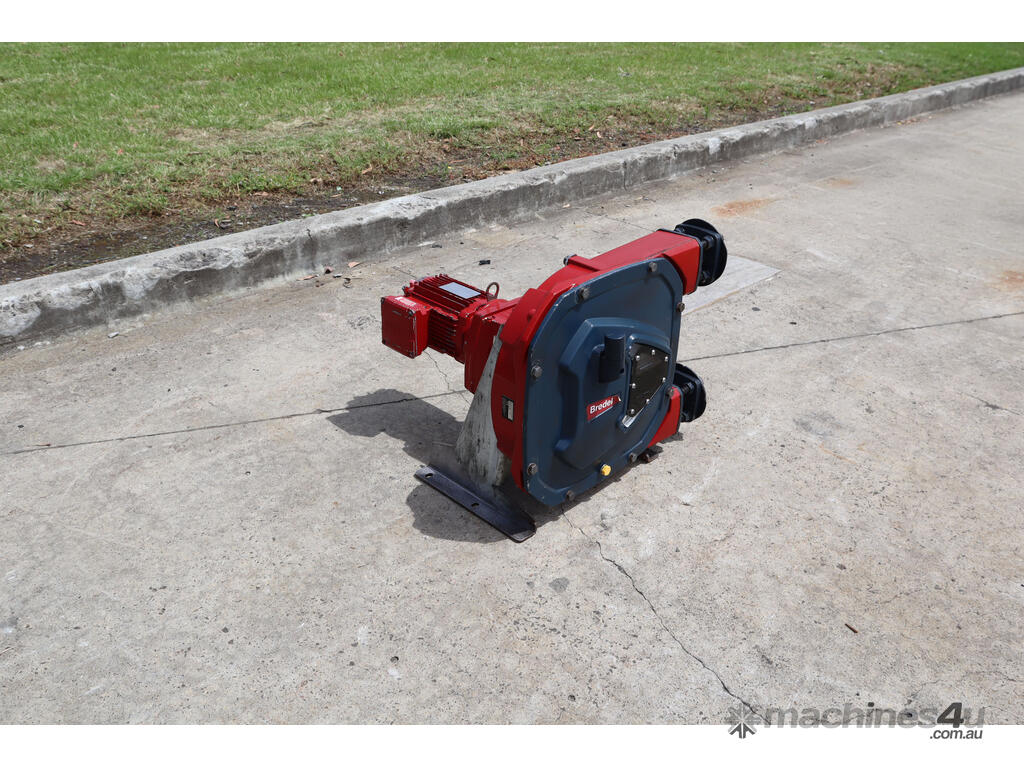

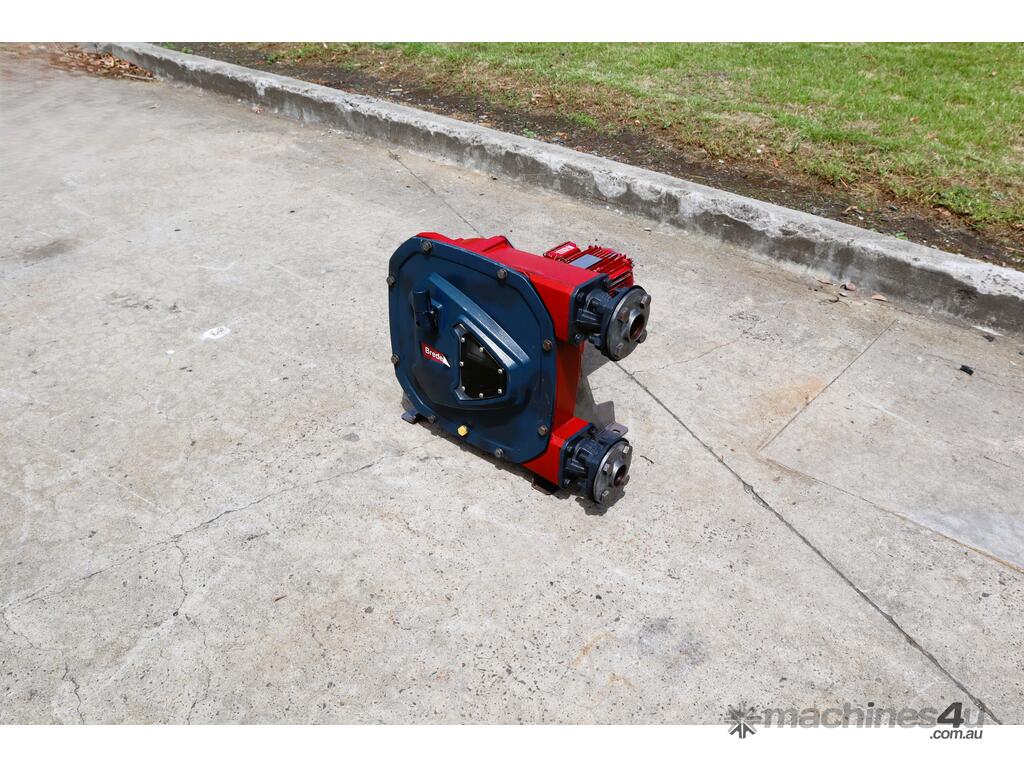

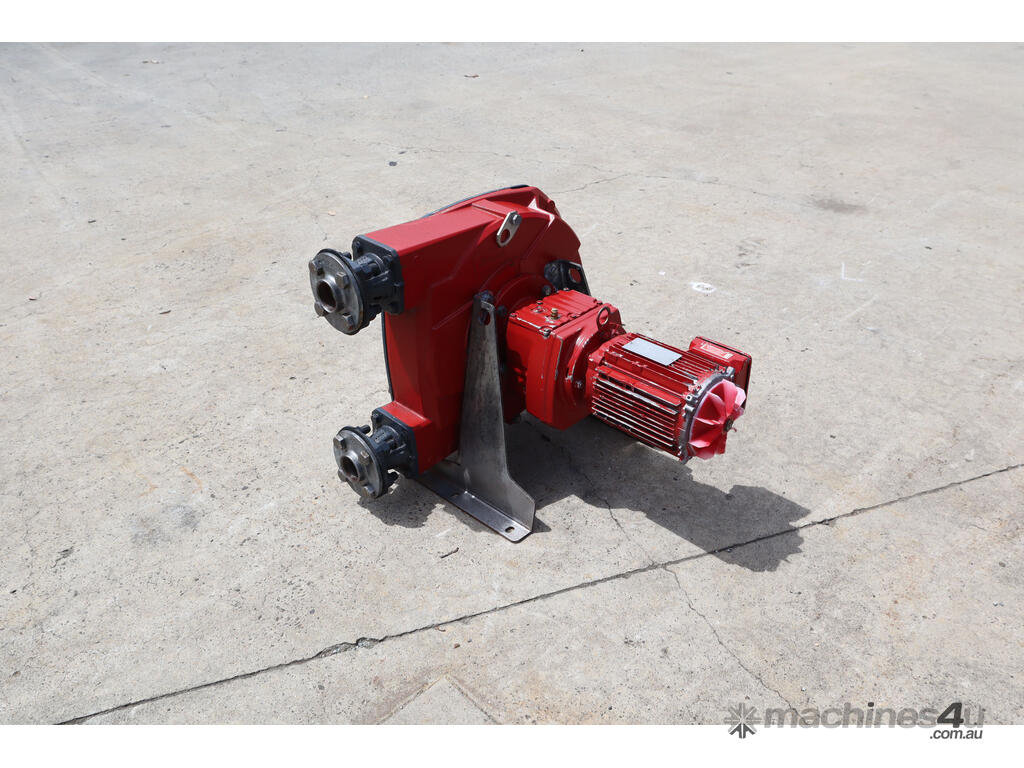

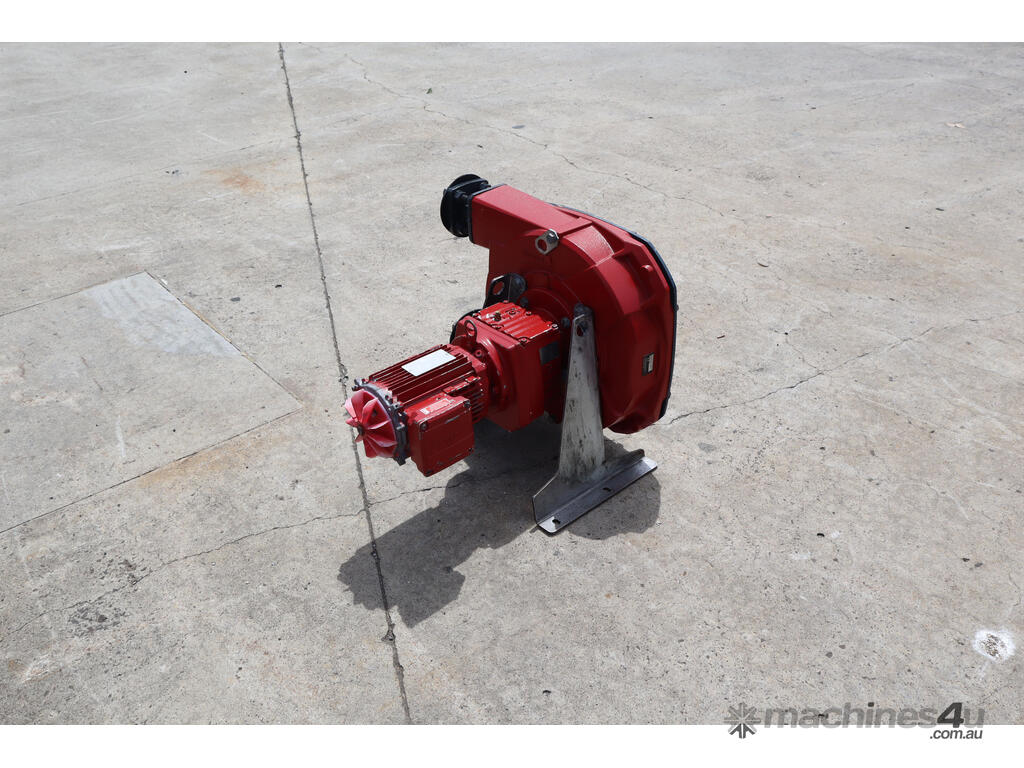

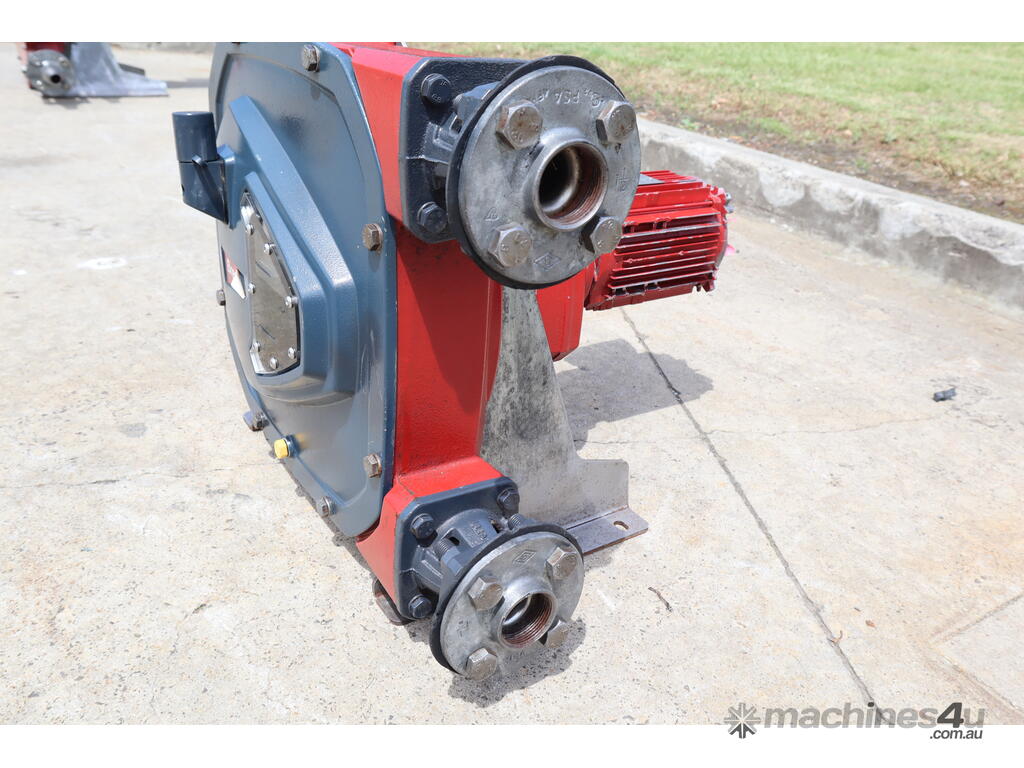

Heavy Duty Peristaltic Hose Pump - Bredel Apex 35

Make us an offer! We're highly negotiable and take all reasonable offers seriously.

The Bredel APEX 35 is a heavy duty peristaltic hose pump engineered for industrial fluid transfer, metering and dosing applications. It features a sealless, valve less design, allowing abrasive slurries, aggressive chemicals and viscous fluids to be handled reliably with minimal maintenance. Delivering up to approximately 5,300 L/h (continuous) under normal conditions, the APEX 35 supports high flow per revolution and lower rotational speeds. With a single wearing component (the hose) and fast hose-replacement capability, this pump enables extended uptime and reduced service intervals.

Typical Applications:
- Transfer of abrasive or slurry-laden fluids in mining, mineral processing or wastewater treatment
- Metering or dosing of chemicals in water & wastewater, pulp & paper or food-processing environments
- Handling shear-sensitive or viscous fluids where valve/rotor pumps struggle
- Operations requiring frequent hose changes with minimal downtime


Features:
- Seal less, valveless pumping principle for reliable, low maintenance metering, dosing and transfer
- Flow rates up to 6,200 L/h (27.3USGPM) and pressures up to 8bar(115psi)
- Dry running and self-priming, with up to 9.5m (30ft) suction lift capability
- Long life hose element provides significantly reduced maintenance
- Compact direct coupled design to maximise gearbox life
- Simple hose change decreases cost of ownership, downtime and need or parts inventory stocking

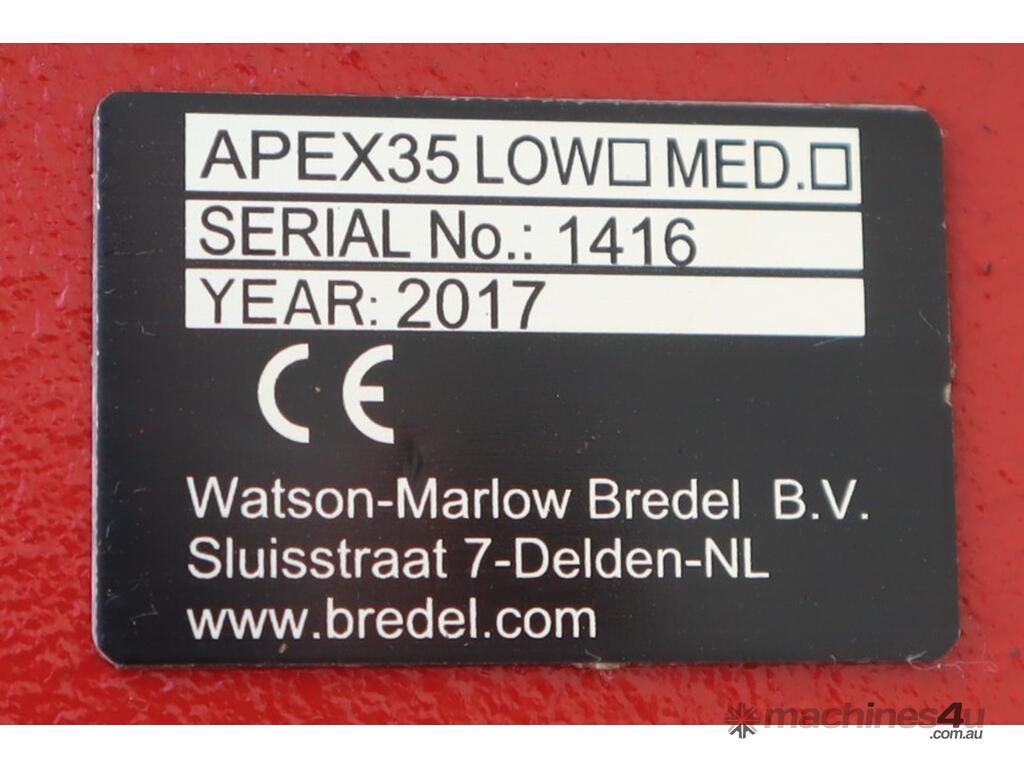

Make: Bredel
Model: Apex 35
Year: 2017
Made in the Netherlands

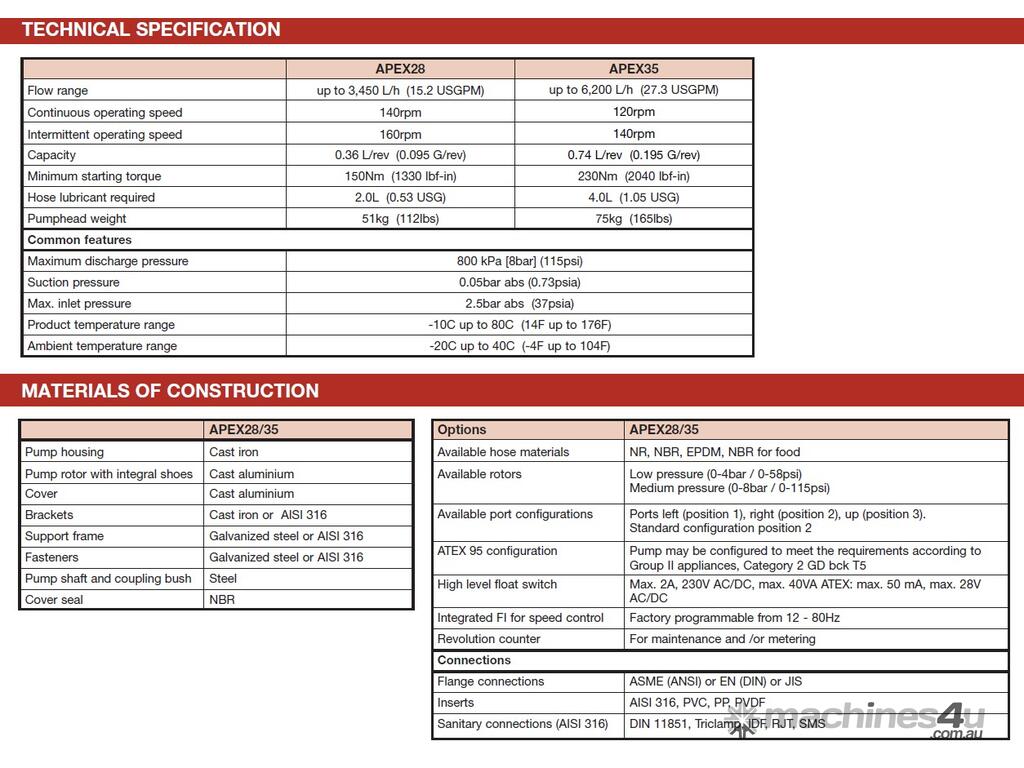

Flow Range: up to 6,200 L/h (27.3 USGPM)
Capacity per Revolution (L/rev): 0.74 (0.195 G/rev)
Continuous Operating Speed: 120 RPM
Intermittent Operating Speed: 140 RPM
Min. Starting Torque: 230Nm (2040 lbf-in)

Hose lubricant required: 4.0L (1.05 USG)
Pumphead weight: 75kg (165 lbs)
Maximum Discharge Pressure: 800 kPa (8bar)(115psi)
Suction Pressure: 0.05bar abs (0.73psia)
Max. Inlet Pressure: 2.5bar abs (37psia)
Ambient temperature range: -20 to +40 Celcius
Product temperature range: -10 to +80 Celcius
Sound Level at 1m: 70 dB(A)

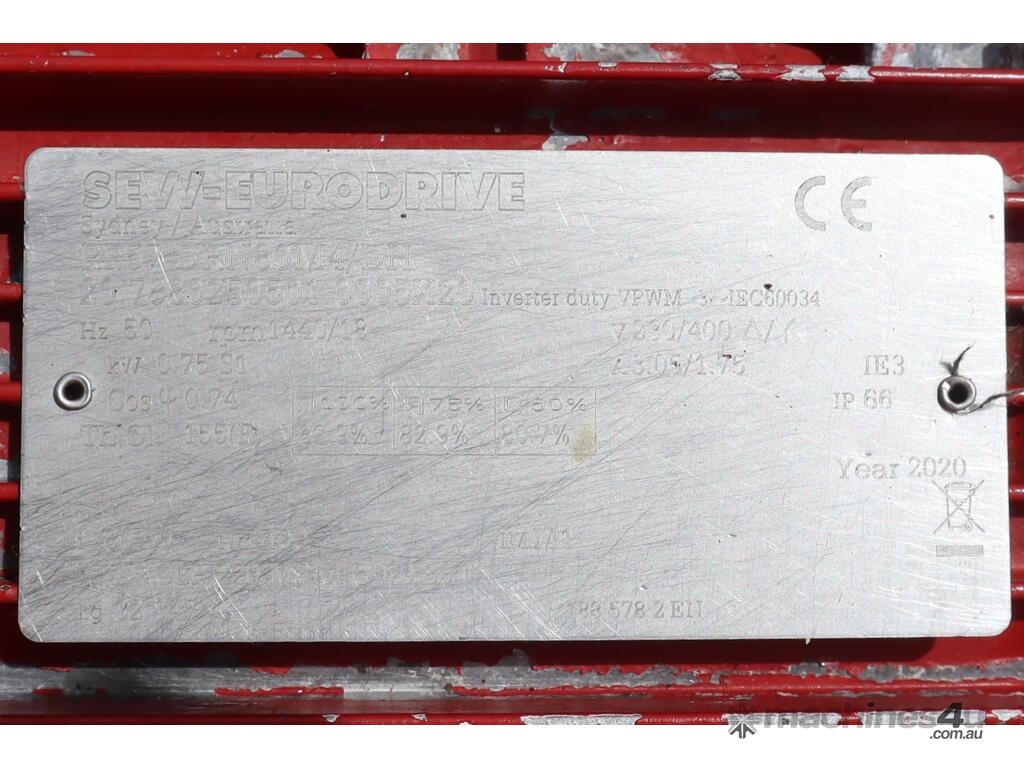

Rated Voltage: 415V 3 Phase
Power: 0.75kW
Motor Power: 1440 RPM

Overall Dimensions (mm): 650 L x 600 W x 480 H
