KANG Industrial Section & Profile Rollier HRBM65H

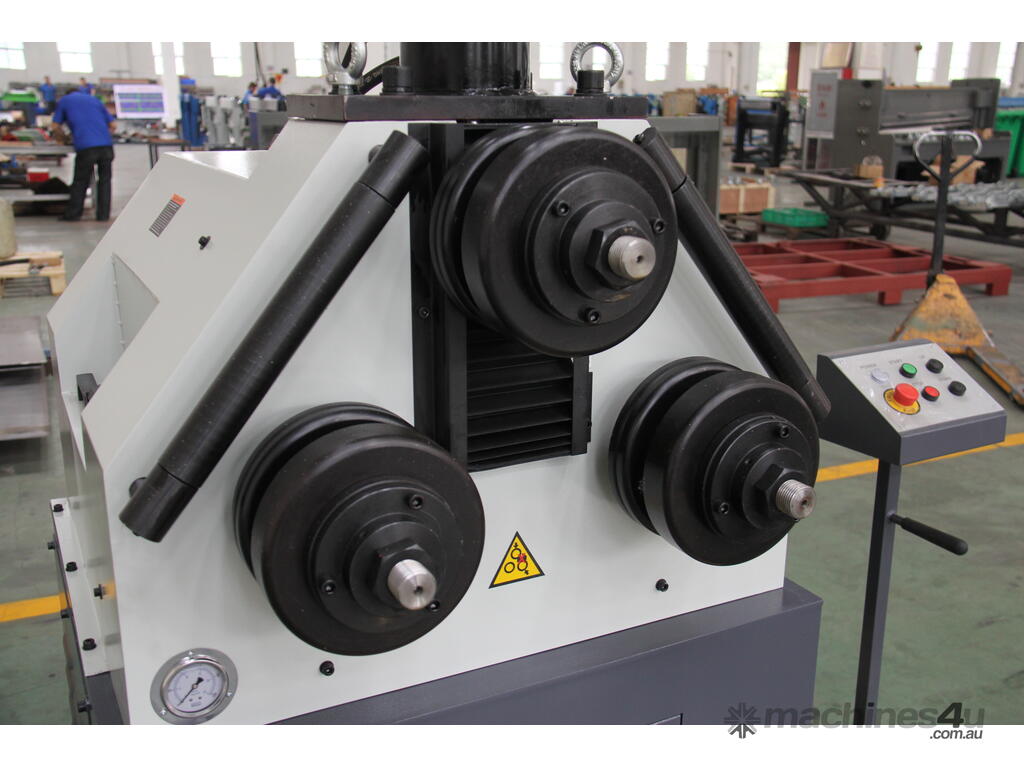

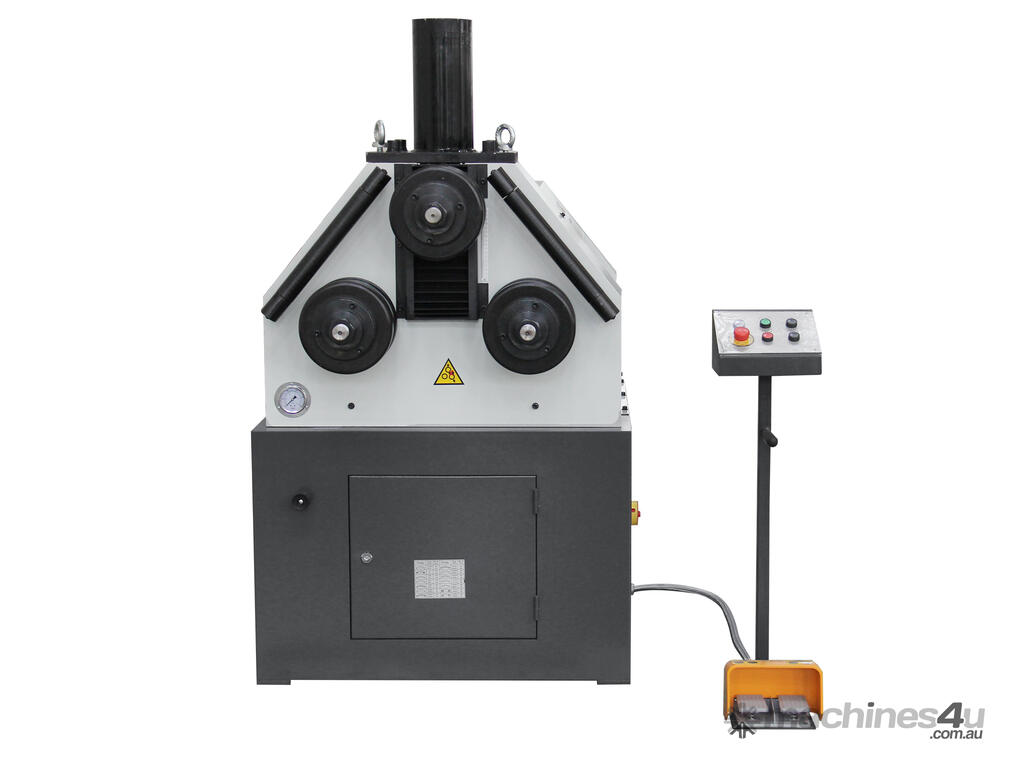

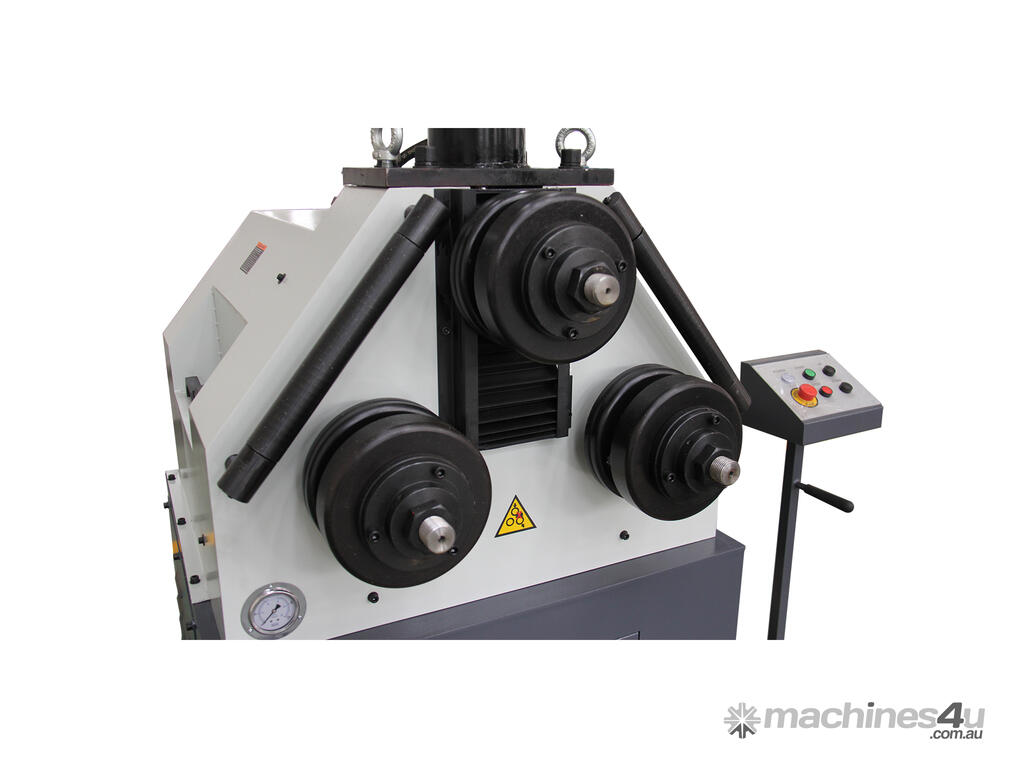

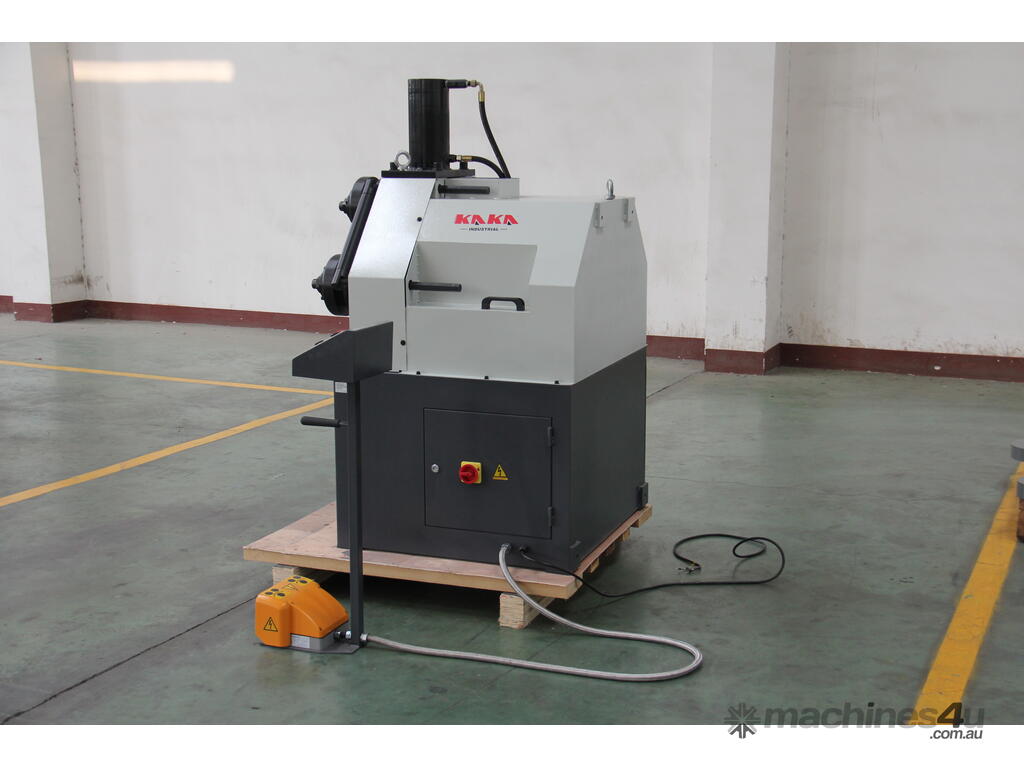

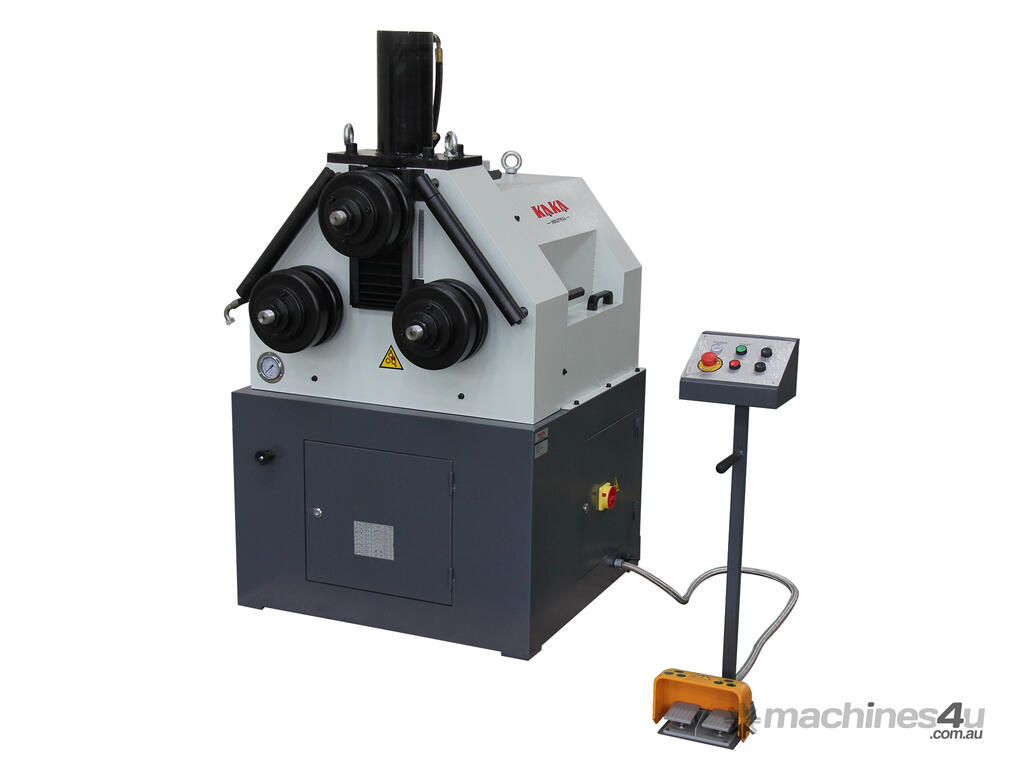

The KANG HRMB-65H Section & Pipe Roller is a heavy-duty machine ideal for metal fabrication workshops in Australia. Featuring vertical and horizontal operation modes, it includes two powered rolls with hydraulic top roll positioning controlled via a digital display for precise adjustments. Powered by a robust 4.0W / 3hp 415V motor—perfectly suited to Australian electrical standards—this roller delivers a bending speed of 9.3 m/min. It handles a wide range of materials. Built with a heavy-duty steel fabricated frame, 65mm shaft diameter, hardened drive shafts, adjustable side guide rolls, and a roving foot pedal for forward/reverse control, it ensures reliable performance and ease of use. Standard flat and angle rolls are included, with additional tooling available for specialised tasks.

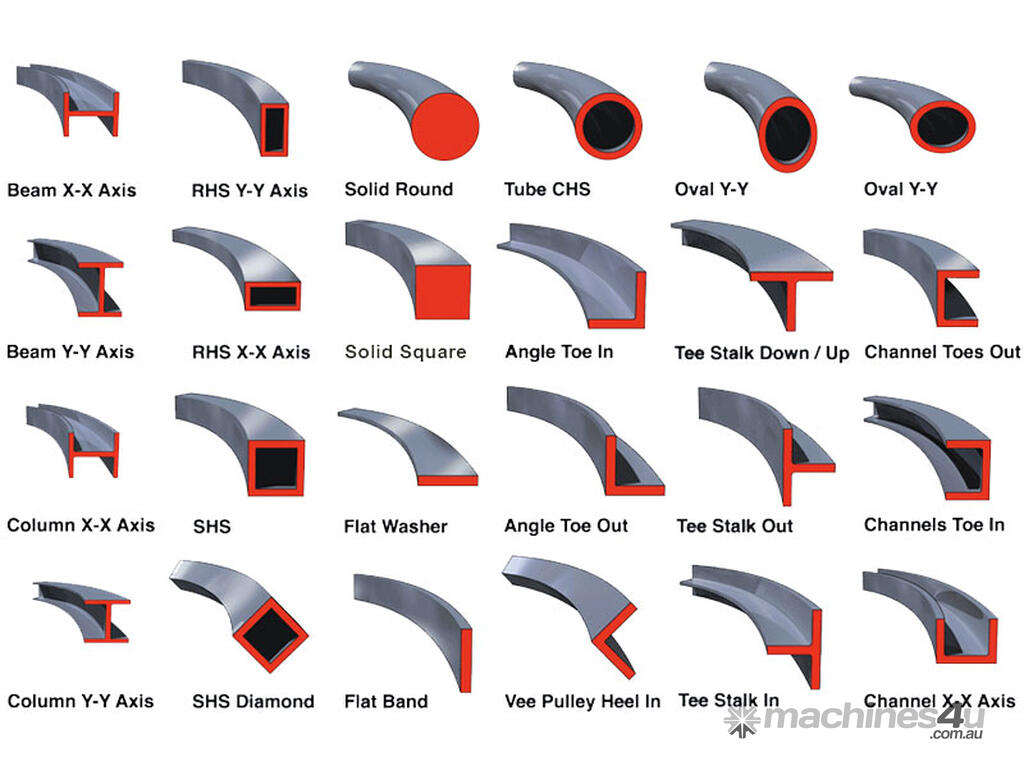

Versatile Bending Capabilities Section Roller. Handles diverse materials like pipes, sections, flats, and angles with multiple capacities, reducing the need for multiple machines and saving space in workshops.

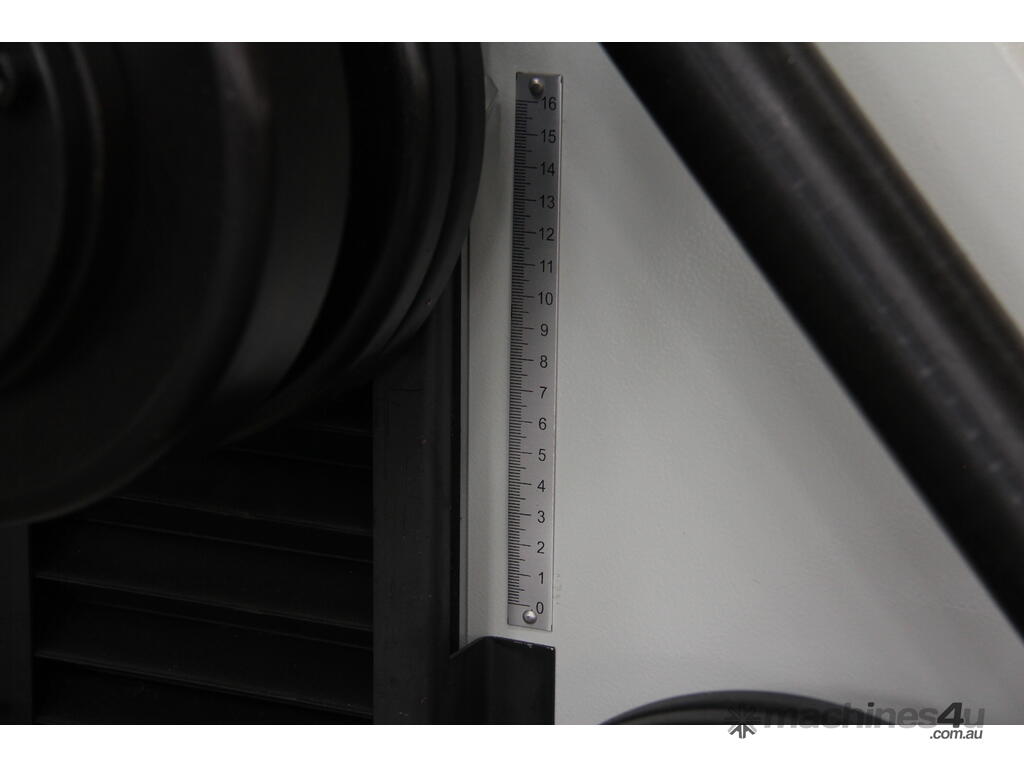

Enhanced Precision and Control. The hydraulic top roll with digital display and measuring scale allows for accurate, repeatable bends, minimising errors and waste in fabrication projects.
Improved Rolling Efficiency. Two rollers are driven for better traction and performance, combined with a high bending speed, enabling faster production times for small to medium-sized operations.
Durable Construction Roll Machine. Heavy-duty steel frame, hardened shafts, and 65mm drive shaft ensure longevity and reliability, even under heavy use in demanding Australian industrial environments.
User-Friendly Design. Vertical/horizontal flexibility, roving foot pedal, and adjustable guides make it easy to operate, reducing operator fatigue and training time.
Features
Runs on 415V-50HZ-3PH power

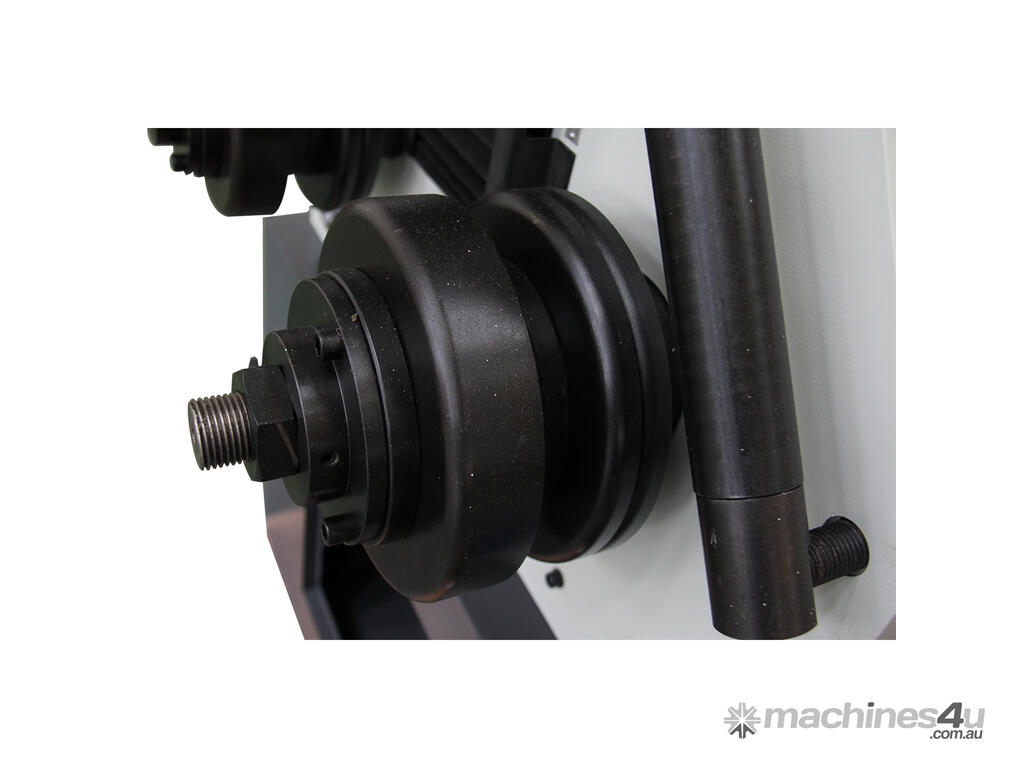

Hardened rolls, various segment rolls for different types of flat bars, angle iron, square tube, etc.

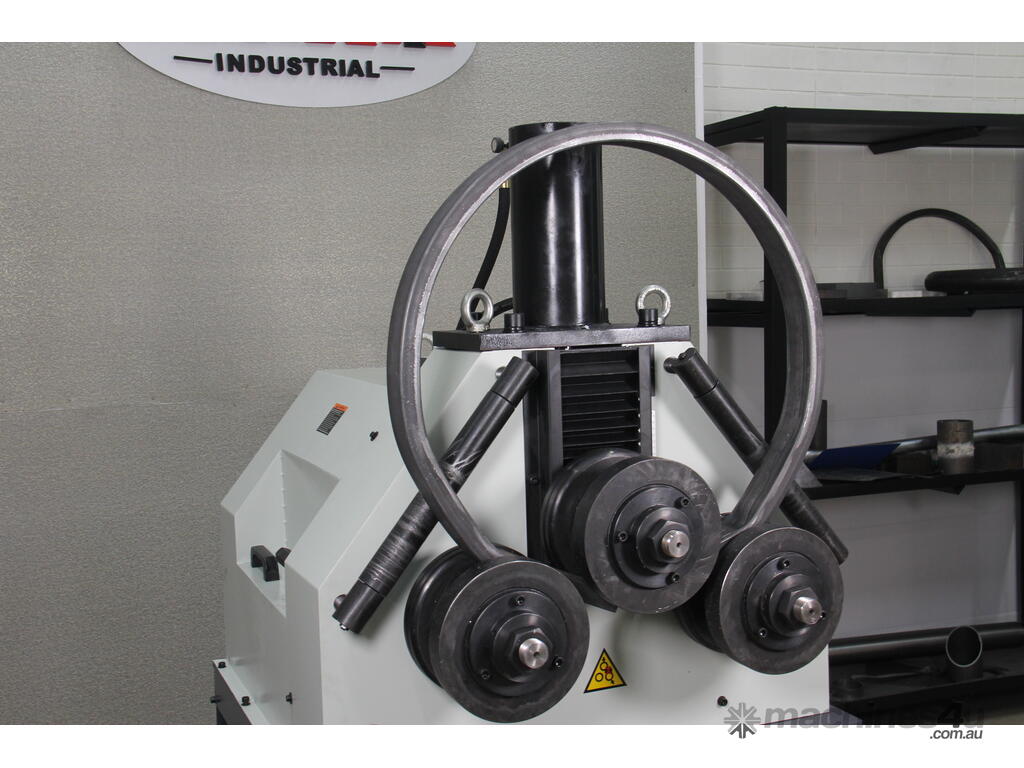

Open-face design allows you to roll full circles
Horizontal and vertical use

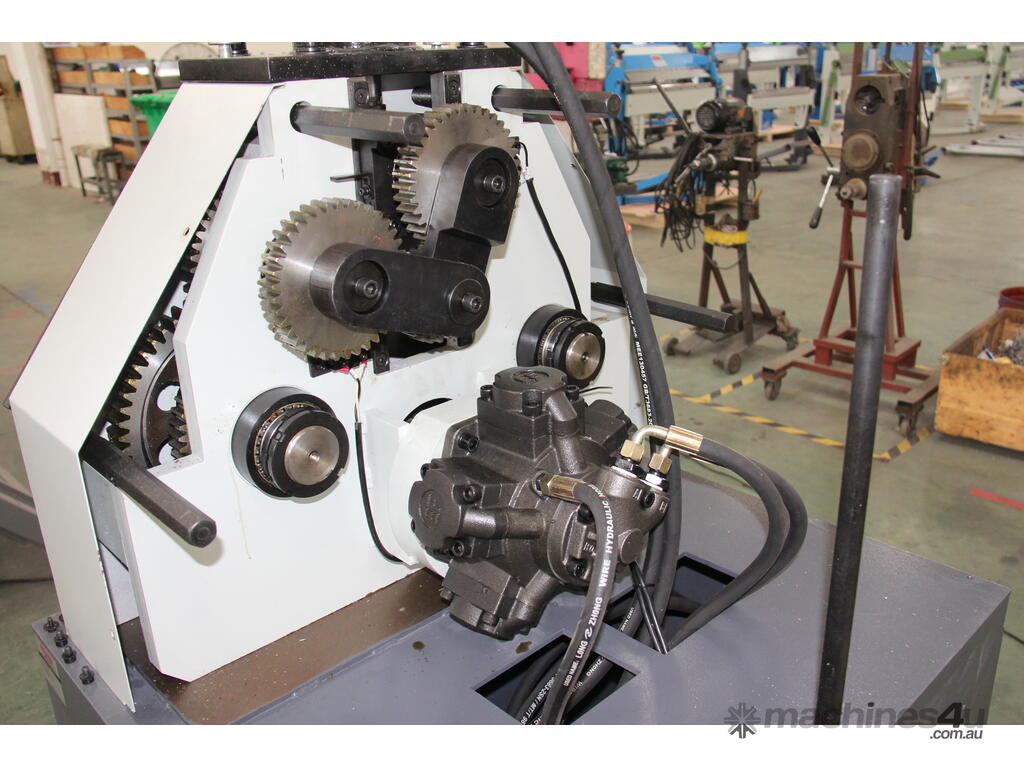

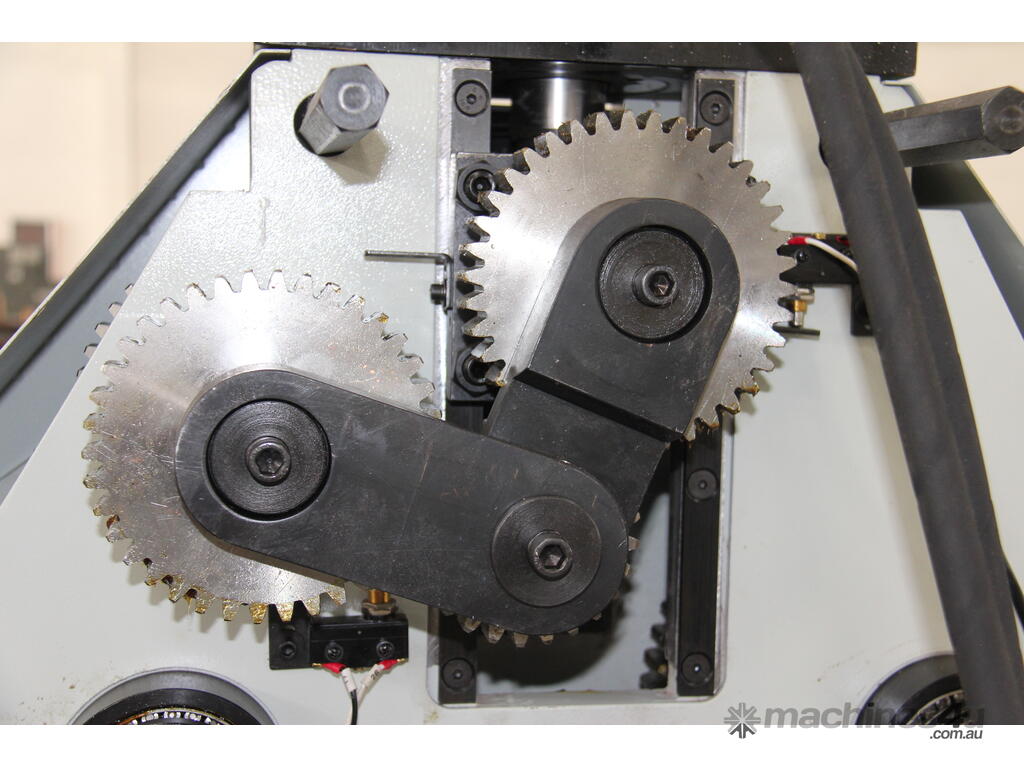

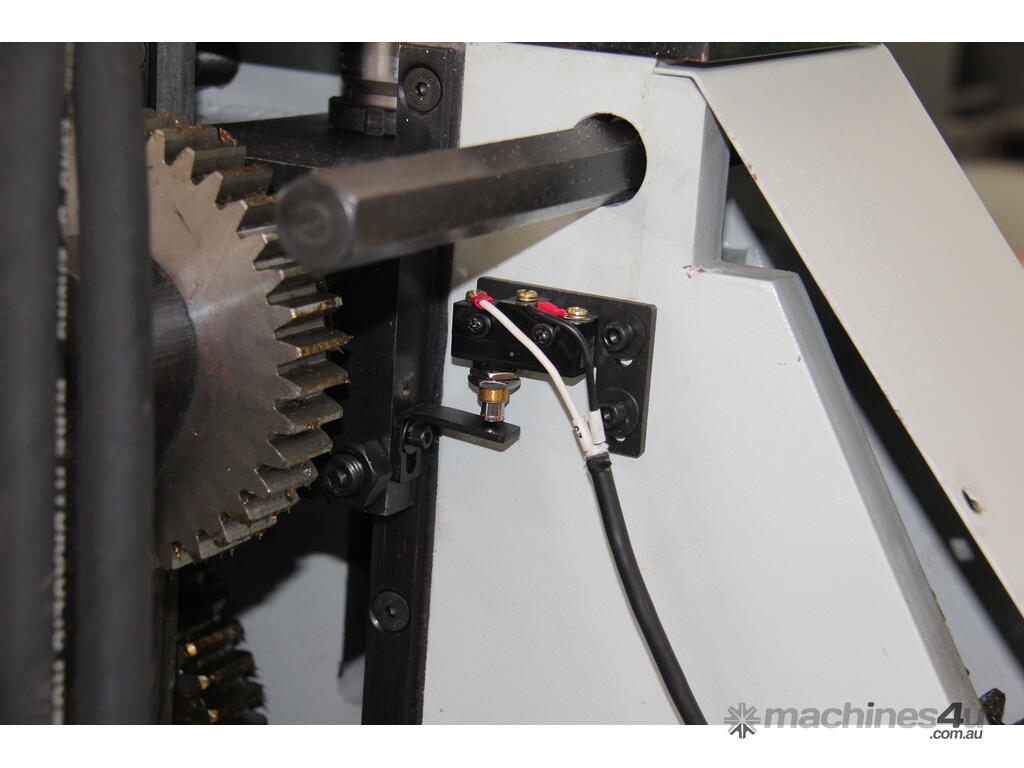

The gear drive and a 4.0 kW powerful motor make rolling easily

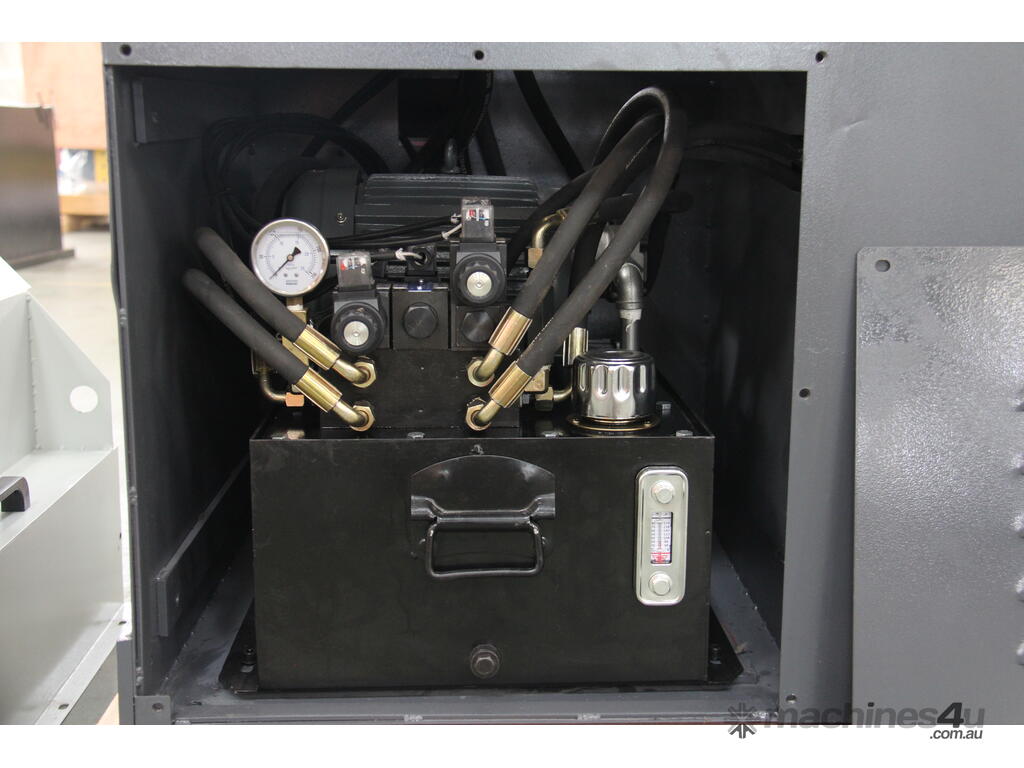

Will need fill 28L ISO32 or ISO46 hydraulic oil
Optional Hydraulic Oil
Specifications
SKU 191021
Model HRBM65H
Dia. of shaft ø70 mm
Power 4 kW
Spindle speed 9.3 r/min
Packing size 122x110x188 cm
N.W./G.W. 730/910 kg
