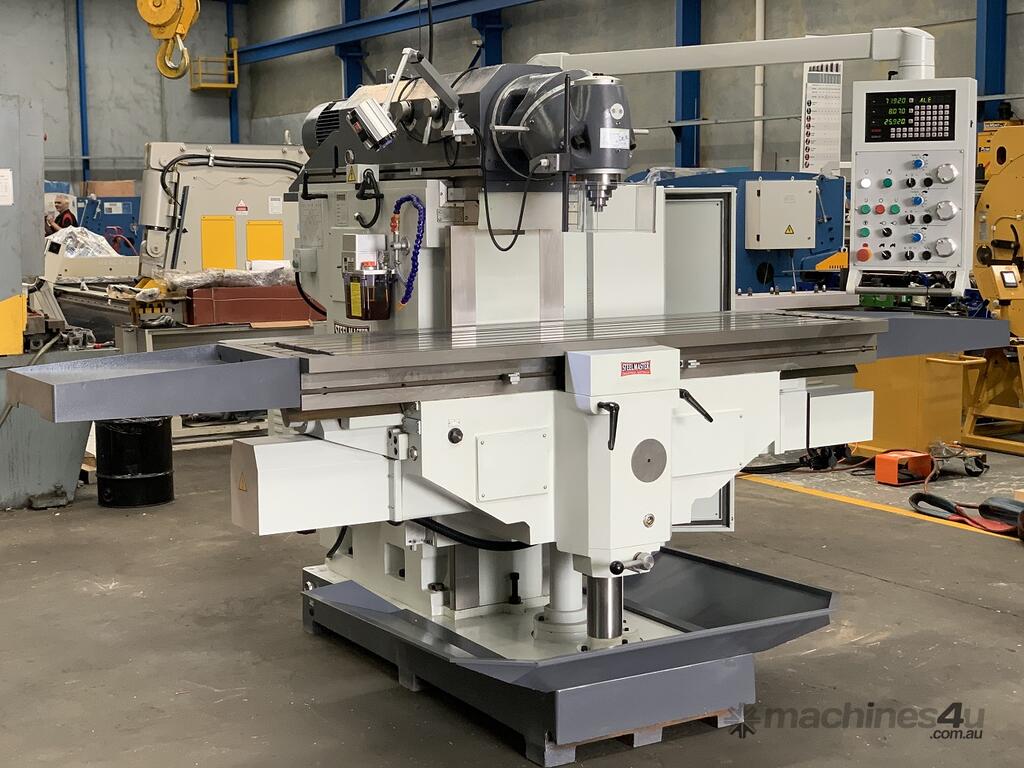

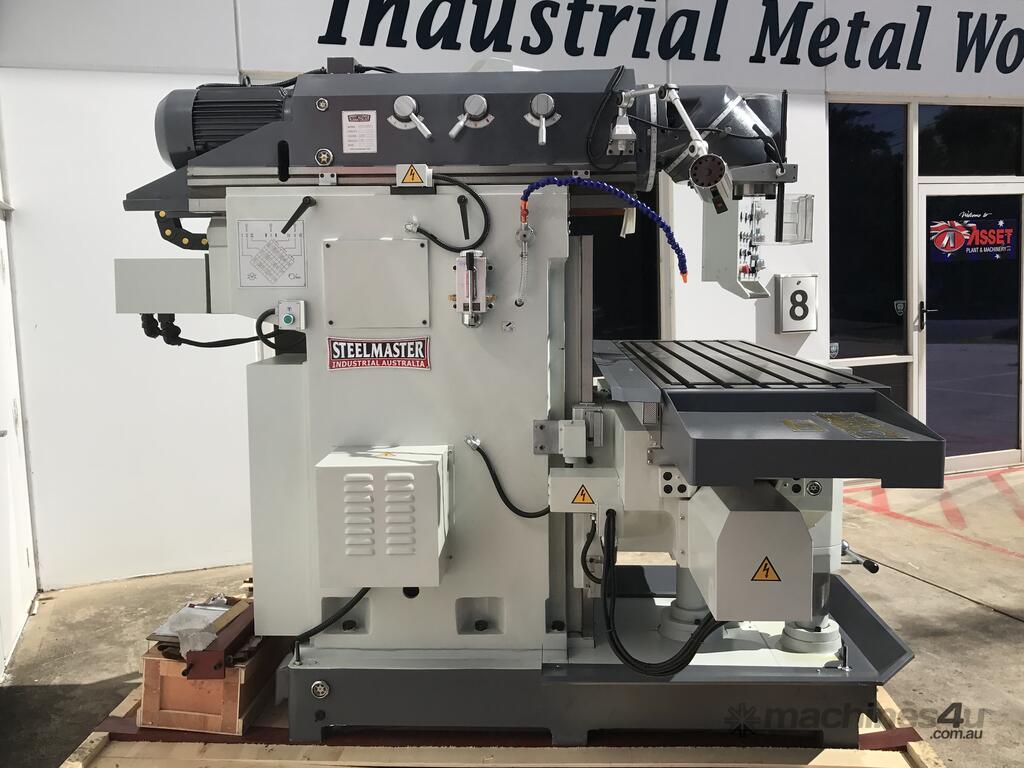

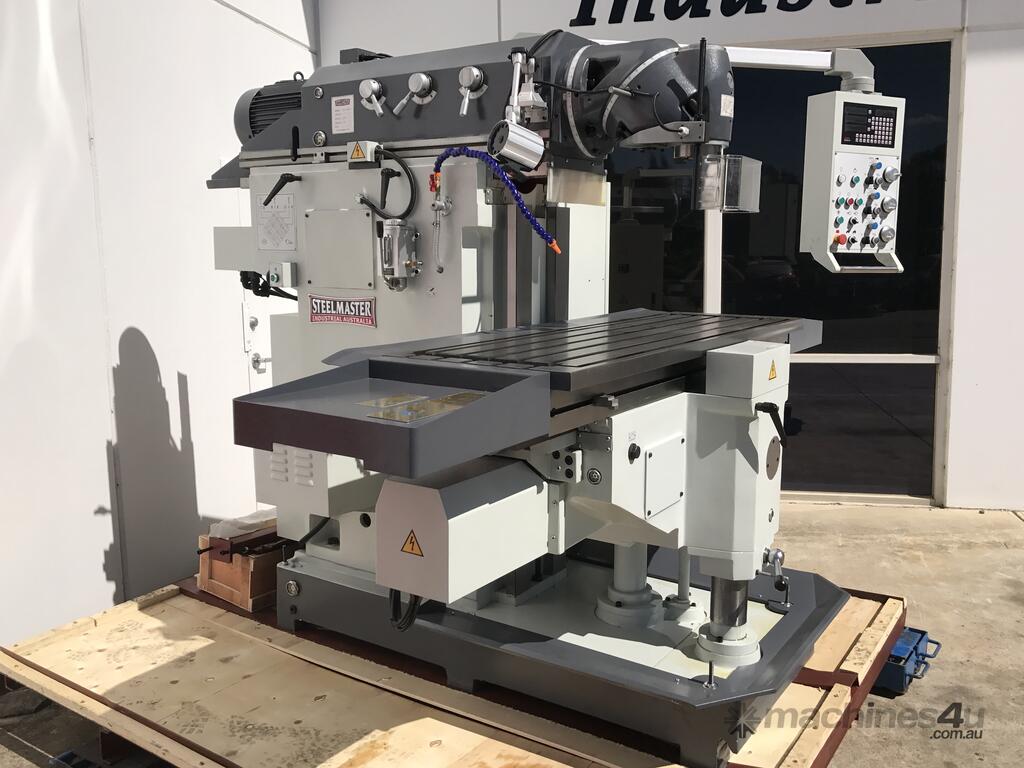

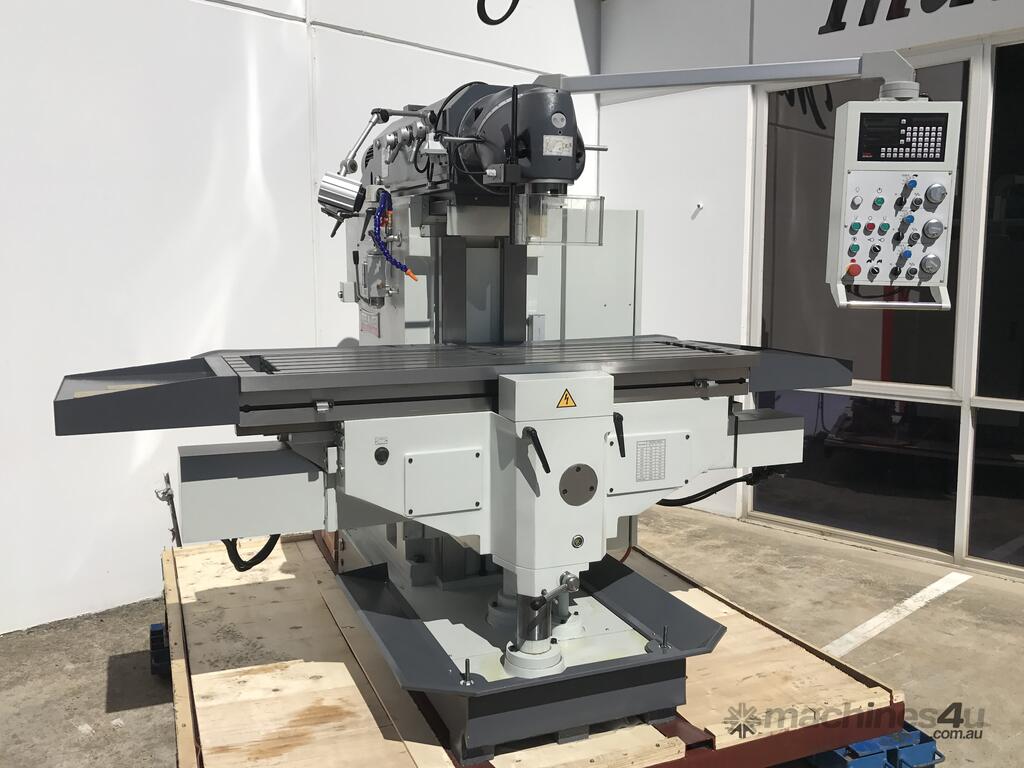

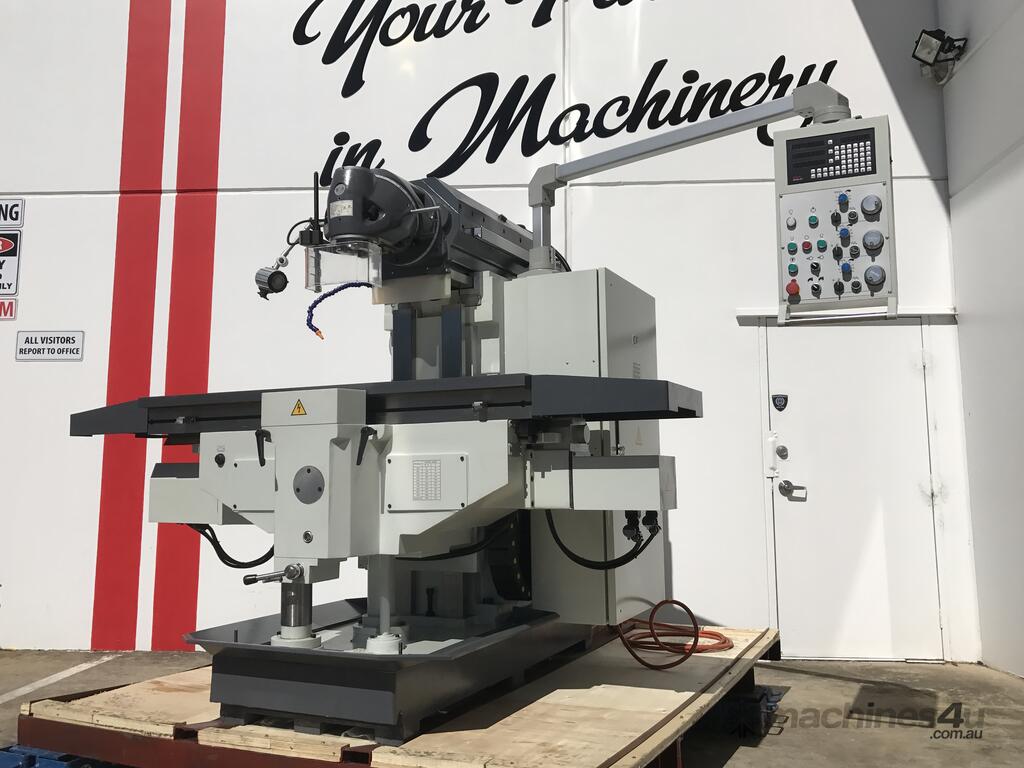

Heavy Duty Universal Bed Milling Machine 500mm x 2000mm Table Mill ISO50, Ballscrews

SM-FU-500S-20. Universal Mill Steelmaster. 2000mm x 500mm Table, ISO 50 Vertical Spindle, 3 Axis DRO Ballscrew Drives, Universal Head, X / Y / Z travel - 1500mm/ 500mm / 700mm, 7.5Kw - V

Description
Heavy duty universal mill offering precision servo operated ball screw drive operating in X, Y & Z axis. Combining and extra-large working area and large travels to suit, we are confident this will cover your milling applications. Quality build and features this Mill offers muscle combined with built-in durability for years of service. Turcite - B coated guides, X axis dovetail guides, spindle brakes, pre-loaded ball screws with zero backlash to name a few features. This is the machine to have for years of accurate, trouble-free operation.
We also offer these with SIEMENS CNC Controllers

Features

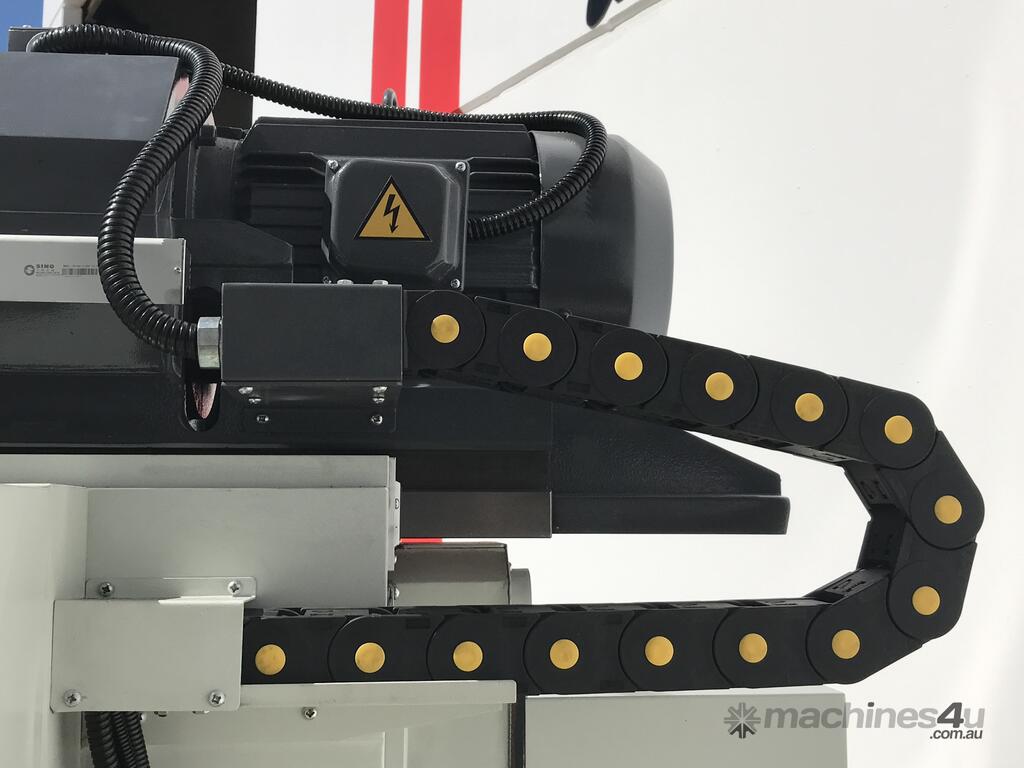

* infinitely variable feed speeds controlled via DC servo.
* sino SDS6-3V Digital Readout
* rapid feed on all 3 axis
* heavy duty ribbed machine frame ensures maximum rigidity
* rigid, torsion proof powered overarm

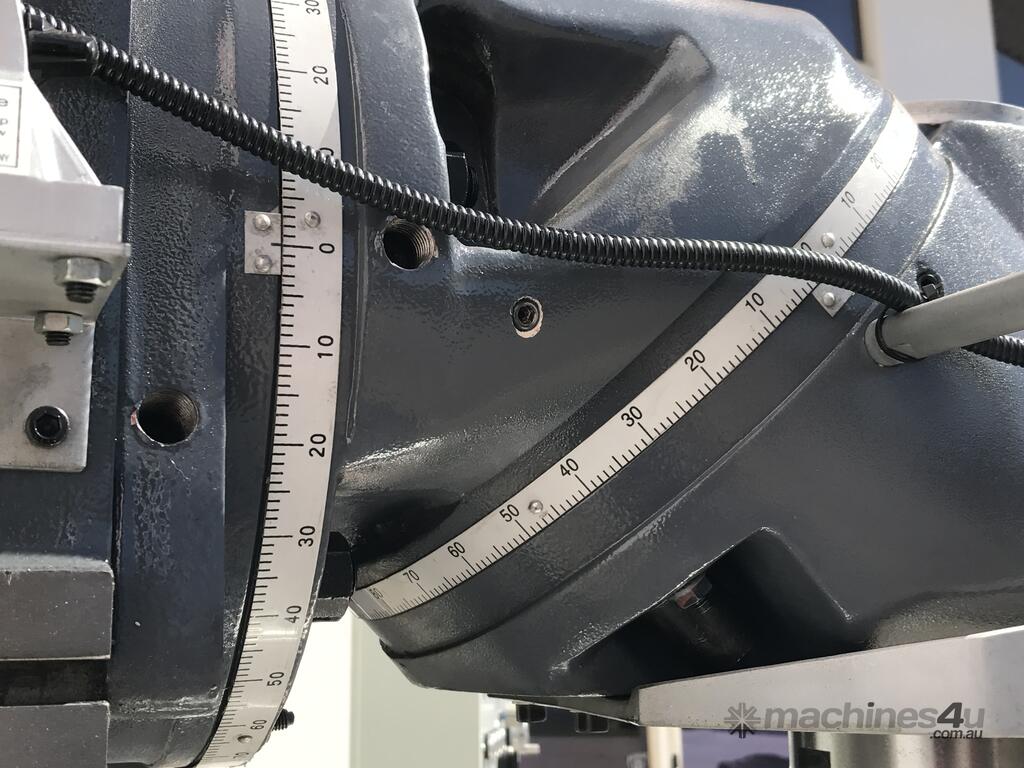

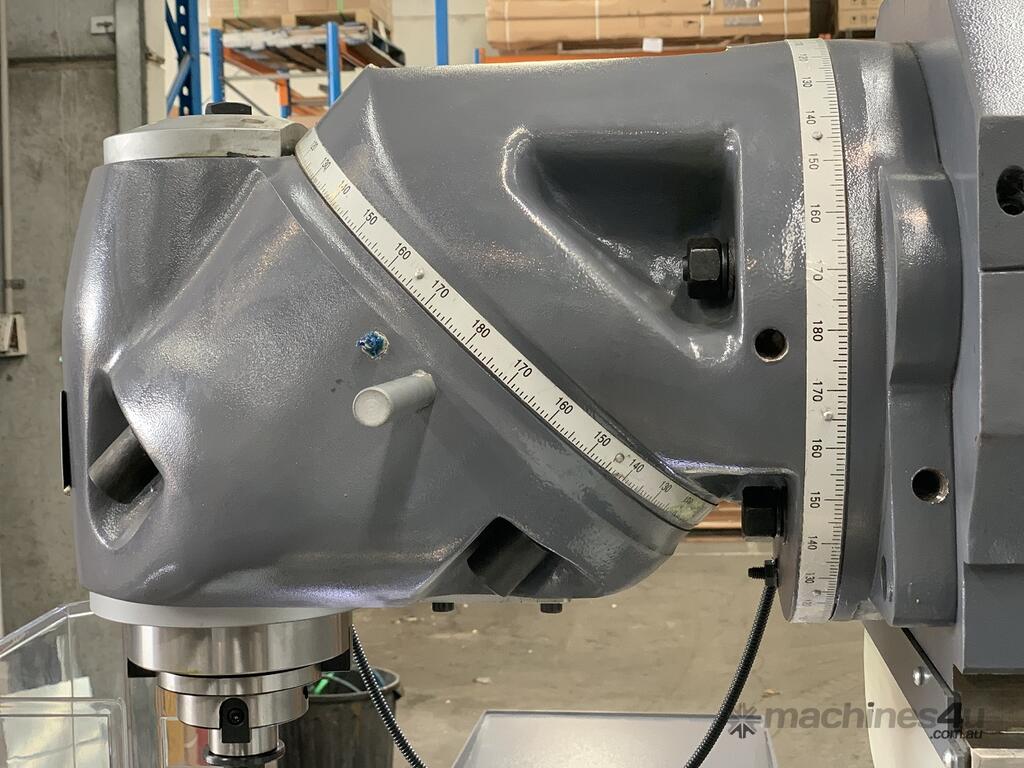

* universal by-rotative milling head
* safety interlocks to prevent simultaneous use of feed and table clamping

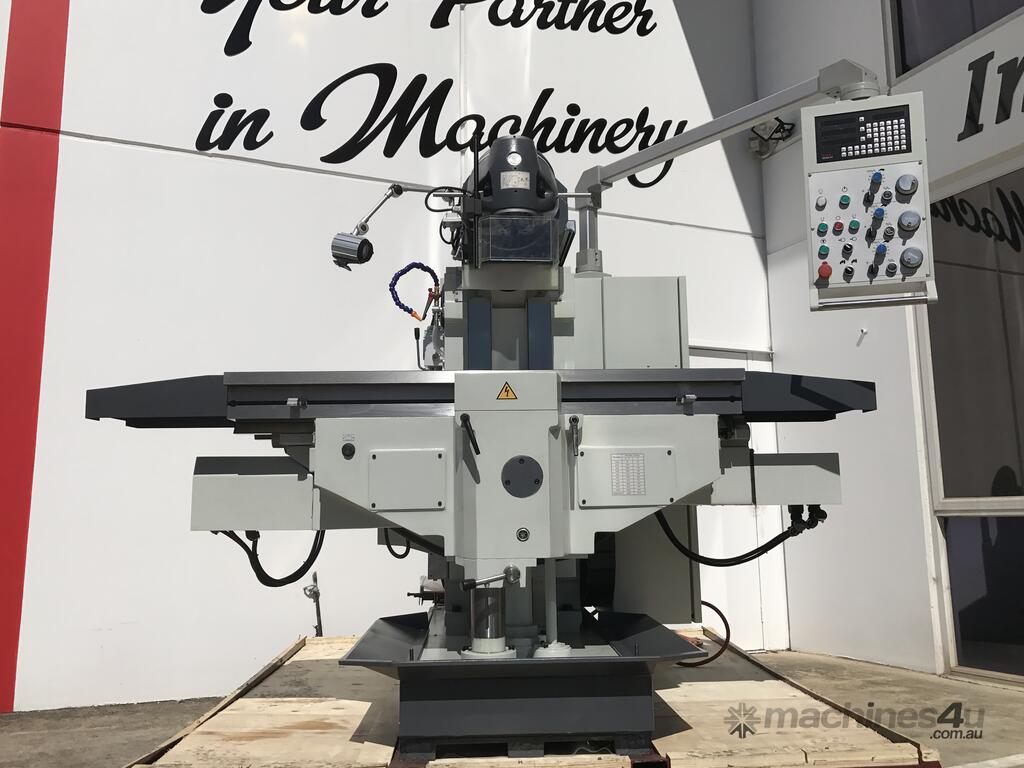

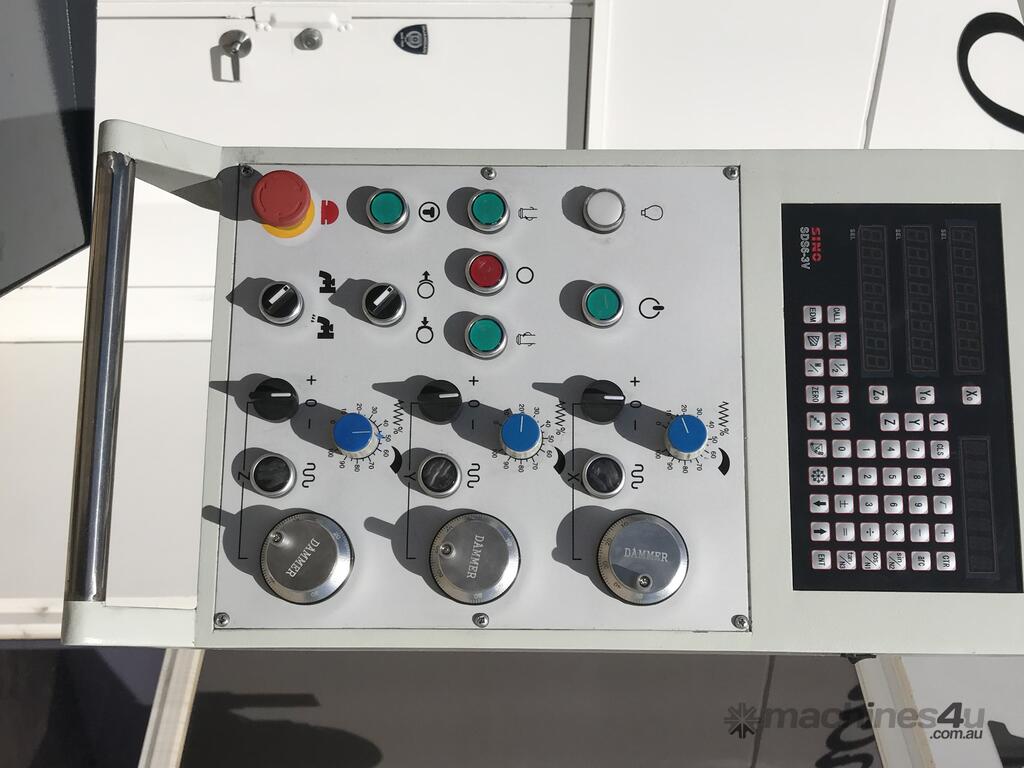

* ergonomic pendant type control console for easy access
* electric spindle brake

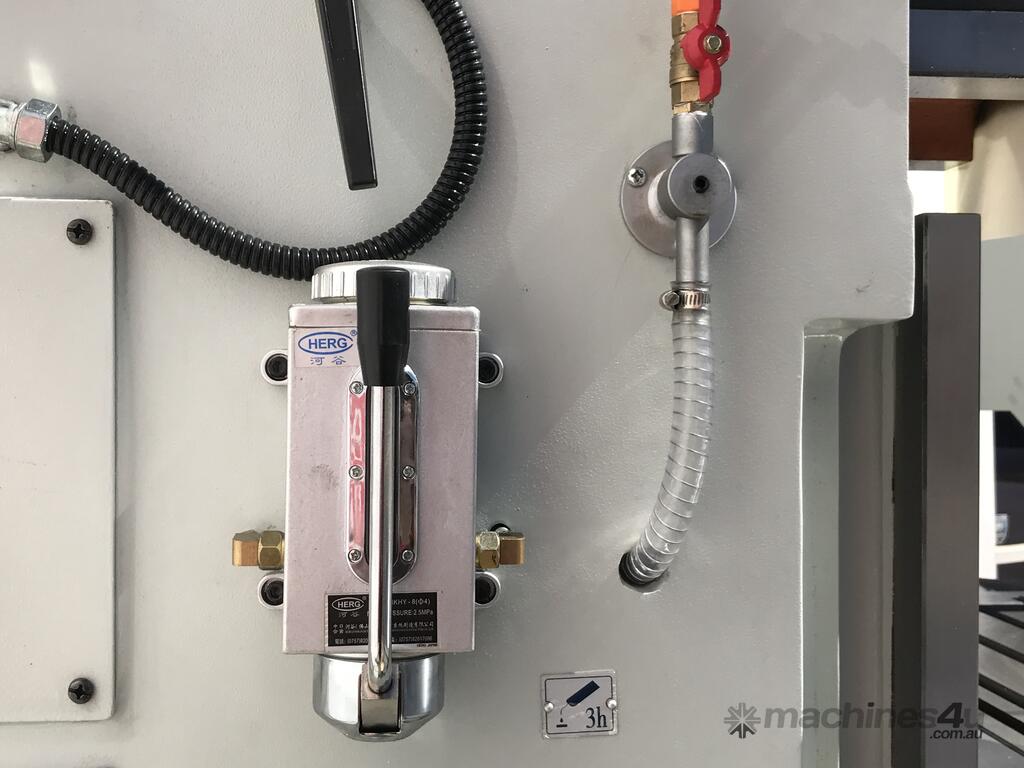

* automatic lubrication system
* suds pump and coolant system
* halogen work light
* multifunction 3 axis DRO
* splash guard / chip tray
* tool kit supplied
* operation manual
* we also offer these with SIEMENS CNC Controllers (optional)

Technical Data - Snap Shot

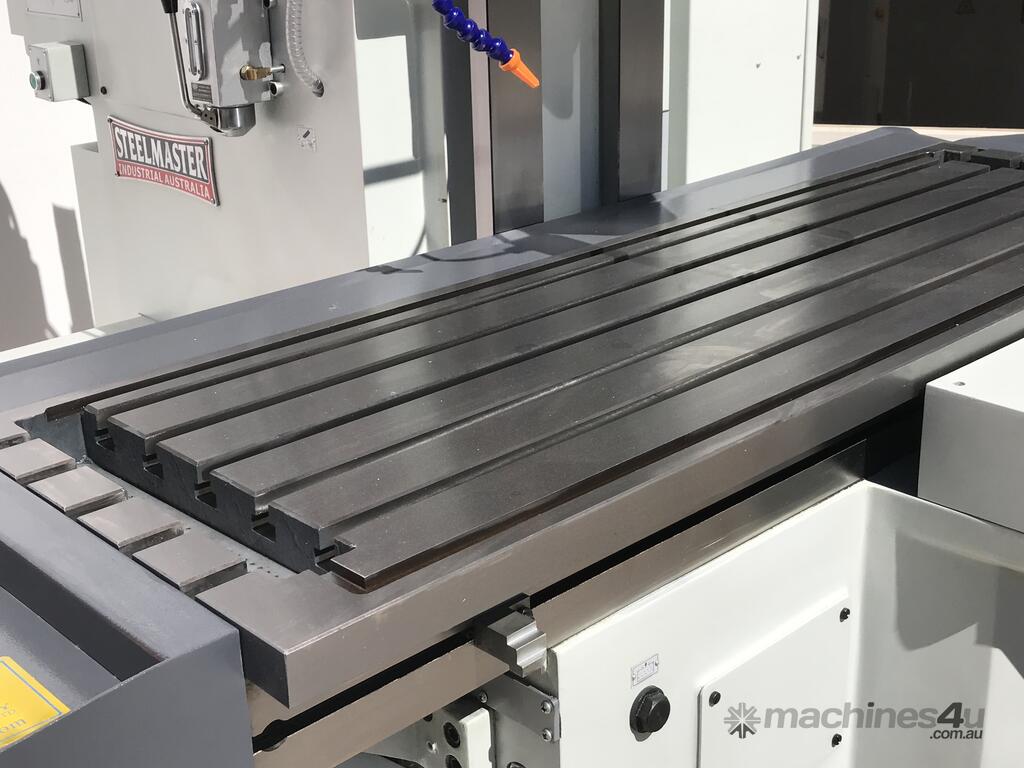

* table size - 2000mm x 500mm
* table travel – 1500mm x 500mm
* distance between T-slot – 80mm
* T-slot size – 18mm (5 off)
* X / Y / Z travel - 1500mm/ 700mm / 500mm
* head type – universal
* table load – Kg
* universal head spindle fixture - ISO / INT-50
* operating speeds - 30 ~ 2050 (27)
* distance spindle to table –25mm ~ 525mm
* distance spindle to column – 55mm ~ 755mm
* ram traverse travel - 600mm
* motor capacity - 7.5Kw x 240Volt
* shipping dimensions - 3000mm x 2260mm x 2200mm
* approx weight: 5000kg

Includes
* 3 Axis digital readout system
* safety cutter guard
* swarf tray
* coolant system
* halogen lamp
