Heavy Duty Welding Positioner WP-1000, 1500kg Horizontal / 1000kg Vertical Capacity Turntable

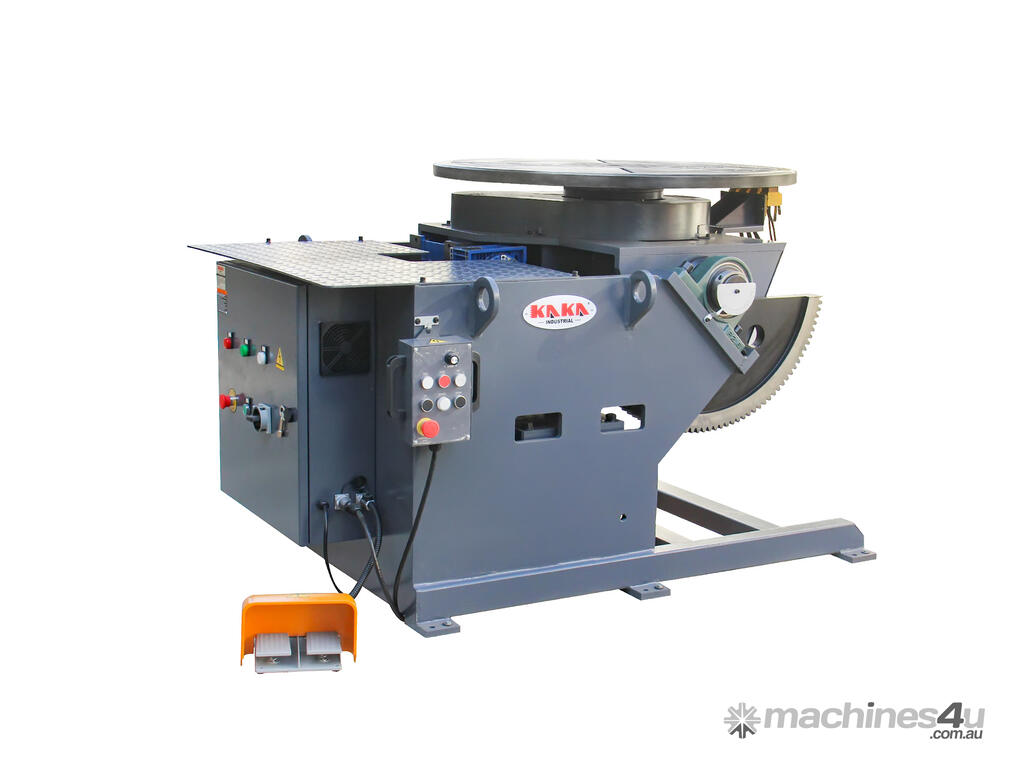

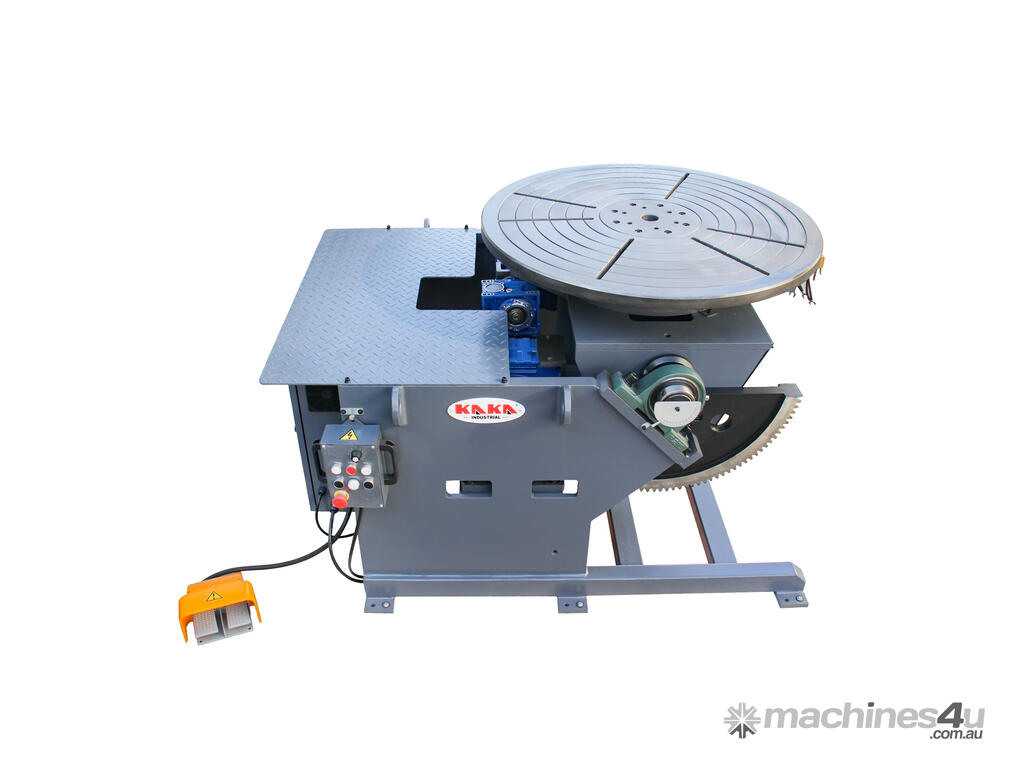

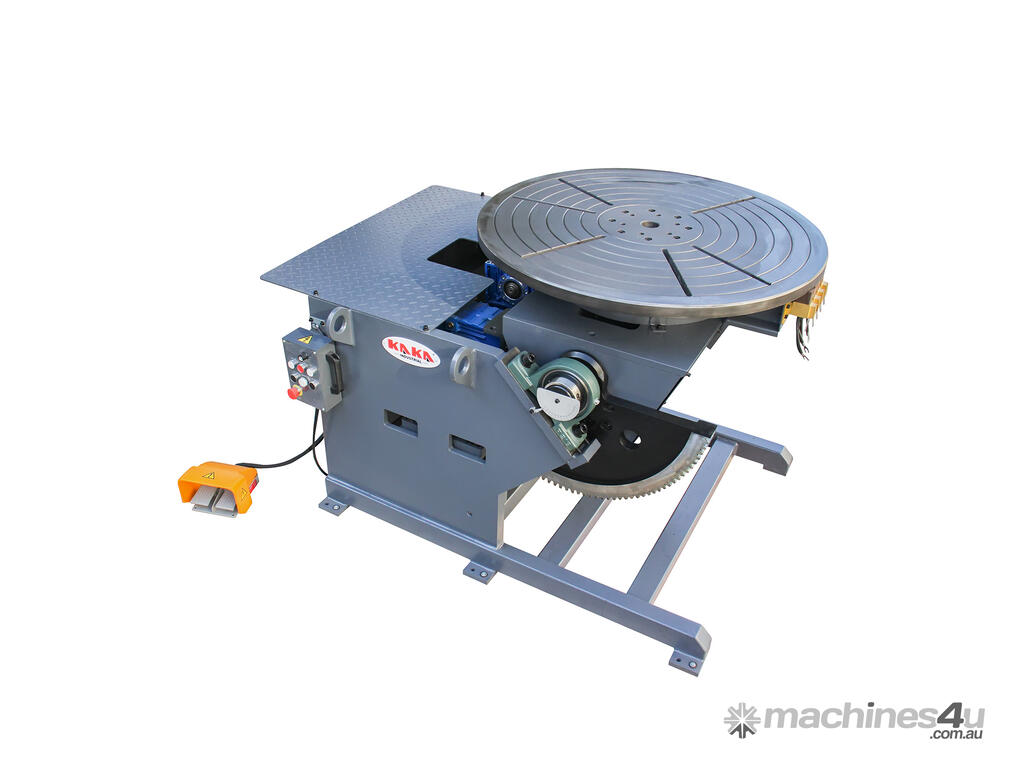

KANG Industrial WP-1000 Welding Positioner

This robust welding positioner is engineered for professional fabrication workshops handling heavy workpieces. With a massive 1500kg horizontal load capacity and 1000kg vertical capacity, it allows precise positioning of large components for MIG, TIG, or stick welding. The 1000 mm diameter rotary table features smooth variable-speed rotation (0.1-1.2 RPM) and powered tilt from 0-135° (full tilt in just 57 seconds), enabling welders to achieve optimal flat or downhand positions effortlessly.

Heavy-Duty Turntable for Tough Jobs. Handles up to 1500kg horizontally, ideal for welding large structural components, mining equipment, agricultural machinery, or off-road vehicle frames.

Enhanced Weld Quality Consistency. 0-135° motorised tilt and variable rotation let you position workpieces for optimal downhand welding, reducing defects, improving penetration, and ensuring stronger, cleaner welds on complex or irregular shapes.

Boosted Productivity in Busy Workshops. Save hours on setup time by rotating and tilting heavy parts effortlessly, no more manual flipping or awkward positioning.

Improved Safety & Ergonomics. Minimises physical strain, overhead welding risks, and heavy lifting injuries. Welders stay in comfortable positions longer, reducing fatigue – crucial for long shifts in harsh workshop conditions.

Versatile for Diverse Applications. Suits pipe/flange welding, tank fabrication, custom trailers, and ornamental ironwork. The wide tilt range accesses hard-to-reach areas without repositioning the entire unit.

Reliable 3-Phase Power Compatibility. Runs efficiently on standard industrial 415V 3-phase supplies found in most workshops, with low maintenance and high-frequency protection for use with modern welding inverters.

Features

Runs on 415V-3PH Power

1000mm dia. large table, height 1059mm

Variable rotating speed

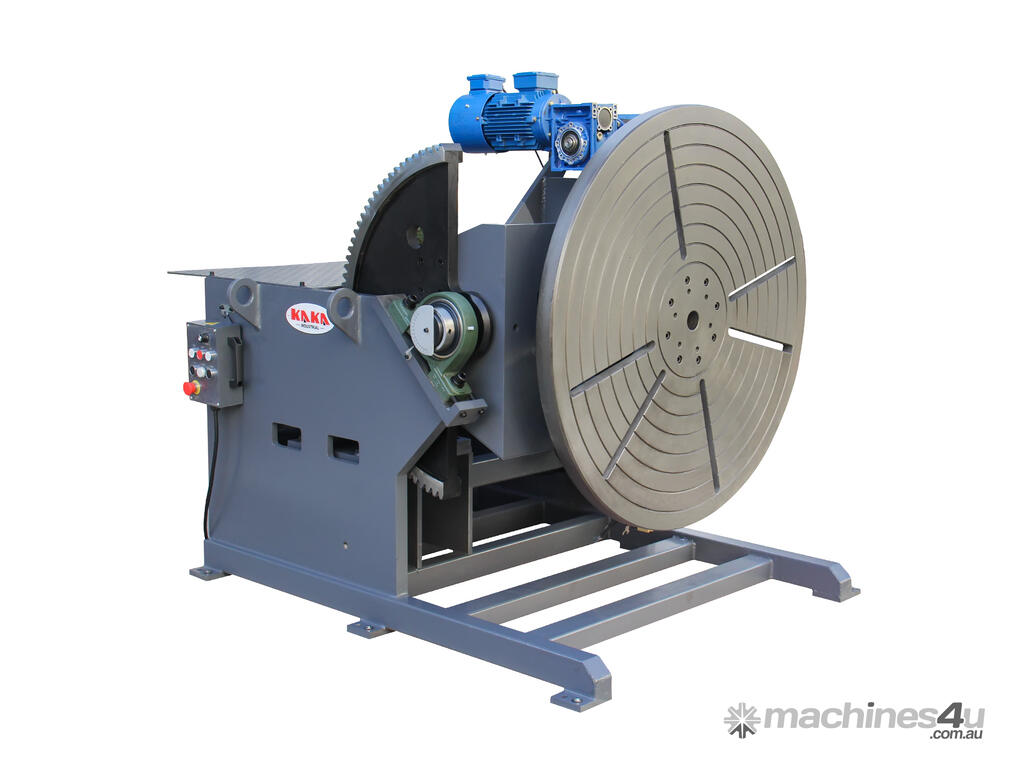

Easy-to-use automatic tilt

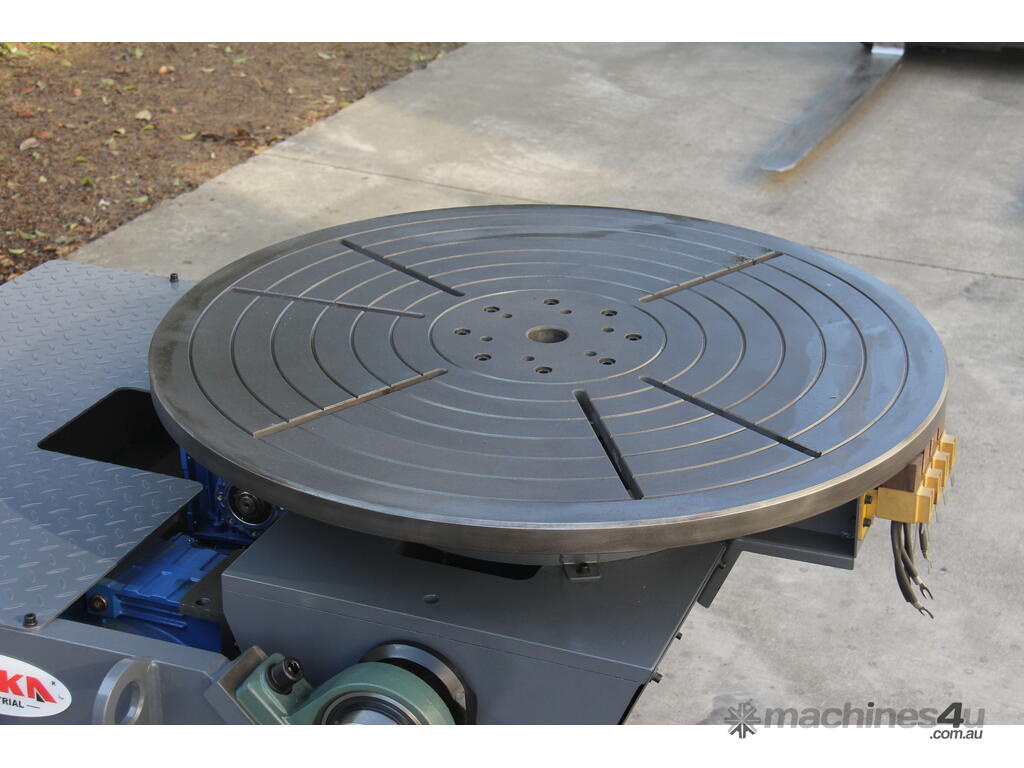

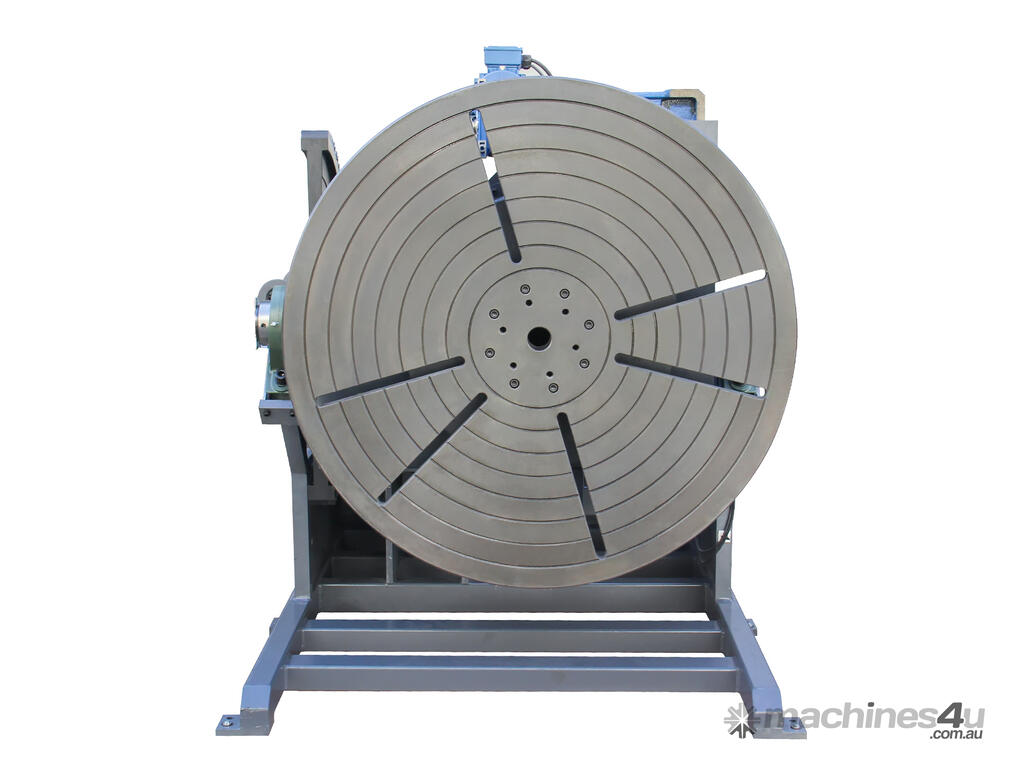

Finished casting with T-slots for easy clamping

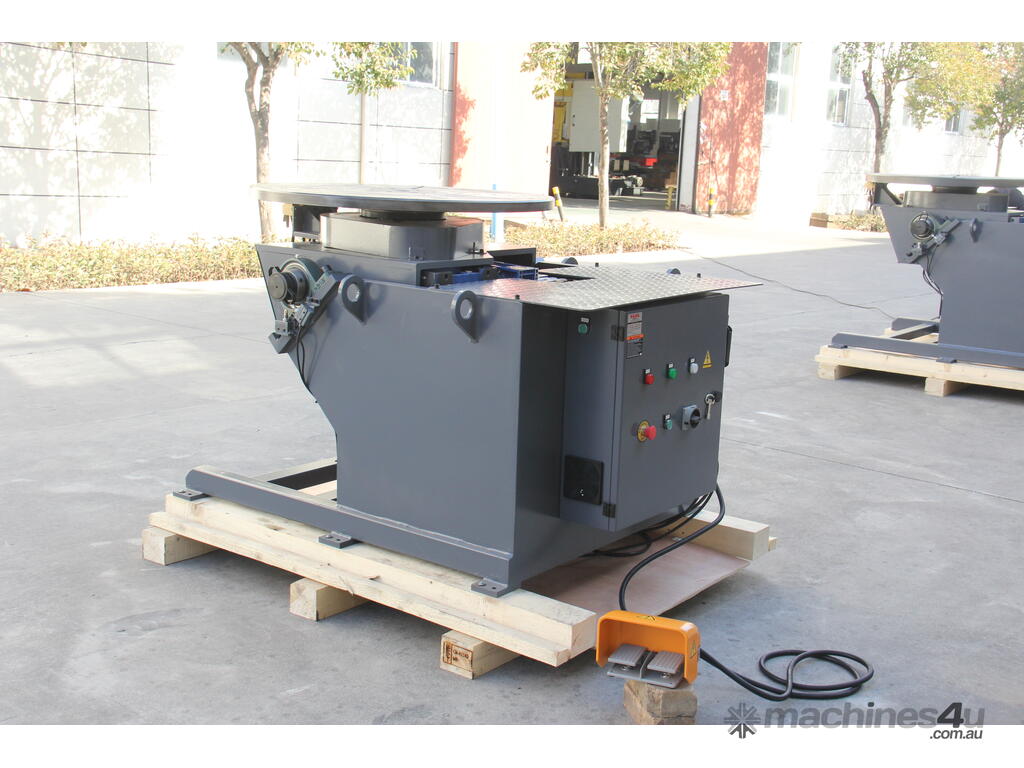

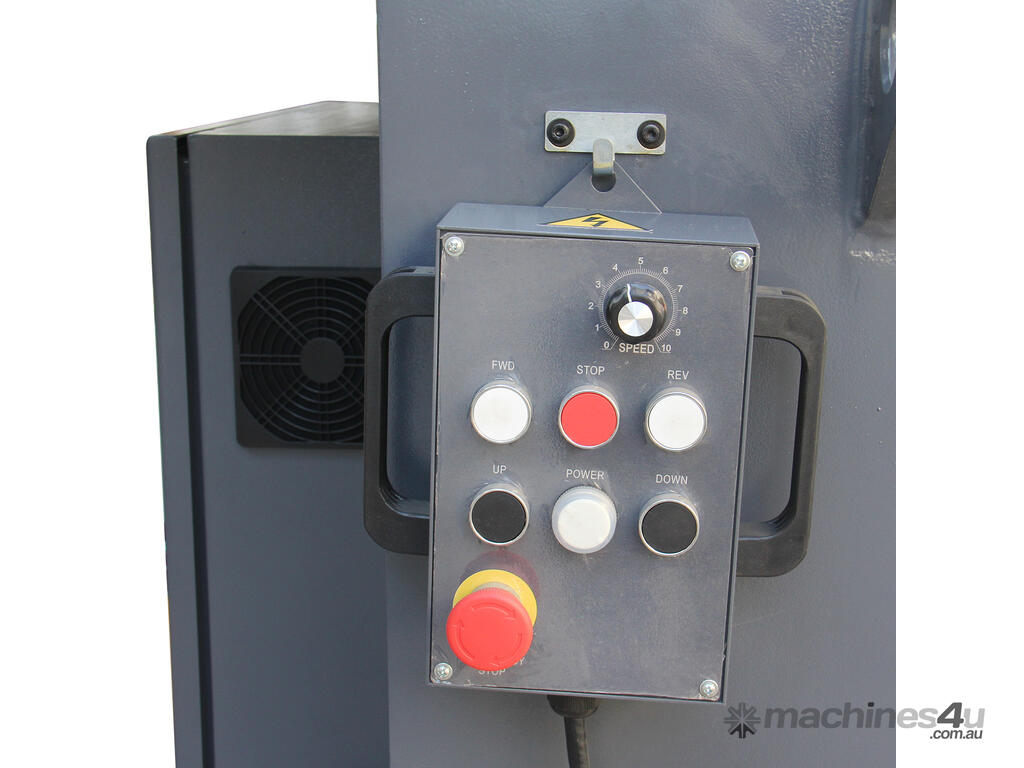

Standard hand control pendant and foot pedal

Optional Chuck WPC-1000

IMPORTANT: The load centre of gravity should not exceed 12" from the table centre and 12" from the face of the table

Specifications
SKU 178385
Model WP-1000
Horizontal loading capacity 1500 kg
Vertical loading capacity 1000 kg
Table dia. 1059 mm
Table height 1059 mm
Load centre of gravity 305 mm
Rotation speed 0.1-1.2 rpm

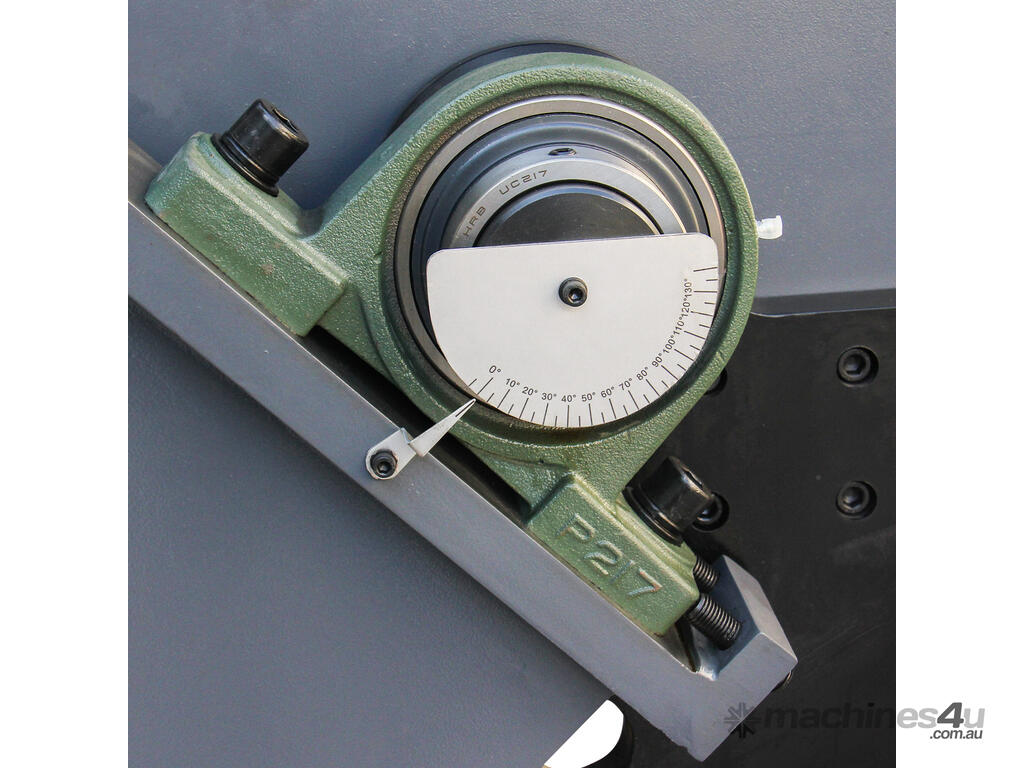

Tilt angle 0°-135°
Tilt by Motor
Tilt speed 135°, 57s
Rotation motor 0.75 kW
Packing size 170x130x130 cm
N.W./G.W. 1170/1370 kg
