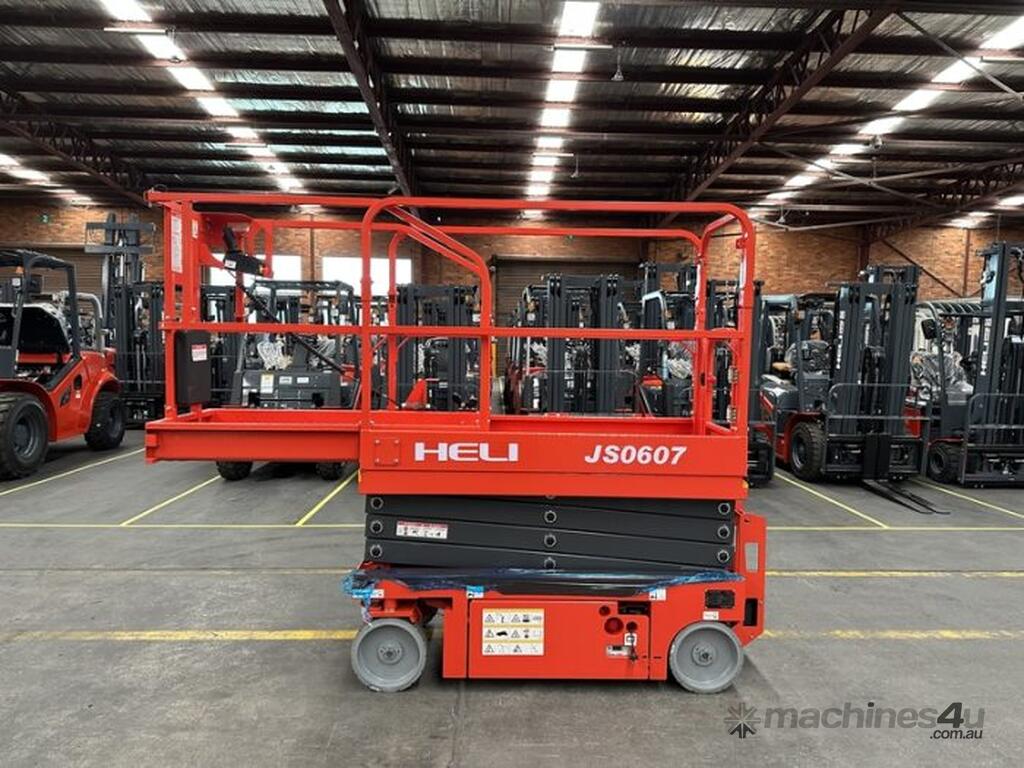

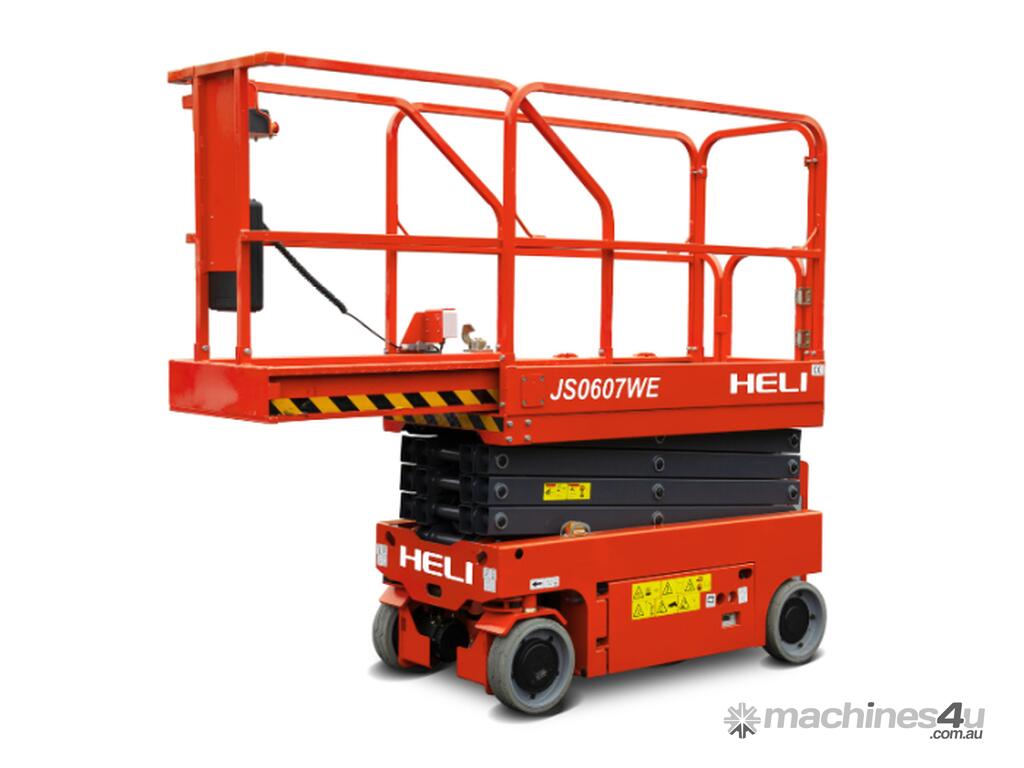

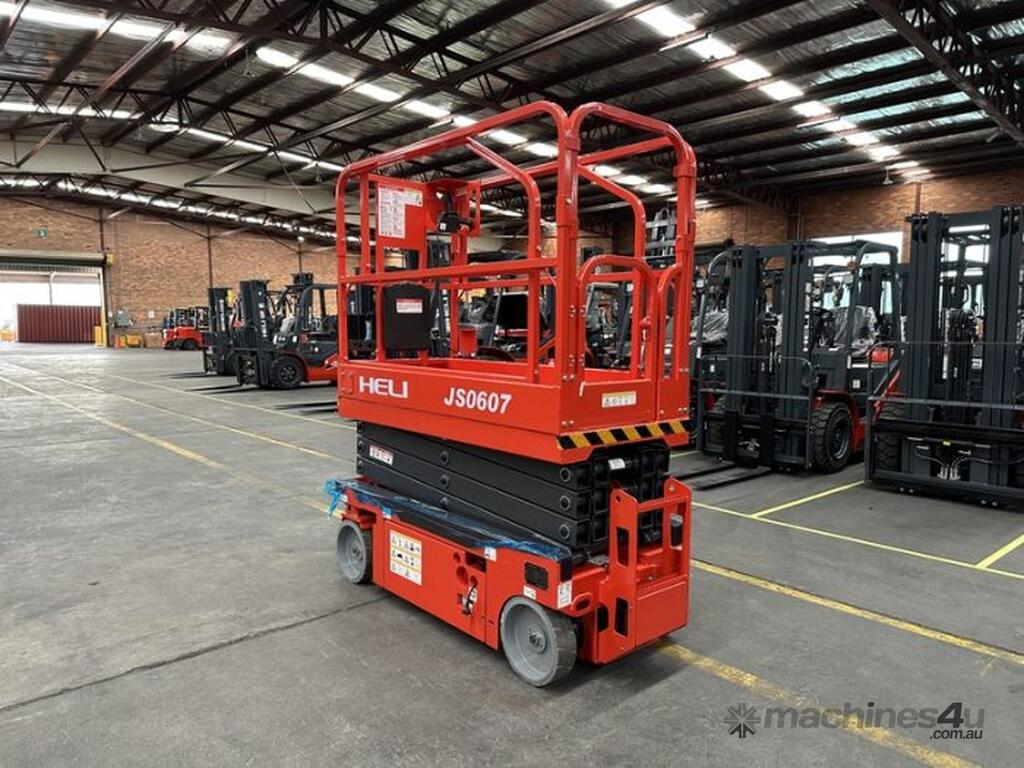

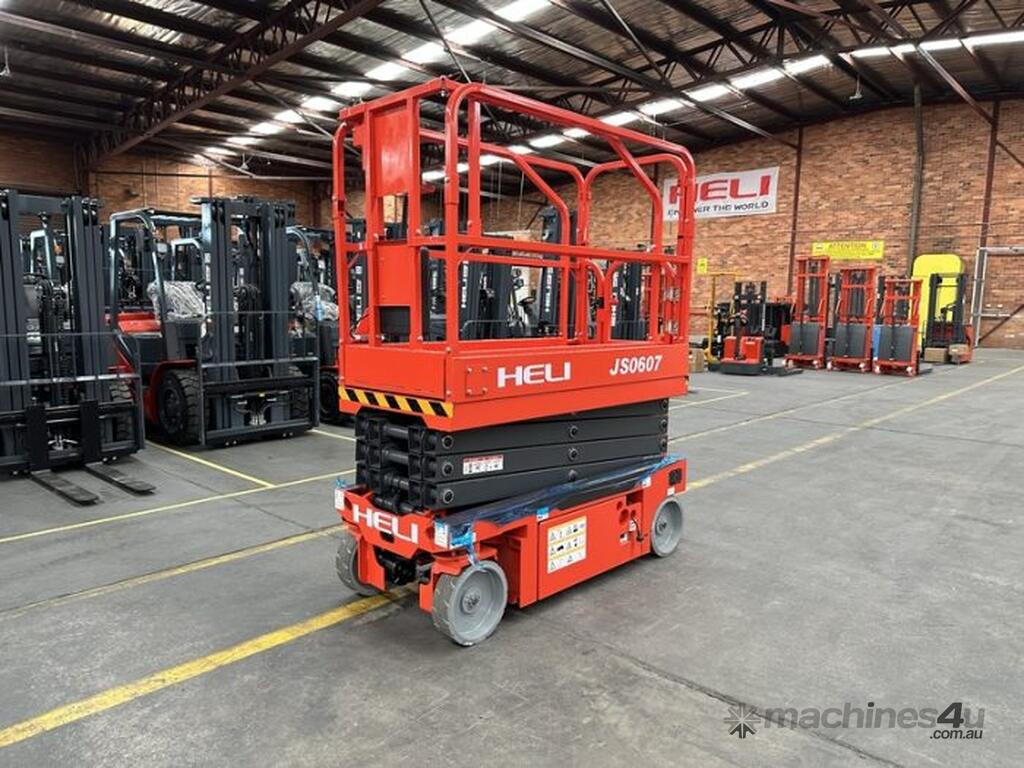

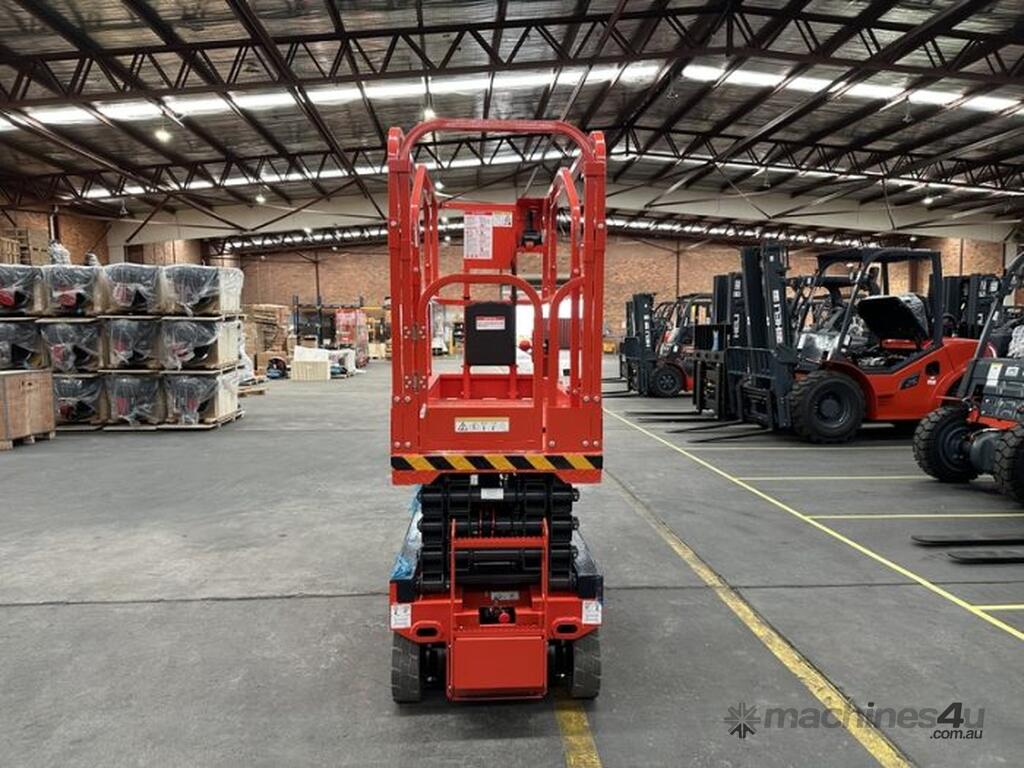

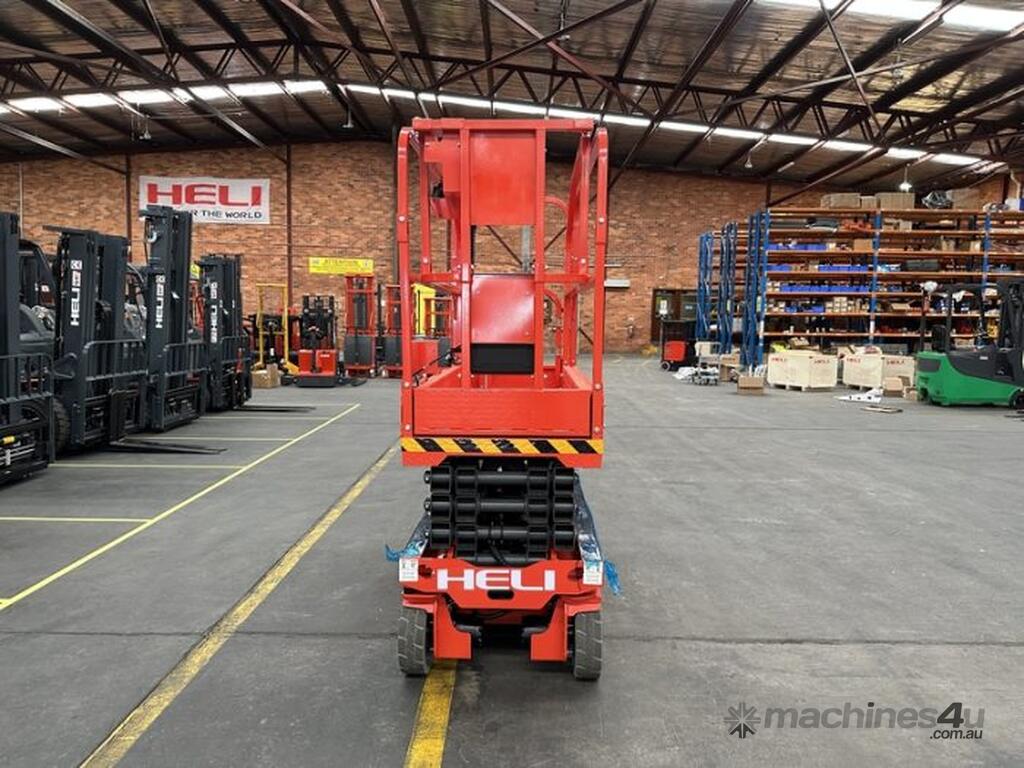

The Heli model JS0607 scissor lift is a high-quality product supplied at an economical price. Using proven technology and service and spare parts support will assure maximum uptime and efficiency.
Unique features;
- Platform height is 5,800mm with a working height of approximately 7,800mm.
- Overall lowered height of just 1,980mm and overall width of 760mm. Suitable to drive through a standard doorway.
- Curtis Control Electronic System – This module controls hydraulic motors for lift and drive operations. Curtis is USA company that has been manufacturing electric controls for over 40 years

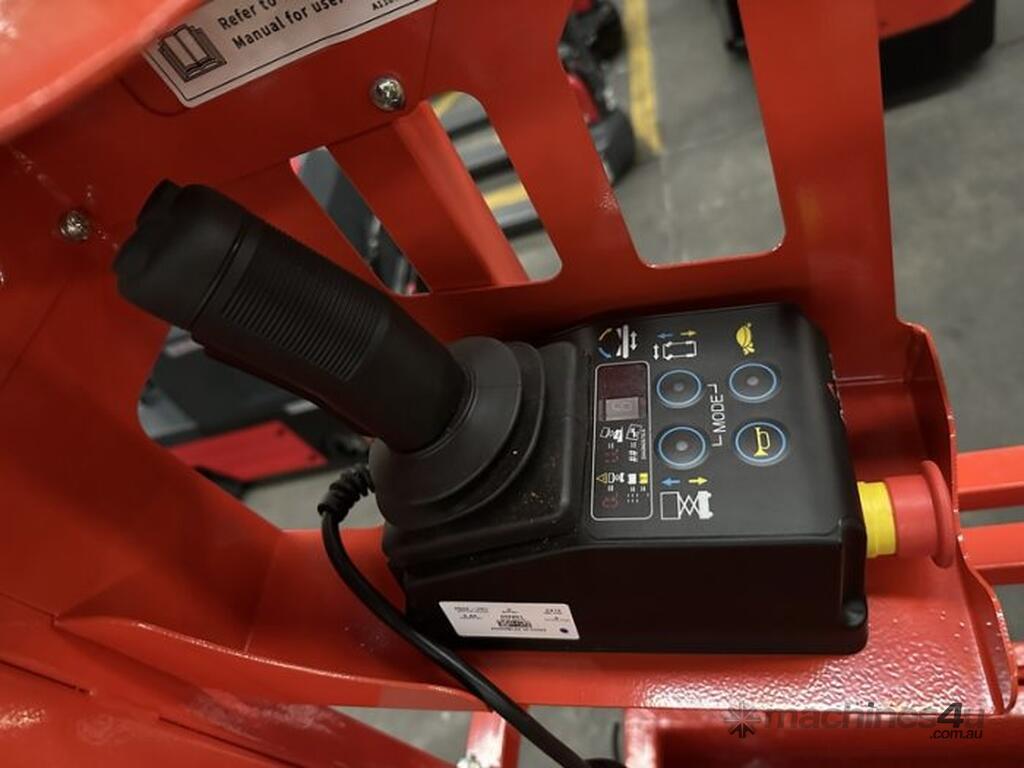

- Delta Tech Handle Control and Display Interface – USA/German Based company that is a global leader in advanced operator controls and integrated systems
- High-quality hydraulic hoses with additional outer sheathing, High Quality wiring harness with Deutsch connections, Protection brackets/barriers for critical components, high-quality slides and latches for the extendable platform.

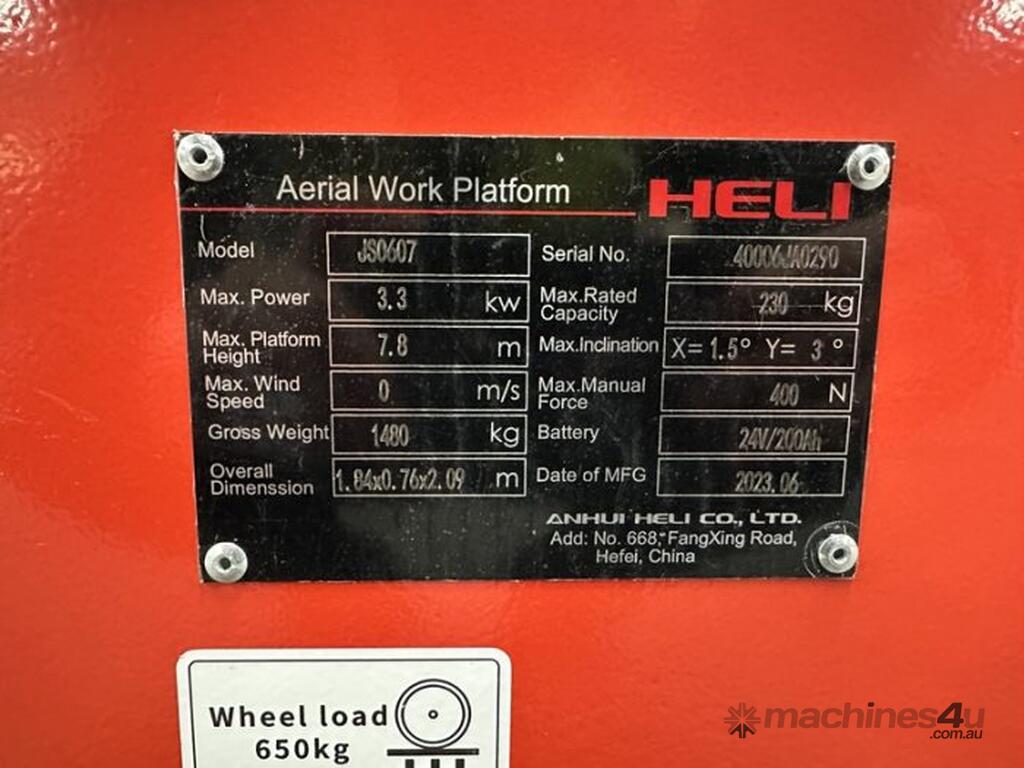

Specifications:
Max Platform Height: 5800 mm
Max Working Height: 7800 mm
Overall Length: 1840 mm
Overall Width: 760 mm
Rated Capacity: 230 kg
Gradeability: 25%
Overall Weight: 1480 kg
Lithium and Lead Acid Battery Options
