Hi-TECH 230AL YSMC Turning Centre Manufactured by Hwacheon, South Korea

NEW UNUSED AUSTRALIAN STOCK

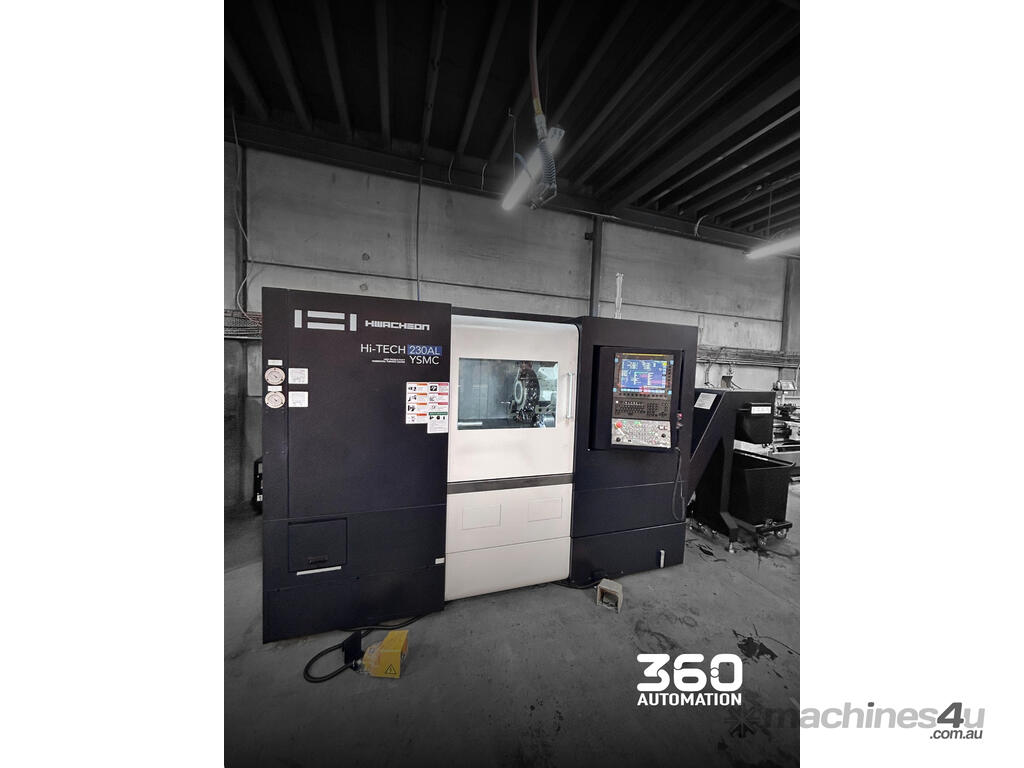

**Hi-TECH 230AL YSMC Turning Centre**
*Manufactured by Hwacheon, South Korea*

The Hi-TECH 230AL YSMC is a high-performance multi-tasking turning centre designed for complex, precision machining in a single setup. Built on a rigid box-way structure and equipped with a sub-spindle, Y-axis capability, and high-speed live tooling, this machine delivers the flexibility and productivity demanded by job shops, OEMs, and high-volume production environments alike.



**Key Specifications**


| Chuck Size | 8 inch |
| Max Cutting Diameter | Ø400 mm |
| Max Cutting Length | approx. 344 mm |
| Spindle Through Hole | Ø76 mm |
| Bar Capacity | Ø65 mm |
| Main Spindle Speed | 4,500 rpm |
| Main Spindle Motor | 18.5 / 15 kW |
| Y-Axis Travel | ±60 mm |

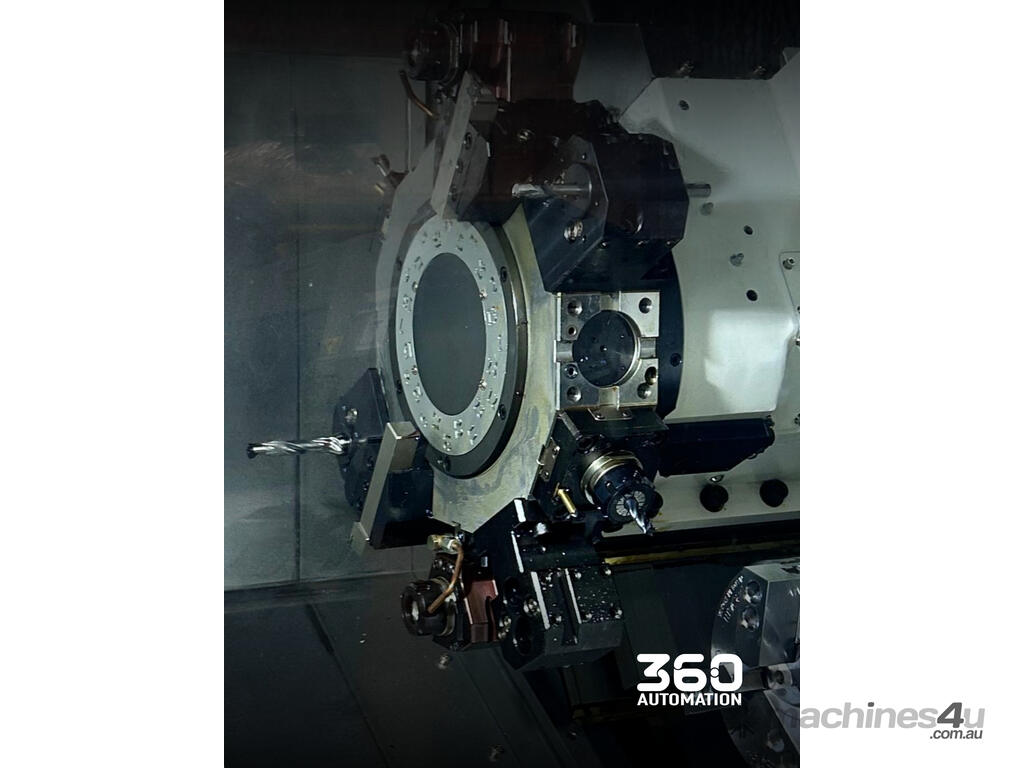

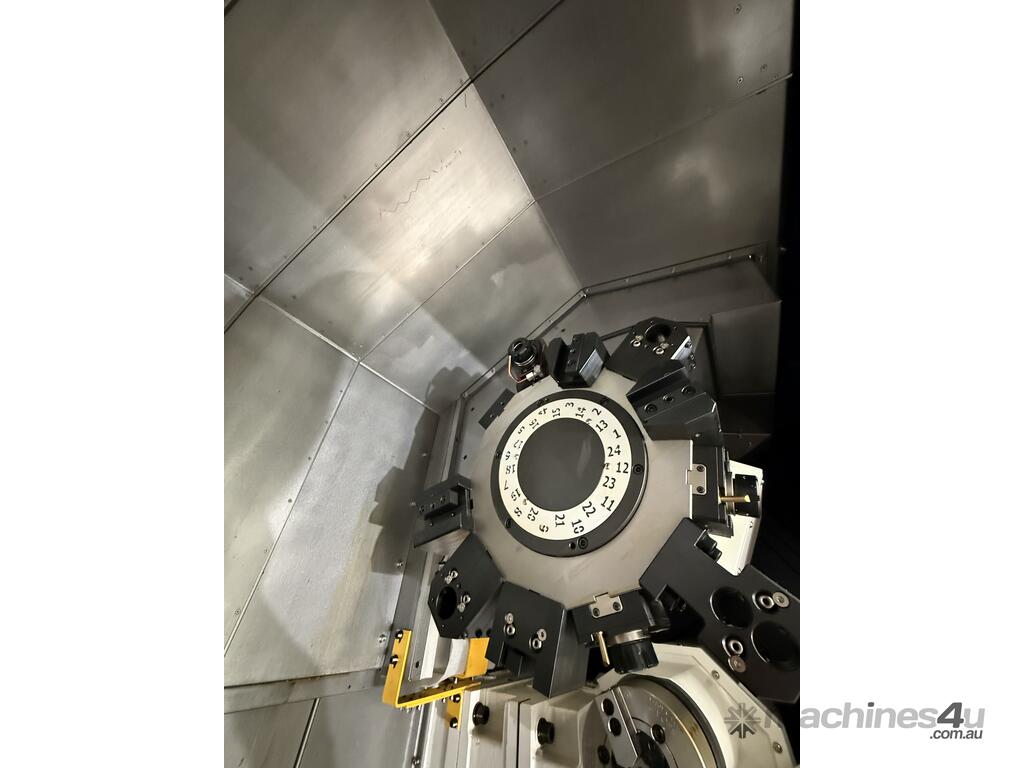

| Live Tooling Turret | BMT-65, 12 Stations |
| Live Tooling Speed | 5,000 rpm |

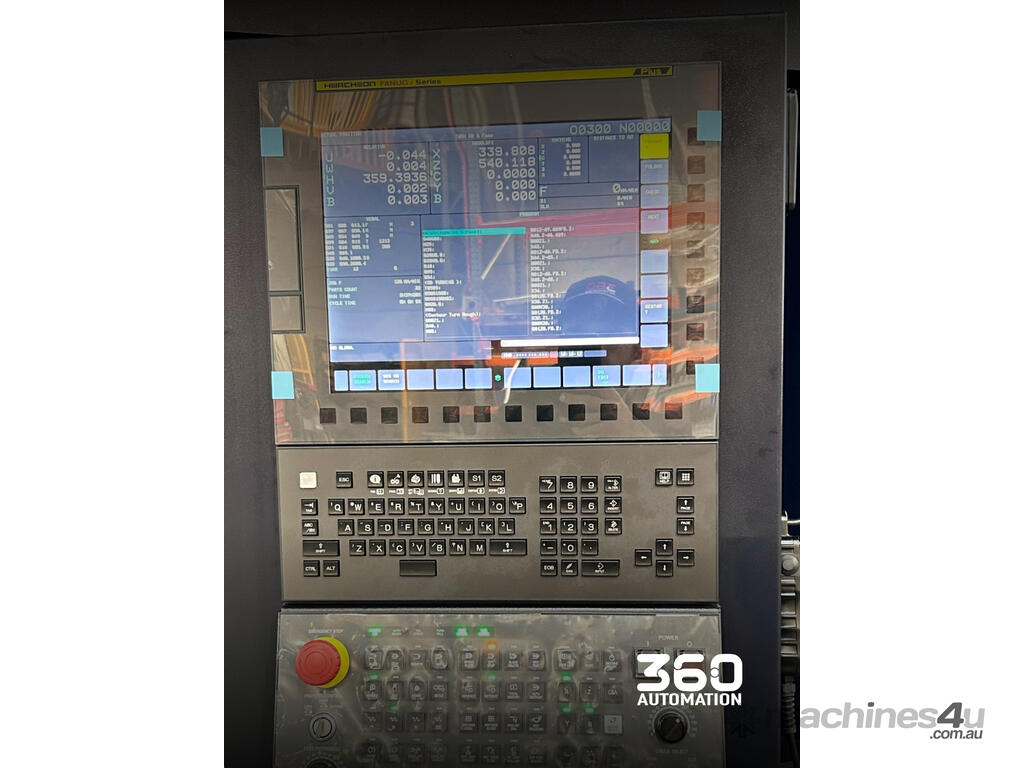

| CNC Control | FANUC 0i-TF Plus with Manual Guide i |



**Included Equipment. Ready to Machine from Day One**

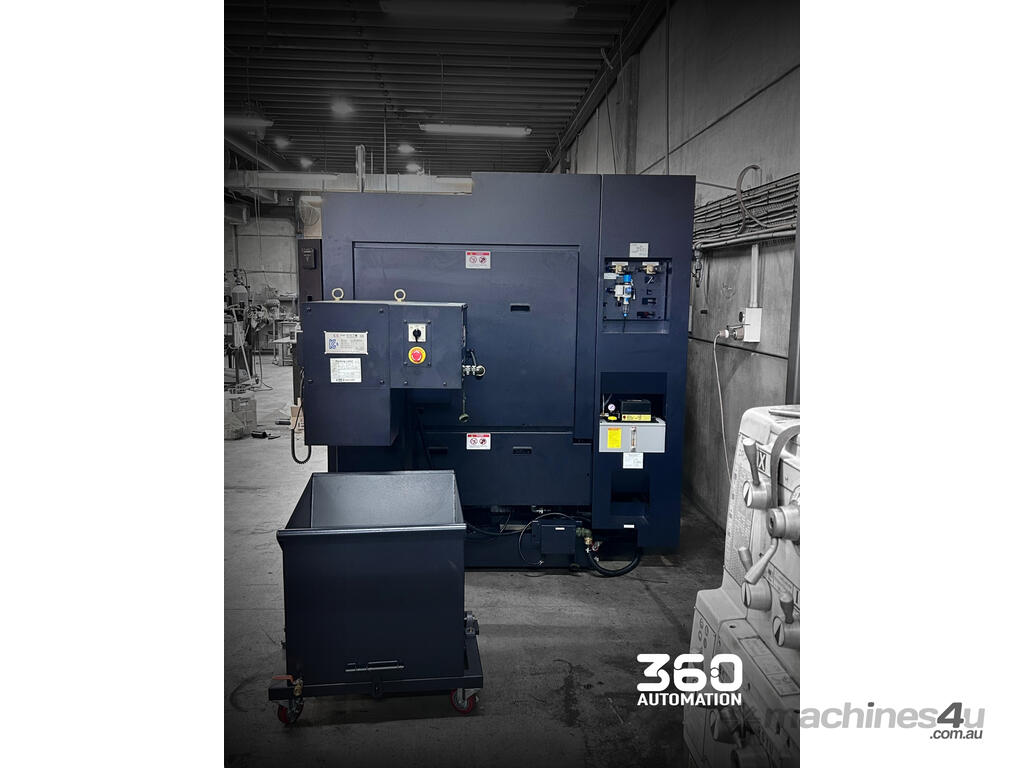

This machine is supplied complete with a Renishaw Tool Setter for fast, accurate tool length measurement and offset management, a Chip Conveyor for efficient swarf removal and a cleaner working environment, and a comprehensive tooling package featuring radial and axial live tool holders with a full ER collet set. No additional tooling investment required, you can be cutting parts immediately after installation.



**Features & Benefits**

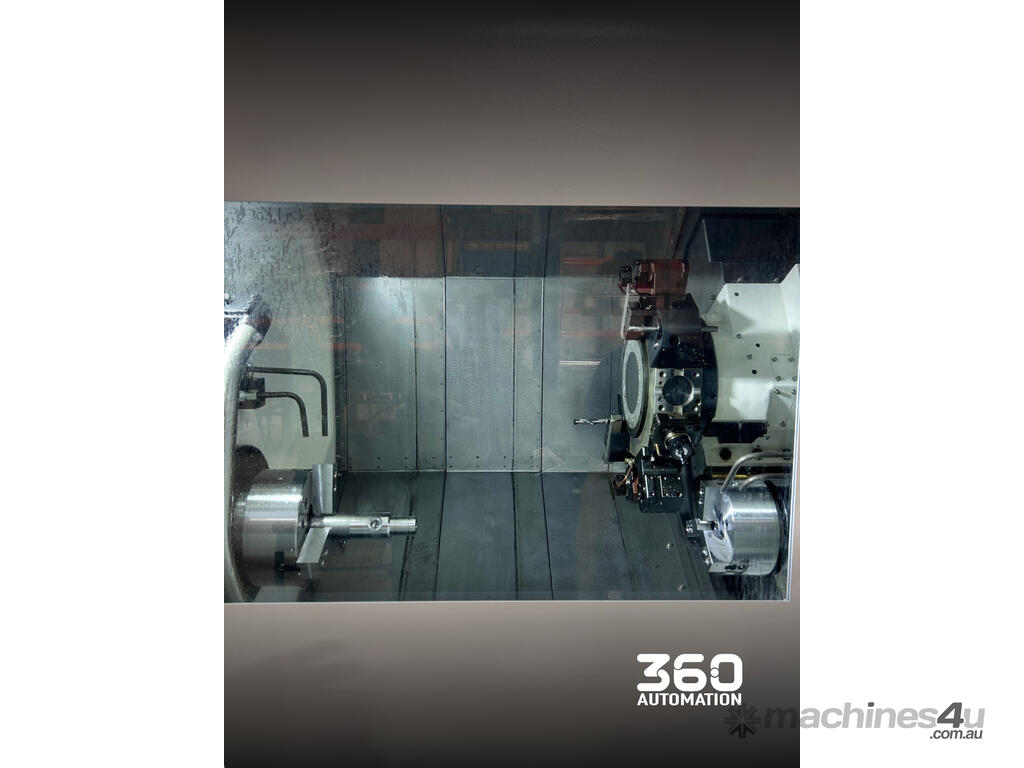

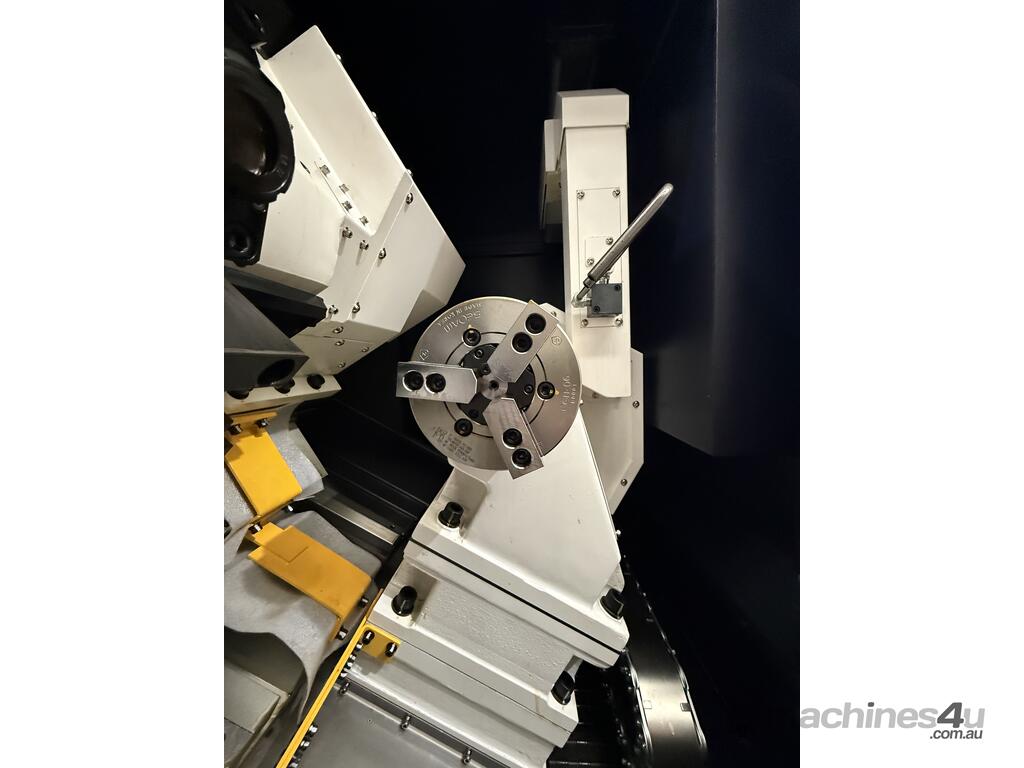

The 230AL YSMC's generously sized Ø76 mm through-spindle bore accommodates bar feeding and shaft work with ease, while full Y-axis travel of ±60 mm unlocks off-centre milling, drilling, and contouring without secondary setups. The 12-station BMT-65 live tooling turret supports complete mill-turn operations at up to 5,000 rpm, and the integrated sub-spindle enables front and back machining within a single cycle, dramatically reducing handling time and improving part consistency.

Underpinning it all is Hwacheon's proven box-way construction, which provides exceptional rigidity and vibration damping for heavy-duty interrupted cuts and fine finishing alike. The FANUC 0i-TF Plus control, equipped with Manual Guide i, simplifies conversational programming with graphical, step-by-step guidance, allowing operators to create and edit programs at the machine with minimal G-code knowledge, reducing setup times and lowering the skill barrier for complex mill-turn operations.
