High Performance Nesting CNC Machining Centre. 127 m/min vectorial speeds!!!

Anderson by Wood Tech. Aus Owned and Operated. Local Parts and Service in 5 Locations. Over 1000 Anderson CNCs in Aus. Download 20pg PDF now.

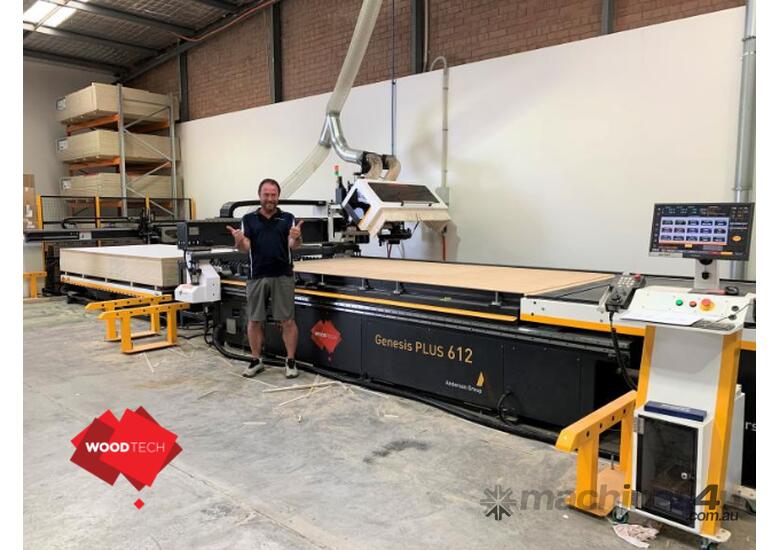

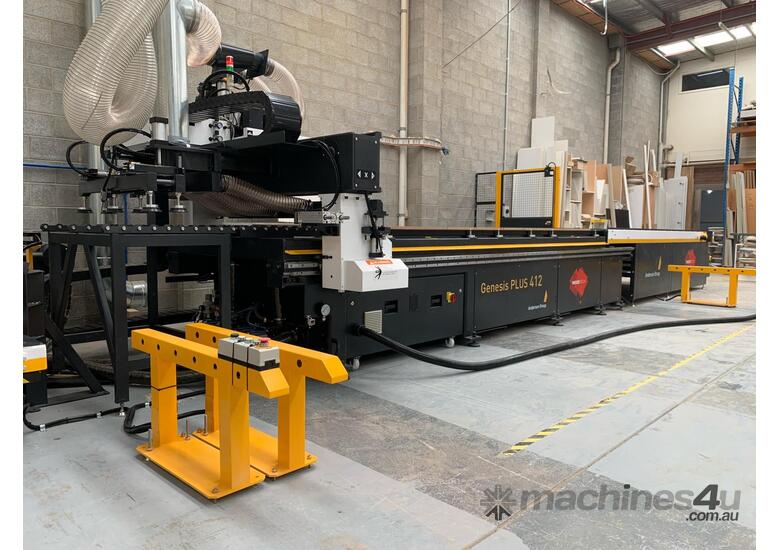

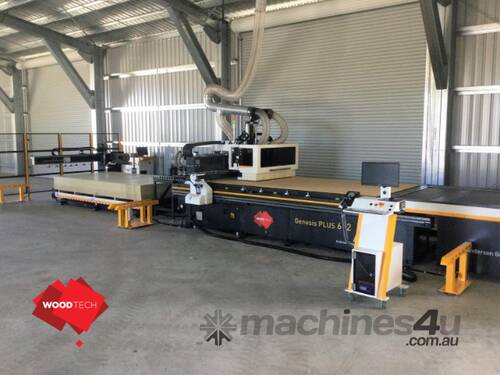

Introducing the all-new Anderson Genesis Plus from Wood Tech.

The fifth generation Genesis series has just arrived, with a sophisticated new design, more power, speed and efficiencies than ever before.

Reach vectorial speeds up to 127 m/min with 12.5% more speed, and 50% more power compared to the 2019 Genesis EVO.

With multiple configurations to suit any factory, plus options to add automatic labelling, loading and unloading, you can increase efficiencies across your entire operation.

MACHINE CONSTRUCTION:
The base is manufactured of heavy-duty industrial grade welded steel. The construction has been designed to provide extreme stability and vibration free processing. Due to the weight and rigidity of the base there is no need for the machine to be anchored to the floor. The table is a welded one piece construction with an inbuilt vacuum storage area, increasing the volume of vacuum air.
The Genesis series offers an industrial grade mobile gantry unit utilizing Bosch Rexroth lineal guide bearings on all axis on the machine. The X, Y is driven by high precision “direct drive” rack and pinion and the Z axis by high precision industrial recirculating ball screws allowing for smoother and faster processing.

WORKING TABLE
• 3,700mm x 1,900mm (also available in 2800 mm table)
• Automatic vacuum working zones to suit sheet sizes:
2400mm x 1200mm
3700mm x 1200mm
2400mm x 1900mm
3700mm x 1900mm

• Steel pneumatic pop-up stops for panel positioning, with two pop upside rails to assist unloading of finished parts.
• Phenolic table with matrix vacuum grid system with four vacuum zones suitable for a variety of secure vacuum hold down possibilities, from spoil-board, jigs and vacuum pods.
• Axis movements are controlled by AC Servo Motors to facilitate high speed positioning and accuracy.

AXIS STROKE
X-Axis = 4450 mm
Y-Axis = 2300 mm
Z-Axis = 200 mm

AXIS SPEED
• X & Y axis speeds 90 m/min each driven by helical rack & pinion system through twin servo motor drive control.
• Z axis speeds 30 m/min, ball screw drive system through servo motor

SPINDLE 1
• Powerful high precision Anderson tool changing spindle
• 15HP (S1 Duty) with HSK 63F tool connection
• Automatic tool changer with 12 positions, “On Board System”, max tool diameter 110mm
• Programmable speed of 1,000 to 24,000 RPM
• The spindle is with full table coverage
• Air nozzle for spindle is a standard feature
• Integrated dust extraction hood

SPINDLE 2
• High speed drilling unit 6,000 RPM
• 12x7 vertical drilling head
• Independent or multiple drill function
• 32mm center to center of each drill

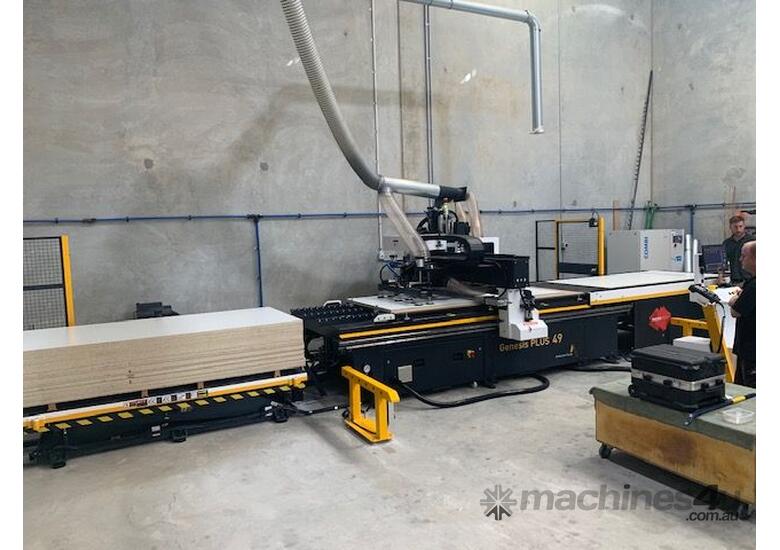

AUTOMATIC LOADING SYSTEM WITH PANEL POSITIONING
• The Anderson automatic loading system, a pack of material is loaded onto the indexed scissor lift table. This allows the operator to run the machine while the printer is labelling on the panel, without stopping other processes, thereby minimizing idle time improving efficiency
• Behind the Indexing Scissorlift there are 3 x Heavy Duty bollards used to assist pack positioning by Forklift when loaded

The loading system picks the sheet up then automatically positions the sheet in the precise location on the machine table. The Anderson CNC also completes a final alignment of the sheet on the table guaranteeing the workpiece is square to the back line if stops on the table width (Y-axis).


UNLOADING SYSTEM
The Anderson Unloading System automatically unloads finished componentry off the sub board by using a vacuumed pusher onto a outfeed belt conveying system, while this is happening the machine is also loading the next sheet onto the machine table at the same time. There is integrated dust extraction system also between the end of the machine table to the conveyor belt, also at the end of the conveyor belt.


CNC CONTROL
• SYNTEC controller with PC Windows system
• Supplied with user friendly drive system capable of accepting NC Code from all major CAD/CAM software packages

REMOTE HANDHELD DEVICE
Allows the operator to operate the machine in jog mode to perform system tests and run CNC programs from the remote device

TOOL TOUCHOFF FUNCTION:
Allows precise calibration of the cutting tool length simply and safely. The tool measurement is automatically recorded into the machine control tool file
