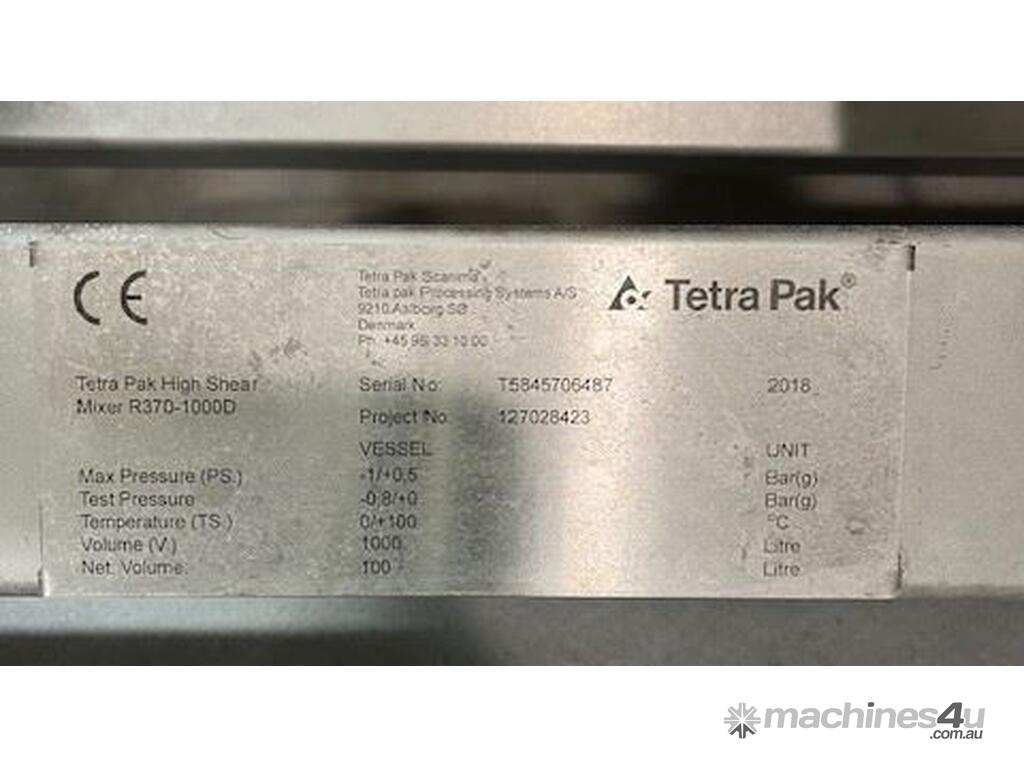

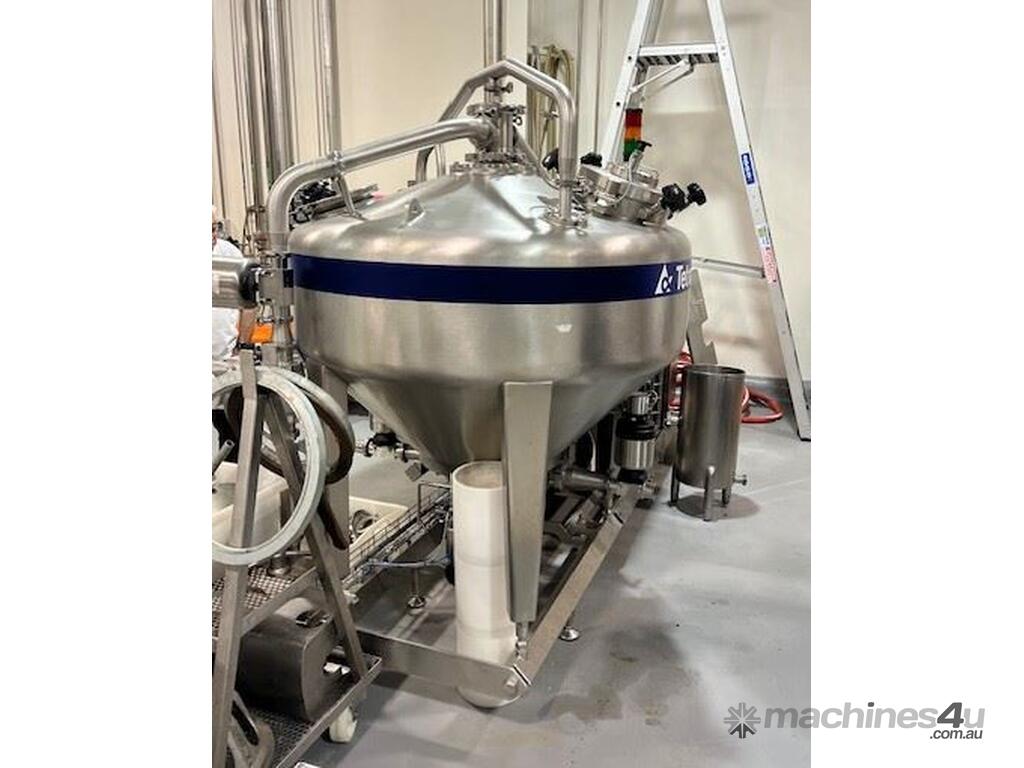

Tetra Pak High Shear Mixer
Model R370-1000D
Year 2018
The New Generation of High Shear Mixer

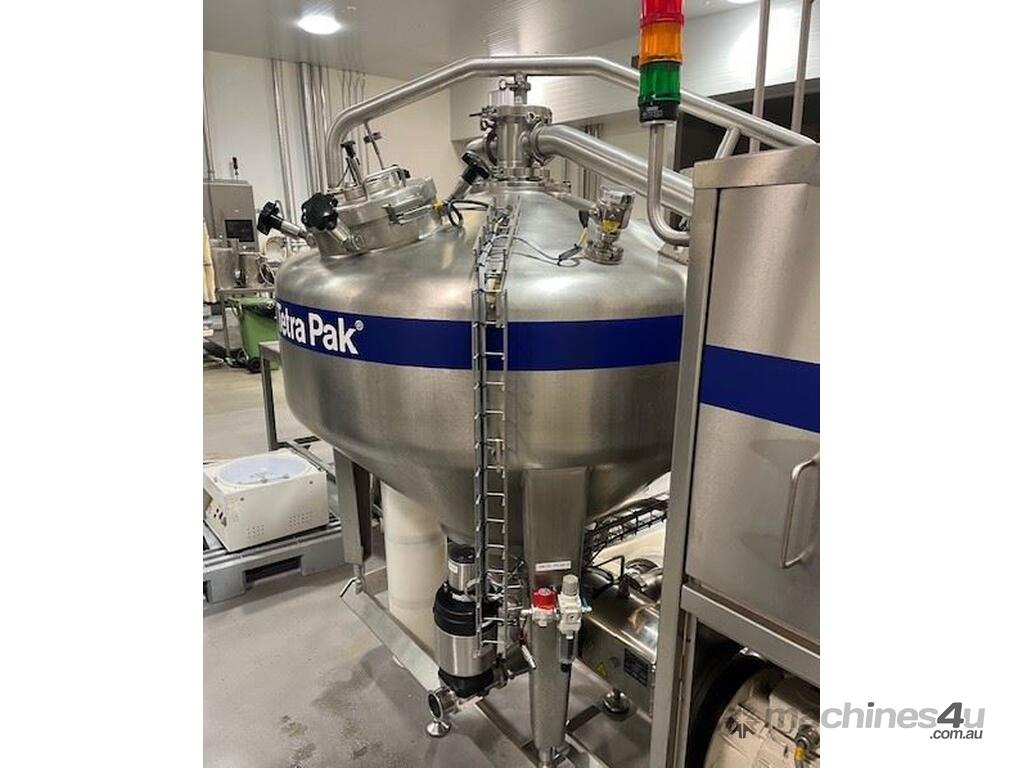

Vessel size: 300 litres with final output < 35,000 litre/hr
Unparallel mixing solution achieved when the recirculation mixing principle equipped with new designed-mixing head and deaerator system. Smaller particle size and significantly in reducing foams are the most advantage of this unit.
The new generation high shear mixer is designed to enable mixing of high-viscous products in recirculation setups. It achieves superior emulsification, powder dissolving and deaeration performance and it represents an ideal solution for producing high volumes of most concentrated food products including beverage concentrates, ice cream mixes, infant formulas and dairy desserts.
Applications: From low to medium viscous products < 2,000 cP such as Dairy, Beverage especially when the powder used create lots of foams
Wide range of applications Dairy, Beverages, Prepared foods and sauces, cheese and ice cream.
Supply and consumption data
Voltage, V (Hz) 380-480 (50/60)
Power, kW 58.2
Water, l/h 100
Compressed air, Nl/h 100
Shear rate, s-
Processing parameters
Final product capacity, kg/h < 35 000
Viscosity, cP ? 2 000
Mixing temperature, °C 80
Oil addition rate, kg/min 75
Powder addition rate*, kg/min 175
Dimensions Length, mm 3350 Width, mm 1600 Height, mm 2100
