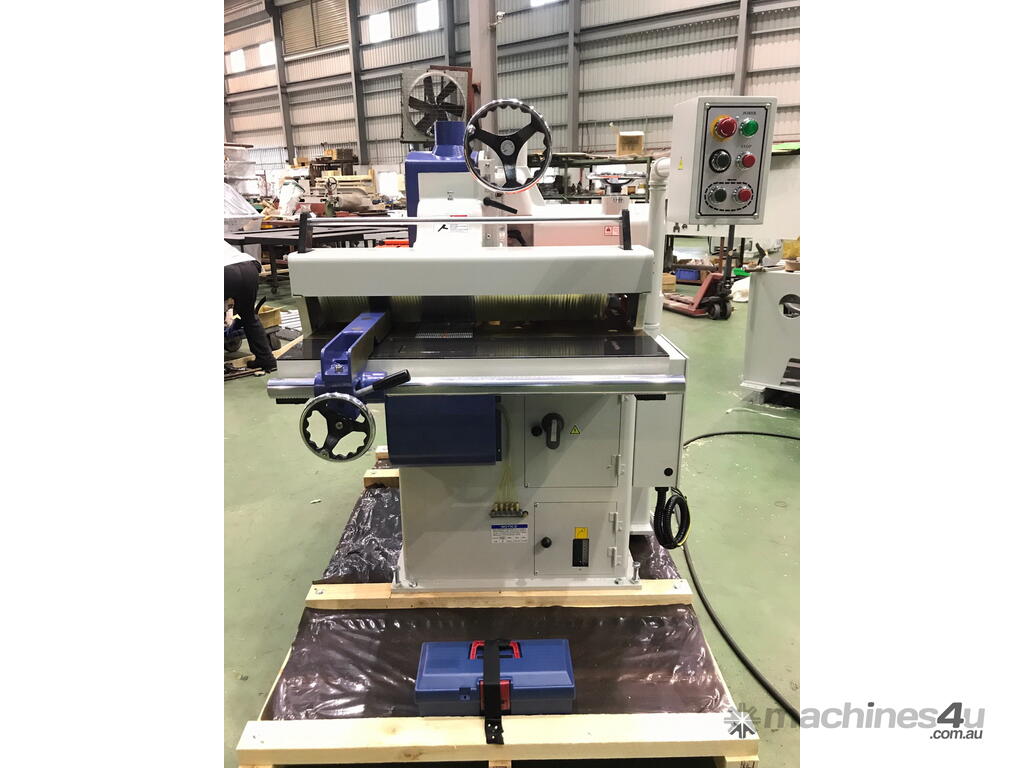

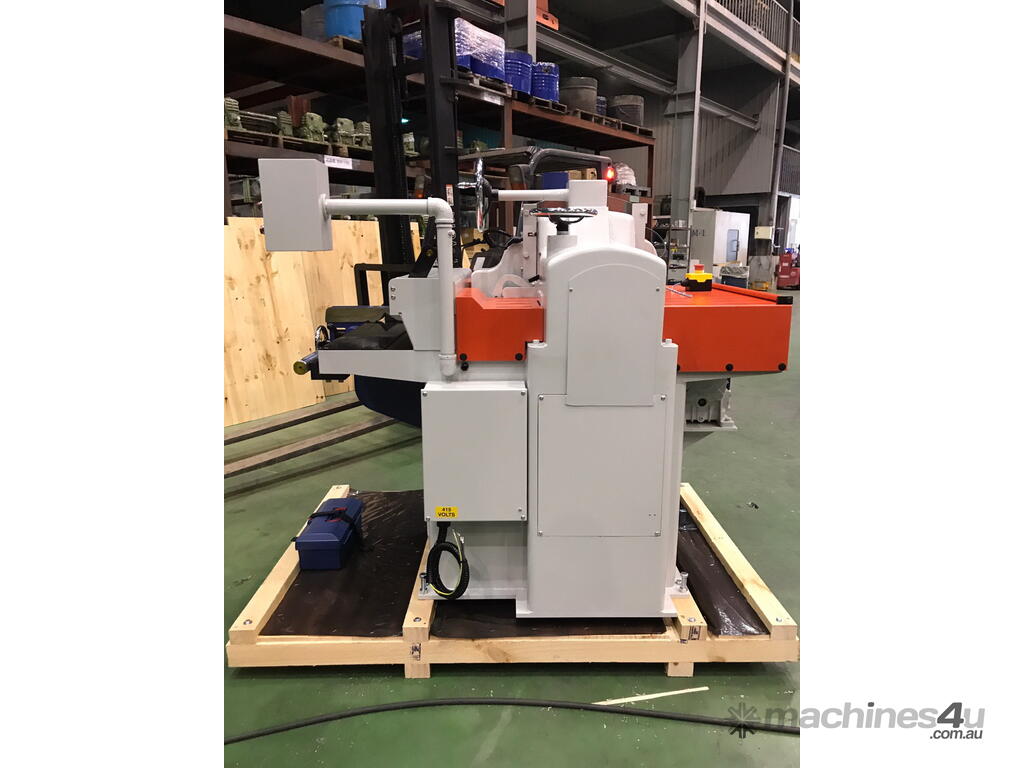

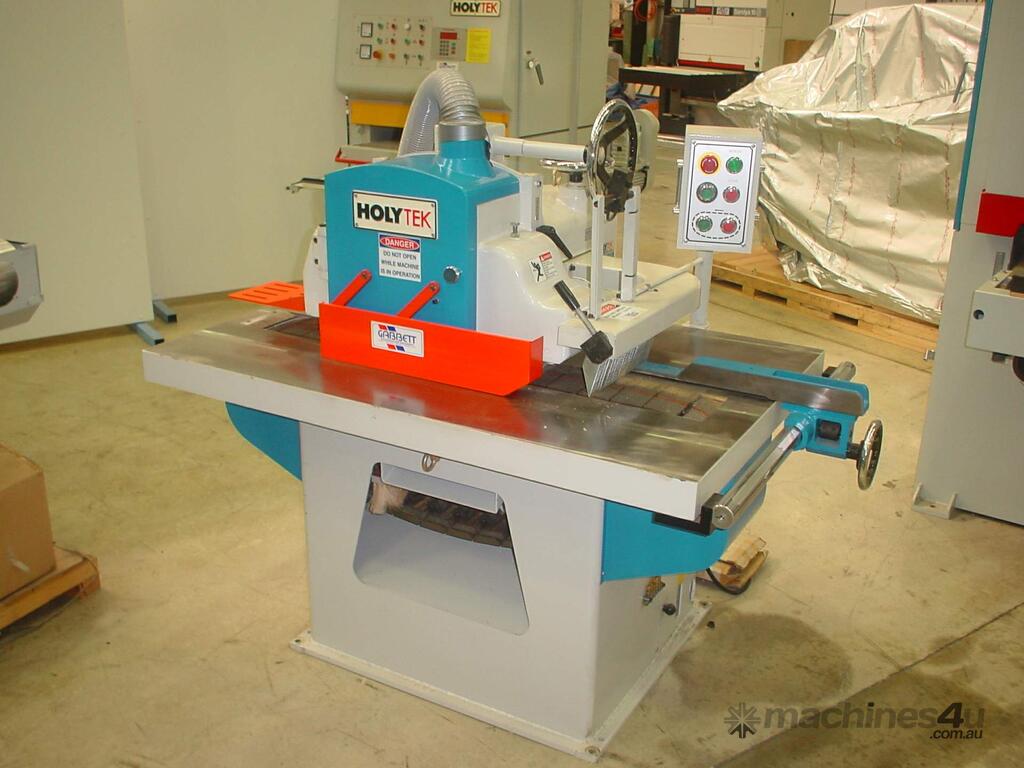

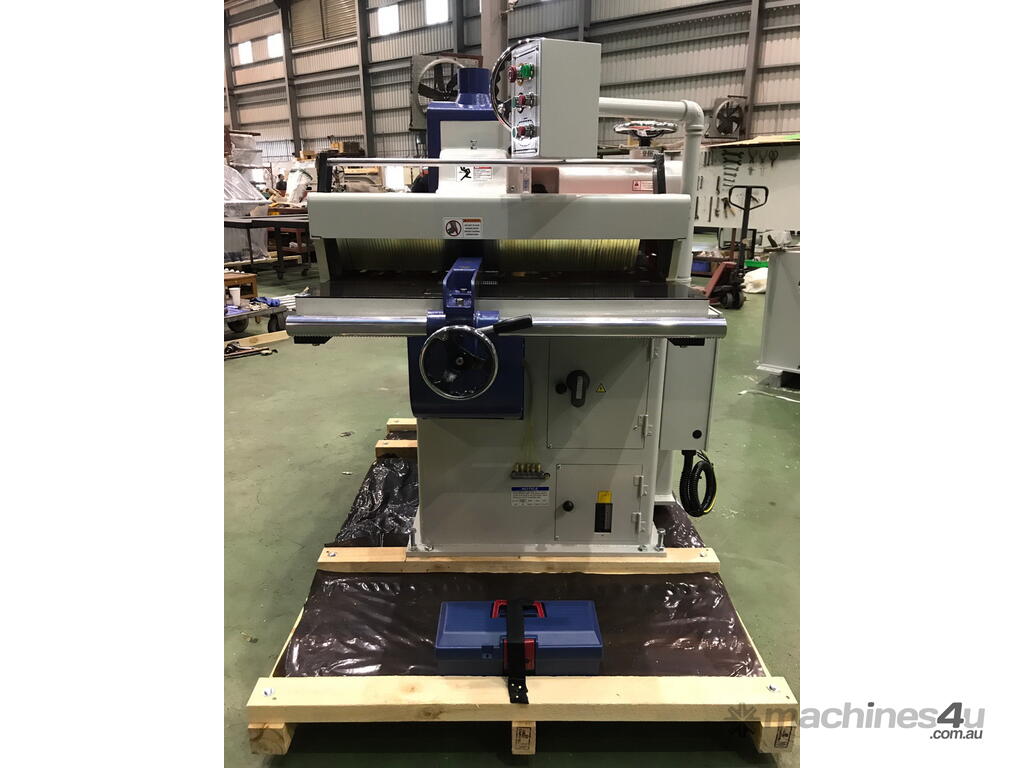

Holytek Power Fed Straight Line Rip Saw
Make your Timber Ripping safer and more more productive!
Full CE Safety Guarding
inc:

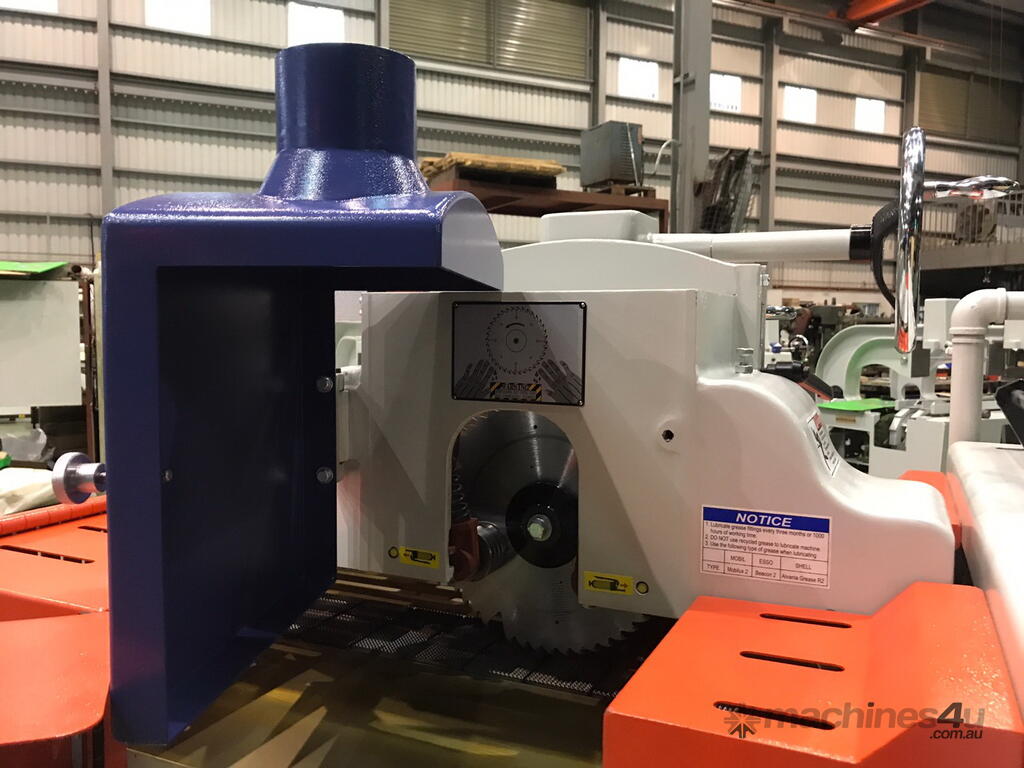

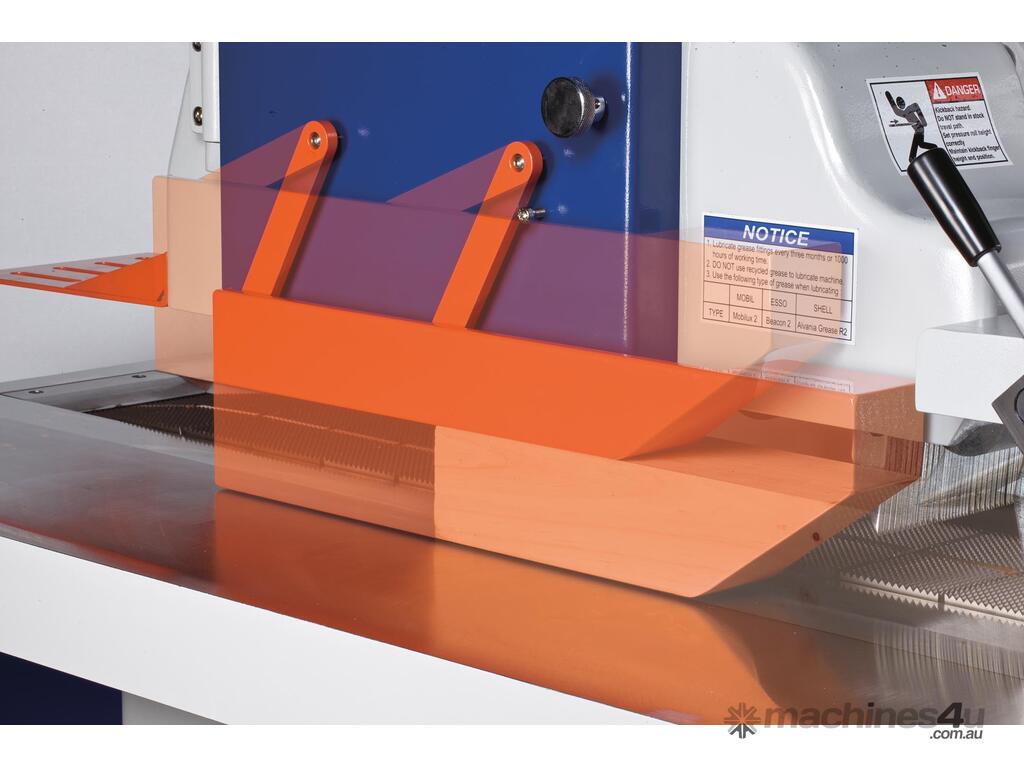

Drop Down Side Safety Guards
Extra side protection covers

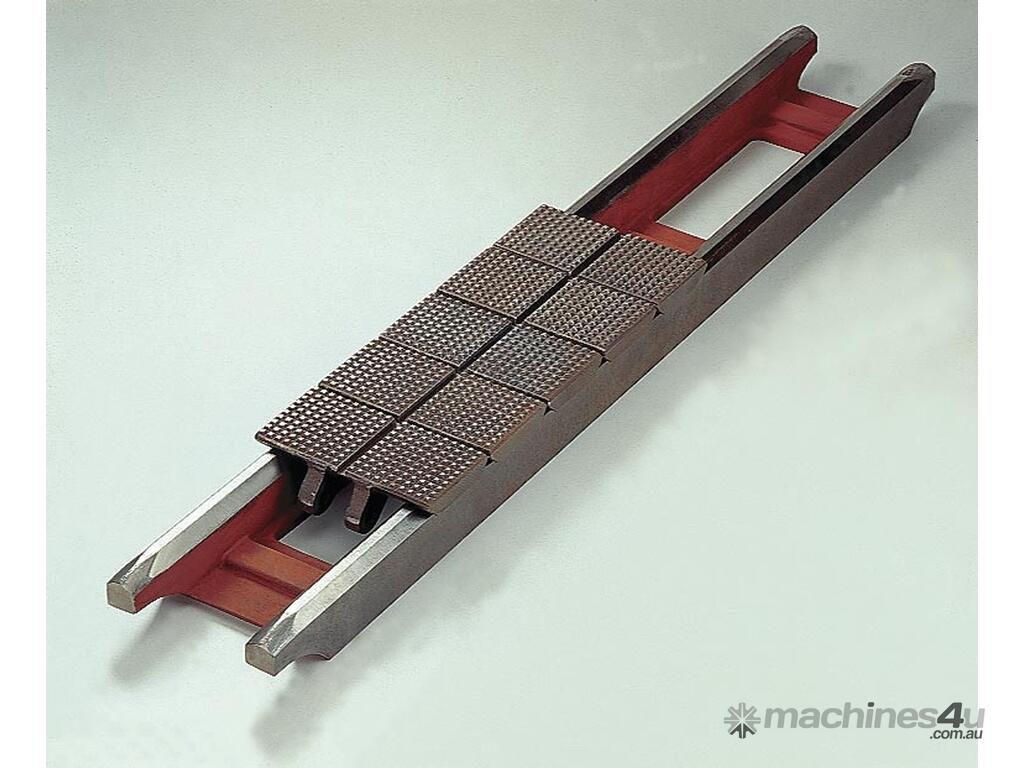

Chain Conveyor with front and rear safety guards

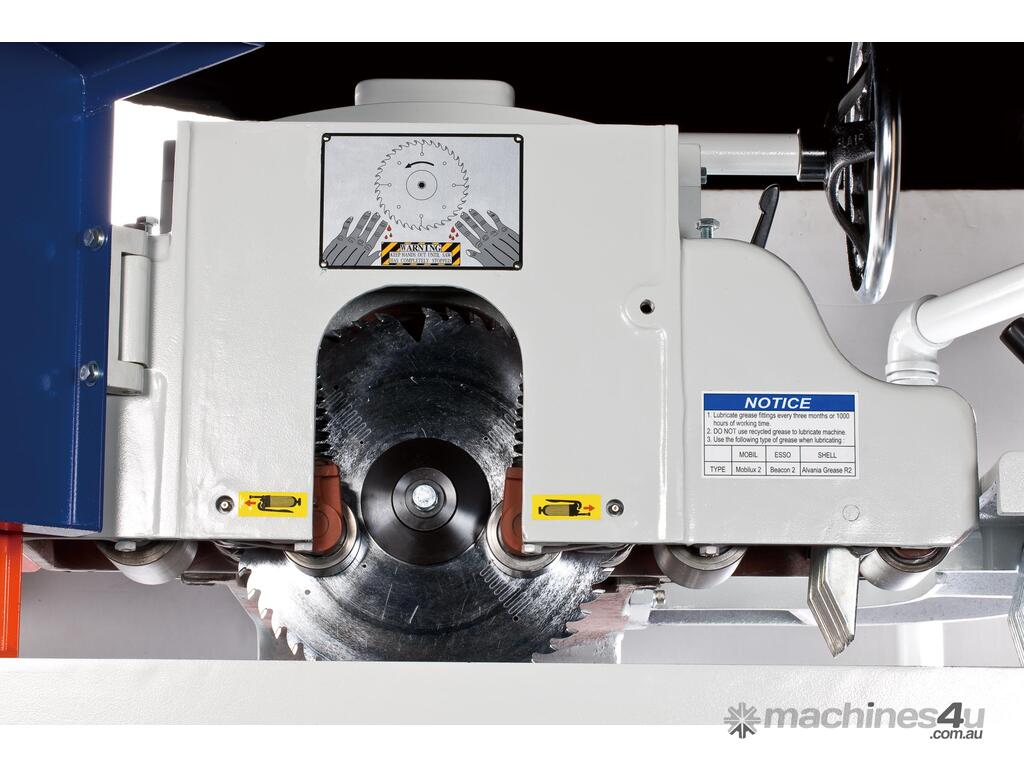

Anti Kick Back
SPECIFICATIONS
? Max. depth of cut 100 mm
? Minimum working length 260mm
? Max. sawblade diameter 200-303mm
? Distance from blade to arm 460mm
? Table Surface area 1450 x 890mm
? Saw arbor Diameter 25.4mm
? Sawblade included Yes
? Saw arbor Speed 3750rpm
? Saw arbor motor 15 HP Brake Motor
? Feed drive motor 2 HP
? Feed speed (m/min) 15/17/21/25 Via Variable speed
? Saw arbour brake system Standard
? Height of saw arbor Adjustable

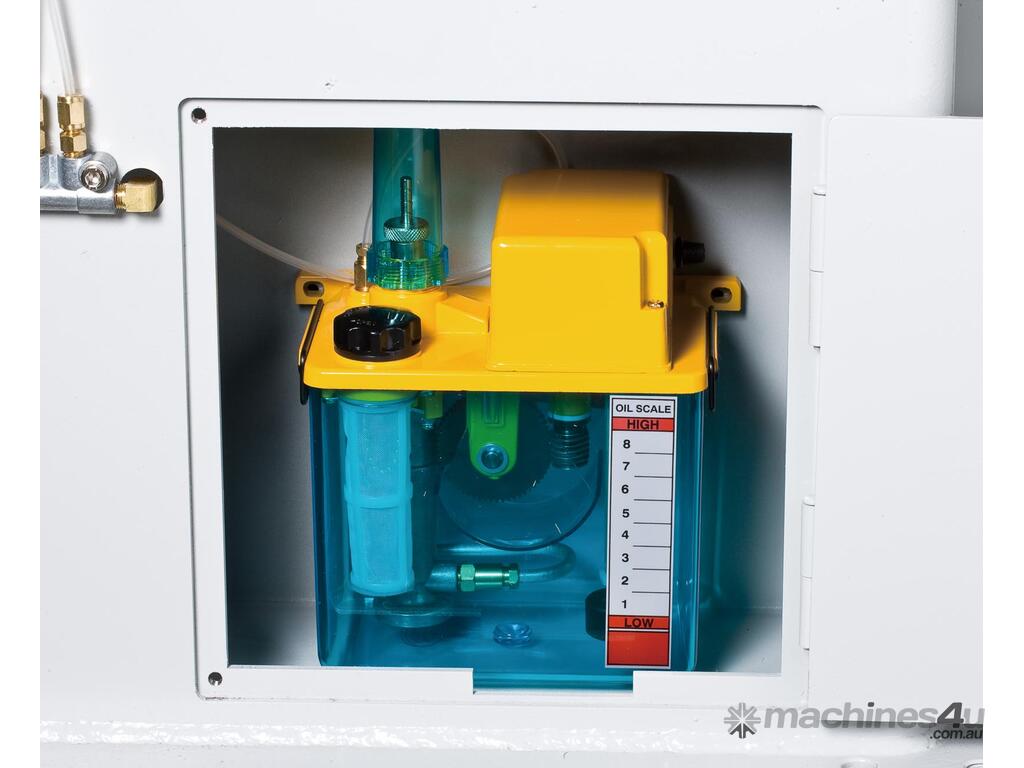

? Link chain lubrication system (mechanical type) Standard
? Net weight 1180 kg
? 415V / 50Hz
95% Assembled in crate and ready to use.
NOTE: Video to help understand the operation of this type of equipment only, extra guarding not shown.
