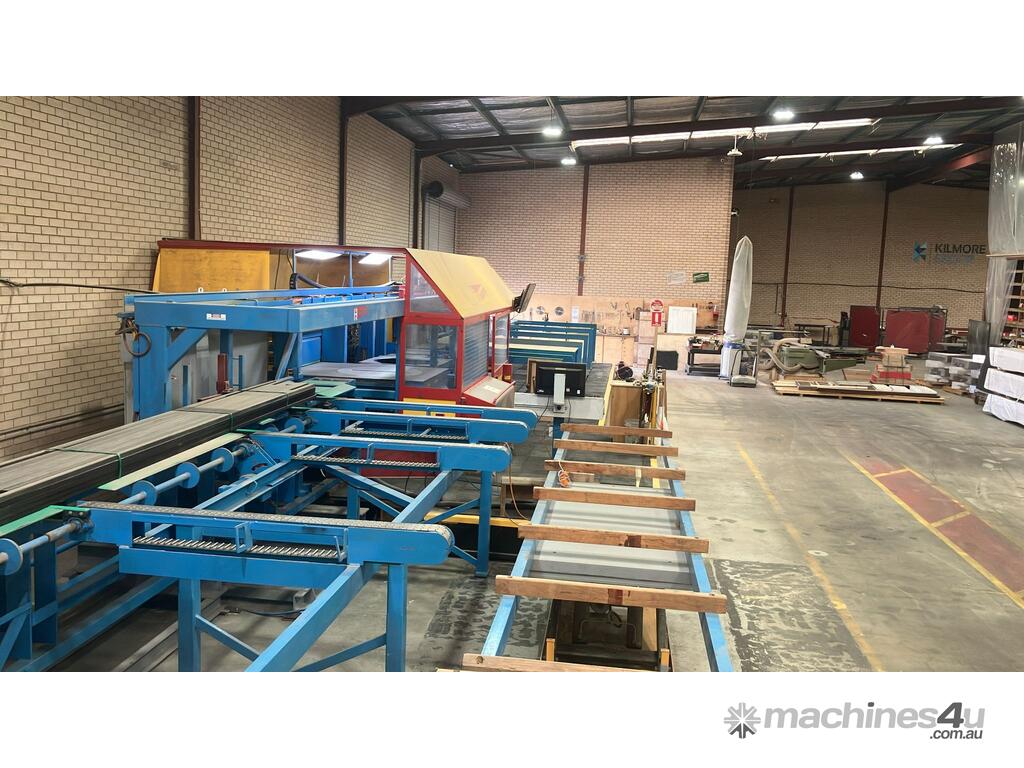

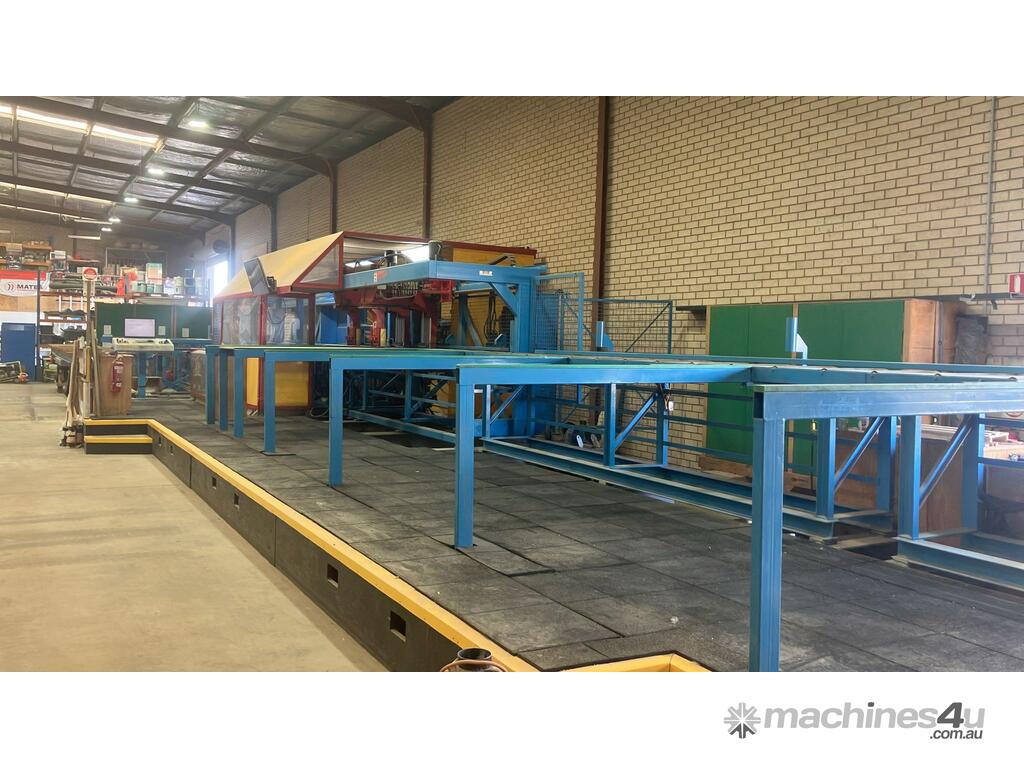

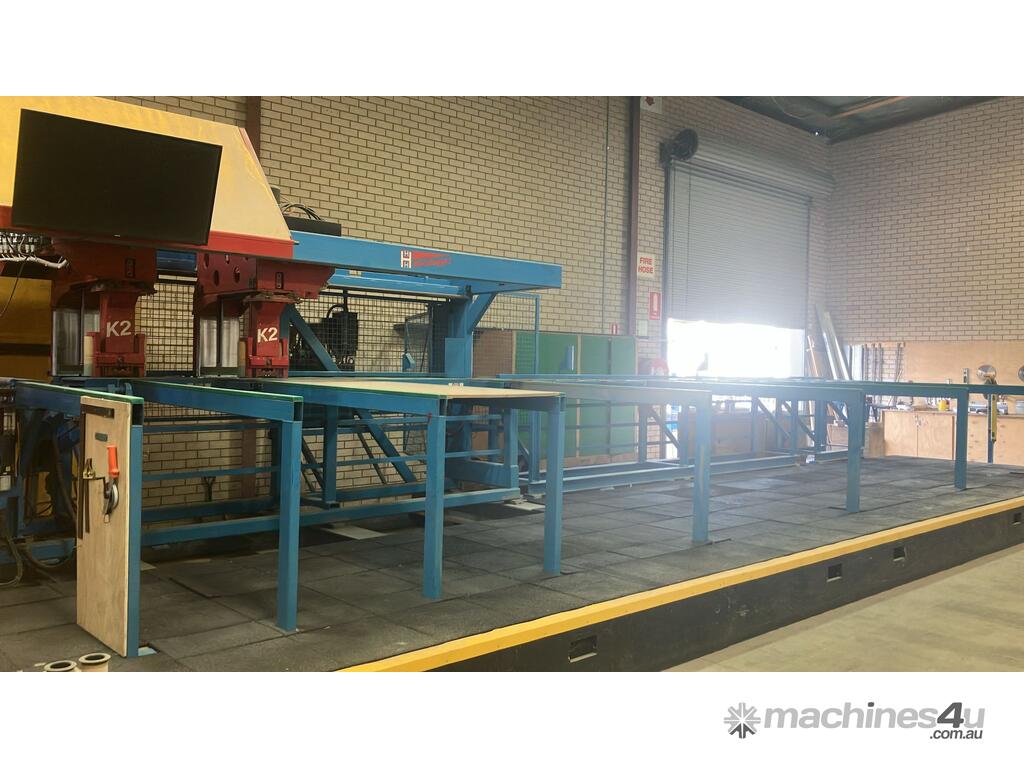

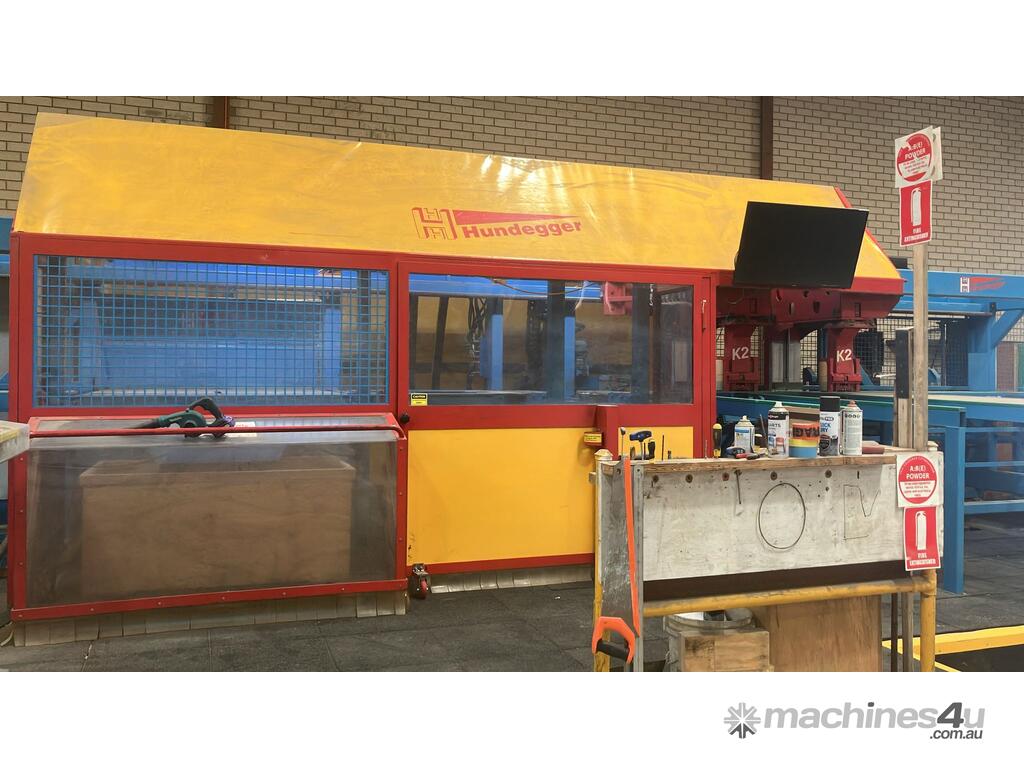

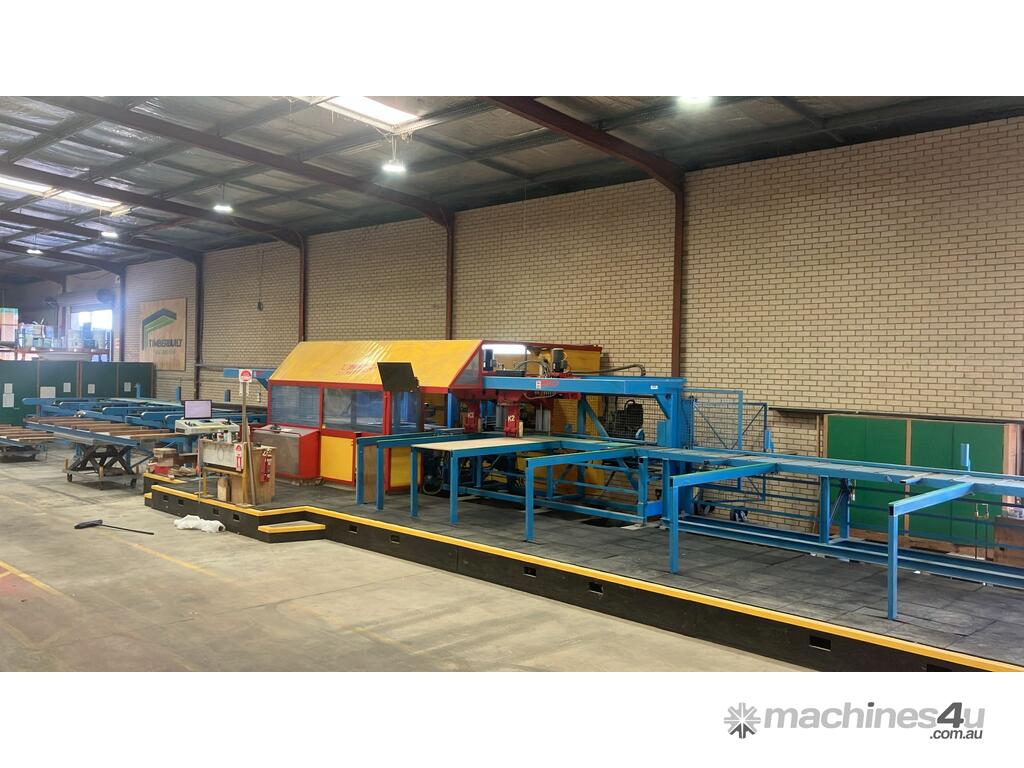

Available ex-Perth, this 2007 Hundegger K2i is a highly versatile and fully automated joinery machine, ideal for timber processing. Regularly serviced and maintained, it offers a complete solution for complex cutting and milling operations. The asking price does not include craneage or transport.
Key Features

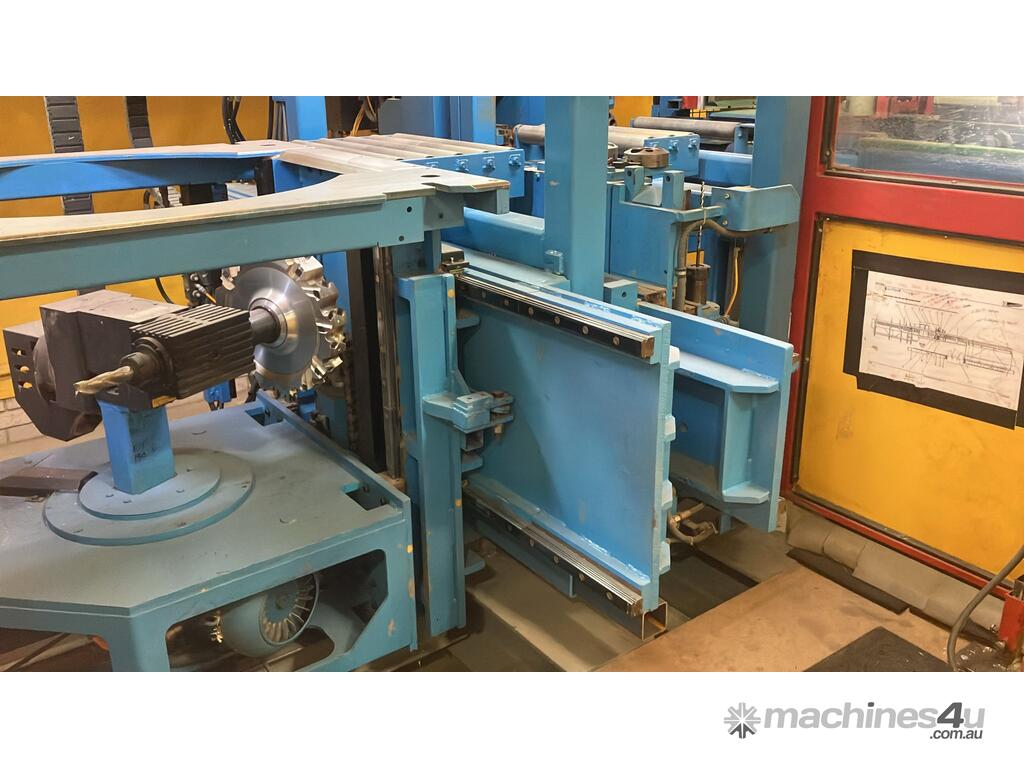

•5-Axis Universal Milling Unit: An 11 kW motor powers a versatile milling head, capable of 361° rotation and extensive movement on both Z and Y axes for complex milling operations.
•Universal Hydraulic Saw: A 9.5 kW saw with a 760 mm carbide-tipped blade that can rotate 360° and tilt up to 65°, allowing for a wide range of cuts including rip, hip, valley, and compound cuts.

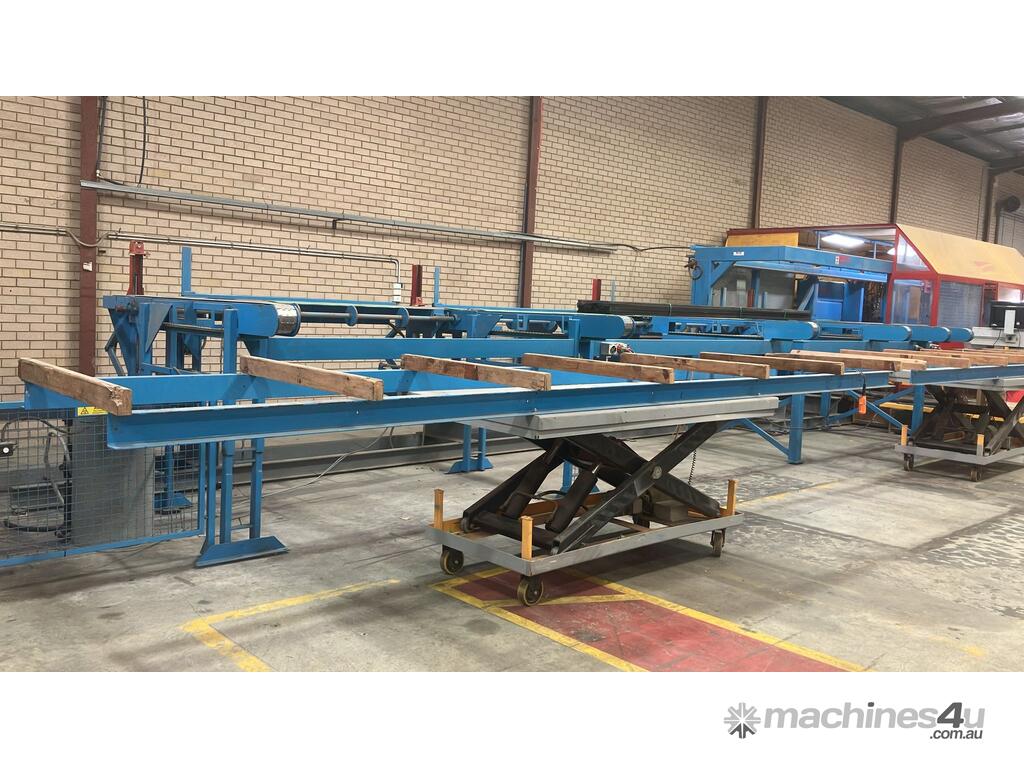

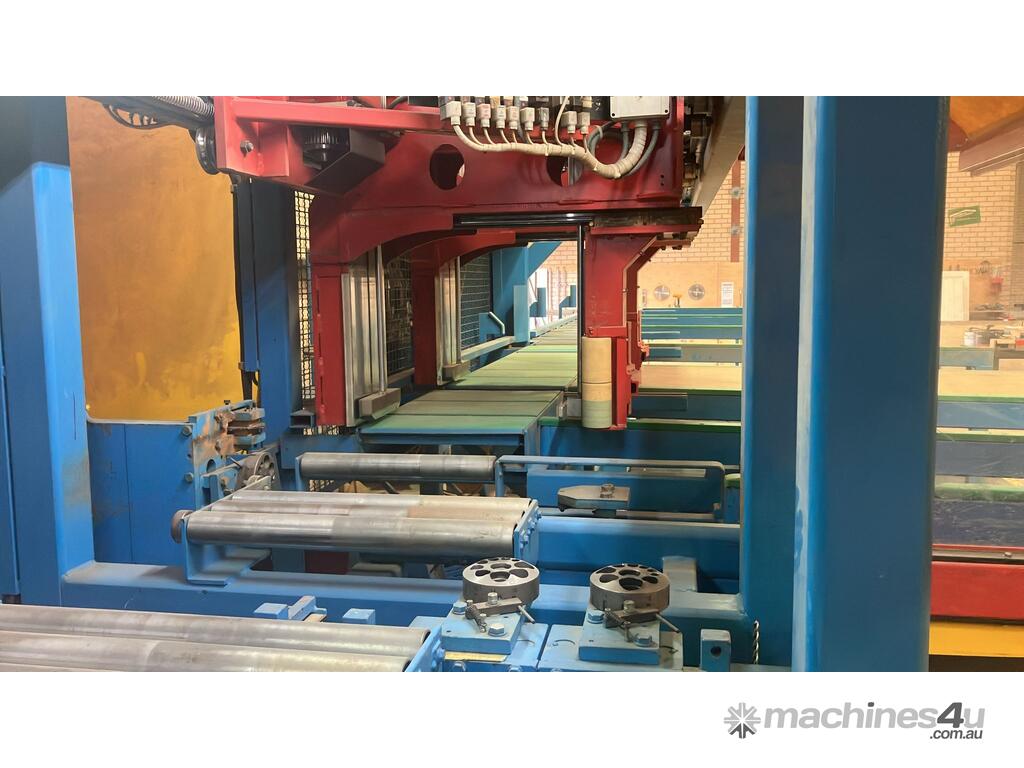

•Automated Material Handling: Features a loading conveyor system for timber up to 10m, an automated beam rotating station, and a unique "two-hand" transport and positioning system for high precision.

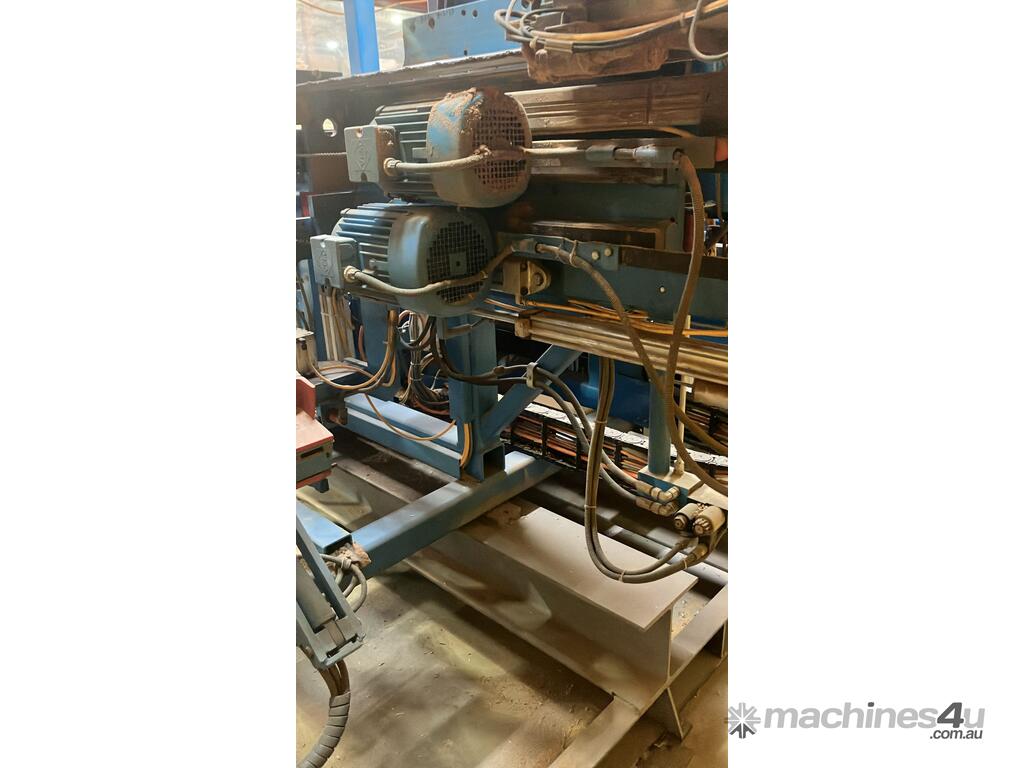

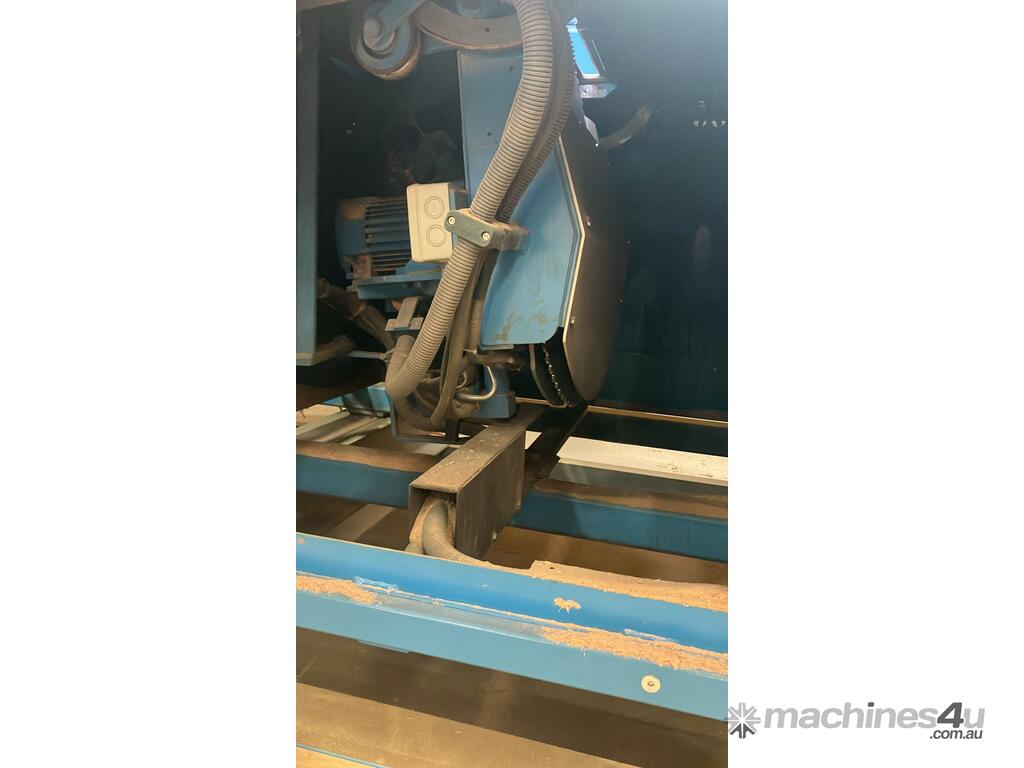

•Comprehensive Drilling and Milling: Includes both vertical and horizontal drill units, a 5.5 kW finger mill, and a heavy-duty 3.0 kW drill unit for a wide range of drilling and milling tasks.
•Advanced Control and Marking: Equipped with an electronic control system with a dust-proof computer and keyboard, as well as pneumatic marking units for precise layout and reference lines.
Machine Specifications
Power 63 A 15kW
Pneumatic Connection1/2" connection, min 10 Bar, 1000 L/min
Machine Weight Approx. 13,000 kg
Timber Length to 13.5 m
Cross Sections 20mm x 50mm to 300mm x 625mm
Included Optional Equipment
This machine comes with a comprehensive set of optional equipment, enhancing its capabilities and efficiency:
• Extension of in-feed table & feeder (up to 13.5 m)
• Extension of loading conveyor incl. drive (up to 13.5 m)
• Drill unit - heavy duty version (3.0 kW motor)
• Slot-cutting Unit – double sided guiding (900 mm)
• additional jack with out-feed ejector & support table
• 8-armed Storage Table
