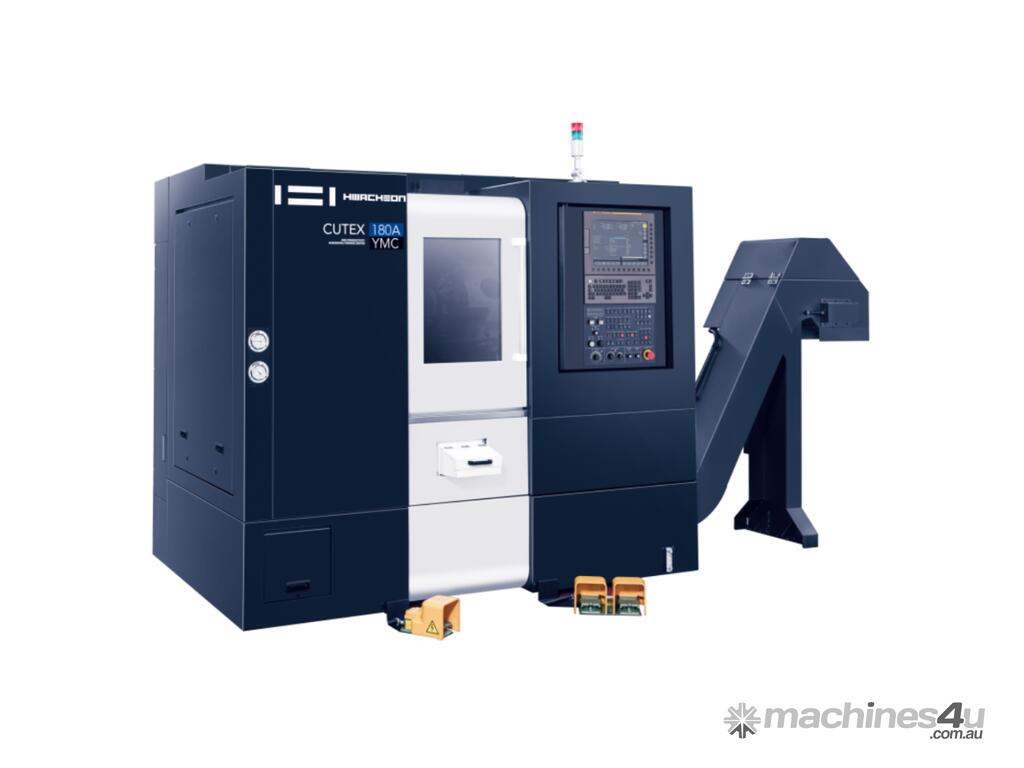

The Hwacheon CUTEX-180A YMC is a compact, high-rigidity CNC turning centre built for demanding multi-axis work. With the largest Y-axis stroke in its class (±55 mm), this machine delivers exceptional milling, drilling, and off-centre machining capability - all in one setup.
Key Specs:
Chuck Size: 6”
Max Cutting Diameter: Ø300 mm
Max Cutting Length: 278.5 mm (Short bed) / 478.5 mm (Long bed)
Y-Axis Travel: ±55 mm
Bar Capacity: Ø51 mm
Spindle Speed: 6,000 rpm
Spindle Motor: 15 / 11 kW (20 / 15 HP)

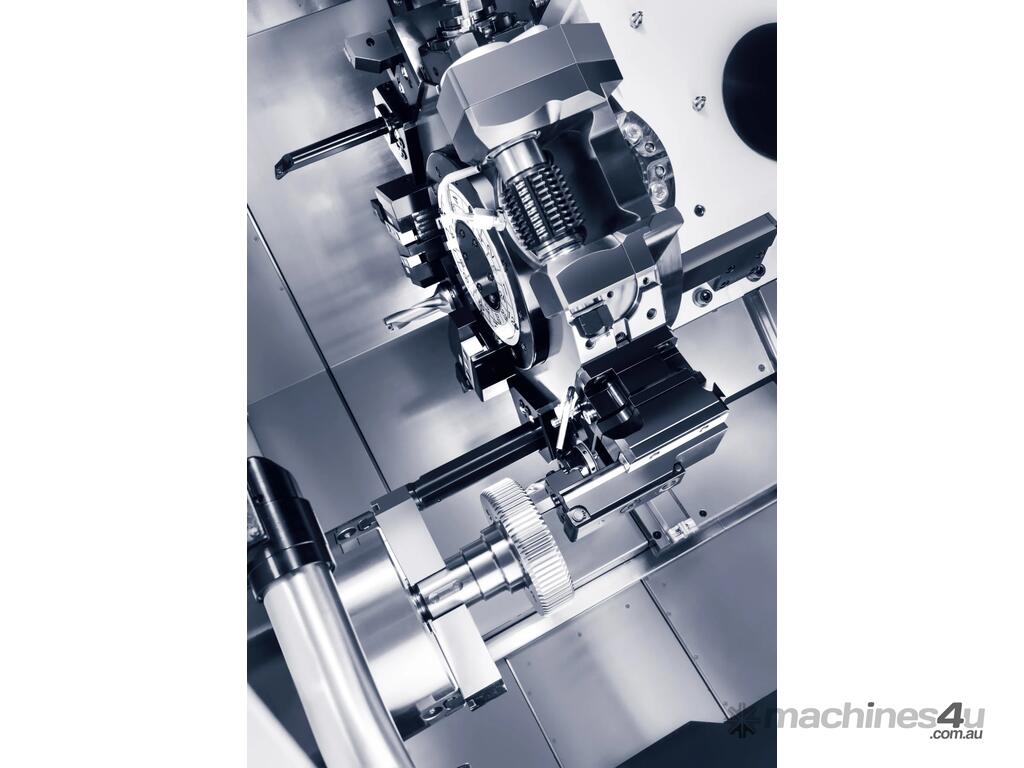

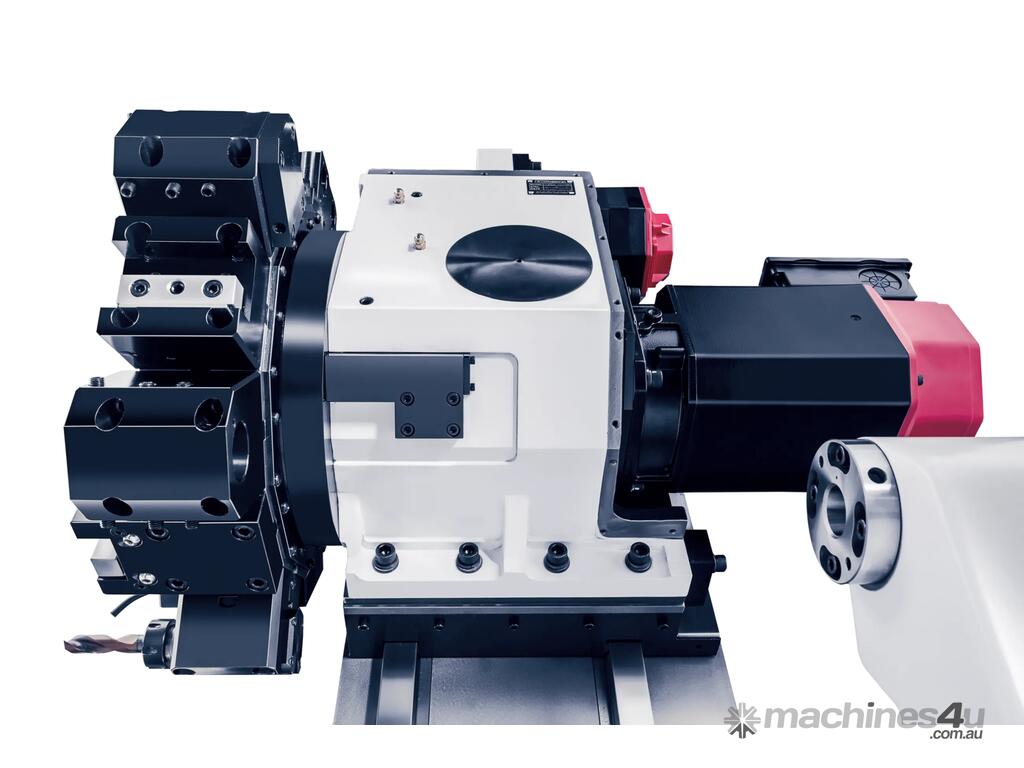

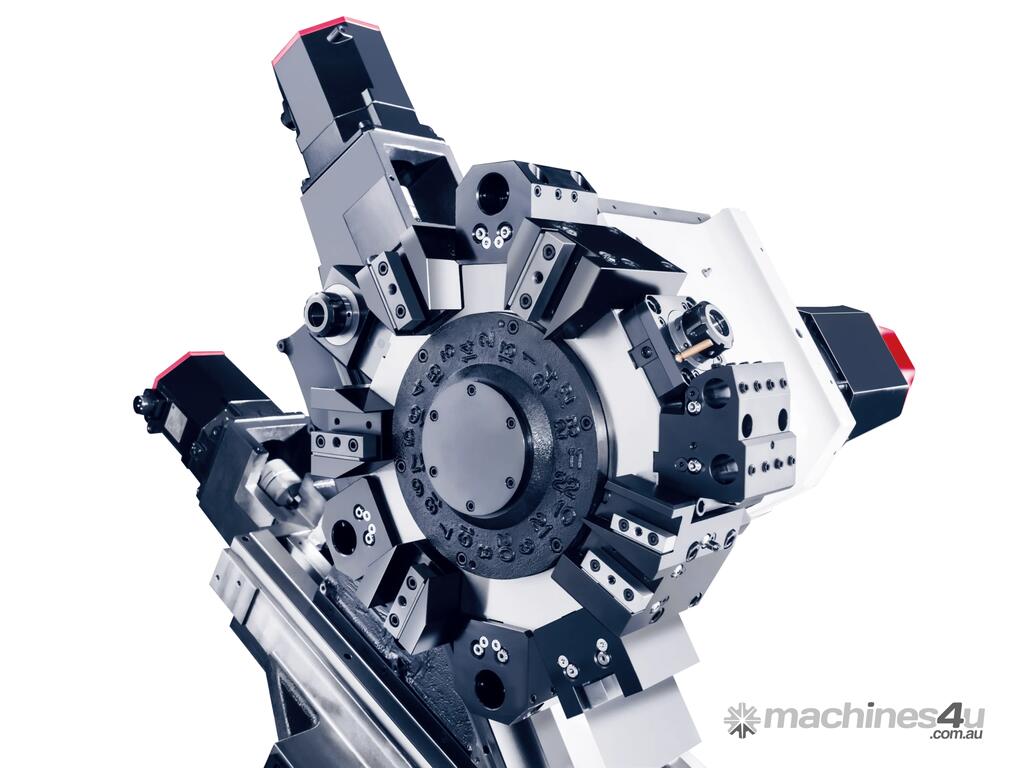

Live Tooling: 12-Station BMT-55 turret, 5,000 rpm, 5.5 kW motor
Rapid Traverse: 36 m/min (X/Z), 10 m/min (Y)

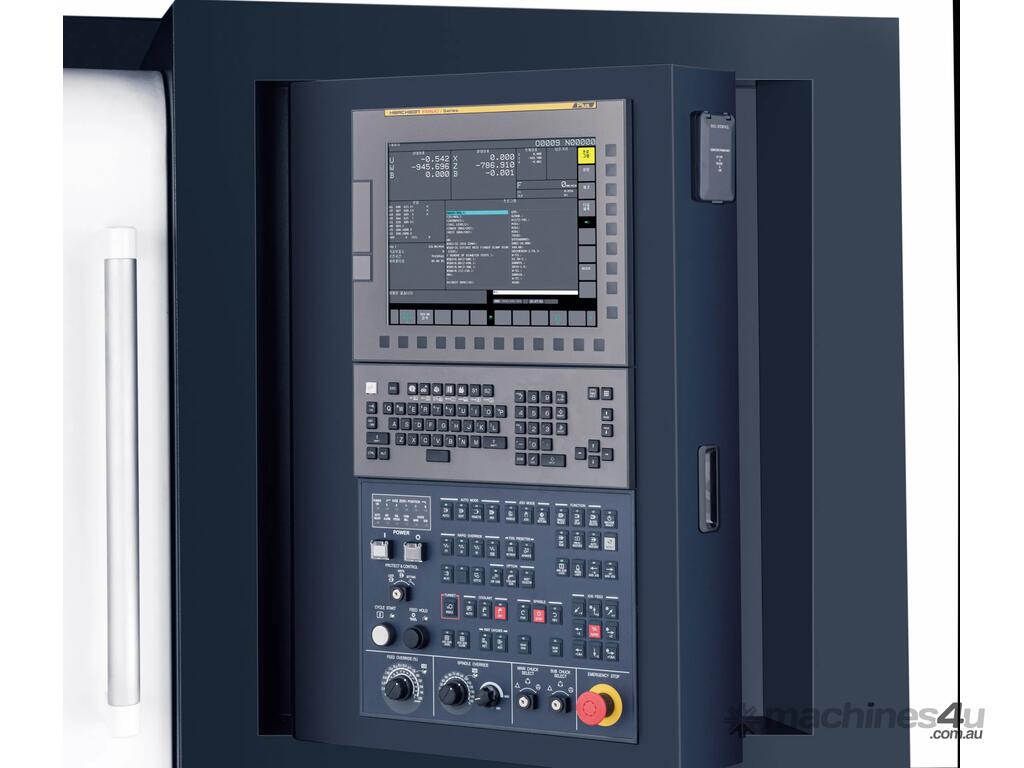

Control: FANUC 0i-TF Plus
Footprint: 2,300–2,500 mm (L) × 1,650–1,700 mm (W)
Machine Height: 1,995 mm
Why Choose the CUTEX-180A YMC?
Industry-leading Y-axis stroke: ±55 mm
High-power 15 kW spindle for heavy-duty cutting

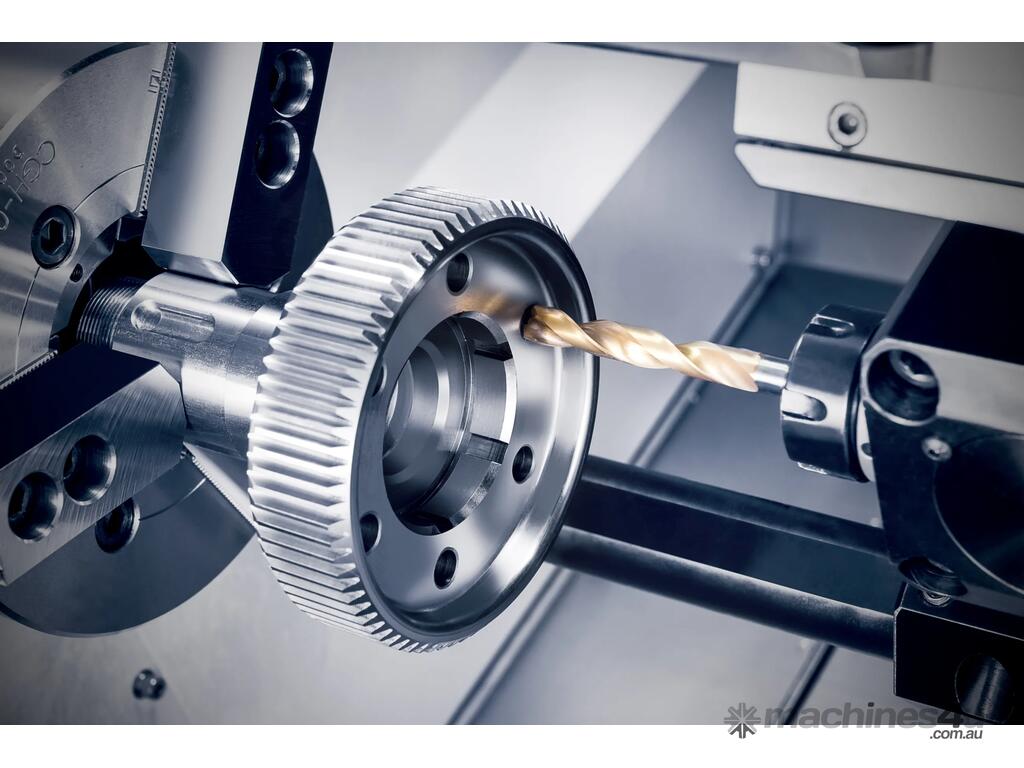

Built-in live tooling for full mill-turn capability

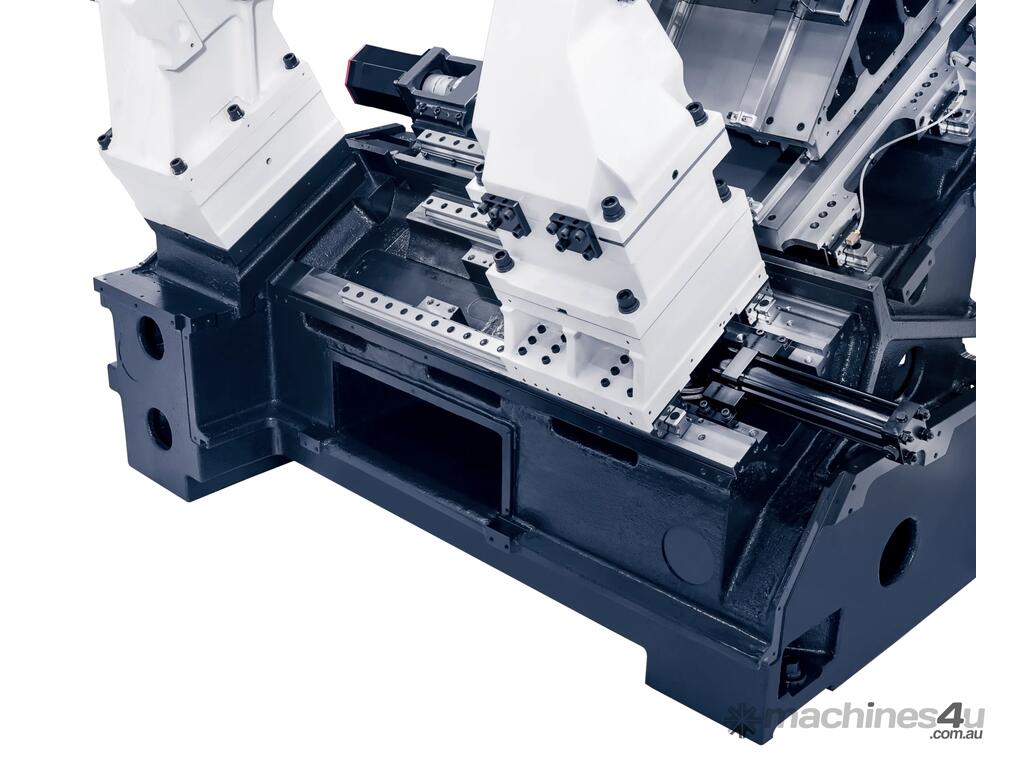

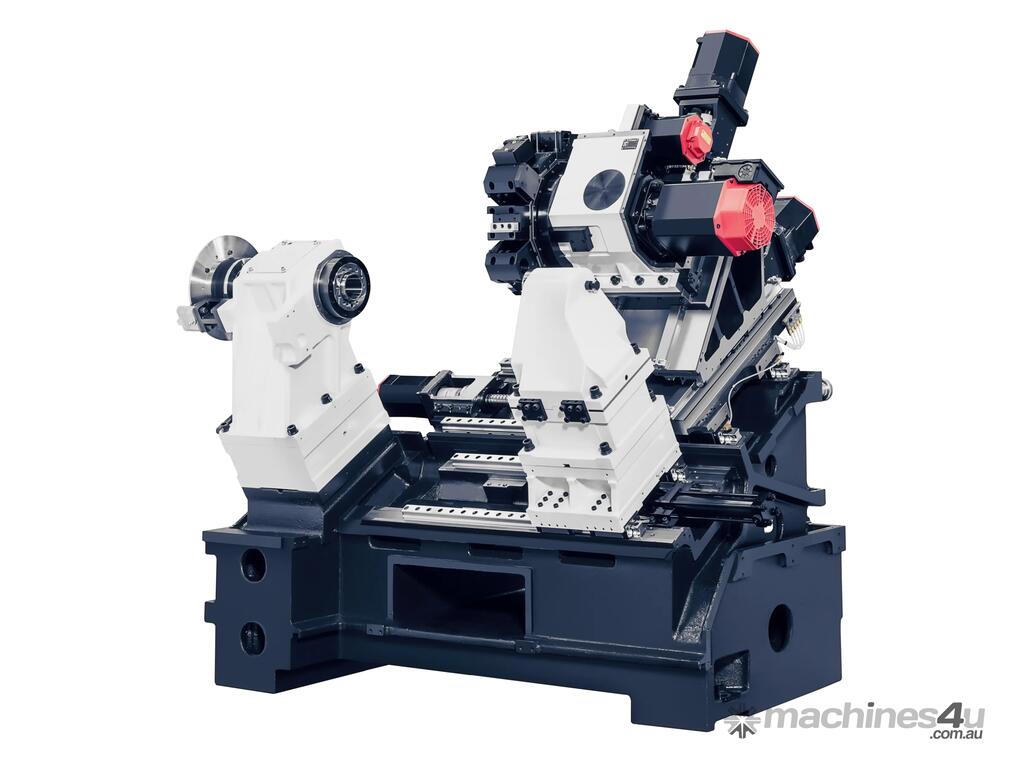

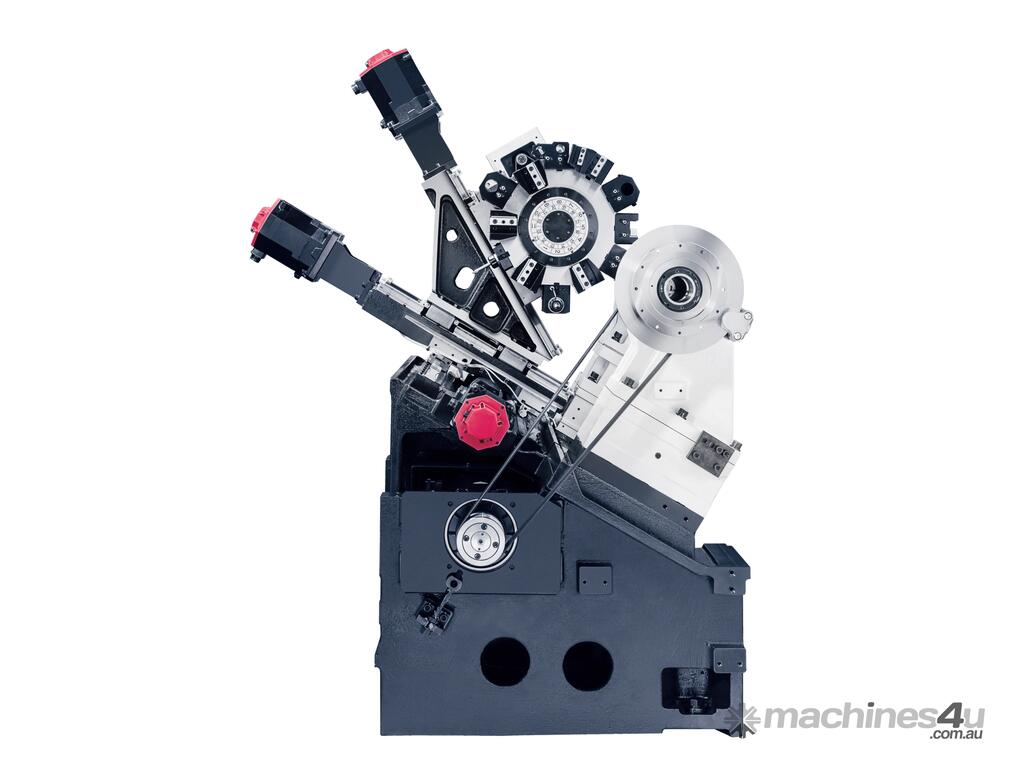

Rigid slant-bed with box-type construction
Made in Korea by Hwacheon – proven global reliability
