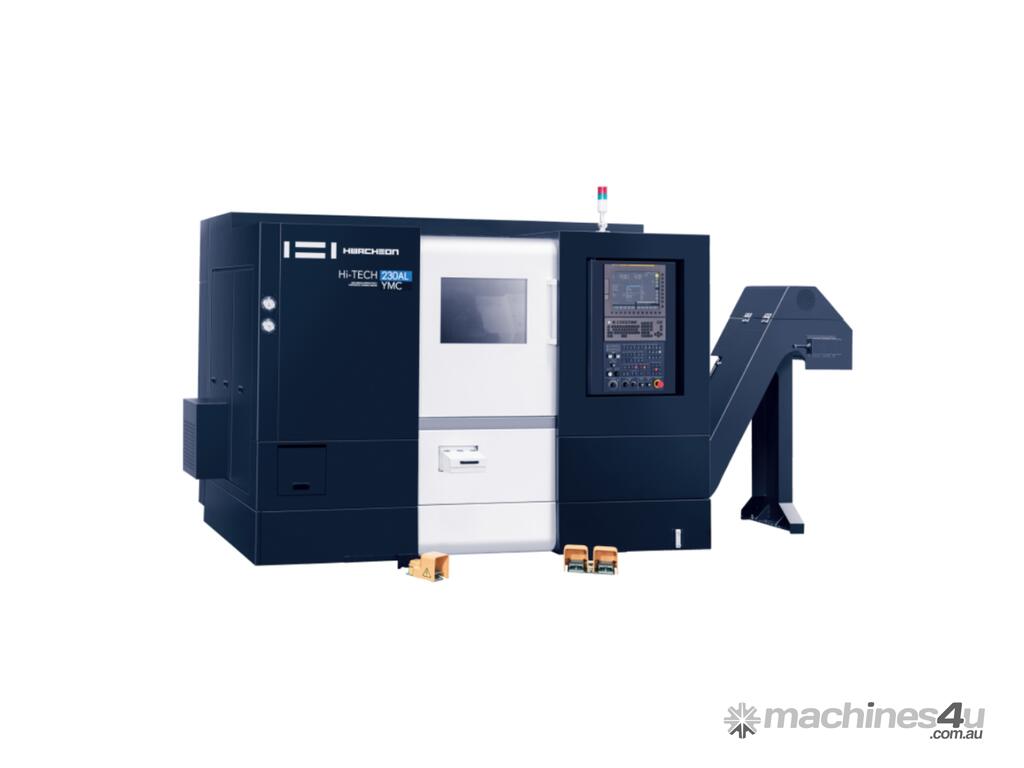

The Hwacheon Hi-TECH 230A YMC is engineered for manufacturers who demand reliability, precision, and full multi-axis performance. With ±60mm Y-axis travel, powerful live tooling, and a 22kW main spindle, this machine handles heavy cuts, complex profiles, and off-centre machining with ease.
Perfect for general engineering, mining, energy, automotive, and defence work.
Key Specifications:
Chuck Size: 10”
Max Turning Diameter: Ø420 mm
Max Turning Length: 650 mm
Bar Capacity: Ø81 mm
Spindle Speed: 3,500 rpm
Spindle Motor: 22 / 18.5?kW
Spindle Torque: 734 Nm
Y-Axis Travel: ±60 mm
Live Tool Turret: 12-station BMT65
Live Tool Speed: 5,000 rpm
Live Tool Motor: 5.5 / 3.7 kW
Control: FANUC 0i-TF Plus with Manual Guide i
Rapid Traverse (X/Z): 24 m/min
Weight: 6,800 kg
Why Choose Hwacheon?
Built in South Korea – renowned for precision and longevity
Y-axis power: ±60?mm travel for true multi-axis machining
Strongest spindle and turret specs in its class
Ideal for mill-turn, off-centre drilling, tapping and more
Automation-ready with bar feeder, parts catcher, and chip conveyor compatibility
