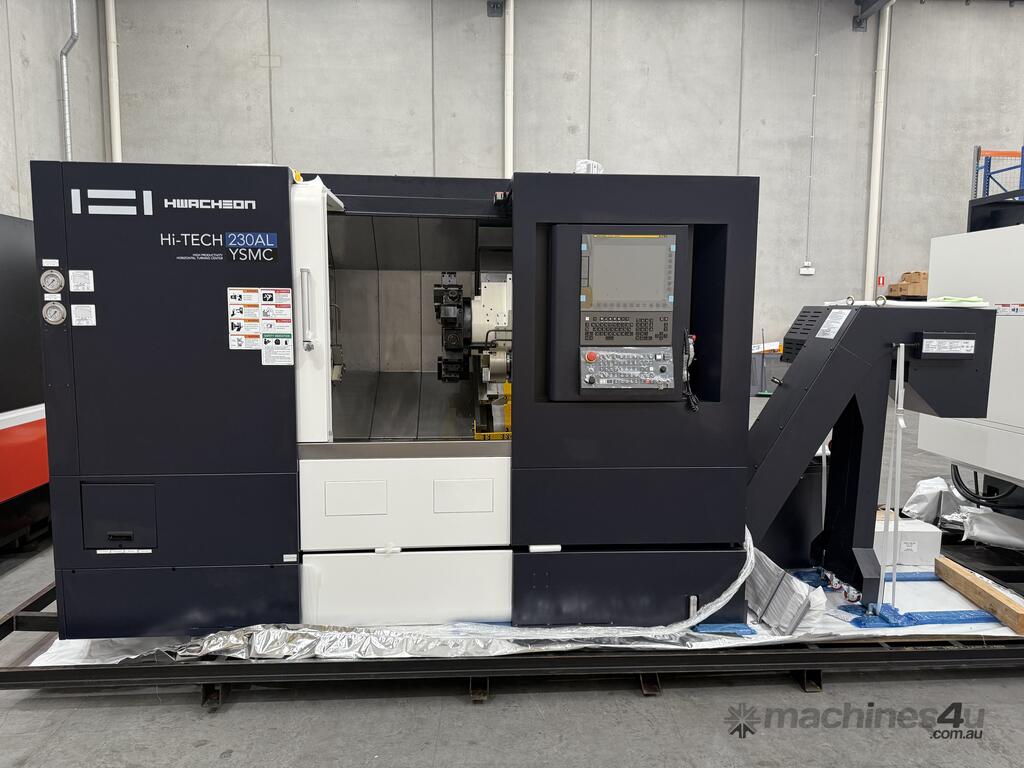

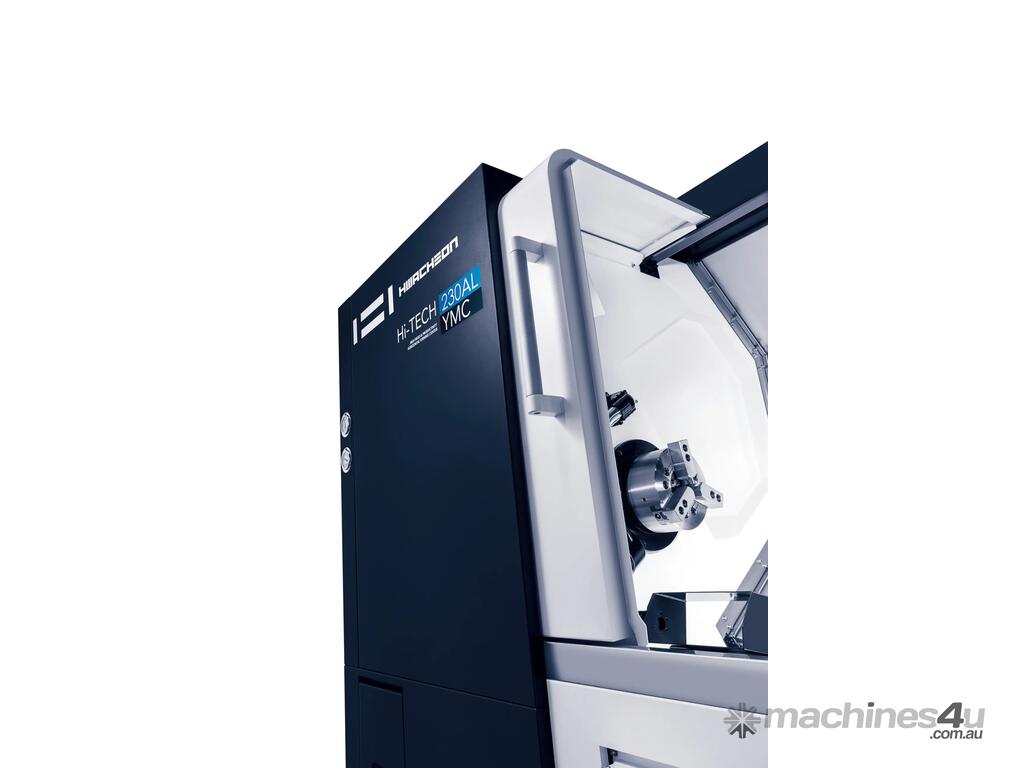

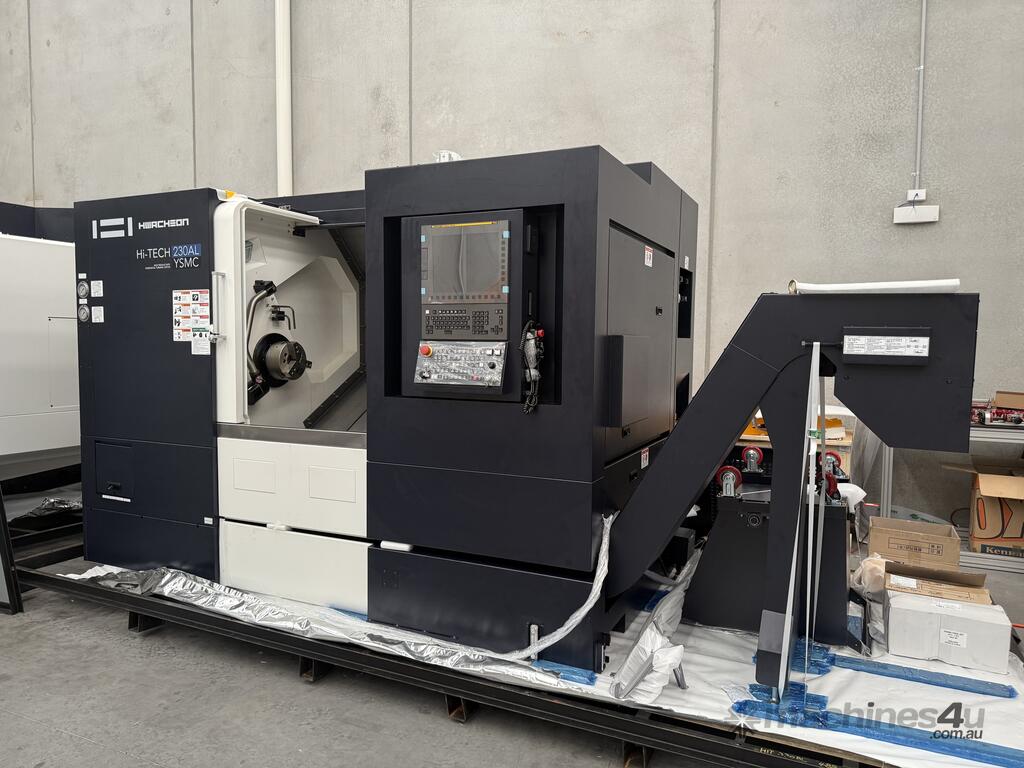

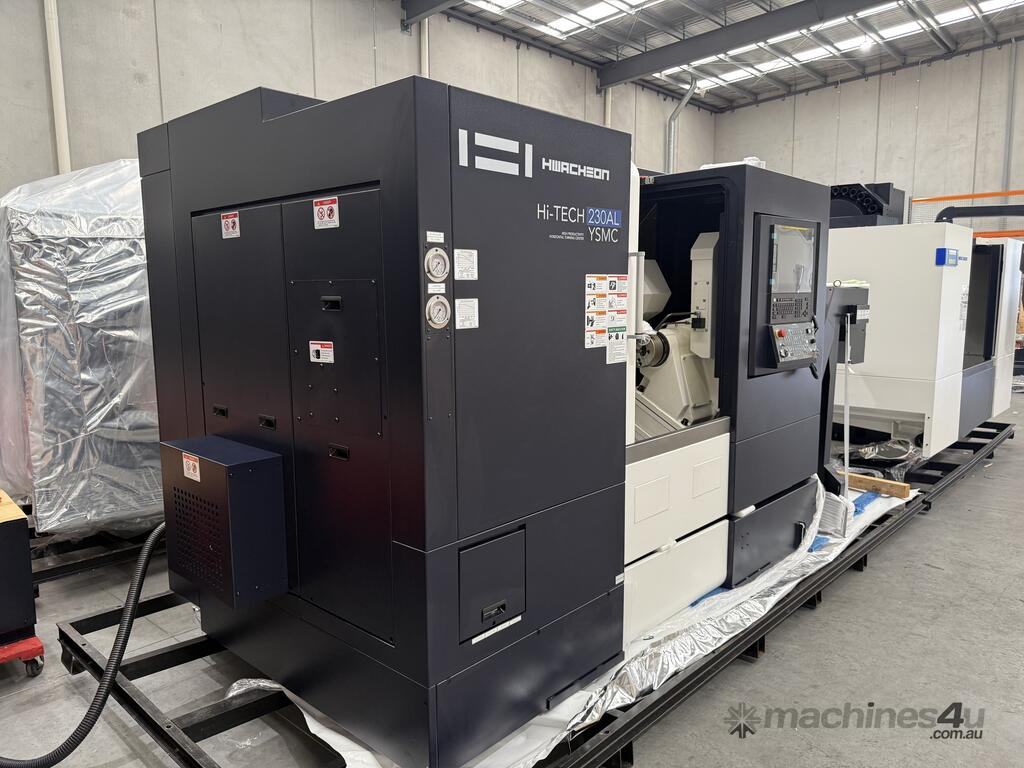

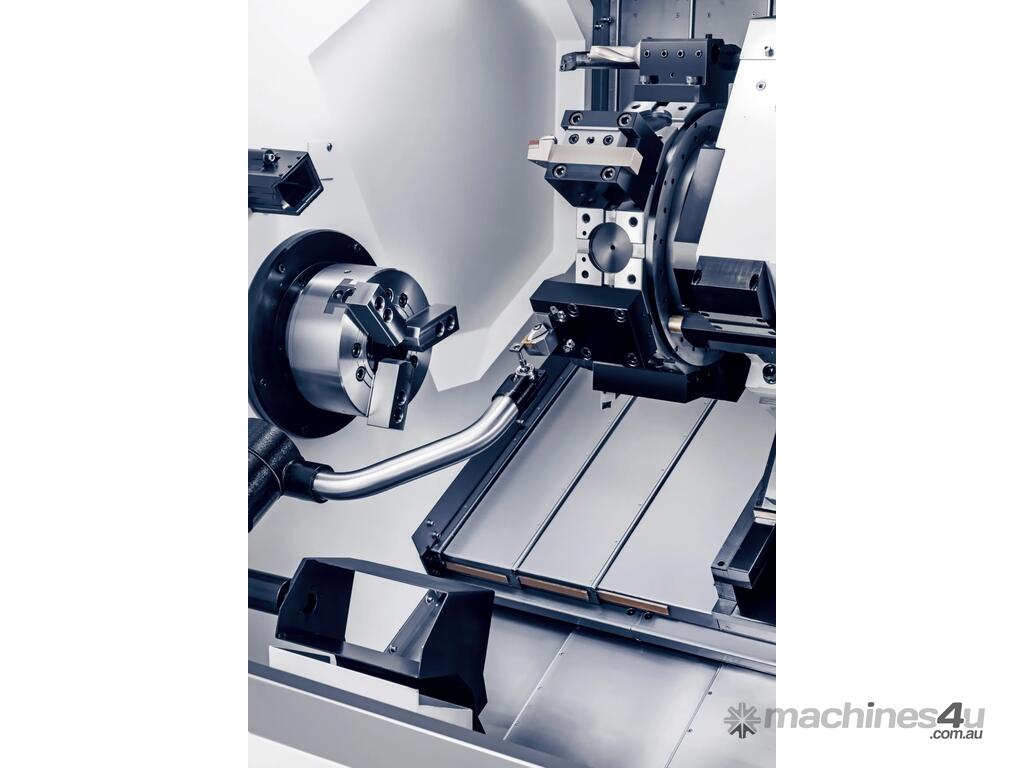

The Hi-TECH 230AL YSMC is a high-performance multi-tasking turning centre built in South Korea by Hwacheon. With a robust box-way structure, sub-spindle, Y-axis functionality, and high-speed live tooling, this machine is engineered for complex machining in a single setup.
Ideal for job shops, OEMs, and production lines requiring flexibility, precision, and productivity.
Key Specifications
Chuck size: 8 inch
Max cutting diameter: Ø400 mm
Max cutting length: approx. 344 mm
Spindle through hole: Ø76 mm
Bar capacity: Ø65 mm
Main spindle speed: 4,500 rpm
Main spindle motor: 18.5 / 15 kW
Y-axis travel: ±60 mm

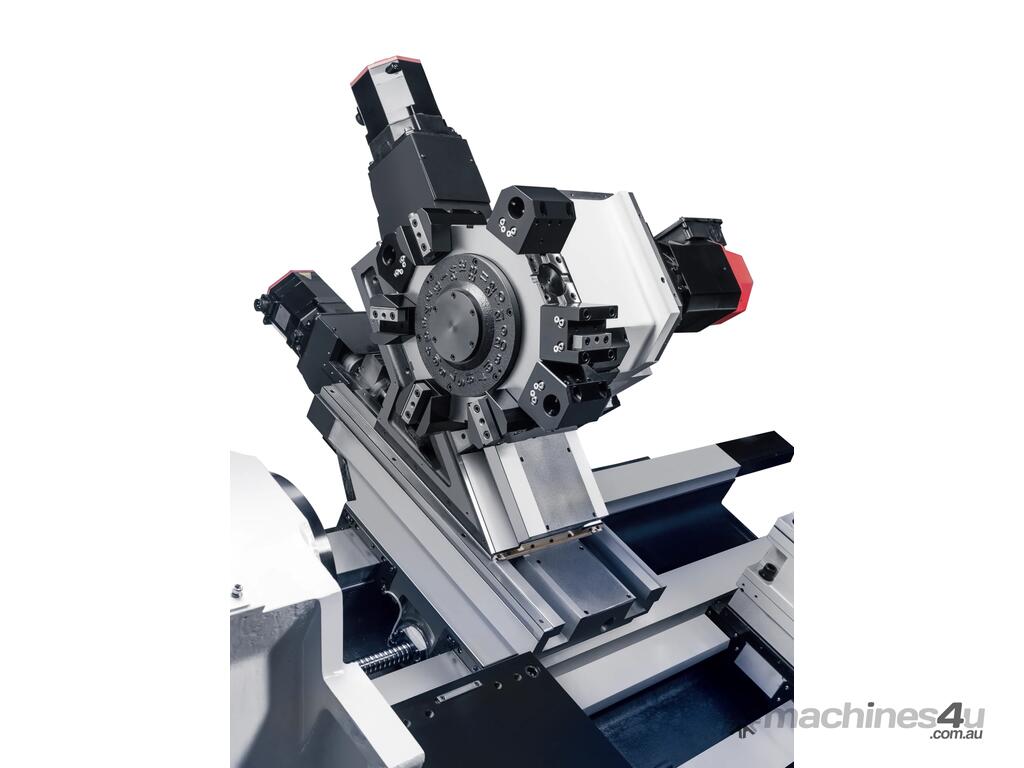

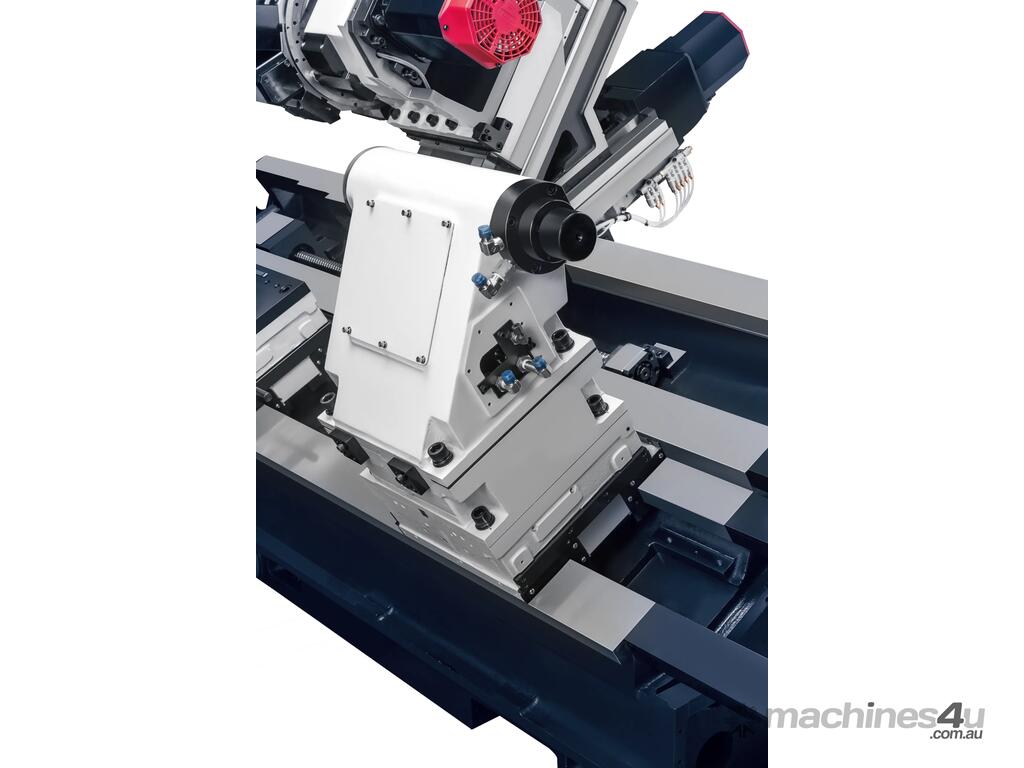

Live tooling turret: BMT-65, 12 stations
Live tooling speed: 5,000 rpm

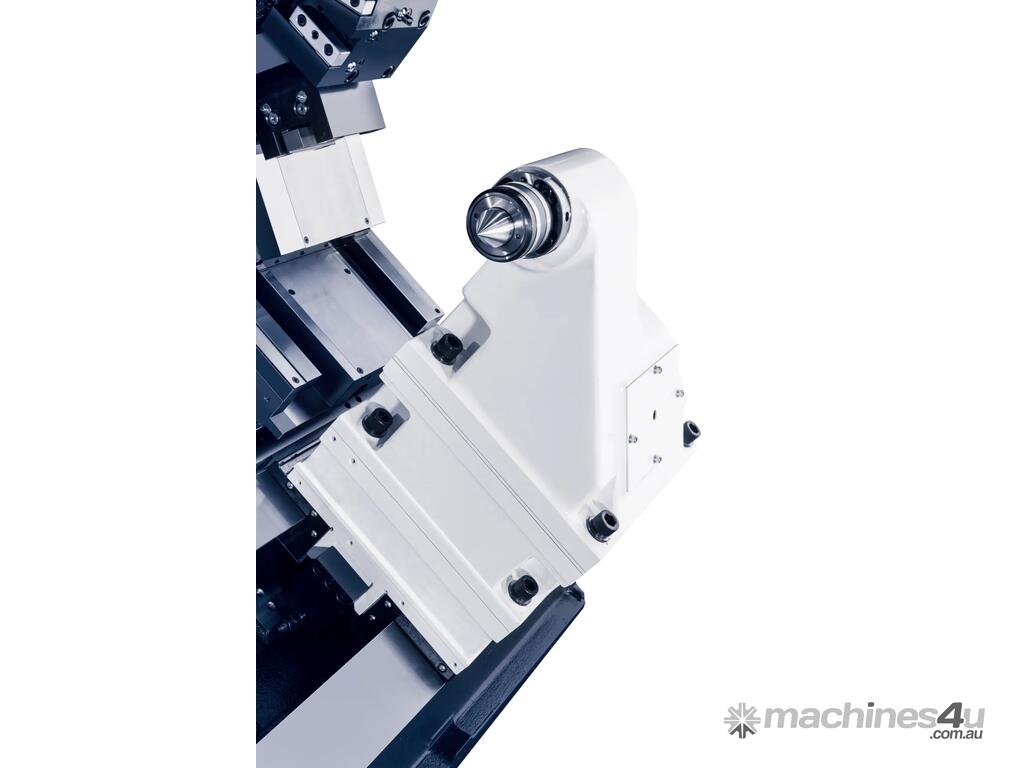

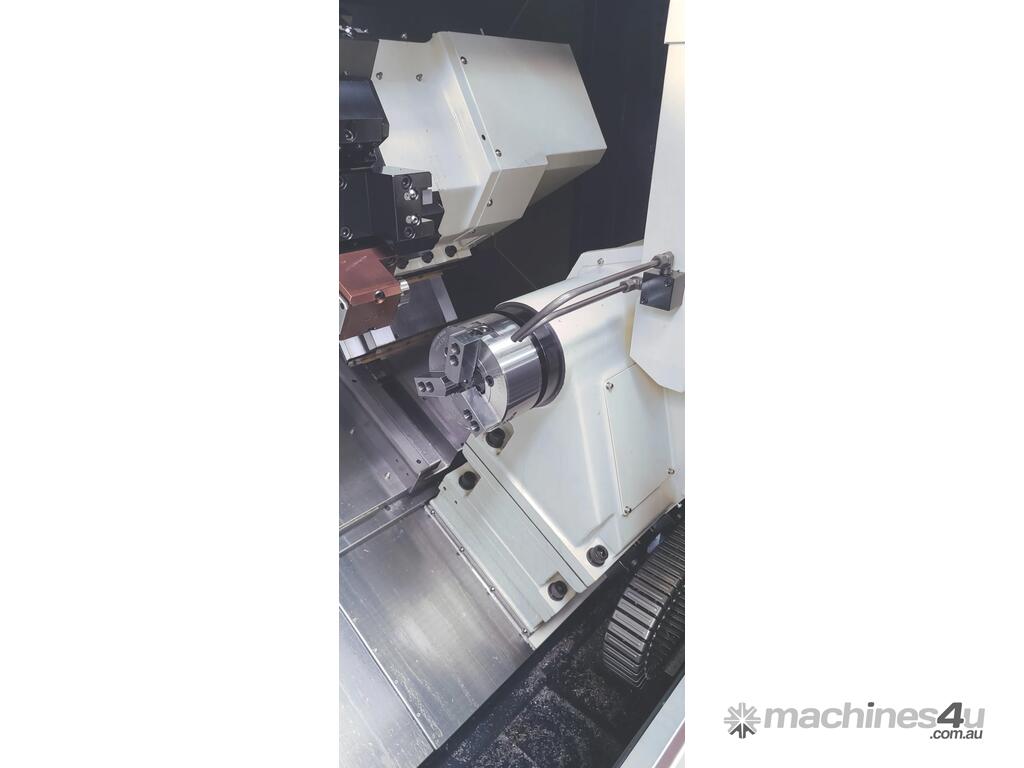

Sub-spindle included

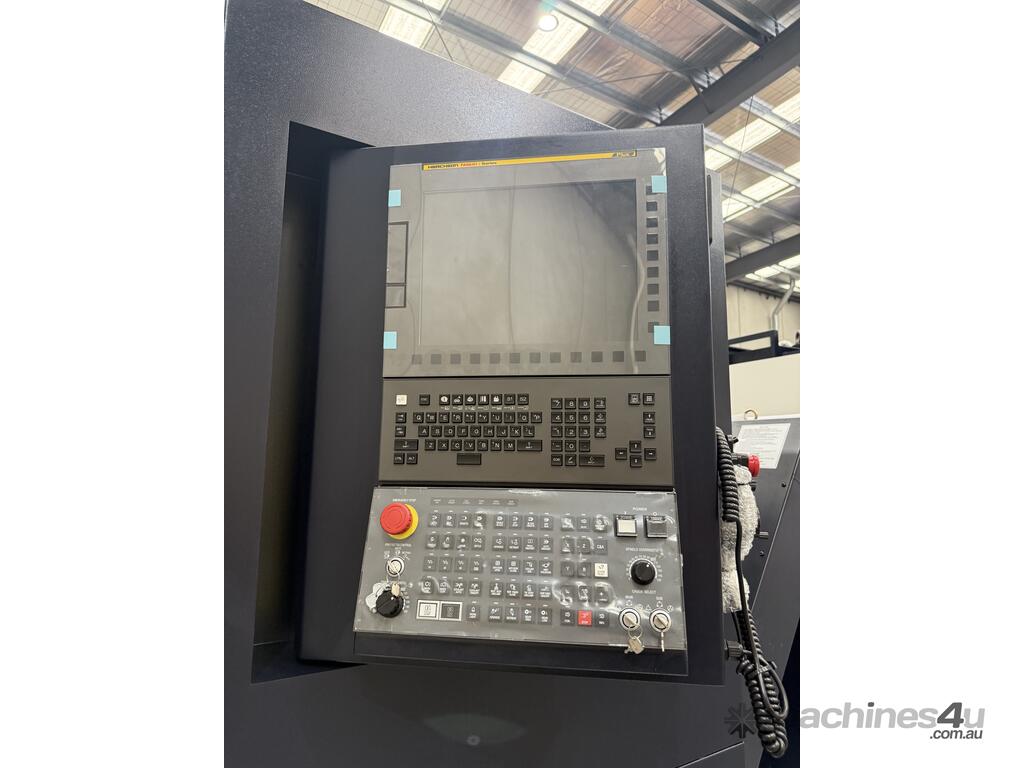

CNC control: FANUC 0i-TF Plus
Features

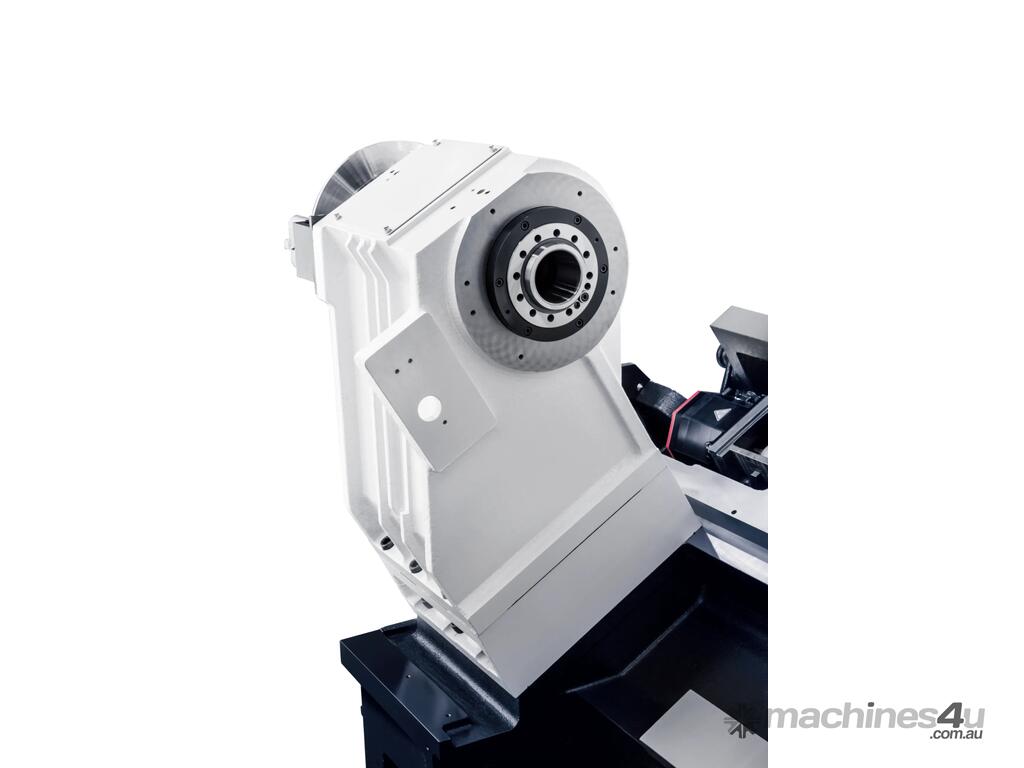

Large through-spindle bore for bar feeding or shaft work
Full Y-axis capability for off-center milling and drilling

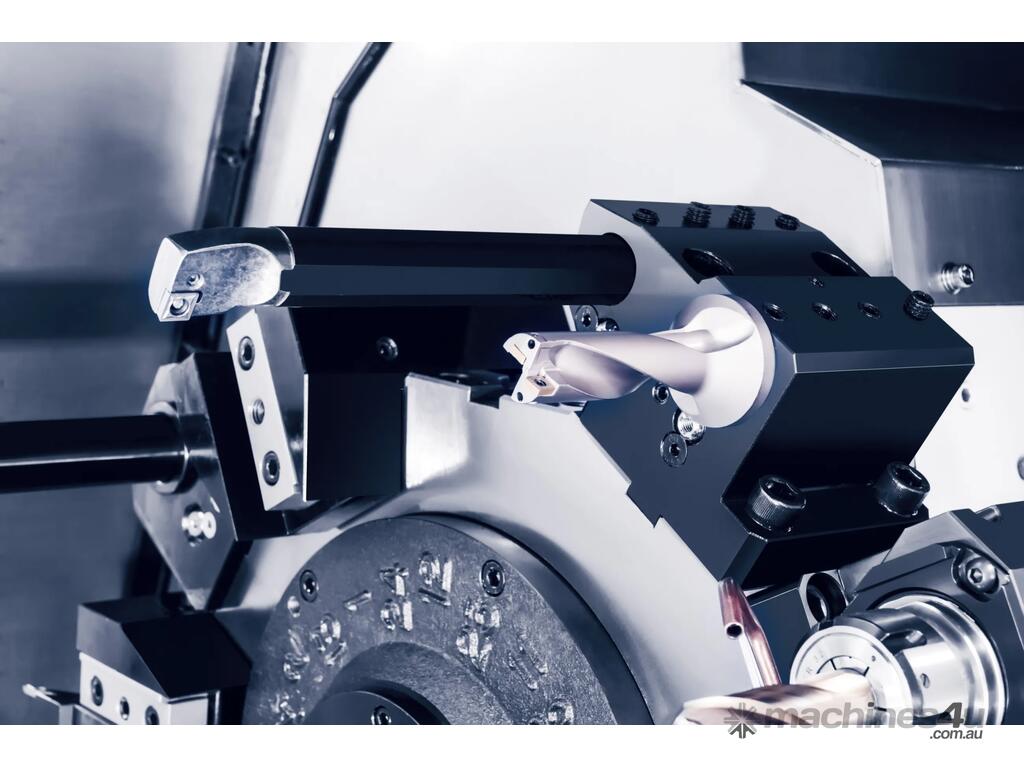

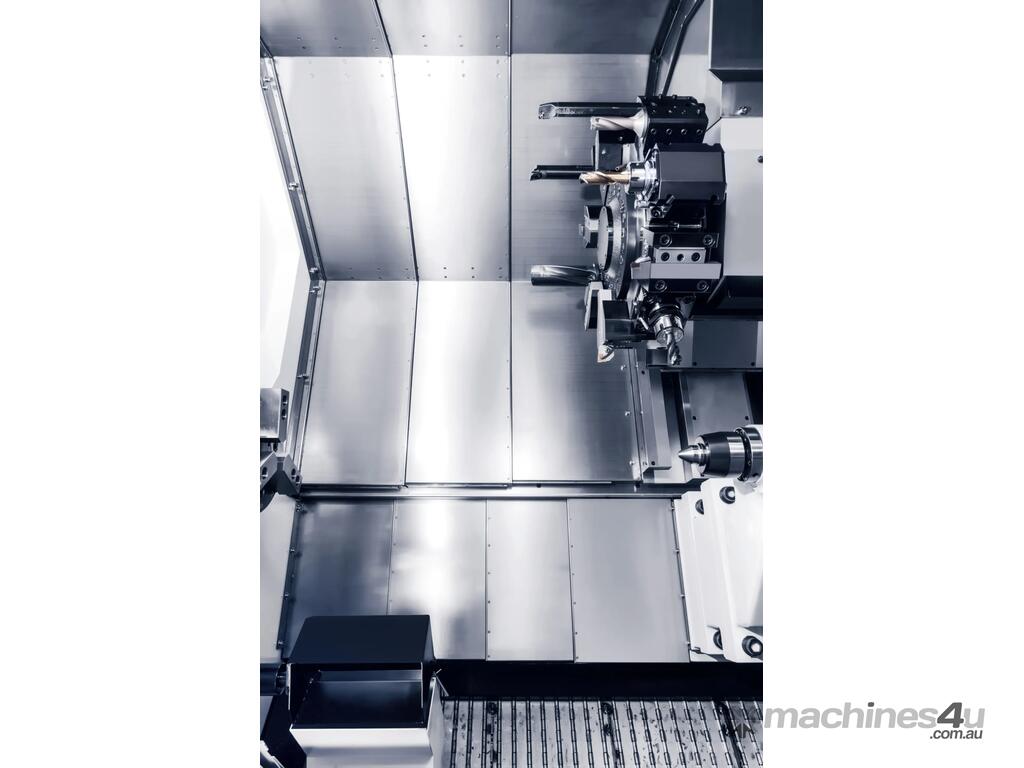

Live tooling turret supports full mill-turn operations

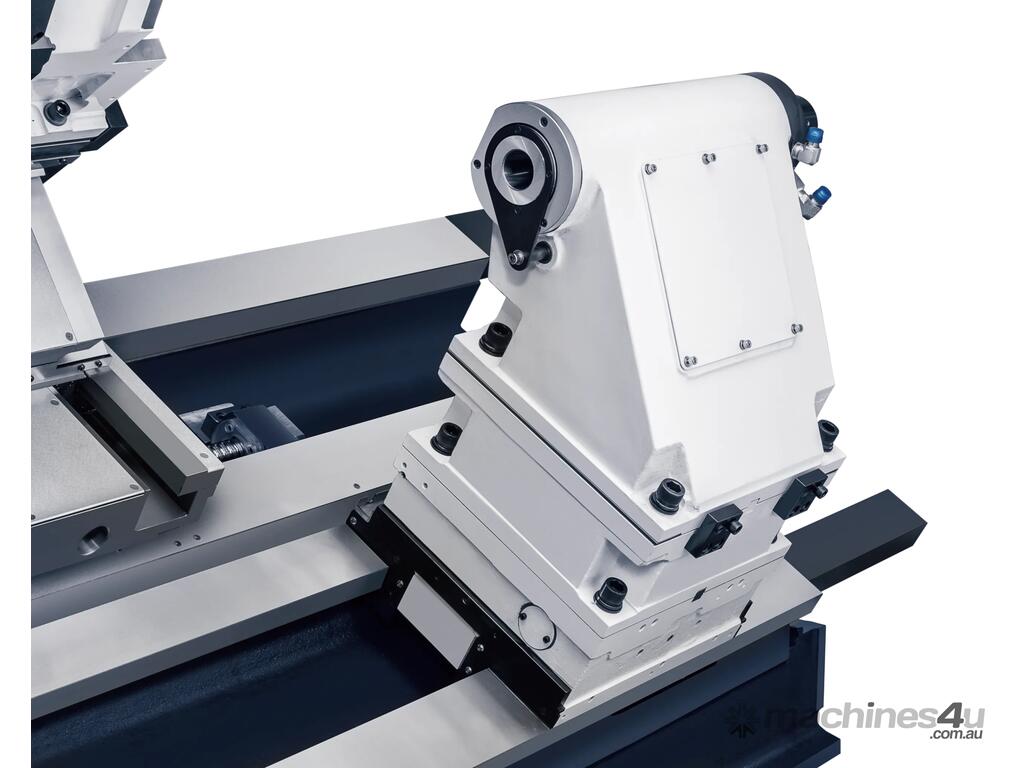

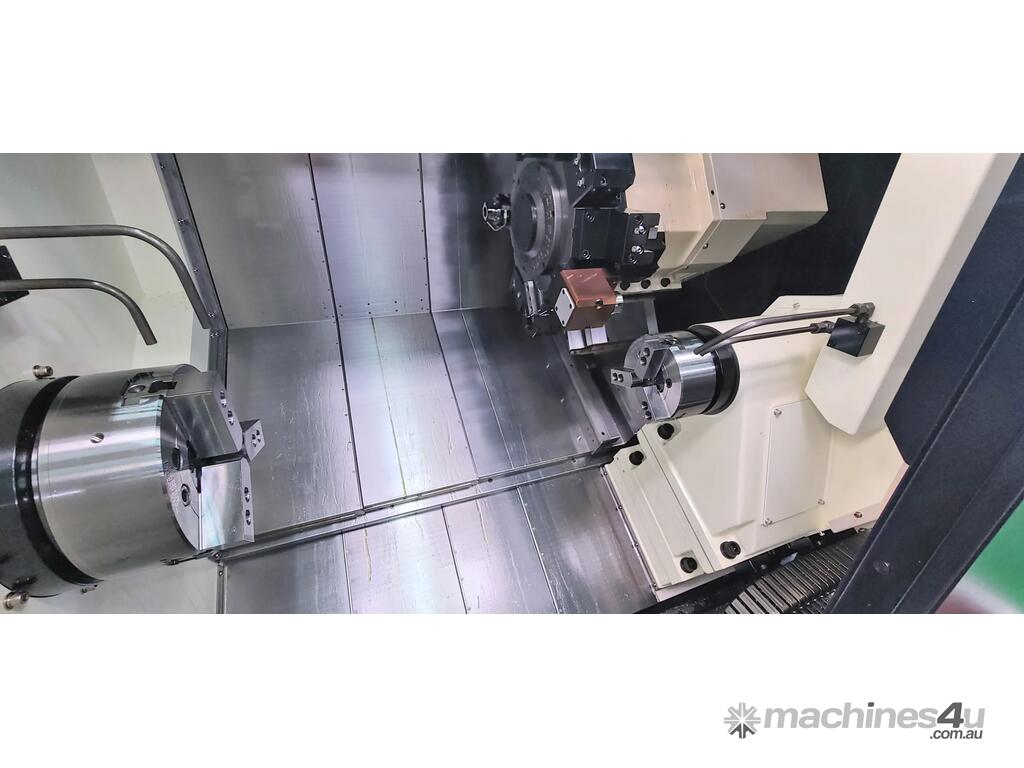

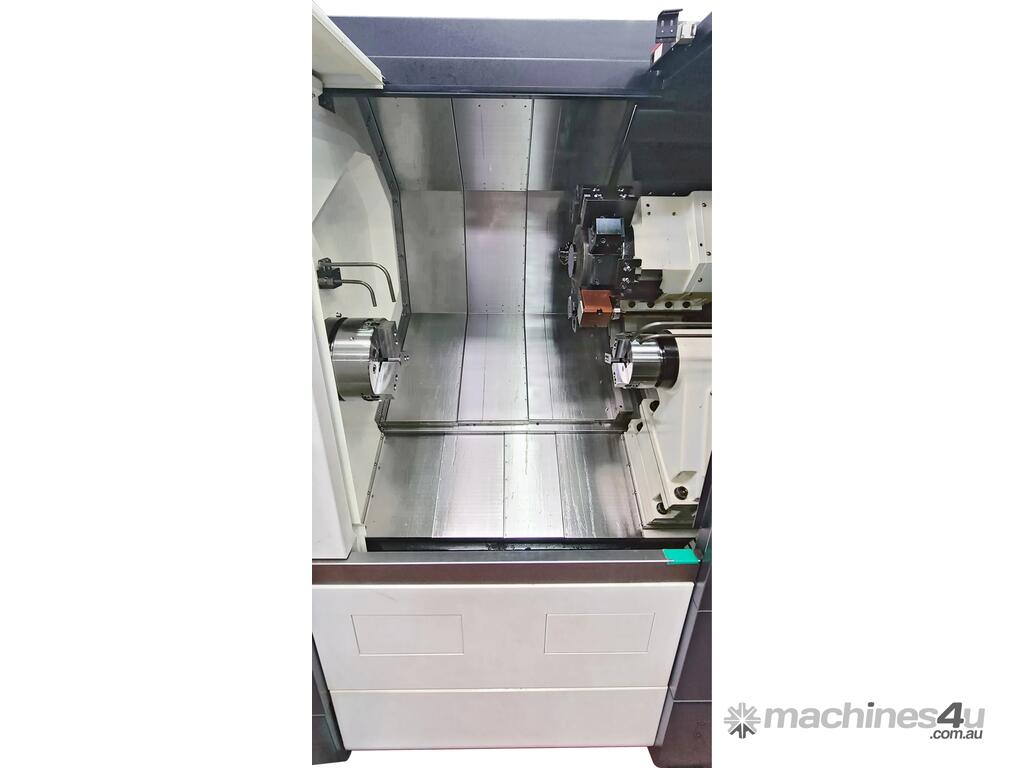

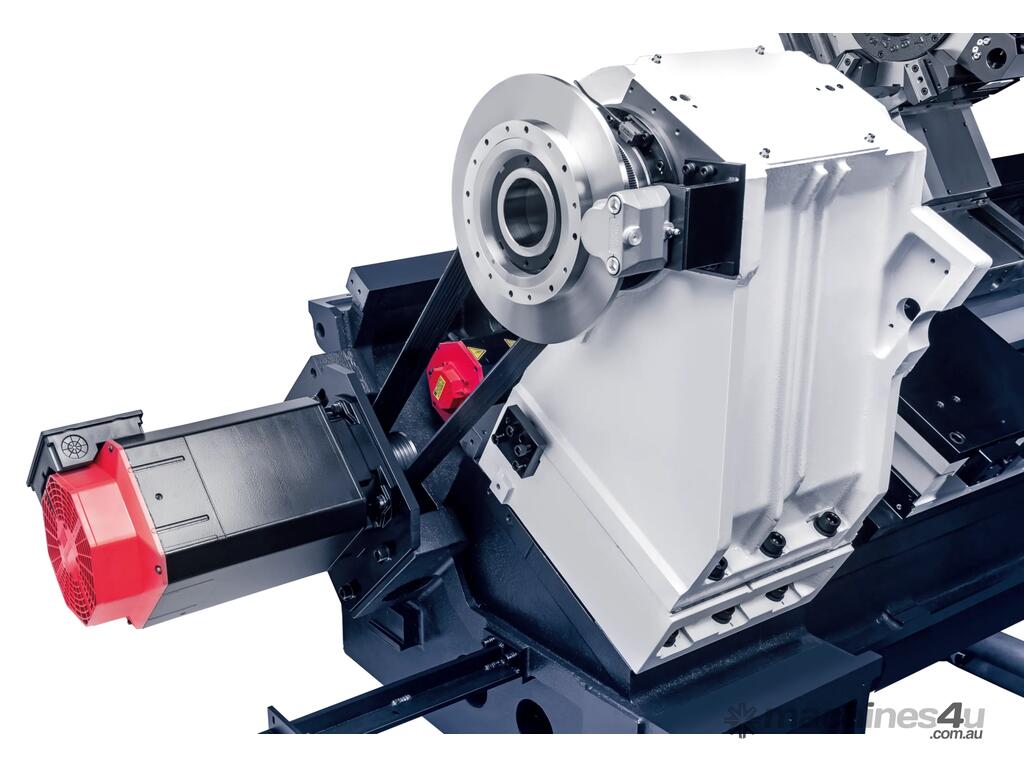

Sub-spindle for front and back machining in one cycle

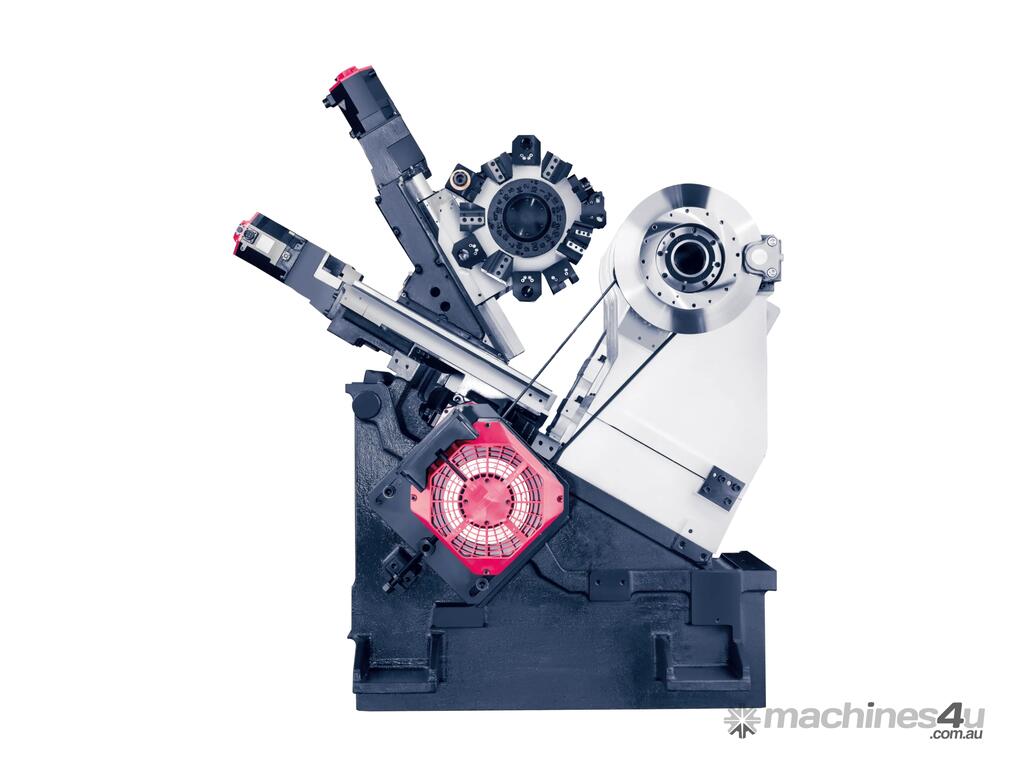

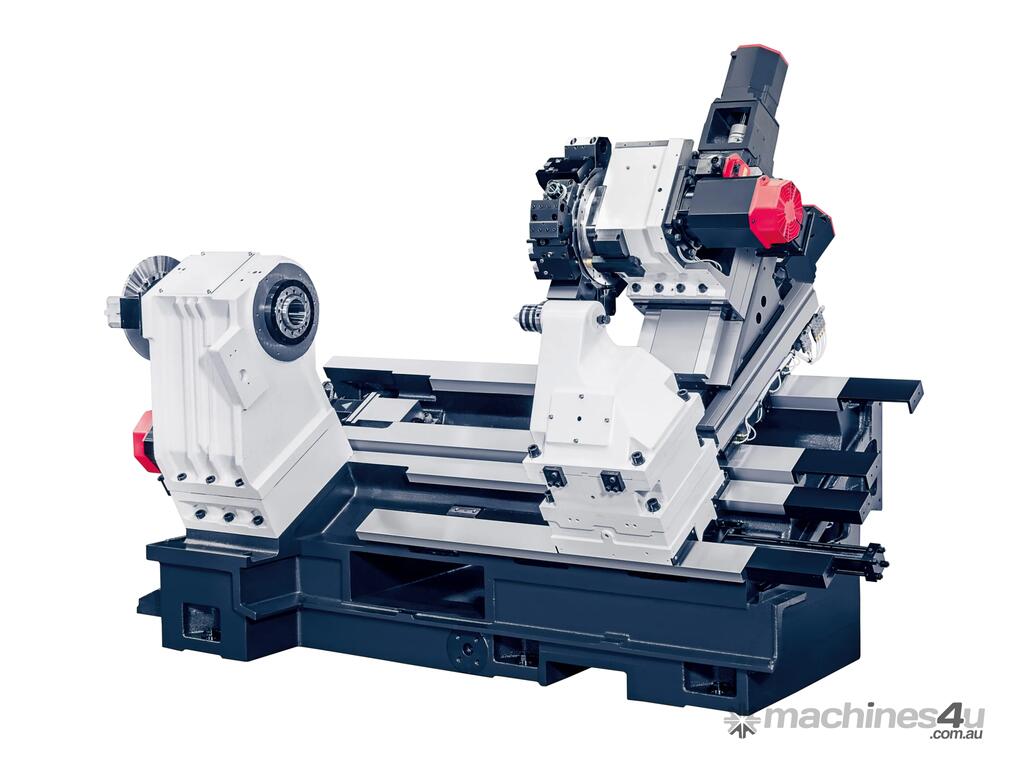

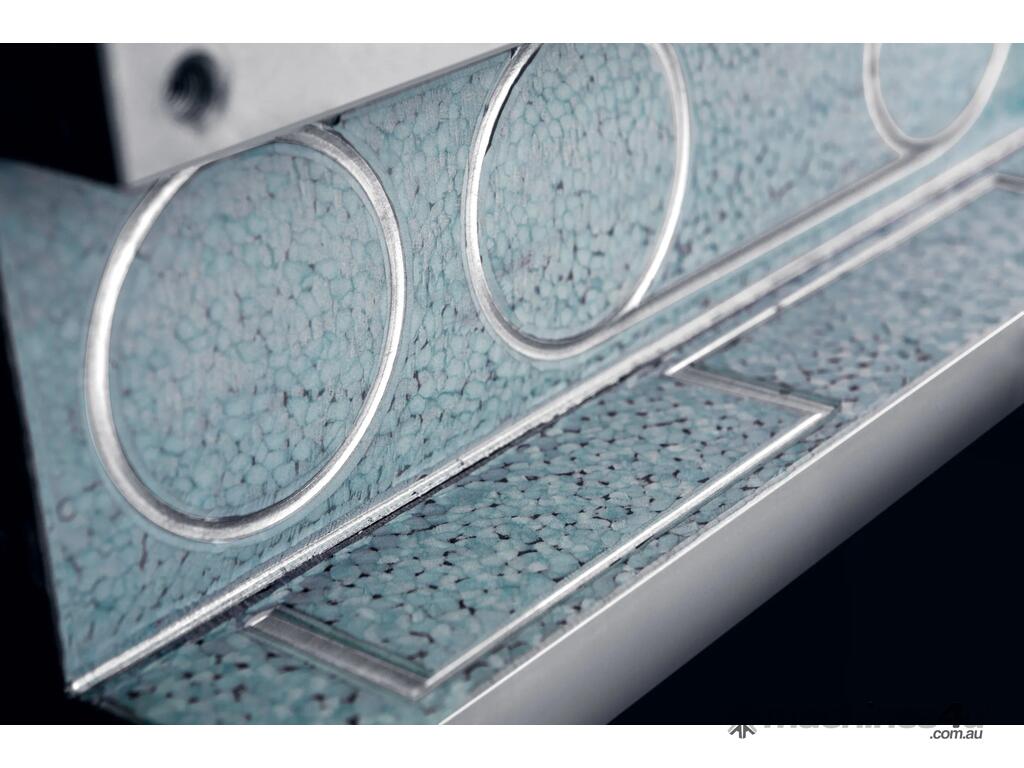

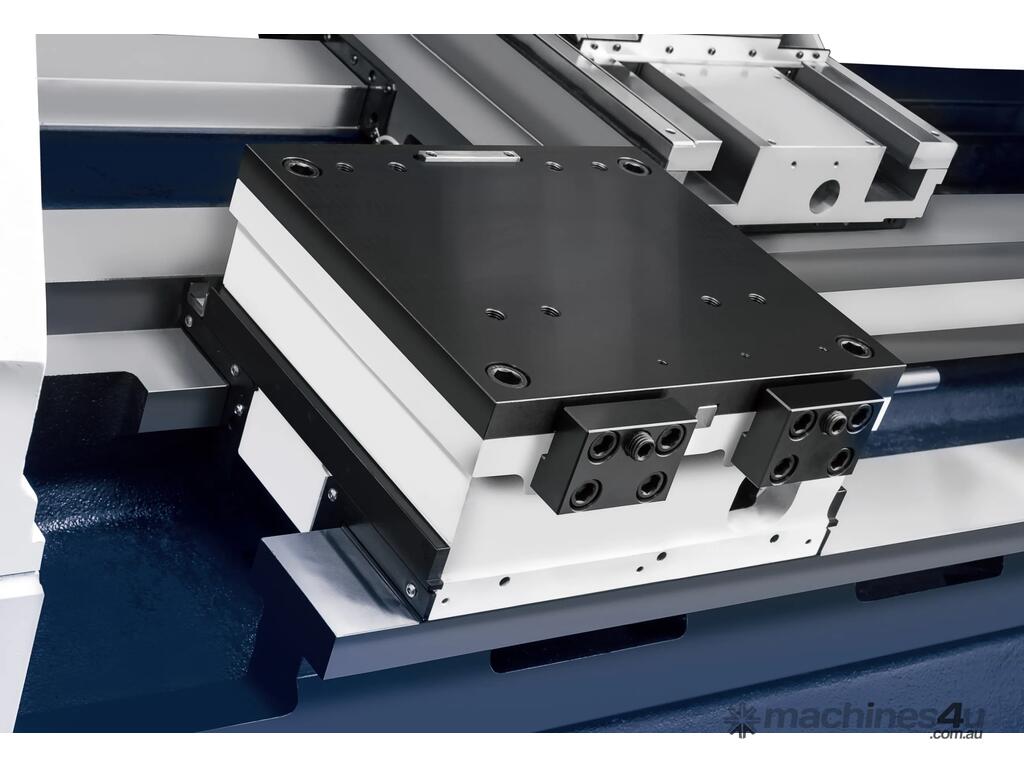

Box-way construction for heavy-duty cutting with high rigidity

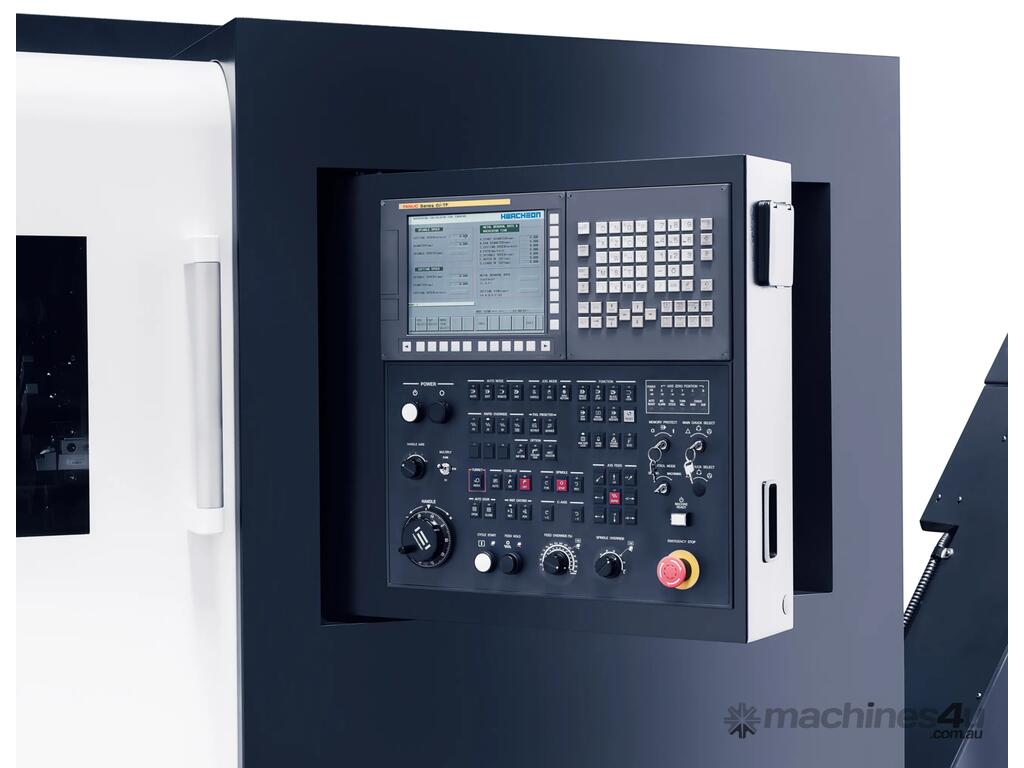

Fanuc control for ease of use and global serviceability

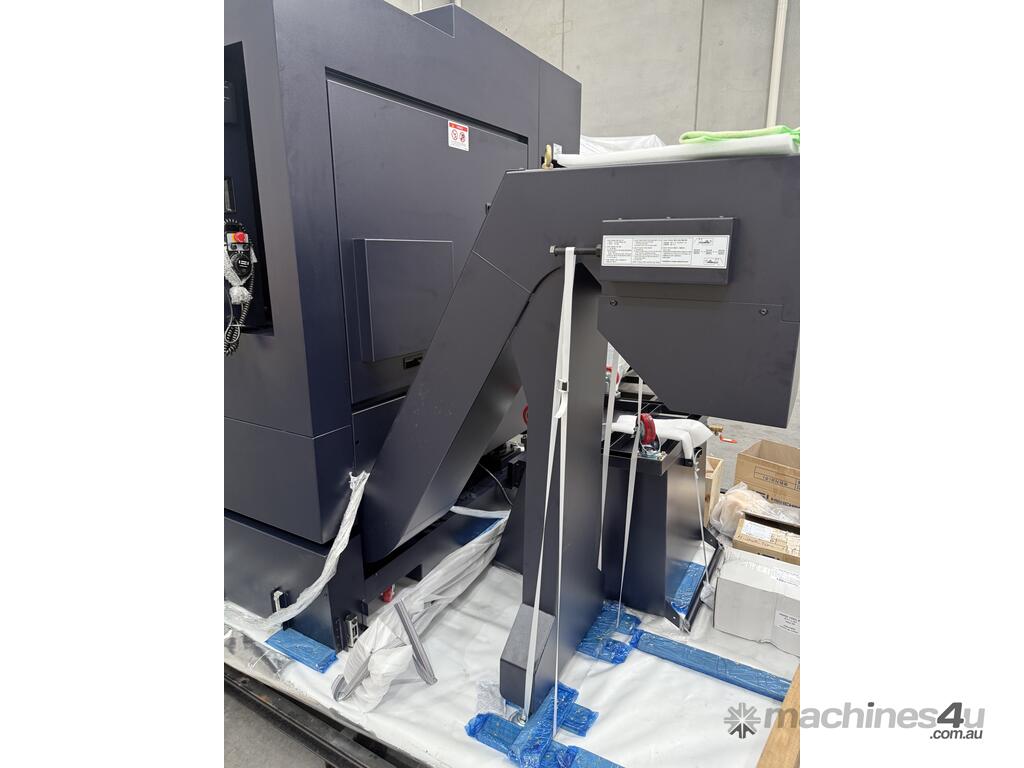

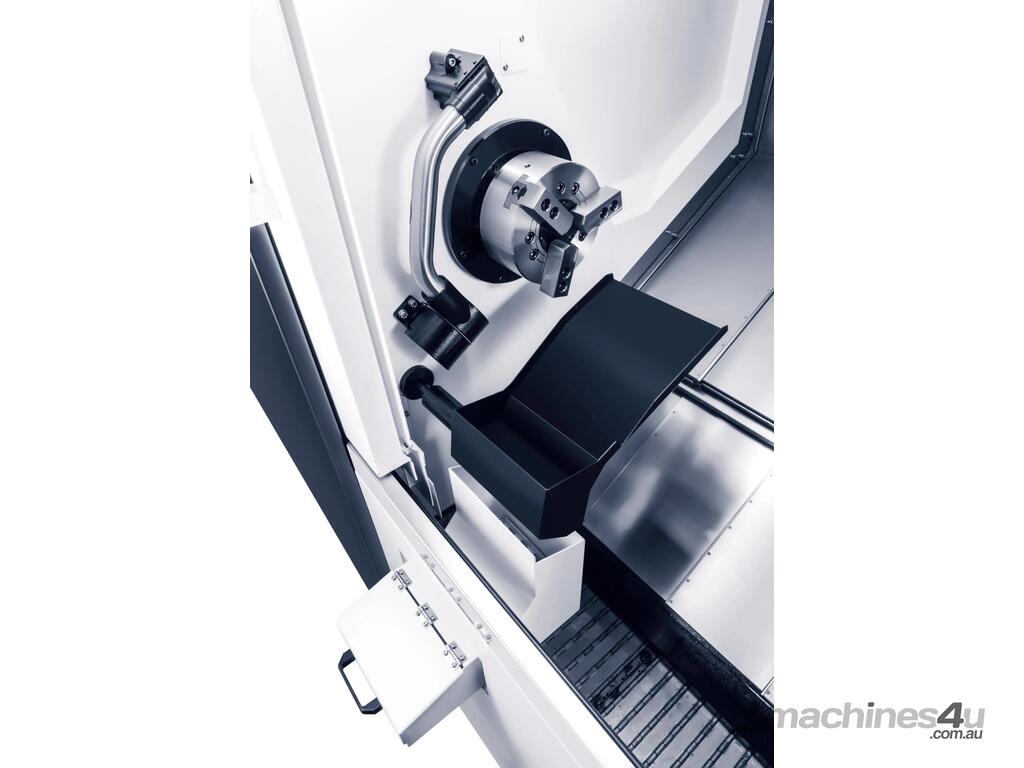

Automation-ready with barfeeder, parts catcher, and chip conveyor compatibility
