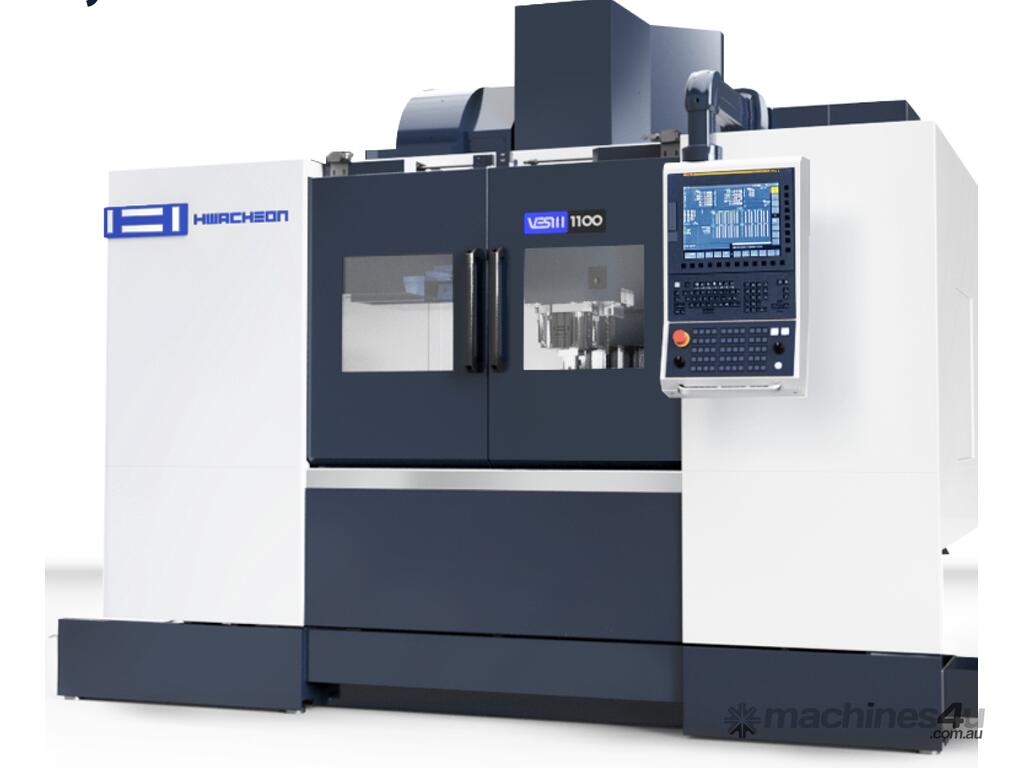

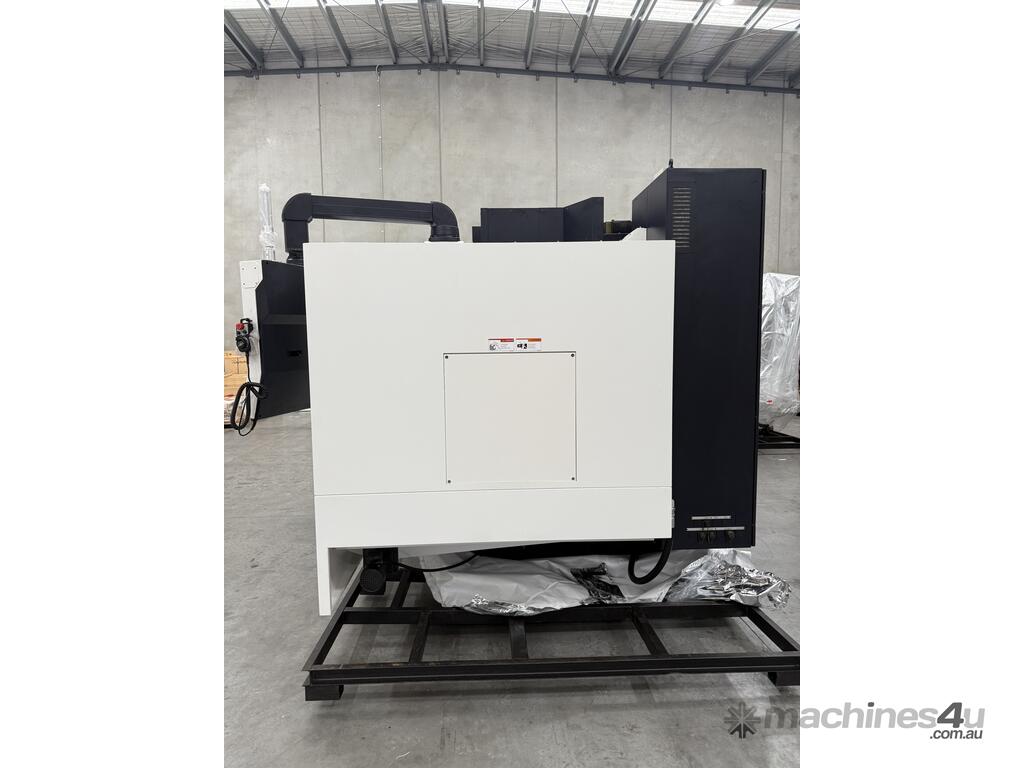

South Korean-built BT40 machining centre with 1100 mm X travel, heavy-duty roller guides, and Hwacheon’s own intelligent control suite.
Ideal for mould, die, general engineering, and batch part production.
Key Features:
Travel (X/Y/Z): 1100 x 600 x 600 mm
Table Size: 1300 x 600 mm – Supports 4x 6” vices
Table Load Capacity: 700 kg
Spindle Power: 18.5 kW / 11 kW
Max Spindle Speed: 10,000 / 12,000 / 15,000 rpm (Options: Regular or CTS)
Spindle Torque: 117.8 Nm

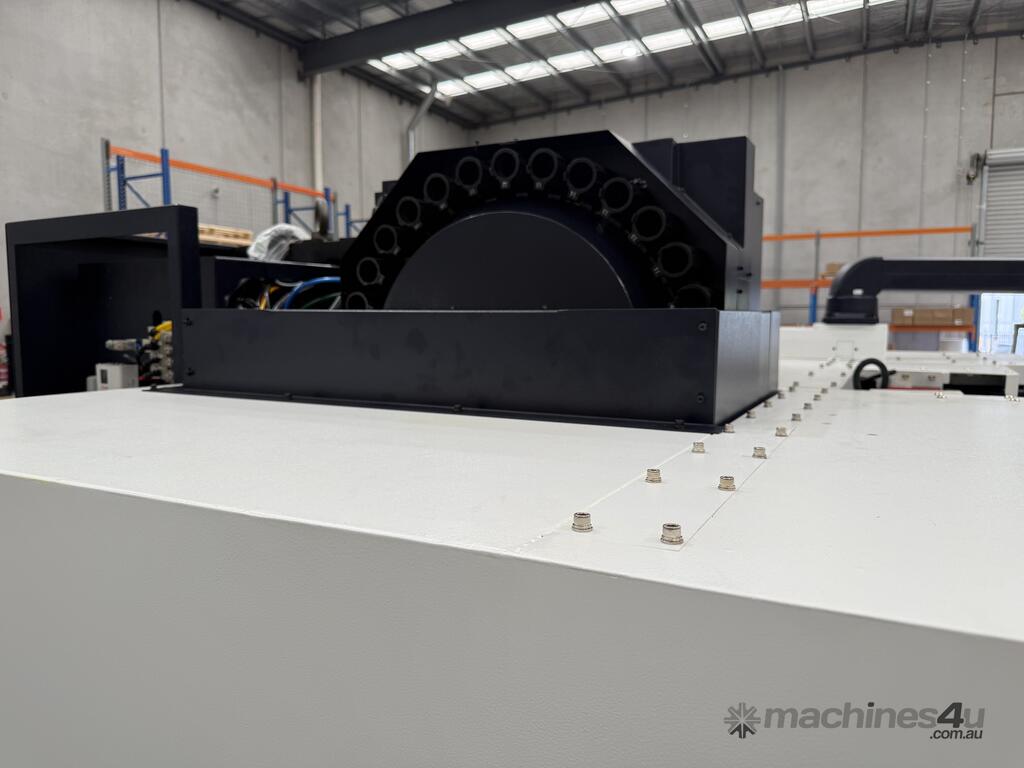

Tool Changer: 30-position swing arm ATC
Rapid Traverse: 36 m/min on all axes
Tool Taper: BT40 (Optional CAT-40, SK-40)

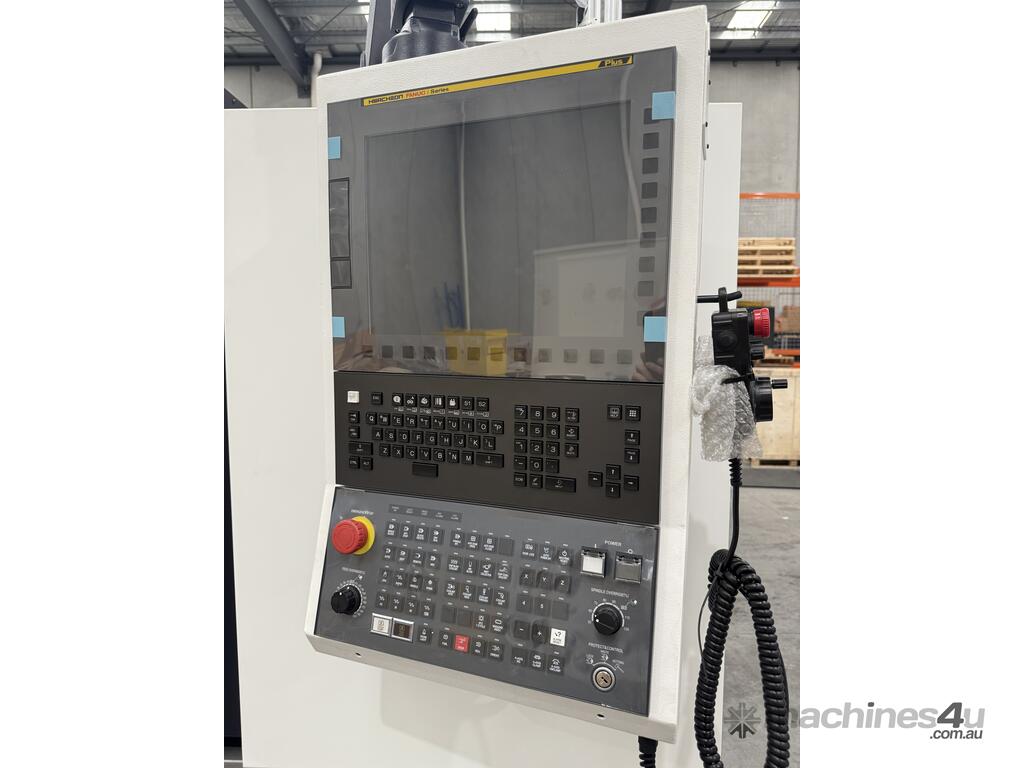

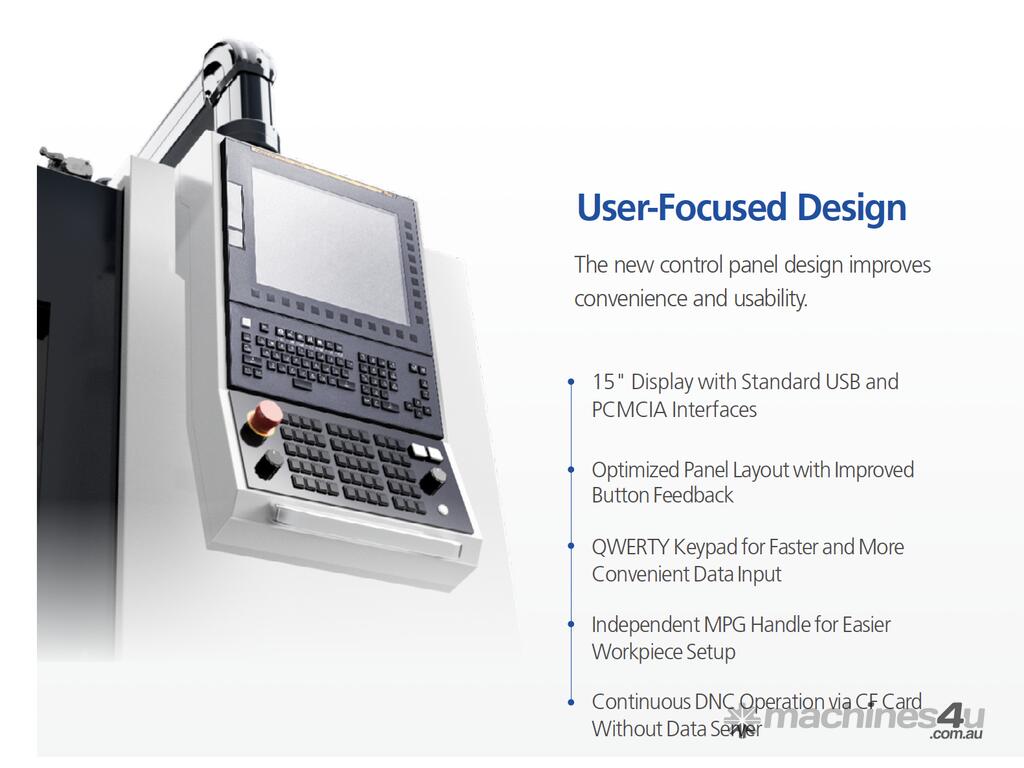

Control: Fanuc 0i-MF Plus with Manual Guide i
Built-In Intelligence:
HECC – Efficient Contour Control
HTDC – Thermal Displacement Control
HAI – Hwacheon AI Control
HTLD – Tool Load Detection
OPTIMA – Cutting Feed Optimisation
Mechanical Excellence:
Rigid C-type structure with low centre of gravity
Roller LM Guides: 6 blocks X/Z, 4 blocks Y
Reinforced base and column casting
Grease-lubricated bearings – low maintenance
Smart coolant and chip disposal system
Options Available:

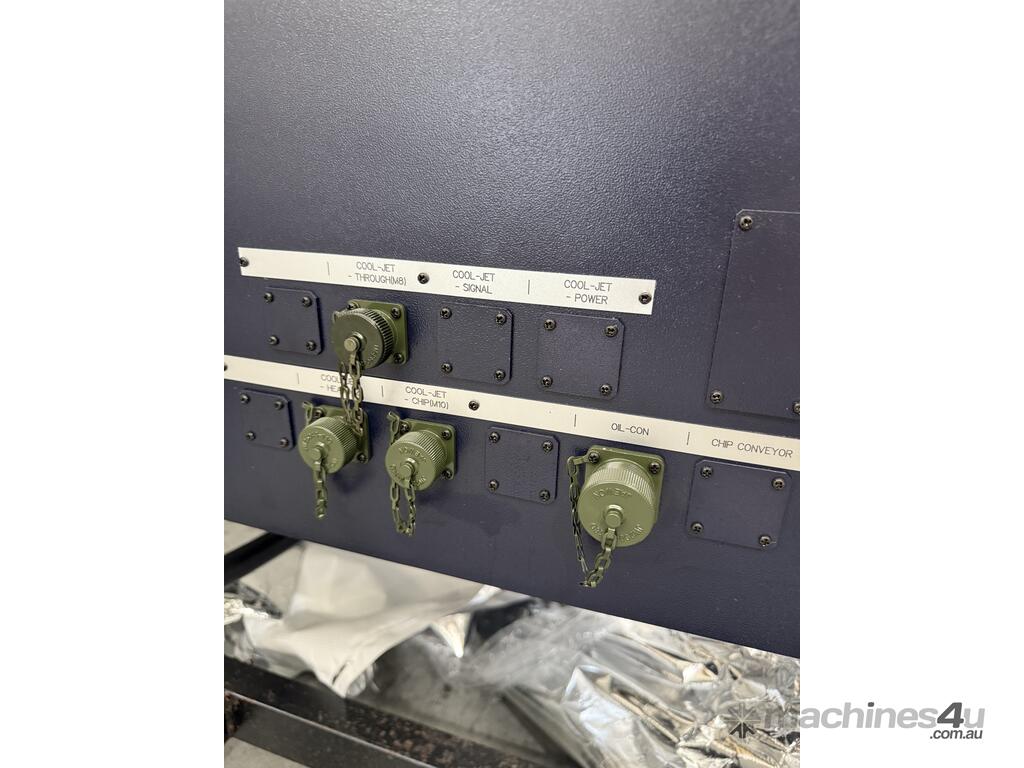

Through-Spindle Coolant (3 MPa or 7 MPa)
Mist collector, auto door, NC cooler
Renishaw or Blum tool/workpiece probing
M-VISION machine monitoring software
Oil skimmer, chip conveyors, linear scales, and more
Why Choose VESTA-1100?
Perfect bridge between speed, accuracy and rigidity
Designed for long hours and tight tolerances
Built by Hwacheon – over 80 years of machine tool heritage
Fully supported in Australia by 360 Automation
