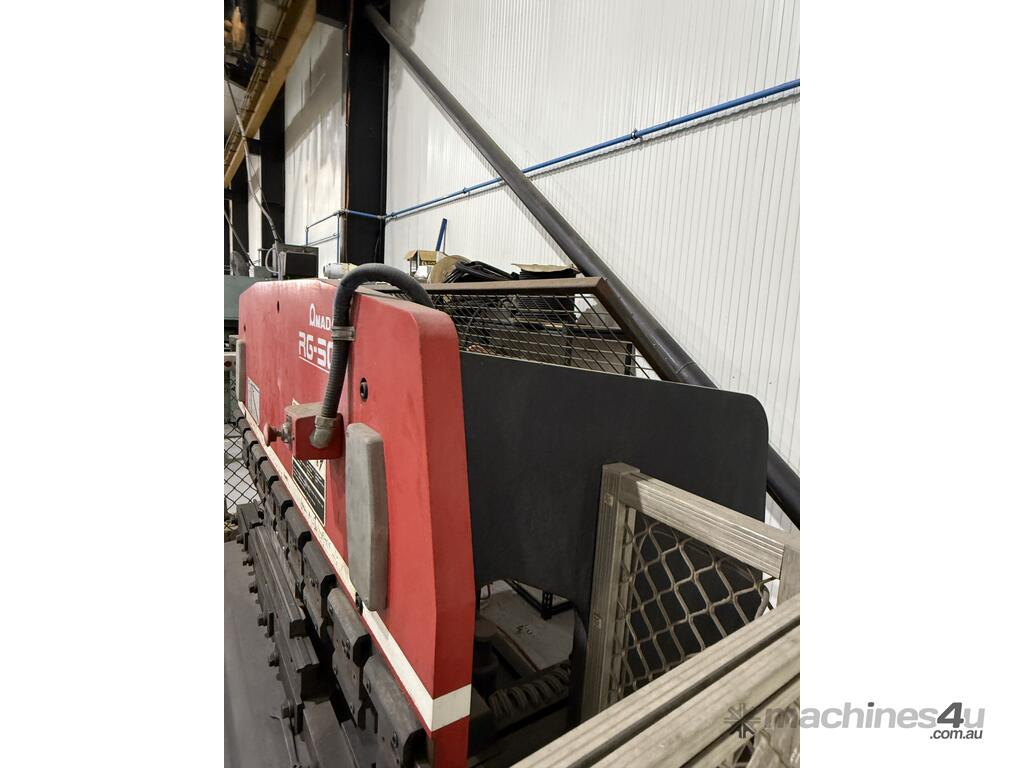

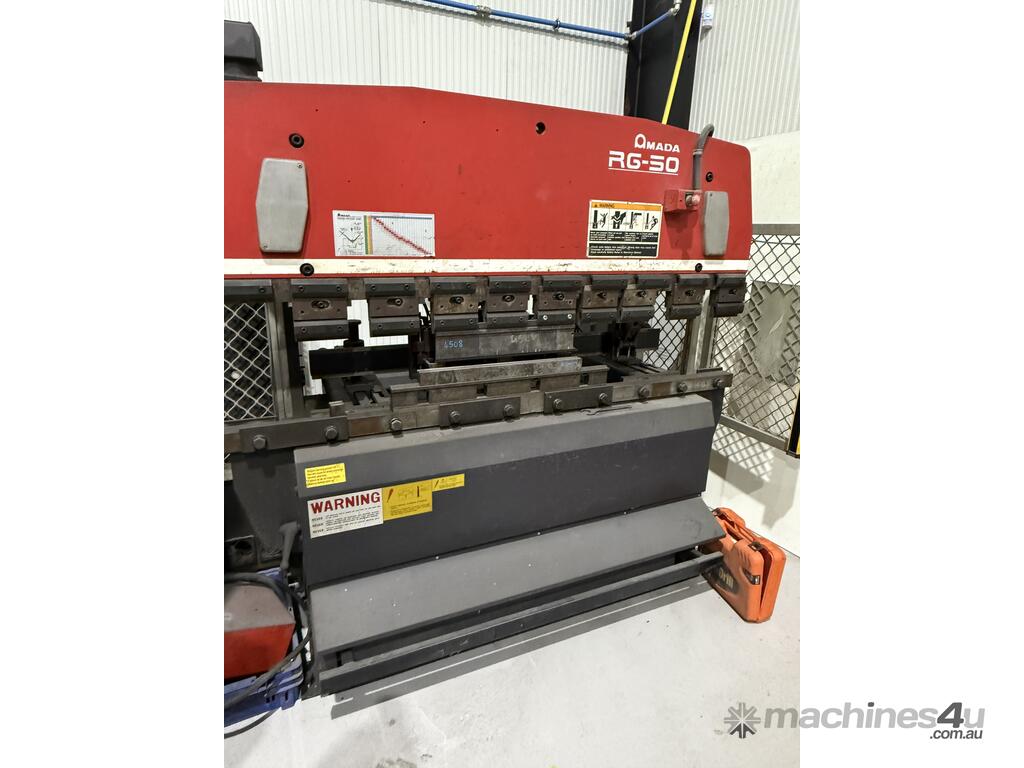

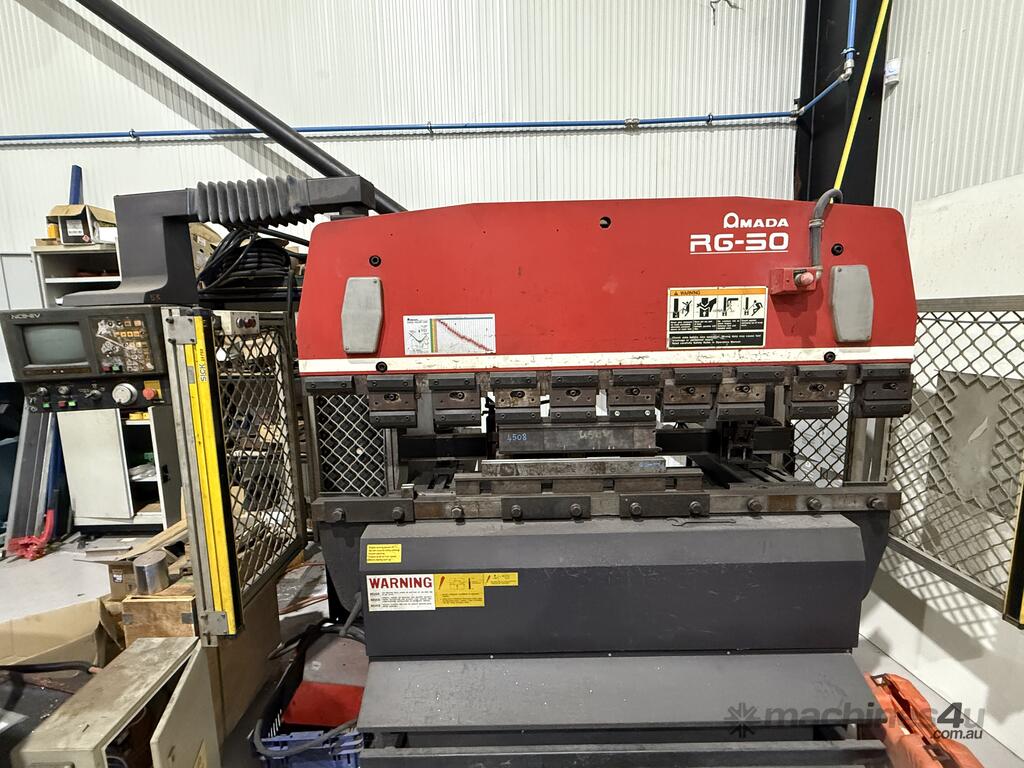

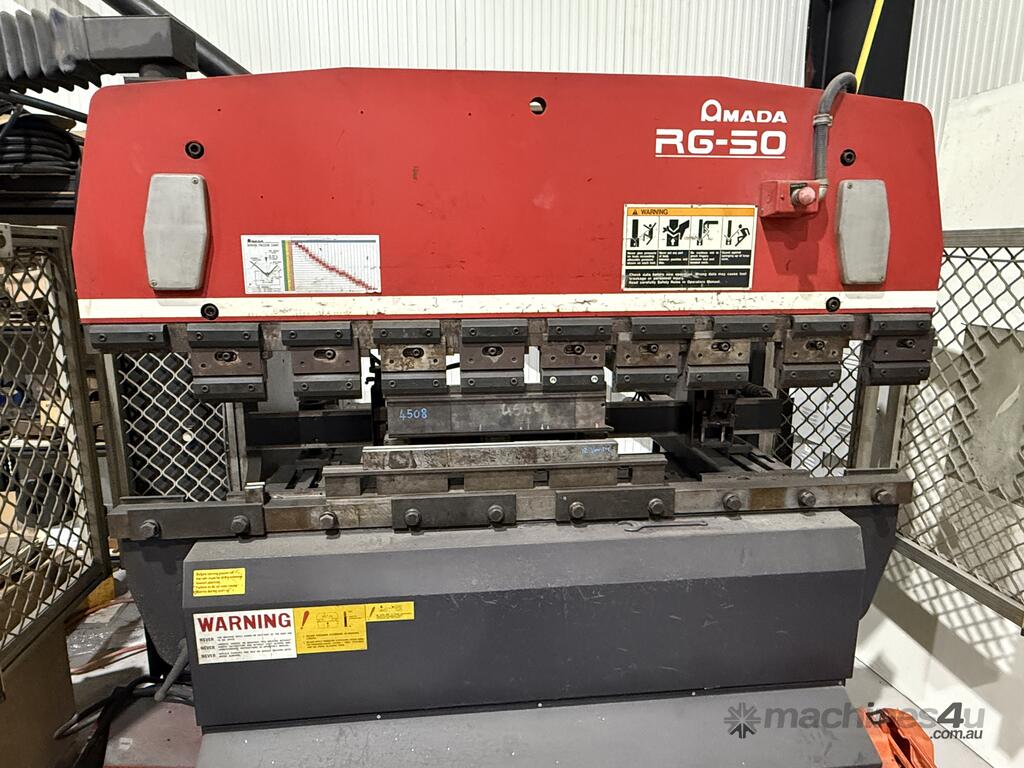

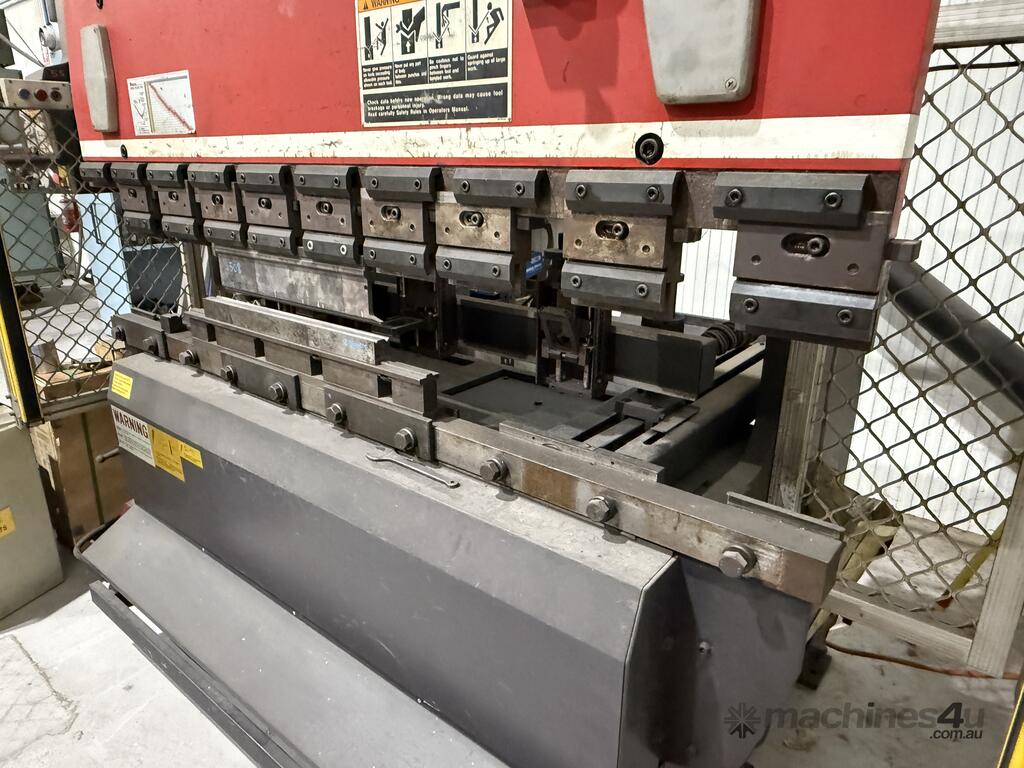

The AMADA RG-50 is a reliable and versatile hydraulic CNC press brake, designed for precision bending and shaping of metal components. It is widely used across industries such as automotive, aerospace, and general fabrication.
Key Specifications:
Tonnage Capacity: 50 tons (55 US tons)
Maximum Bending Length: 82.1 inches (2,085 mm)
Distance Between Housings: 59.9 inches (1,520 mm)
Throat Depth: 15.76 inches (400 mm)
Stroke Length: 3.94 inches (100 mm)
Open Height: 14.58 inches (370 mm)
Back Gauge Travel: 19.6 inches (500 mm)
Approach Speed: 106 in/min (2.7 m/min)
Bending Speed: 2–19 in/min (0.05–0.48 m/min)
Return Speed: 122 in/min (3.1 m/min)
Main Motor Power: 5 HP (3.7 kW)
Machine Dimensions (L × W × H):
79.6 in × 55.2 in × 75.5 in (2,020 mm × 1,400 mm × 1,920 mm)
Machine Weight: Approx. 6,600 lbs (3,000 kg)
Control System: NC9-EXII 3-Axis CNC Control
Key Features:
Up-Acting Hydraulic Design
Delivers consistent pressure and improved bending accuracy.

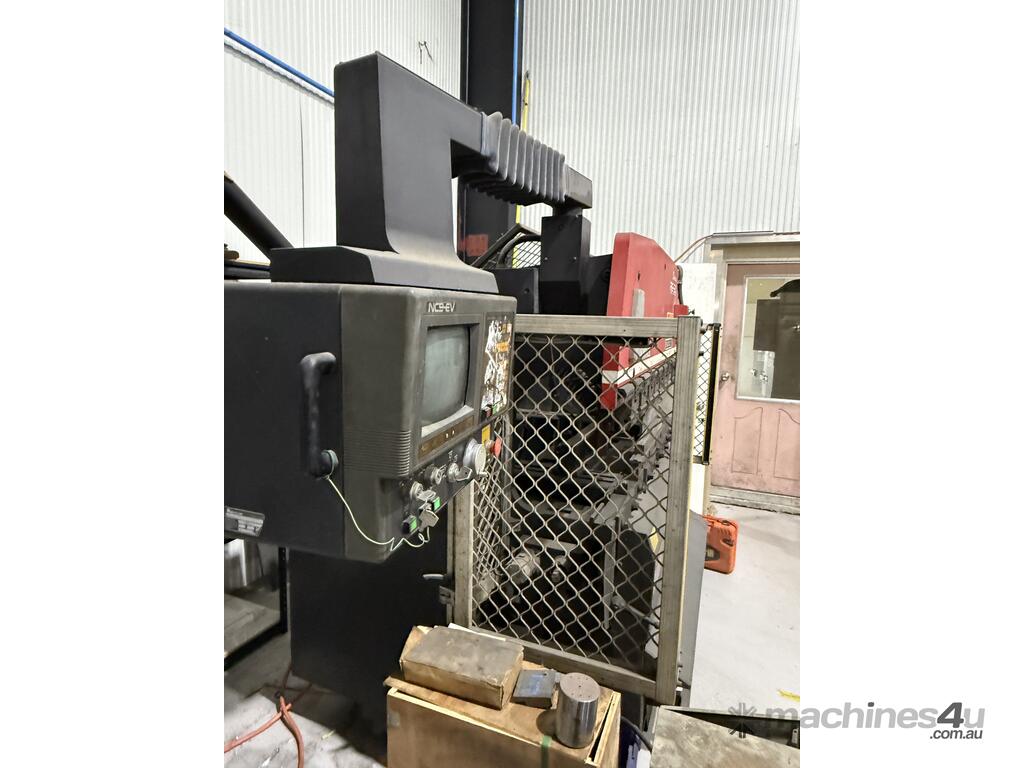

NC9-EXII CNC Control
Advanced programming capabilities for precise and repeatable bending operations.

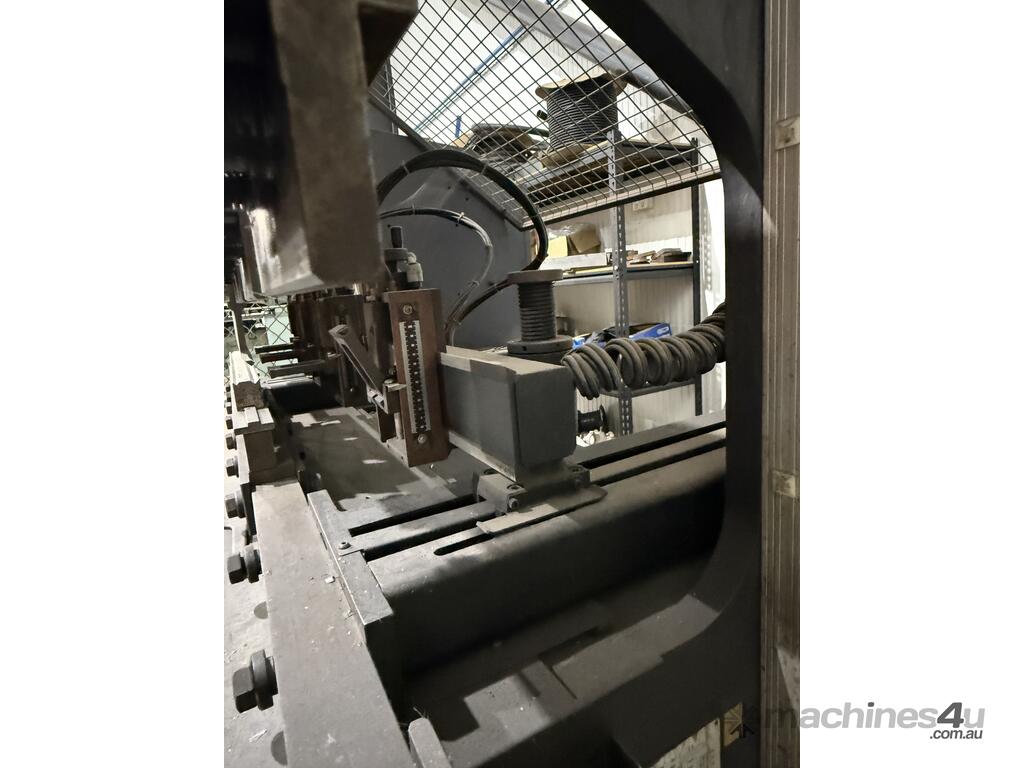

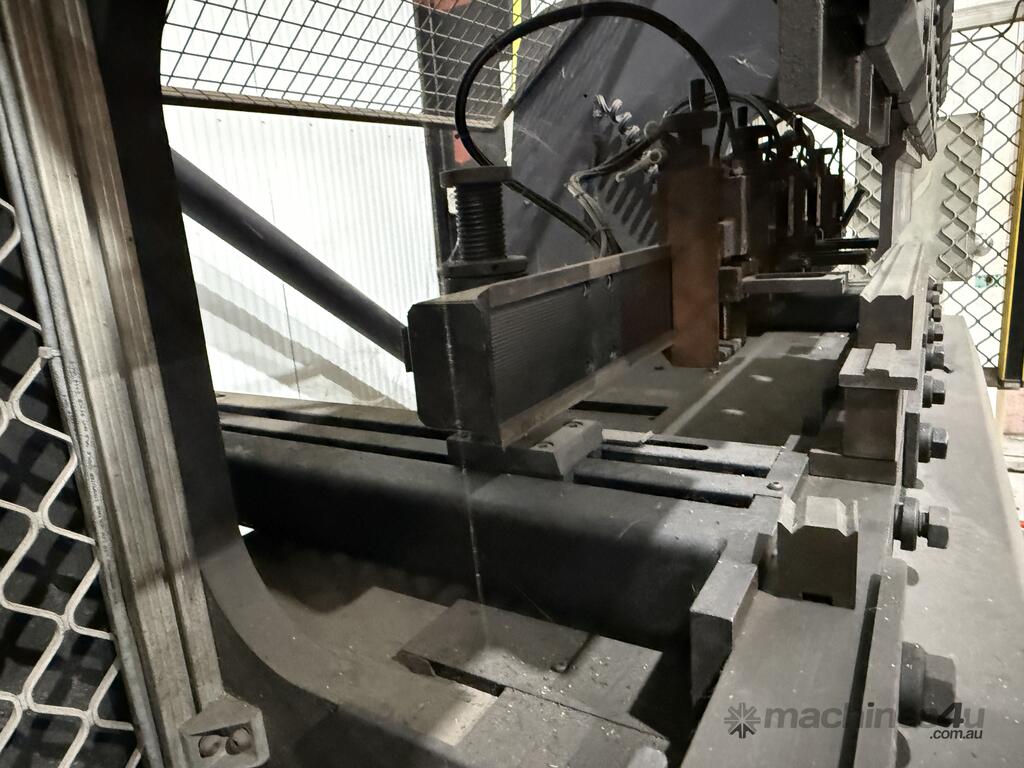

Adjustable Back Gauge
Ensures accurate positioning of workpieces for repetitive tasks.
Pneumatic Die Clamping
Enables fast and secure die changes, reducing setup times.
Foot Pedal Operation
Hands-free control enhances operator convenience during bending.
Safety Features
Includes laser safety curtains and emergency stop buttons to protect the operator.
