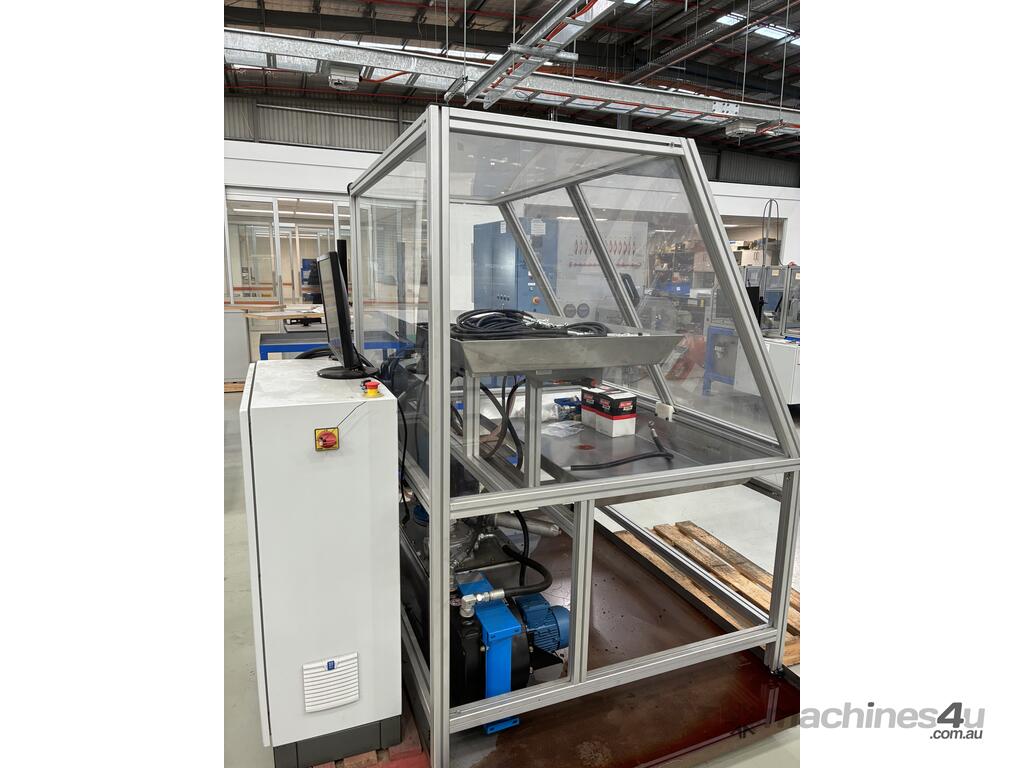

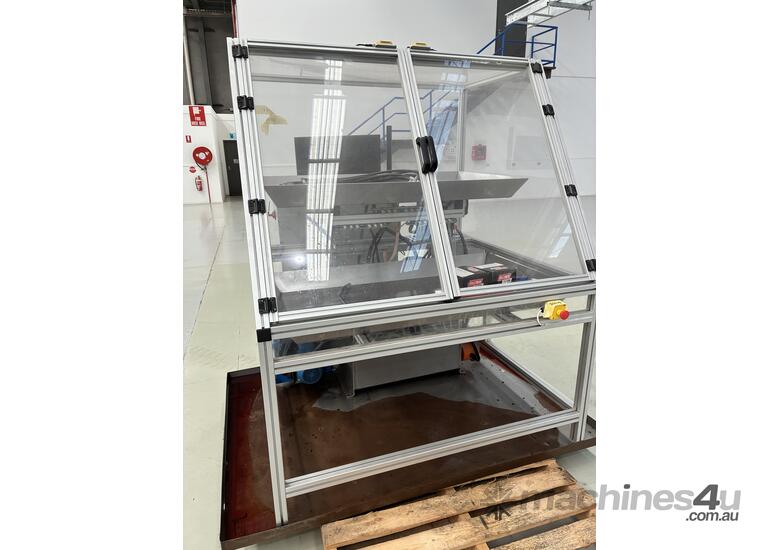

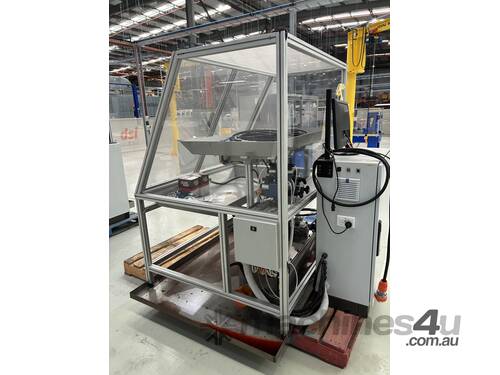

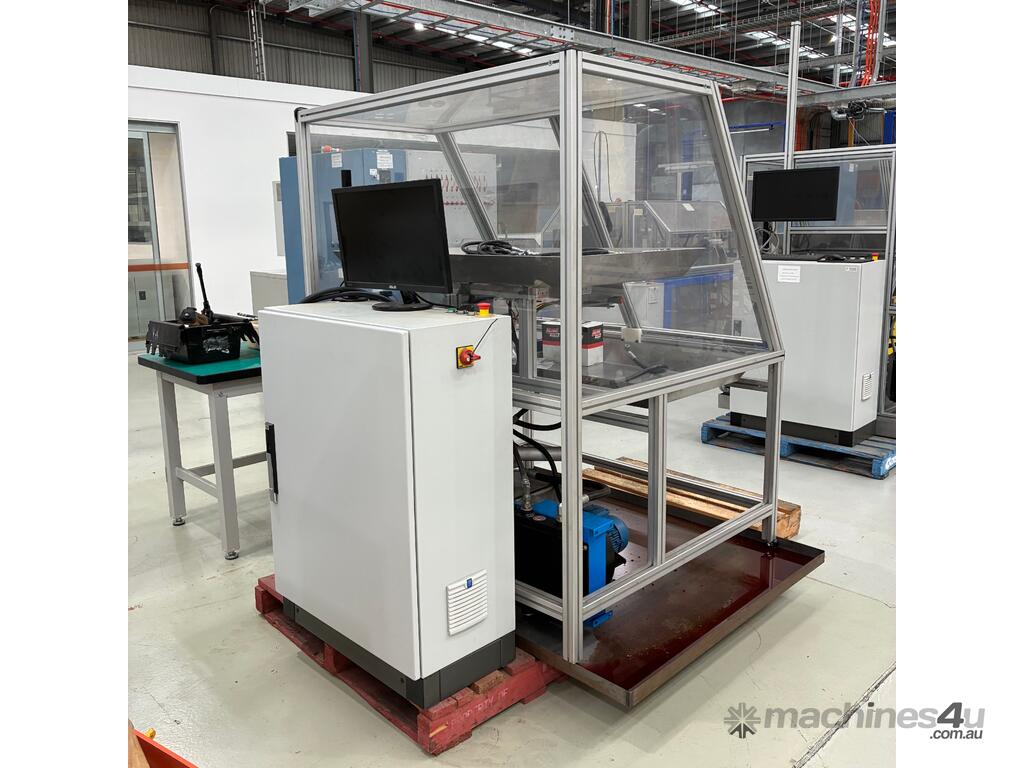

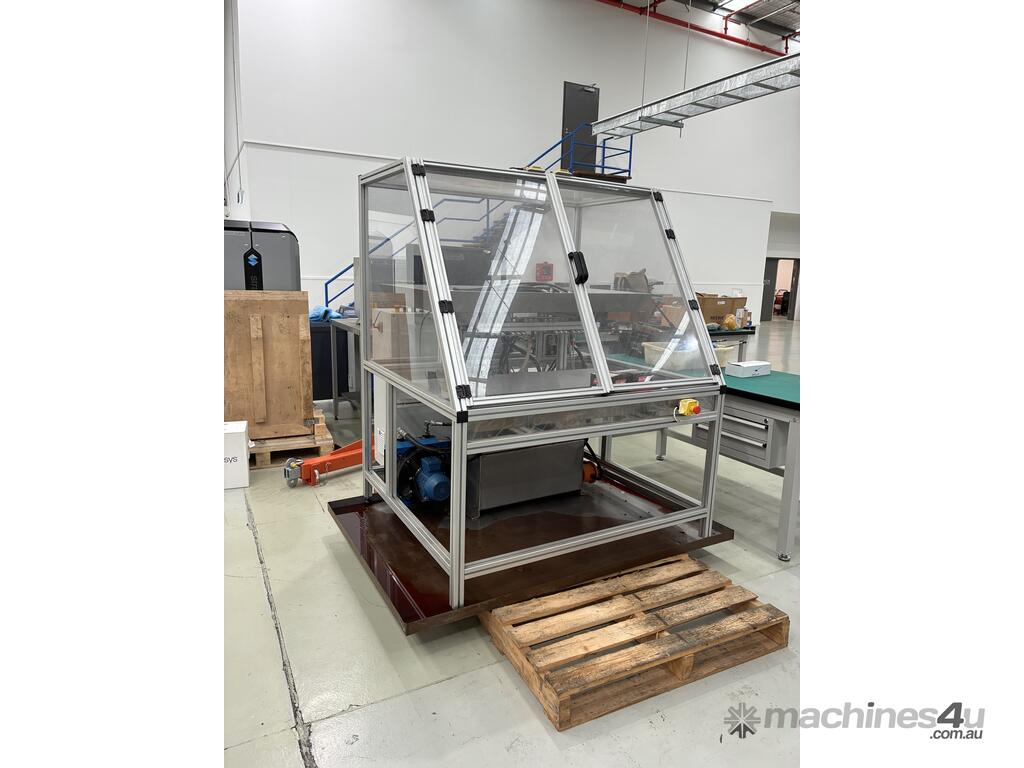

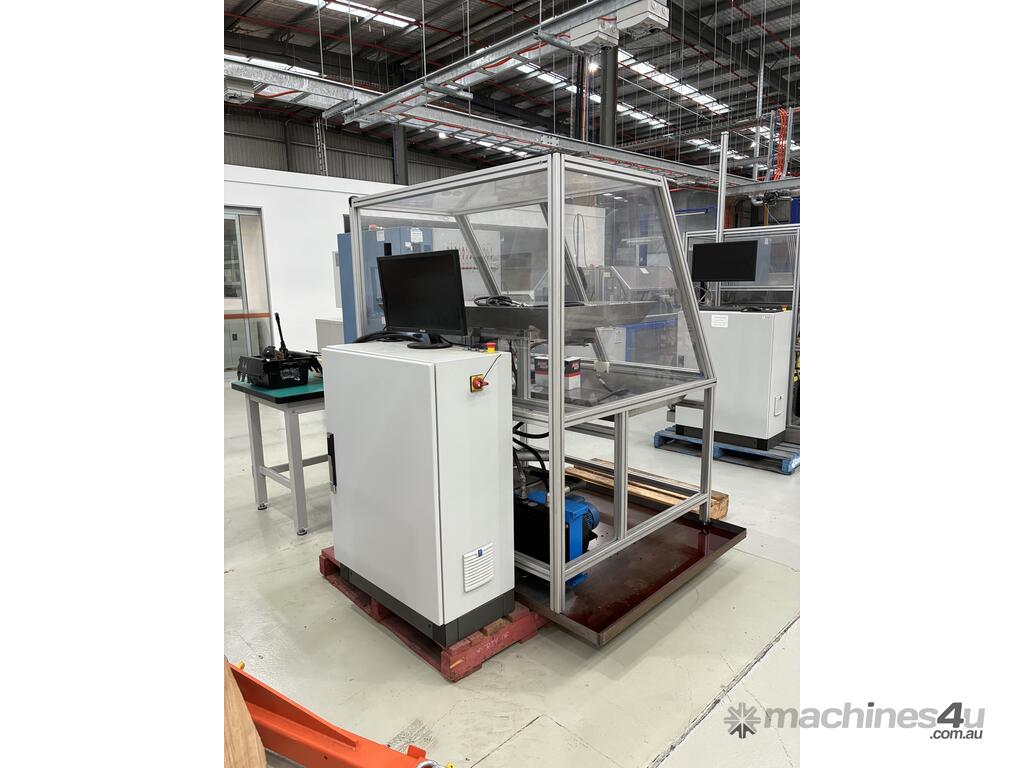

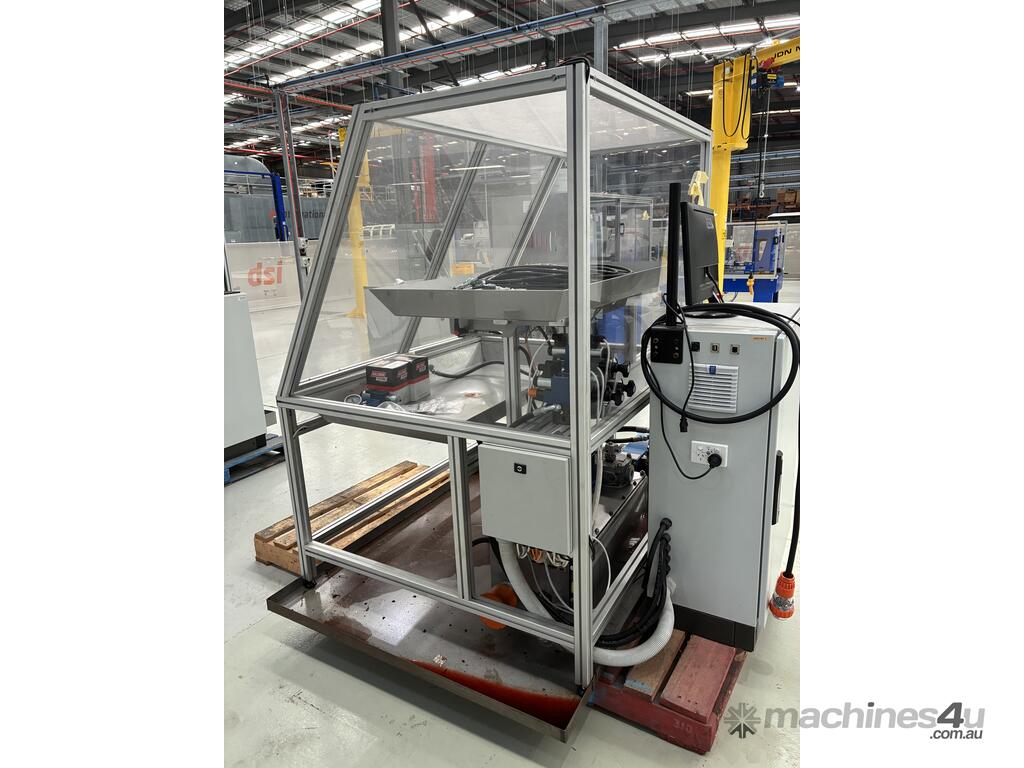

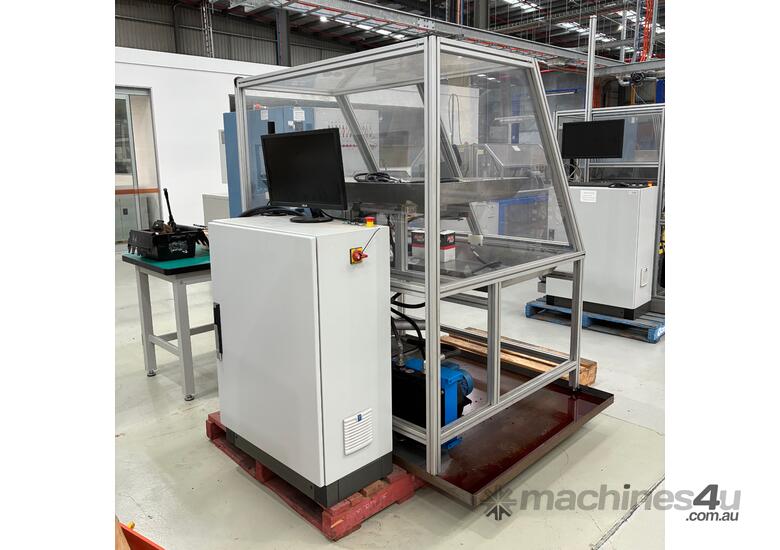

This hydraulic fatigue test system delivers precision cyclic pressure testing across multiple components. Built for high-endurance validation work, it features 18 outlet ports arranged in three independent banks of six, enabling simultaneous fatigue testing of various hydraulic items such as hoses, valves, and actuators. Designed for R&D and production test environments, the system integrates Rexroth hydraulic hardware with a National Instruments LabVIEW-based automation platform, ensuring accurate and repeatable control of test parameters.
Technical Description:

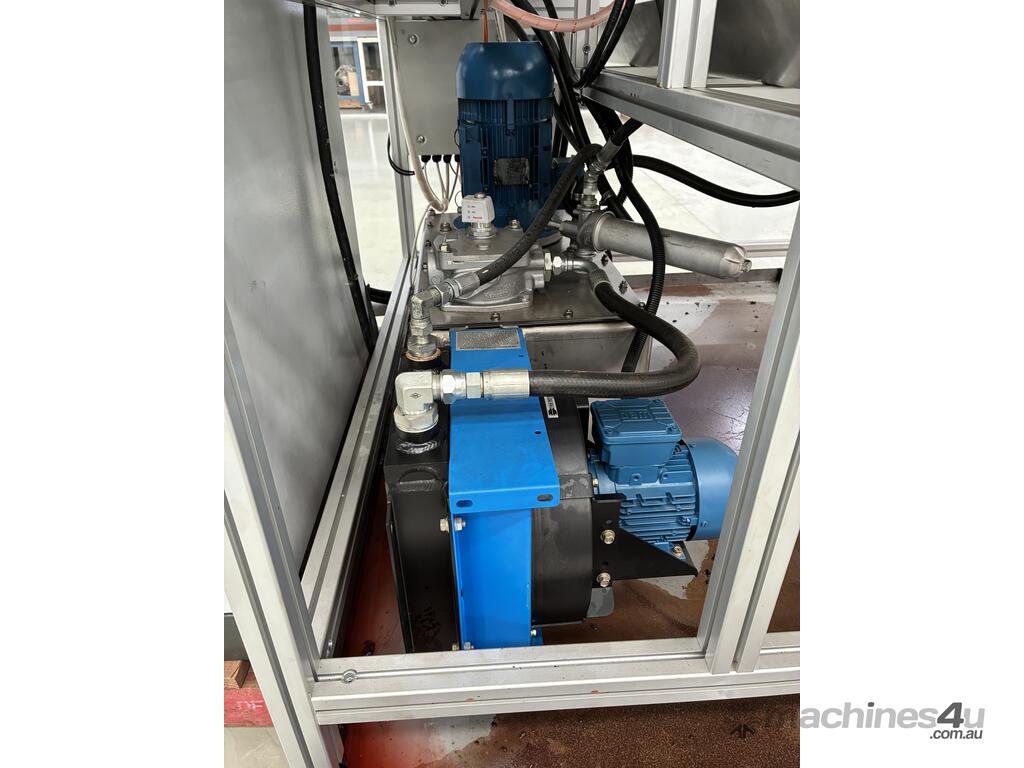

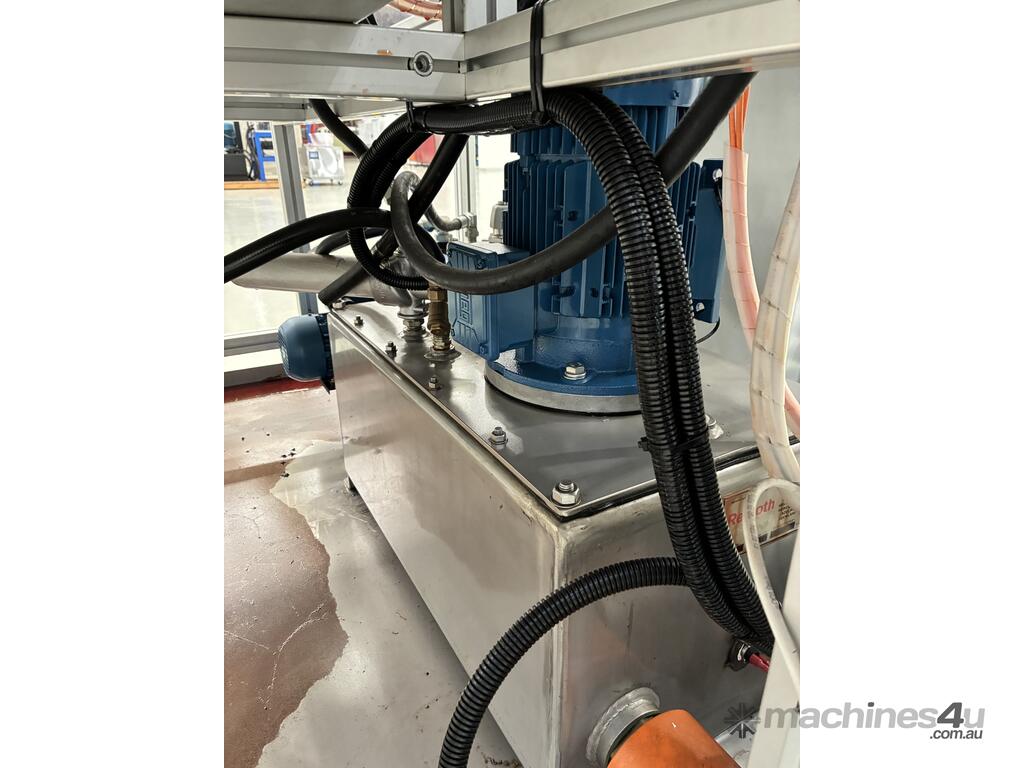

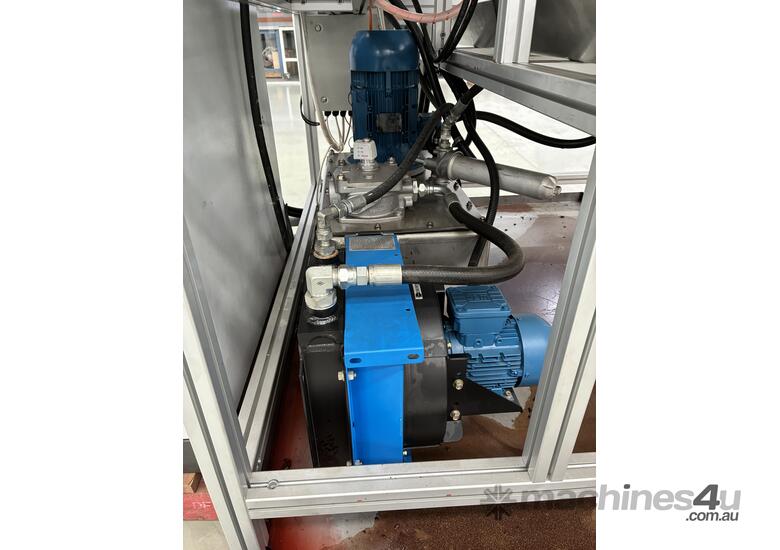

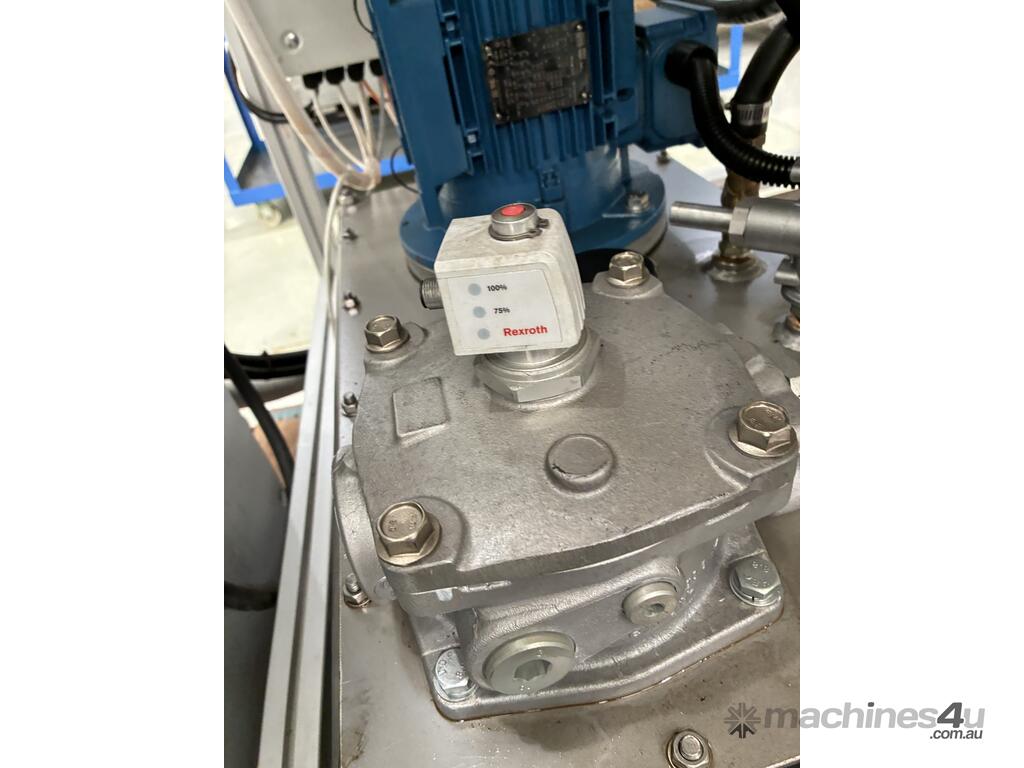

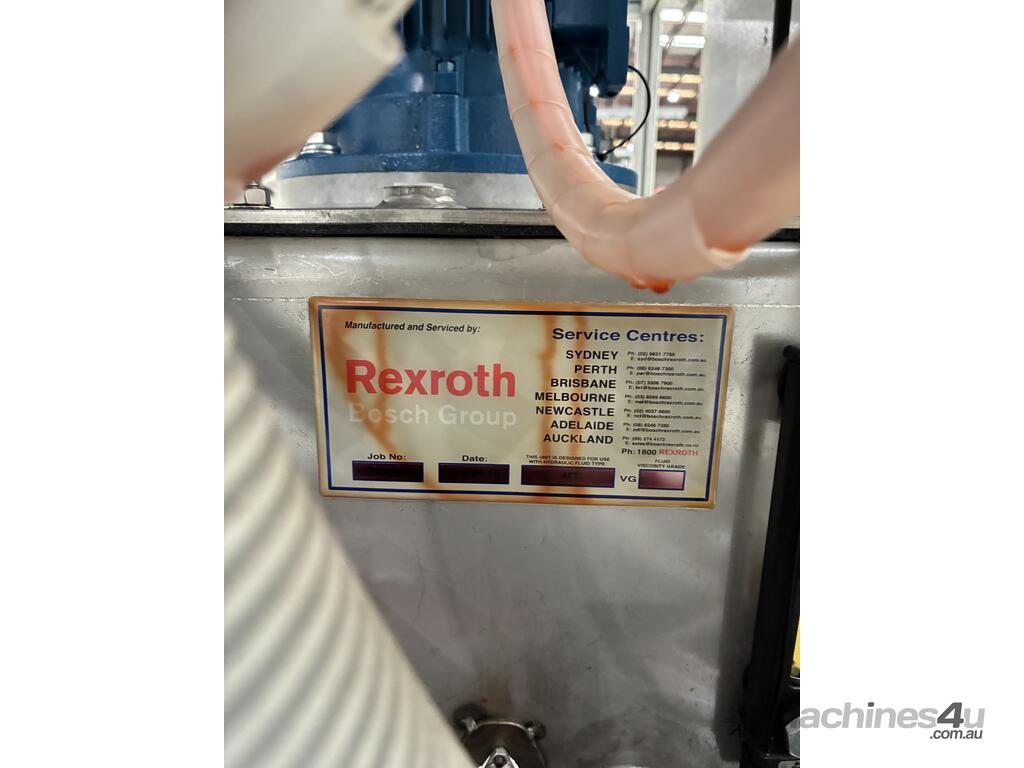

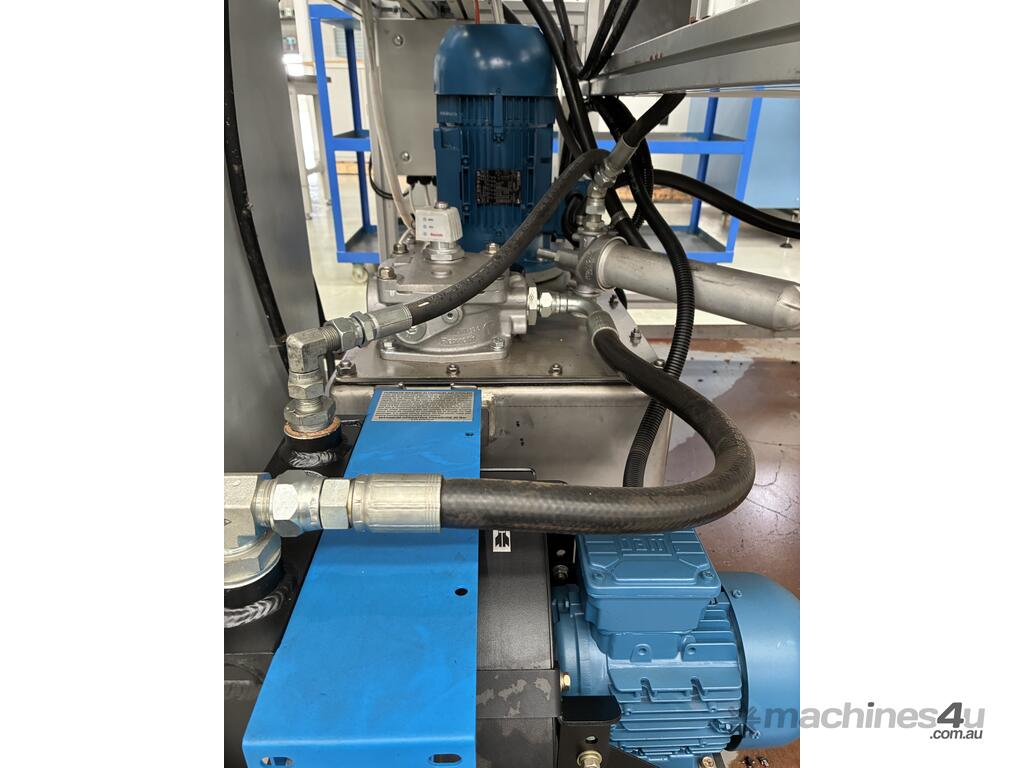

- Hydraulic Power Unit incorporating Rexroth tank and hydraulic pump
- Integrated heating and cooling systems for consistent operation
- Fastheat FH-3584 tubular heater, 415V, 2000W

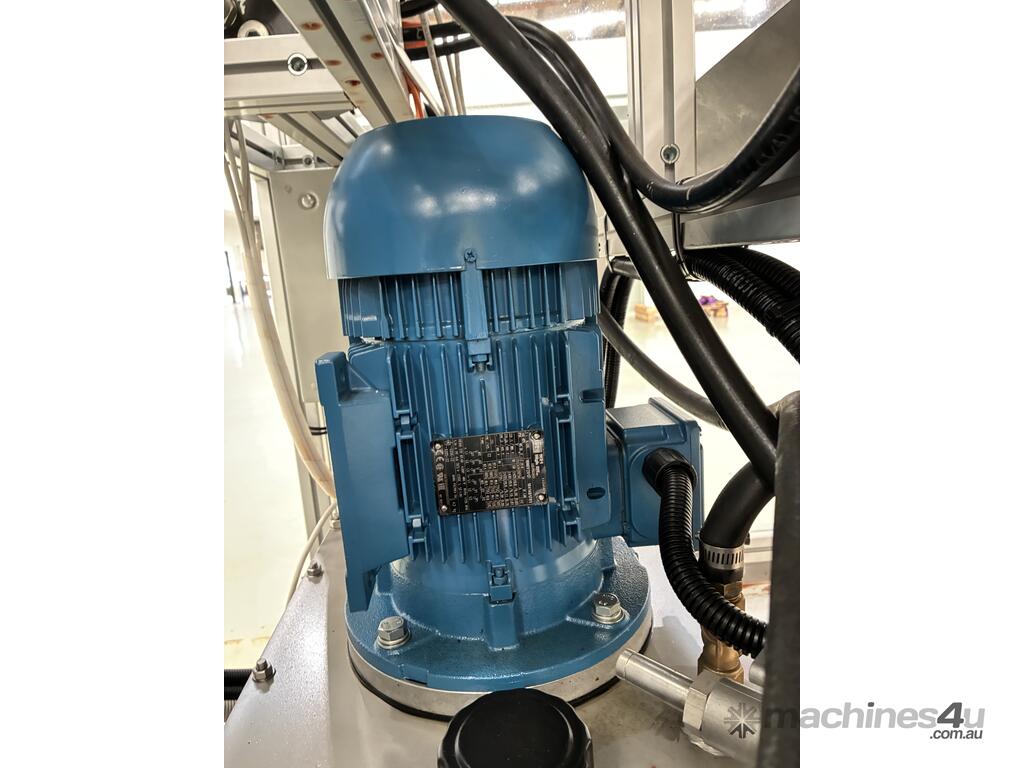

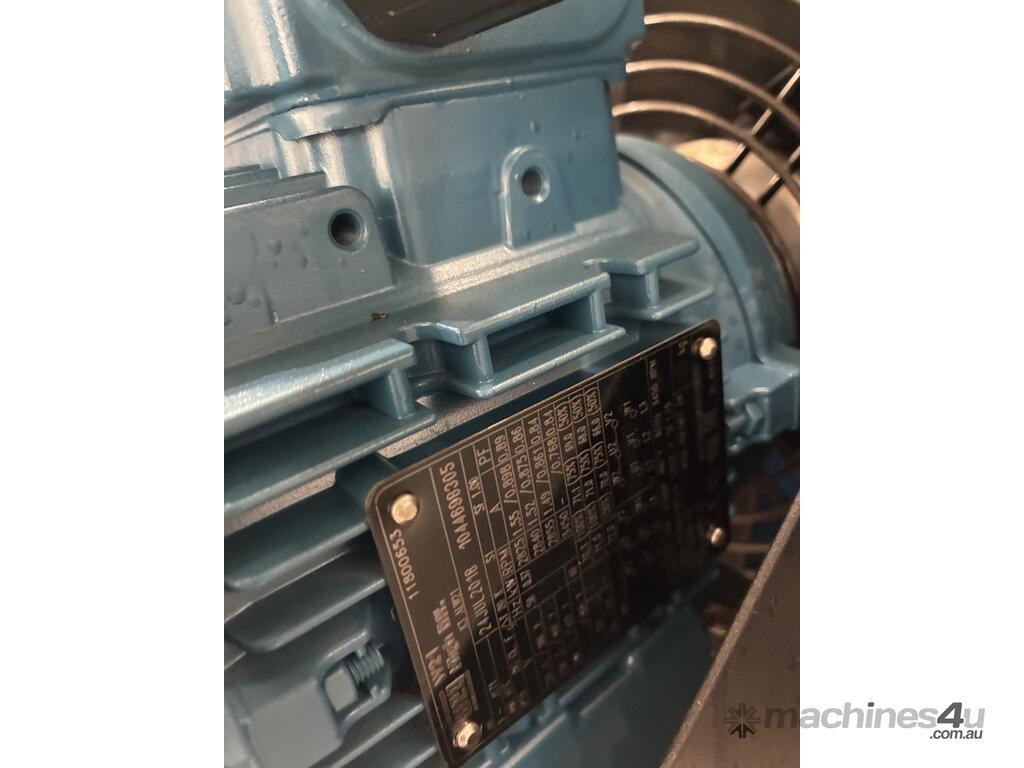

- WEG W21 Pump Motor, 3.0kW
- WEG W22 Cooling Motor, 0.37kW

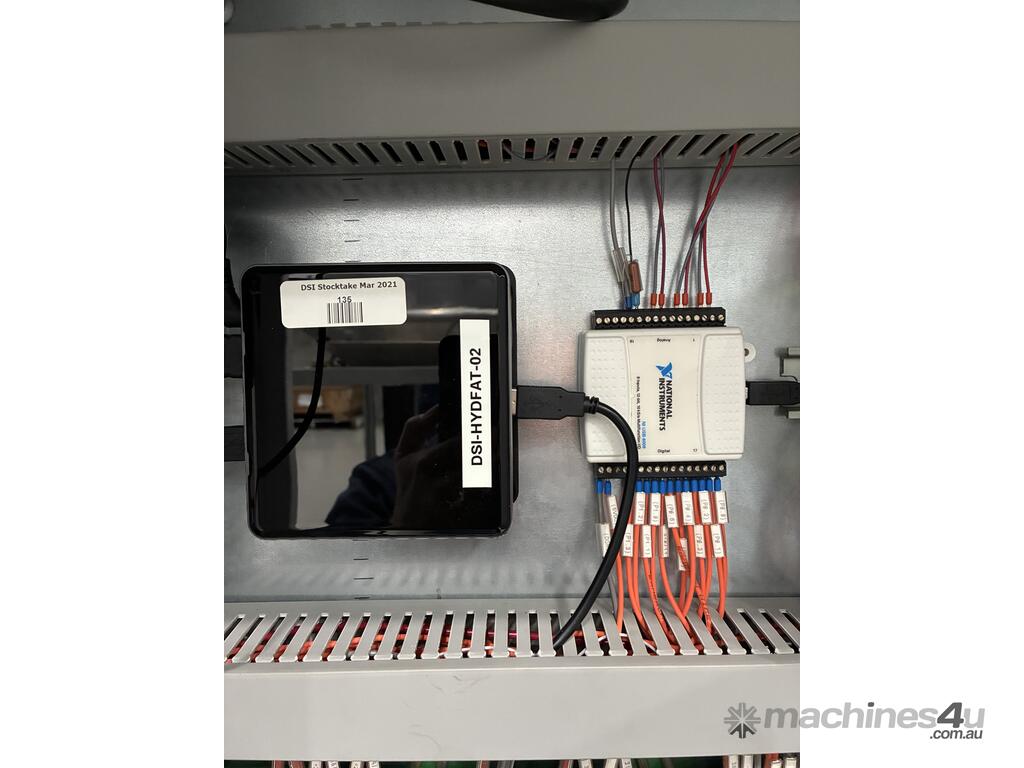

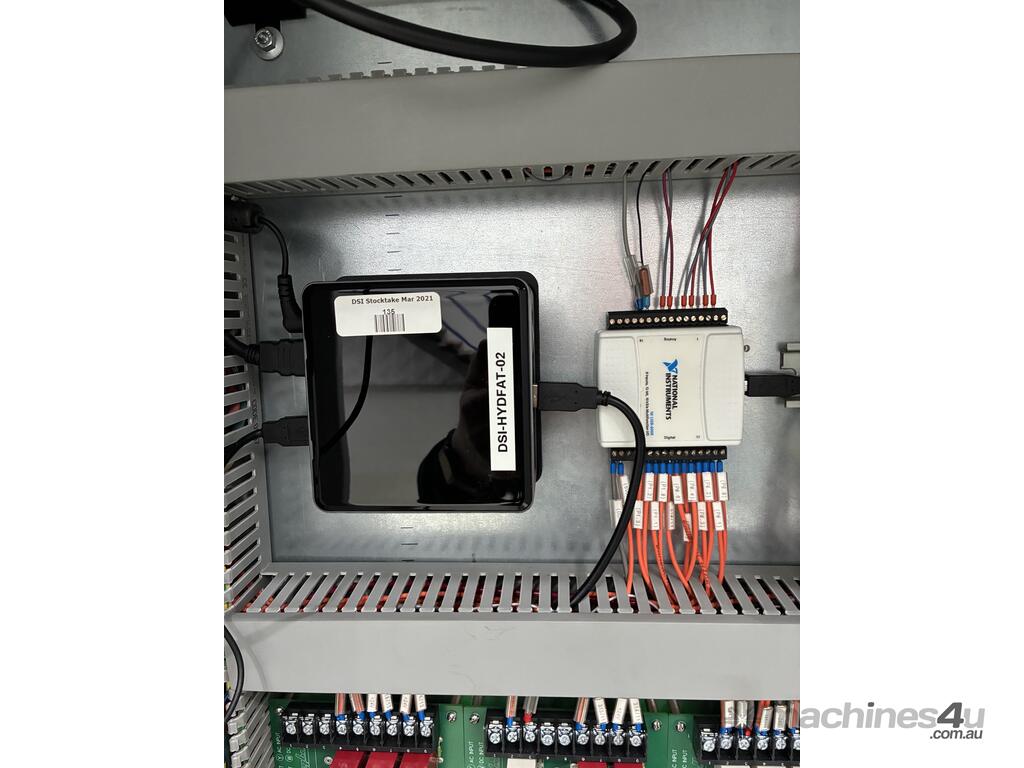

- Industrial NUC Computer running LabVIEW-based control software
- National Instruments DAQ hardware for signal and control

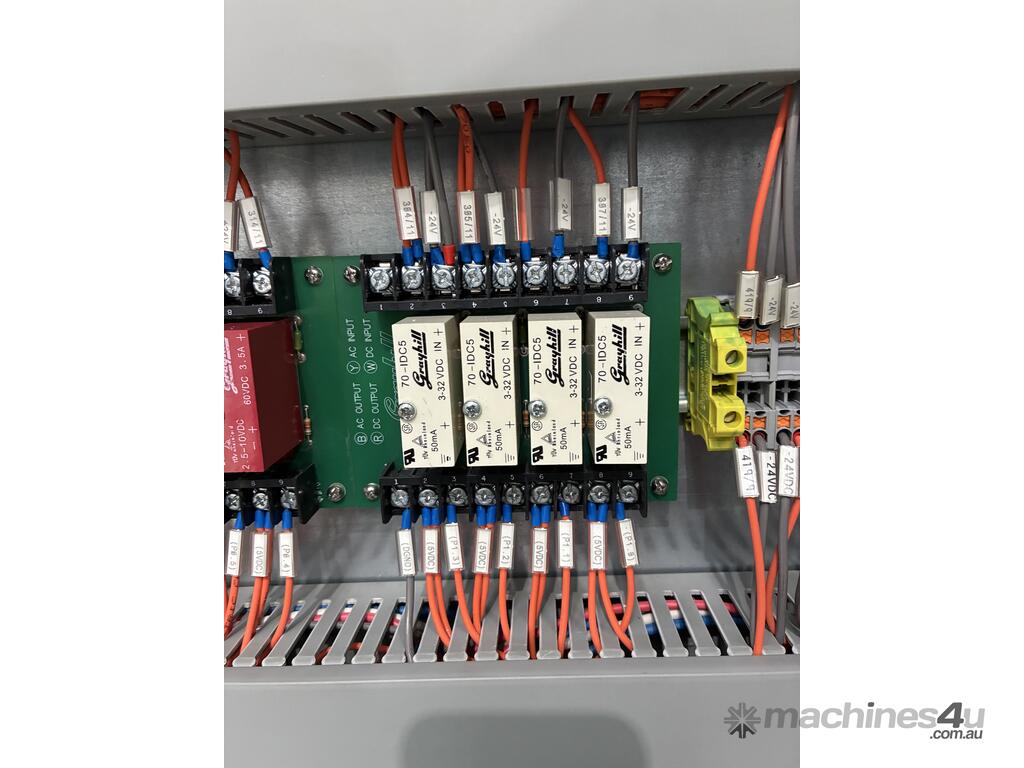

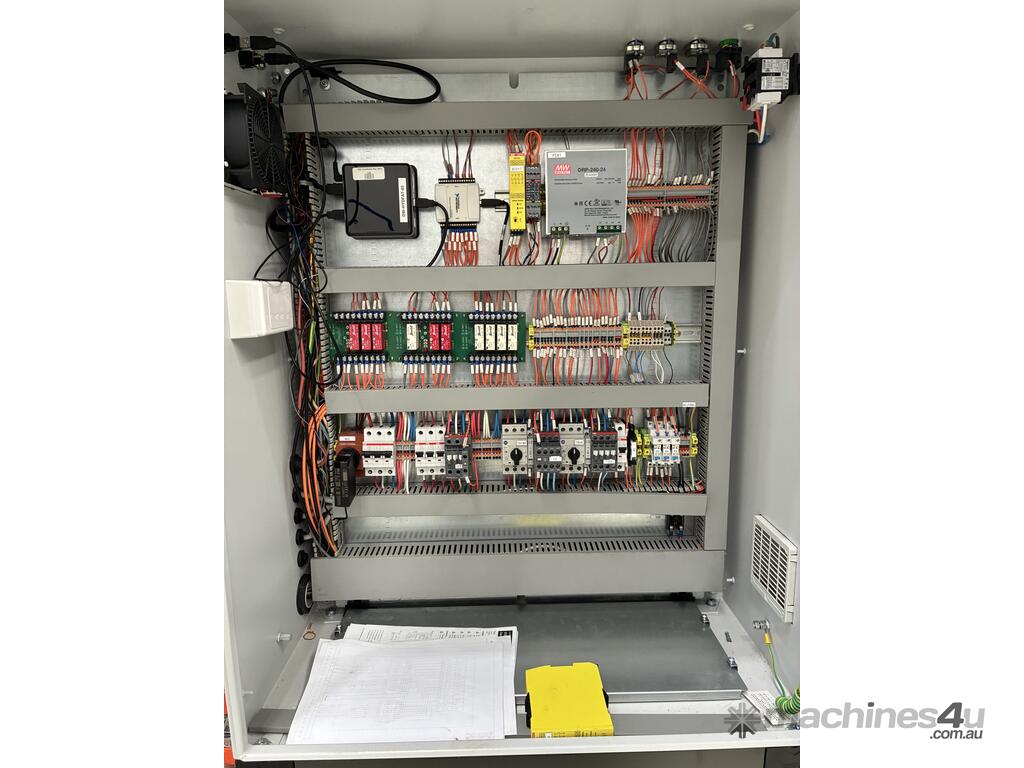

- Grayhill 70-IDC5 input and 70-ODC5 output modules

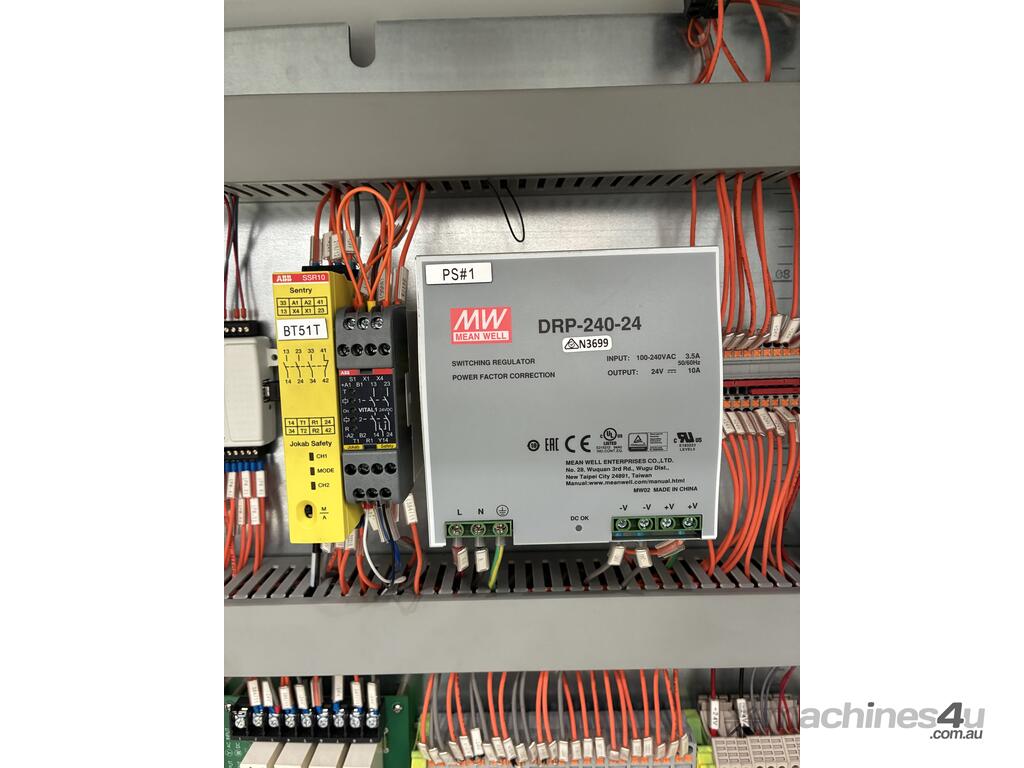

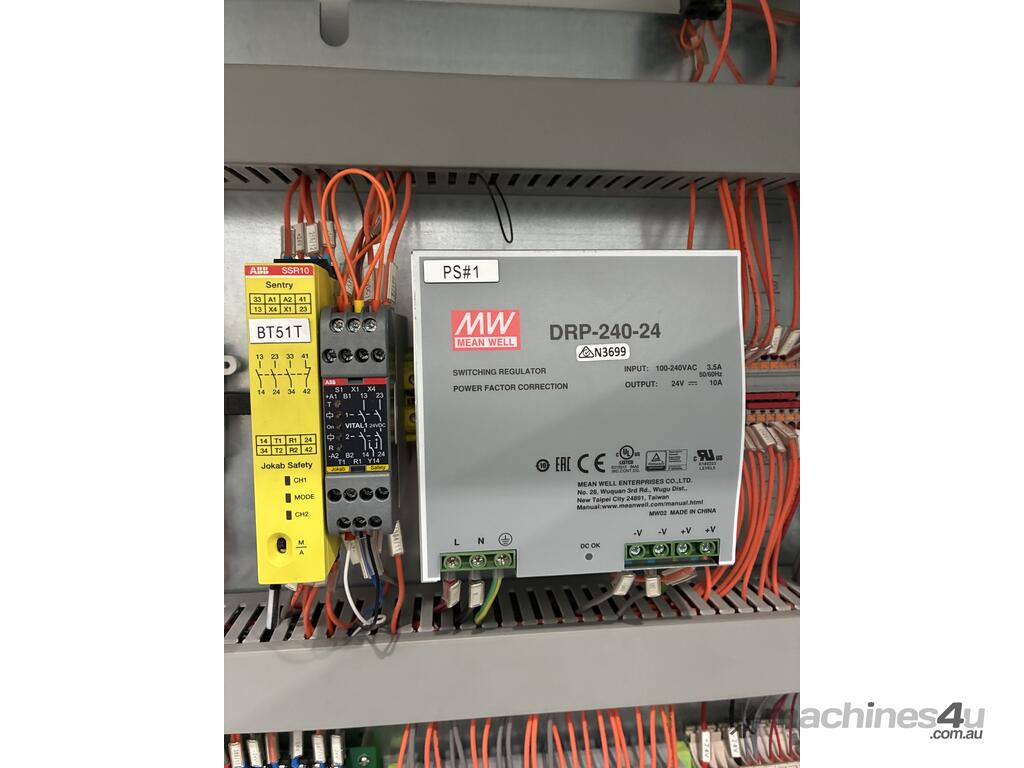

- MeanWell DRP-240-24 DIN-rail mounted power supply
- Three cycling stations with six outputs each (18 total)
- Designed for simultaneous endurance and fatigue testing applications
- Requires replacement of the hydraulic supply hose prior to operation
Suitable for:
- OEM or laboratory fatigue testing
- Hydraulic hose and valve endurance validation
- Pressure cycling of actuators and fittings
- Research and industrial life-cycle simulation programs
Item is from a factory closing sale and priced to sell. It is in used condition and untested, sold on an as is, where is basis. Photos form part of the description.
Pickup only. We can assist with loading and have a forklift onsite. In special circumstances, freight may be organised at the buyer’s cost.
Inspection available upon request prior to purchase.
