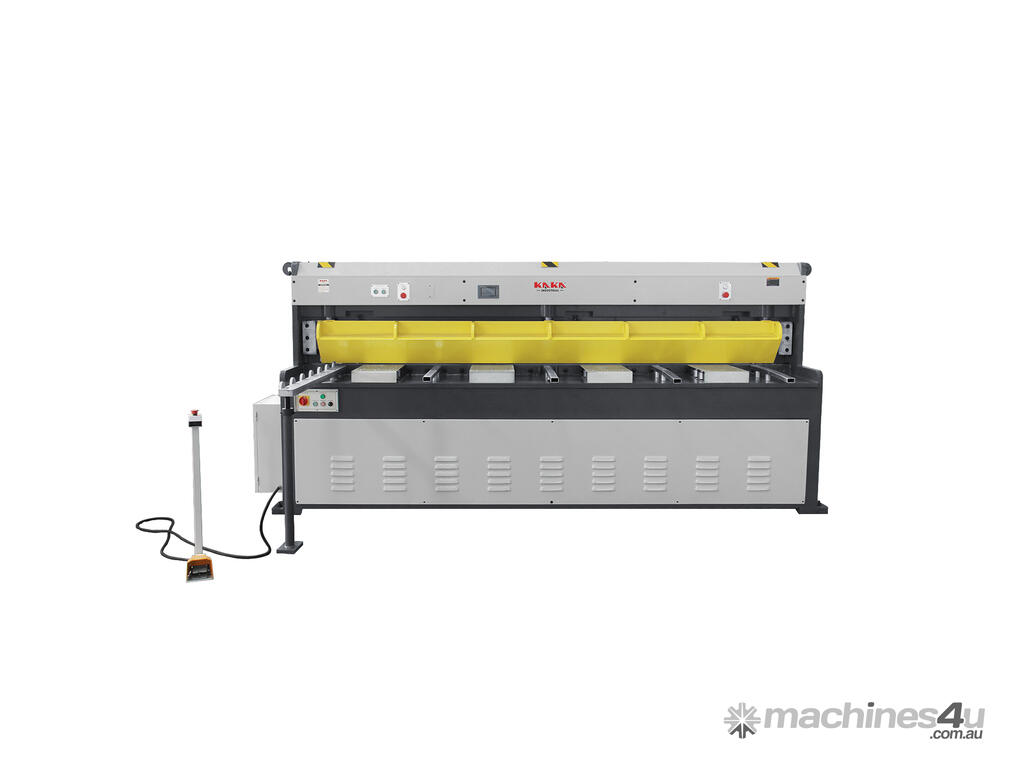

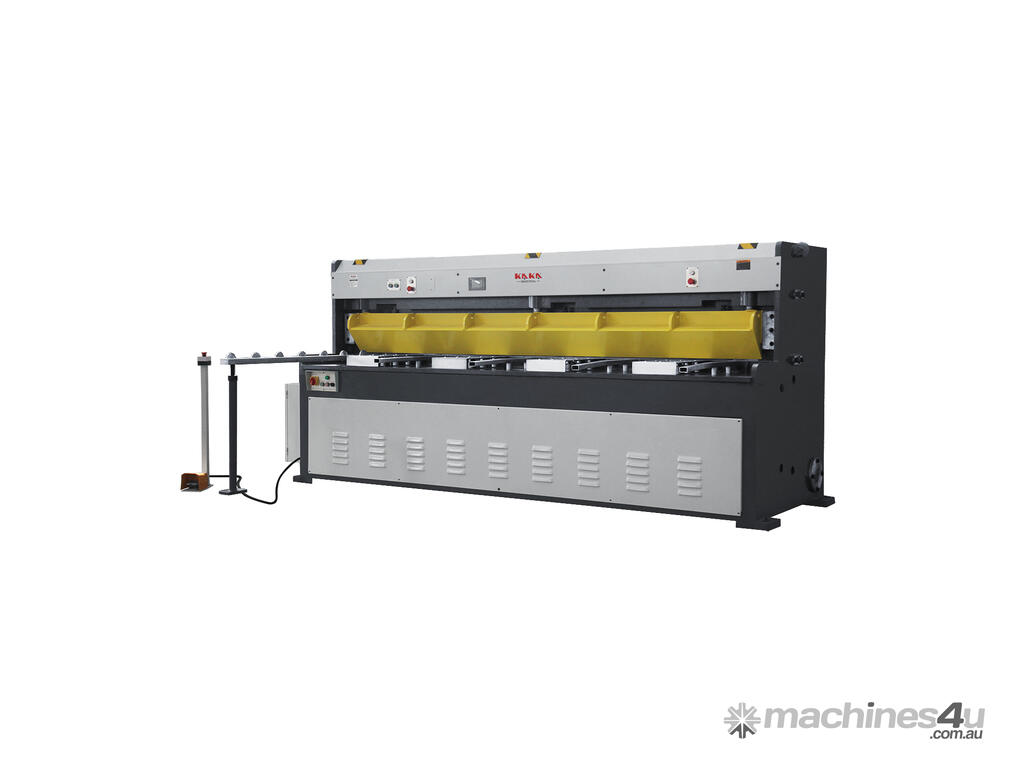

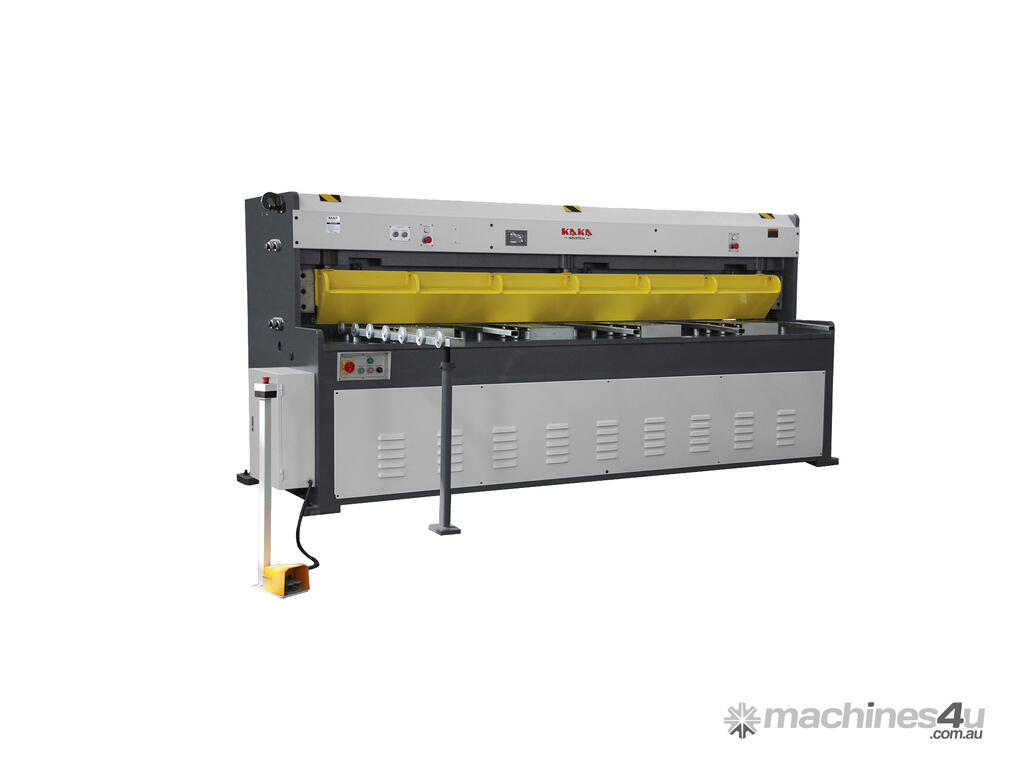

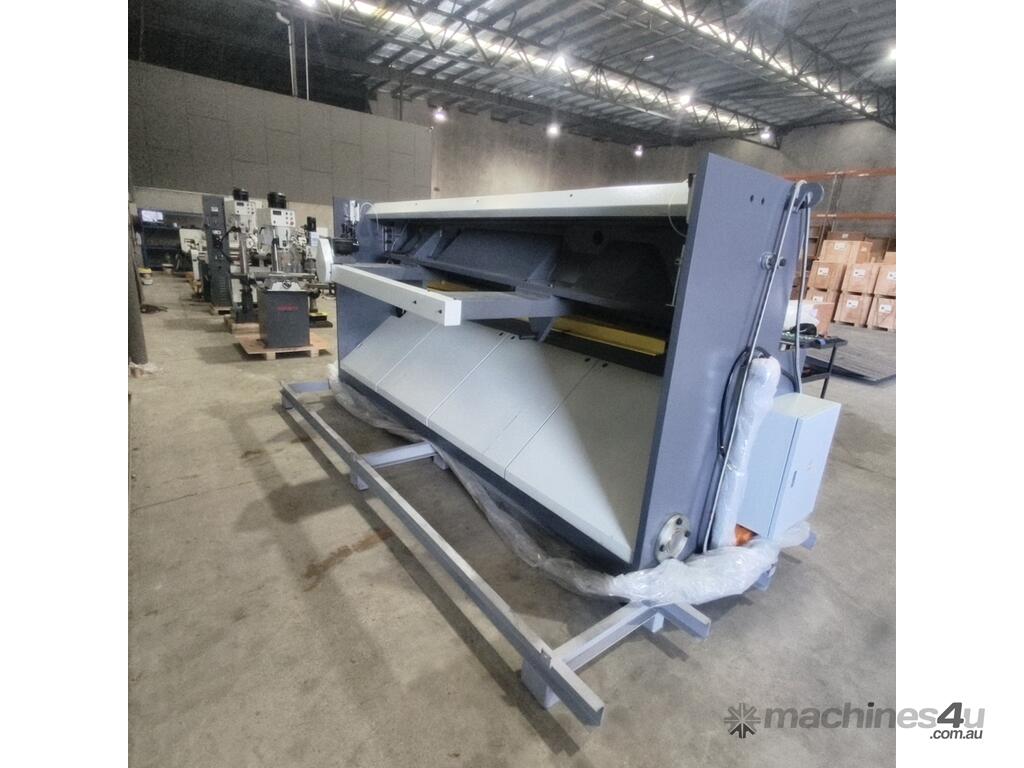

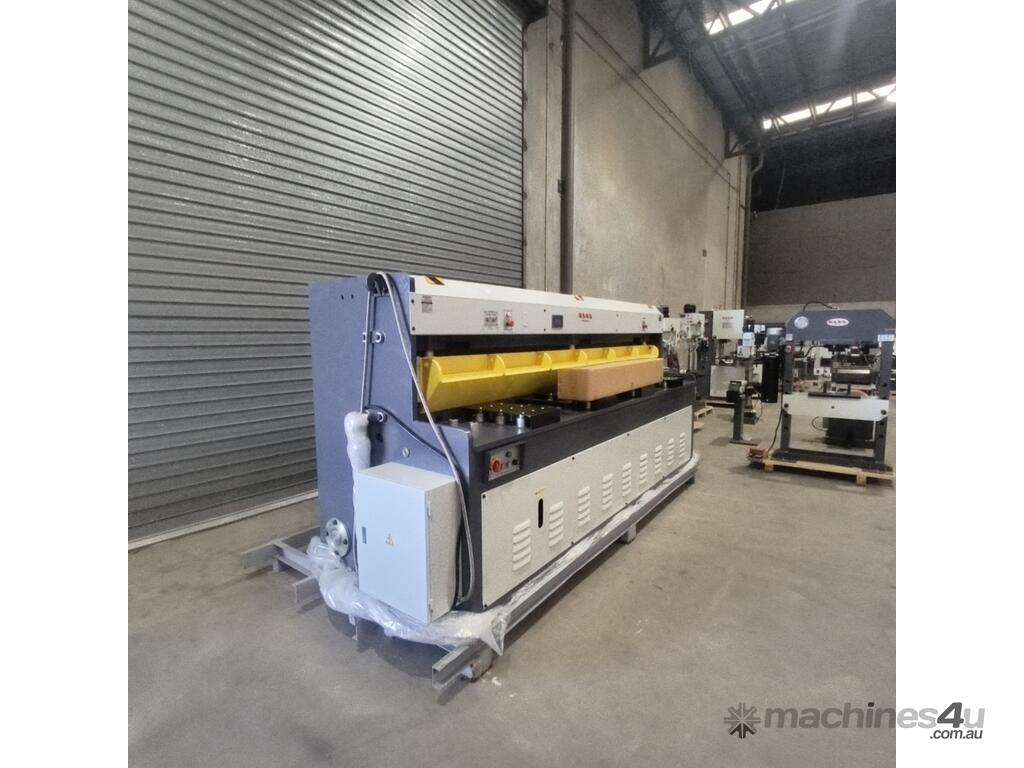

Hydraulic Guillotine Shear HQ11-12003 , 3050x6.5mm Mild Sheet Metal Cutting

Kang Industrial Hydraulic Guillotine Shear


The KANG HQ11-12003 is a robust and versatile hydraulic shearing machine engineered for precise metal cutting in industrial applications. With a maximum cutting length of 3050 mm, it handles mild steel up to 6.5 mm thick and stainless steel up to 4.0 mm, making it ideal for fabrication shops, manufacturing facilities, and metalworking operations across Australia. This model features a heavy-duty construction with high-carbon/chrome blades (2-edge top and 2-edge bottom for extended usability), a blade angle of 2°, and manual blade clearance adjustment for optimized performance on various materials.


Precision and Versatility Hydraulic Guillotine. Adjustableblade clearance allows for tailored cuts on mild or stainless steel, a shadow line for straight cutting guidance, reducing material waste, and improving accuracy in diverse metal fabrication sectors like construction and automotive.

Enhanced Safety Features. Full finger guard, emergency stops,  protection, and minimising risks for operators in busy workshops.

Ease of Use and Efficiency Sheet Metal Cutting. Ball transfer plates simplify loading heavy sheets, while the quiet hydraulic system and auto-cycle modes speed up operations, ideal for busy workshops where time savings translate to cost reductions.

Durability and Low Maintenance Guillotine Shear. Indexable hardened blades and a robust all-steel frame offer long-term reliability, with the one-year warranty providing peace of mind for remote or high-usage operations where service access might be limited.

Quiet and Ergonomic Sheet Metal Shear. The centrally located hydraulic system ensures low noise levels, and the compact control panel improves operator comfort during extended shifts.

Versatile Applications. The Hydraulic Guillotine is suitable for cutting up to 6.5 mm thick materials with shadow line guidance for accuracy, making it a valuable asset for businesses in engineering, signage, or HVAC fabrication needing consistent, high-quality results.

Motorised Backgauge & Servo Motor. The hydraulic guillotine features a servo motor drive backgauge, ensuring high precision cutting length each time, and a touch screen to show detailed data.

Features

15 kW powerful motor runs on 415V power

Comes with NC motorised backgauge (servo motor) with touch screen

Hydraulic clamping ensures a clean cut


Shadow-line lighting clearly indicated the cutting line

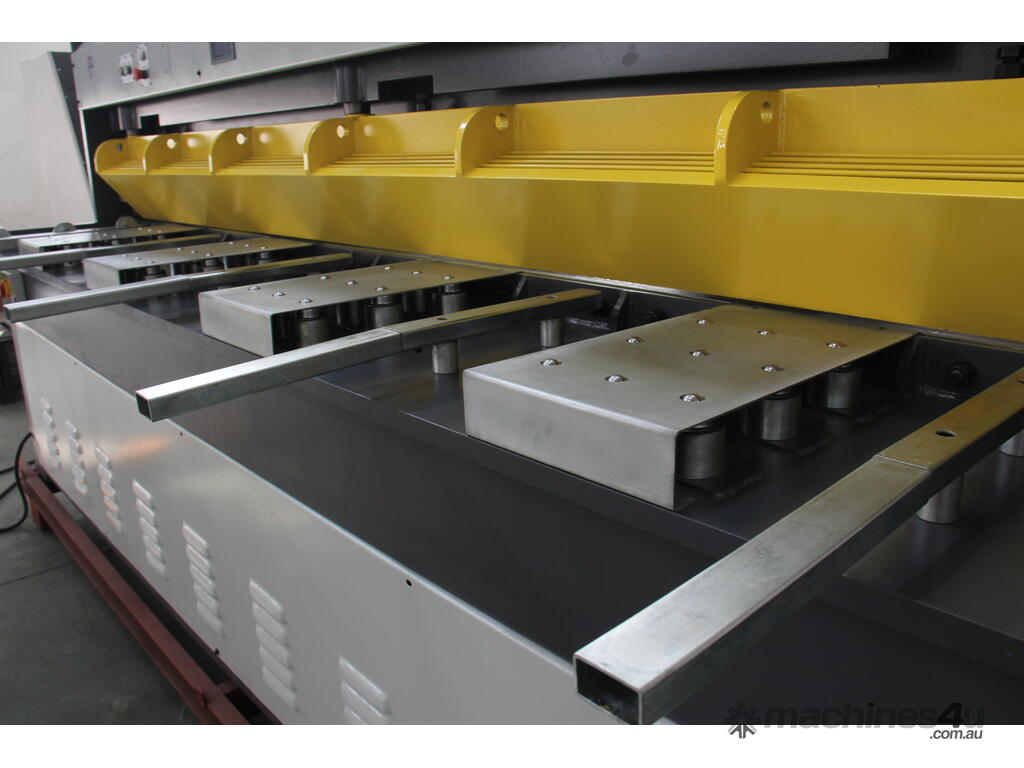

Wide plate support table with ball transfer for heavy material infeed

Rear-mounted safety lights

Two Cutting Model:

  Inch Mode: Jog the control, easy to adjust the blade clearance

  Auto Mode: Continuous cutting when keeping press the foot pedal

Standard Included:

1 each 150 cm squaring arm with inlaid inch/metric dual scale

Shadow line for accurate straight cutting

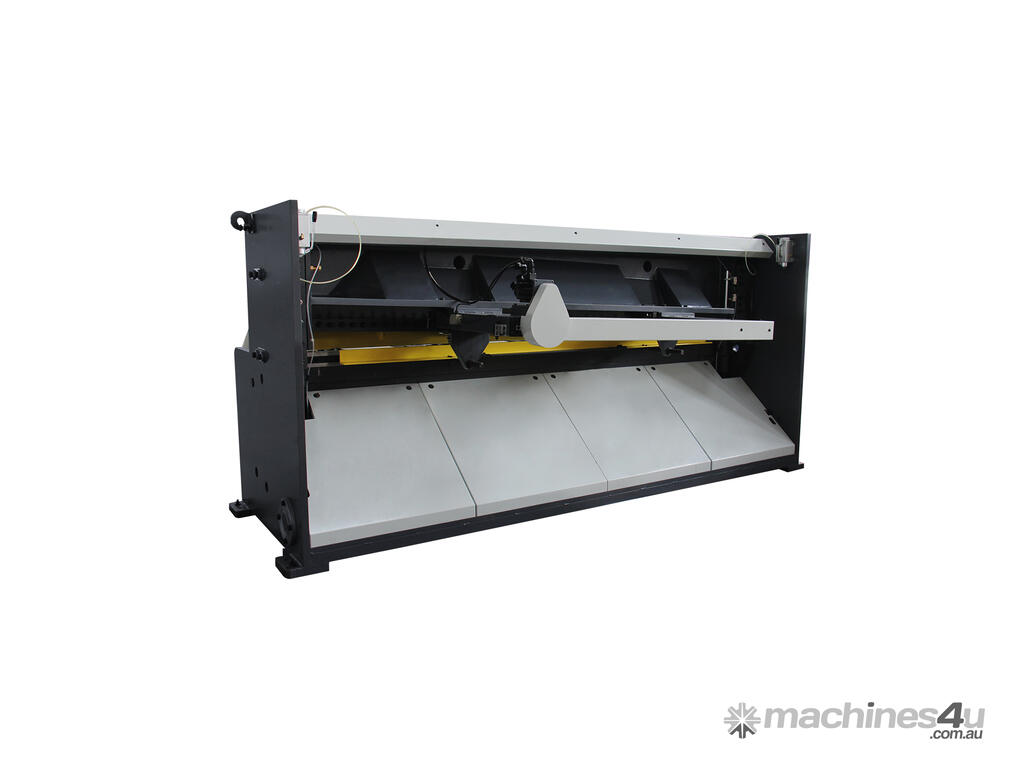

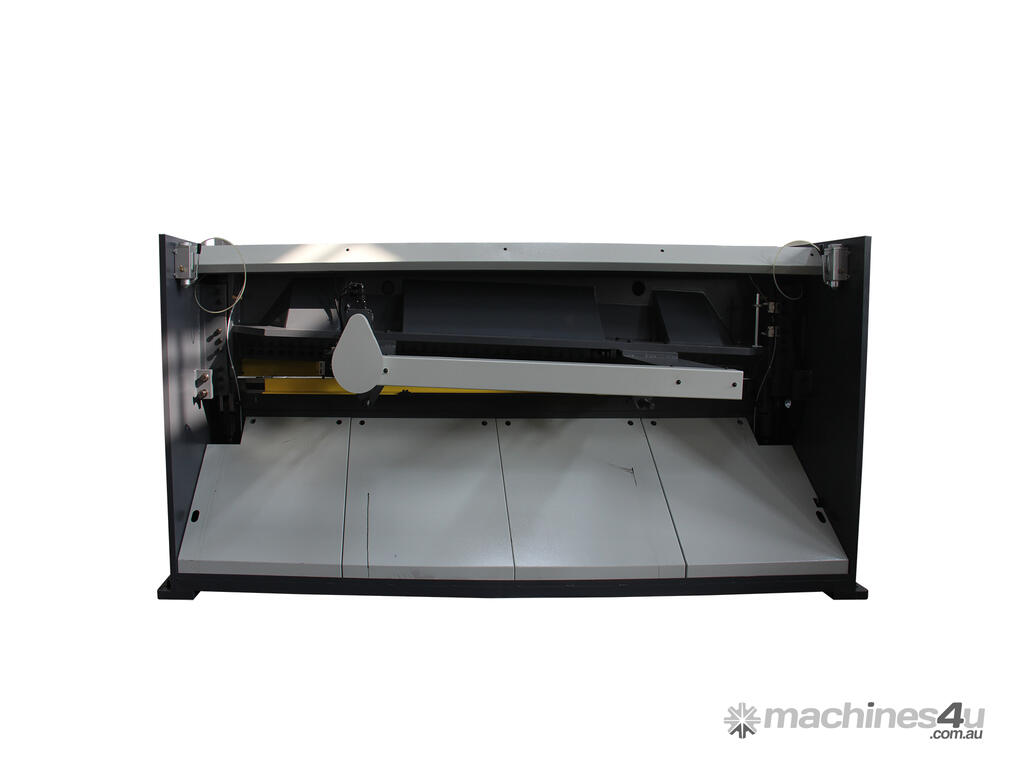

Material support and drop back chuter

Upper and bottom blade set with 2-edge on the bottom & 2-edge on the upper

4 each 610mm front support arms

Hydraulic hold-downs with anti-mar neoprene

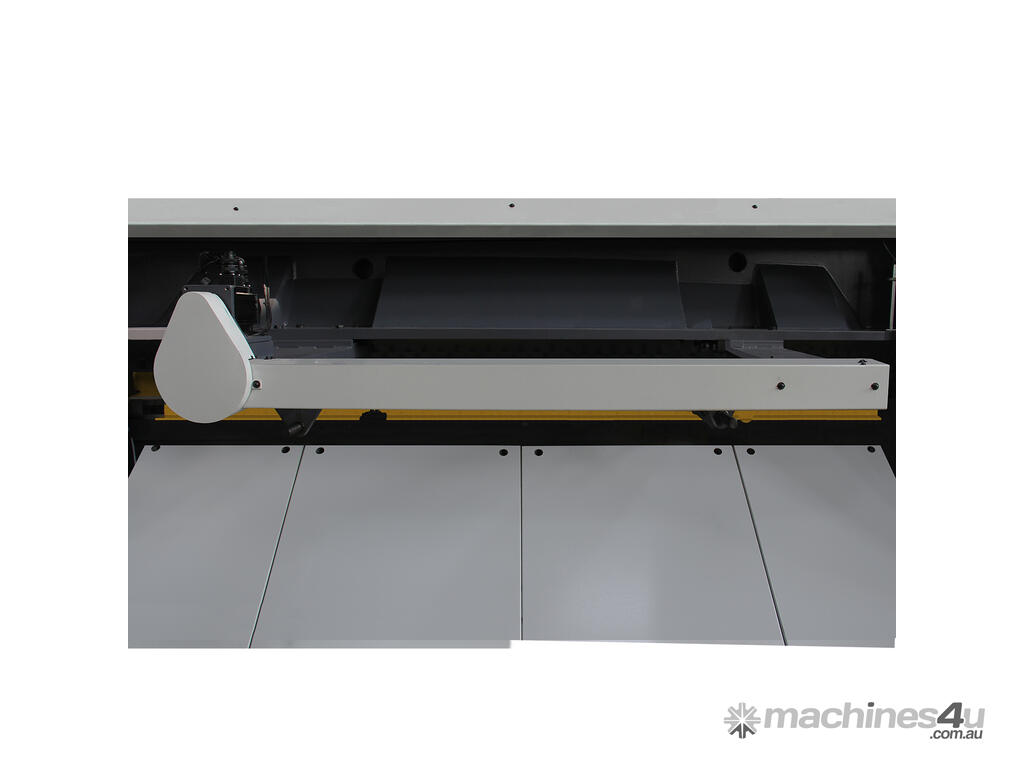

Full-length viewable finger guard

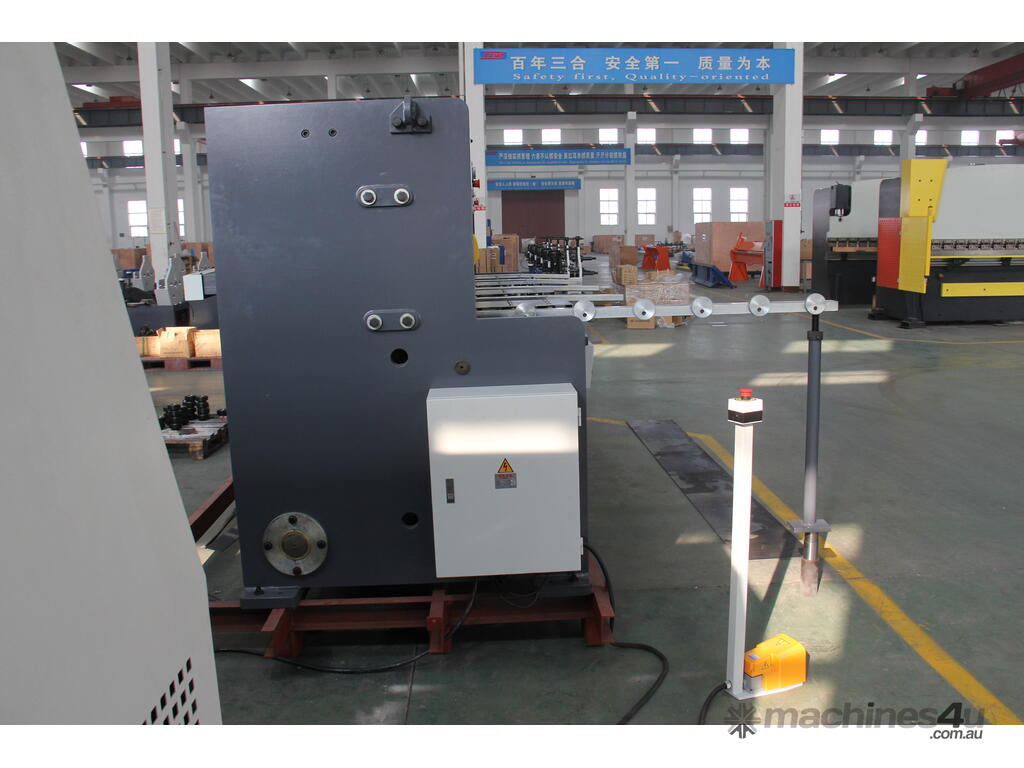

Removable safety foot pedal

Optional Hydraulic Oil



Specifications
SKU 186204
Model HQ11-12003
Max. cutting length 6.5 mm
Max. cutting width 3050 mm
Shearing angle 2°
No. of stroke (per min.) 12
Motor power 15 kW
Back gauge 920 mm (motorised)
Packing size 413x210x190 cm
N.W./G.W. 6095/6245 kg
