Hydraulic Ironwoker M-55, 55 Ton Metal Iron Worker, Hydraulic Punch, Shear Notcher

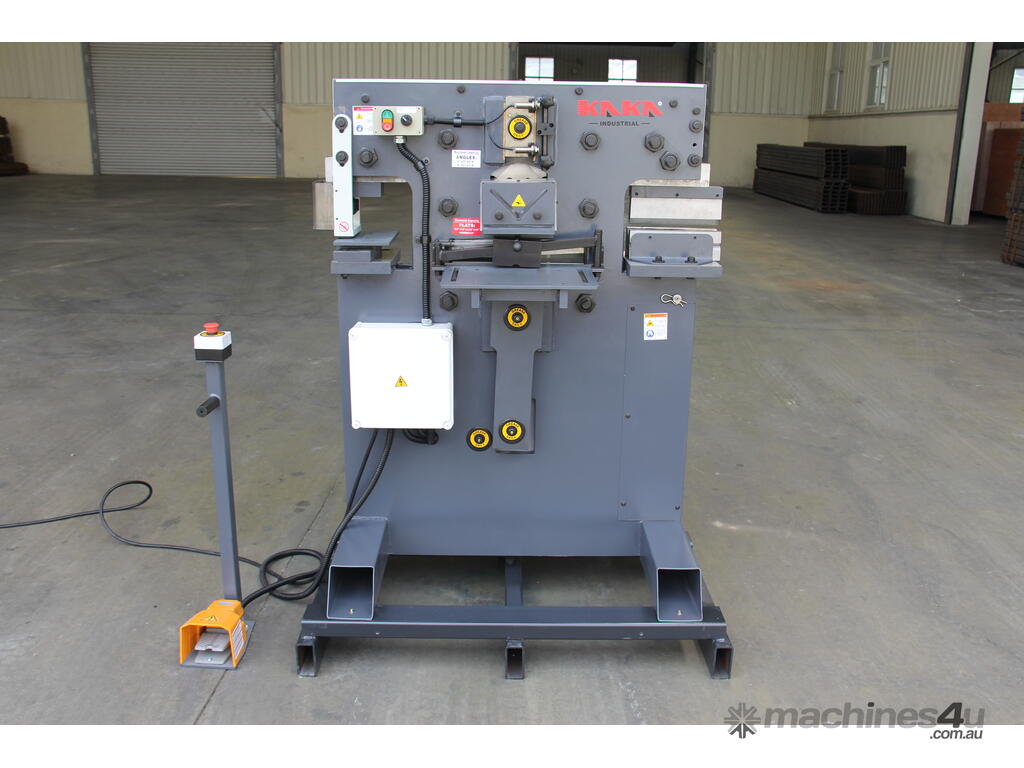

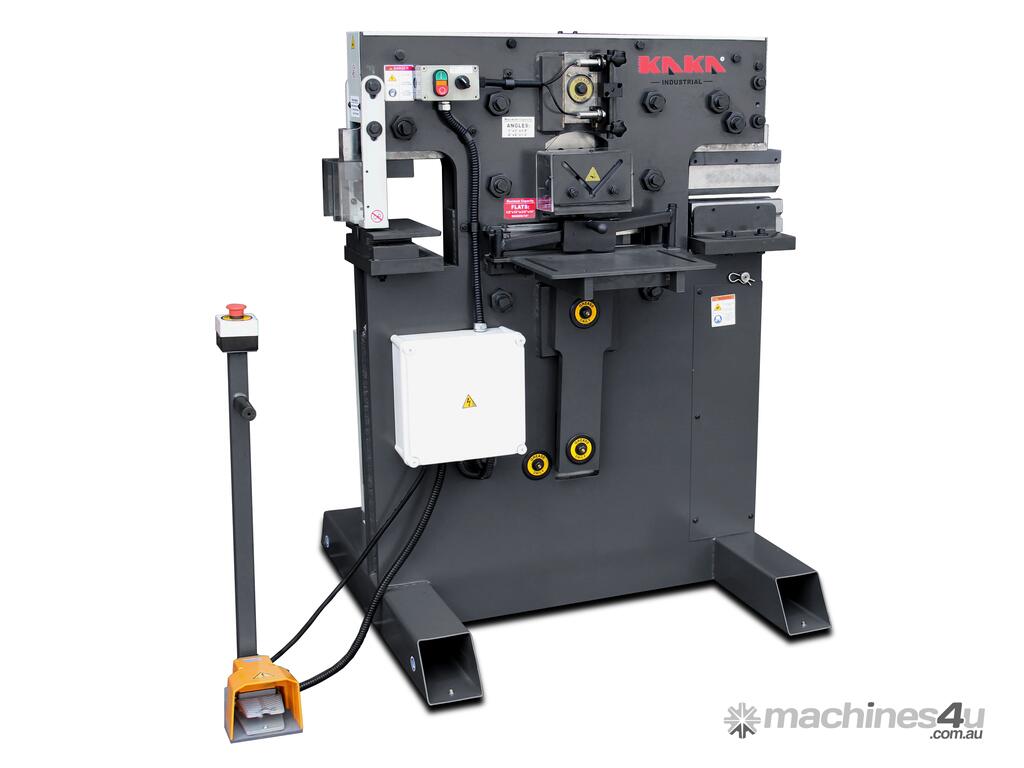

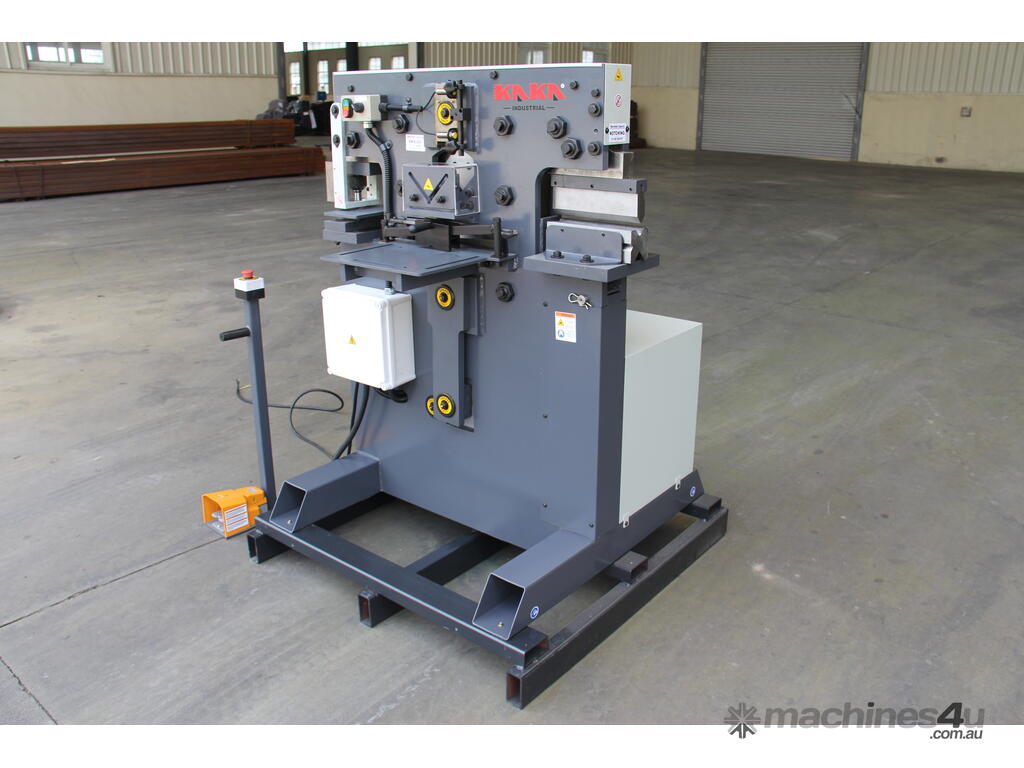

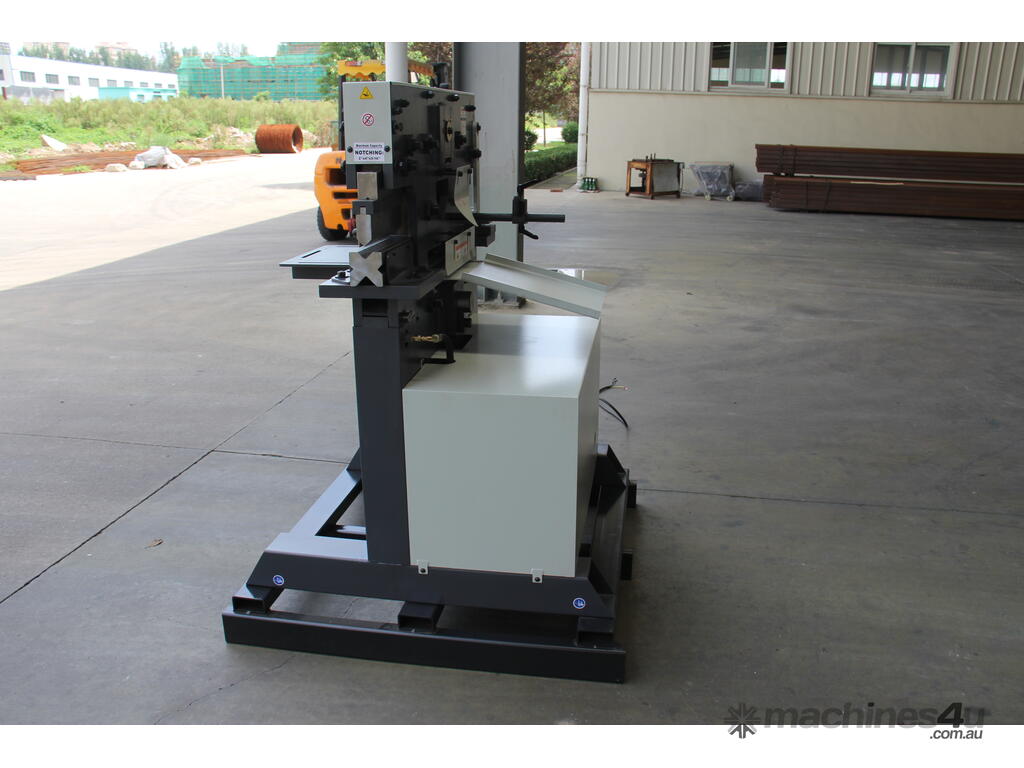

KANG INDUSTRIAL M-55 Hydraulic Iron Worker


The KANG 55-Ton Ironworker is a heavy-duty, hydraulic fabrication powerhouse designed for metalworking professionals who demand speed, precision, and versatility in one compact machine. Built with rugged steel construction, this 55-ton beast handles everything from structural steel to custom fabrication with ease, perfect for workshops, fabrication shops, maintenance teams, and steel suppliers. With four dedicated workstations and the ability to accept 11+ optional attachments, it replaces multiple machines (punch press, shear, notcher, etc.) in a single footprint.

Unbeatable Productivity Ironworker. One machine performs punching, shearing, angle cutting, coping/notching, and optional bending/notching in seconds. Ideal for high-volume steelwork, mining maintenance, trailer building, or structural projects.

True Versatility. The universal open station + 11 interchangeable attachments (sold separately) lets you customise for your exact needs. Future-proof your workshop without buying extra machines.

Built Tough Hydraulic Machines. Heavy-duty construction stands up to daily industrial use. Precision hydraulics deliver clean, repeatable cuts with minimal material waste.

Safer & Easier Operation. Optimised workstation heights, jog control, and full safety guarding reduce fatigue and accidents. Electric stroke control gives you exact control every time.

Space-Saving & Cost-Effective Combination Machine. Compact footprint fits small-to-medium workshops. One 55-ton unit does the work of 3–4 standalone tools, lowering your total equipment investment and power draw.

Features

Runs on 415V, 3 Phase power

4 available workstations

55T pressure at each of the 4 integrated stations

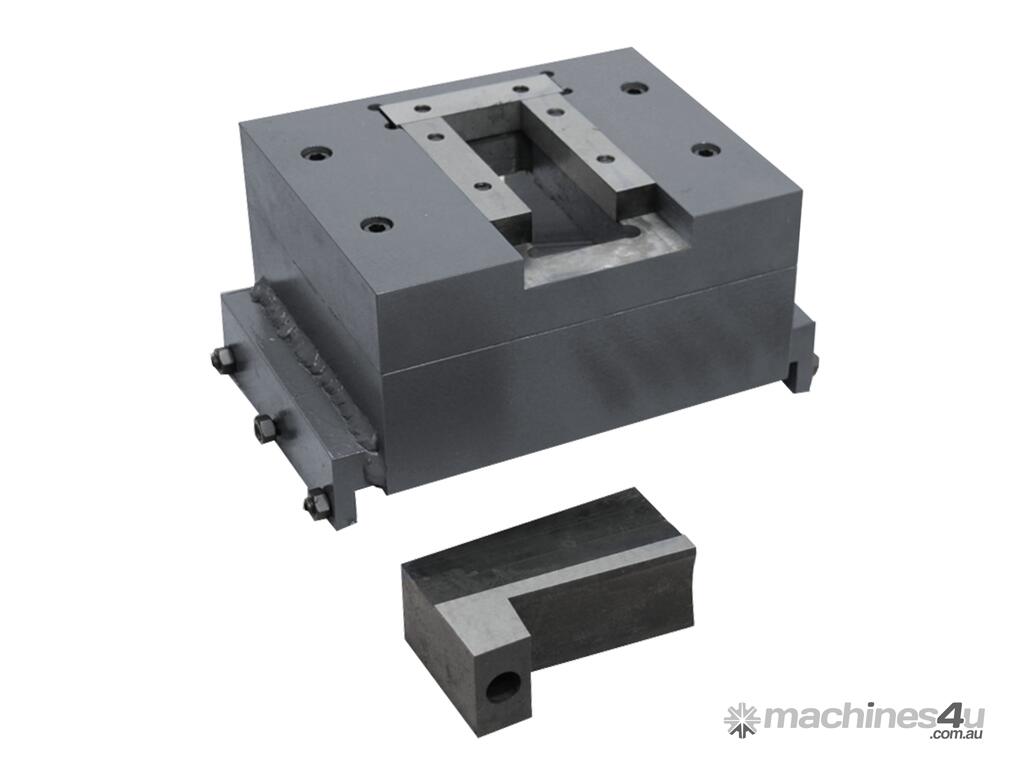

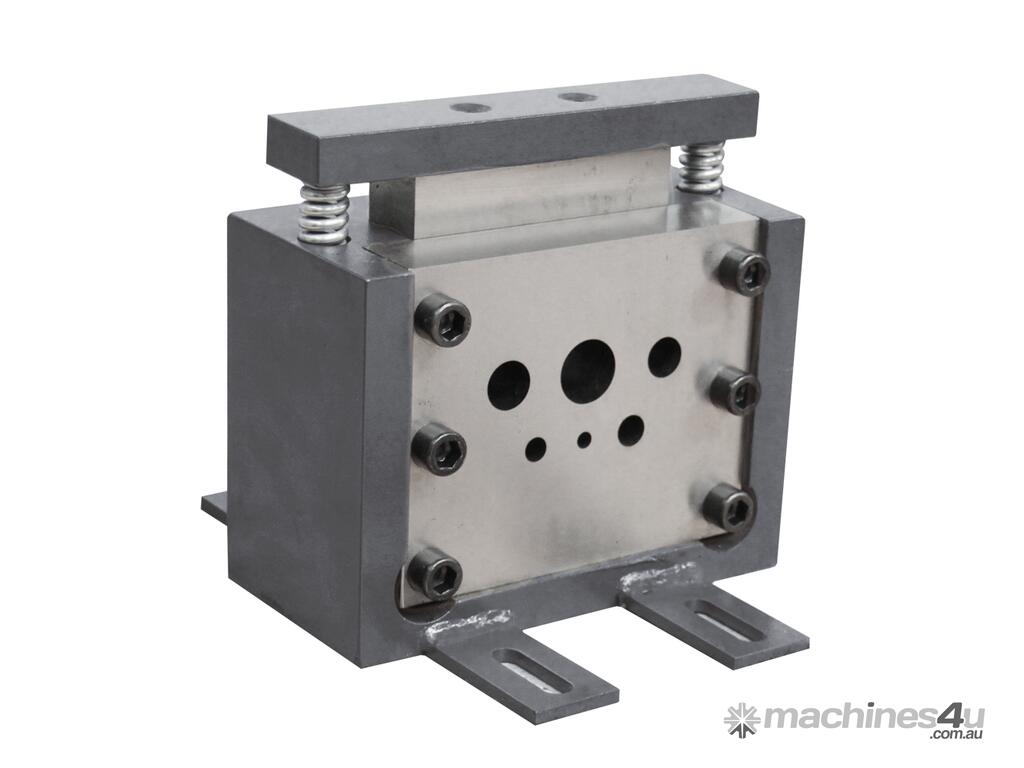

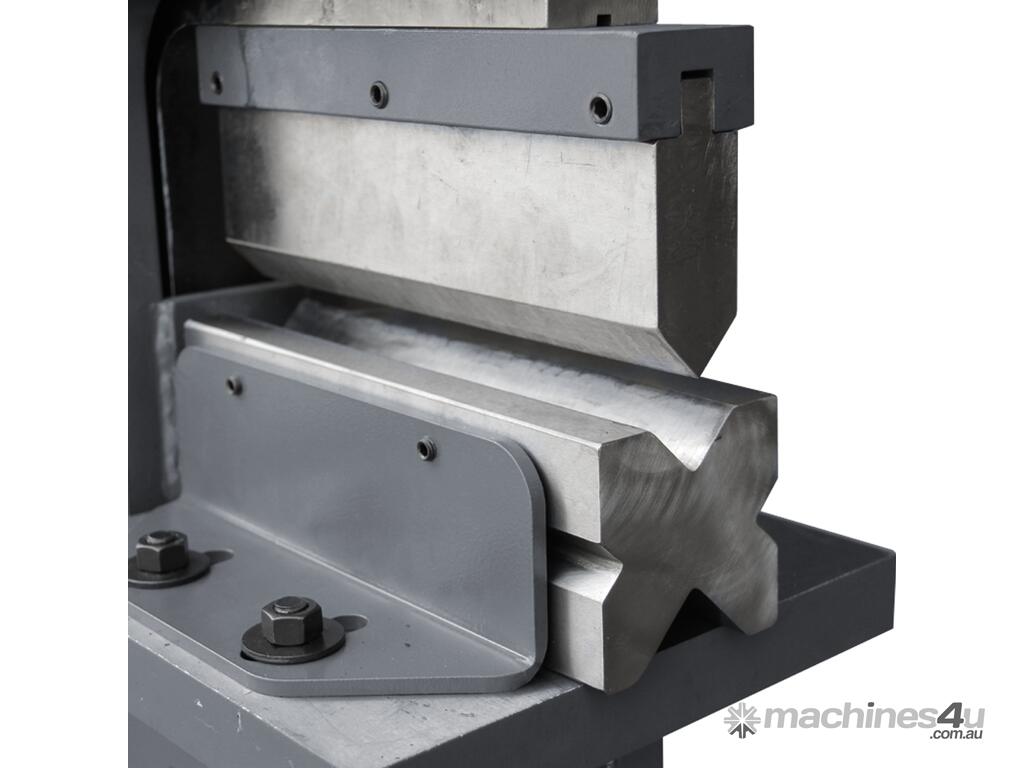

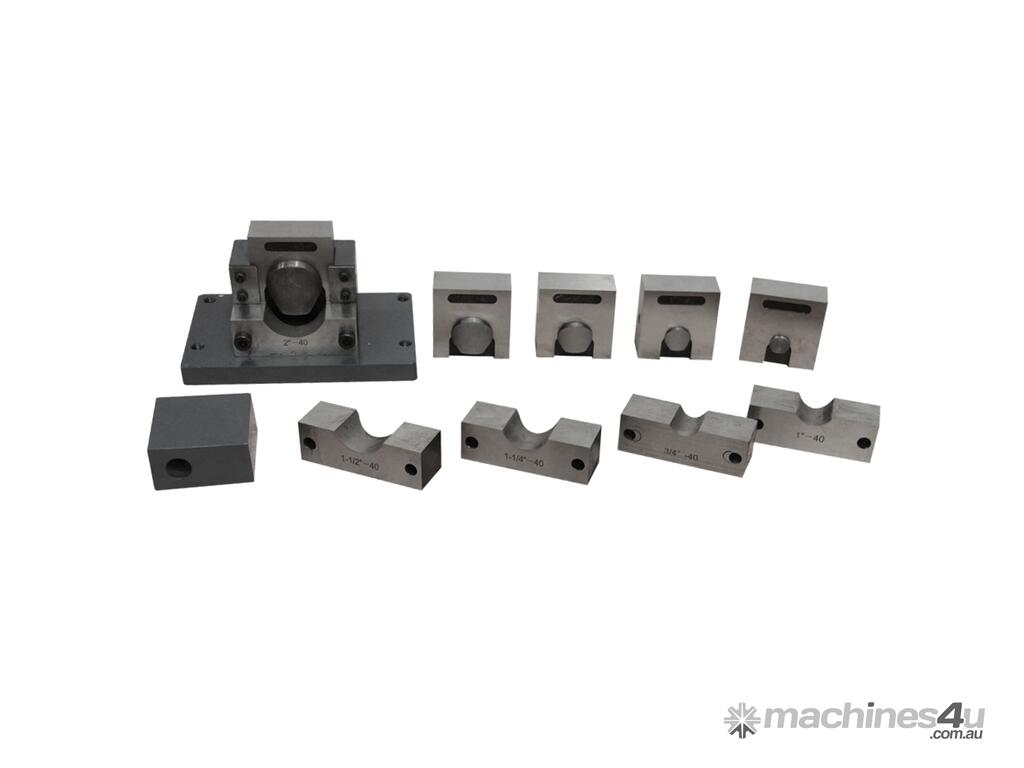

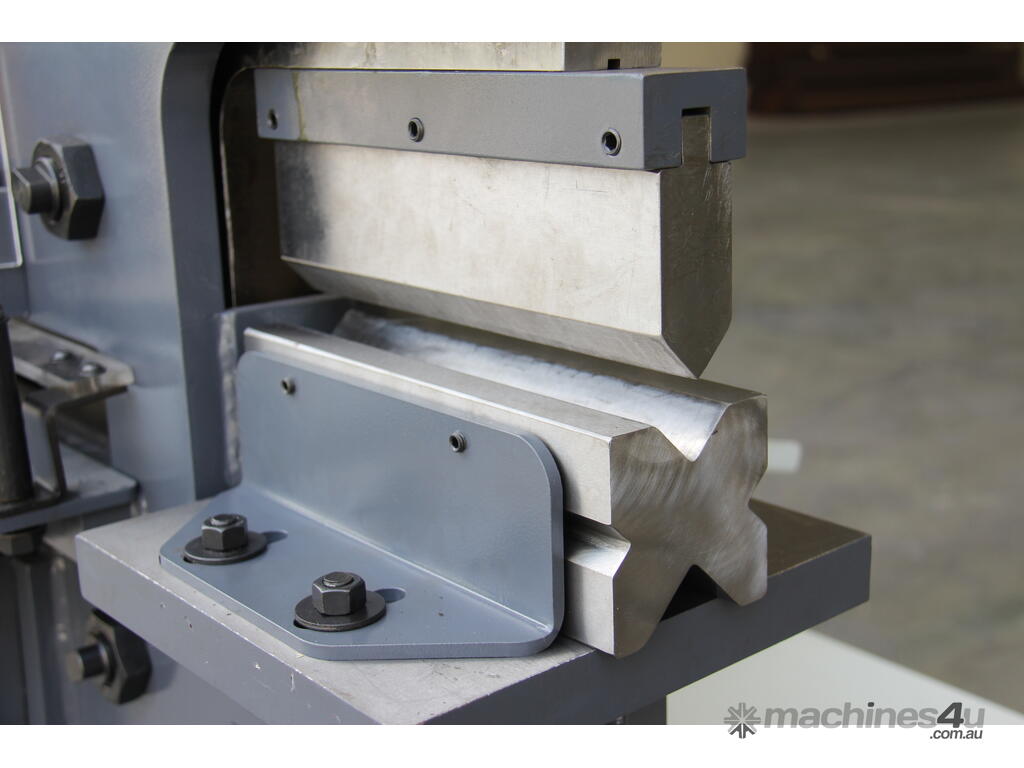

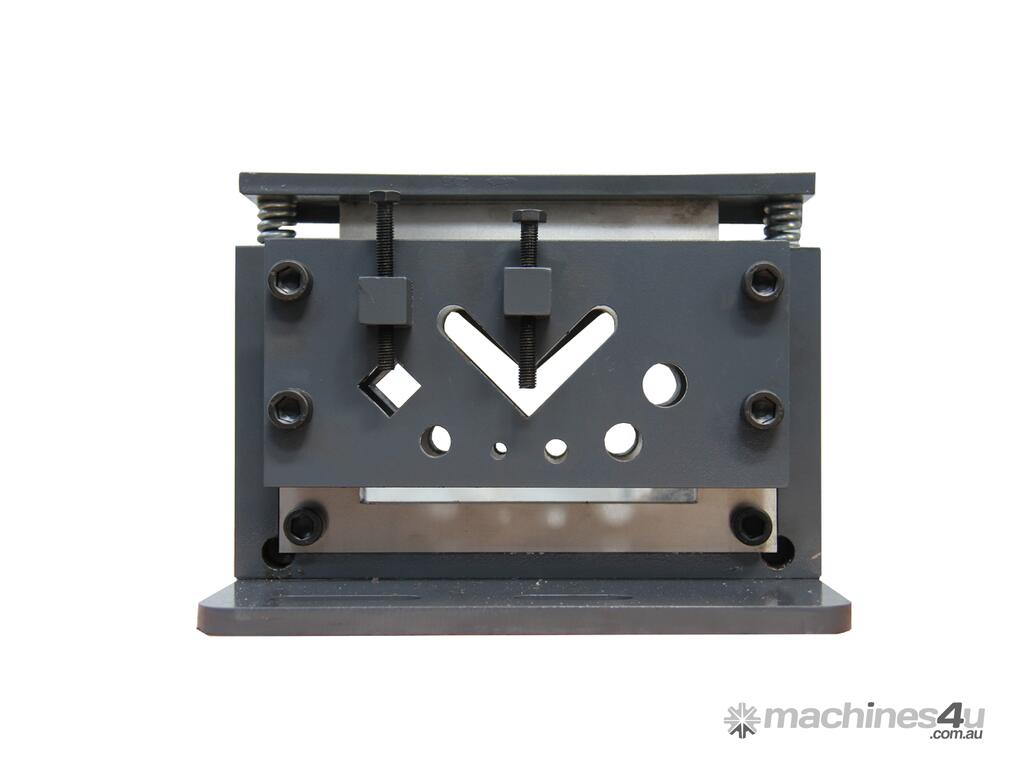

Open Tooling Station (for optional attachments): 180mm throat. Accepts pipe notchers, tube benders, brakes, and more

Standard with punch assembly, flat bar shear, angle shear, and a universal open tooling station for optional tooling accessories

Specifications
SKU 181111
Model M55
Punching (Max.) 1-1/16" dia. in 5/8" plate
Flat bar Max. width 1/2"x12", 3/8"x14"
Flat bar Max. thickness 3/4"x4"

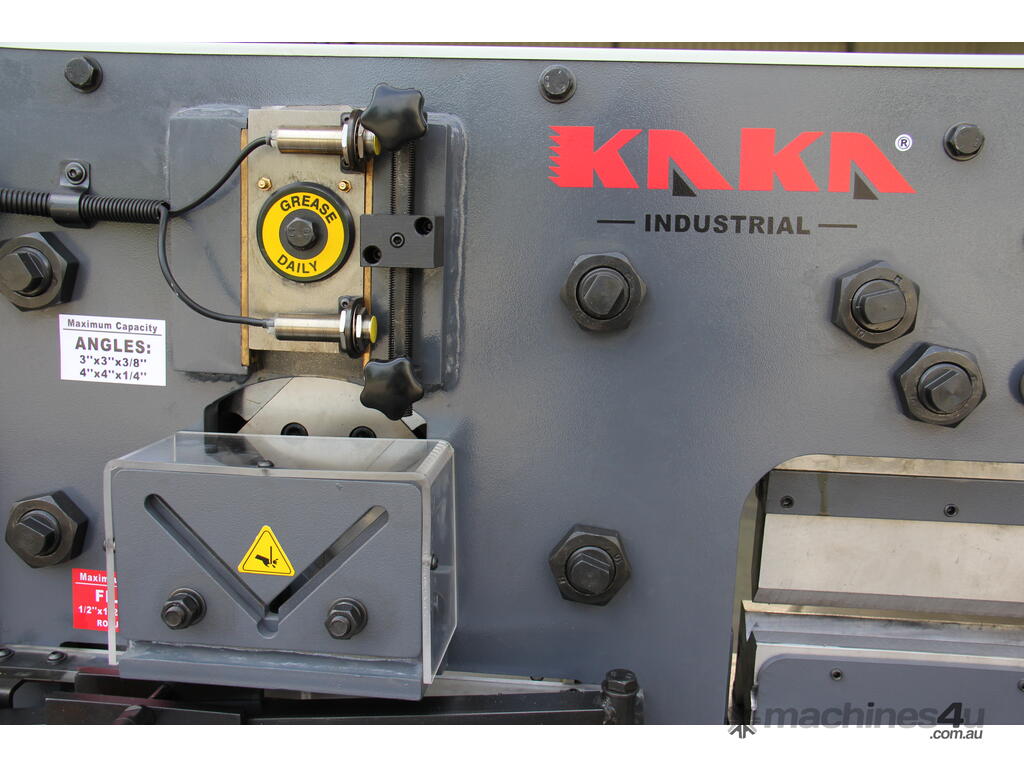

Angle shear 4"x4"x1/4" or 3"x3"x3/8"
Capacity 55 T
Throat depth 7-1/2"
Open height 8"
Shut height 6-3/4"
Stroke 1-1/4"
Motor power 3.75 kW
Packing size 115x113x152 cm
N.W./G.W. 950/1050 kg
