Hydraulic Pan Brake: 3710 x 3mm - *AUSTRALIAN MADE*

MADE TO ORDER: DESIGNED & MANUFACTURED IN AUSTRALIA

The proven design of the EPIC 3710 x 3.0mm Hydraulic Pan Brake provides accurate bends and folds, and careful construction means this machine is made to last.

EPIC's Hydraulic Pan Brakes are designed and manufactured in the company's NSW workshop. EPIC has been manufacturing sheet metal processing equipment for more than 40 years. EPIC's high quality Australian-made machines are built for precision and reliability.

EPIC has technical services Australia-wide. Plus, we offer personal customisation and modification of all our machines.

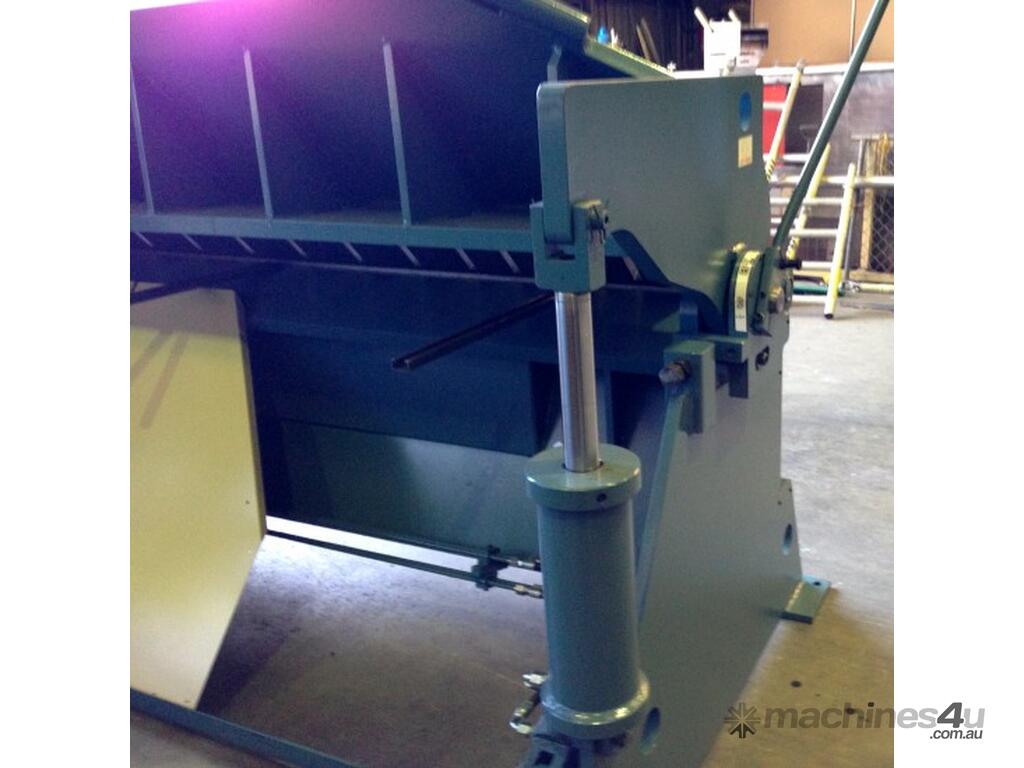

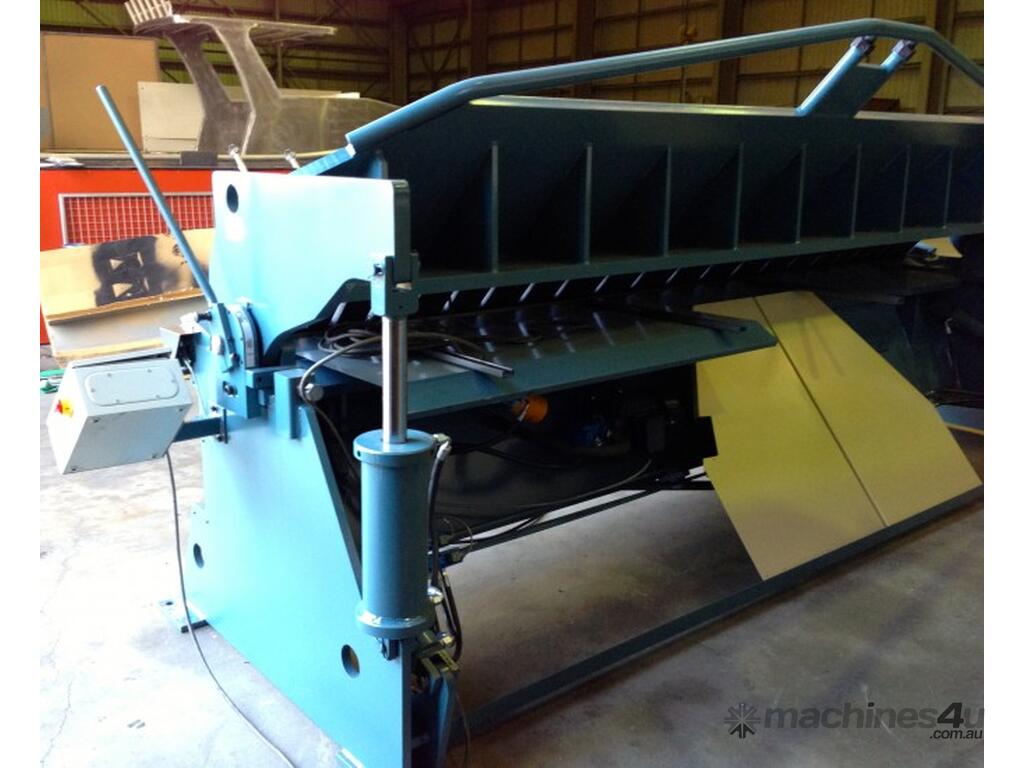

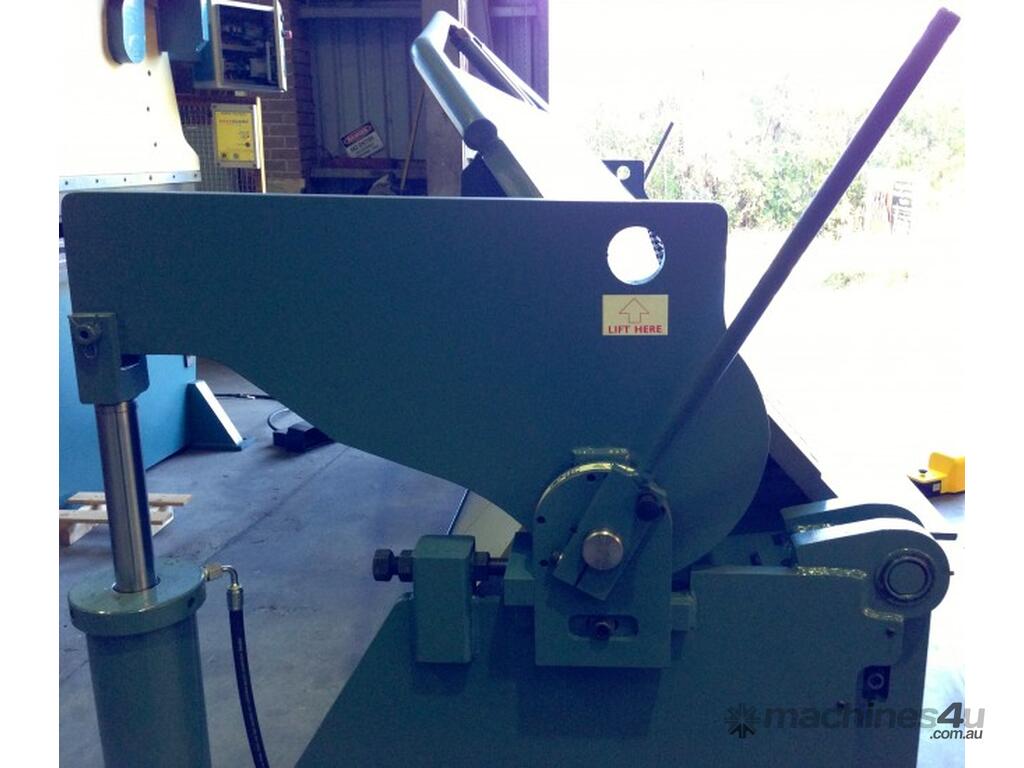

HYDRAULIC RAM MOUNTING SYSTEM

EPIC's hydraulic ram mounting system is designed for minimal deflection under recommended loads. The full tonnage delivered by the clamping rams is transferred to the head through the trunnion bearings. The bearings are mounted to the side frames of the machine providing support even at the centre of the machine head and minimising any side movement. When bending at full capacity this achieves a smaller radius and a nice straight bend/fold.

RAPID HEAD ADJUSTMENT

EPIC's rapid head adjustment feature allows the operator to quickly and easily change from material as thin as 0.5mm up to the machine's material and thickness capacity. Simply adjust the side handles and indexing pins to the required gauge setting.

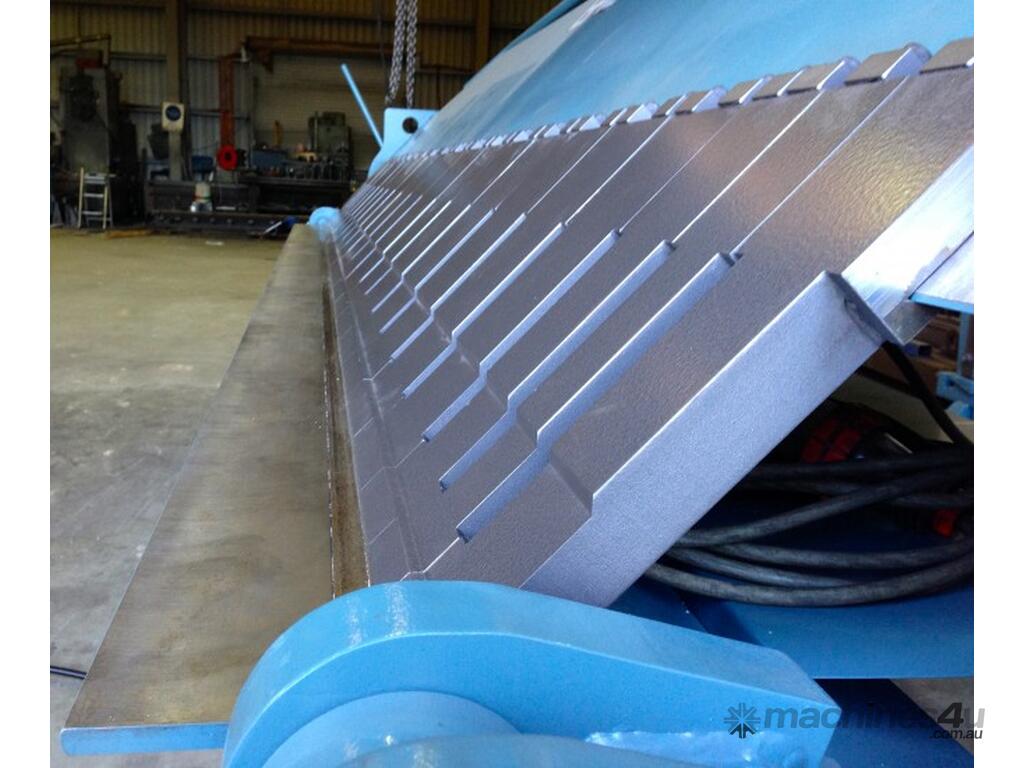

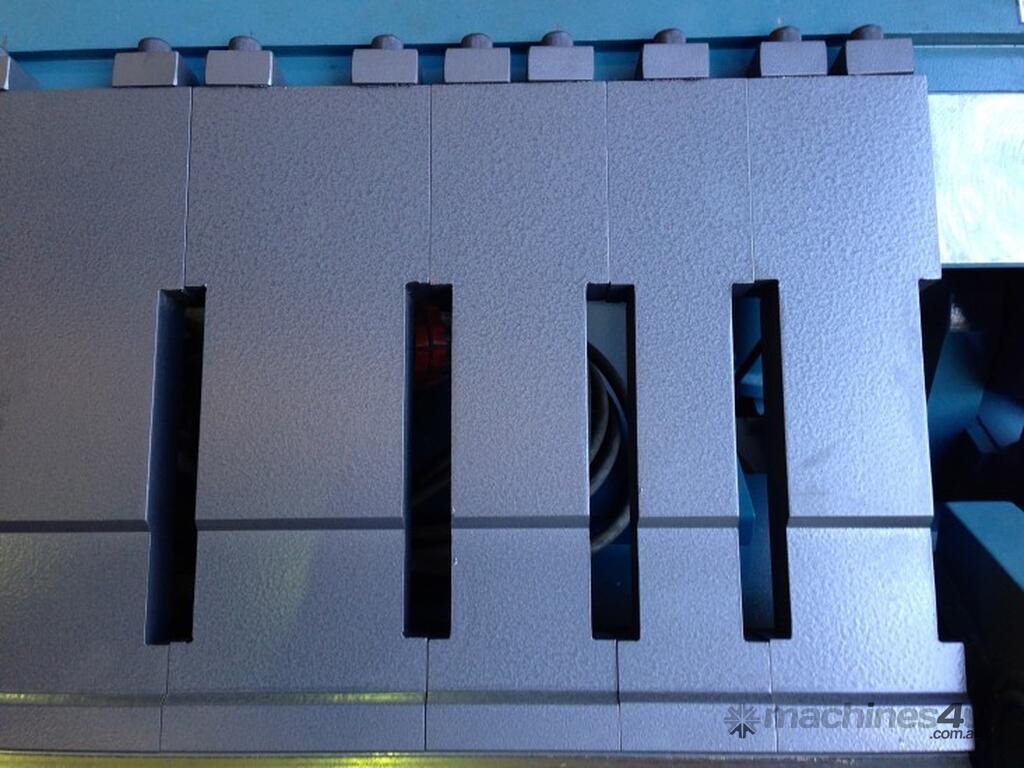

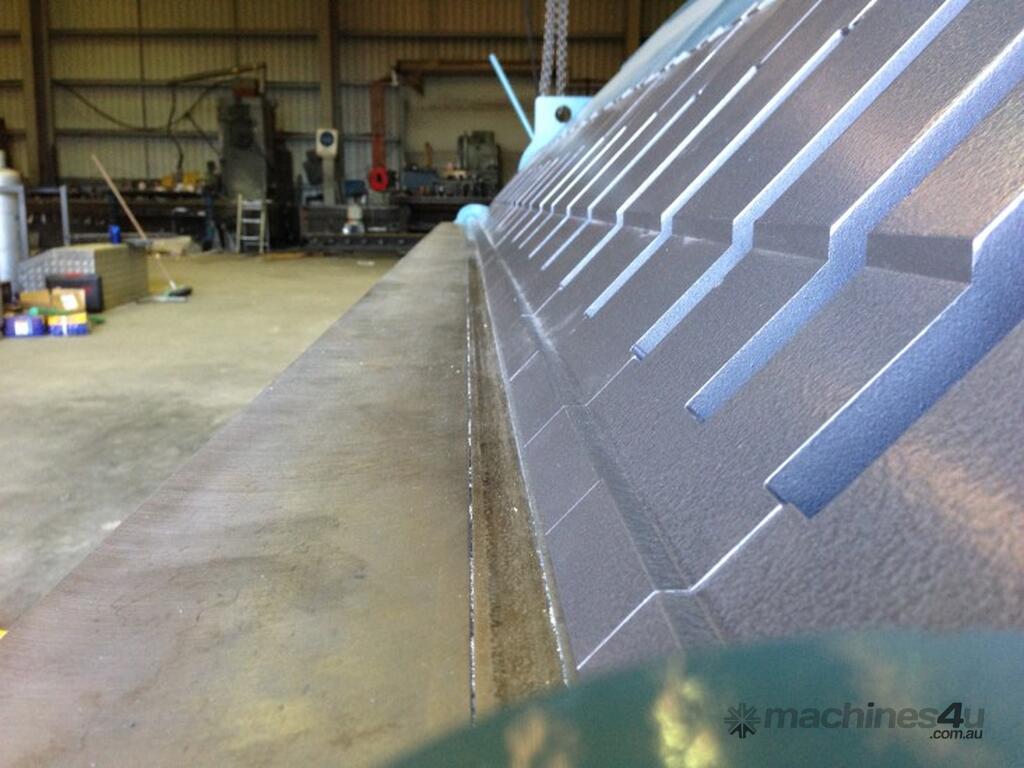

1-PIECE HIGH-CARBON STEEL FLAME-HARDENED CLAMPING FINGERS

High-carbon steel flame-hardened segmented clamping fingers are machined from one solid piece. This allows the full load of material being folded to be spread over an equal area of the head, and keeps the fingers straight.

The 3710HPB3 is 100% Australian-made and designed in our NSW workshop.

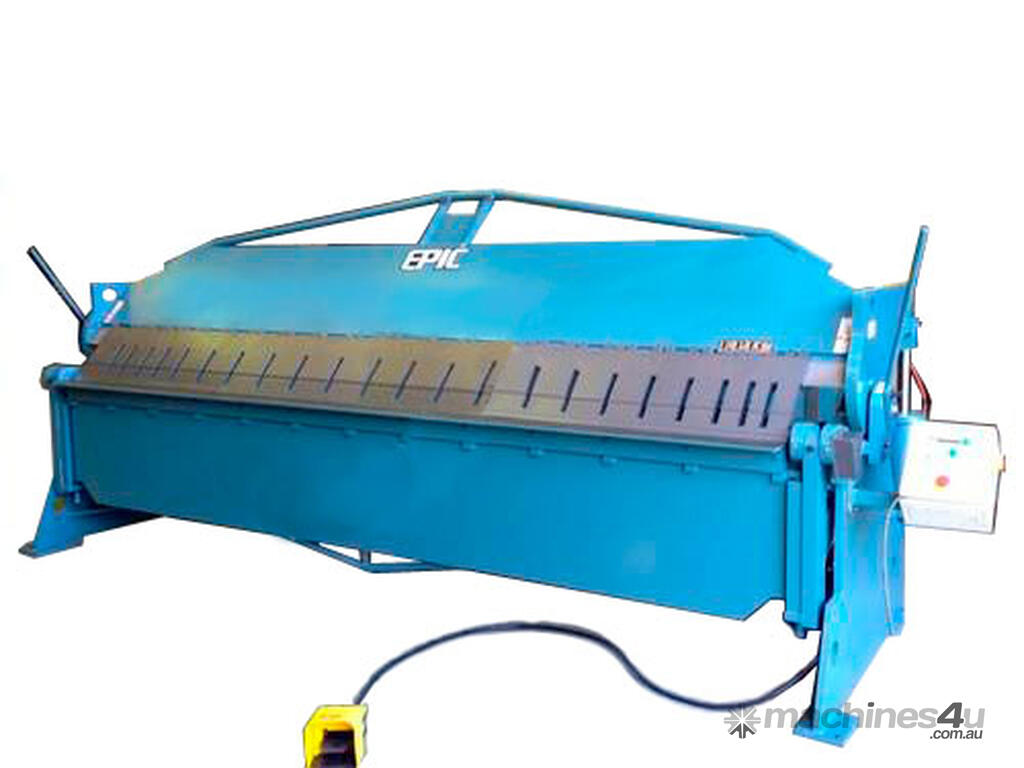

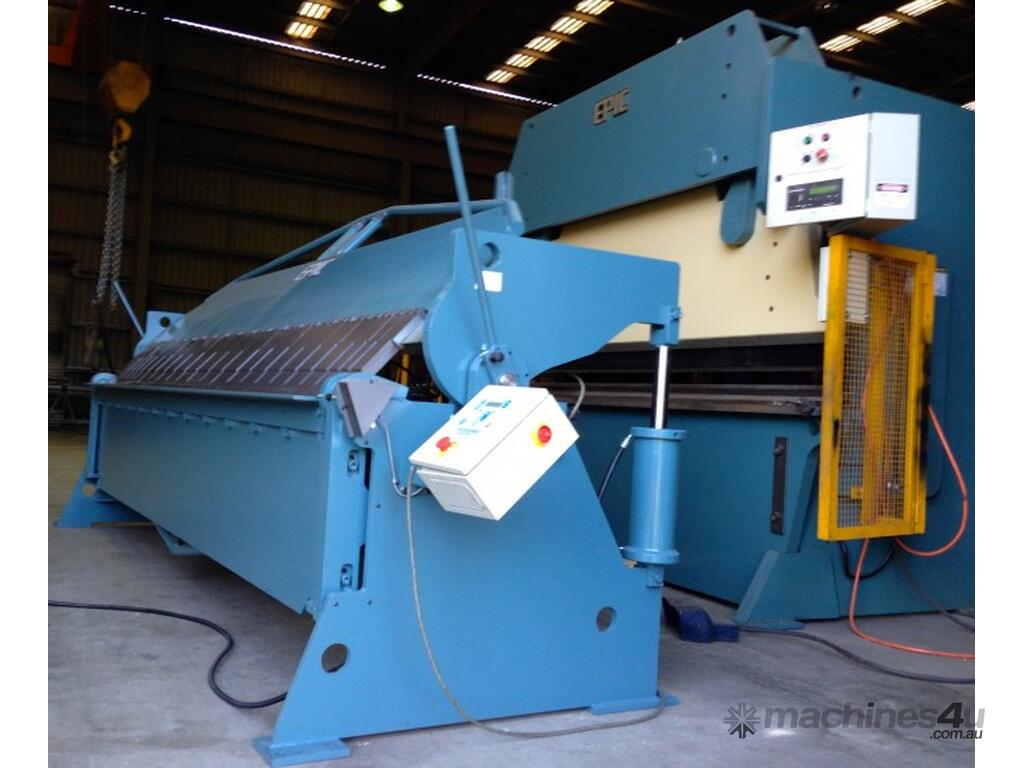

EPIC 3710mm x 3.0mm Hydraulic Pan Brake
Model No 3710HPB3

Machine Capacity:
- 3.0mm mild steel bending capacity
- 3710mm bending length

Standard Features:

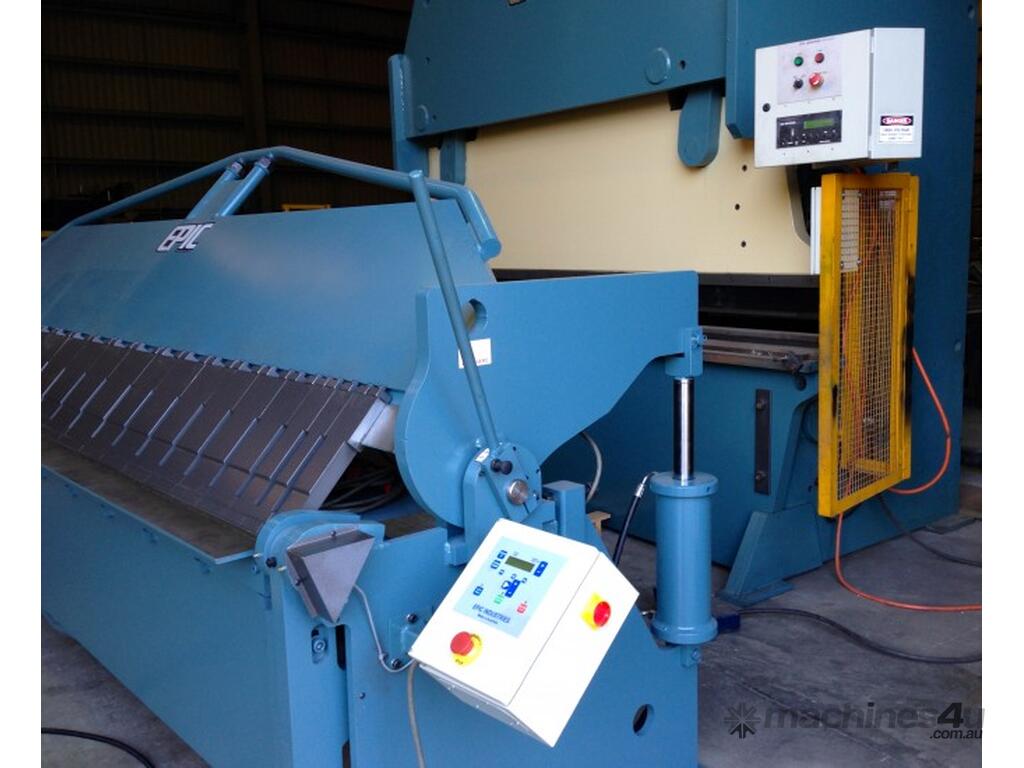

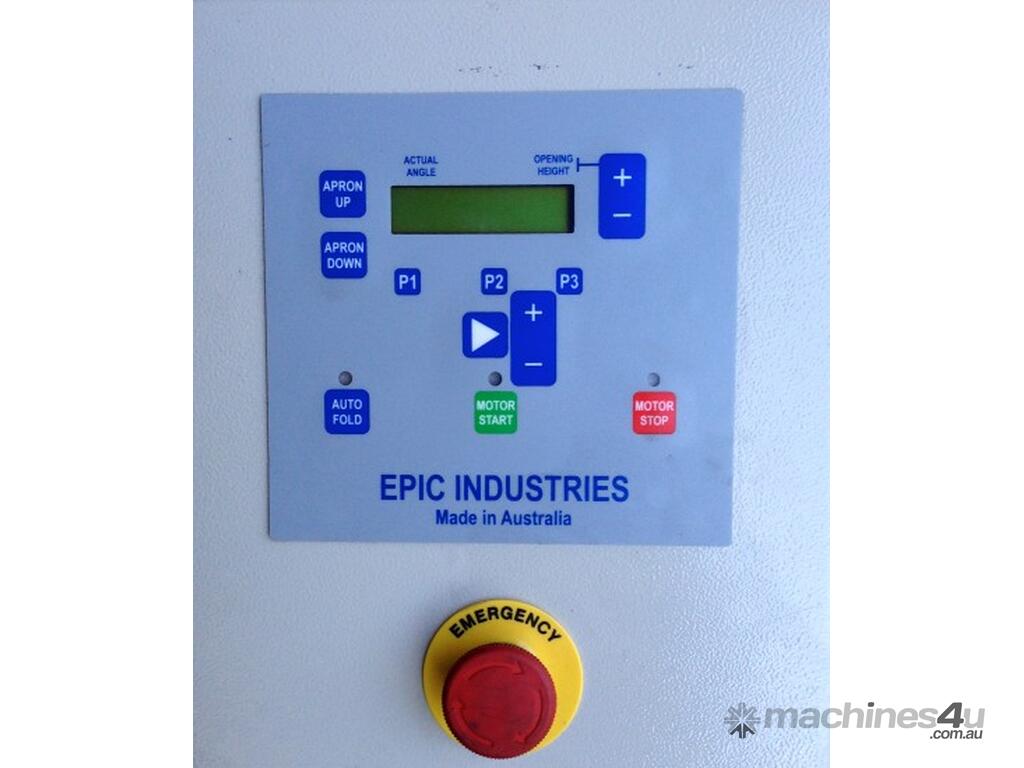

- Australian-made 3-station electronic control system
- Rapid head adjustment
- Electrics low 24 volts foot pedal and limit switches - overload protect!
- Unclamp is controlled to allow the operator to regulate the open height
- Clamp and unclamp from one easy to operate foot pedal
- High-carbon steel flame-hardened segmented clamping fingers machined from one solid piece
- Removable front apron angle support
- High-tensile steel apron blade
- All bearings and wear points come with grease fittings for lubrication

Optional Features:
- One piece clamp blade - suitable for stainless steel applications
- Machine paint colours
- Hydraulic hand-activated valve (Replaces the need for any electrics for a simple to use and affordable machine)
- Ten station 99-job electronic control system
- Electronic ball screw back gauge
- Standard 1200mm travel control via ten station control system providing a true 2-axis pan brake -custom lengths also available
- Extra safety options - suitable for government departments

Contact EPIC to discuss freight and financing, plus any customisations and modifications you require.

EPIC 4.0mm and 3.0mm Hydraulic Pan Brake range:
- 1250mm x 4.0mm mild steel capacity
- 1860mm x 4.0mm mild steel capacity
- 2500mm x 4.0mm mild steel capacity
- 3070mm x 4.0mm mild steel capacity
- 3710mm x 3.0mm mild steel capacity
- 4020mm x 3.0mm mild steel capacity

Get in touch, to find out more about our hydraulic pan brakes or any of our sheet metal machinery range.
