Hydraulic Panbrake Bender HW-9610, 2440x3.5 mm Mild Steel Plate Folding, Panbrake Folder

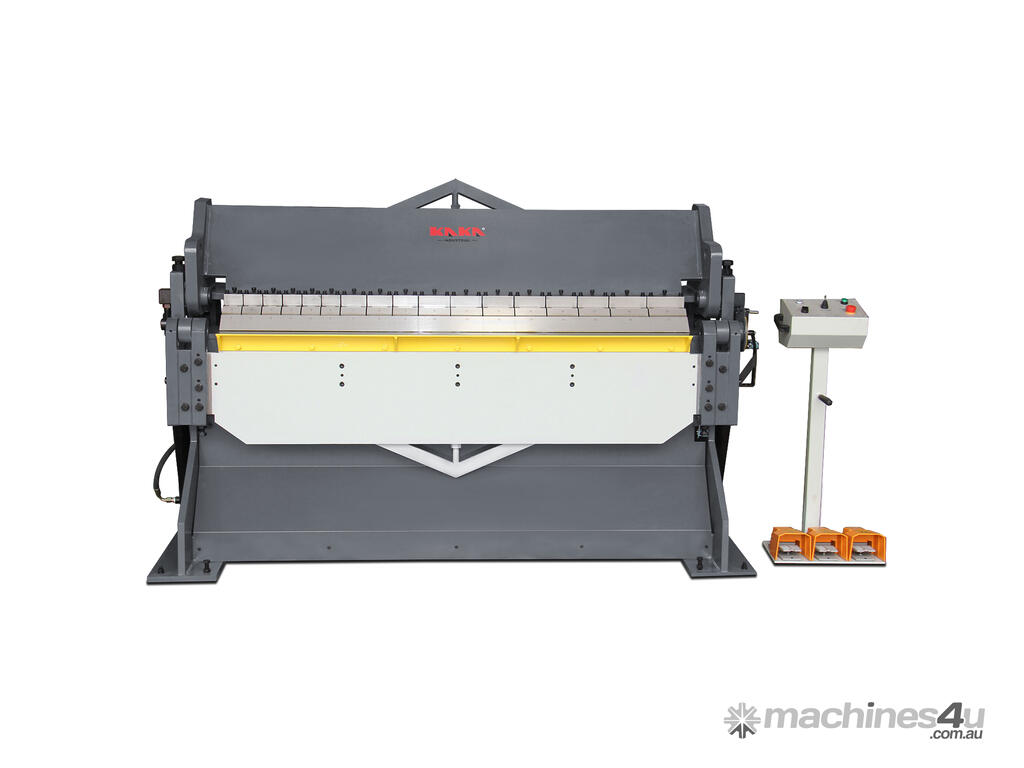

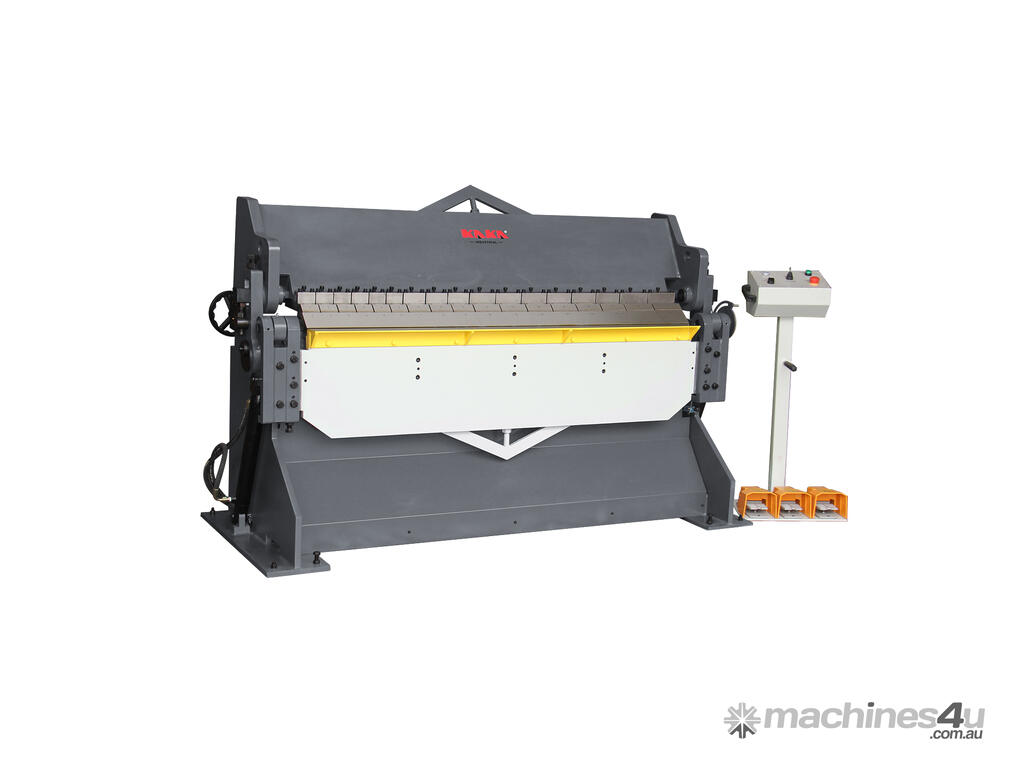

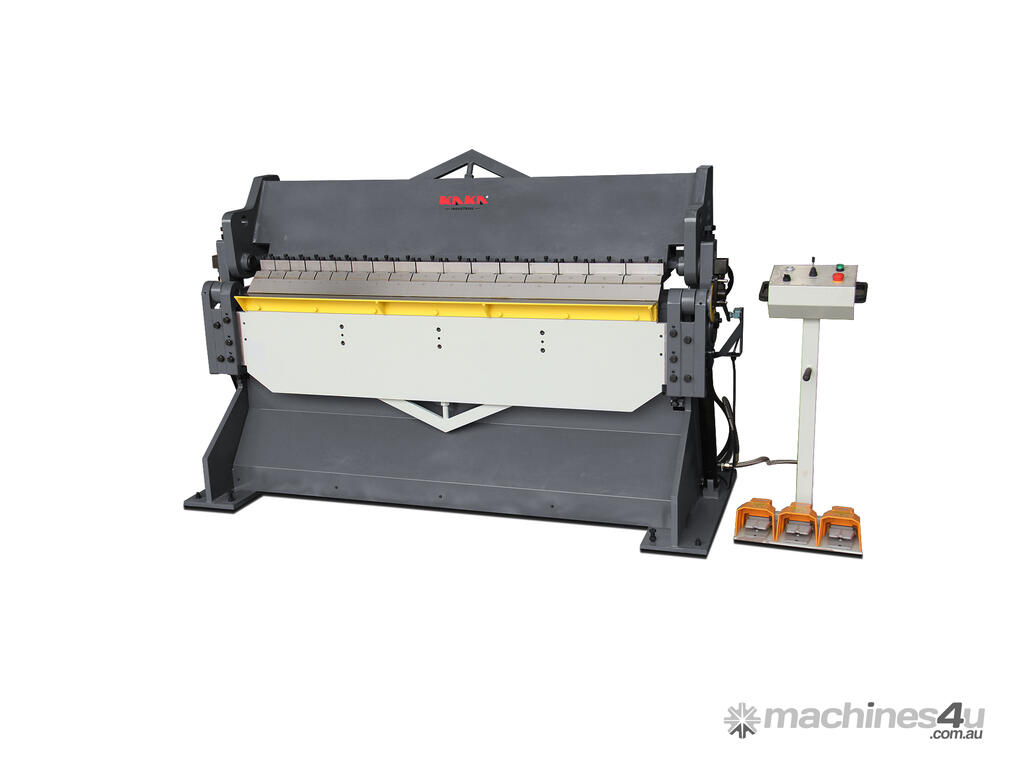

Hydraulic Panbrake, Folding Machine HW-9610


The KANG HW-9610 is a robust, fully hydraulic panbrake folder engineered for accurate and efficient bending of sheet metal. It features segmented upper clamping fingers, allowing complex box, tray, pan, and enclosure shapes that are impossible or very difficult on a straight brake. With a full 2440 mm bending length, it handles mild steel up to 3.5 mm and stainless steel up to 2.5 mm, making it suitable for roofing, ducting, HVAC, architectural flashing, custom enclosures, signage, and general metal workshop production.

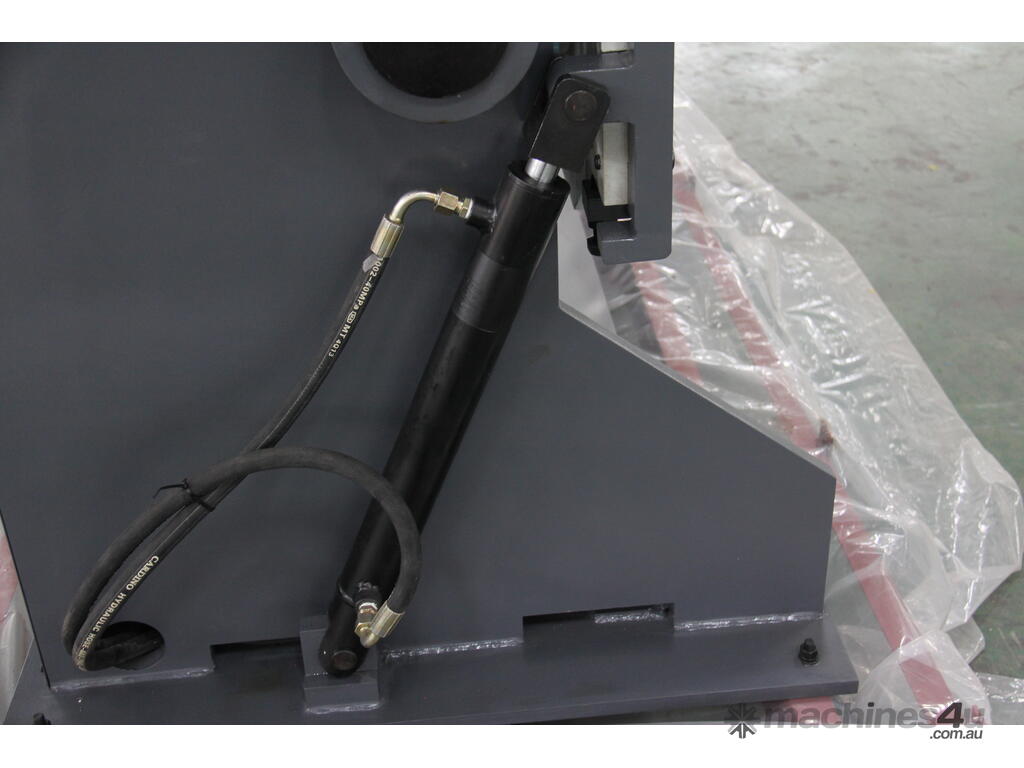

Fully Hydraulic Thick Plate Bender. The HW-9610 uses a full hydraulic system for both clamping and folding. This reduces operator fatigue and ensures consistent pressure across the entire 2440mm/8ft length.

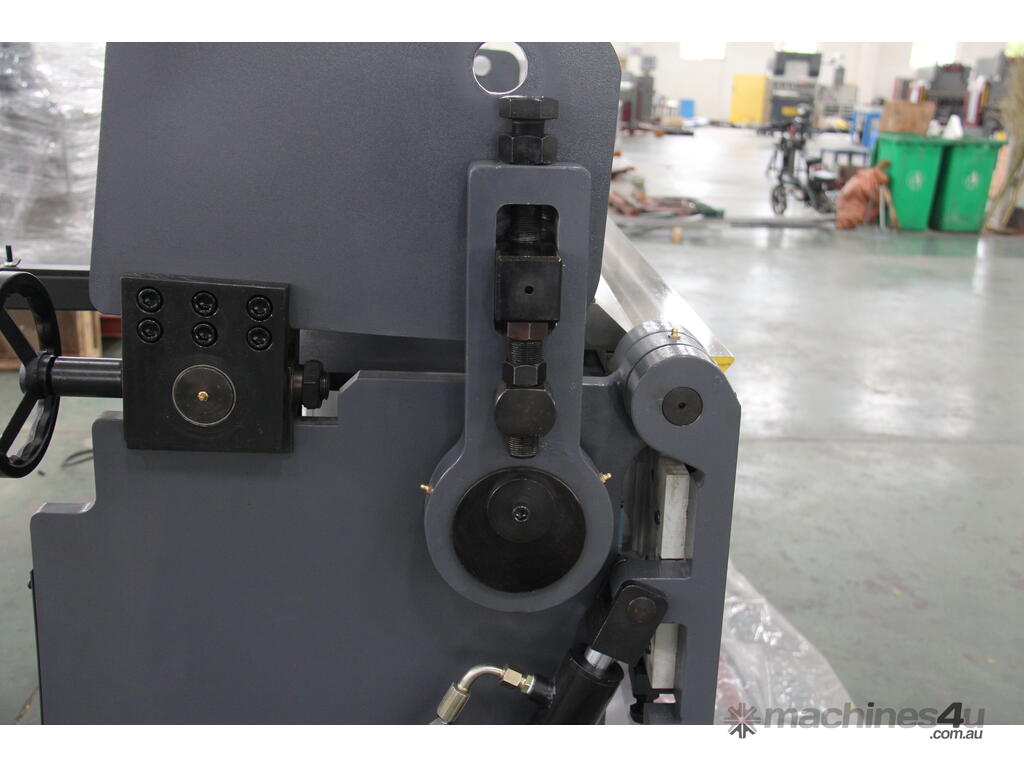

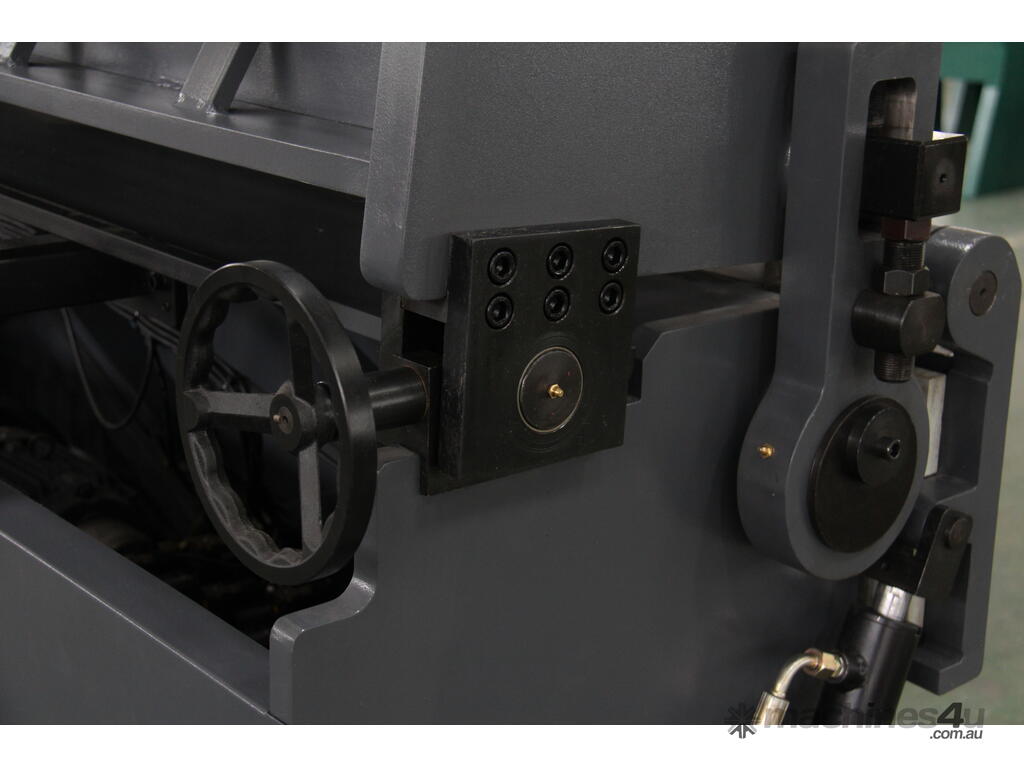

Beam Crowning Compensation Folding Machine. Includes top and bottom beam crowning adjustment via screws. This is critical for fabricators who require perfectly straight bends over long spans without "boeing" in the middle.

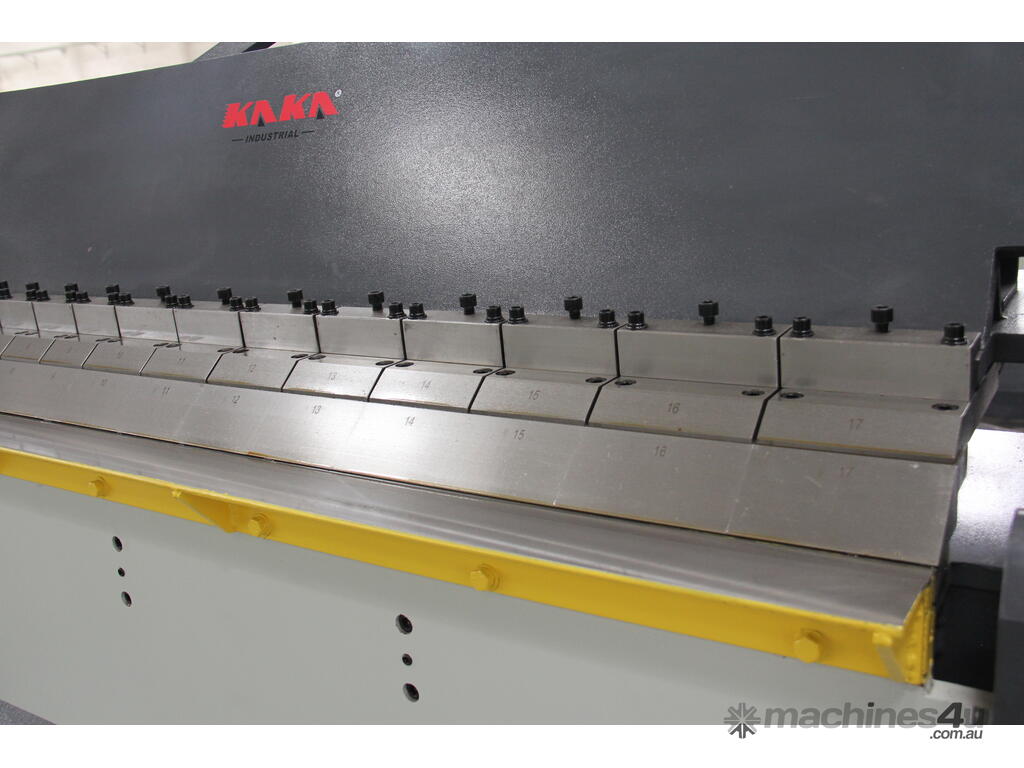

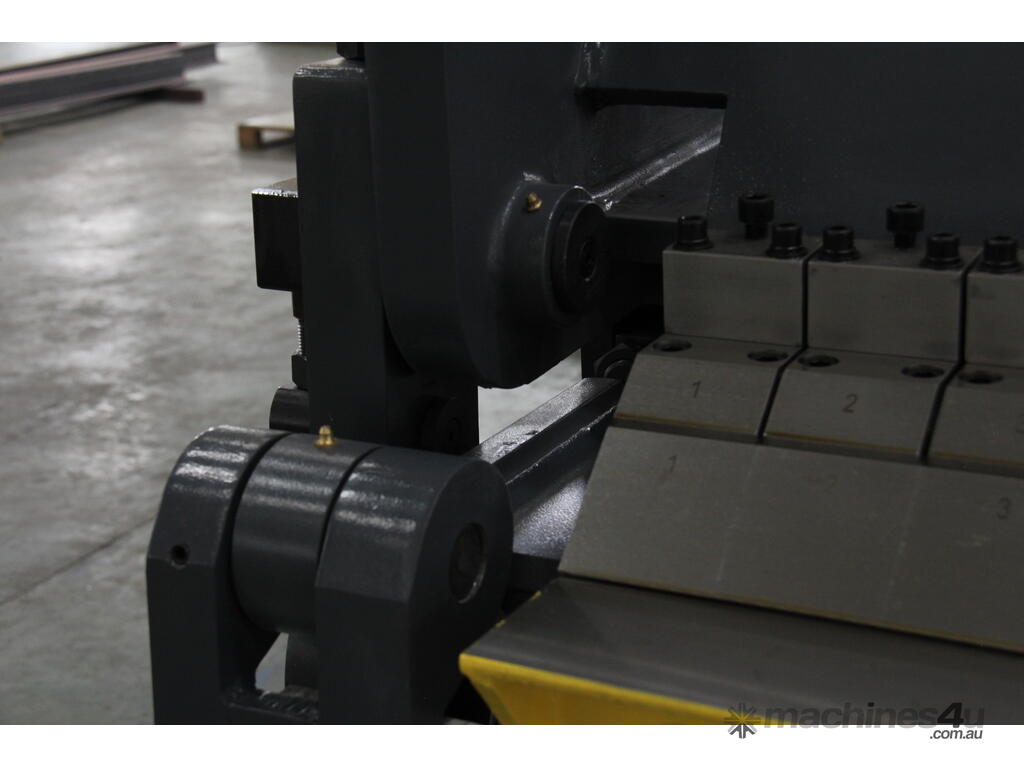

Box & Pan Bender. Segmented fingers allow you to create deep trays, boxes, panels with return flanges, and complex shapes without interference. Ideal for sheet metal fabricators doing custom work, ducting, switchboards, signage, and architectural products.

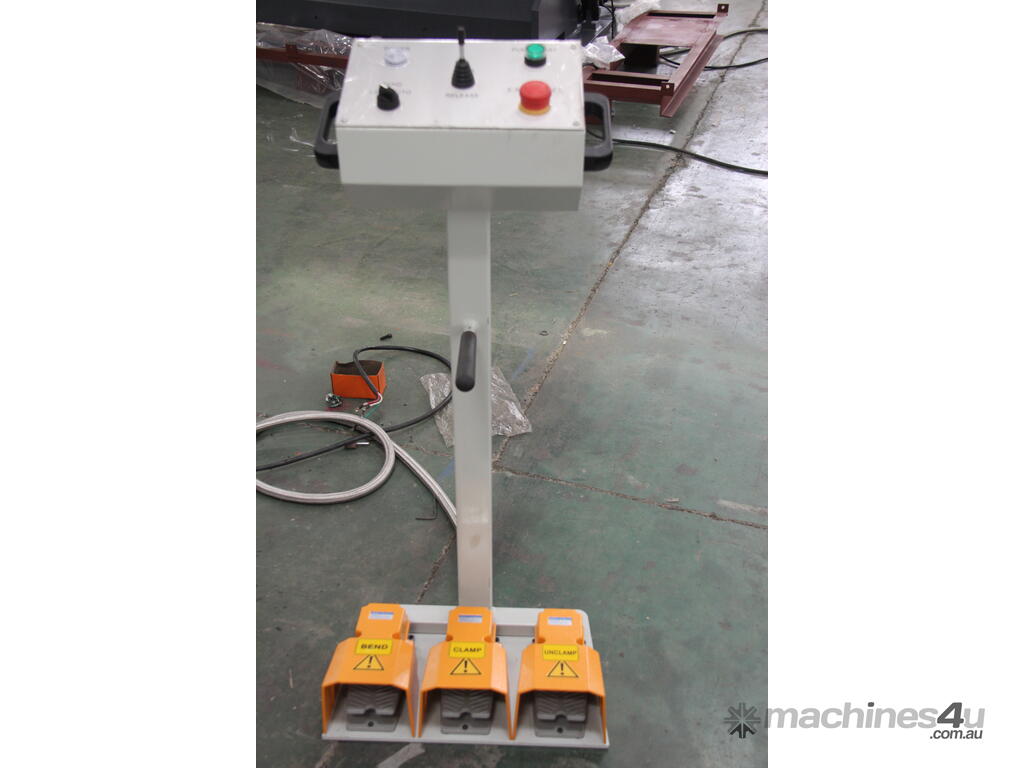

Dual Operation Modes. A three-function foot pedal & control panel for intuitive operation,

Features

Powerful 5.5 kW motor runs on 415V power

Max. bending 3.5 mm thick mild steel plate across the full width of 2440 mm

Hydraulic bending and clamping beam, heavy-duty pan brake folder

Max. box depth up to 150 mm

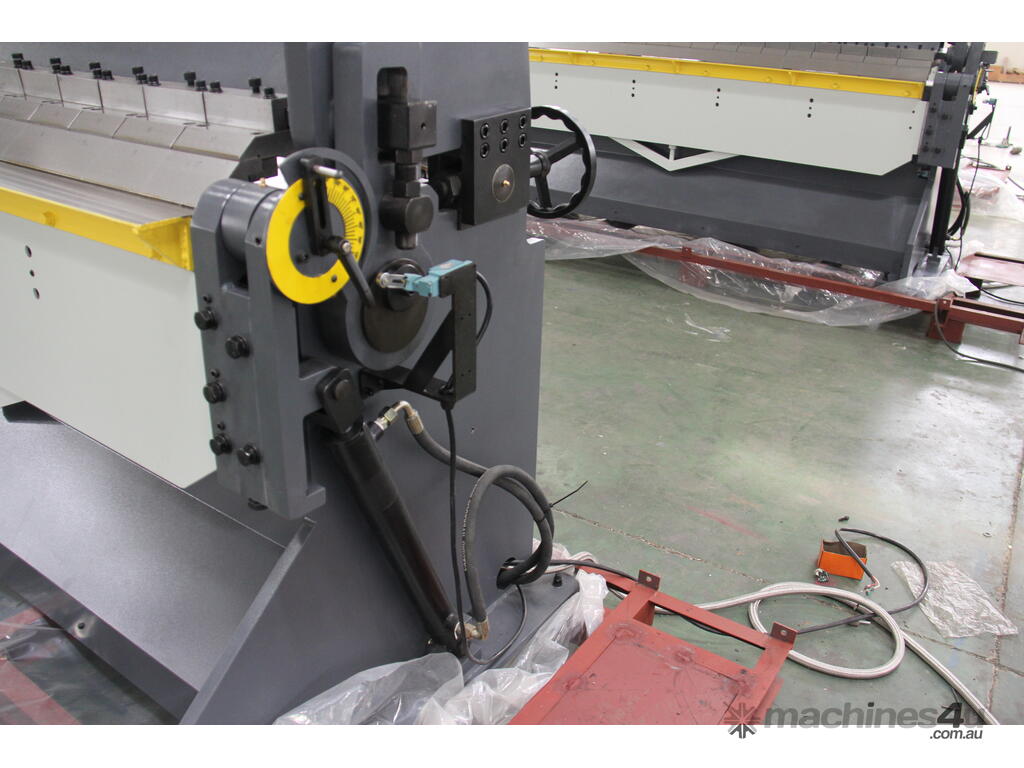

The bending angle ranges from 0 to 135 degrees, angle stops to get a repeatable bending

Various finger sizes to make different width box

Beam crowning compensation for uniform bends across the full length

Finger size: 76mmx6, 102mm x3, 127mmx6, 153mmx2

Optional Hydraulic Oil is available.

Specifications
SKU 173503
Model HW-9610
Max. bending thickness 3.5 mm
Max. bending width 2440 mm
Bending angle 0-135°
Max. box depth 150 mm
Large beam opening 75 mm
Manual back gauge 660 mm
Hydraulic cylinder pressure Max. 15 MP
Hydraulic cylinder speed 50-85 mm/s
Motor working pressure 9-13 Mp
Manual beam adjustment 0-25 mm
Motor power 5.5 kW
Packing size 325x102x170 cm
N.W./G.W. 2850/3000 kg
