Hydraulic Plate Notcher HNM-6 Notcher, 6mm Capacity, Fixed Angle, 250mm Notcher Size

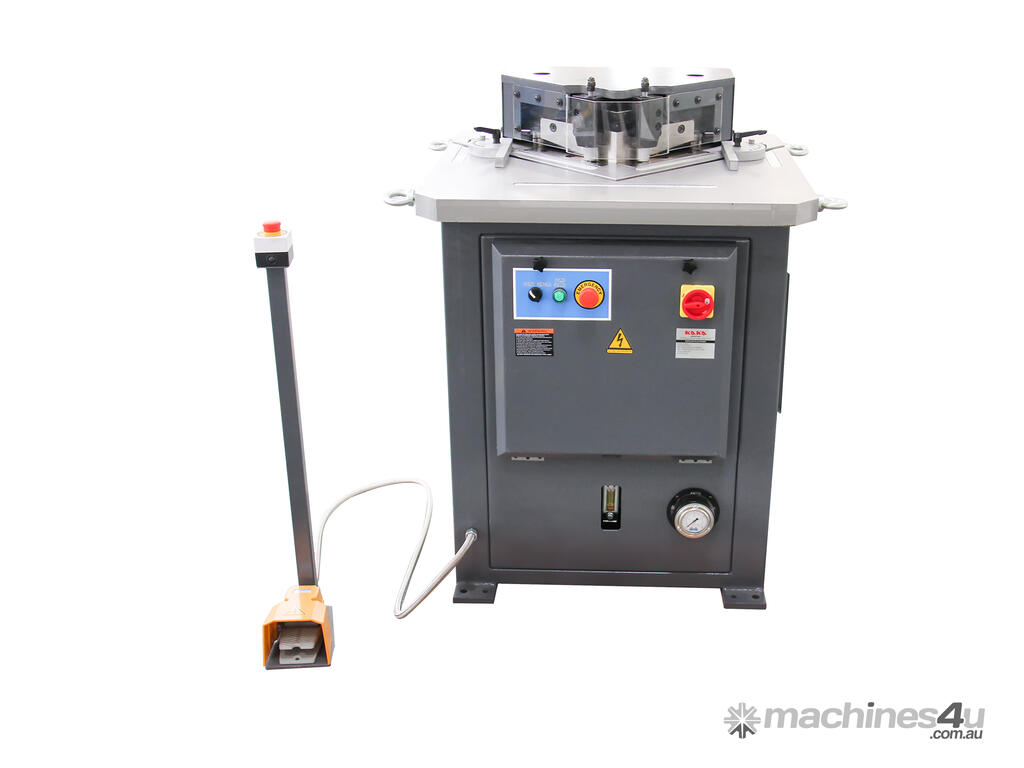

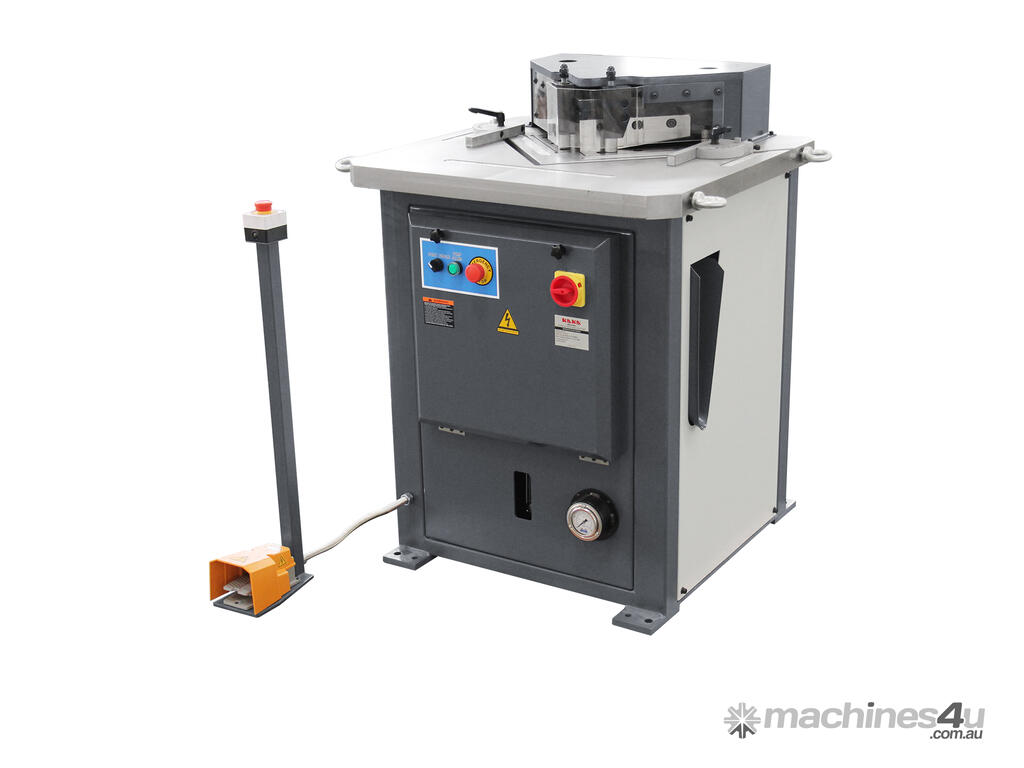

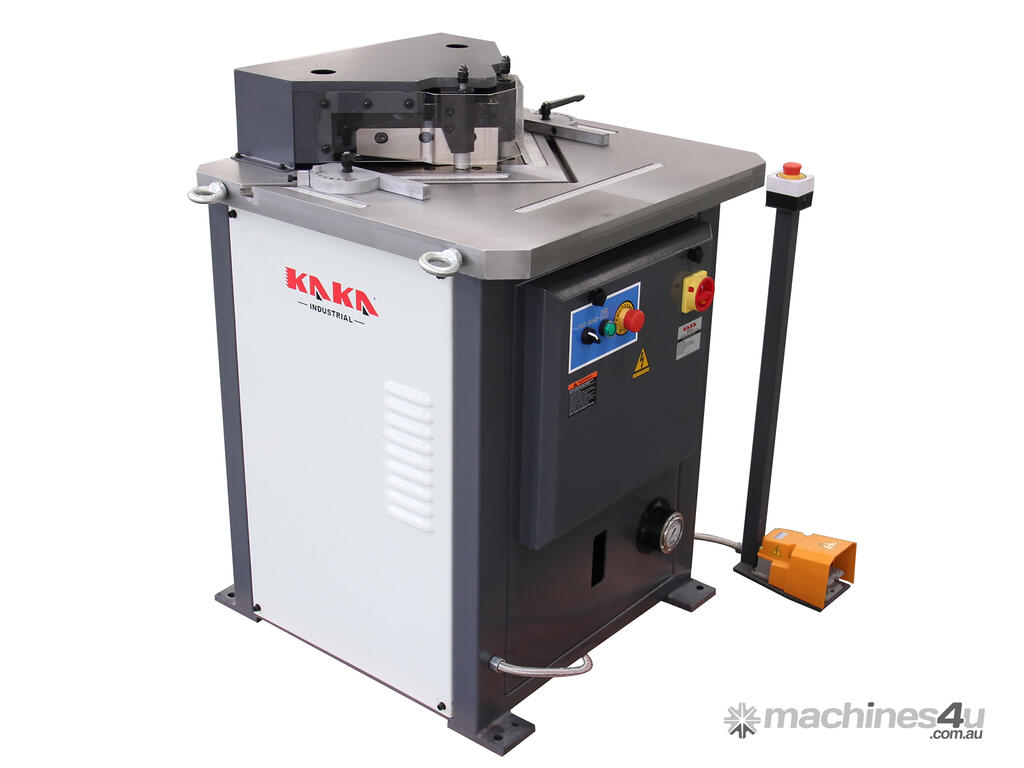

Hydraulic Fixed Angle Plate Notcher HNM-6

The KANG HNM-6 is an industrial-grade, fixed 90º hydraulic sheet metal notcher. Designed for heavy-duty fabrication, it is a significant step up from manual or pneumatic notchers, offering high-volume capacity and the ability to cut through thicker materials with precision. The plate notcher is built around a heavy cast-iron working table and a powerful hydraulic system. It is specifically engineered to create perfect 90-degree corner notches in sheet metal, which is a critical first step in folding metal boxes, trays, and electrical enclosures

Industrial Repeatability Plate Notcher. Unlike manual bench notchers that can fatigue the operator and lose accuracy over a long shift, the hydraulic system delivers the exact same pressure every time. This is a major advantage for workshops focusing on small-batch manufacturing.

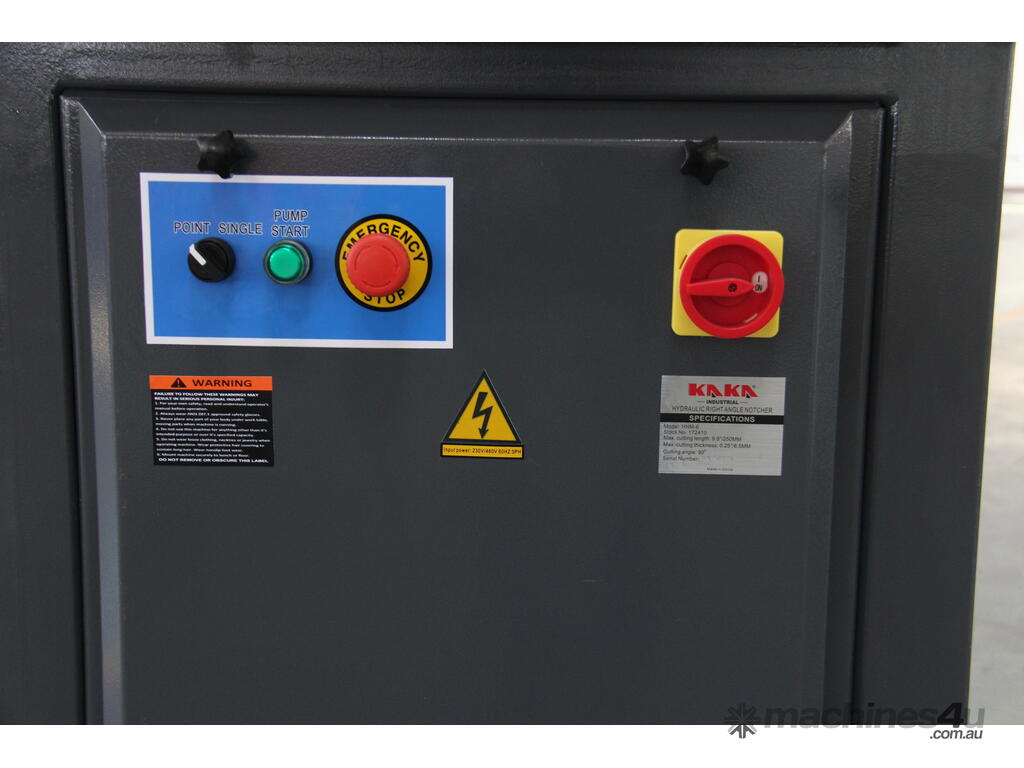

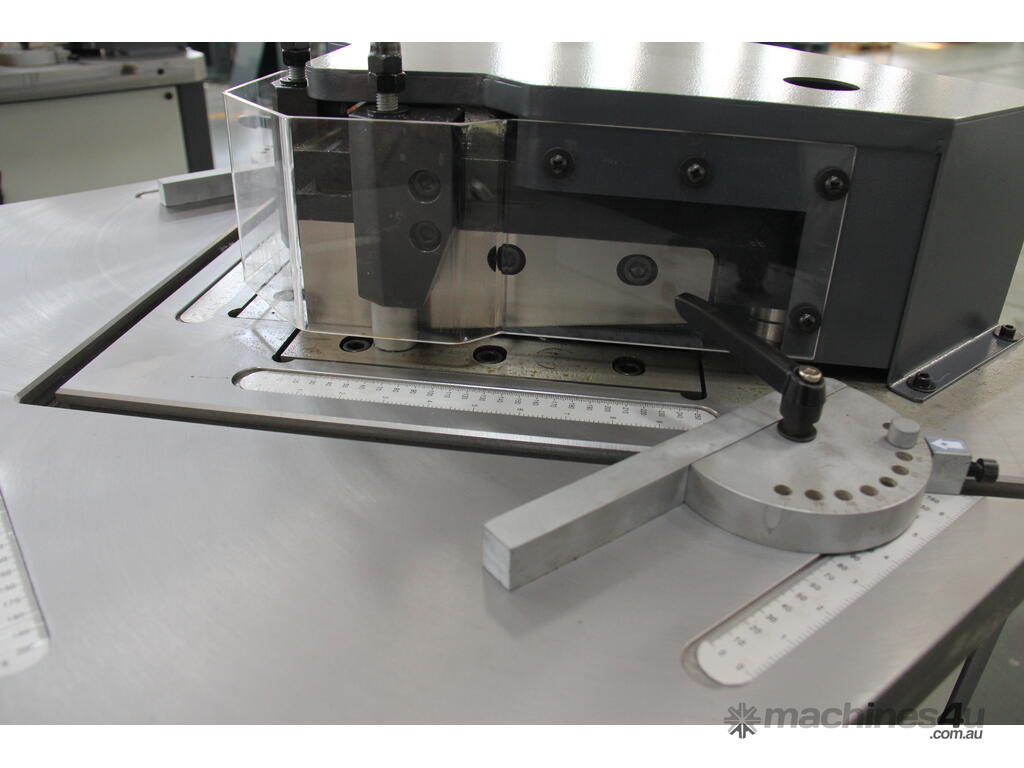

Safety & Visibility Notching. It features a transparent blade guard, allowing the operator to see scribed lines for manual alignment without exposing fingers to the cutting zone. The integrated emergency stop on the foot pedestal adds a necessary layer of safety.

Heavy-Duty Stability. Weighing 630kg, this machine is exceptionally stable. It minimizes vibration, which is crucial for achieving clean, burr-free edges that require no secondary finishing.

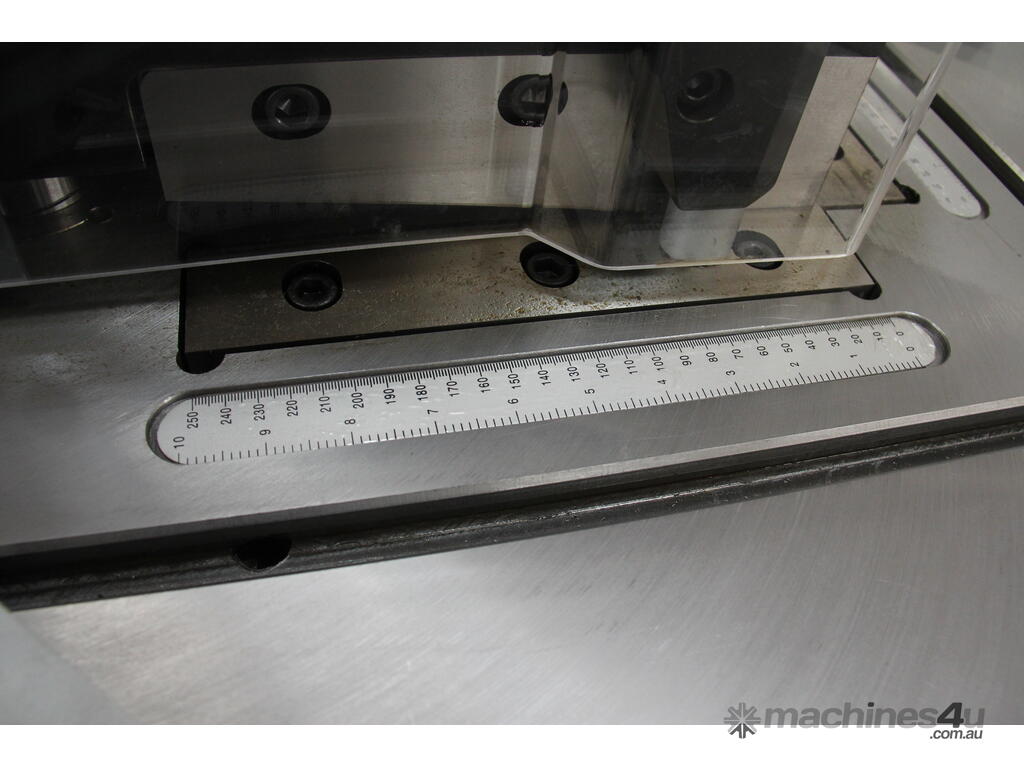

Versatile Setup Sheet Cutting Machine. The large 810 x 750mm table includes adjustable material stops and guides on both sides, making it easy to set up for repetitive tasks or custom one-off cuts.

Durability Sheet Metal Cutter. The notcher offers a higher build quality and longer service life compared to entry-level alternatives, making it suitable for serious fabricators.

Features

Runs on 415V power, 4.0 KW motor

Up to 12 MPa working pressure

Heavy-duty angle notcher, notching up to 6.5mm plate

Blade length 250mm

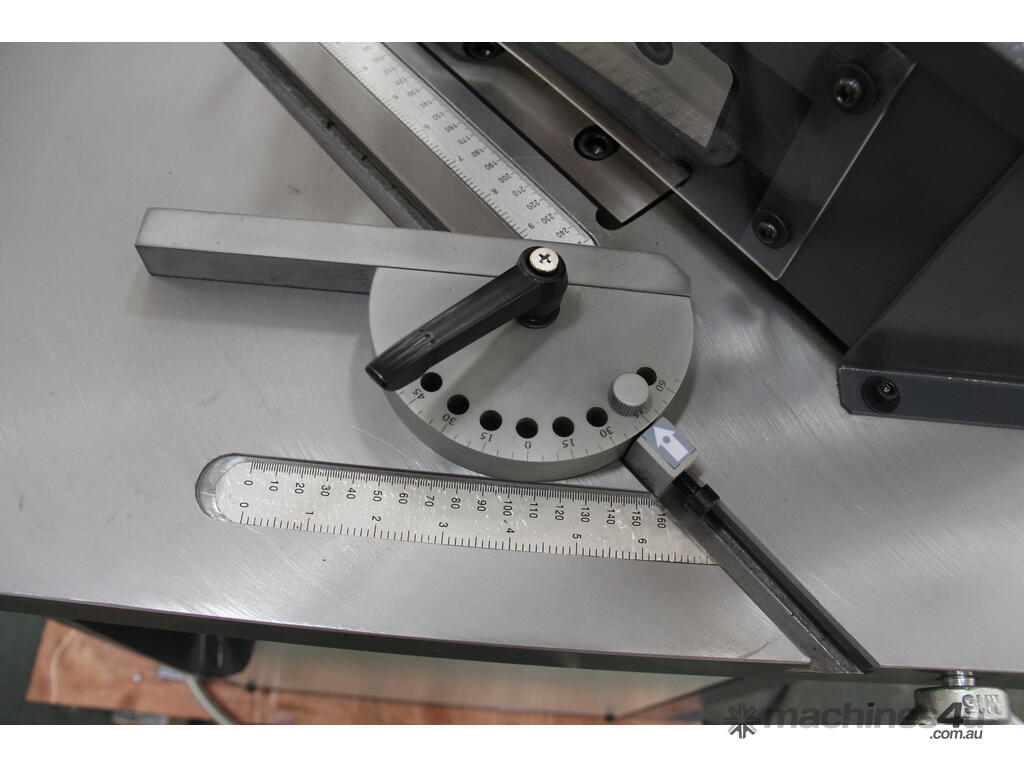

Adjustable stops with a fixed handle for quick setup notcher

Plastic cover over the cutting blade for safety notching, and see the cutting line

Hold down clamps to ensure the plate does not move when cutting the plate

Standard Included:

Cutting Blade Set

Transparent Blade Guard

Foot Pedal

OPTIONAL HYDRAULIC OIL

Specifications
SKU 172410
Model HNM-6
Cutting angle 90°
Max. cutting length 250 mm
Max. cutting thickness 6.5 mm
No. of stroke 24 times per min.
Table size 810x750 mm
Motor power 4 kW
Motor speed 1440 rpm
Oil tank volume 35L
Max. working pressure 12 MPA
Packing size 101x85x137 cm
N.W./G.W. 630/675 kg
