Hydraulic Power Unit - Kaman HP832 Custom Build - 45 kW Monarch Motor with Eaton Vickers Pump

UPC: 738009
Brand: Hägglunds
Condition: Opened - never used
Weight: 1 000.00 kg

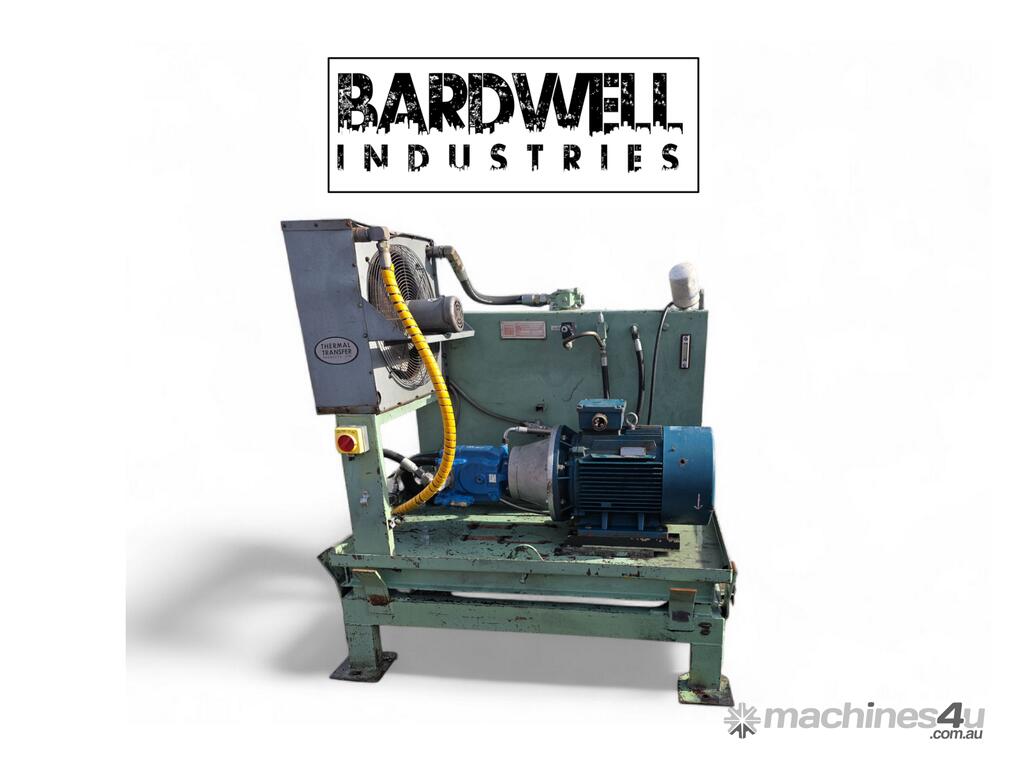

Hydraulic Power Unit - Kaman HP832 Custom Build - 45 kW Monarch Motor with Eaton Vickers Pump

Heavy-duty industrial hydraulic power pack designed for continuous, high-demand applications in mining, manufacturing, or pulp and paper industries.

Key Specifications:

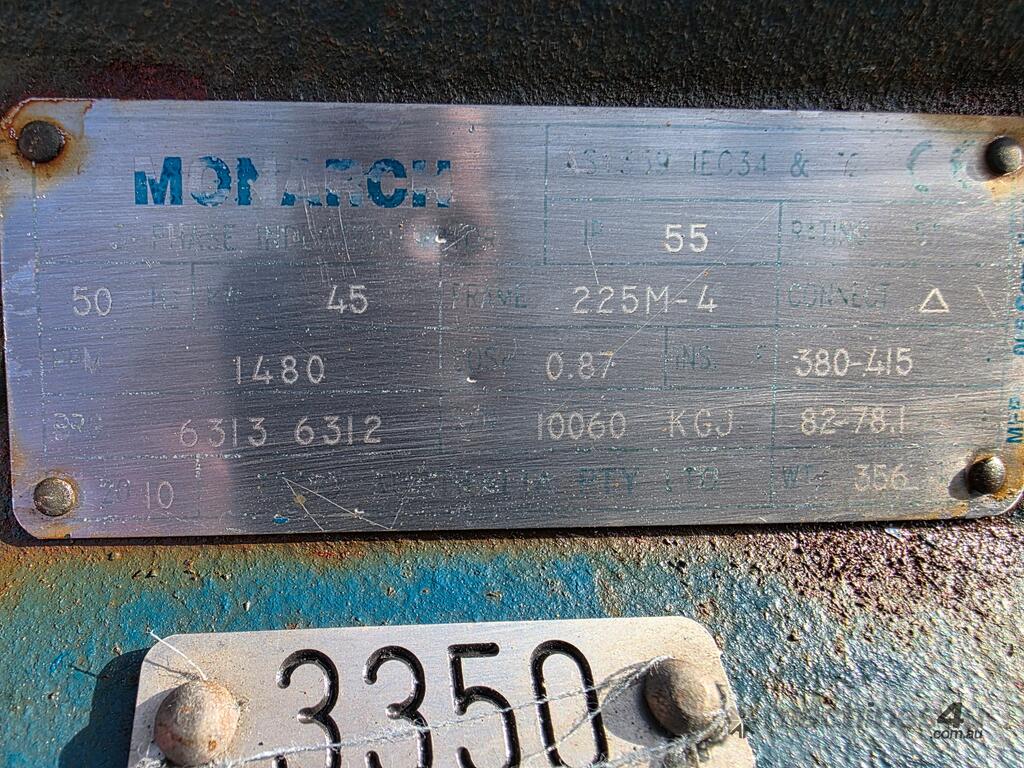

Motor:
• Brand: Monarch
• Power: 45 kW
• Speed: 1480 RPM
• Frame: 225M-4
• Voltage: 380-415V
• Bearings: 6313 & 6312
• Enclosure: IP55

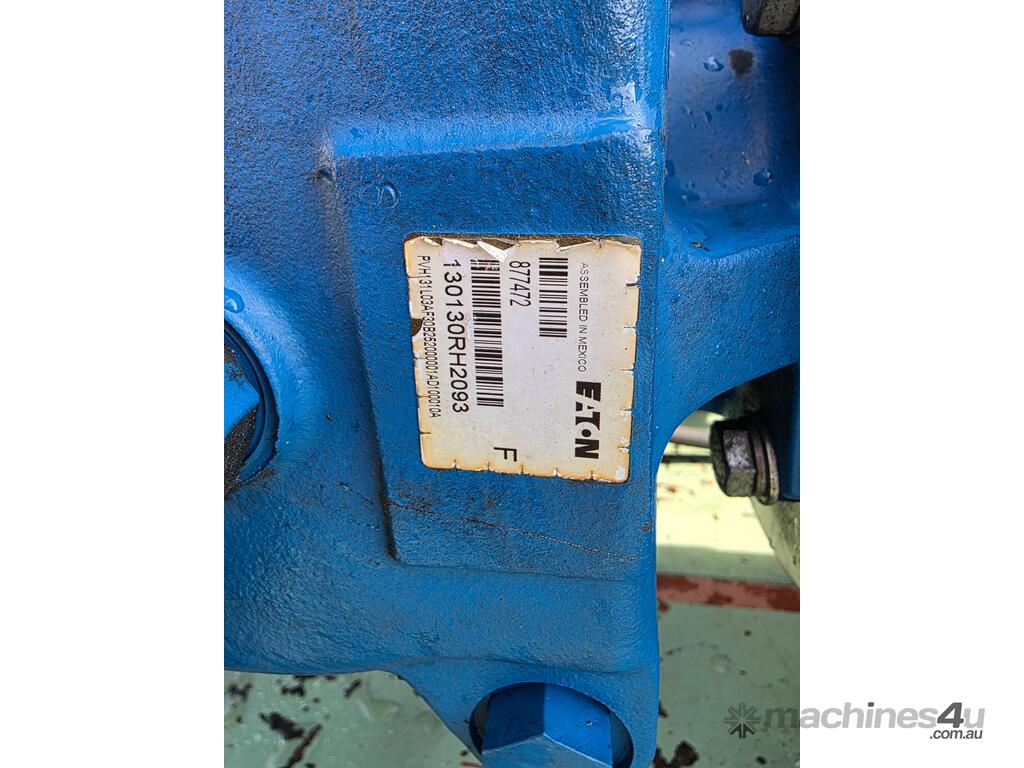

Hydraulic Pump:
• Brand: Eaton / Vickers
• Model: PVH131L03AF30BAD100010A
• Displacement: 131 cc/rev
• Max Pressure: 254 bar (3,684 psi)
• Flow Rate: Approx. 190 L/min at 1480 RPM
• Control: Pressure and flow compensated (load sensing)

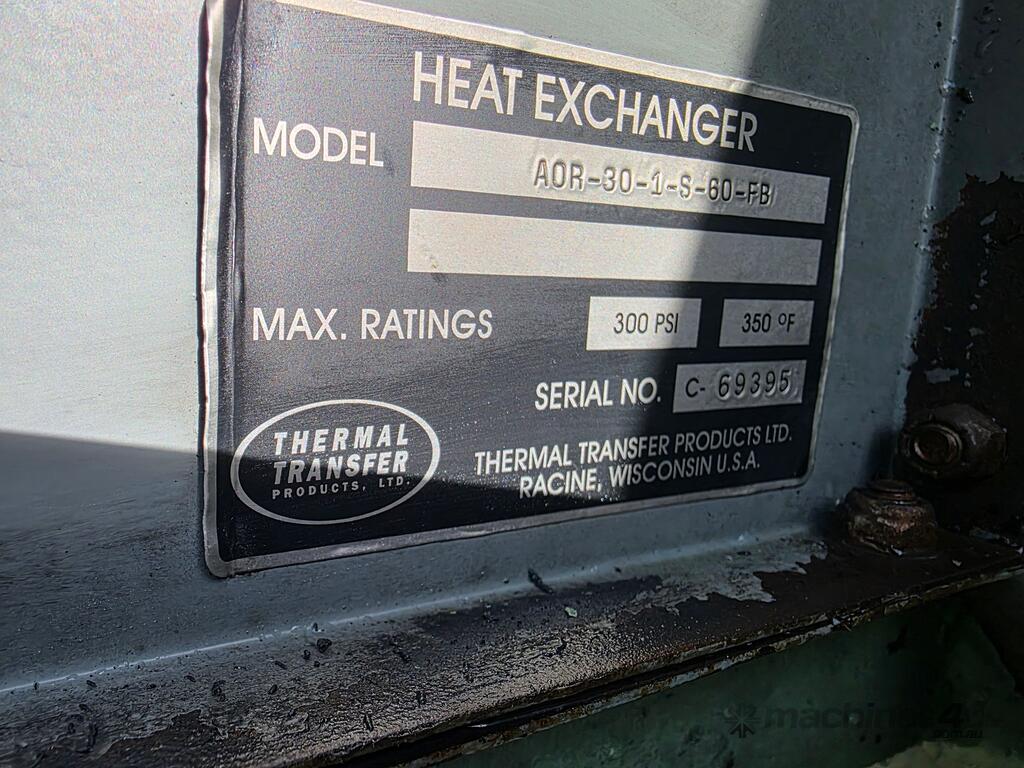

Heat Exchanger:
• Brand: Thermal Transfer Products
• Model: AOR-30-1-S-60-FB
• Max Rating: 300 PSI / 350°F
• Function: Hydraulic oil cooling

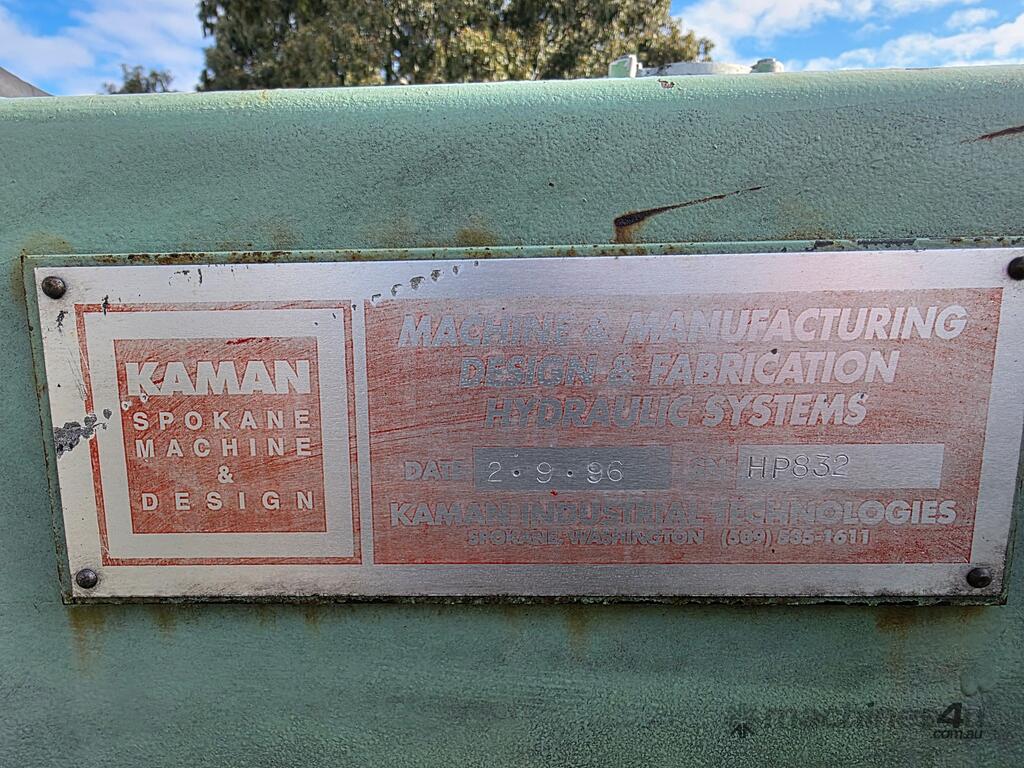

Build Plate:
• Builder: Kaman Industrial Technologies
• Unit Model: HP832
• Date Built:

Application:
This unit is ideal for powering large hydraulic actuators, presses, or continuous-duty process equipment. Suited to environments requiring consistent, high-pressure hydraulic output with integrated cooling.

Condition:
Used - good physical condition. Complete and intact with all nameplates and labeling visible.

Location: Morwell, VIC
Shipping: Available Australia-wide
